Baumalight SWA550 Boom Mower For Skid Steers

Description

Baumalight SWA550 Boom Mower For Skid Steers – BML-SWA550-D510-F2-JS4

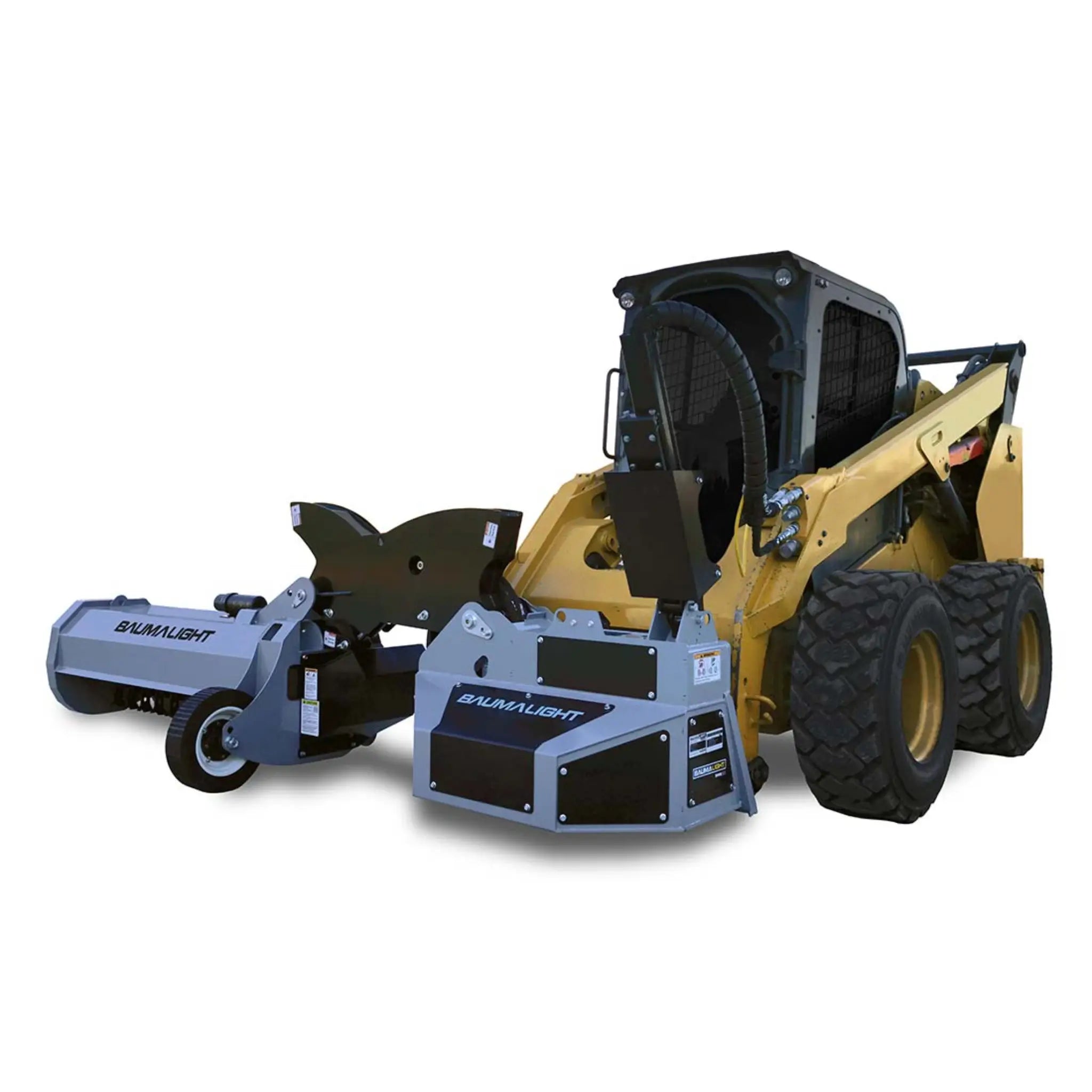

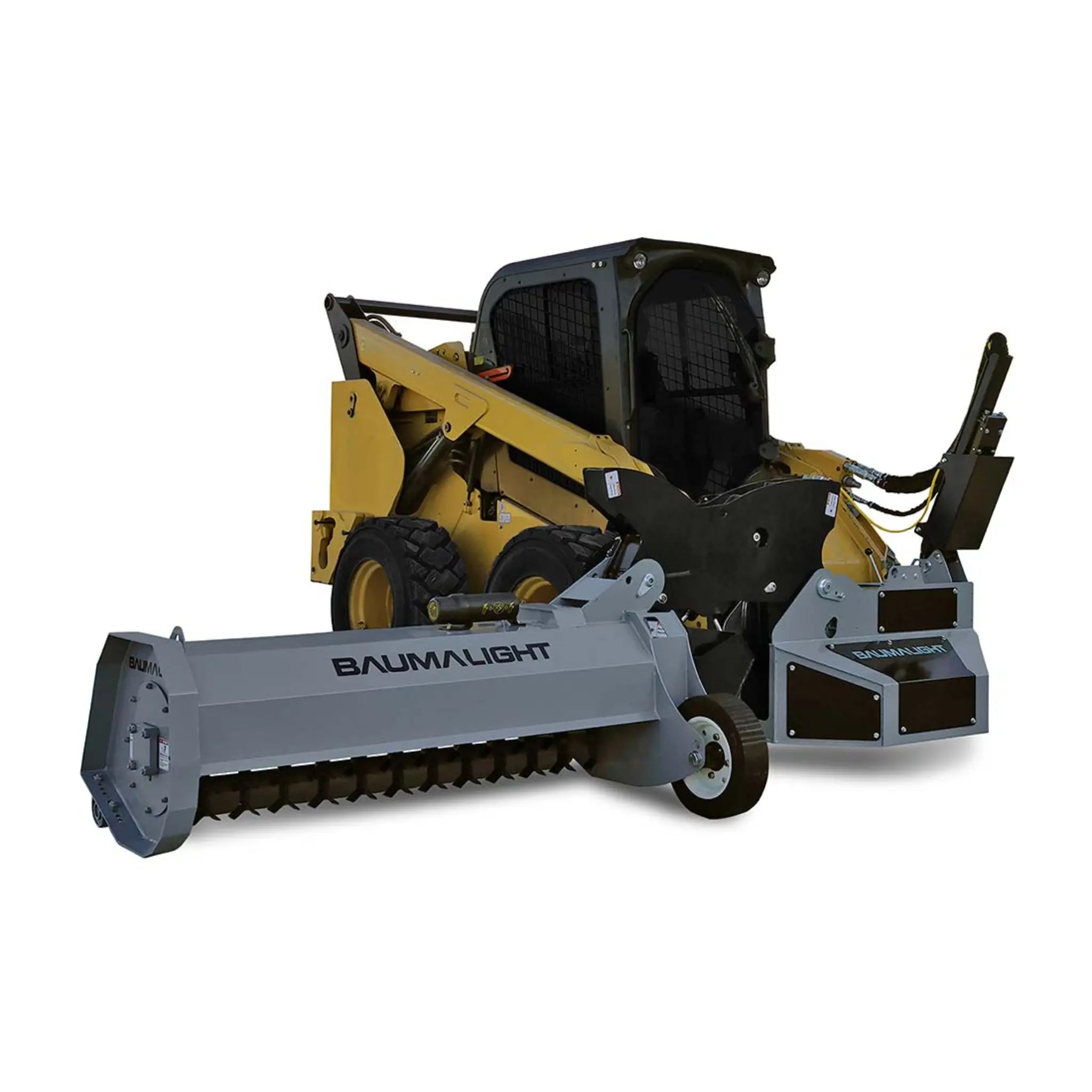

Effortlessly maintain ditches, roadsides, and fence lines with Baumalight’s SWA550 Boom Mower for Skid steers. Featuring a curved single-arm boom with a 7-foot reach and a 60″ wide mowing head, this mower is designed for carriers weighing at least 5,000 lbs. The flat-free tire creates a floating deck for easy transport between projects.

The SWA550 Boom Mower

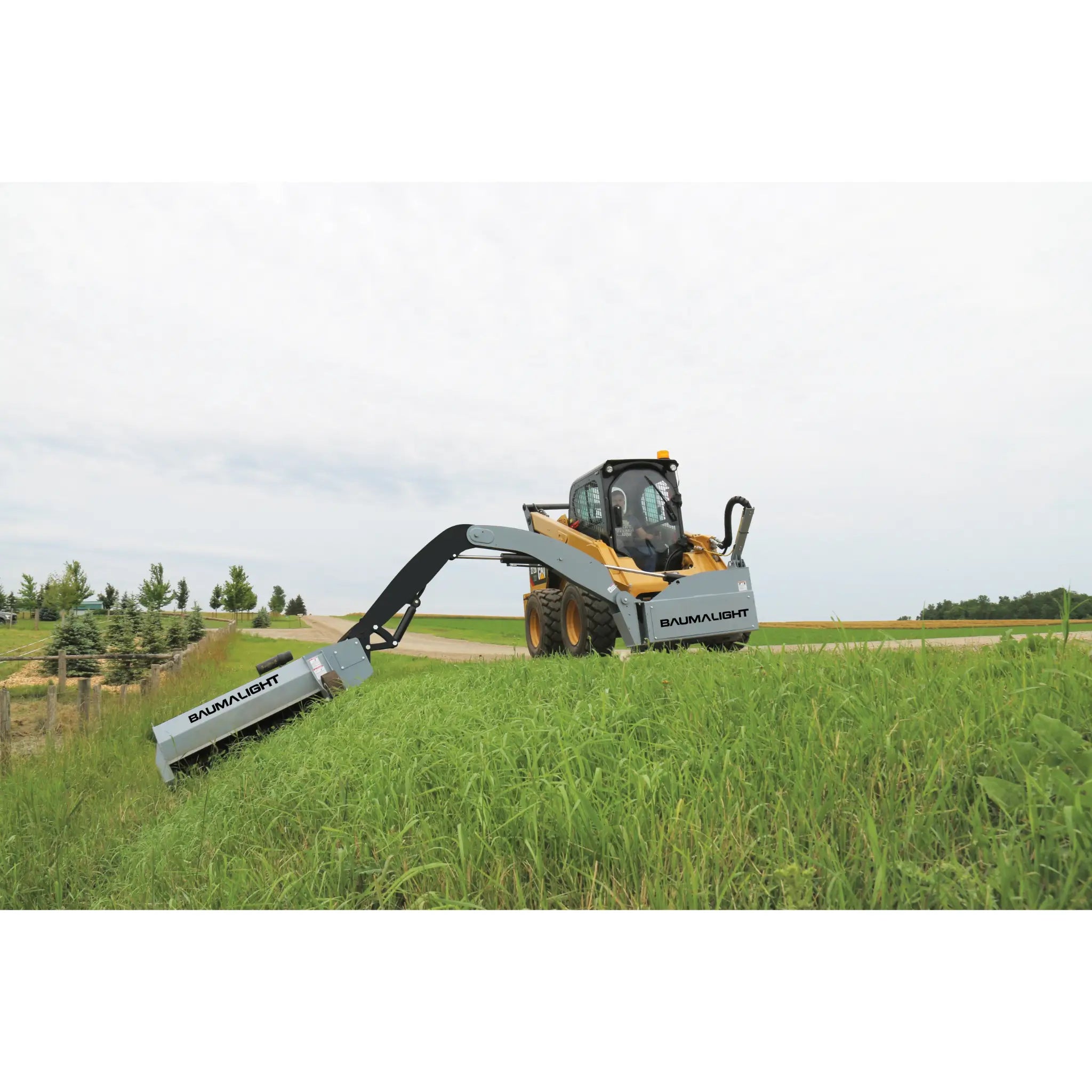

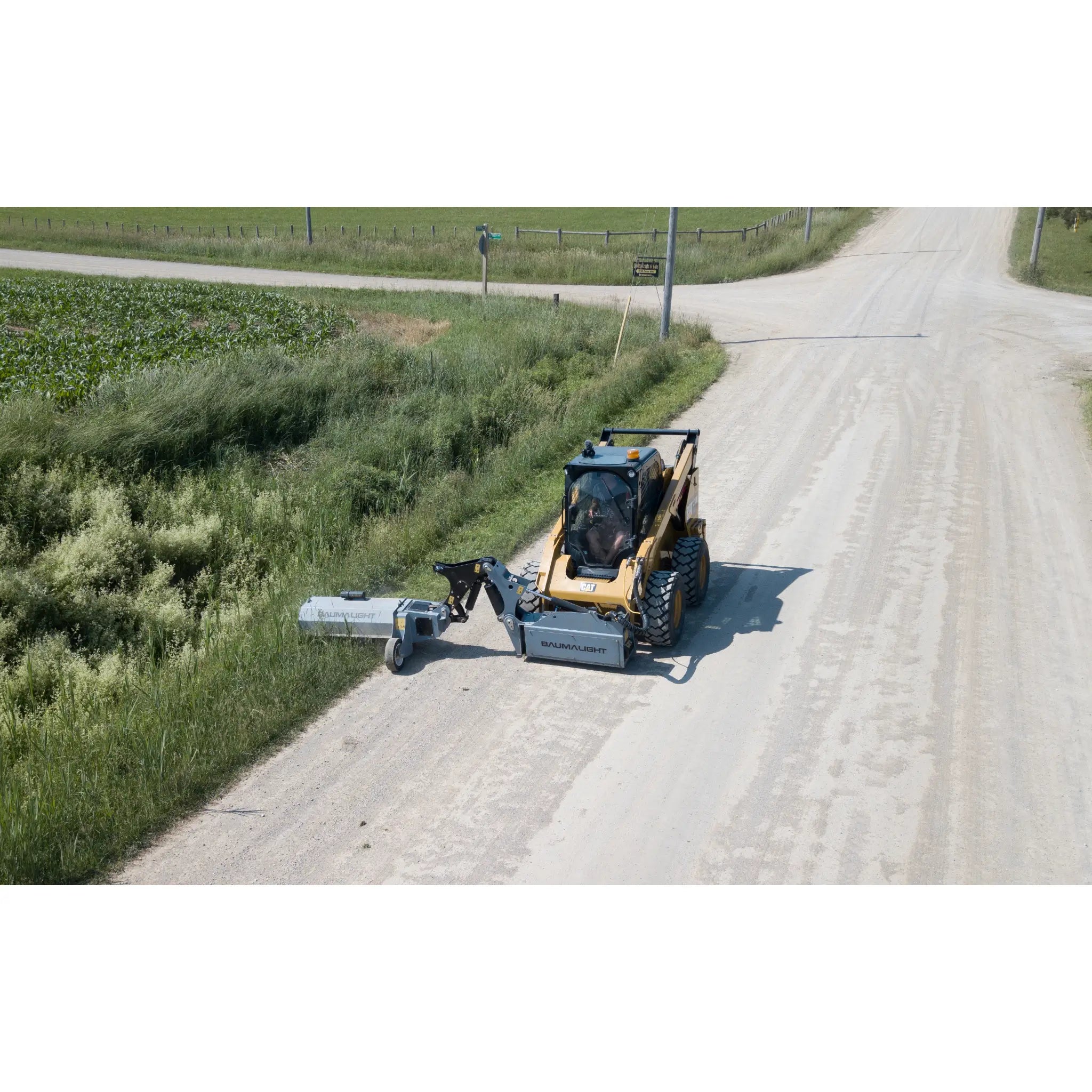

Baumalight’s SWA550 Boom Mower for Skidsteer allows you to easily access hard-to-reach grass and brush. With a 7-foot reach, the curved single-arm boom is ideal for maintaining your ditches, roadsides, and fence lines.

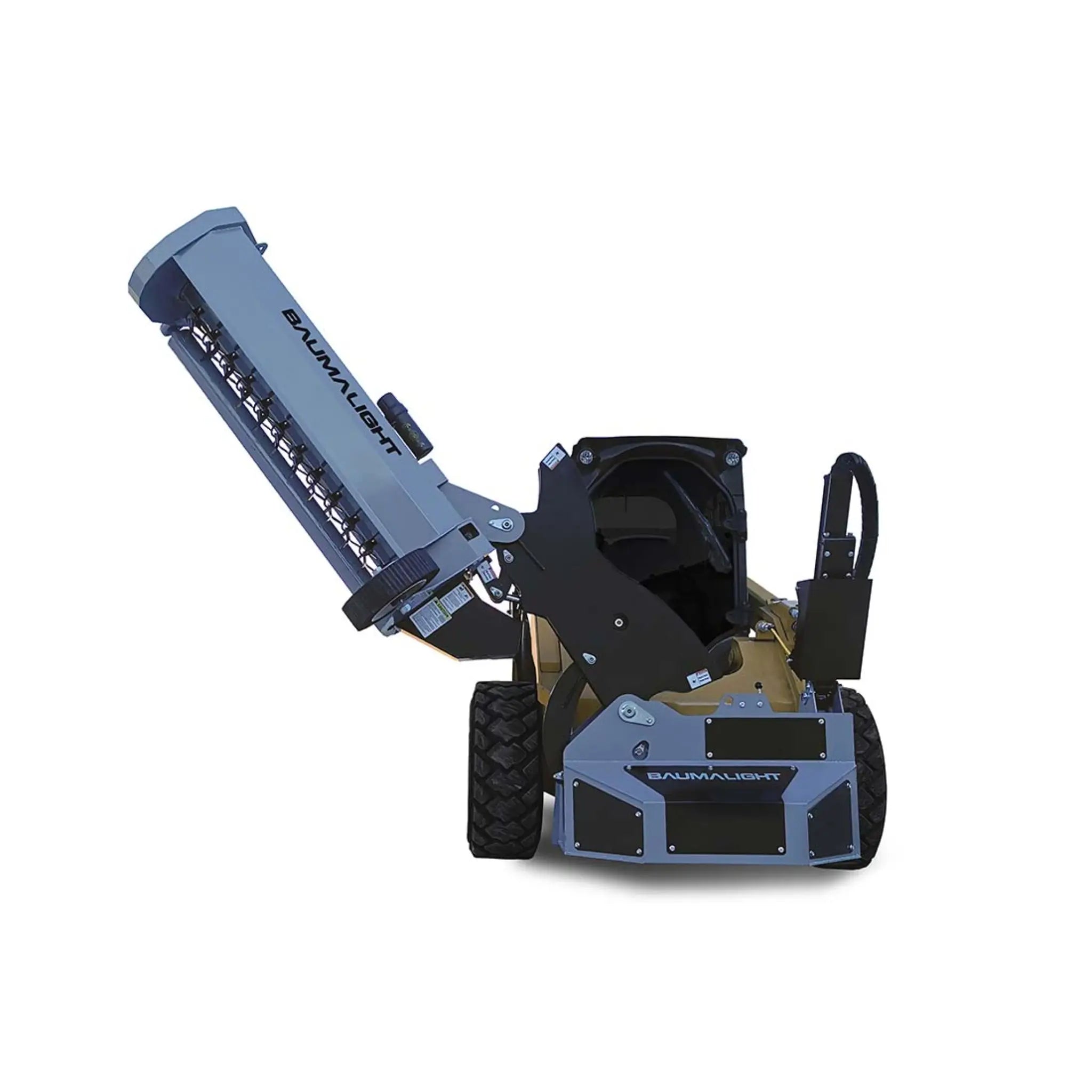

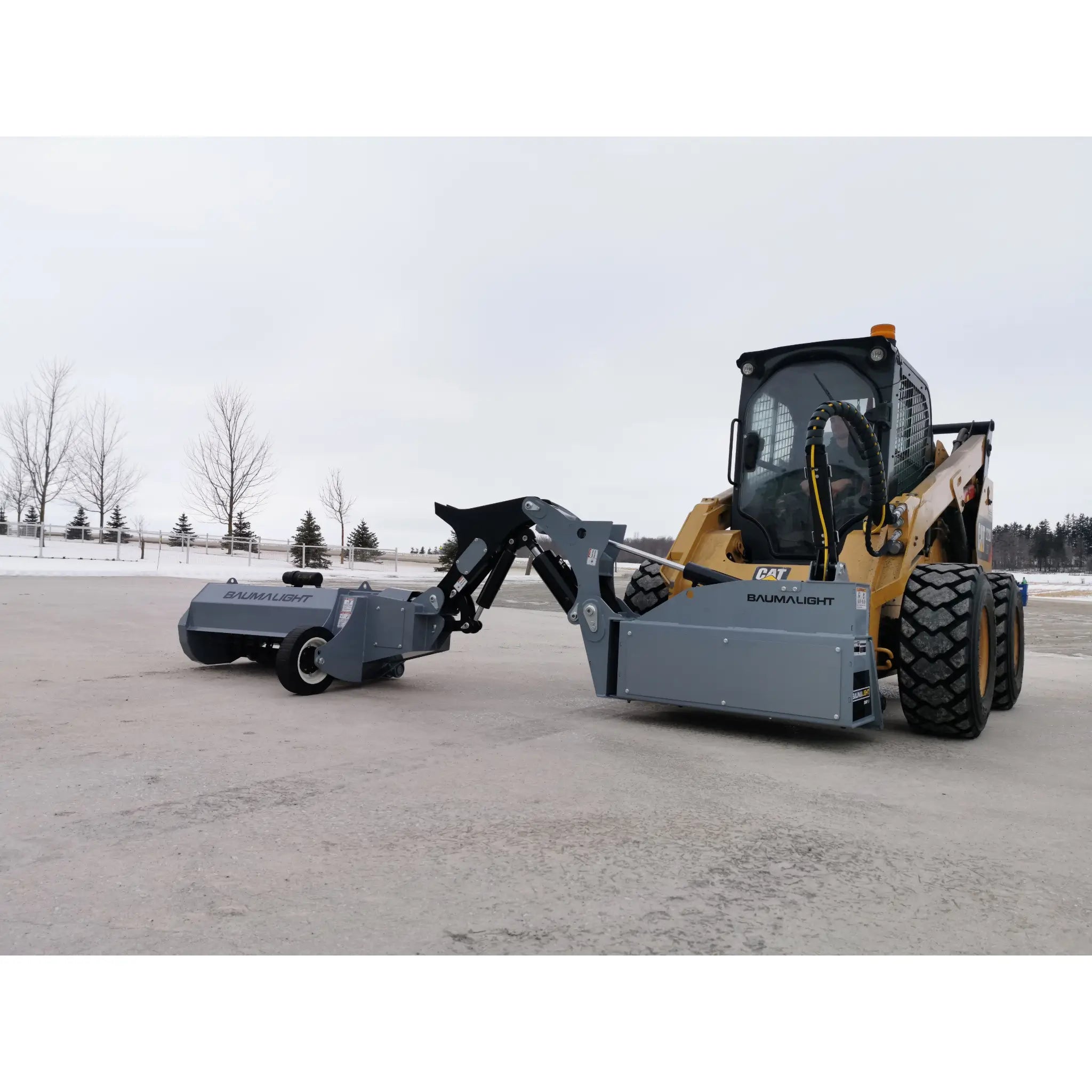

The SWA550 is designed to work with skid steers with a minimum carrier weight of 5,000 lbs. This ditch mower has a full 60” wide mowing head and features our 200 series flail teeth. The head is supported by a durable solid flat-free tire that creates a floating deck, relieving the weight off the skid steer. When it’s time to move on to the next project, the boom conveniently folds up for travel.

Specifications

Model No.	SWA540	SWA550	SWA560	SWF560	SWF580	SWA750
Total reach when flat	6 ft	7 ft	10 ft	10 ft	14 ft	7 ft
Cutting Width	48″	60″	60″	48″	48″	42″
Boom Type	Single Arm	Single Arm	Single Arm	Boom & Stick	Boom & Stick	Single Arm
Type of Blades	Flail	Flail	Flail	Flail	Flail	Rotary cutter
Minimum Skidsteer weight Warning; not applicable to wheel loaders	4,500 lbs	5,000 lbs	5,500 lbs	6,000 lbs	8,000 lbs	8,000 lbs
Maximum Skidsteer weight	10,500 lbs	11,000 lbs	12,000 lbs	12,000 lbs	16,000 lbs	12,000 lbs
Requires Case Drain	Yes	Yes	Yes	Yes	Yes	Yes
Hydraulic Hose & Couplers	Hose only	Hose only	Hose only	Hose only	Hose only	Hose only
Max PSI	4,500	4,500	4,500	4,500	4,500	4,500
Motor type	Piston	Piston	Piston	Piston	Piston	Piston
Estimated dealer set-up time	6 hours	6 hours	6 hours	8 hours	9 hours	7 hours
No. of blade clusters F2000(Standard)	38	48	48	38	38	–
No. of blade clusters F3000(Optional)	76	96	96	76	76	–
Shipping weight	1775 lbs	1900 lbs	1750 lbs	1650 lbs	1800 lbs	2050 lbs

Motor options – brush size chart

Maximum Mowing Size
(Brush Diameter in Inches)

MOTOR	MOTOR TYPE	CC	CASE DRAIN	IDEAL RPM	BLADE STYLE	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM
RPM							1500	2000	2500	3000	3500
D510	Piston	34	Critical	2200	F2000	3000 3500	0.375″ 0.5″	0.5″ 0.75″	0.75″ 0.75″	N/A	N/A
D510	Piston	34	Critical	2200	F3000	3000 3500	0.75″ 1″	1″ 1″	1″ 1″	N/A	N/A

MOTOR	MOTOR TYPE	CC	CASE DRAIN	IDEAL RPM	BLADE STYLE	PSI	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM
RPM							1000	1500	1800	2100	2500
D530	Piston	47	Critical	2100	F2000	3000 3500	0.5″ 0.75″	0.75″ 0.75″	0.75″ 0.75″	0.75″ 0.75″	0.75″ 0.75″
D530	Piston	47	Critical	2100	F3000	3000 3500	1″ 1″	1″ 1″	1″ 1″	1″ 1″	1″ 1″

Video

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.

Additional information

Weight	199 kg
Motor Option	D510 Piston Motor (20 – 30 GPM), D530 Piston Motor (20 – 40 GPM)
Blade Style	F2000 Standard Flail Blades, F3000 Heavy-Duty Flail Blades
Controller Kit	Machine Joystick Control Kit – 14-pin plug / 4 live pins, Machine Joystick Control Kit – 14-pin plug / 3 live pins, Baumalight Control Box – 14-pin plug / 4 live pins, Baumalight Control Box – 14-pin plug / 3 live pins, Bobcat Joystick Control Kit – 7-pin plug / 4 live pins
