Description

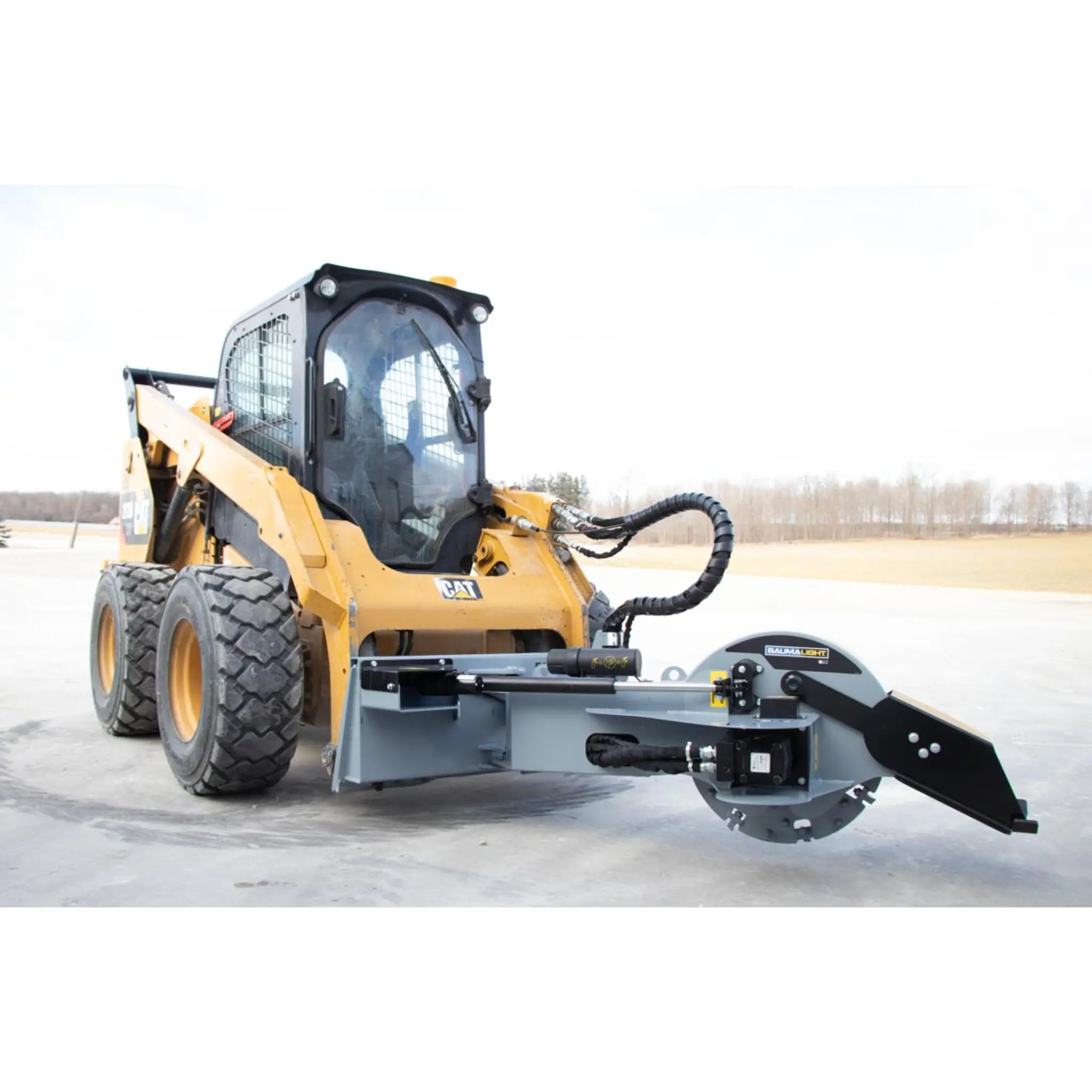

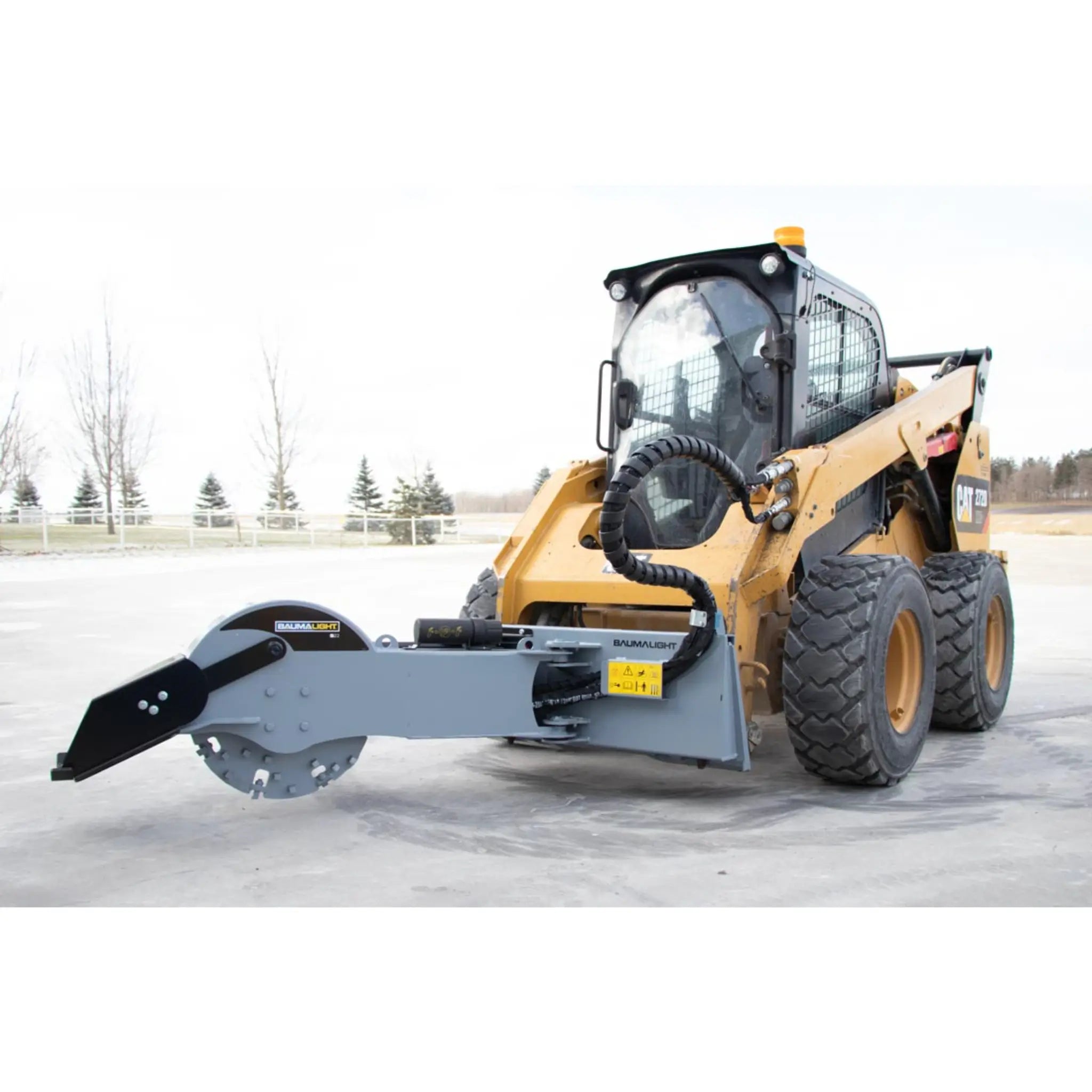

Baumalight S22 Stump Grinder With 12V Swing Actuator For Skid Steers – BML-S22-S450-AUX
This innovative model uses a 12V electric linear actuator for enhanced torque and efficient grinding, bypassing traditional hydraulic systems. The S22 boasts three-sided carbide teeth that project 1-ΒΌ inches for optimal clearance. Durability is guaranteed with hardened steel bushings and greaseable pins, designed to resist corrosion and ensure smooth operation.
Baumalight S22 Stump Grinder
Specifications
Model No. | S14 | S16 | S18 | S22 | S24 | S28 | S40 |
---|---|---|---|---|---|---|---|
Recommended HP Size | Mini Skidsteer | Mini Skidsteer | 25-80 | 25-65 | 30-80 | 50-120 | 50-120 |
Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI | Check GPM & PSI |
Motor Type | Gerotor | Bent Axis Piston | Gerotor | Gerotor | Gerotor | Gerotor | Bent Axis Piston |
Hydraulic GPM | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart | Check Stump Cutting Size Chart |
Rotor Size | 18″ | 18″ | 24″ | 24″ | 24″ | 24″ | 24″ |
Number of Teeth | 12 | 24 | 34 | 34 | 34 | 34 | 20 |
Tooth Part number | H3000 | H3000 | S1000 | S1000 | S1000 | S1000 | H3000 |
Tooth Construction | High speed | High speed | Planer | Planer | Planer | Planer | High speed |
Cutting Wheel Speed | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM | Depends on GPM |
Cutting Height – Above Ground | No limit | No limit | No limit | No limit | No limit | No limit | No limit |
Cutting Depth – Below Ground | 6″ | 6″ | 10″ | 10″ | 10″ | 10″ | 24″ |
Maximum Cutting Depth – Per Pass | 2″ | 2″ | 5″ | 6″ | 6″ | 6″ | 1″ |
Maximum Horizontal Cut | 12″ | 12″ | 22″ | 22″ | 22″ | 22″ | 22″ |
Swing Arc | Self-feeding | 56Β° | Self-feeding | 60Β° | 60Β° | 63Β° | 85Β° |
Hub Torque | 150 Ft.-Lbs. | – | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 250 Ft.-Lbs. | 803 Ft.-Lbs. | – |
Over Torque Protection | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Relieve valve | Remote |
Hitch | 1″ pivot pins | 1″ pivot pins | Mini Plate | Quick Attach | Quick Attach | Quick Attach | Quick Attach |
No. of Remotes Required – Hydraulic | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Requires 12 Volt DC | No | Yes | No | Yes | Yes | Yes | Yes |
Unit Weight (Shipping) Lbs. | 394 | 400 | 642 | – | 995 | 995 | 1,200 |
Β
