Baumalight MX960R Fixed Tooth Brush Mulcher For 18-33 Ton Excavators - BML-MX960R-C940-EWC12-15-B

Description

Baumalight MX960R Fixed Tooth Brush Mulcher For 18-33 Ton Excavators – BML-MX960R-C940-EWC12-15-B

Optimize your excavator’s capability with the Baumalight MX960R Fixed Tooth Mulcher, tailor-made for machines weighing 18-33 tons. Featuring a robust 60″ rotor, this mulcher comes equipped with durable R9000 double carbide-tipped teeth, designed to withstand heavy vegetation and occasional stones. Constructed from high-strength AR400 steel, it offers a lightweight yet heavy-duty solution with replaceable wear plates.

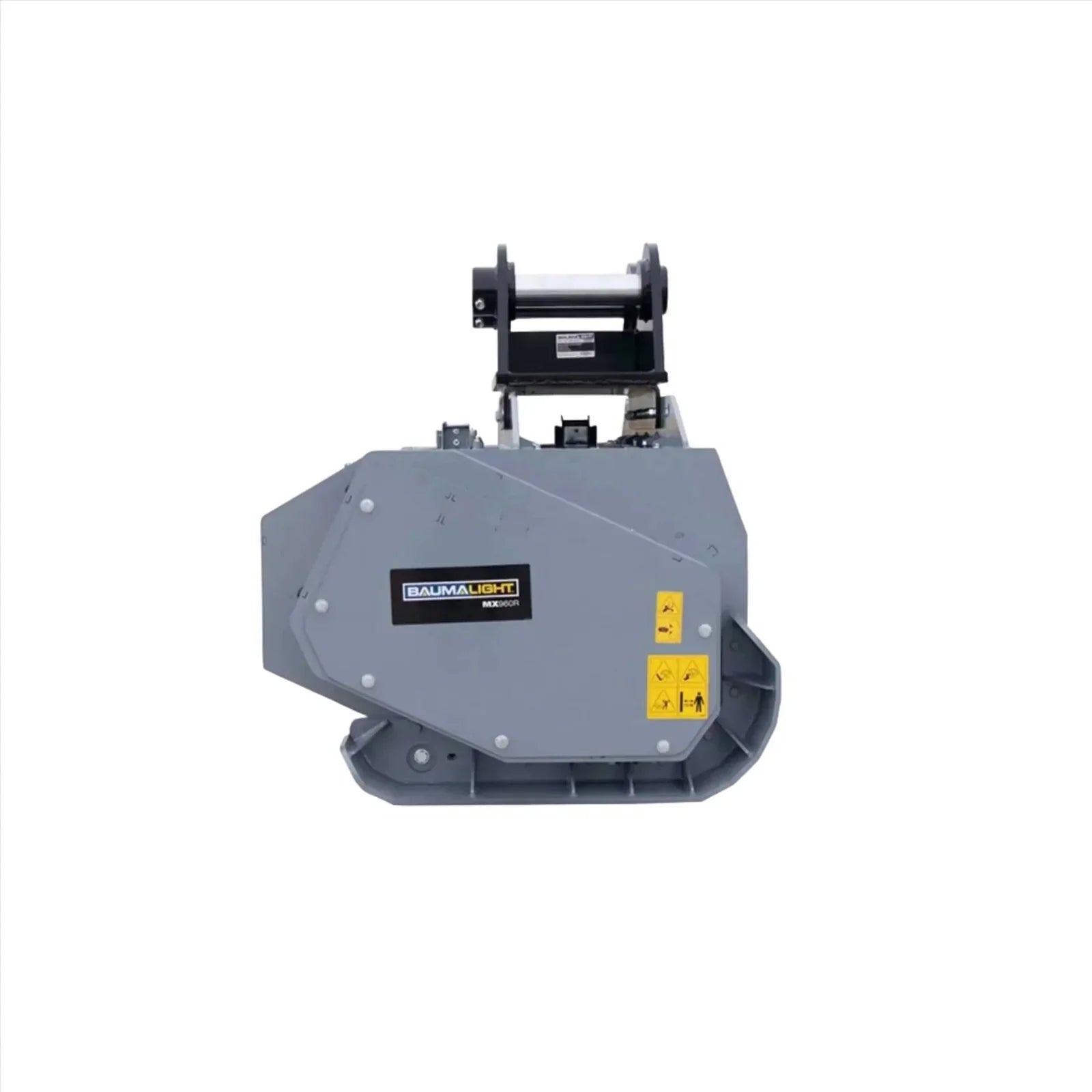

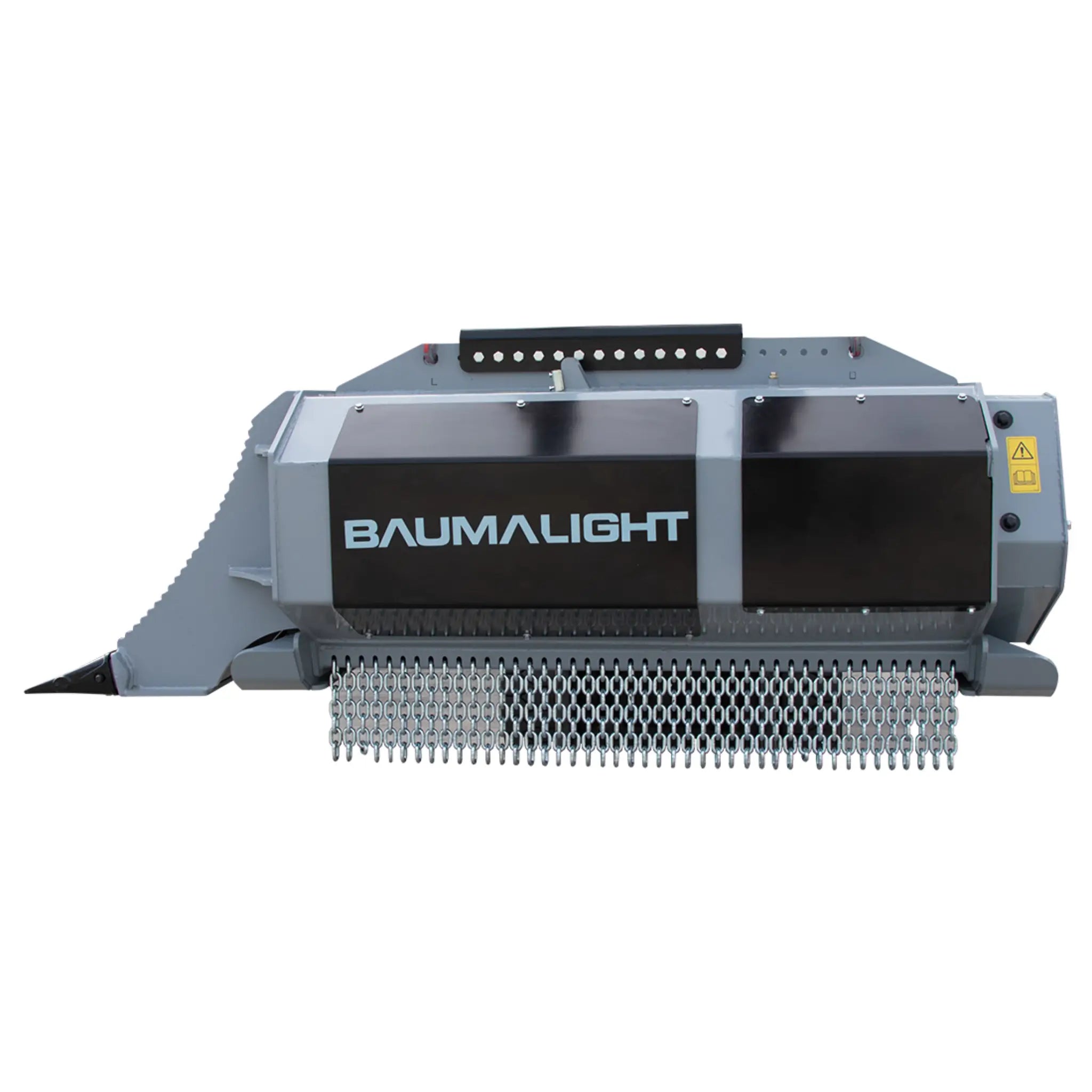

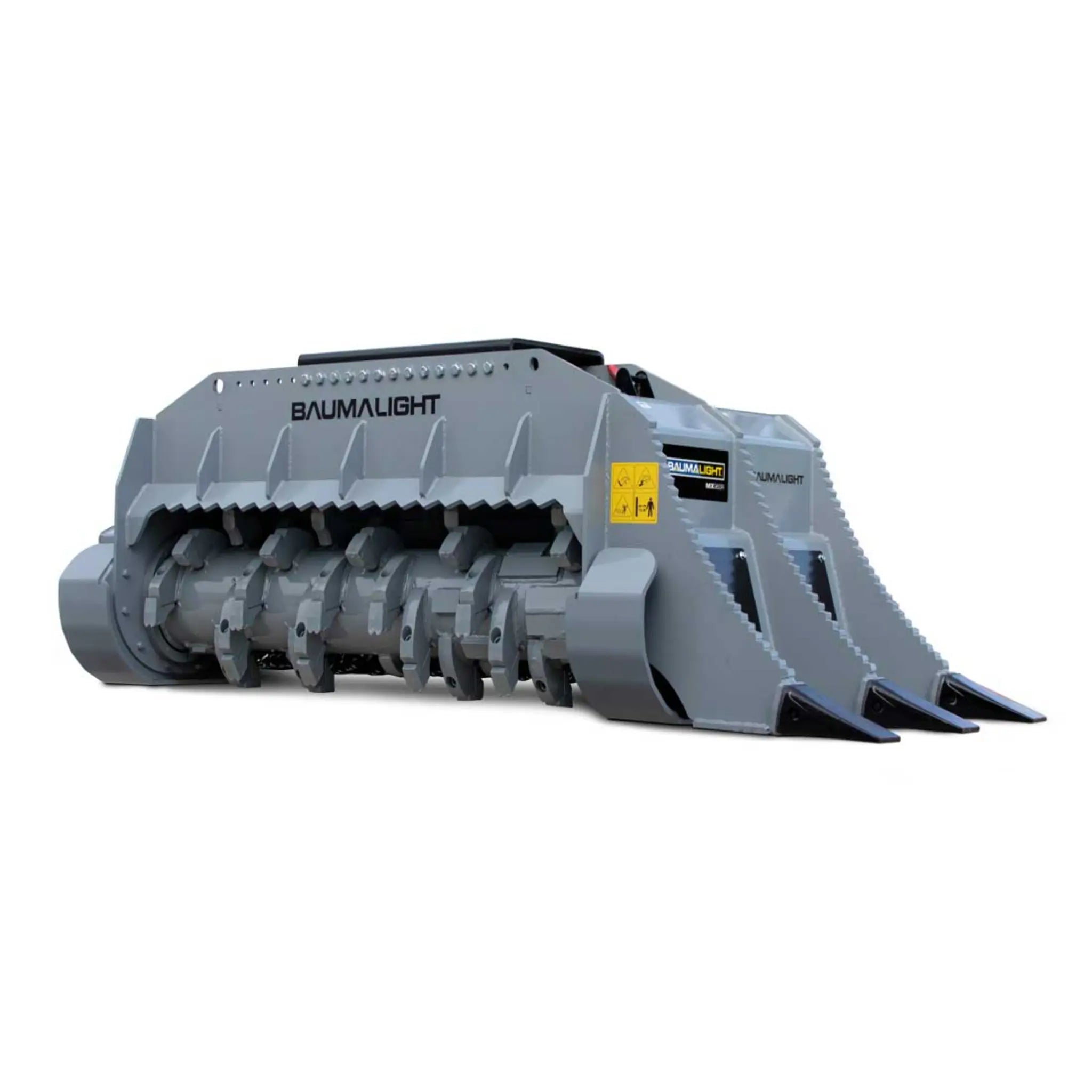

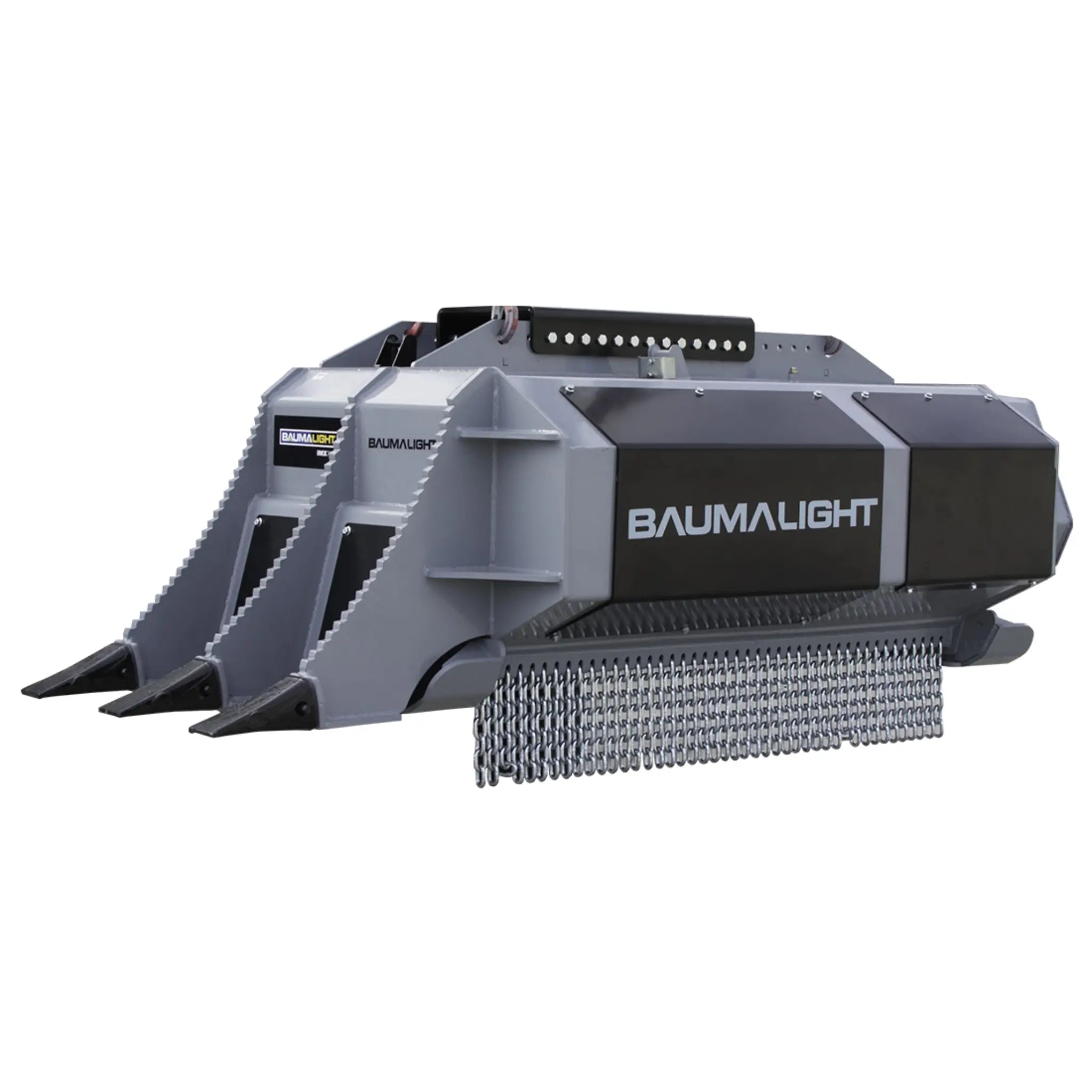

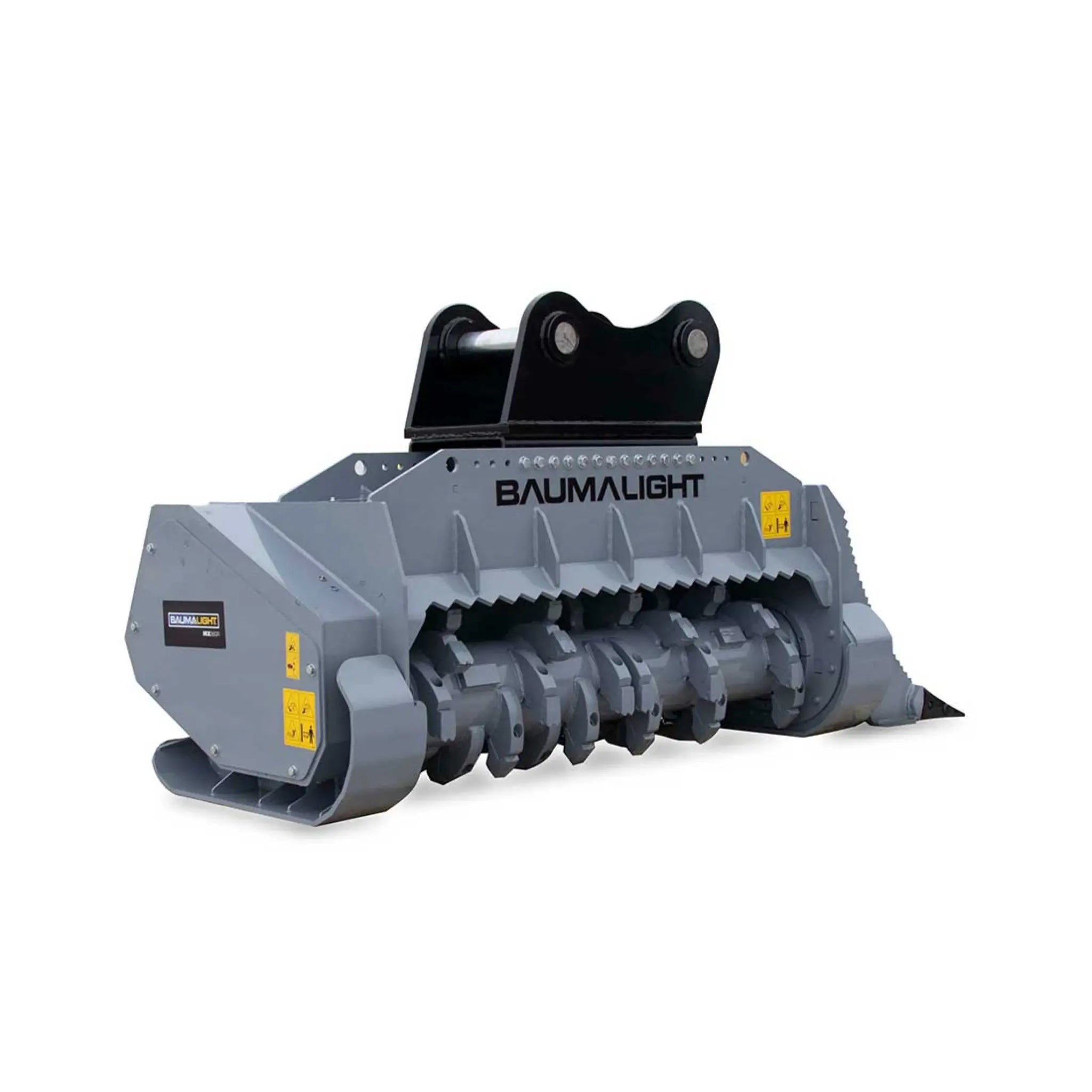

Baumalight MX960R Mulcher

The Baumalight MX960R Fixed Tooth Mulcher for Excavatorsstands as a paragon of strength and efficiency for heavy-duty brush clearing. Designed to pair with excavators weighing between 18 to 33 tons, this mulcher features a robust 60-inch rotor. It’s equipped with double carbide-tipped teeth (R9000), renowned for their resilience against tough vegetation and occasional stones, ensuring long-lasting performance and minimal downtime.

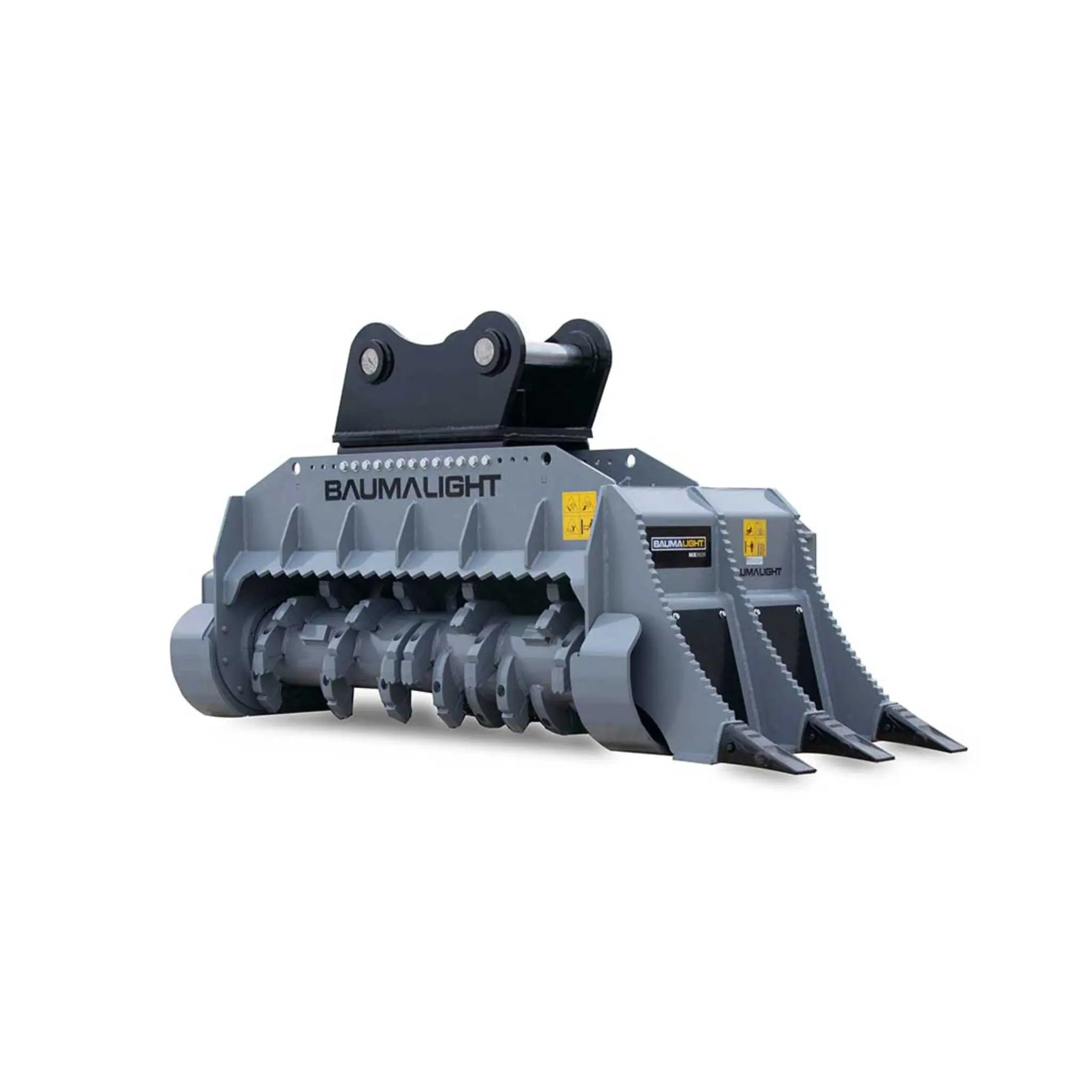

Durability is paramount in the MX960R’s design, crafted from high-strength, low-weight AR400 steel. This not only enhances the mulcher’s structural integrity but also includes replaceable body wear plates for extended equipment life. Integral to its functionality, the rotor is flanked by aggressive root rake ripper teeth built into the frame, adept at excavating rocks and repositioning logs, making it a versatile tool for comprehensive land management.

Specifications

Model No.	MX230	MX330	MX530	MX530R	MX548R	MX948R	MX960R	MX1160R
	A02	A02	A02	A02	A03	A03	A03	A03
Path Width	38″	38″	40″	40″	62″	70″	90″	90″
Rotor Width	30″	30″	30″	30″	48″	48″	60″	60″
Minimum Tracked Excavator Ton	2	3	4	4	7	12	18	18
Minimum Wheeled Excavator Ton	4	5	6	6	9	15	21	21
Max Tracked Excavator Ton	6	8	12	12	20	30	33	33
Max wheeled Excavator Ton	8	10	14	14	22	33	36	36
Cutting Depth	Level	Level	1.5″ Above to 1″ Below Grade	1.5″ Above to 1″ Below Grade	1.5″ Above to 1″ Below Grade	Level	Level	Level
Holder Style	Swing	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Cutting Style	Flail	High Speed Teeth	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Double Tipped Carbide	Double Tipped Carbide	Sharpenable Planer teeth
Tooth Part number	F2000	H3000	P5000	P5000	P5000	R9000	R9000	P11000
Number of cutters	22	36	44	44	72	27	38	31
Rotor Shaft Size	1.5″	2″	2″	2″	2″	2″	2″	2″
Rotor Diameter (tool tips)	17.25″	15″	15″	15″	15″	18.5″	18.5″	18.5″
Rotor Weight (with tools)	125 lbs	175 lbs	300 lbs	300 lbs	408 lbs	617 lbs	860 lbs	872 lbs
No. of Motor	1	1	1	1	1	1	1	1
Case Drain	Not important	Not important	See motor options	See motor options	Critical	Critical	Critical	Critical
Unit Weight	500 lbs	750 lbs	1036 lbs	1166 lbs	2167 lbs	2838 lbs	2910 lbs	2925 lbs

Motor options – brush size chart

Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
900 Series

MOTOR	PSI	CASE DRAIN	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	45 GPM	50 GPM	55 GPM	60 GPM	65 GPM	70 GPM	75 GPM
RPM			1450	1800	2100
C930 Bent Axis Piston	2500 3000 3500 4000	Critical	3.5″ 4″ 4.5″ 5.5″	4.5″ 5″ 5.5″ 6″	5.5″ 6″ 6.5″ 7″	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —
RPM				1500	1800	2100
C940 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	4.25″ 4.75″ 5.25″ 5.75″	6.25″ 6.5″ 6.75″ 7″	6.5″ 7″ 7.5″ 8″	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —
RPM					1600	1875	2140
C950 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	— — — —	5.5″ 6″ 6.5″ 6.75″	7″ 7.5″ 8″ 8.5″	7.5″ 8″ 8.5″ 9″	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —
RPM						1400	1630	1830	2030
C970 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	— — — —	— — — —	5.5″ 6″ 7.5″ 8″	6″ 6.5″ 7″ 7.5″	7.5″ 8″ 8.5″ 9″	8″ 8.5″ 9″ 9.5″	— — — —	— — — —	— — — —	— — — —	— — — —
RPM								1400	1570	1750	1900
C990 Bent Axis Piston	3000 3500 4000	Critical	— — — —	— — — —	— — — —	— — — —	— — — —	6″ 6.5″ 7″	8.5″ 9″ 10″	10″ 10.5″ 11″	10.5″ 11″ 12″	— — — —	— — — —	— — — —
RPM			Adjustable
D97X2 Two speed	2500 3000 3500 4000	Critical	4.25″ 5″ 5.5″ 6.75″	5.5″ 6.25″ 6.75″ 7.5″	7.75″ 8″ 8.5″ 8.75″	8.75″ 9.25″ 10″ 10.5″	9.25″ 10″ 10.5″ 11.25″	10.25″ 11″ 11.5″ 12.25″	11.25″ 12″ 12.5″ 13.25″	12.25″ 13″ 13.5″ 14.25″	13.25″ 14″ 14.5″ 15.25″	14.25″ 15″ 15.5″ 16.25″	15.25″ 16″ 16.5″ 17.25″	16.25″ 17″ 17.5″ 18.25″

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.

Additional information

Weight	2910.0 kg
Motor Option	C940 Bent-Axis Piston Motor, C950 Bent-Axis Piston Motor, C970 Bent-Axis Piston Motor, C990 Bent-Axis Piston Motor, D97X2 Two-Speed Motor
Excavator Weight Class	16 – 19 Ton Excavators, 12 – 15 Ton Excavators, 20 – 22 Ton Excavators, 23 – 29 Ton Excavators, 29 – 33 Ton Excavators
Mount Option	Blank Weld-On Plate Only, Wedge-Style Coupler (Fit to your machine), Pin-On / Pin-Grabber-Style Coupler (Fit to your machine), Wain-Roy / Cross-Pin-Style Coupler (Fit to your machine)
