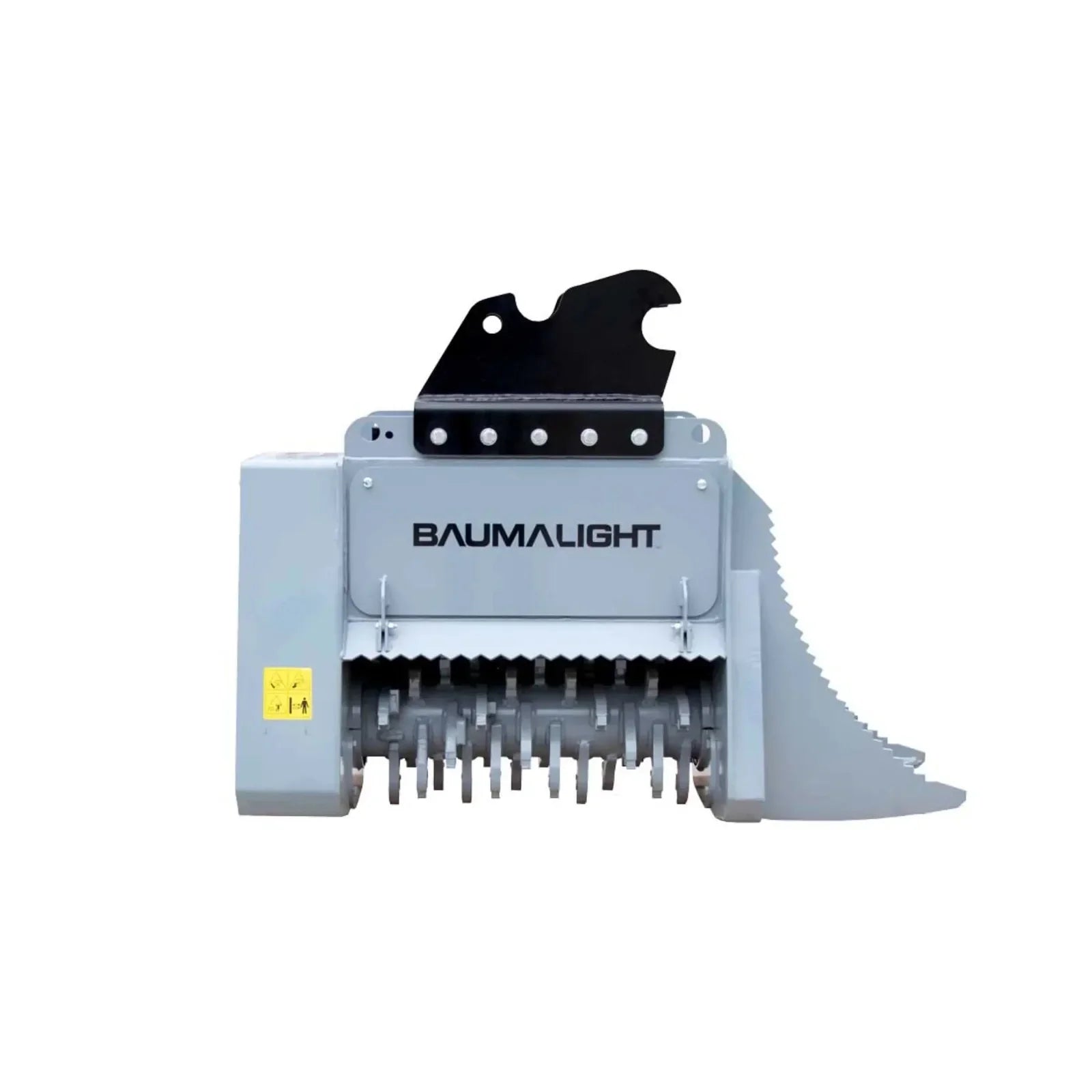

Baumalight MX530R Fixed Tooth Brush Mulcher For 4-12 Ton Excavators

Description

Baumalight MX530R Fixed Tooth Brush Mulcher For 4-12 Ton Excavators – BML-MX530R-A450-EWC1.5-6-B

The Baumalight MX530R Fixed Tooth Mulcher is tailored for 4-12 ton excavators, designed to clear fence lines and manage contractor work. Its standout feature is a built-in root rake to clear logs and debris effortlessly. With two cutting teeth options: a Planer for precise mulching and a Ripper for rugged shredding, the MX530R ensures superior brush control.

Baumalight MX530R Mulcher

Experience cutting precision with the Baumalight MX530R Fixed Tooth Mulcher for excavators weighing between 4 and 12 tons, offering a powerful solution for brush clearing and land management.

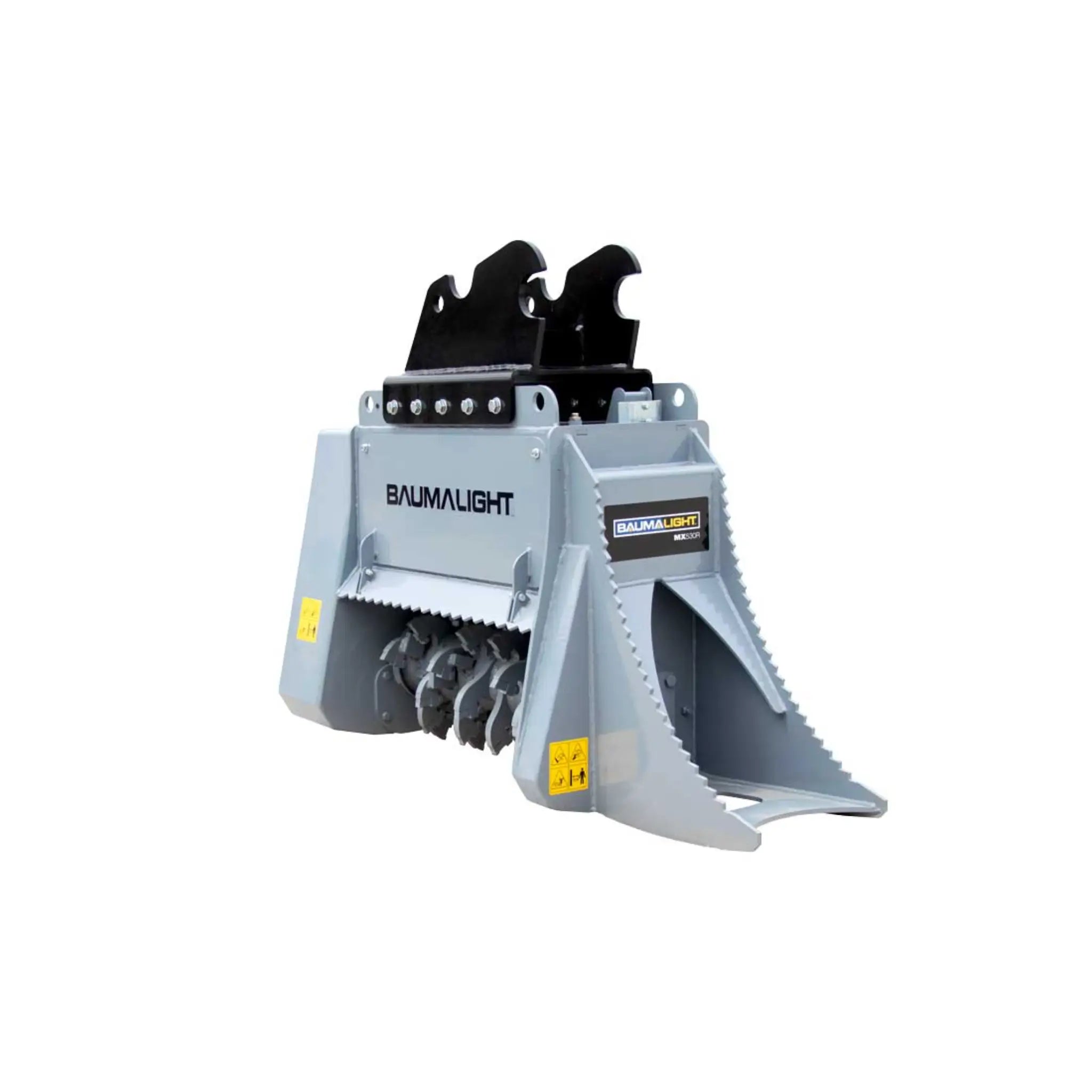

The MX530R model stands out with its integrated root rake, designed to efficiently clear logs and debris from the work area, making it an essential tool for maintaining fence lines and performing entry-level contractor work.

It features two types of cutting teeth options: the Planer and the Ripper. The Planer teeth operate by taking small, precise bites, which enhances mulching efficiency, while the Ripper teeth provide a vigorous shredding action, ideal for dealing with below-grade mulching and clearing along fence lines where obstacles like rocks may be encountered.

Specifications

Model No.	MX230	MX330	MX530	MX530R	MX548R	MX948R	MX960R	MX1160R
	A02	A02	A02	A02	A03	A03	A03	A03
Path Width	38″	38″	40″	40″	62″	70″	90″	90″
Rotor Width	30″	30″	30″	30″	48″	48″	60″	60″
Minimum Tracked Excavator Ton	2	3	4	4	7	12	18	18
Minimum Wheeled Excavator Ton	4	5	6	6	9	15	21	21
Max Tracked Excavator Ton	6	8	12	12	20	30	33	33
Max wheeled Excavator Ton	8	10	14	14	22	33	36	36
Cutting Depth	Level	Level	1.5″ Above to 1″ Below Grade	1.5″ Above to 1″ Below Grade	1.5″ Above to 1″ Below Grade	Level	Level	Level
Holder Style	Swing	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed	Fixed
Cutting Style	Flail	High Speed Teeth	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Carbide Tipped Bolt In	Double Tipped Carbide	Double Tipped Carbide	Sharpenable Planer teeth
Tooth Part number	F2000	H3000	P5000	P5000	P5000	R9000	R9000	P11000
Number of cutters	22	36	44	44	72	27	38	31
Rotor Shaft Size	1.5″	2″	2″	2″	2″	2″	2″	2″
Rotor Diameter (tool tips)	17.25″	15″	15″	15″	15″	18.5″	18.5″	18.5″
Rotor Weight (with tools)	125 lbs	175 lbs	300 lbs	300 lbs	408 lbs	617 lbs	860 lbs	872 lbs
No. of Motor	1	1	1	1	1	1	1	1
Case Drain	Not important	Not important	See motor options	See motor options	Critical	Critical	Critical	Critical
Unit Weight	500 lbs	750 lbs	1036 lbs	1166 lbs	2167 lbs	2838 lbs	2910 lbs	2925 lbs

Motor options – brush size chart

Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
500 Series

MOTOR	PSI	CASE DRAIN	8 GPM	12 GPM	15 GPM	20 GPM	25 GPM	30 GPM	35 GPM	40 GPM	45 GPM	50 GPM	55 GPM	60 GPM
RPM			555	832	1060	1390
A450 Roller-Vane	2500 3000 3500	Not Needed Not Needed Recommended	0.25″ 0.5″ 0.5″	0.75″ 1″ 1″	1″ 1.25″ 1.25″	1.5″ 2″ 2″	— — —	— — —	— — —	— — —	— — —	— — —	— — —	— — —
RPM				640	846	1100	1370	1600
B550 Roller-Vane	2500 3000 3500	Not Needed Recommended Needed	— — —	0.25″ 0.5″ 0.5″	0.75″ 1″ 1″	1.25″ 1.75″ 1.75″	2.5″ 3″ 3″	3″ 3.5″ 3.5″	— — —	— — —	— — —	— — —	— — —	— — —
RPM			1090	1640	2050
C508 Bent Axis Piston	2500 3000 3500 4000	Critical	1″ 1.5″ 2″ 2.5″	1.75″ 2.25″ 2.75″ 3.25″	2.25″ 2.75″ 3.25″ 4″	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —
RPM				1190	1490	2000	2490
C510 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	1.5″ 2″ 2.5″ 3″	2″ 2.5″ 3″ 3.5″	2.5″ 3″ 3.5″ 4.5″	3″ 3.5″ 4.5″ 5″	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —
RPM						1450	1800	2100
C530 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	— — — —	— — — —	2.5″ 3″ 3.5″ 4.5″	3.5″ 4″ 4.5″ 5″	4.5″ 5″ 5.5″ 5.75″	— — — —	— — — —	— — — —	— — — —	— — — —	— — — —
RPM							1500	1800	2100
C540 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	— — — —	— — — —	— — — —	3.25″ 3.75″ 4.25″ 4.75″	5″ 5.5″ 5.75″ 6″	5.5″ 6″ 6.5″ 7″	— — — —	— — — —	— — — —	— — — —	— — — —
RPM								1600	1875	2140
C550 Bent Axis Piston	2500 3000 3500 4000	Critical	— — — —	— — — —	— — — —	— — — —	— — — —	4.5″ 5″ 5.5″ 5.75″	6″ 6.5″ 7″ 7.5″	6.5″ 7″ 7.5″ 8″	— — — —	— — — —	— — — —	— — — —

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.

Additional information

Weight	1166.0 kg
Motor Option	A450 Roller-Vane Motor, C508 Bent-Axis Piston Motor, B550 Roller-Vane Motor, C510 Bent-Axis Piston Motor, C530 Bent-Axis Piston Motor, C540 Bent-Axis Piston Motor, C550 Bent-Axis Piston Motor
Excavator Weight Class	1.5 – 6 Ton Excavators, 7 – 9 Ton Excavators, 10 – 12 Ton Excavators
Mount Option	Blank Weld-On Plate Only, Wedge-Style Coupler (Fit to your machine), Pin-On / Pin-Grabber-Style Coupler (Fit to your machine), Wain-Roy / Cross-Pin-Style Coupler (Fit to your machine)
