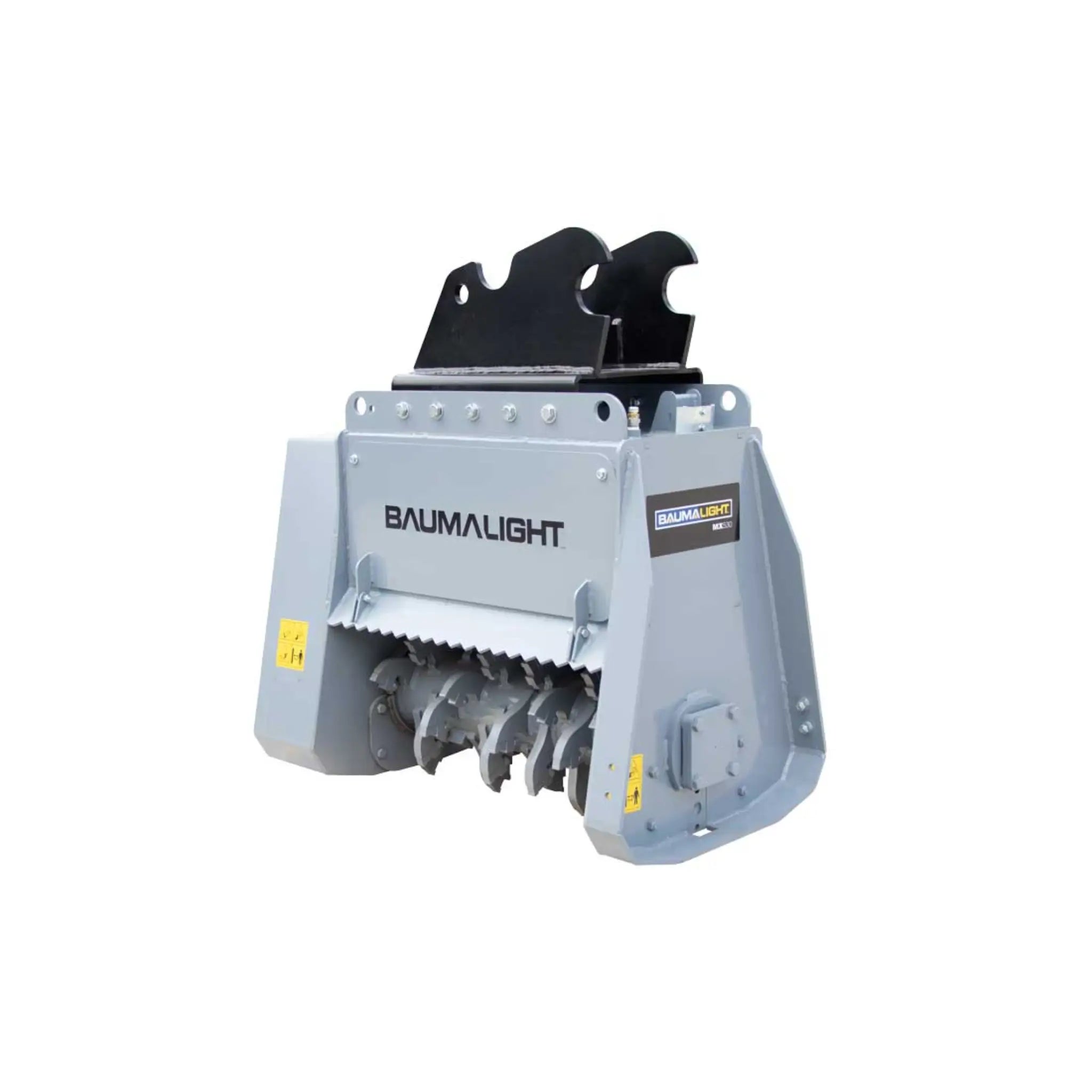

Baumalight MX530 Fixed Tooth Brush Mulcher For Excavators, 4-12 Tons – BML-MX530-A450-EWC1.5-6-B
Maximize your excavator’s utility with the Baumalight MX530 Fixed Tooth Mulcher, ideal for 4-12 ton excavators. Engineered for farm fence line maintenance and entry-level contractor work, this robust mulcher features dual tooth options for tailored performance. Planer teeth deliver precise, efficient cuts, ideal for dense brush and small trees.Â

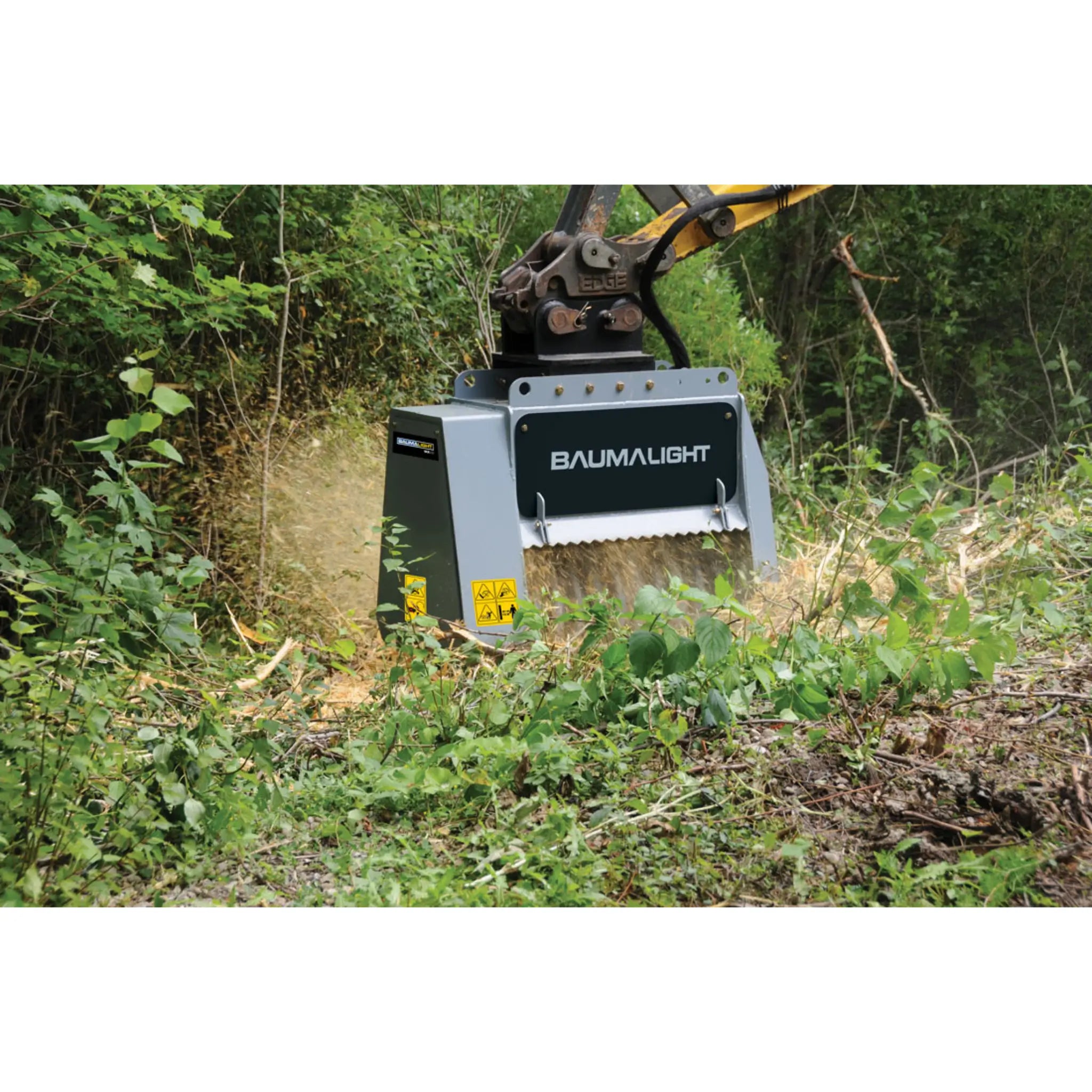

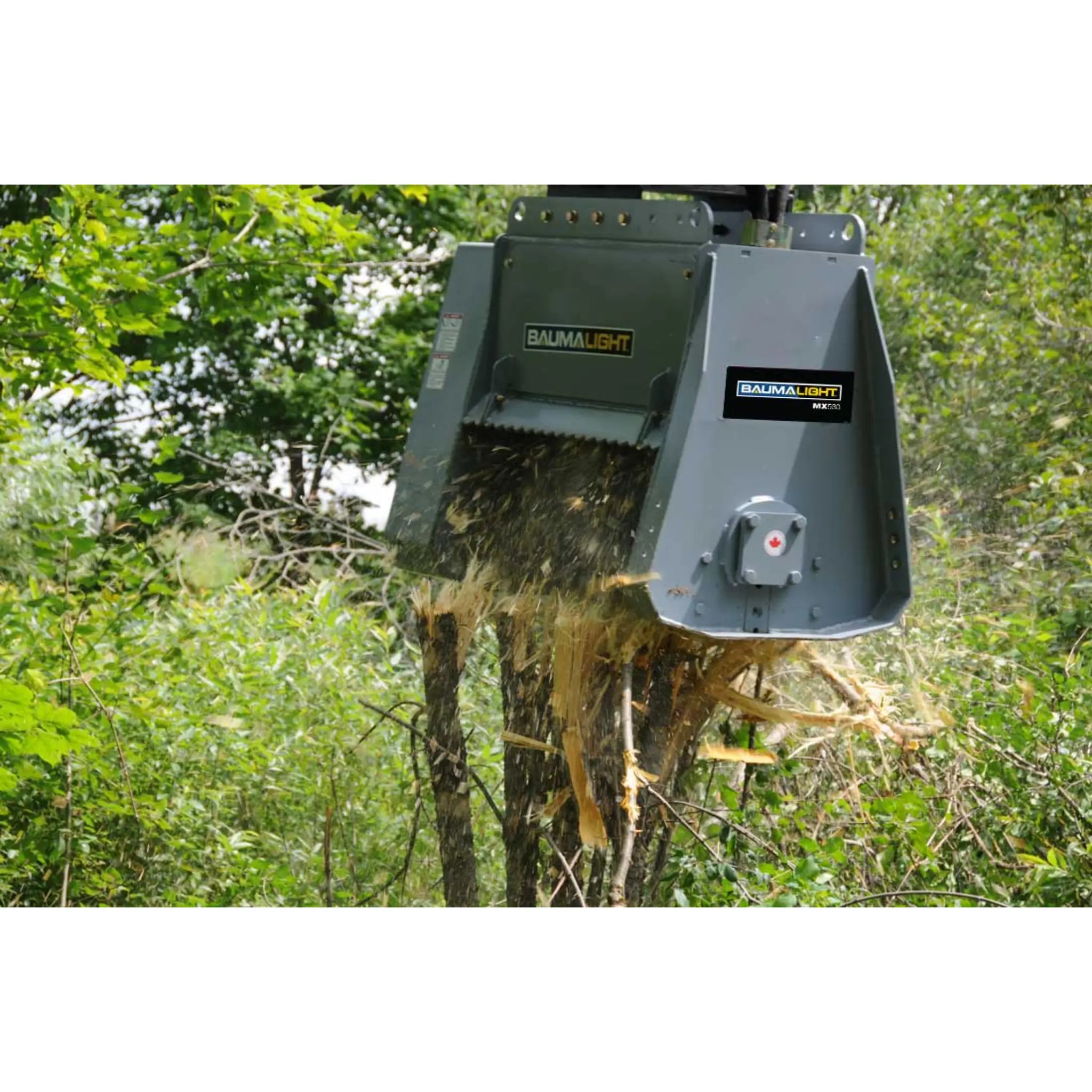

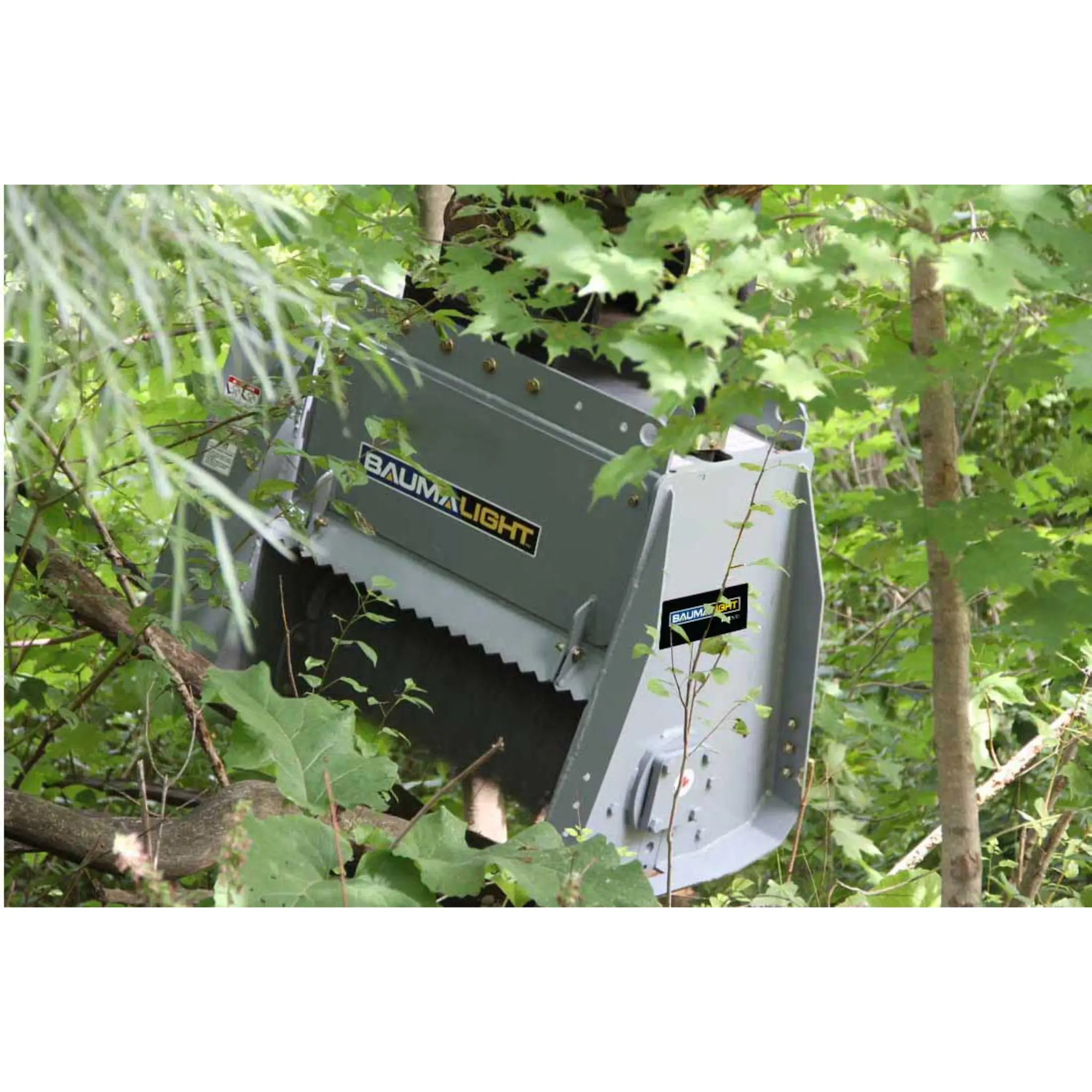

Baumalight MX530 Mulcher
Specifications
Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
---|---|---|---|---|---|---|---|---|
A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
Path Width | 38″ | 38″ | 40″ | 40″ | 62″ | 70″ | 90″ | 90″ |
Rotor Width | 30″ | 30″ | 30″ | 30″ | 48″ | 48″ | 60″ | 60″ |
Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
Cutting Depth | Level | Level | 1.5″ Above to 1″ Below Grade | 1.5″ Above to 1″ Below Grade | 1.5″ Above to 1″ Below Grade | Level | Level | Level |
Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
Rotor Shaft Size | 1.5″ | 2″ | 2″ | 2″ | 2″ | 2″ | 2″ | 2″ |
Rotor Diameter (tool tips) | 17.25″ | 15″ | 15″ | 15″ | 15″ | 18.5″ | 18.5″ | 18.5″ |
Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Motor options – brush size chart
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
500 Series
MOTOR | PSI | CASE DRAIN |
8 GPM |
12 GPM |
15 GPM |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RPM | 555 | 832 | 1060 | 1390 | ||||||||||
A450 Roller-Vane | 2500 3000 3500 |
Not Needed Not Needed Recommended |
0.25″ 0.5″ 0.5″ |
0.75″ 1″ 1″ |
1″ 1.25″ 1.25″ |
1.5″ 2″ 2″ |
— — — |
— — — |
— — — |
— — — |
— — — |
— — — |
— — — |
— — — |
RPM | 640 | 846 | 1100 | 1370 | 1600 | |||||||||
B550 Roller-Vane | 2500 3000 3500 |
Not Needed Recommended Needed |
— — — |
0.25″ 0.5″ 0.5″ |
0.75″ 1″ 1″ |
1.25″ 1.75″ 1.75″ |
2.5″ 3″ 3″ |
3″ 3.5″ 3.5″ |
— — — |
— — — |
— — — |
— — — |
— — — |
— — — |
RPM | 1090 | 1640 | 2050 | |||||||||||
C508 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | 1″ 1.5″ 2″ 2.5″ |
1.75″ 2.25″ 2.75″ 3.25″ |
2.25″ 2.75″ 3.25″ 4″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
RPM | 1190 | 1490 | 2000 | 2490 | ||||||||||
C510 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | — — — — |
1.5″ 2″ 2.5″ 3″ |
2″ 2.5″ 3″ 3.5″ |
2.5″ 3″ 3.5″ 4.5″ |
3″ 3.5″ 4.5″ 5″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
RPM | 1450 | 1800 | 2100 | |||||||||||
C530 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | — — — — |
— — — — |
— — — — |
2.5″ 3″ 3.5″ 4.5″ |
3.5″ 4″ 4.5″ 5″ |
4.5″ 5″ 5.5″ 5.75″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
RPM | 1500 | 1800 | 2100 | |||||||||||
C540 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | — — — — |
— — — — |
— — — — |
— — — — |
3.25″ 3.75″ 4.25″ 4.75″ |
5″ 5.5″ 5.75″ 6″ |
5.5″ 6″ 6.5″ 7″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
RPM | 1600 | 1875 | 2140 | |||||||||||
C550 Bent Axis Piston | 2500 3000 3500 4000 |
Critical | — — — — |
— — — — |
— — — — |
— — — — |
— — — — |
4.5″ 5″ 5.5″ 5.75″ |
6″ 6.5″ 7″ 7.5″ |
6.5″ 7″ 7.5″ 8″ |
— — — — |
— — — — |
— — — — |
— — — — |
