Baumalight MP348 Brush Mulcher For PTO On Tractors – MP348-540

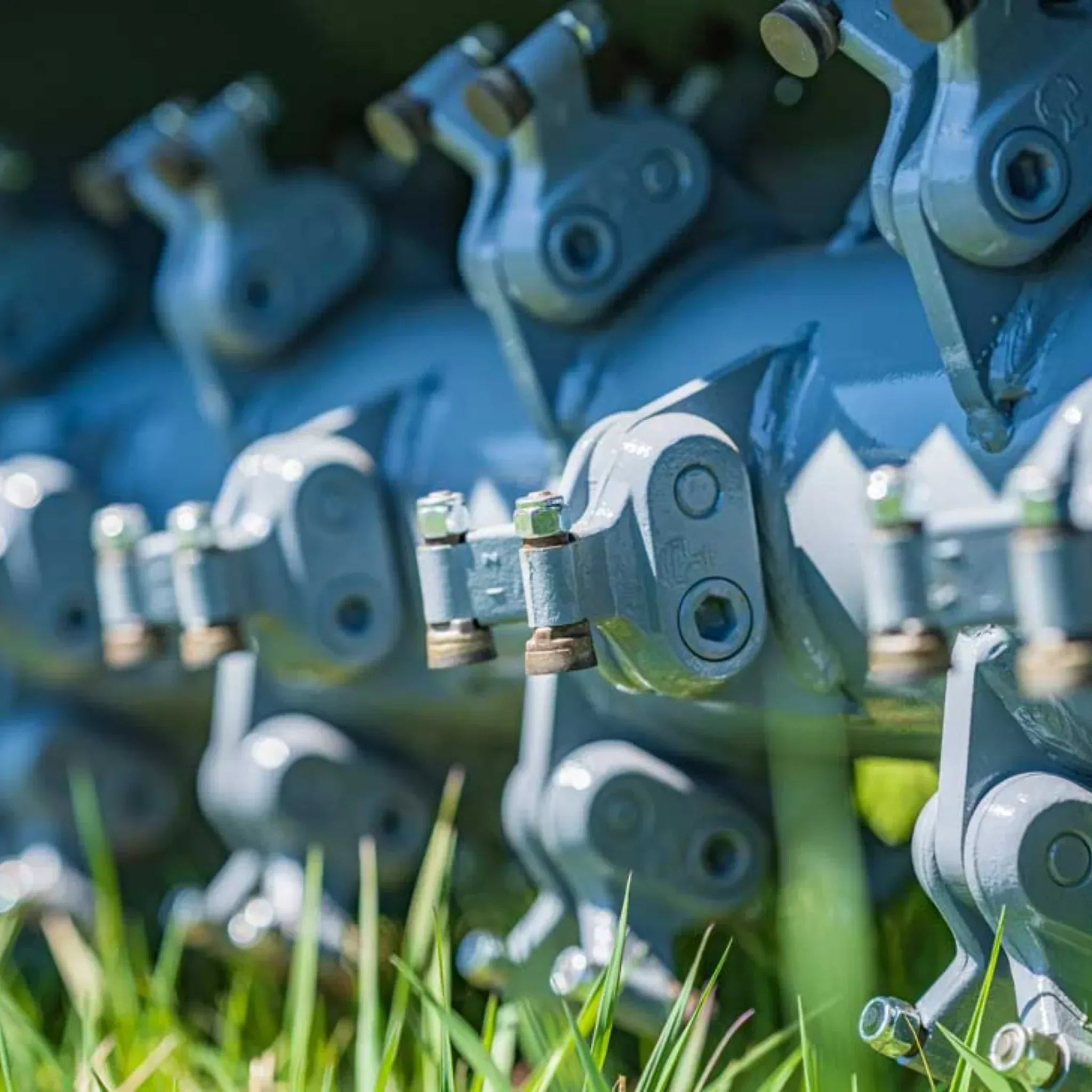

The Baumalight MP348 PTO Fixed Tooth Mulcher brings unmatched mulching power to your 3-point hitch tractor. Designed for efficiency, its high-speed carbide teeth chip away at vegetation and light brush. The spiral tooth pattern ensures smooth mulching, and the slip clutch safeguards your machine. Achieve high-performance mulching with this direct-drive powerhouse, ideal for brush up to 4 inches in diameter.
The Baumalight MP348 Mulcher
Specifications
Model No. | MP348 | MP360 | MP560 | MP572 | MP972 | Large Shaft to up the HP |
---|---|---|---|---|---|---|
Path Width | 60″ | 72″ | 75″ | 87″ | 84″ | D002134 |
Rotor Width | 48″ | 60″ | 60″ | 72″ | 72″ | |
Maximum Engine HP | 50 | 55 | 75 | 125 | 135 | 90 – 155 PTO Hp |
Maximum PTO HP | 40 | 45 | 65 | 115 | 125 | Do not exceed 165 Engine Hp |
Minimum Engine HP | 25 | 30 | 45 | 50 | 90 | |
Cutting Depth | Level | Level | 1.5″ Above to 1″ Below Grade | 1.5″ Above to 1″ Below Grade | Level to 2″ Below Grade | |
Cutting Style | High Speed Teeth | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped | |
Tooth Part number | H3000 | H3000 | P5000 | P5000 | R9000 | |
Number of cutters | 60 | 74 | 92 | 112 | 43 | |
Rotor Shaft Size | 2″ | 2″ | 2″ | 2″ | 2″ | |
Rotor Diameter (tool tips) | 15″ | 15″ | 15″ | 15″ | 18.5″ | |
Rotor Weight (with tools) | 230 lbs | 315 lbs | 575 lbs | 700 lbs | 1,105 lbs | |
Hitch Size | CAT 1 | CAT 1 | CAT 2 | CAT 2 | CAT 2 or 3 | |
Quick hitch compatibility | Yes | Yes | No | No | No | No |
Drive Speed | 540 | 540 | 540 | 1,000 | 1,000 | |
Drive Speed Options | 540 (Max Engine HP 110) | 540 (Max Engine HP 110) | ||||
Gearbox Spline Size | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | |
Tractor End Spline Size | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | 1.75″ 20 -spline |
System Protection | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | |
Unit Weight | 1050 lbs | 1200 lbs | 2145 lbs | 2500 lbs | 3200 lbs | |
Hydraulic Requirements | Not Applicable | Not Applicable | 1 Remote | 1 Remote | 2 Remotes |
Â
Maximum brush cutting sizes
Maximum Brush Cutting Sizes
(Brush Diameter in Inches)
300 Series
Â
MODEL | TRACTOR SPEED | RPM | 25 HP | 30 HP | 40 HP | 55 HP |
---|---|---|---|---|---|---|
300 Series | ||||||
Low Gear Slow Reverse | 1800 | 0.5″ | 1″ | 1.5″ | 2″ | |
Low Gear Stop & Chew | 1″ | 1.5″ | 2″ | 2.5″ | ||
Hydrostatic Slow Reverse | 1.5″ | 2″ | 2.5″ | 3″ | ||
Hydrostatic Stop & Chew | 2″ | 3″ | 4″ | 5″ |
Â
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
