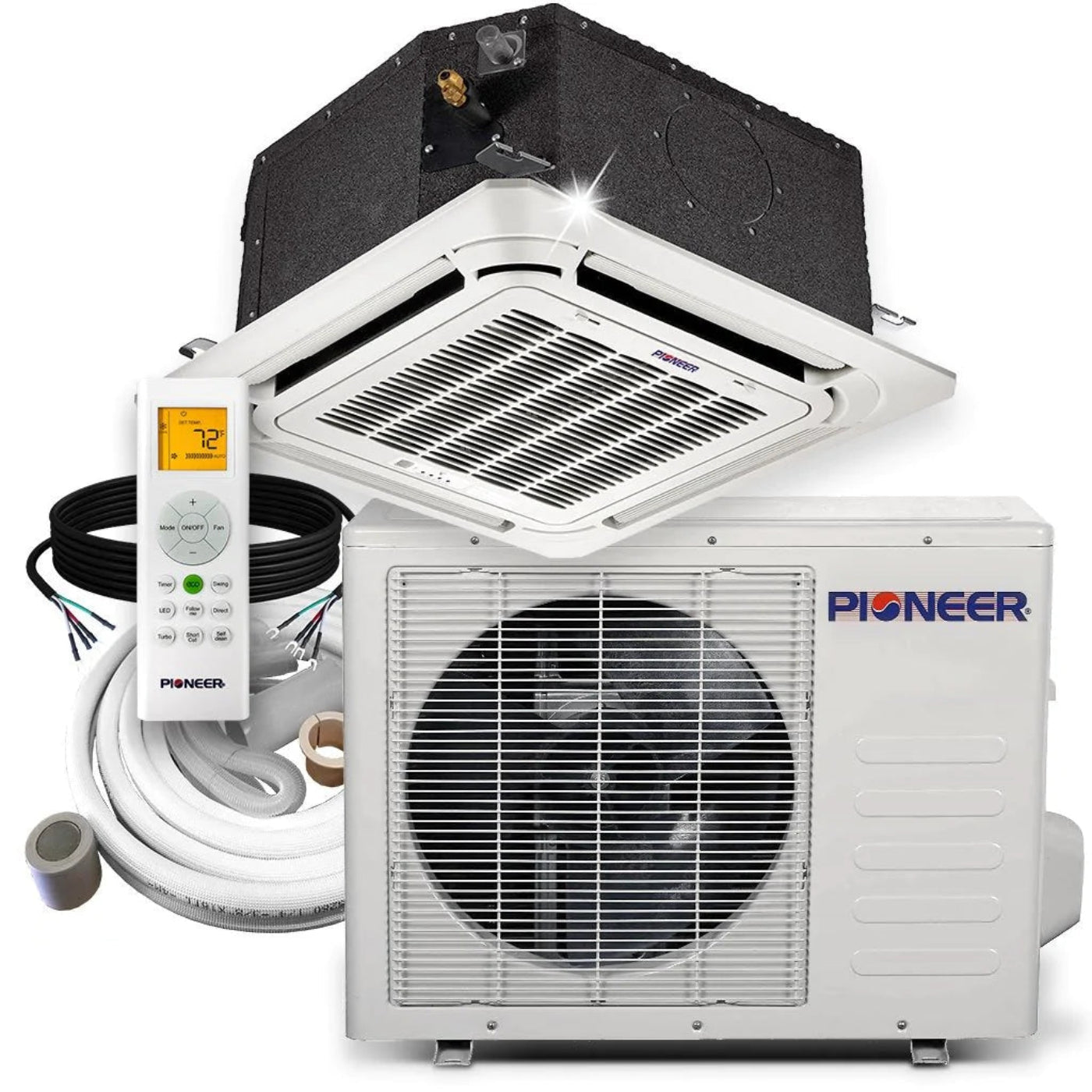

Pioneer 12,000 BTU 21.5 SEER 8-Way Compact Cassette Ductless Mini Split with 25 ft. Linesets - CYB012GMFILCAD-25

Pioneer 12,000 BTU 21.5 SEER 8-Way Compact Cassette Ductless Mini Split with 25 ft. Linesets - CYB012GMFILCAD-25

Indoor units of this type of ceiling-mount ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Cassette systems also come with remote supply ducting and fresh air intake options. Our ceiling cassette mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mount ductless mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

Features

• Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
• Heating capacity: 12,000 BTU/H with 10.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Temperature Compensation. Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency start
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me (Remote Thermostat). Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
• 46°F Heating. In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.

Optional

• Ionizer. Release negative ions, eliminate odor, dust, smoke and pollen particles to give you fresh and healthy air.
• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode
• Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Series Technical Brochure

• Series User Manual
• Series Installation Manual
• Series Service Manual

What Our Experts Think

• Powerful & Efficient: 12,000 BTU with a 21.5 SEER rating delivers excellent cooling and heating efficiency, perfect for medium-sized spaces.
• 8-Way Airflow Design: Ensures even air distribution across the room, eliminating hot and cold spots for enhanced comfort.
• Inverter Technology: Automatically adjusts compressor speed for precise temperature control and lower energy consumption.
• Flexible Installation: Includes 25 ft. line sets, allowing for versatile placement of the indoor and outdoor units to fit various room configurations.

Q&A

Q: What is the Pioneer 12,000 BTU 21.5 SEER 8-Way Compact Cassette Ductless Mini-Split System?
A: This system provides both heating and cooling with a 21.5 SEER rating, featuring an 8-way air distribution design for even airflow. It includes 25 ft. line sets for flexible installation.

Q: How does the 8-way air distribution improve comfort?
A: The 8-way airflow design ensures uniform air circulation, eliminating hot and cold spots for enhanced comfort.

Q: What room size is this system suitable for?
A: It is ideal for medium-sized rooms, efficiently heating and cooling spaces up to 600 sq. ft.

Q: Is this system suitable for residential or commercial use?
A: Yes, it is designed for both residential and light commercial applications, offering quiet and efficient climate control.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure optimal performance and proper setup.

Maintenance Tips

• Clean Filters Regularly – Wash or replace filters every 2-4 weeks to maintain proper airflow and system efficiency.
• Inspect and Clean Coils Annually – Clean the evaporator and condenser coils once a year to prevent dirt buildup and ensure optimal performance.
• Check Refrigerant Levels – Ensure refrigerant levels are sufficient for effective cooling and heating. If low, contact a professional.
• Clear the Condensate Drain – Regularly check and clean the condensate drain to prevent blockages, water damage, and mold growth.
• Keep the Outdoor Unit Clear – Remove leaves, dirt, and other debris from the outdoor unit to ensure proper airflow and prevent overheating.
• Schedule Annual Professional Maintenance – Have a technician inspect and service the system yearly to keep it running efficiently and extend its lifespan.
