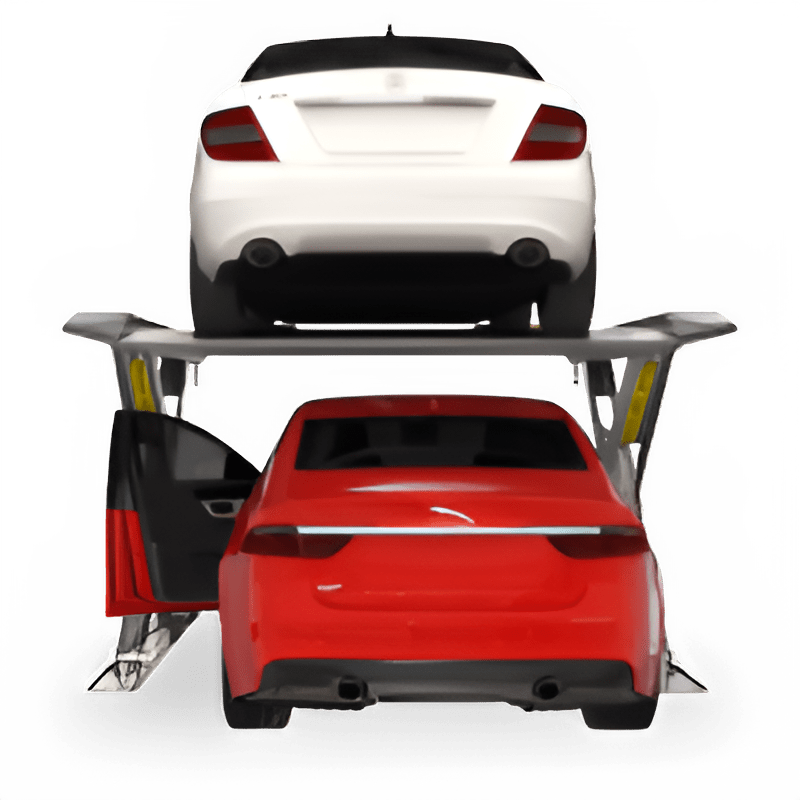

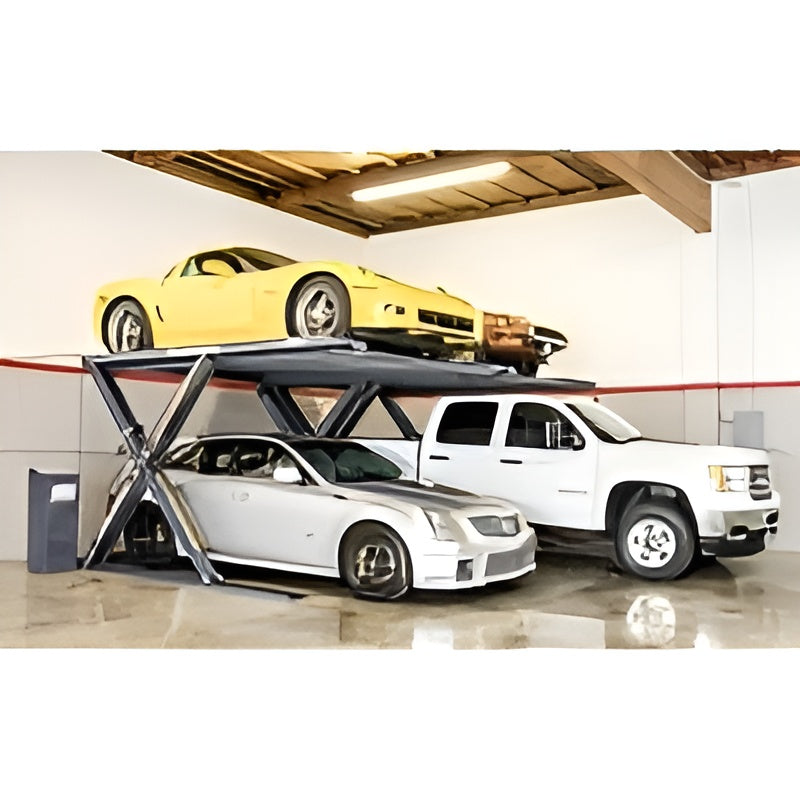

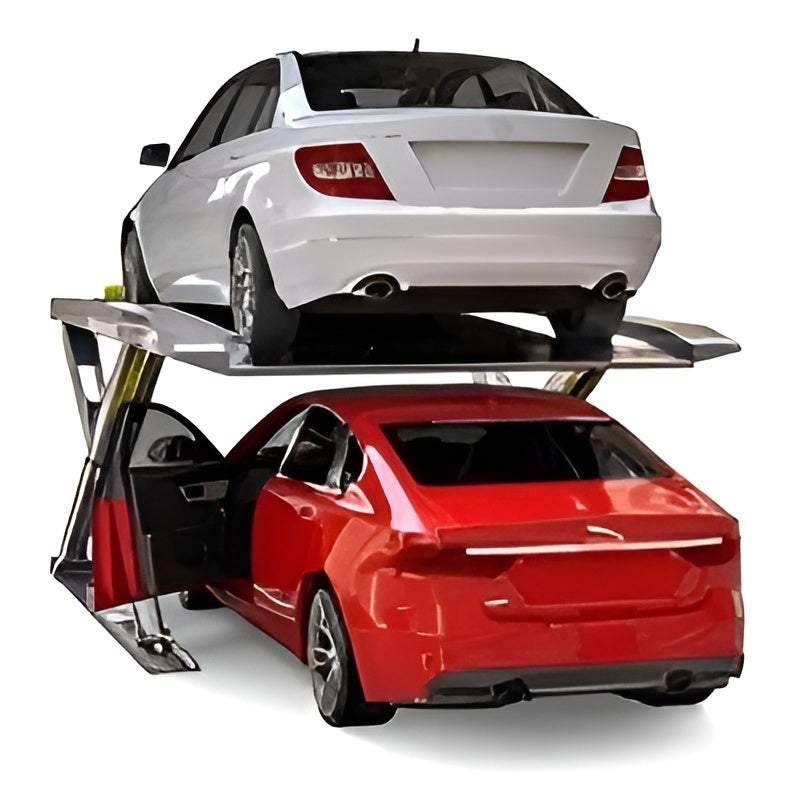

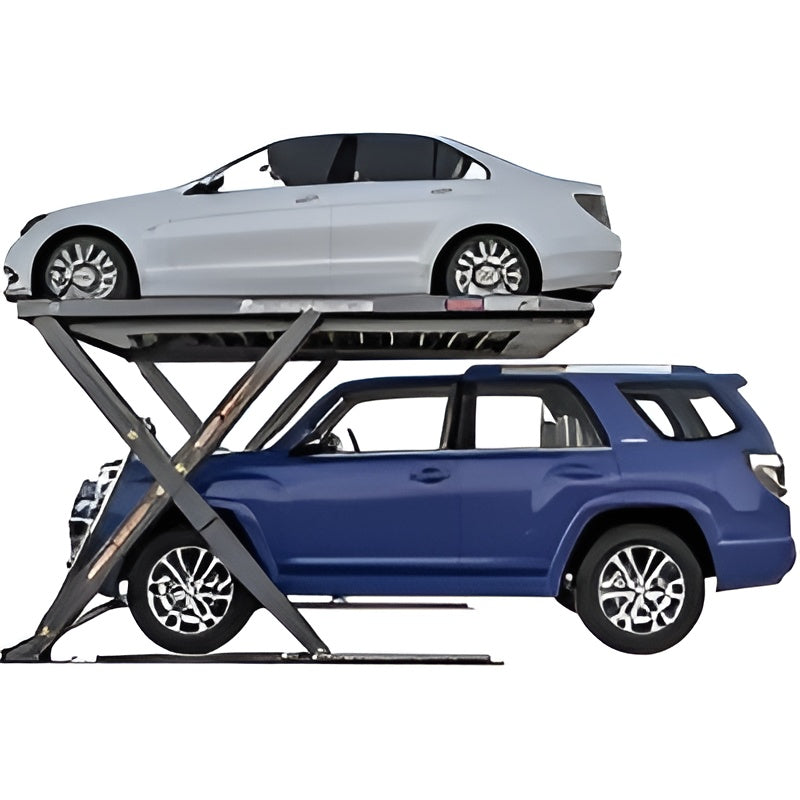

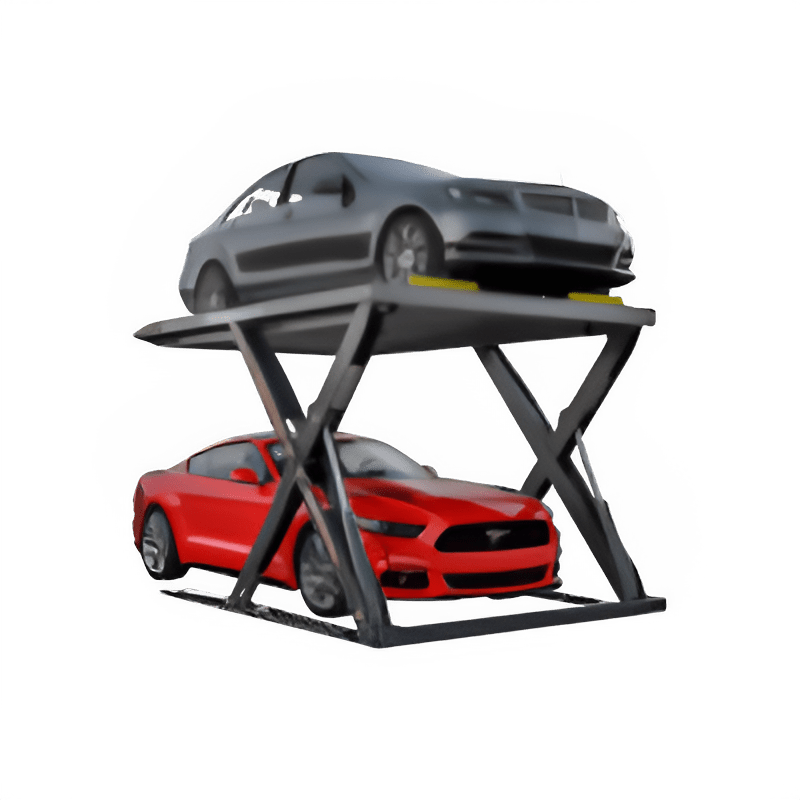

Autostacker A6W-OPT3 6,000 Lbs Aft Control Kit, WIDE Parking Lift - 5175288

Features

• 6,000‐lb. lifting capacity

• Extra-wide construction for increased door clearance

• Key‐switch disconnect fully disables operation for enhanced security

• Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation

• Accommodates cars, light trucks and SUVs

• Rugged, welded‐steel construction is strong and durable

• 100% hot‐dipped, galvanized steel platform

• Attractive slate gray, baked‐on powder coat finish provides added toughness

• Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

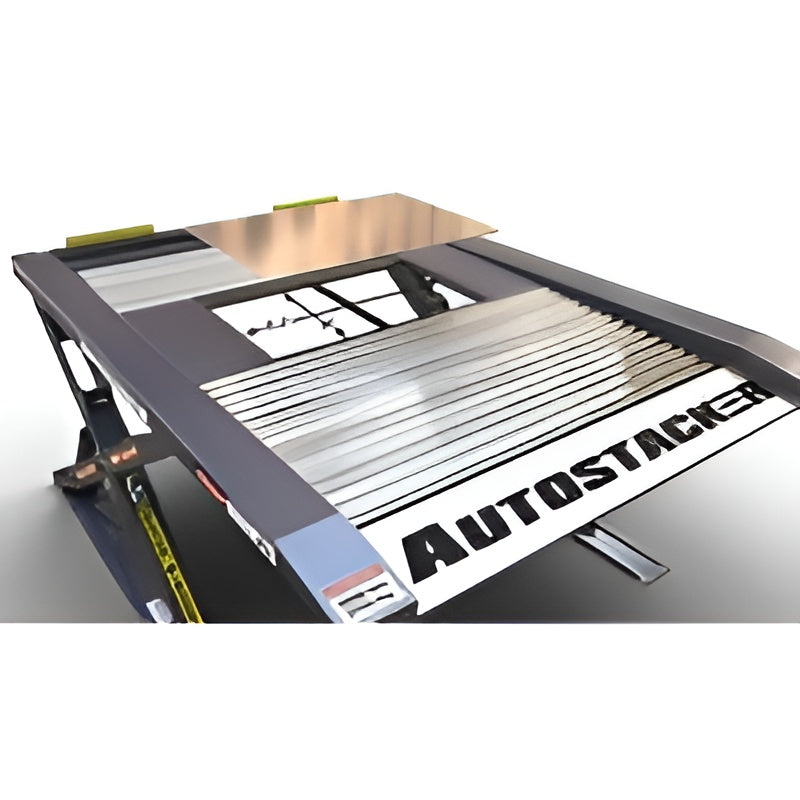

• Extra-wide, gradual sloping platform reduces entry ramp height

• Automatic safety locks engage at five different parking heights

• Simple push‐button controls

• Dual, direct‐drive hydraulic lifting cylinders

• Dependable hydraulic circuit that provides precise, equalized lifting

• Variable height parking accommodates a wide range of vehicle and ceiling heights

• Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height

• Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range

• Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads

• Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability

• Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins

• Patented asymmetric scissor arms provide greater underside door clearance

• Patented Door‐sentry car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings

• Space‐saving design is perfect for commercial or residential applications

• Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure

• UL Listed electrical components meet National Electrical Code (NEC) requirements

Specifications

Autostacker Locking Heights

Automatic locks are essential to safety. This goes for any car lift type, but new challenges are presented by Autostacker’s fully collapsible frame. We devised five lock stops, placed along the base of each side of the lift. As the scissor arms rise, a lock mechanism glides over the stops. Simply descend the lift until both traveling locks (one on each arm) simultaneously engage the desired lock stop.

• 1st Locking Position: 51.75" (1,314 mm)
• 2nd Locking Position: 59.75" (1,518 mm)
• 3rd Locking Position: 65.5" (1,673 mm)
• 4th Locking Position: 71.25" (1,809 mm)
• 5th Locking Position: 76.25" (1,936 mm)
• 6th Locking Position: 76.25" (2,057 mm)

What's include

5260592 A6W Ex-Wide Scissors Parking Lift Platfo

• Right side scissors superstructure
• Left side scissors superstructure
• Front wheel trough
• Ramp assembly with logo plate
• Lower front tie-bar
• Galvanized decking section
• Front tire stops
• Complete parts package including all fasteners, hoses, fittings & anchor bolts
• Installation and operators manual

5585042 Power Unit Console

• Standard Power Unit Console - 208-240V / 50/60HZ, 1-Phase

Product Manual

Manual

What Our Experts Think

The Autostacker A6W-OPT3 6,000 Lbs Aft Control Kit, WIDE Parking Lift - 5175288 is a versatile and durable parking solution designed for larger vehicles. Here's why it’s a great choice:

• High Weight Capacity: Lifts up to 6,000 lbs, suitable for a variety of vehicles, including trucks, SUVs, and large cars.
• Wide Platform: Designed with a wider lifting platform, ideal for accommodating larger or wider vehicles.

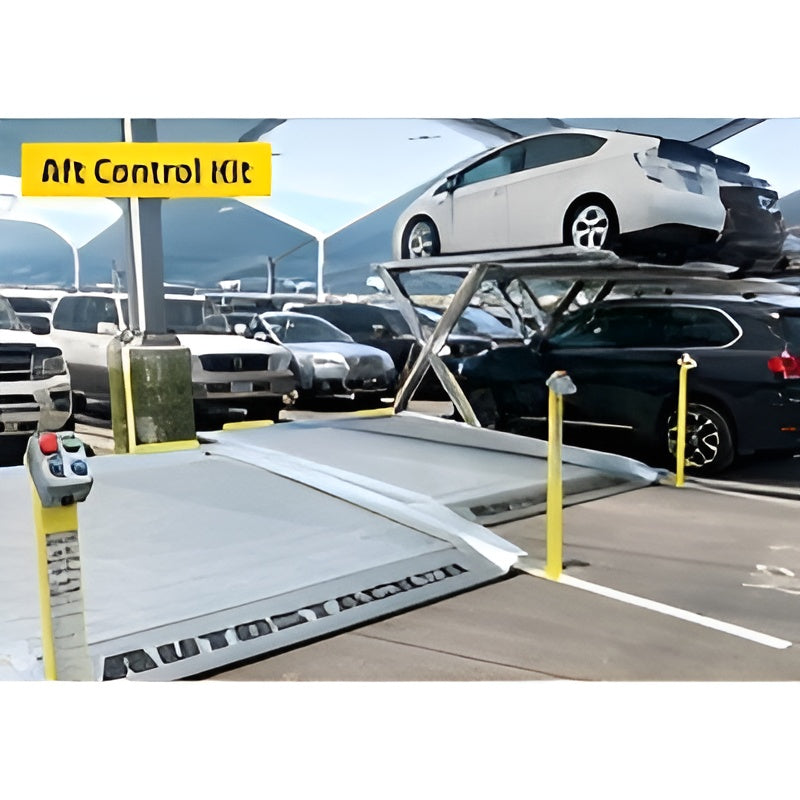

• Aft Control System: Features an easy-to-use control system located at the rear for convenient access and smooth operation.
• Durable Construction: Built with high-quality materials for long-lasting performance and reliability.
• Space-Saving Design: Optimizes garage or parking space by allowing for efficient stacking of vehicles.
• Safety Features: Equipped with advanced safety mechanisms to ensure secure lifting and lowering operations.
• Easy Installation: Comes with all necessary parts for a quick and straightforward setup.

Perfect for those with larger vehicles or limited space, this parking lift offers strength, convenience, and efficiency for safe vehicle storage.

Q&A

Q: What is the weight capacity of this parking lift?
A: The Autostacker A6W-OPT3 has a 6,000 lbs weight capacity, suitable for a wide range of vehicles, including cars, trucks, and SUVs.

Q: What makes this lift "wide"?
A: This model features a wider platform, providing extra space for larger vehicles or easier vehicle access, making it ideal for oversized cars or trucks.

Q: How is the lift controlled?
A: The lift is equipped with an aft control system, offering precise and easy operation for lifting and lowering vehicles safely.

Q: Is the lift made for residential or commercial use?
A: The Autostacker A6W-OPT3 is designed for both residential and commercial applications, offering flexibility for home garages or workshops.

Q: Is the lift made of durable materials?
A: Yes, it is constructed with a galvanized finish, providing superior corrosion resistance and long-lasting durability in all conditions.

Q: How easy is the installation process?
A: The lift comes with clear installation instructions, though professional installation is recommended to ensure safety and proper operation.

Q: Can this lift accommodate all types of vehicles?
A: With a 6,000 lb capacity and wider platform, it can accommodate most cars, SUVs, and light trucks, including larger or taller vehicles.

Q: What maintenance does the lift require?
A: The lift requires minimal maintenance, such as periodic inspection and lubrication to keep it running smoothly.

Q: Is there a warranty for the lift?
A: Yes, it comes with a manufacturer’s warranty, ensuring reliable performance and peace of mind.

Maintenance Tips

• Inspect All Components: Regularly check the frame, lifting arms, cables, and control kit for any signs of wear, cracks, or damage.
• Lubricate Moving Parts: Apply lubricant to all moving parts, such as bearings, joints, and lift arms, to ensure smooth operation and prevent wear.
• Check Hydraulic System: Verify that hydraulic fluid levels are adequate and inspect hoses, cylinders, and valves for leaks or damage.
• Test Safety Features: Regularly test safety systems such as limit switches, emergency stops, and overload protection to ensure proper functionality.
• Clean the Lift: Keep the lift clean and free from dirt, dust, or debris to prevent blockages and maintain efficient performance.

Routine maintenance ensures safe, reliable operation and extends the lifespan of your parking lift.
