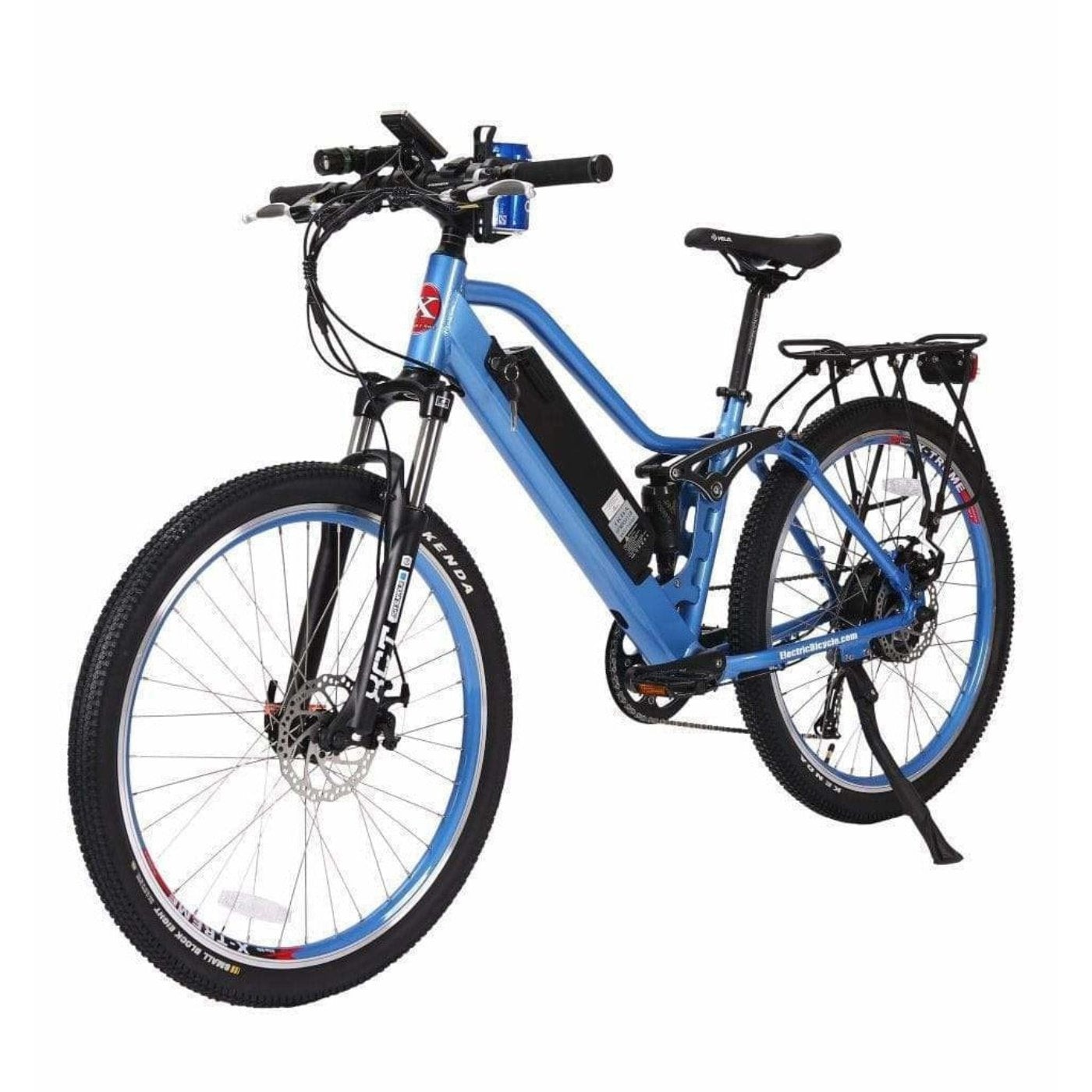

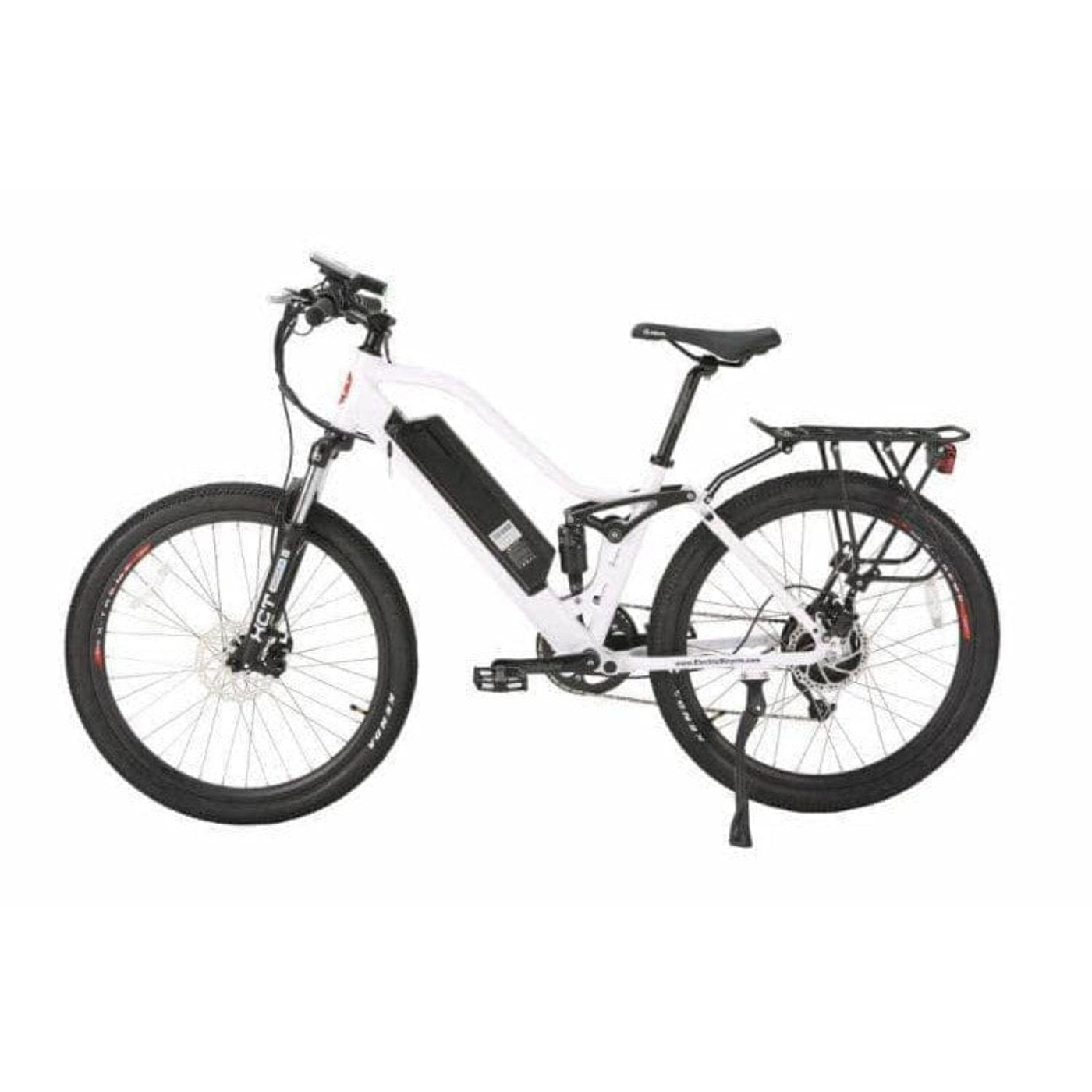

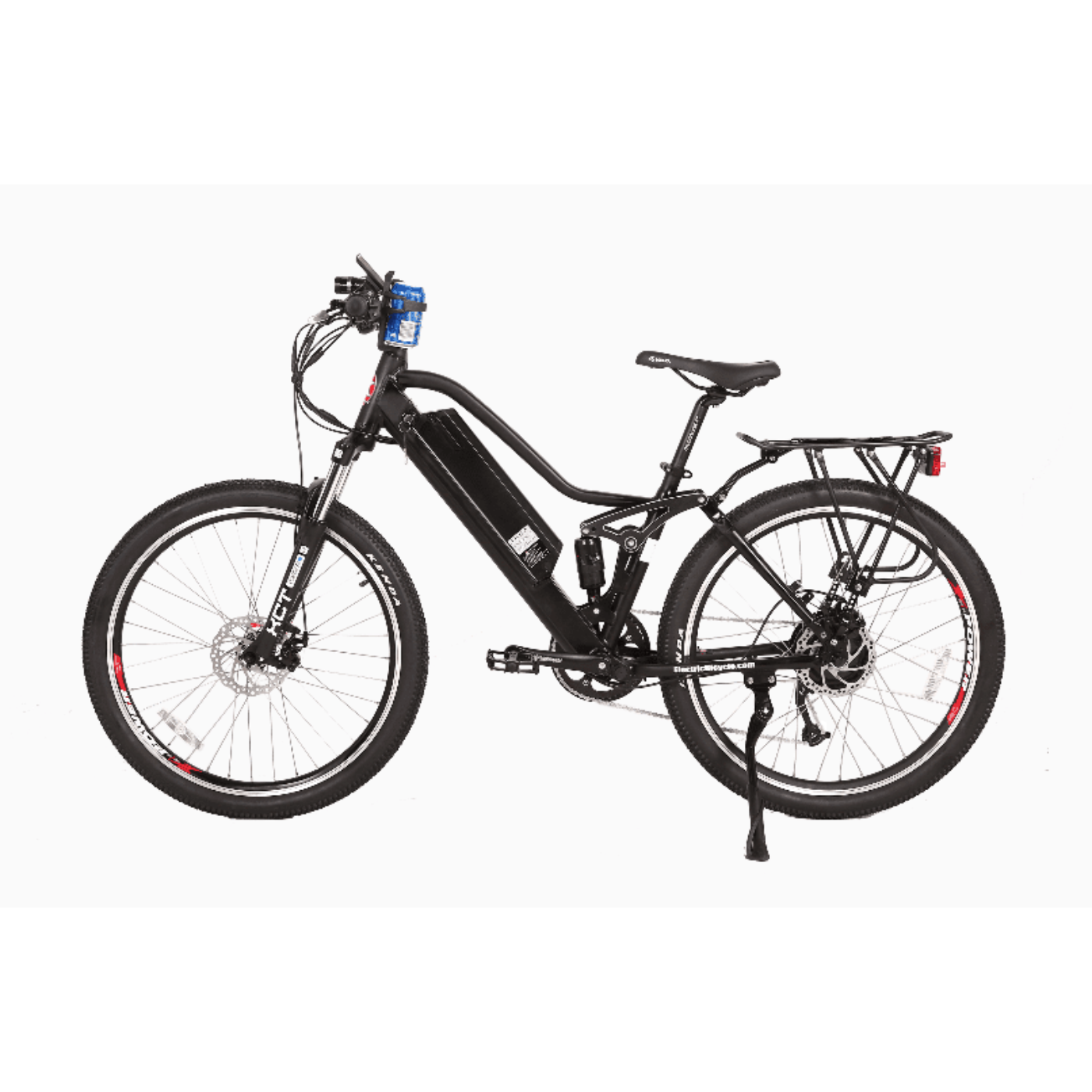

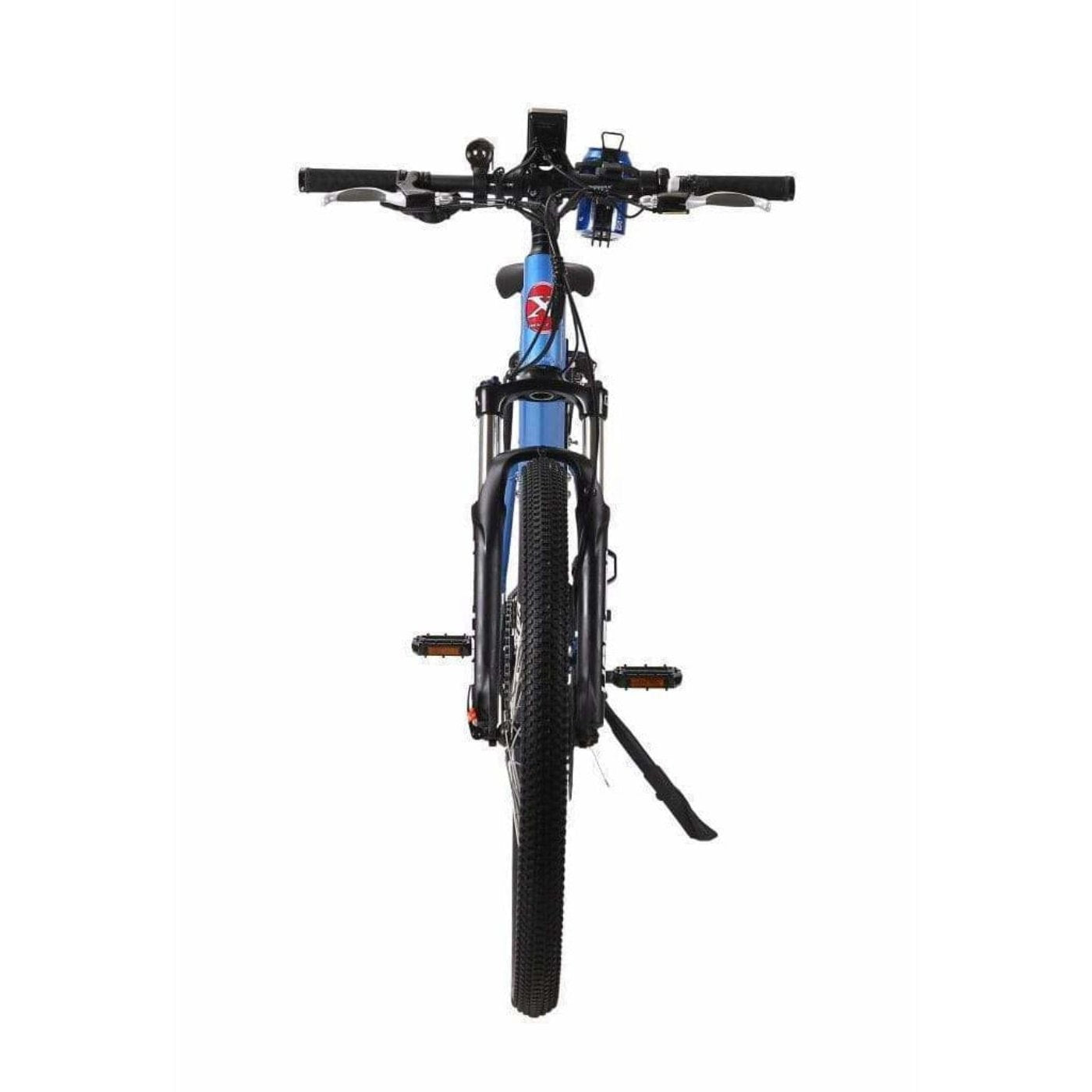

X-Treme Sedona 48 Volt 500W Step-Through Electric Mountain Bike

Description

We Are X-treme Electric Bicycles And We Work Non Stop To Make Electric Bicycling Safe, Fun And Most Important, Affordable For All.

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is a Lithium Battery powered Electric Bicycle cranking out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor. This bike features a lightweight, compact lithium LiPo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36-volt models. This bike comes with everything Aluminum – every bolt, every nut, every nipple, every spoke. That means no rust! The 100% hand welded lightweight aluminum frame bicycle has Atlus Shimano 9-Speed Gears & Shifting System, Suntour XCT Front Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front and a water proof quick disconnect on the rear.

Specifications

X-Treme Sedona 48 Volt 500W Step-Through Electric Mountain Bike
Power	Electric
Watts	500 Watts
Amps	10.4 AH Integrated Lithium Battery
Volts	48 Volts

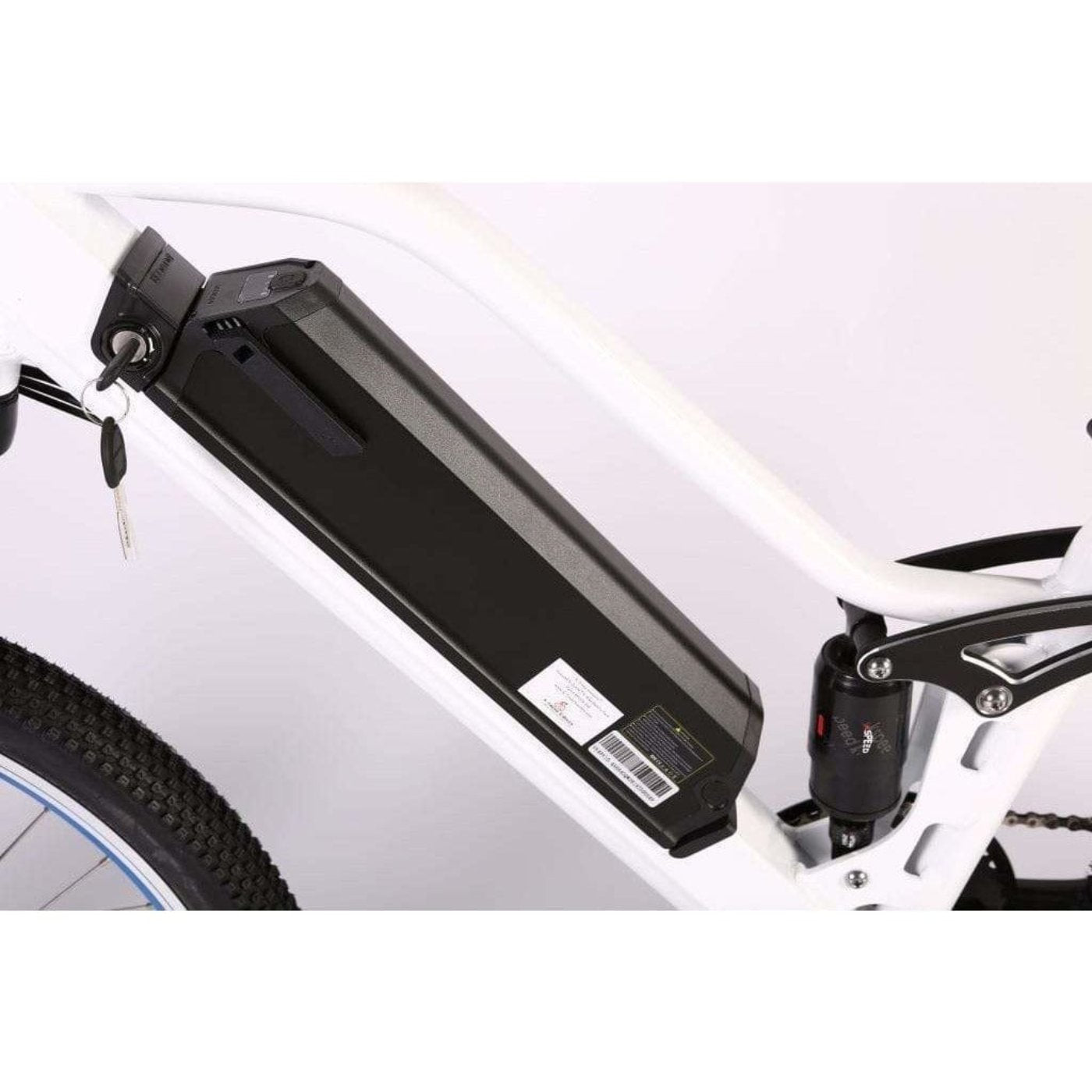

Battery	48 Volt LiPo4 Lithium (lightweight)
Drive System	Chain Driven by Rear Hub Motor or Pedal Power
Distance	Up To 70 Miles Range Using Low PAS & Flat Terrain While Pedal Assisting
Charger	48 Volt Output UL Certified Charger (Charging Time +/- 3 Hours)
Tire Size	Kenda Mountain Tire & Tube – 26 x 2.10 Inch on Aluminum Wheels

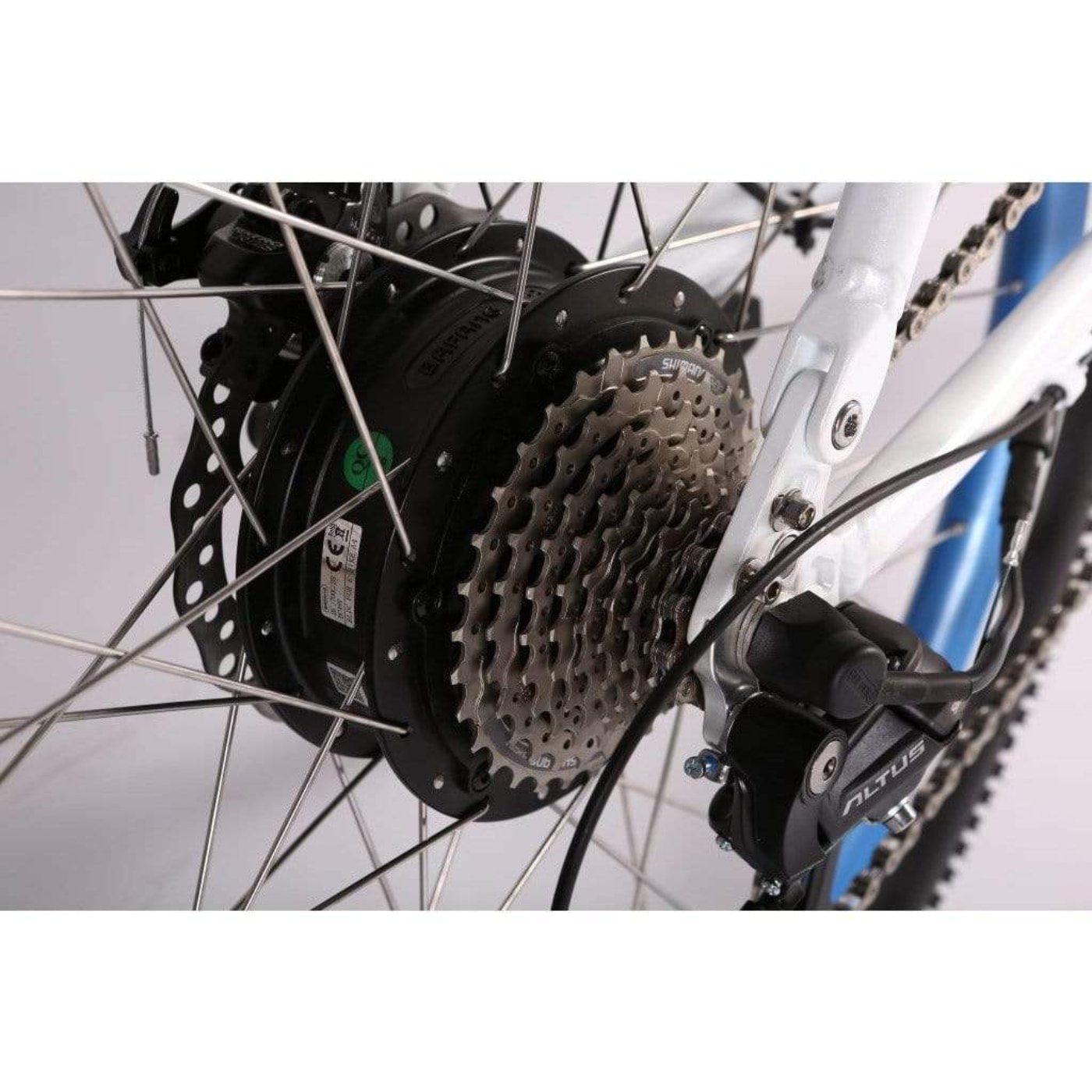

Motor	Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch
Controller	48 Volt 15 Amp Sealed Smart Controller

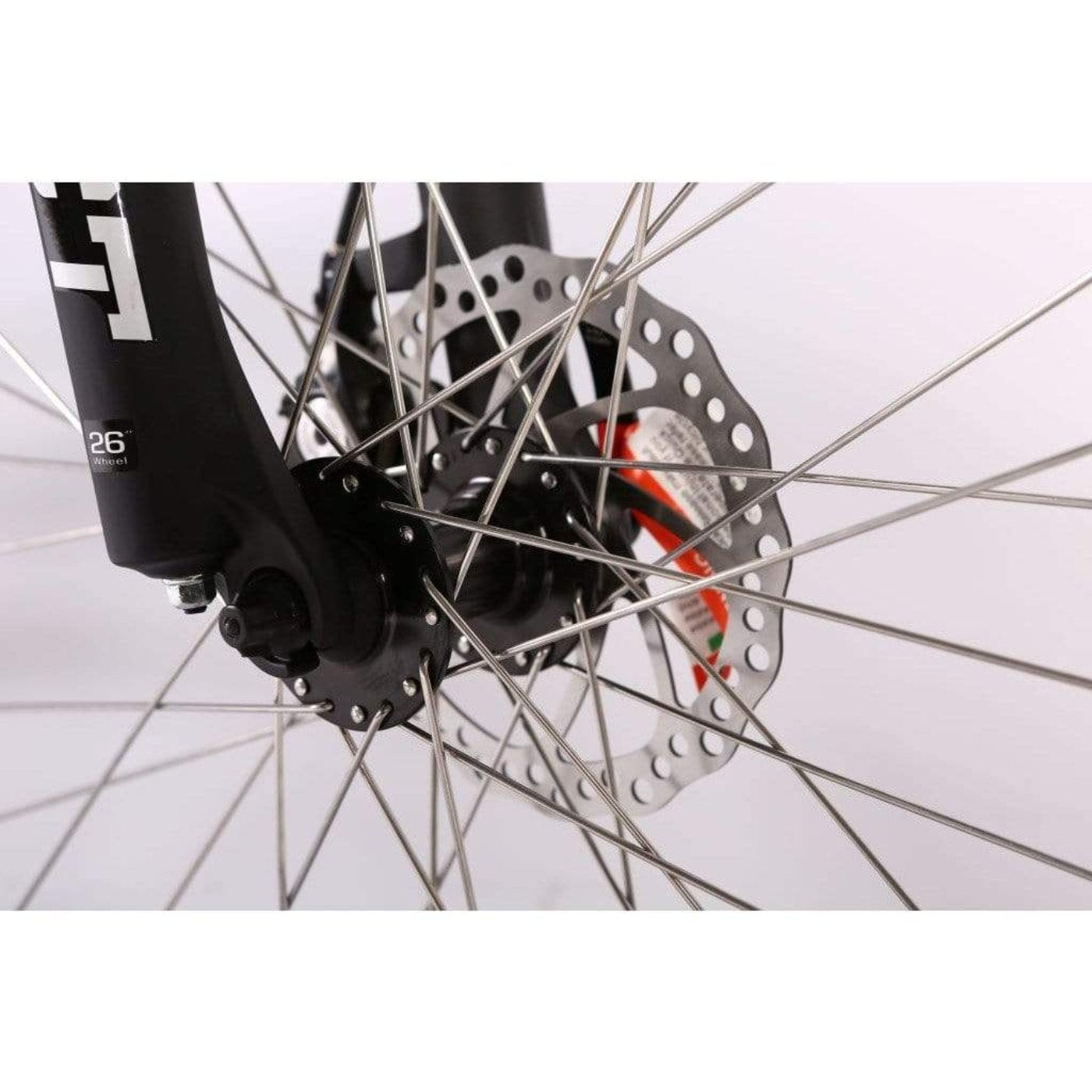

Braking System	Tektro Disk Brakes
Pedals:	Wellgo Aluminum Pedal Set
Front Wheel:	Joytech Quick Release Hub
Throttle Type	Variable Speed Thumb Throttle – SPAS Power Assisted – Pedal Power

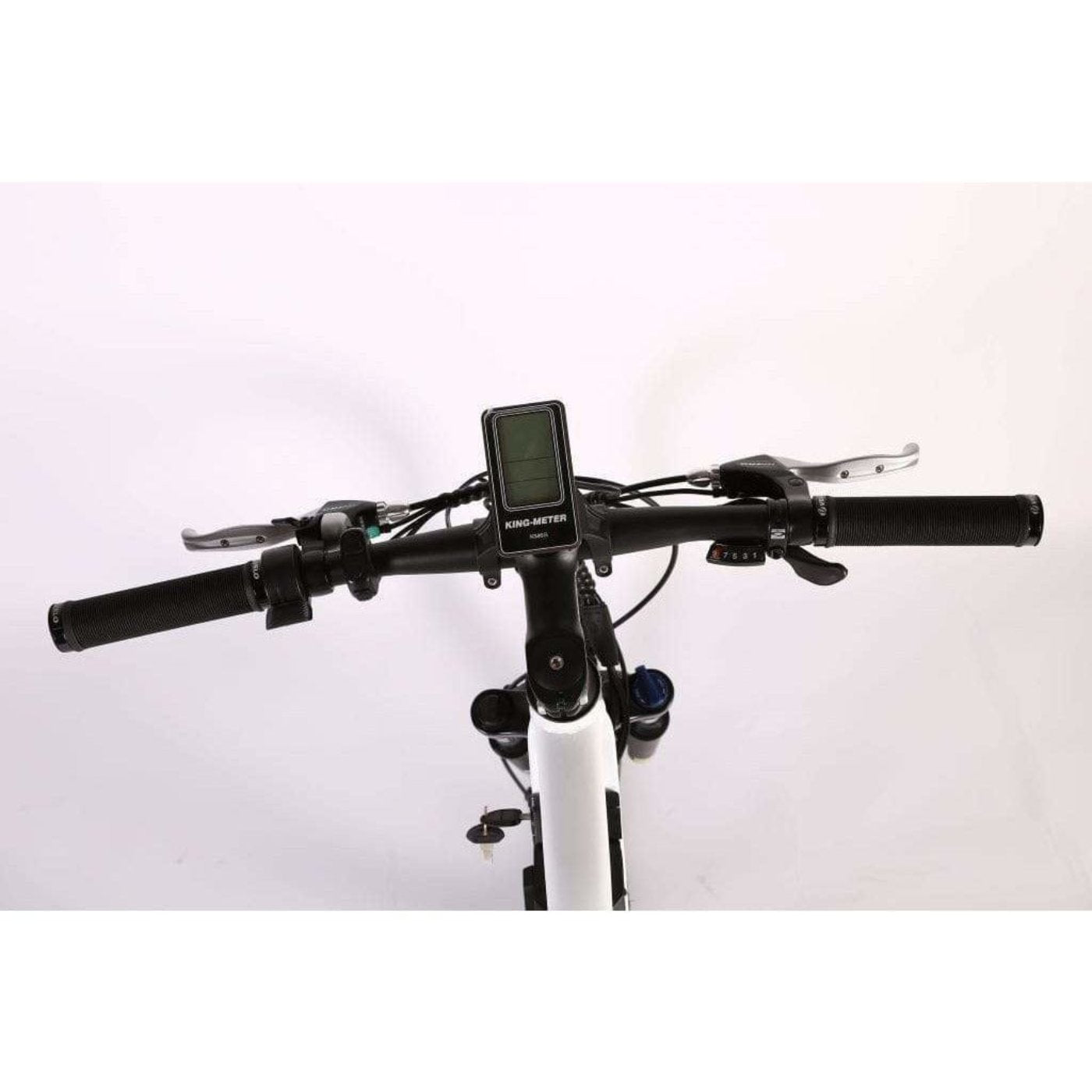

LCD Display	King Meter LCD Smart PAS Digital System With USB Phone Charging Port
Cargo Rack	Aluminum Rear Carry Rack
Frame Type/Size	6061-T6 Temper Aluminum Alloy – Very Lightweight – Step-Through

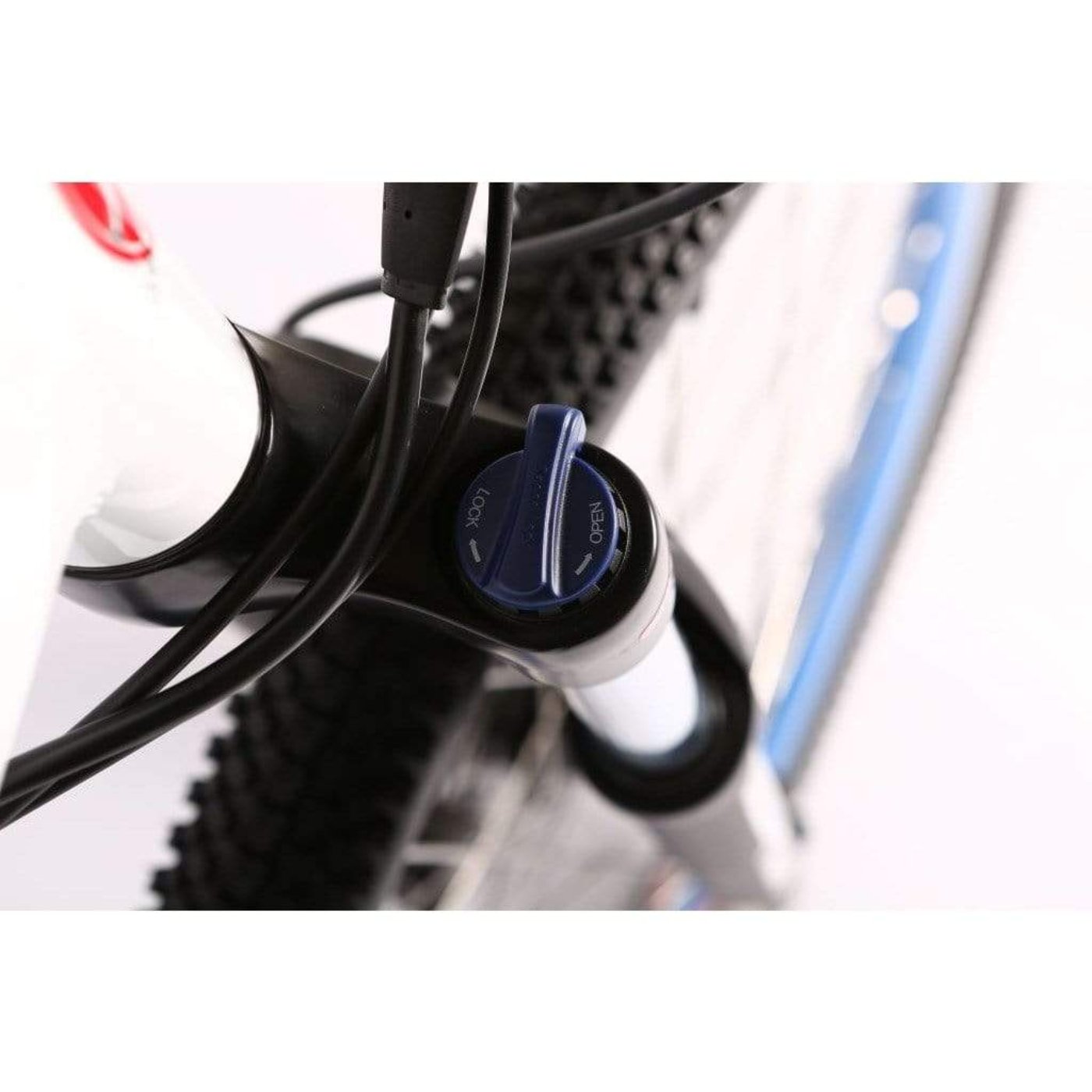

Forks	Suntour® XCT Hydraulic Front Forks
Suspension	Front Hydraulic Suspension Included & KS Rear Shock Suspension

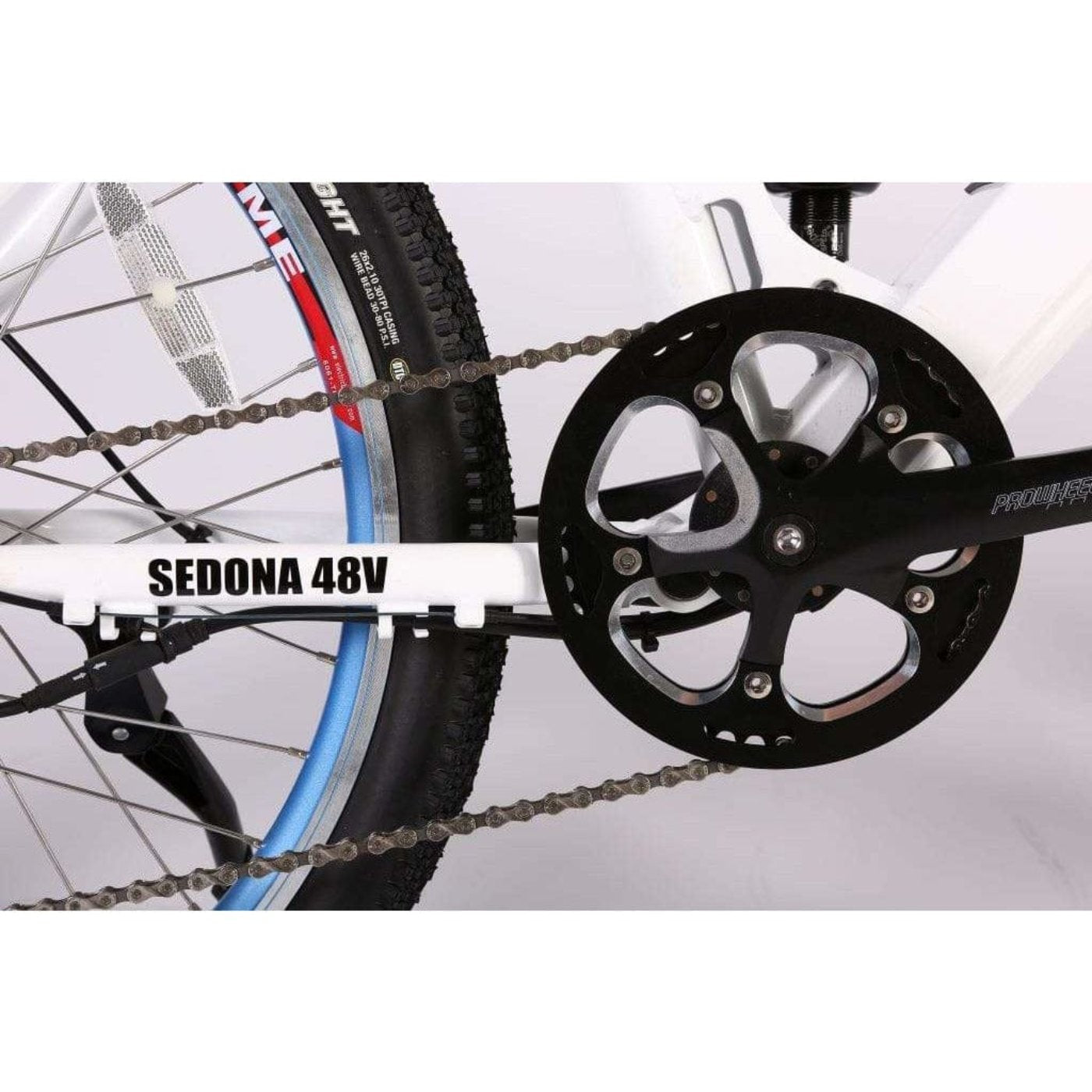

Front Sprocket	Aluminum Alloy Sprocket
Derailleur	Shimano® 9-Speed Atlus Gears & Shifter

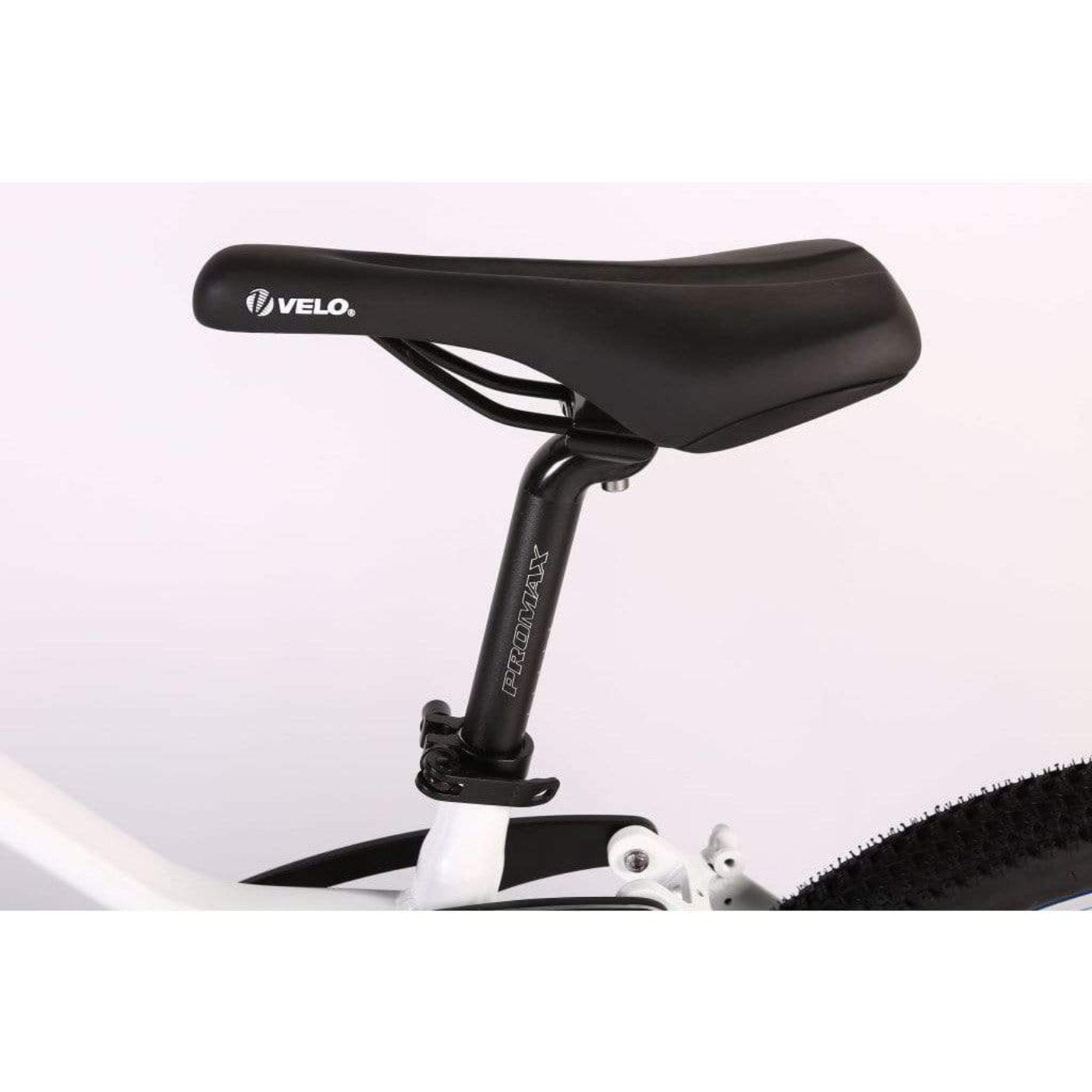

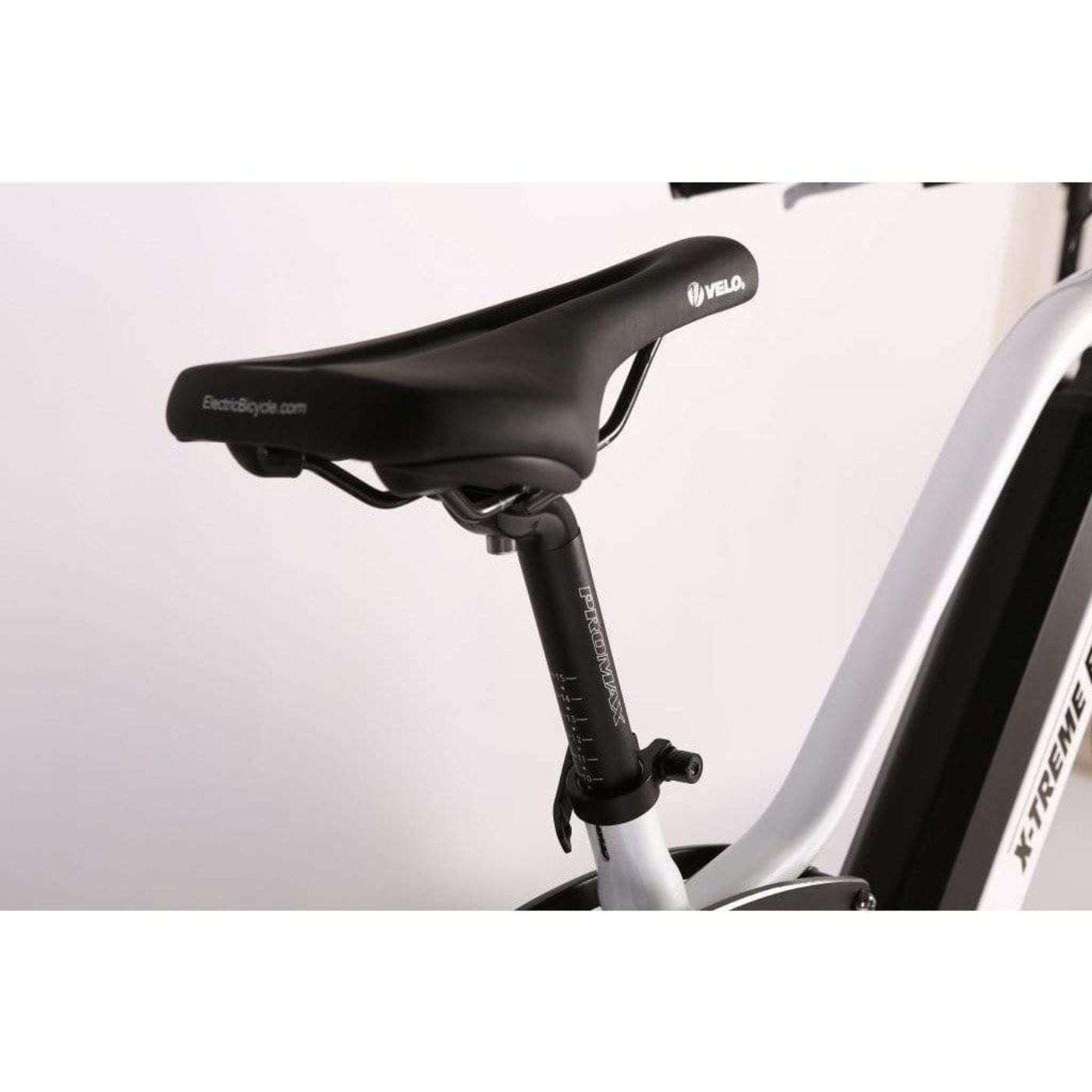

Seat & Post	Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat
Quick Release	Front & Rear Wheels Have Quick Release Axles – Flip Lever
Gooseneck	Aluminum VP
Handle Bars	Aluminum Alloy Mountain Bike Handle Bars
Head Light	Yes, included as free accessory add on – Battery Operated Snap-On LED (Not covered under warranty)
Accessories	Drink Holder On Handle Bars Included
Bicycle Measurements	Max Seat Height = 37.75″ Inches / Min Seat Height = 29.5″ Inches / Handlebar Height = 37.75″ Inches
Carton Size (L x W x H)	55 x 9 x 28
Bicycle In Box Weight	69 lbs
Bicycle Weight	59.5 lbs
Suggested Max Weight	350 lbs.
Warranty	1 Year Warranty & 1 Year Battery Warranty
Notes	*depends on rider weight & terrain Distance obtainable when using SPAS

Additional Information

The Sedona comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS) with a USB Phone Charging Port. The electronics of the X-Treme Electric Bicycle are controller via rider input on the LCD screen attached to the handlebars. Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist e-bike because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride. This feature will allow your Sedona 48 Volt to possibly reach or exceed 70+ miles per charge when using low SPAS while always pedal assisting on flat ground under perfect conditions with a lightweight rider. The LCD also indicates Speed, Distance and Battery Life.

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is faster than any model we sell. It has been tested climbing a 5-7% mountain grade continuously for 45 minutes while having to slow down for hairpin turns.

Front & rear Tektro disk brakes are standard on the Sedona 48 Volt Electric Mountain Bicycle along with true VELO Brand Hand Grips & Mountain Bike Seat.

This electric mountain bicycle comes standard with a high-quality beverage holder. There is no extra charge!

Product Warranty

1-year warranty against all manufacturing defects.
1 -year battery warranty.
X-Treme may send out spare parts and necessary parts to fix any issues.
Returns will not be accepted if damage is caused to the bike as a result of the rider.
All cancellations after 48 hours are subject to a 10% restocking fee.
All return fees will be at the cost of the customer unless manufacturing defect.

What Our Experts Think

Robust 500W Motor: Provides ample power for tackling moderate to challenging terrains, making it ideal for mountain biking and off-road adventures.
48V Battery System: Offers a longer range and reliable performance, ideal for extended rides in rugged environments without needing frequent recharges.
Step-Through Design: Ensures easy mounting and dismounting, offering added comfort and convenience, especially for riders with limited mobility.
Durable and Sturdy Build: Built with a strong frame and components that can handle rough trails and varying conditions while maintaining stability and control.
All-Terrain Capability: Equipped with knobby tires and suspension to absorb shocks, providing a smoother ride on bumpy or uneven terrain.
Eco-Friendly Operation: Offers a green alternative to traditional mountain bikes, with silent, emission-free electric power for a clean, enjoyable experience.
Safety Features: Includes reliable braking systems, sturdy tires, and integrated lighting to ensure safe riding in different environments and lighting conditions.
Comfortable Ride: The step-through frame, padded seat, and ergonomic handlebars provide comfort for long-distance rides or rugged outdoor adventures.

Q&A

Q: What is the purpose of the X-Treme Sedona Electric Mountain Bike?
A: The Sedona is designed for off-road adventures and mountain biking, offering electric assistance for tackling rugged terrain with ease and comfort.

Q: What is the top speed of the X-Treme Sedona?
A: The bike can reach speeds of up to 20 miles per hour, depending on terrain and rider weight.

Q: How far can it travel on a single charge?
A: The Sedona offers a range of up to 30 miles on a full charge, making it ideal for extended rides on and off the trails.

Q: Is the bike suitable for all riders?
A: Yes, the step-through frame design ensures easy mounting and dismounting, accommodating riders of various heights and skill levels.

Q: What type of maintenance is required?
A: Basic maintenance includes checking tire pressure, cleaning the bike after rides in rough conditions, and monitoring the battery for optimal performance.

Q: What battery is used in the X-Treme Sedona?
A: The bike is powered by a 48-volt battery system, providing ample power for both on-road and off-road rides.

Q: Does the bike require a license or registration?
A: Licensing and registration requirements vary by location. Check local regulations for electric bike usage on public trails.

Maintenance Tips

Charge the Battery: Recharge the battery after each ride, avoiding complete depletion to extend its lifespan.
Check Tire Pressure: Regularly inspect tire pressure and look for any signs of wear or punctures to ensure safety and performance.
Clean the Bike: Wipe down the frame and components with a soft cloth; avoid using high-pressure water near electrical parts.
Lubricate the Chain: Apply lubricant to the chain and gears every 100-150 miles or after wet rides to prevent rust and maintain smooth shifting.
Inspect Brakes: Regularly check brake pads and cables for wear, adjusting or replacing them to ensure proper braking power.
Test Electrical Components: Verify that the motor, battery, display, and other electronics are working properly before each ride.
Tighten Fasteners: Periodically check and tighten all bolts and screws to ensure they remain secure.
Store Properly: Keep the bike in a dry, sheltered location, especially during periods of non-use, to protect the battery and components.
