Description

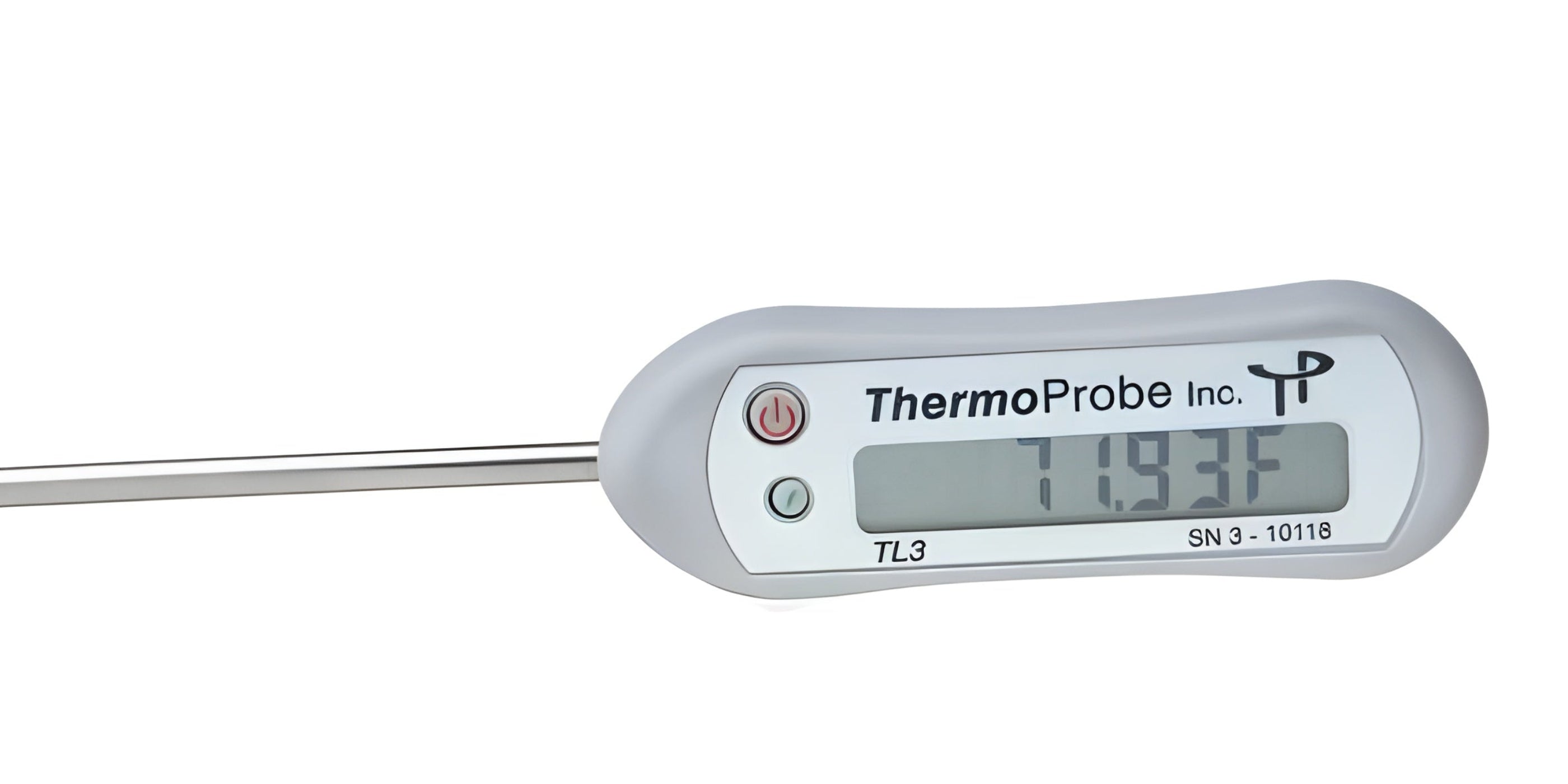

ThermoProbeTL3 Precision Thermometer – TL3-08
The ThermoProbe TL3 thermometer is an ergonomically advanced version of their trusted TL1-A. This precision digital thermometer incorporates a larger display and an easier to hold shape with the same specifications for high accuracy and long-term stability established by the ThermoProbe TL1-A. The ThermoProbe TL3 is intended to be used anywhere a precision glass stem thermometer or other type thermometer is used. The TL3 is well suited as a calibration reference in the laboratory or field.
The versatile software functions allow easy selection of Celsius or Fahrenheit units and display resolution. Encoded calibration is unaffected by temperature, vibration, or battery removal. Low battery display, and failure mode indications protect the user from false data. The intuitive display indicators on this precision digital thermometer allow the user to establish accurate temperature readings. Minimum, maximum and average temperatures are automatically stored to memory for later reference.
The TL3 is constructed with a molded glass-filled nylon case and stainless steel temperature probe. Different from many electronic thermometers, the “Cordless” TL3 has no wires to get in the way or break. The silicone button interface makes for intuitive operation. Standard probe lengths are 8 and 12 inches with additional lengths available upon request. The ThermoProbe TL3 comes equipped with an easily replaceable coin cell battery, providing up to 100 hours of operation.
Applications
Laboratory, Temperature, Calibration, Reference, Thermo well, Thermowell, Handheld, Metrology, NIST, Traceable, API, ASTM, Temperature bath, Distillation, Melting point test, Flash point test, Prover, Flow meter, Pharmaceutical, Food, Dairy, Pete’s Plug, Viscosity, Portable, Digital, Inspector, Temperature Calibration
Specifications
Display |
LCD with 0.5 inch characters Trend Indicating Arrows Low Battery & Fault indication Resolution 0.1 or 0.01 |
---|---|
User Functions |
Auto Off after 20 minutes or continuous operation Lowest Reading, Highest Reading, Average Reading Switchable in Units of °F or °C Display tenths or hundredths resolution |
Construction |
Glass-Filled Nylon Enclosure with silicone buttons and a durable polyester graphics window. Nominal Body Dimensions: 5.0 x 1.7 x 0.85″ (3 x 4.3 x 2.2cm) |
Weight |
5.3oz (150 grams) – with 8″ sensor |
Temperature |
Resolution 0.01 Degrees Calibrated Accuracy: ±0.1°F from 14 to 320°F ±0.06°C from -10 to 160°C Range: -40°F to 400°F (-40°C to 204°C) NIST Traceable Report of Test |
Temperature Time Constant |
6.5 seconds in circulated water bath (63.2% response to temperature change) |
Electronics |
Microcontroller and precision 20 bit A/D Converter FLASH memory Recommended Temperature Range For best Accuracy 32 to 112°F, 0 to 44°C |
Sensor |
Stainless Steel RTD temperature sensor – 100Ω Shock resistant Thin Film RTD – Standard 8″(20cm) or 12″(30cm) lengths – Standard 0.25″(6.35mm) diameter with 0.188″ (4.76mm) reduced tip – Immersion depth 4″ (11cm) recommended |
Batteries |
20mm Coin Size 3V Lithium, Duracell DL2032(IEC CR2032) Over 100 hours Service Life at 70°F, 21°C Battery Operating Range -4 to 130°F, -20 to 54°C Note: Battery may not provide adequate power if ambient temperature is below -4°F, -20°C or above 130°F, 54°C |
Notes |
Specifications subject to change, See data sheet for latest information. Custom ranges, configurations and sensor lengths available upon request. |
What Our Experts Think
- Exceptional Precision – The TL3-08 delivers highly accurate temperature measurements, essential for sensitive applications.
- Reliable Performance – Built to provide consistent readings, ensuring dependability in professional environments.
- Durable Design – Made with robust materials, offering long-lasting performance and resistance to wear.
- Fast Response Time – Quickly adapts to temperature changes, enhancing efficiency during use.
- Easy Operation – User-friendly interface, making it simple to operate in both laboratory and industrial settings.
Q&A
Q: What is the TL3-08 Precision Thermometer?
A: A high-accuracy thermometer designed for precise temperature measurements in both industrial and laboratory settings.
Q: What makes the TL3-08 a precision thermometer?
A: The TL3-08 uses advanced technology for enhanced accuracy, ensuring reliable readings in critical applications.
Q: What is the temperature range of the TL3-08?
A: The TL3-08 offers a broad temperature range, suitable for a variety of measurement needs.
Q: Is the TL3-08 suitable for laboratory use?
A: Yes, it is ideal for use in labs where exact temperature control and measurement are required.
Q: How durable is the TL3-08?
A: The TL3-08 is built to be robust and long-lasting, capable of handling frequent use in demanding environments.
Q: How should I maintain the TL3-08 thermometer?
A: For optimal performance, regularly calibrate the thermometer and store it in a dry, safe place when not in use.
Maintenance Tips
- Clean After Use: Gently wipe the thermometer with a soft, damp cloth to remove dirt or moisture.
- Check for Damage: Regularly inspect for any cracks, dents, or physical damage to ensure accurate readings.
- Calibrate Regularly: Perform periodic calibration to maintain high precision and accuracy.
- Avoid Harsh Chemicals: Clean with non-abrasive solutions to prevent damage to the sensor and casing.
- Proper Storage: Store in a dry, protected environment to prevent damage when not in use.
