Sundown Audio Triple 8" Xv3 Ported Enclosure

Description

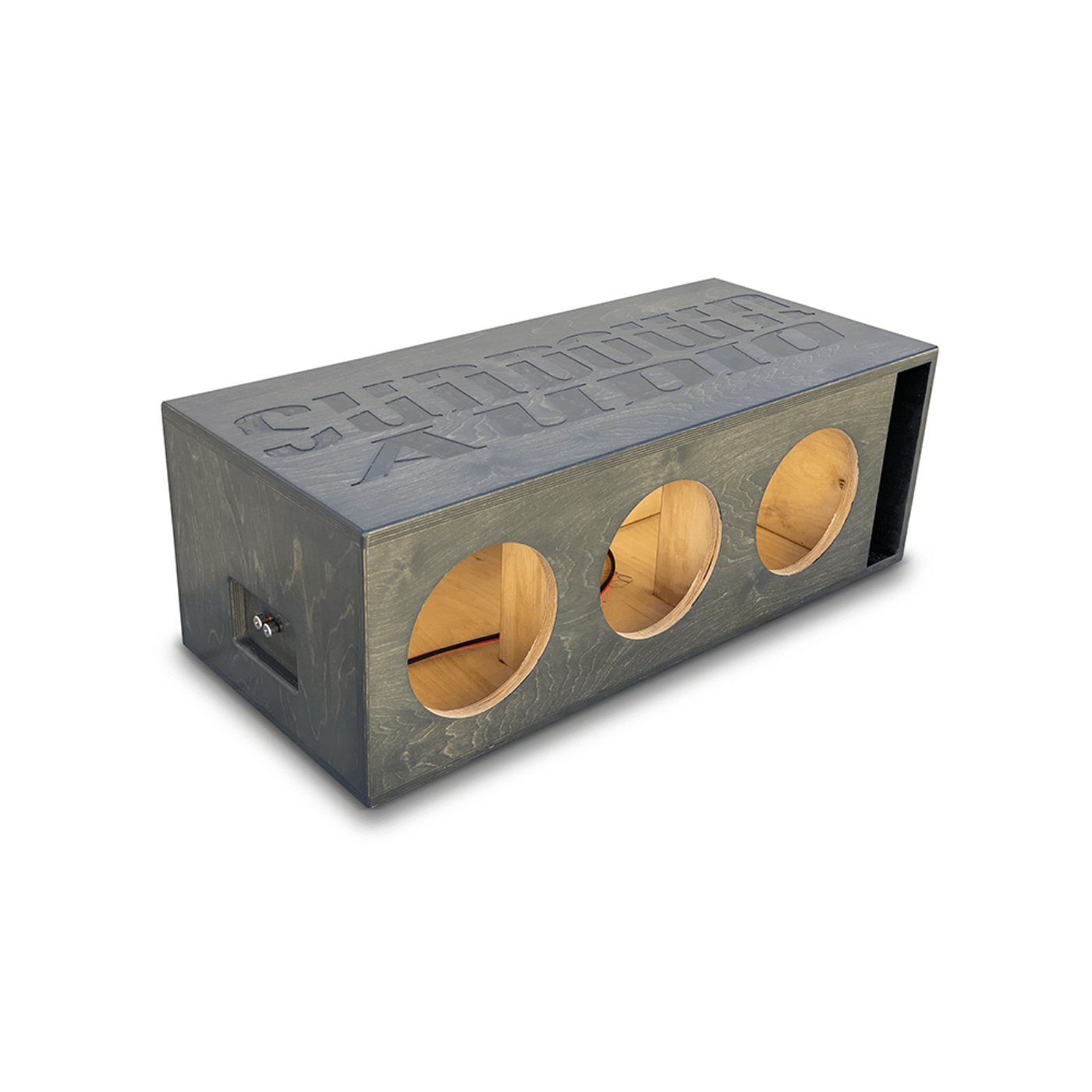

Sundown Audio Triple 8″ Xv3 Ported Enclosure – AABE-SA-Xv3-T8-RD

Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for three Sundown Audio Xv3 8″ subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer a well build, well performing and good looking enclosure at an affordable price. Using premium ¾” Baltic Birch all around with a 1” baffle for added baffle strength, we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

Custom built enclosure specifically for three Sundown Audio Xv3 8″ subwoofers.

Specifications

Net Internal Volume	3.0 cubic feet
Tuning Frequency	34 Hz
Port Area	39.96 sq in
Port Dimensions	13.5″ (L) x 2.96″ (H)
Subwoofer Cutout Diameter	7.36″
Enclosure Material	3/4″ (18mm) Birch Plywood
Baffle Construction	Solid 1″ (24mm) Baffle
Center Brace	3/4″ (18mm) Center Baffle Brace
Plywood Construction	13-ply Birch Veneer (1” Baffle: 17-ply)
Finish	Gray Stained
Terminal Type	Pre-wired Metal Binding Post

Dimensions/Weight

15″ tall
33″ wide
18″ deep

What Our Experts Think

Maximized for Triple Xv3 8″s: Specifically tuned to unleash the full output and SPL of three Sundown Xv3 8″ subwoofers.
Compact Footprint, Massive Output: Ported design delivers deep, aggressive bass—easily rivals larger sub setups.
Rock-Solid MDF Construction: Reinforced to withstand high excursion and continuous power abuse.
Flared Port System: Enhances airflow, reduces noise, and boosts bass clarity and efficiency.
Built for Daily Slams: Ideal for enthusiasts seeking loud, tight bass in space-conscious builds.

Q&A

Q: What is the Sundown Audio Triple 8″ Xv3 Ported Enclosure?
A: A high-output, precision-tuned ported enclosure designed for triple Sundown Audio 8″ Xv3 subwoofers, delivering massive bass in a space-efficient design.

Q: Is this enclosure made for daily use or SPL?
A: Tuned for aggressive daily use with strong SPL capabilities—ideal for enthusiasts wanting tight, hard-hitting low frequencies.

Q: What materials is it built from?
A: Constructed from ¾” MDF with internal bracing and optimized porting for durability, airflow, and clean acoustic performance.

Q: Will it fit other 8″ subwoofers?
A: No, it’s purpose-built for Sundown 8″ Xv3 subs. Using other models may result in poor fit or sound performance.

Q: Does the enclosure come assembled?
A: Yes, it ships fully assembled—just install your three Xv3 subs and wire them up.

Maintenance Tips

Regular Cleaning: Gently wipe the enclosure’s gray-stained birch veneer surface with a soft, dry cloth to prevent dust accumulation.
Inspect for Damage: Periodically examine the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
Amplifier Matching: Ensure your amplifier’s power output aligns with the subwoofers’ recommended specifications to prevent overdriving.
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
