Sundown Audio Single 12" Uv1 Ported Enclosure - AABE-SA-Uv1-S12-RD

Description

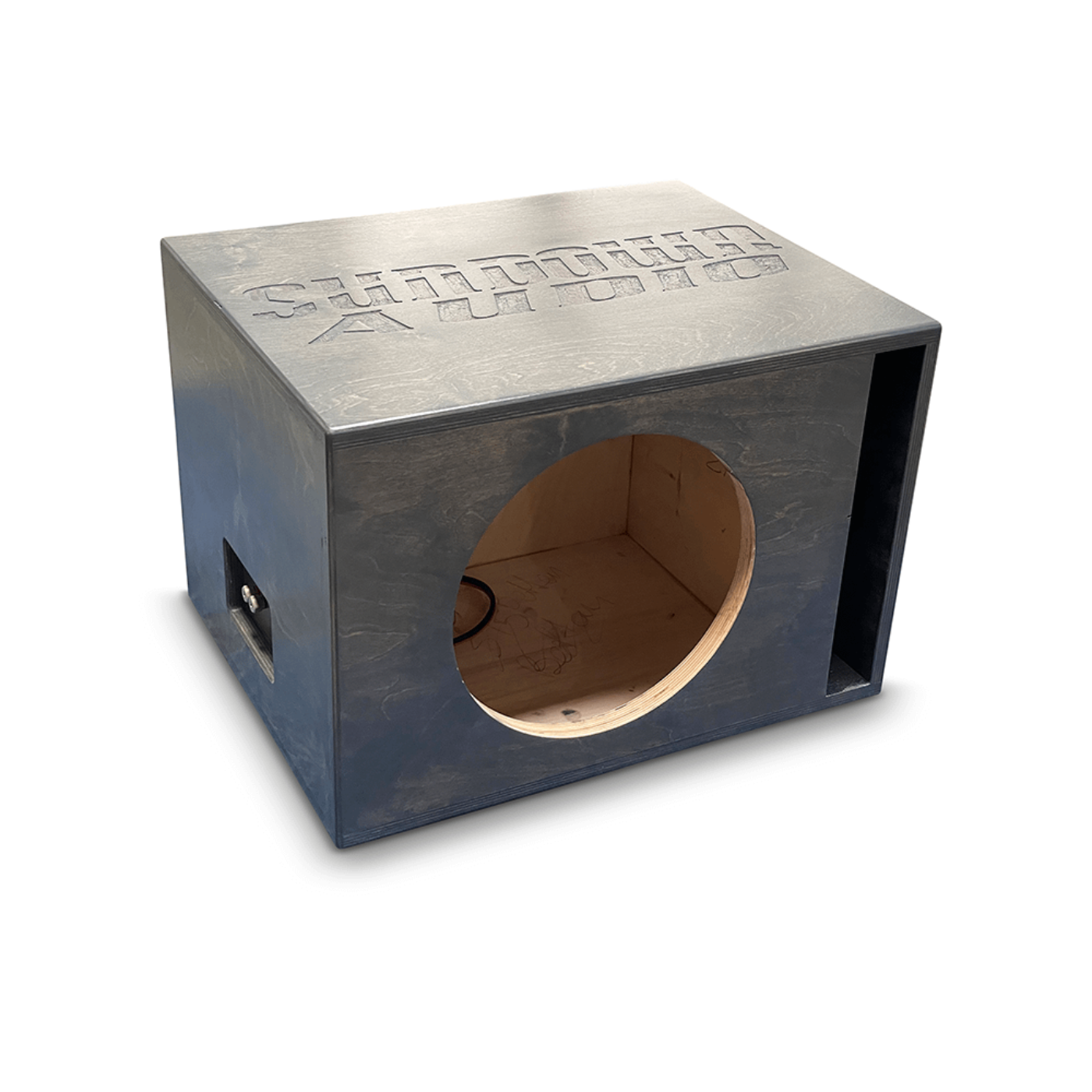

Sundown Audio Single 12″ Uv1 Ported Enclosure – AABE-SA-Uv1-S12-RD

Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Sundown Audio Uv1 12″ subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

Custom built enclosure specifically for the Sundown Audio Uv1 12″ subwoofer.

Specifications

Net Internal Volume	2.0 cubic feet
Tuning Frequency	33 Hz
Port Area	28.6875 sq in
Port Dimensions	13.5” (Length) x 2.125” (Height)
Subwoofer Cut-Out Diameter	11.2 inches
Material	3/4″ (18mm) Birch Plywood
Baffle	Solid 1” (24mm) Baffle for Ultimate Strength
Construction	13-ply Birch Veneer (1” Baffle with 17-ply Birch)
Finish	Gray Stained
Terminal	Pre-wired Metal Binding Post with 10ga OFC Wire

Dimensions/Weight

15” tall
24.625” wide
17” deep

What Our Experts Think

Tuned for Uv1 12″ Excellence: Specifically engineered to deliver optimal performance from the Sundown Uv1 12″ subwoofer.
Deep, Accurate Bass: Ported design enhances low-frequency response with tight, clean output ideal for music-heavy setups.
Built to Withstand Power: High-quality MDF construction with internal bracing handles high wattage and aggressive excursion.
Flared Port System: Promotes smooth airflow, reduces distortion, and improves overall efficiency and bass clarity.
Daily Driver Ready: Balanced for big output and sound quality without taking over your entire trunk.

Q&A

Q: What is the Sundown Audio Single 12″ Uv1 Ported Enclosure?
A: A high-performance ported enclosure precisely engineered for the Sundown Audio 12″ Uv1 subwoofer, delivering powerful, clean, and deep bass output.

Q: Is this enclosure built for daily use or SPL setups?
A: Tuned for high-output daily use with SPL potential—ideal for music lovers who want deep, aggressive low-end performance.

Q: What is it made of?
A: Crafted from ¾” MDF with internal bracing and a precision-tuned port for enhanced durability, airflow, and sound quality.

Q: Can it fit other 12″ subwoofers?
A: No, this enclosure is purpose-built for the Sundown 12″ Uv1 subwoofer. Fitment and performance are not guaranteed with other models.

Q: Does the enclosure come pre-assembled?
A: Yes, it ships fully assembled—just install your Uv1 subwoofer and wire it up.

Maintenance Tips

Regular Cleaning: Wipe the enclosure with a soft, dry cloth to prevent dust accumulation on the surface and ports.
Inspect for Damage: Periodically check the subwoofer and port for any signs of wear, such as cracks or tears, especially after extended use.
Amplifier Matching: Ensure your amplifier’s power output aligns with the subwoofer’s recommended specifications to prevent overdriving.
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofer.

Additional information

Weight	1.0 kg
