Sundown Audio Single 12" NSv5 Ported Enclosure - AABE-SA-NSv5-S12-HD

Description

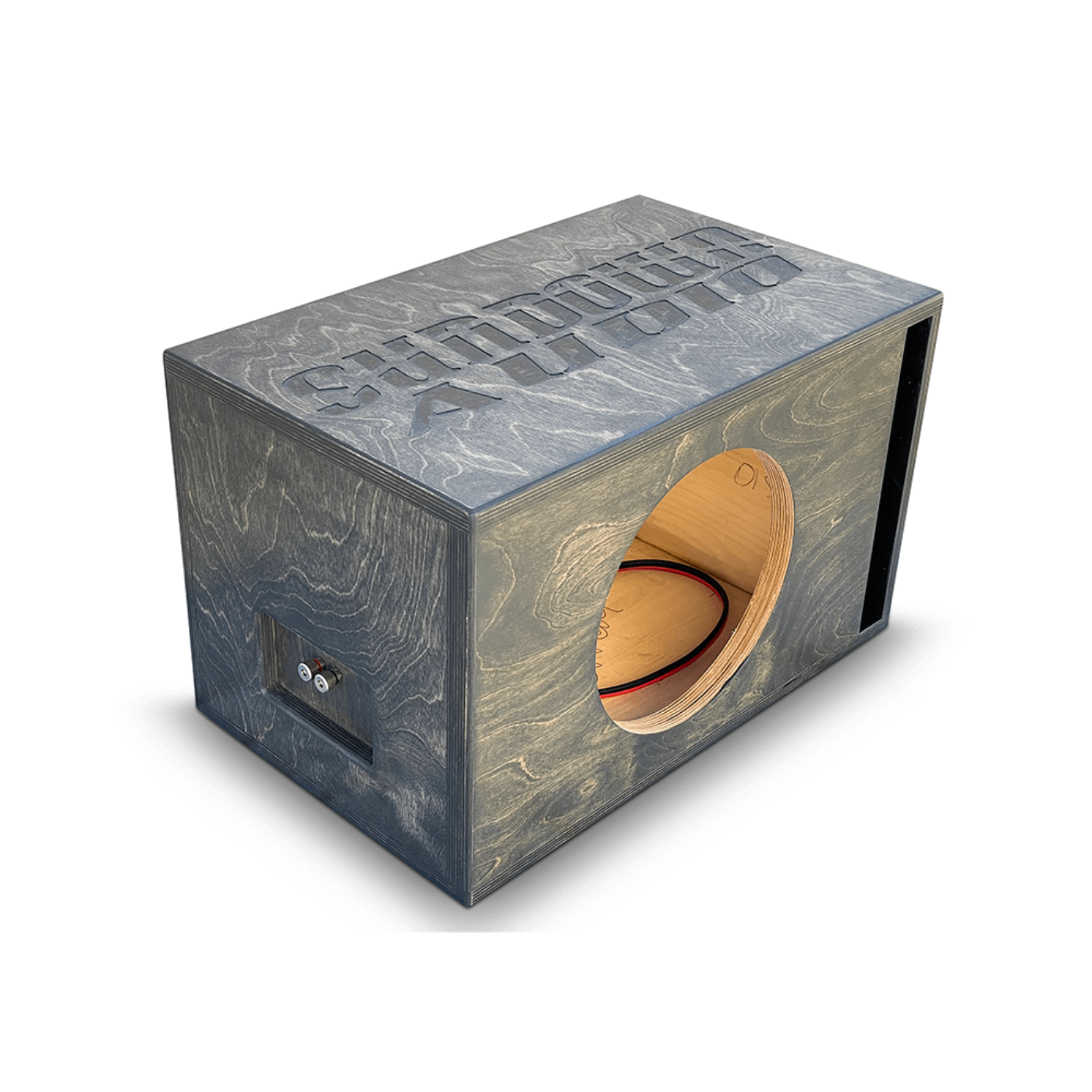

Sundown Audio Single 12″ NSv5 Ported Enclosure – AABE-SA-NSv5-S12-HD

Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio NSv5 12” subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

Custom built enclosure specifically for the Sundown Audio NSv5 12″ subwoofer.

Specifications

Net Internal Volume	2.5 cubic feet
Tuning Frequency	31 Hz
Port Area	35 sq in
Port Dimensions	14” (L) x 2.5” (H)
Subwoofer Cut-Out Diameter	11.01 inches
Material	1″ Birch Plywood
Construction	17-ply Birch Veneer
Finish	Gray Stained
Terminal	Pre-wired Metal Binding Post

Dimensions/Weight

16” tall
27.375” wide
19” deep

What Our Experts Think

Custom-Tuned for NSv5 12″: Specifically designed to optimize the performance of the Sundown NSv5 12″ subwoofer.
Powerful, Accurate Bass: Ported enclosure delivers deep, controlled lows with minimal distortion, ideal for both daily use and competition.
Rugged Build Quality: Constructed from premium MDF with internal bracing to withstand high SPL and power handling.
Efficient Airflow: Large flared port reduces turbulence, boosting output and clarity across low frequencies.
Built for High Power: Designed to handle the NSv5 12″ subwoofer’s high excursion and RMS demands.

Q&A

Q: What is the Sundown Audio Single 12″ NSv5 Ported Enclosure?
A: A custom ported enclosure designed for the Sundown Audio 12″ NSv5 subwoofer, engineered for deep, clean bass and high output.

Q: Is this enclosure tuned for daily listening or SPL?
A: Tuned for daily use, with a focus on strong bass response and efficiency, suitable for both music and moderate SPL needs.

Q: What materials are used in its construction?
A: Made from ¾” MDF with a double baffle for durability, featuring an optimized port system to maximize airflow and sound quality.

Q: Will this work with other 12″ subwoofers?
A: No, this enclosure is specifically built for the Sundown 12″ NSv5. Other subs may not fit or perform properly.

Q: Does it come fully assembled?
A: Yes, the enclosure is fully assembled and ready for installation—just drop in your NSv5 and wire it up.

Maintenance Tips

Routine Cleaning: Dust the enclosure with a soft cloth to keep the surface free from debris.
Check for Wear: Inspect the subwoofer and port for any physical damage, such as cracks or tears in the surround.
Proper Power Handling: Match the subwoofer with an amplifier that stays within its recommended power range to prevent overheating.
Ensure Proper Ventilation: Keep air circulating around the enclosure to avoid heat buildup during long listening sessions.
Stable Installation: Mount the enclosure securely to prevent rattling and vibrations that could affect sound quality.
