Pioneer Multi Zone 12,000 BTU Ceiling Cassette Air Handler, CB012GMFILCFHD-25

Multi Zone Ceiling Cassette Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 12,000 BTU/Hr. (1 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz.

IMPORTANT

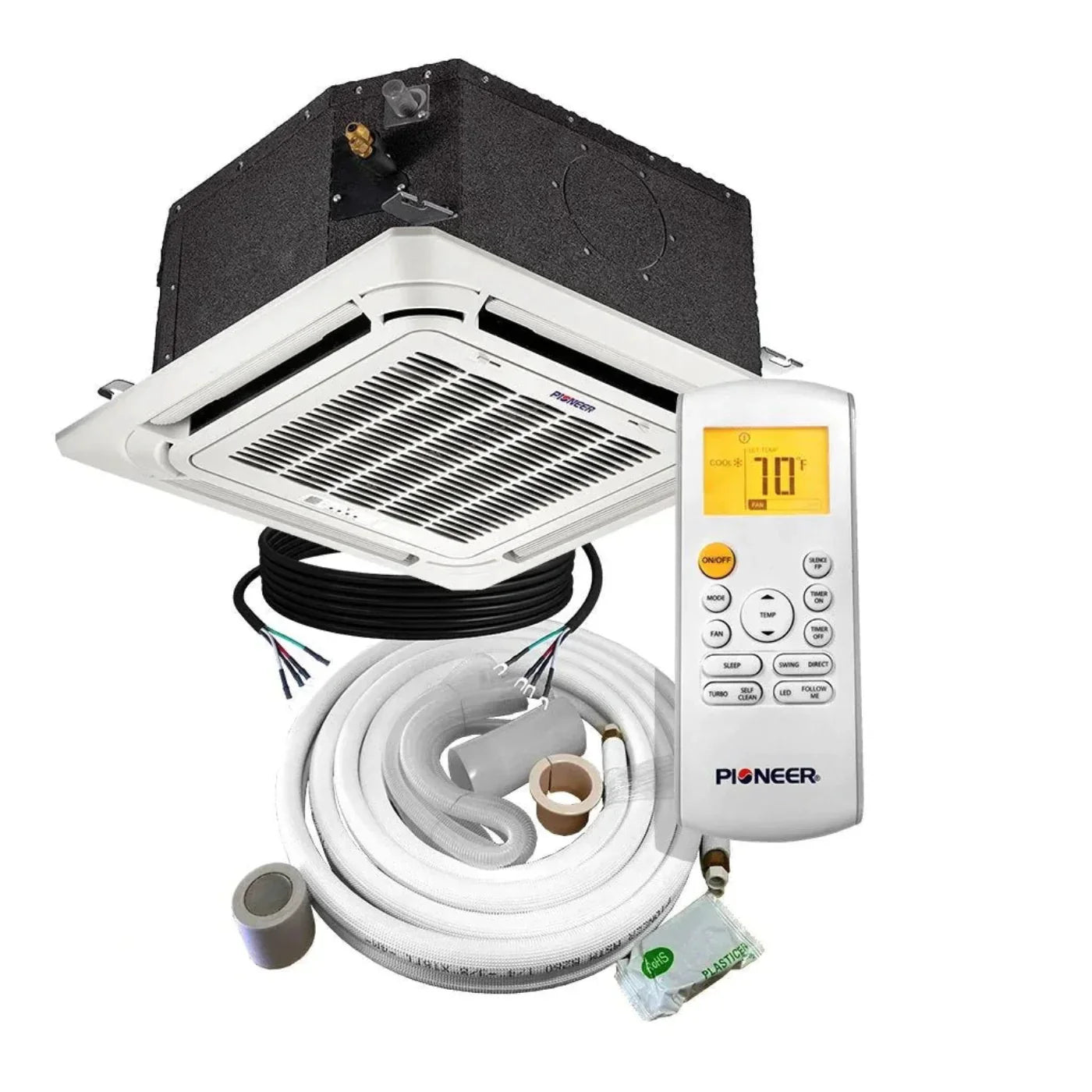

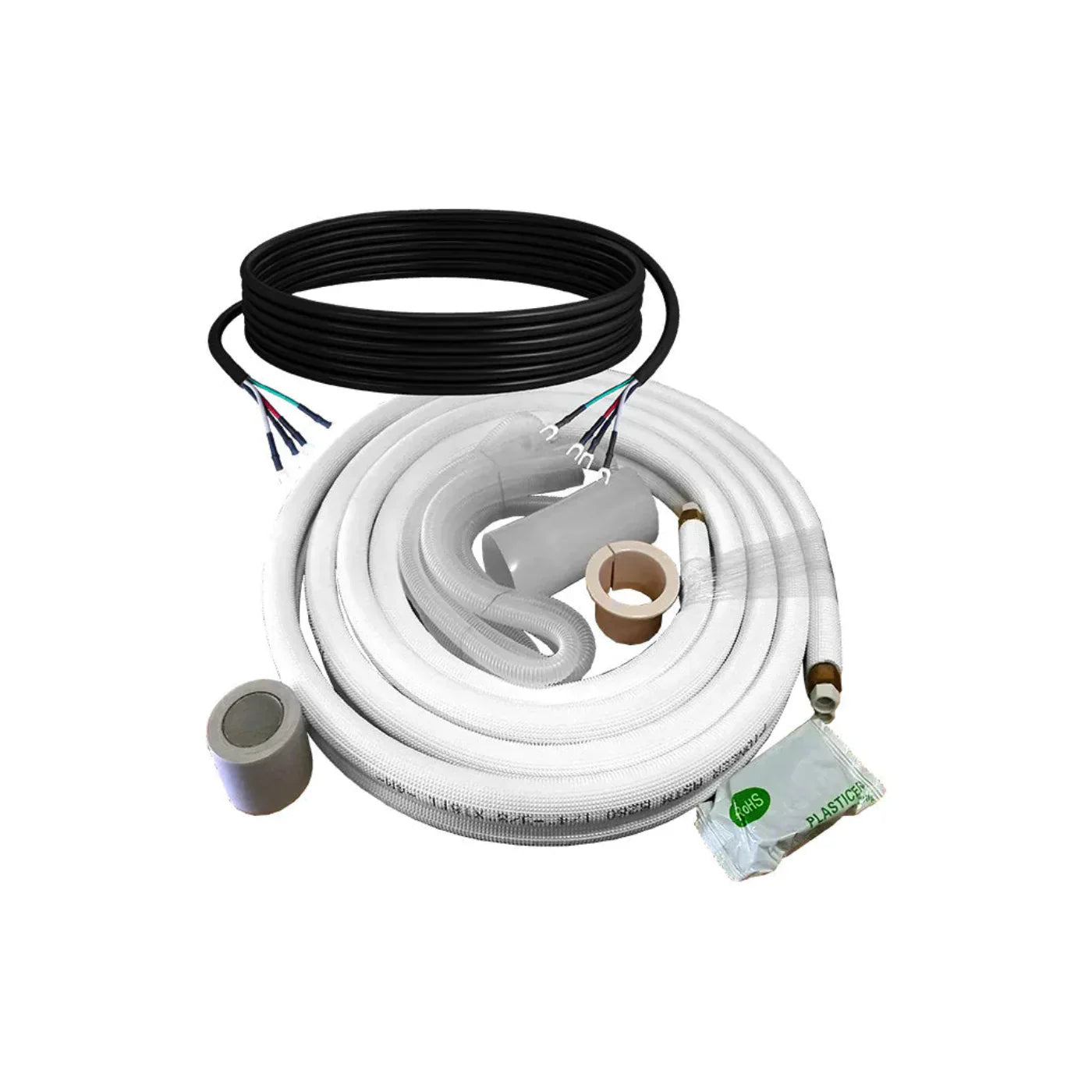

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:

• Dual Zone: YN020GMFI22M2D
• Triple Zone: YN030GMFI22M3D
• Quad Zone: YN040GMFI22M4D
• Quint Zone: YN050GMFI22M5D

Notes

• Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
• Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
• Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

What’s Includes

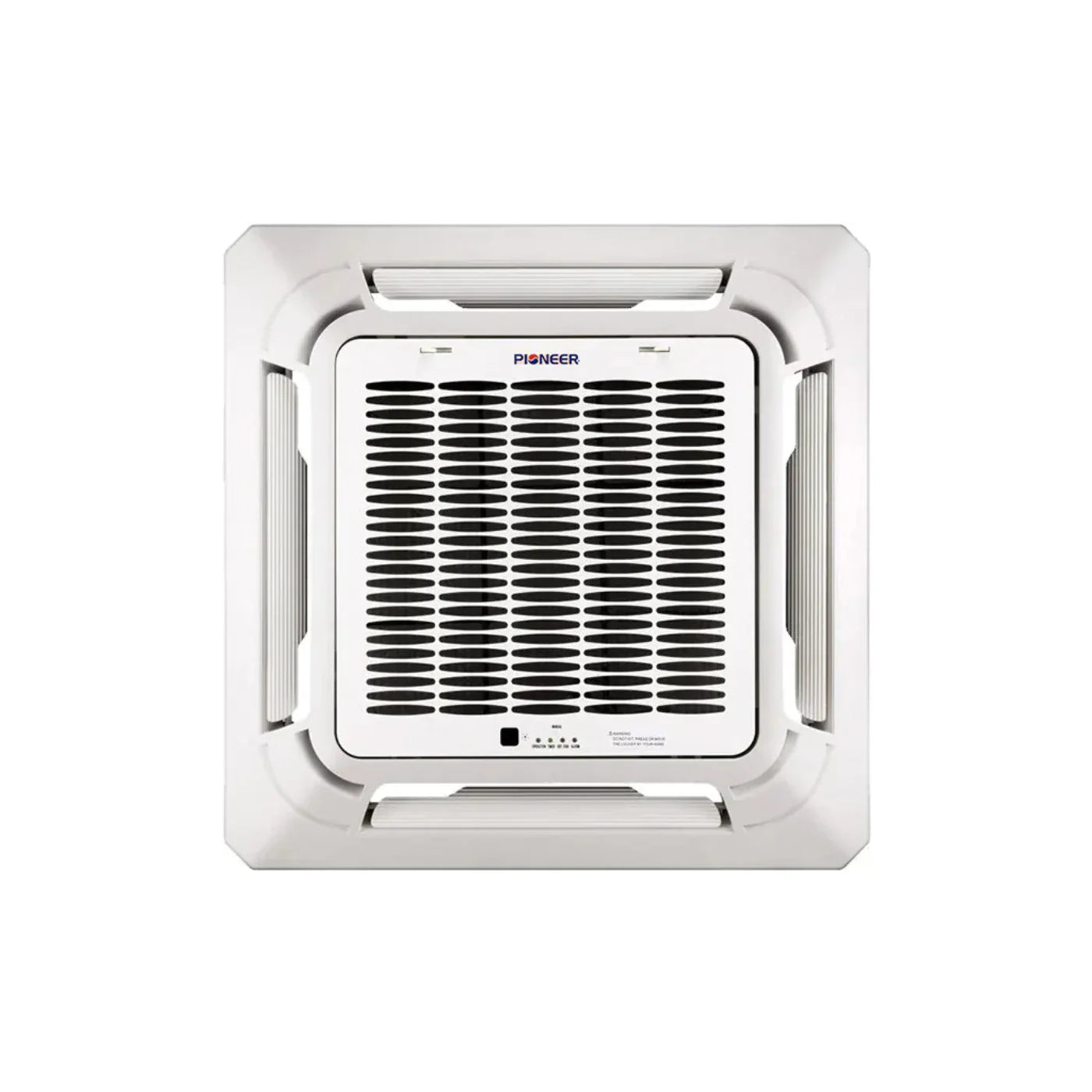

• Indoor Unit

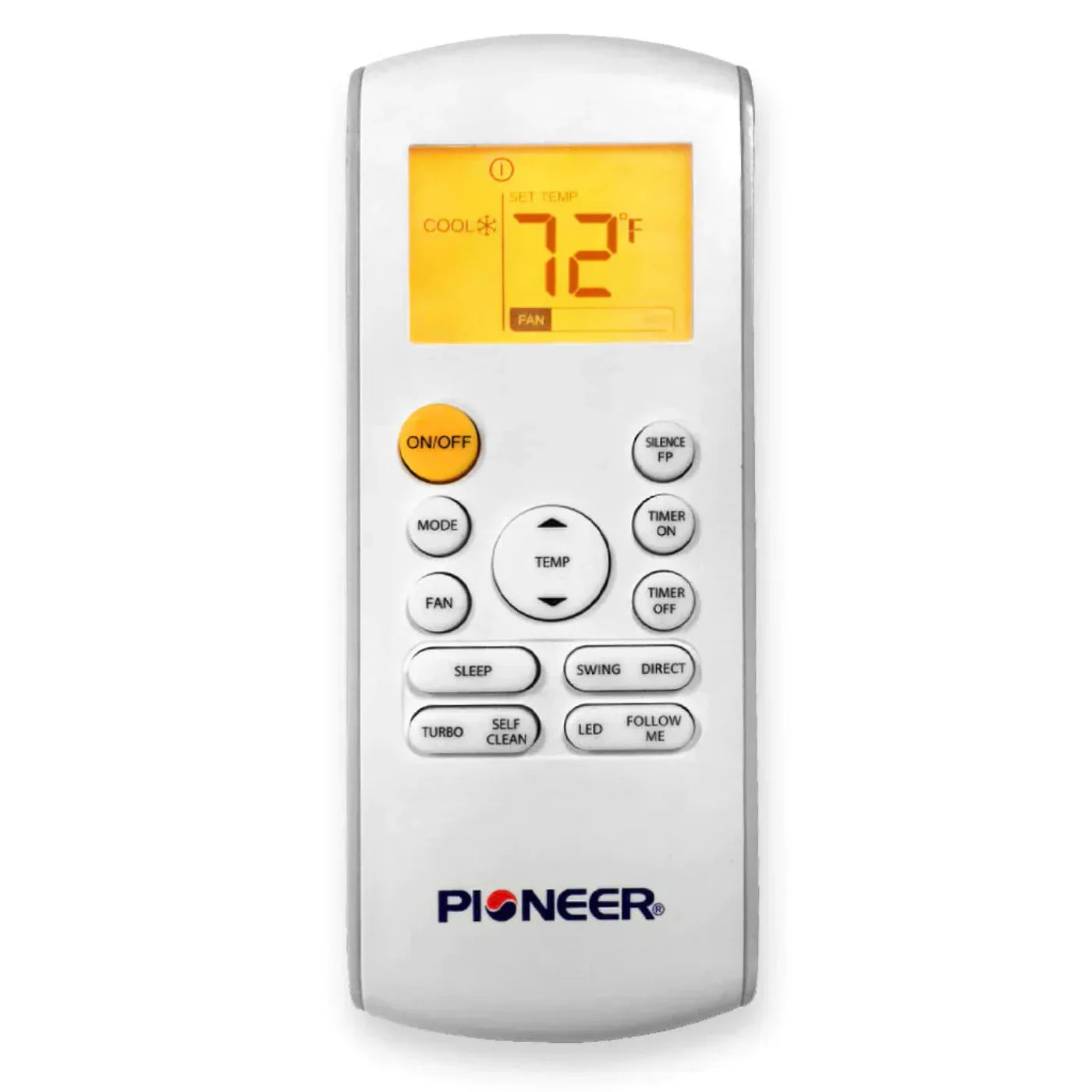

• Wireless Remote Control
• 25 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Manufacturer Warranty

PRODUCT SPECIFICATIONS

INSTALLATION & GUIDES

• Matching Table
• Specification Table

What Our Experts Think

• 12,000 BTU Cooling & Heating Capacity: This ceiling cassette air handler provides efficient heating and cooling for small to medium-sized rooms, ensuring year-round comfort.

• Multi-Zone Compatibility: Designed for Pioneer multi-zone systems, this air handler allows independent climate control for different rooms when paired with a compatible outdoor unit.

• Sleek Ceiling Cassette Design: The concealed ceiling installation offers a clean, modern look while distributing air evenly across the space. Ideal for rooms with limited wall space or where wall-mounted units are not preferred.

• Energy-Efficient Inverter Technology: Adjusts compressor speed based on demand, improving energy efficiency, reducing power consumption, and maintaining consistent temperatures.

• Whisper-Quiet Operation: Runs quietly for an undisturbed environment, making it suitable for bedrooms, offices, and other noise-sensitive areas.

• 360° Airflow Distribution: The four-way airflow design ensures even temperature control across the entire room for enhanced comfort.

• Easy-to-Use Controls: Comes with a remote control and programmable timer for effortless operation and scheduling convenience.

• Advanced Filtration System: Helps remove dust, allergens, and airborne particles, improving indoor air quality for a healthier living space.

• Flexible Installation: Works with standard drop ceilings and suspended ceiling grids, providing versatility in placement and maximizing space utilization.

• Reliable Performance: Built to deliver consistent heating and cooling with a high SEER rating for energy savings over time.

Q&A

Q: What is the Pioneer Multi Zone 12,000 BTU Ceiling Cassette Air Handler?
A: The Pioneer Multi Zone 12,000 BTU Ceiling Cassette Air Handler is a discreet, high-efficiency indoor unit designed for use with Pioneer multi-zone mini-split systems. Installed in the ceiling, it provides powerful heating and cooling while remaining out of sight, making it ideal for homes, offices, or commercial spaces that require an unobtrusive climate control solution.

Q: What are the advantages of a ceiling cassette air handler?
A: Ceiling cassette air handlers offer a sleek, space-saving design by being recessed into the ceiling. This allows for optimal air distribution without taking up wall or floor space. They provide even airflow in all directions, reducing hot or cold spots and maintaining consistent room temperatures.

Q: Is this unit compatible with multi-zone systems?
A: Yes, this 12,000 BTU ceiling cassette air handler is specifically designed to be used with Pioneer multi-zone outdoor units, allowing for independent temperature control in different rooms or zones.

Q: How energy efficient is this unit?
A: The Pioneer ceiling cassette air handler is designed for energy-efficient performance, helping to reduce power consumption while maintaining effective climate control. It works seamlessly with the outdoor compressor to optimize energy use.

Q: What size area does the 12,000 BTU capacity cover?
A: This unit is best suited for spaces up to 500 square feet, depending on insulation, ceiling height, and other environmental factors. It provides consistent and reliable heating and cooling for bedrooms, offices, or medium-sized living areas.

Q: Can this unit provide both heating and cooling?
A: Yes, the ceiling cassette air handler works as part of a heat pump system, delivering both cooling during hot months and heating during colder months.

Q: Does this unit require professional installation?
A: Yes, ceiling cassette air handlers must be installed by a licensed HVAC professional. Proper installation ensures optimal performance and efficiency while integrating seamlessly into your multi-zone system.

Maintenance Tips

• Clean or Replace Air Filters Regularly: Wash or replace filters every 1-3 months to maintain airflow and efficiency. Clogged filters can reduce cooling/heating performance and increase energy consumption.
• Inspect and Clean Coils: Clean the evaporator coils every 6-12 months to prevent dirt buildup, which can hinder heat exchange and lower efficiency. Use a soft brush or coil cleaner.
• Check and Clear the Condensate Drain: Ensure the drain line is free from clogs to prevent water leaks and mold growth. Flush with warm water or use a wet/dry vacuum if needed.
• Monitor Refrigerant Lines: Check for any signs of leaks or damage. Ensure insulation is intact to prevent energy loss and condensation buildup.
• Keep the Intake Grille Clean: Dust and debris can accumulate on the ceiling cassette’s intake grille, affecting airflow. Wipe it down regularly to maintain optimal performance.
• Ensure Proper Air Distribution: Make sure vents are not blocked and air is being evenly distributed throughout the room. Adjust louvers if necessary.
• Listen for Unusual Noises: Strange sounds like rattling or hissing may indicate loose parts or refrigerant issues. If noticed, schedule an inspection.
• Schedule Annual Professional Maintenance: A technician should check refrigerant levels, deep clean internal components, and ensure all parts are functioning properly to prevent costly repairs.
