Description

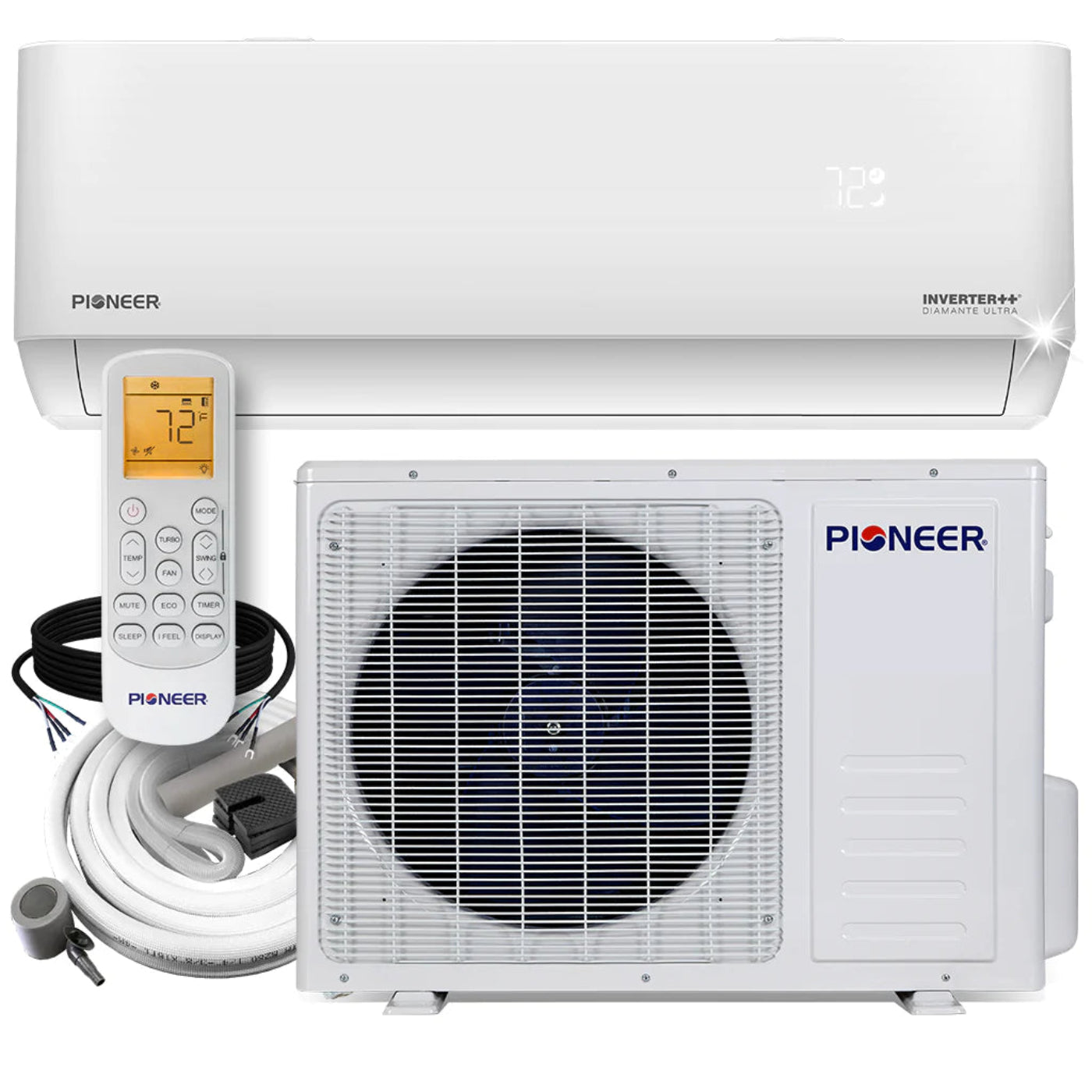

Pioneer Diamante Ultra 9,000 BTU 23 SEER Ductless Mini-Split Inverter++ with 16 Ft. Kit – WYT009GLFI22RL

Experience instant relief the moment you enter your room with Pioneer’s latest Diamante series high-wall ductless mini-split heat pumps with Inverter technology that achieves an incredible 23 SEER/13 EER efficiency. The variable-speed inverter technology and high-efficiency 23 SEER average rating guarantee substantial savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, perfectly reach all directions of the room.

All systems in this series come equipped with an auxiliary strip heater in the condensing unit, to provide hyper-heating even in frigid -13°F temperatures. And with noise measurements as low as 27 dB, you can sleep peacefully with air conditioning quieter than even an empty library. In addition, all systems come pre-packed with a full 16 ft. installation kit, so your ductless mini-split heat pump system is ready to be up and running in a single afternoon!

Features

• Cooling capacity: 9,000 BTU/H with 23 SEER/13 EER efficiency
• Heating capacity: 9,500 BTU/H with 10 HSPF efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13F)
• Wireless Internet Access Included (Via Free Smartphone App)
• Energy-Star Certified

What’s Included

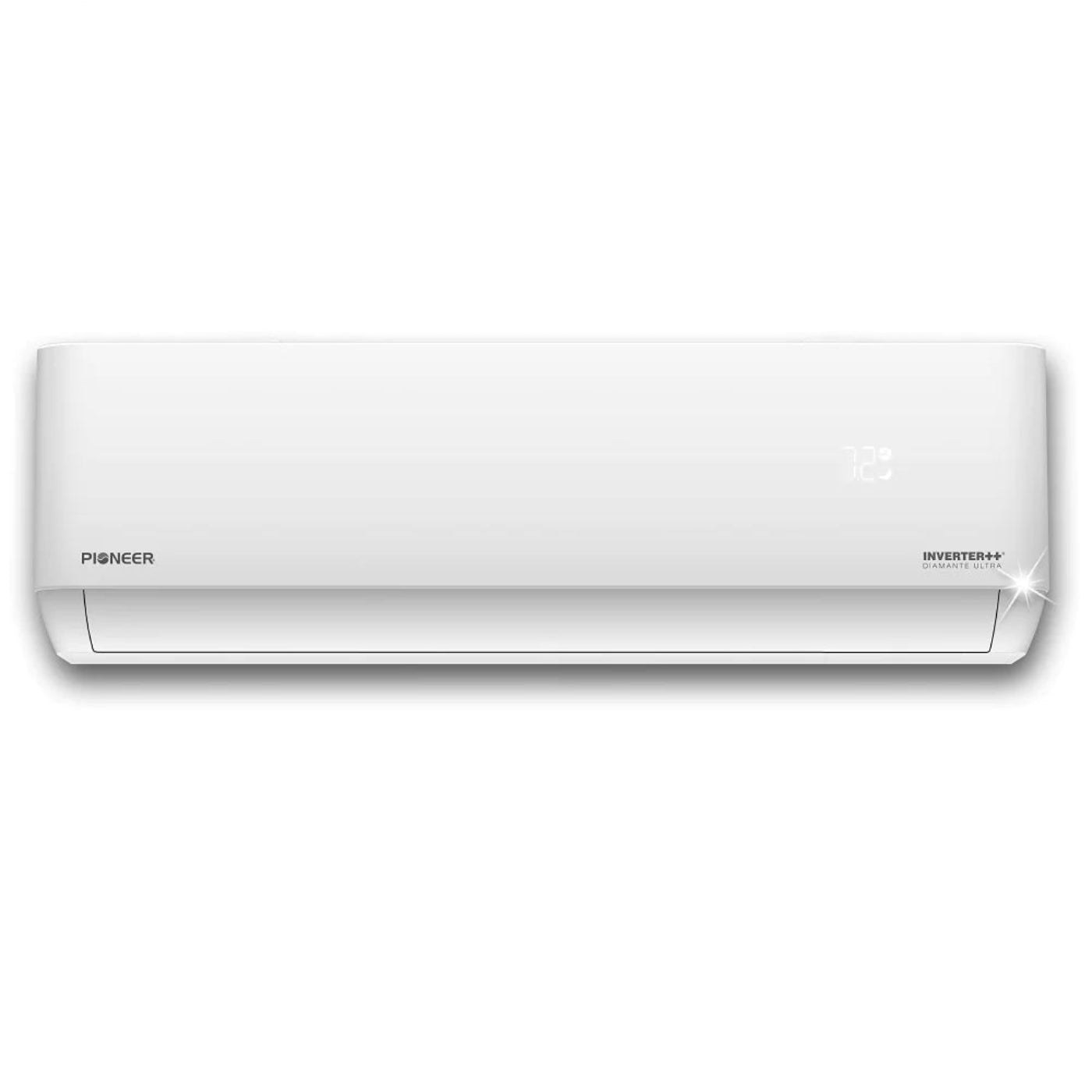

• Indoor Unit

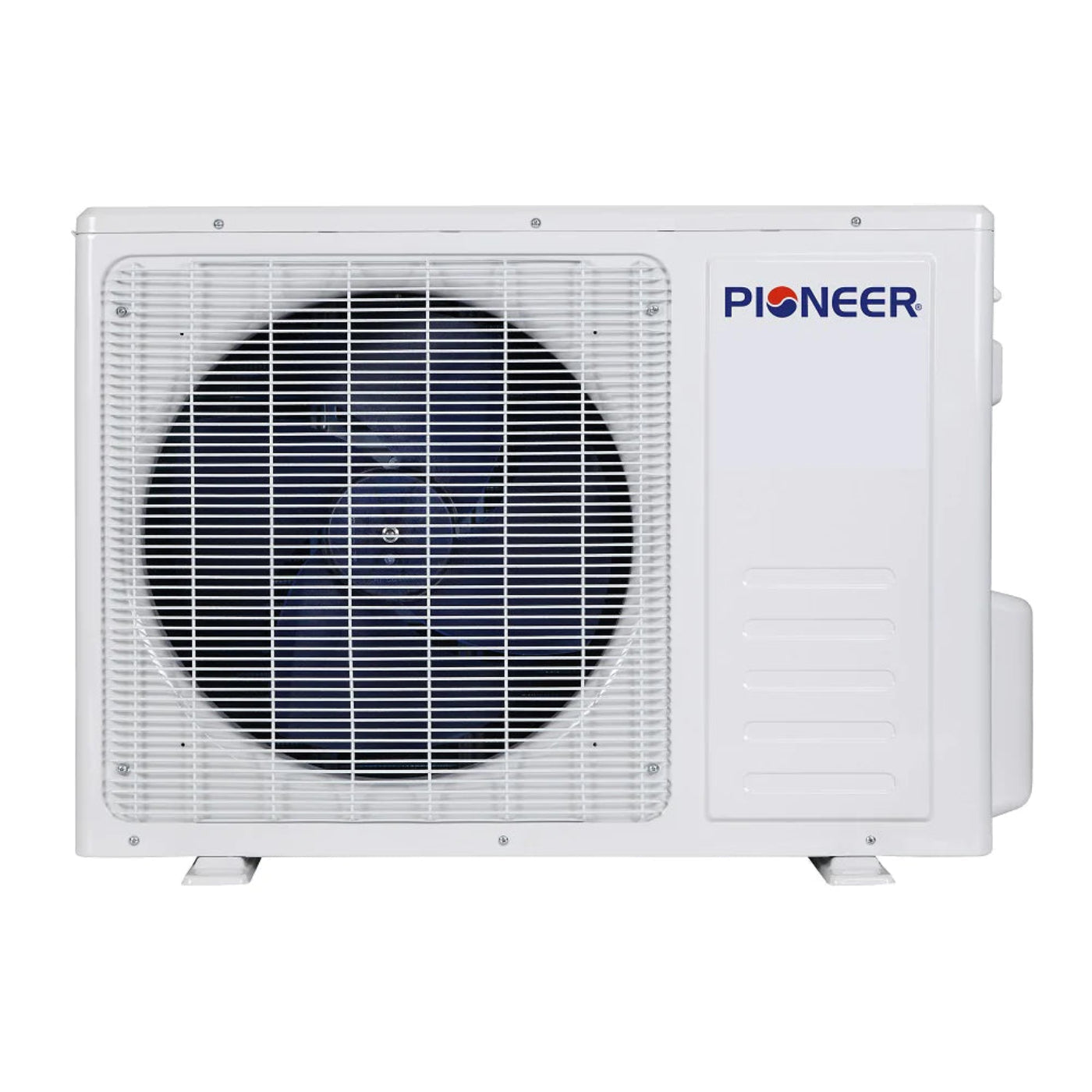

• Outdoor Unit

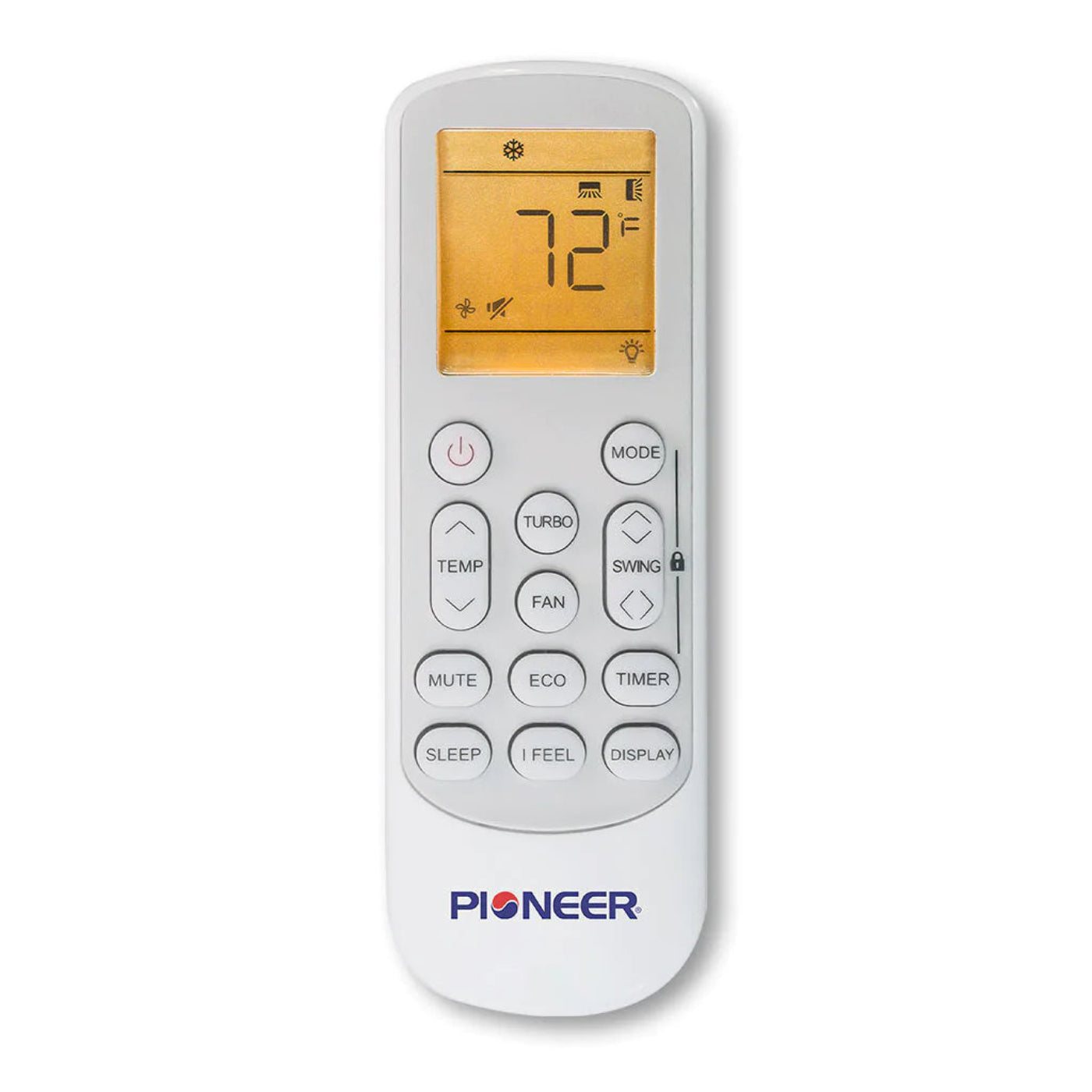

• Wireless Remote Control (with wall holder and batteries)
• R410A Pre-Charged Outdoor Unit

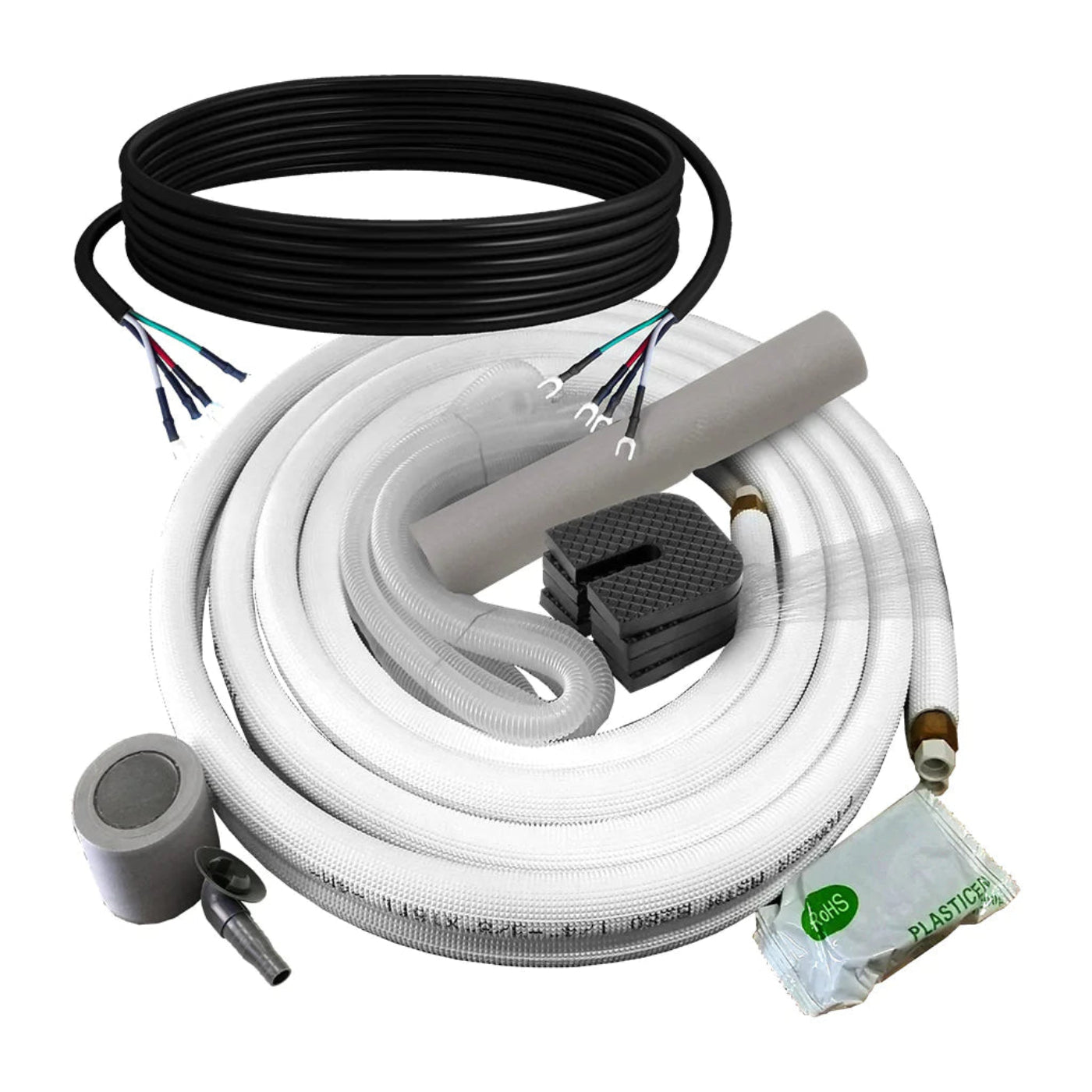

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape

What’s Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

Specifications

INSTALLATION & GUIDES

• Sales Brochure
• Technical Brochure
• Installation Manual
• Service Manual

• Parts Diagram
• Energy Guide

What Our Experts Think

• 9,000 BTU Capacity: Perfect for small to medium-sized rooms, delivering efficient and reliable cooling and heating year-round.
• 23 SEER Energy Efficiency: Ultra-high efficiency reduces energy costs while providing superior climate control.
• Inverter++ Technology: Enhances performance with precise temperature control, quieter operation, and significant energy savings.
• Ductless Design: No need for complex ductwork, making installation easier and ideal for homes, offices, or apartments.
• 16 Ft. Installation Kit Included: Comes with a pre-charged refrigerant line set (16 ft.), reducing setup time and simplifying installation.
• Quiet Operation: Designed for minimal noise, making it ideal for bedrooms, living rooms, or offices where a peaceful atmosphere is important.
• Heat Pump Functionality: Provides both heating and cooling, ensuring year-round comfort in any climate.

Q&A

Q: What is the cooling capacity of the Pioneer Diamante Ultra 9,000 BTU Mini-Split system?
A: This system provides 9,000 BTU of cooling power, making it ideal for small rooms or spaces up to 400 sq. ft.

Q: What is the SEER rating of the Pioneer Diamante Ultra 9,000 BTU Mini-Split system?
A: It features an impressive 23 SEER rating, ensuring maximum energy efficiency and lower electricity costs.

Q: Does the Pioneer Diamante Ultra 9,000 BTU Mini-Split system provide both cooling and heating?
A: Yes, it functions as both an air conditioner and a heat pump, delivering efficient cooling in summer and heating in winter.

Q: What are the key features of the Pioneer Diamante Ultra 9,000 BTU Mini-Split system?
A: This system includes Inverter++ technology for enhanced performance, ultra-quiet operation, WiFi compatibility for remote control, and advanced air filtration for improved indoor air quality.

Q: Is the Pioneer Diamante Ultra 9,000 BTU Mini-Split system easy to install?
A: Yes, it comes with a 16 ft. installation kit, making setup simple and flexible for various room layouts.

Maintenance Tips

• Clean or Replace Filters: Wash the air filters every 2-4 weeks to maintain airflow and efficiency. Replace them annually or when excessively dirty.
• Clean the Coils: Wipe down the evaporator and condenser coils at least once a year to remove dust and debris that can reduce efficiency.
• Inspect the Drain Line: Regularly check the condensate drain line for blockages and clear any clogs to prevent water leaks and mold growth.
• Monitor Refrigerant Levels: Ensure refrigerant levels are sufficient for optimal cooling and heating. If performance drops, consult a professional for inspection and recharging if needed.
• Keep Airflow Clear: Maintain a clutter-free space around both the indoor and outdoor units to avoid airflow restrictions and system strain.
• Schedule Annual Professional Maintenance: Have a technician perform an annual inspection, including refrigerant level checks and component cleaning, to ensure efficient operation.
