Description

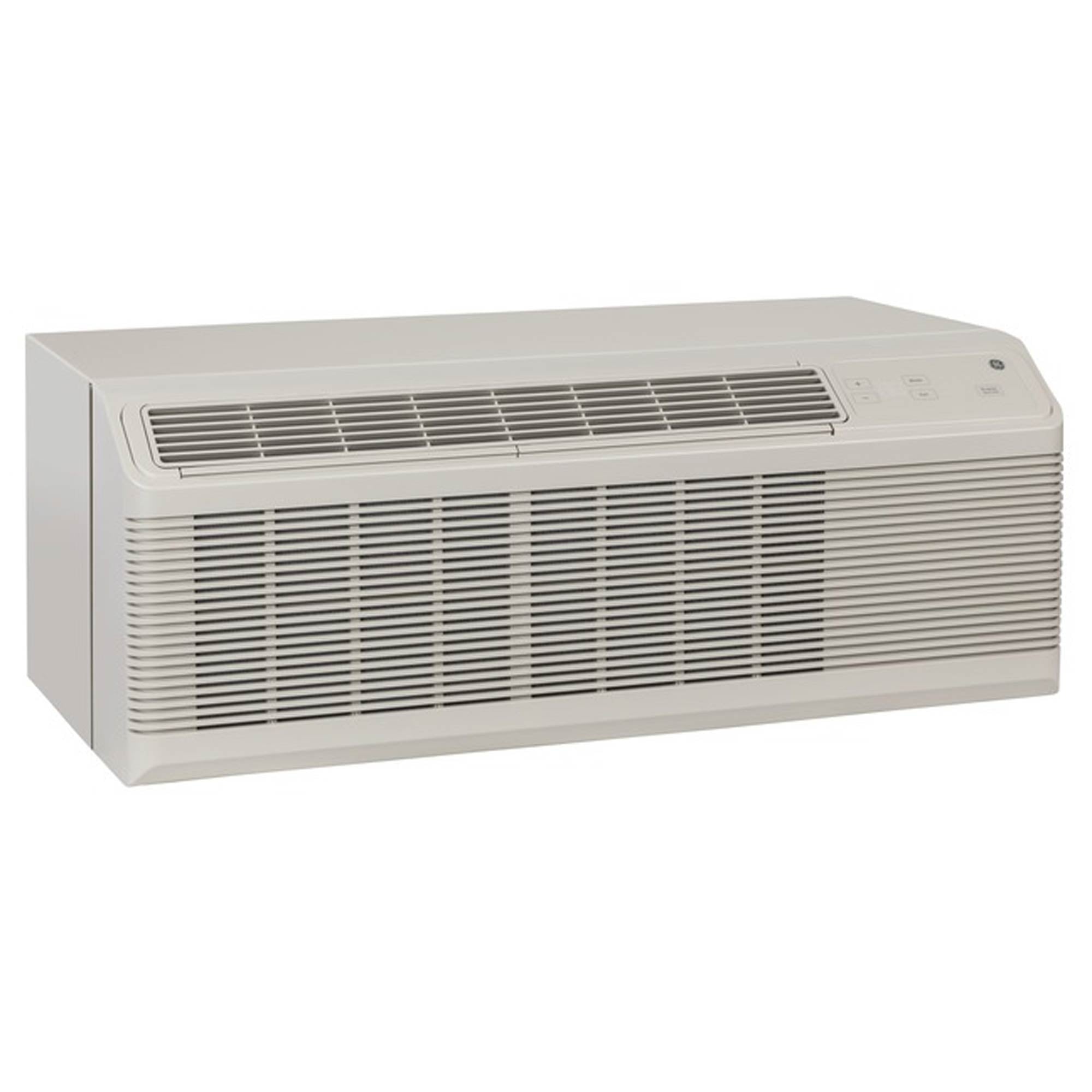

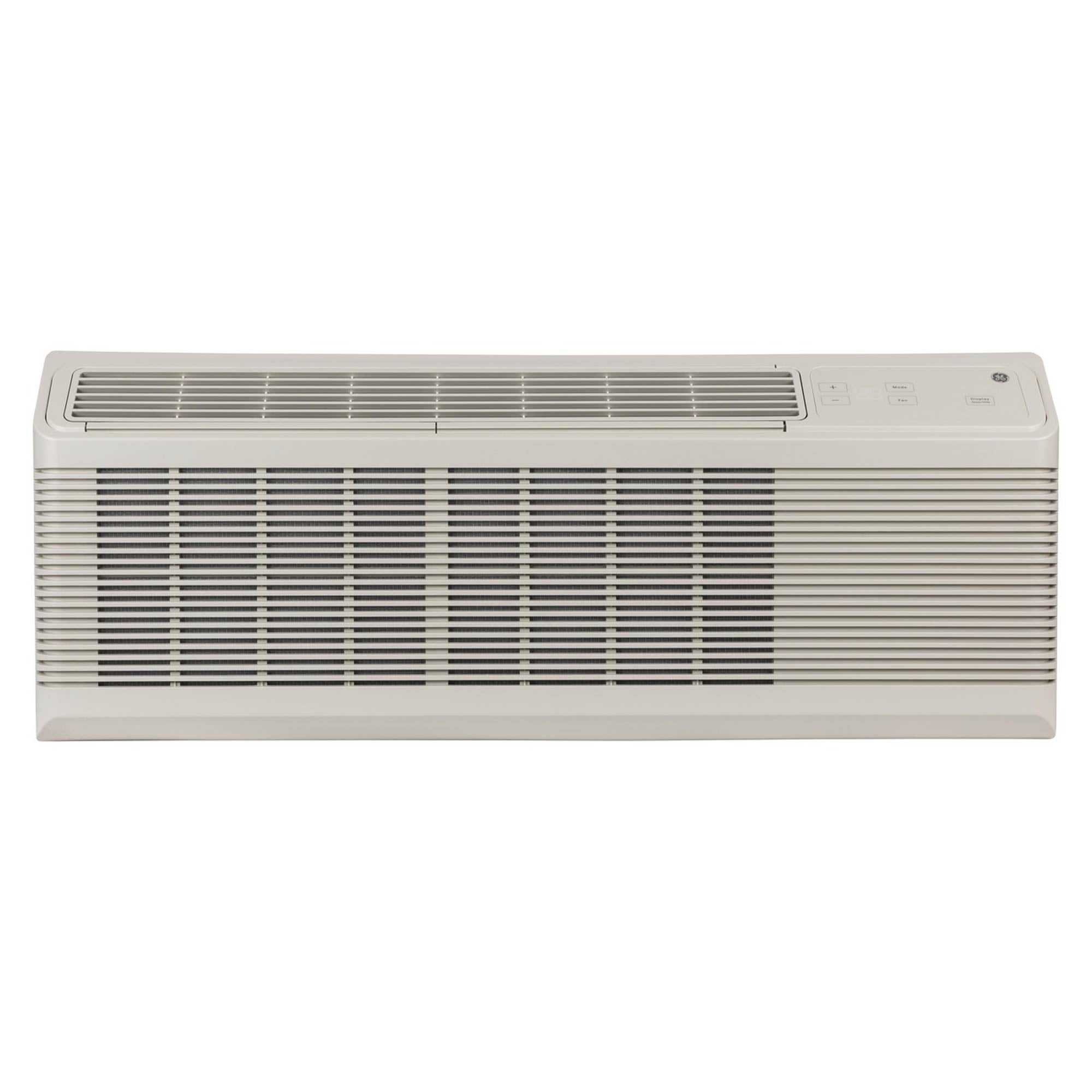

GE Zoneline 12,000 BTU PTAC with Electric Heat – AZ45E12DAB

GE Zoneline units are designed with innovative, universal components and offer even greater installation flexibility than ever, whether in new construction, renovation, or replacement of old units. Unless specified by code, they require no sub-base and may be installed flush with the finished floor. All models are adaptable to remote and central desk control. Zoneline units may even be placed in unusual locations, such as transom or common-area installations.

Note: GE Zoneline Air Conditioners do not come with power cords. A GE RAK Series Power Cord is a required accessory when purchasing this product. The choice of the power cord determines the amount of electric resistive heat.

• Power cords available for this unit:

• RAK315P (15 Amp 8100/6600 BTU)

• RAK320P (20 Amp 11500/9400 BTU)

• RAK330P (30 Amp 16300/13400 BTU)

Please see the manufacturer’s specification sheet for more info on power cord selection.

When purchasing a PTAC unit, match the power plug to the wall receptacle.

Standard Features

• Uses environmentally friendly R-410A refrigerant

• Two fan motors lower sound levels and increase efficiency

• Cross-flow blower, which circulates the air with less noise than traditional fans

• Electronic touch controls with clear LED readout provide a user-friendly experience.

• Compatible with a wide variety of thermostats and energy management systems, including central desk control

• Freeze Sentinal™ protects against damage caused by freezing temperatures in unoccupied rooms.

• Heat Sentinal™ protects against over-heating should the temperature of an unoccupied room reach 85°F

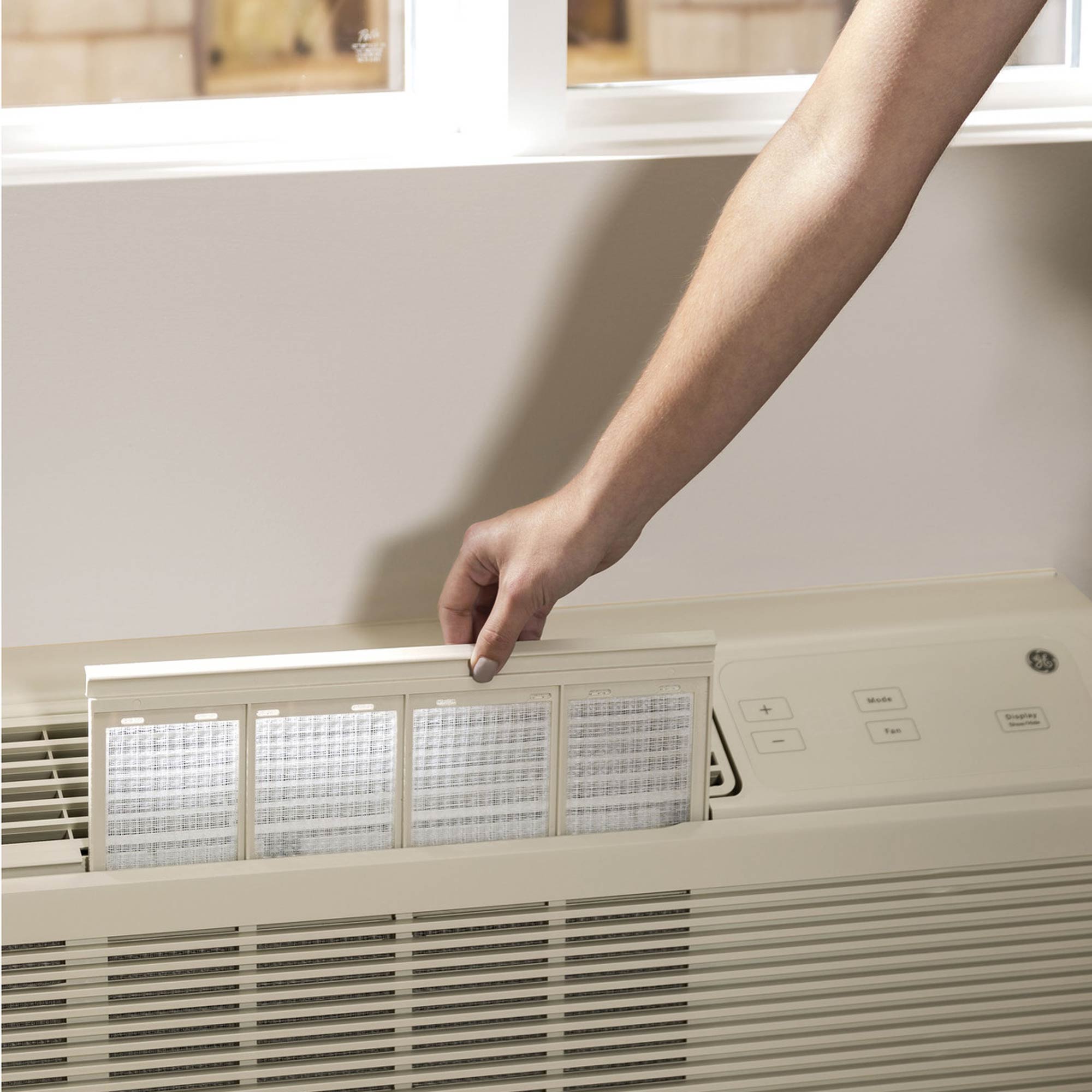

• Upfront filters are made of nylon mesh for ease of cleaning.

• Temperature limiting to prevent expensive over-cooling or over-heating

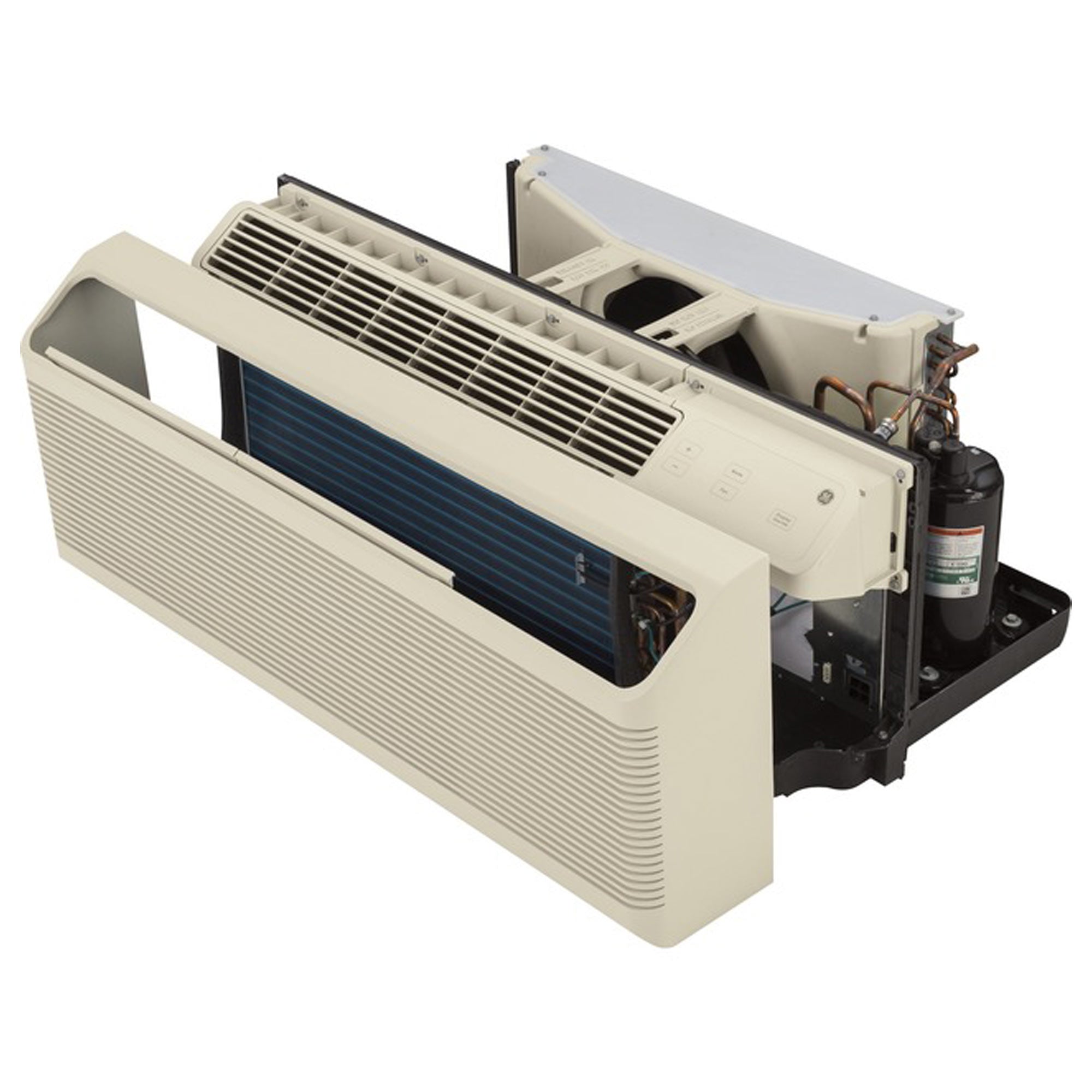

• Integrated structural components for easy maintenance and support.

• Full one-year warranty parts and labor; second through fifth-year parts and labor on the sealed refrigeration system, second through fifth-year limited parts warranty

Specifications

Documents

GE Zoneline Specifications and Brochure

GE Zoneline AZ45 and AZ65 Owner Manual

What Our Experts Think

The GE Zoneline 12,000 BTU PTAC with Electric Heat (AZ45E12DAB) is a reliable and efficient option for heating and cooling medium-sized spaces. Here’s why it’s an excellent choice:

• 12,000 BTU Cooling Power: Effectively cools rooms or areas in residential or commercial settings.
• Electric Heat Function: Offers consistent warmth for year-round comfort.
• Energy Efficiency: Engineered to provide optimal performance while keeping energy usage low.
• Quiet Operation: Maintains a serene environment, ideal for hotels, apartments, and offices.
• Durable Construction: Designed for long-term use in demanding environments.
• User-Friendly Controls: Simplifies temperature and fan adjustments for personalized comfort.
• Dehumidification Feature: Improves air quality by reducing excess moisture.

This PTAC unit is ideal for those seeking dependable and energy-efficient climate control in a compact, durable design.

Q&A

Q: What is the GE Zoneline 12,000 BTU PTAC with Electric Heat?
A: A Packaged Terminal Air Conditioner (PTAC) offering 12,000 BTU cooling and electric heating, designed for efficient climate control in residential or commercial spaces.

Q: What are the key features?
A:

• Cooling & heating: Provides year-round comfort with reliable cooling and electric heating.
• Energy-efficient operation: Optimized to reduce energy consumption and costs.
• Quiet performance: Minimizes noise for a comfortable indoor environment.
• Durable construction: Built for long-lasting use in high-traffic settings.
• Flexible installation: Fits standard PTAC sleeves for easy setup.

Q: What makes it unique?
A: Its balance of powerful performance, energy efficiency, and quiet operation makes it suitable for hotels, apartments, or individual rooms.

Q: Does it support additional heating options?
A: Yes, it can accommodate optional heat pump or resistance heating configurations.

Q: Who is it ideal for?
A: Property managers and homeowners looking for a reliable, efficient, and versatile climate control solution for individual spaces.

Maintenance Tips

1. Filter Care: Clean the air filters monthly to maintain airflow and efficiency. Replace filters as needed.
2. Coil Cleaning: Regularly inspect and clean condenser and evaporator coils to remove dust and debris for optimal performance.
3. Drain Line Maintenance: Ensure the drainage system is clear to prevent water accumulation or leaks.
4. Exterior Cleaning: Wipe the unit’s exterior with a damp cloth and mild detergent to keep it looking new.
5. Thermostat Check: Test the thermostat periodically to ensure accurate temperature regulation.
6. Inspect Connections: Verify that all electrical connections are secure and in good condition.
7. Seasonal Inspection: Before peak usage seasons, thoroughly clean and inspect the unit for efficient operation.

Consistent care enhances performance and prolongs the life of your PTAC unit!
