Forney 220 AC/DC TIG Welder Package

Description

Forney 220 AC/DC TIG Welder Package – 420032277004207

The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/230V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze!

Features

Stable Arc at 5 AMPs
Pulse Welding
High Frequency Starts
Ability to Turn Off High Frequency
TIG Torch/Foot Pedal Combination
Dual-Voltage
Digital Gauges

Specifications

Processes

SMAW (Stick)
GTAW- DC-P (TIG/Pulsed TIG)

Output Power

TIG

120V: 40% @ 130 AMP
230V: 35% @ 220 AMP

Stick

120V: 40% @ 85 AMP
230V: 35% @ 200 AMP

Input Power

120V @ 24.8 AMP
230V@ 32 AMP

Welding Capacity

Up to 1/2 inch

Wire/Electrode Diameter

Stick: 1/16″ (1.6 mm) to 5/32″ (4.0 mm)
TIG: .40″ (1.02 mm) to 1/8″ (3.2 mm)

Unit Weight of Welder Out of Display Box

54 lbs. (24.54 kg)

Unit Dimensions of Welder Out of Display Box

H: 15.5″ (393.7 mm)
L: 23.25″ (263.53 mm)
W: 10.375″ (590.55 mm)

For Use On

Solid Steel
Cast Iron/Steel
Stainless Steel
Aluminum

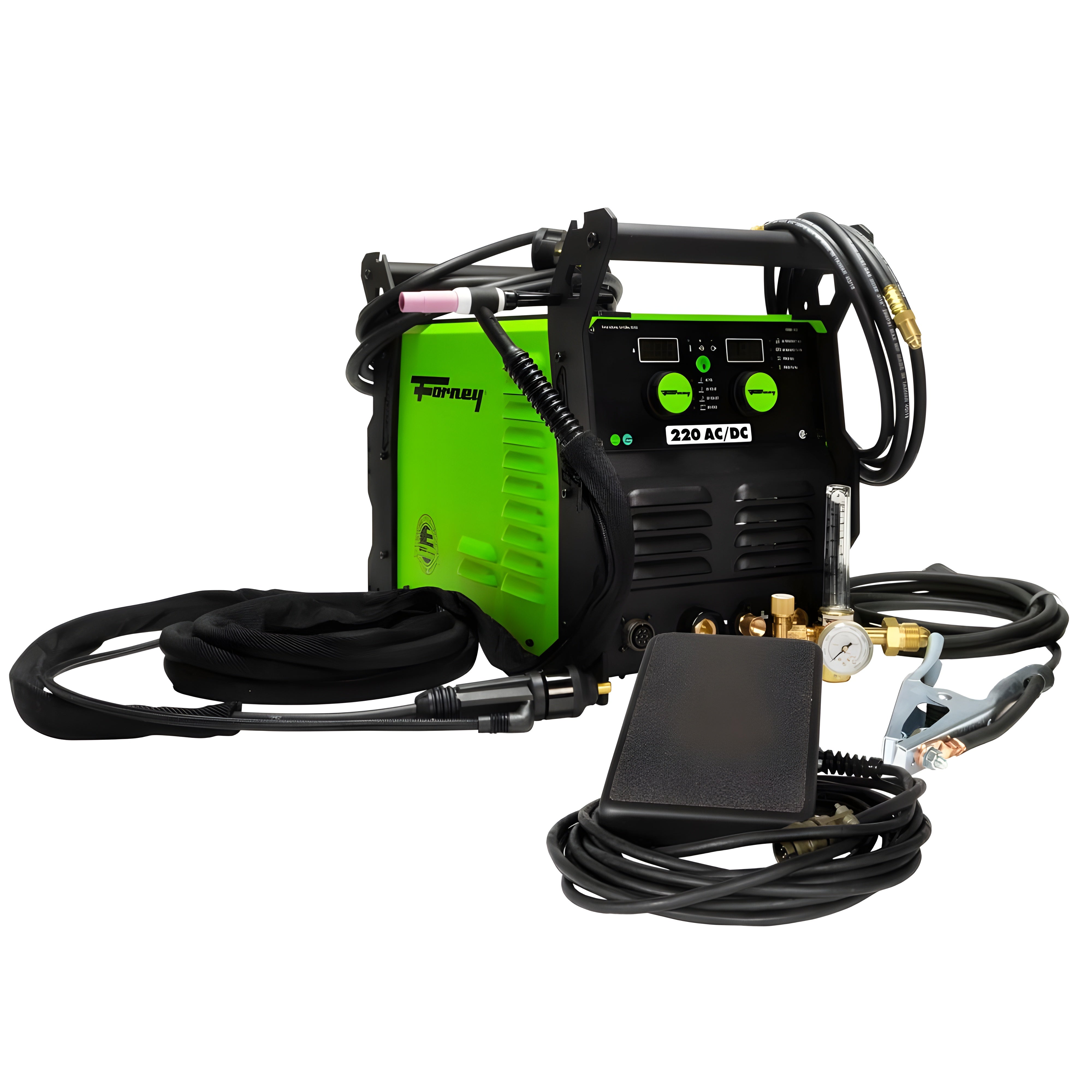

Included Accessories

12.5′ (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck
12.5′ (3.81 m) 7 Pin Foot Pedal
15’ (4.57 m) Ground Clamp with Cable
15’ (4.57 m) Electrode Holder with Cable
15’ (4.57 m) Input Power Cable
Flowmeter with Hose

What Our Experts Think

AC/DC Functionality: Offers both AC and DC TIG welding capabilities for versatile welding on a variety of metals.
Powerful Output: Delivers up to 220 amps for handling thicker materials with precision.
Comprehensive Package: Includes everything you need, including the TIG torch, ground clamp, and more.
Precision Welding: Ideal for fine, detailed welds with high control over the arc.
Durable & Reliable: Built to withstand demanding environments and deliver consistent results.

Q&A

Q: What is the Forney 220 AC/DC TIG Welder Package?
A: A high-performance TIG welder that supports both AC and DC for welding a variety of materials, including aluminum and steel.

Q: What is the amperage range?
A: 10–220A, providing flexibility for welding thin and thick materials.

Q: What processes does it support?
A: TIG welding with both AC (for aluminum) and DC (for steel, stainless steel, and other metals).

Q: What is the duty cycle?
A: 40% at 220A, ensuring reliable performance for sustained welding sessions.

Q: Does it come with everything needed to start welding?
A: Yes, it comes as a complete package with a TIG torch, ground clamp, foot pedal, and more.

Q: What type of power input is required?
A: 220V power supply, suitable for more demanding welding tasks.

Q: Is it suitable for both beginners and experienced welders?
A: Yes, it features user-friendly controls and settings that cater to both beginners and professionals.

Q: Does it come with a warranty?
A: Yes, the Forney 220 AC/DC TIG Welder Package is backed by a Forney warranty—check the manufacturer’s details for full terms.

Maintenance Tips

Inspect Cables & Connections: Regularly check for frayed wires, loose connections, and damaged insulation to ensure safe operation.
Clean Torch & Consumables: Keep the torch, electrode holder, and gas nozzle free from debris to maintain a stable arc.
Check Gas Flow & Hoses: Inspect hoses for leaks and ensure proper shielding gas flow for clean welds.
Monitor Tungsten Electrodes: Sharpen or replace electrodes as needed for precise welding.
Maintain Proper Cooling: Follow the recommended duty cycle and ensure adequate airflow around the welder to prevent overheating.
Secure Ground Clamp: Ensure a clean and tight ground connection to avoid arc instability.
Store in a Dry, Clean Area: Protect from moisture, dust, and contaminants to prevent internal damage.
Schedule Routine Maintenance: Inspect internal components, fans, and circuit boards for dust buildup or wear.
