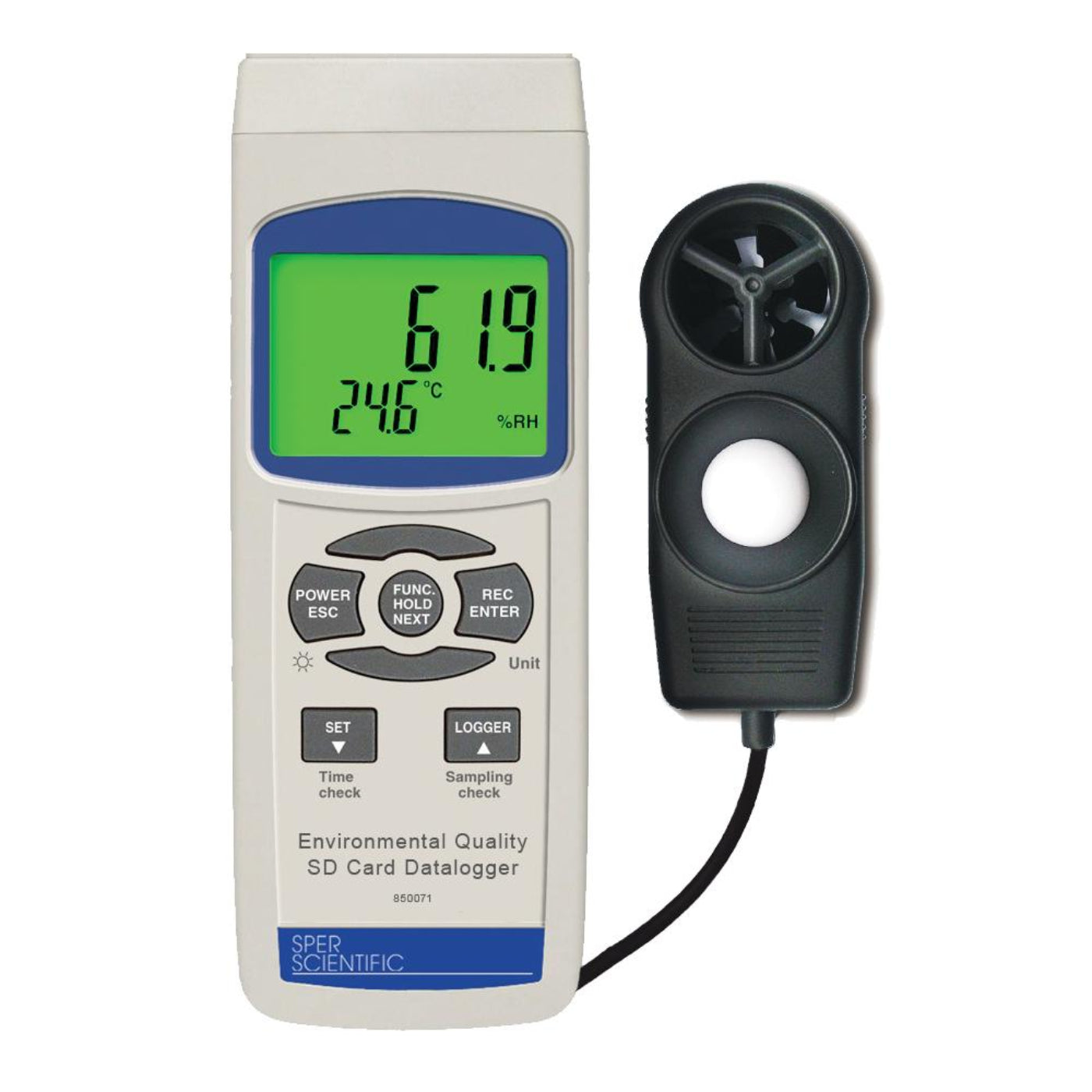

ThermoProbe Environmental Quality SD Card Logger – 850071

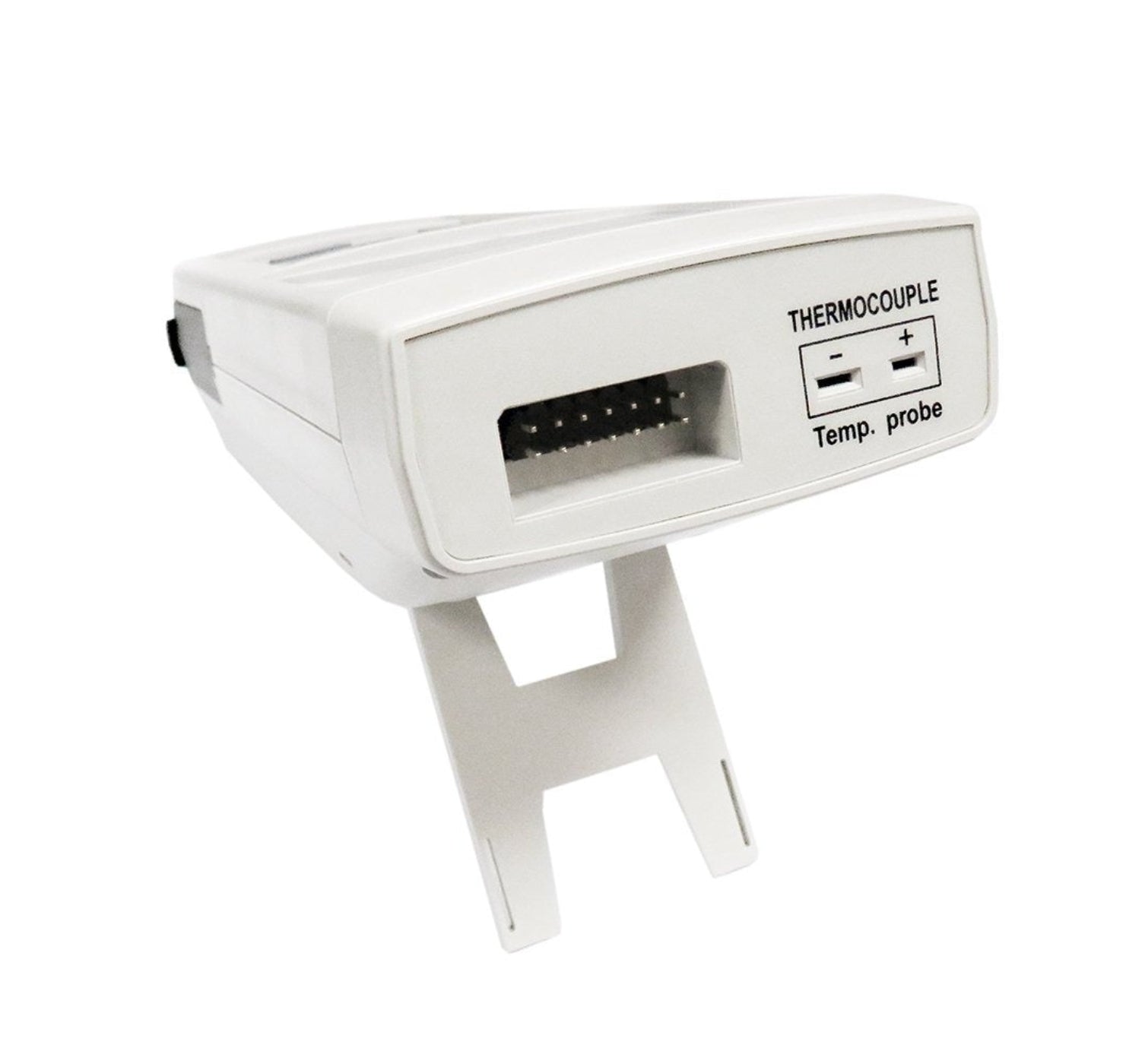

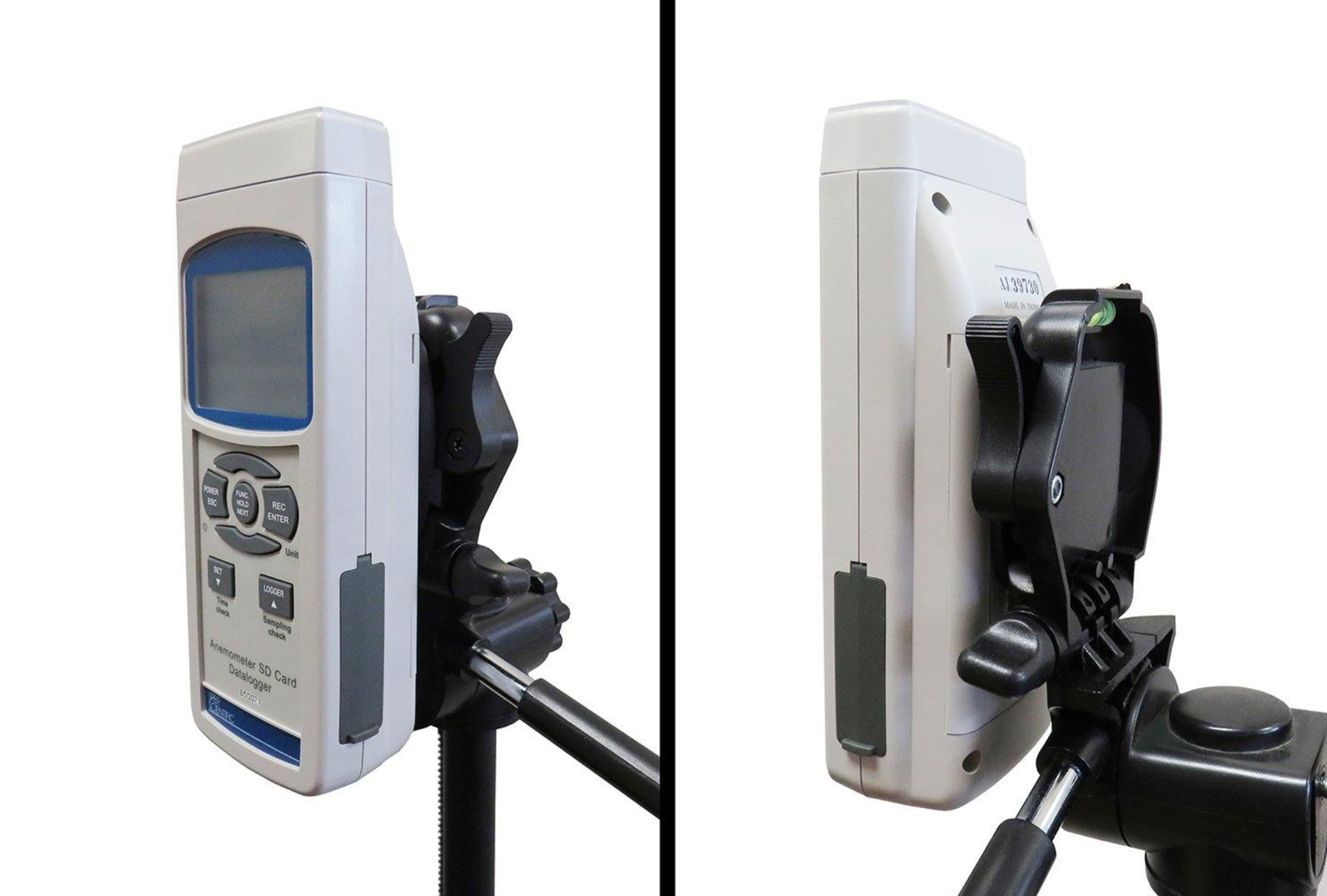

Records data onto standard SD memory cards (like a digital camera). The removable SD card is easy to transport and insert into a computer’s memory card slot or SD card reader. Uploads pre-formatted data to Excel, without the need for additional software and cables. Each data set includes the parameter being measured, time and date. Features min/max, auto power off, low battery indicator and hold function. Also reads thermocouple temperature with optional probes. Extremely accurate with fast response times, and includes a fold-out tripod and large, easy-to-read backlit LCD.Â

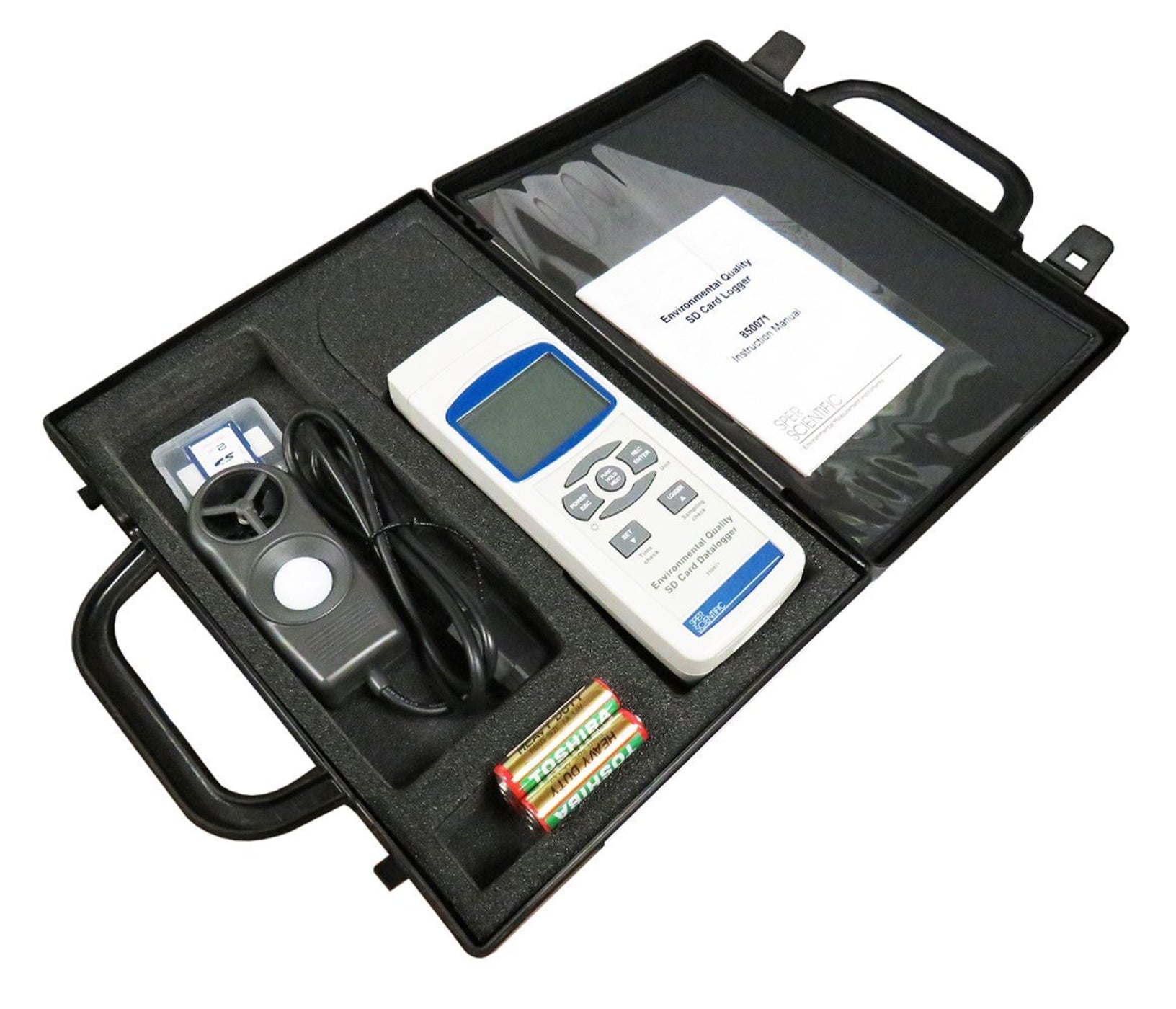

Comes ready to use in a soft carrying case complete with a detachable probe, 6 AA batteries, instruction manual and an SD card. Uses optional USB Power Cable or AC Adapter  N.I.S.T. Traceable Certification Report available (for Air Temperature & RH only).
Specifications
Unit of Measure: | Range: | Resolution: | Accuracy: |
---|---|---|---|
Ambient Temperature: | 32 to 122ºF 0 to 50ºC |
0.1 | ±1.5ºF ±0.8ºC |
Type K Temperature: | -58 to 2372ºF -50 to 1300ºC |
±(0.4% + 1.8ºF) ±(0.4% + 1ºC) |
|
Type J Temperature: | -58 to 2192ºF -50 to 1200ºC |
±(0.4% + 1.8ºF) ±(0.4% + 1ºC) |
|
RH: | 0 to 95% | ≥70% RH: ± (3%rdg + 1% RH) <70% RH: ± 3% RH |
|
Airspeed m/s: | 0.4 to 25.0 | 0.1 | ±(0.2% + 0.2 m/s) |
Airspeed km/h: | 1.4 to 90.0 | 0.1 | ±(0.2% + 0.8 km/h) |
Airspeed mile/h: | 0.9 to 55.9 | 0.1 | ±(0.2% + 0.4 mph) |
Airspeed knots: | 0.8 to 48.6 | 0.1 | ±(0.2% + 0.4 knots) |
Airspeed ft/min: | 80 to 4930 | 1 | ±(2% + 40 ft/min) |
Lux: | 0 to 20,000 | 1 | ±5% rdg + 8D |
Downloads
Videos
What Our Experts Think
- Comprehensive Monitoring – The Environmental Quality SD Card Logger tracks a variety of environmental factors, including temperature, humidity, and more.
- SD Card Data Storage – Easily stores and transfers data using an SD card, simplifying record-keeping and access.
- High Accuracy – Provides precise measurements to ensure reliable environmental monitoring in various settings.
- Easy Setup – Simple to configure, making it user-friendly for both professionals and beginners.
- Versatile Applications – Ideal for use in warehouses, laboratories, and fieldwork where environmental data is critical.
Q&A
Q: What is the 850071 Environmental Quality SD Card Logger?
A: A data logger designed to monitor and record environmental conditions such as temperature, humidity, and other quality factors, with data stored on an SD card for easy access and analysis.
Q: What environmental factors can the 850071 monitor?
A: It can monitor various environmental parameters like temperature, humidity, air quality, and more, depending on the connected sensors.
Q: How does the SD card logging work?
A: The logger stores recorded data on an SD card, allowing for easy retrieval and transfer to a computer for analysis.
Q: What applications is the 850071 suitable for?
A: Ideal for environmental monitoring in research, industrial facilities, warehouses, and other settings where tracking environmental quality is essential.
Q: Can I customize the settings on the 850071?
A: Yes, the device allows you to set intervals and configure how data is recorded, providing flexibility for various use cases.
Q: How do I access the data stored on the SD card?
A: Simply remove the SD card and transfer the data to a computer for review or export the data in your preferred format.
Q: How durable is the 850071?
A: The 850071 is designed to be durable, reliable, and capable of performing in a wide range of environmental conditions.
Q: How should I maintain the 850071 logger?
A: Regular checks, calibration, and proper storage of both the device and SD card will ensure reliable performance over time.
Maintenance Tips
- Regular Cleaning: Wipe the unit with a soft cloth to remove dust, dirt, and moisture.
- Check SD Card: Periodically remove and check the SD card for storage space and data integrity.
- Inspect for Damage: Ensure the unit and ports are free from damage, dirt, or corrosion.
- Calibrate Periodically: Perform calibration to ensure accurate environmental readings.
- Proper Storage: Store the logger in a dry, cool environment when not in use to avoid damage from extreme conditions.
