Description

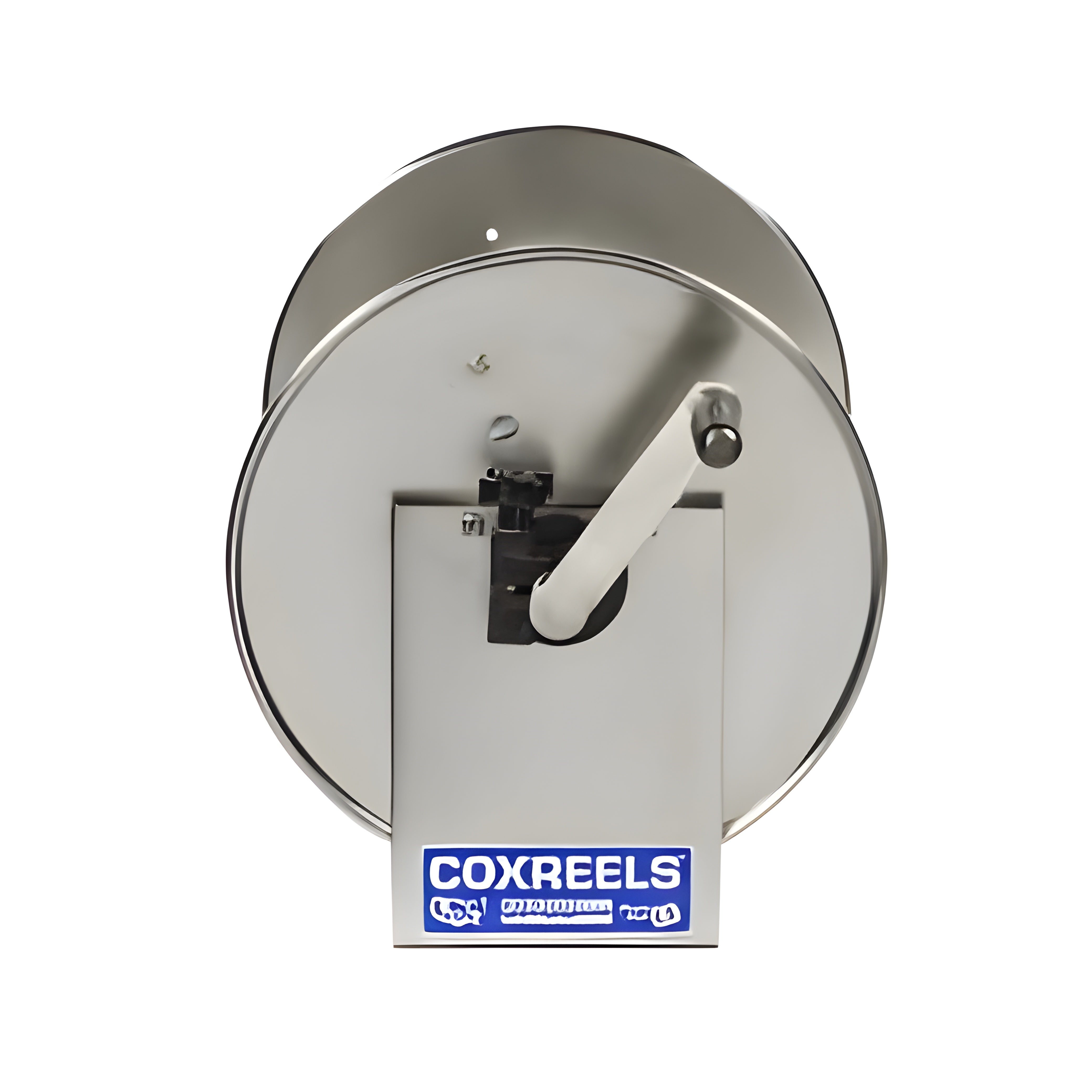

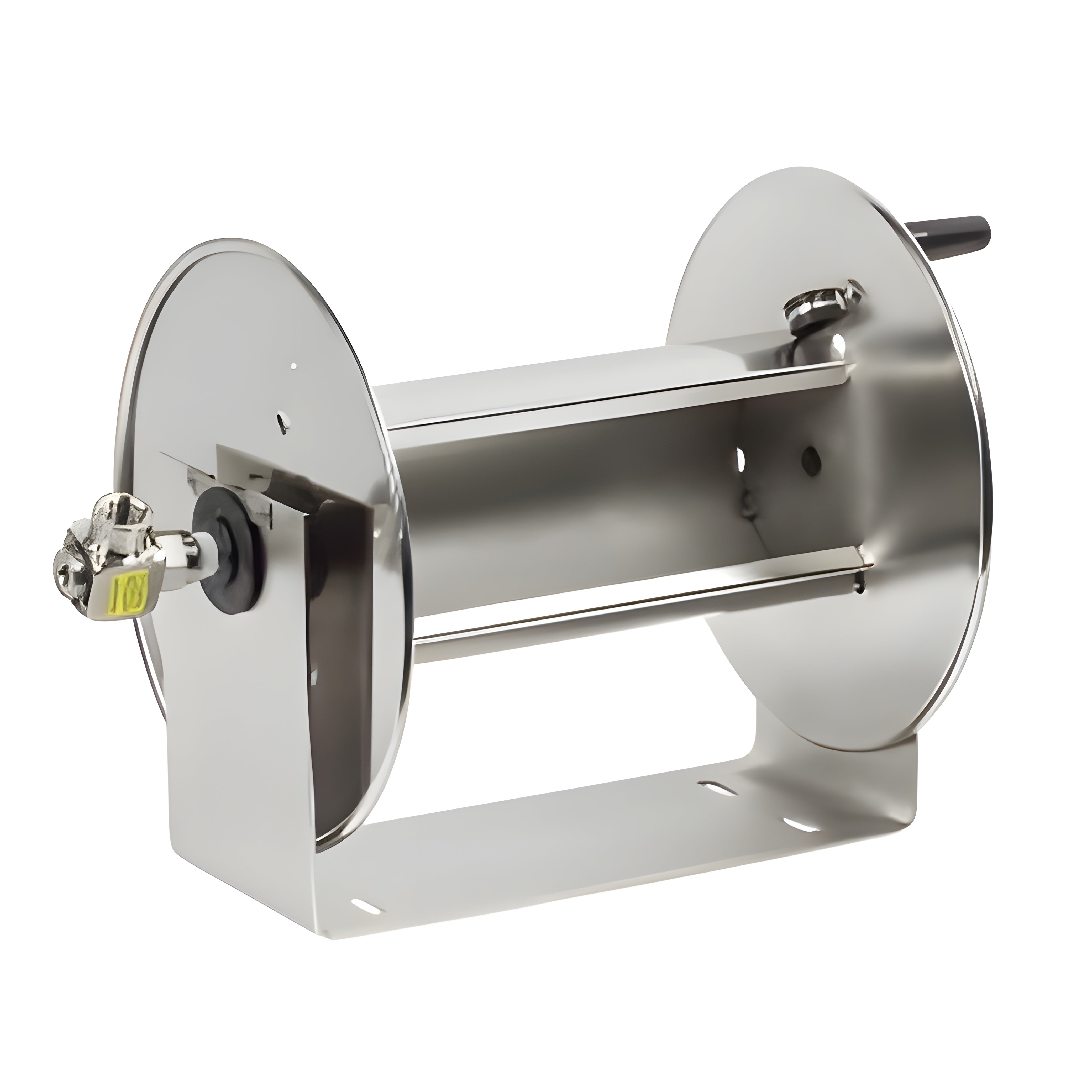

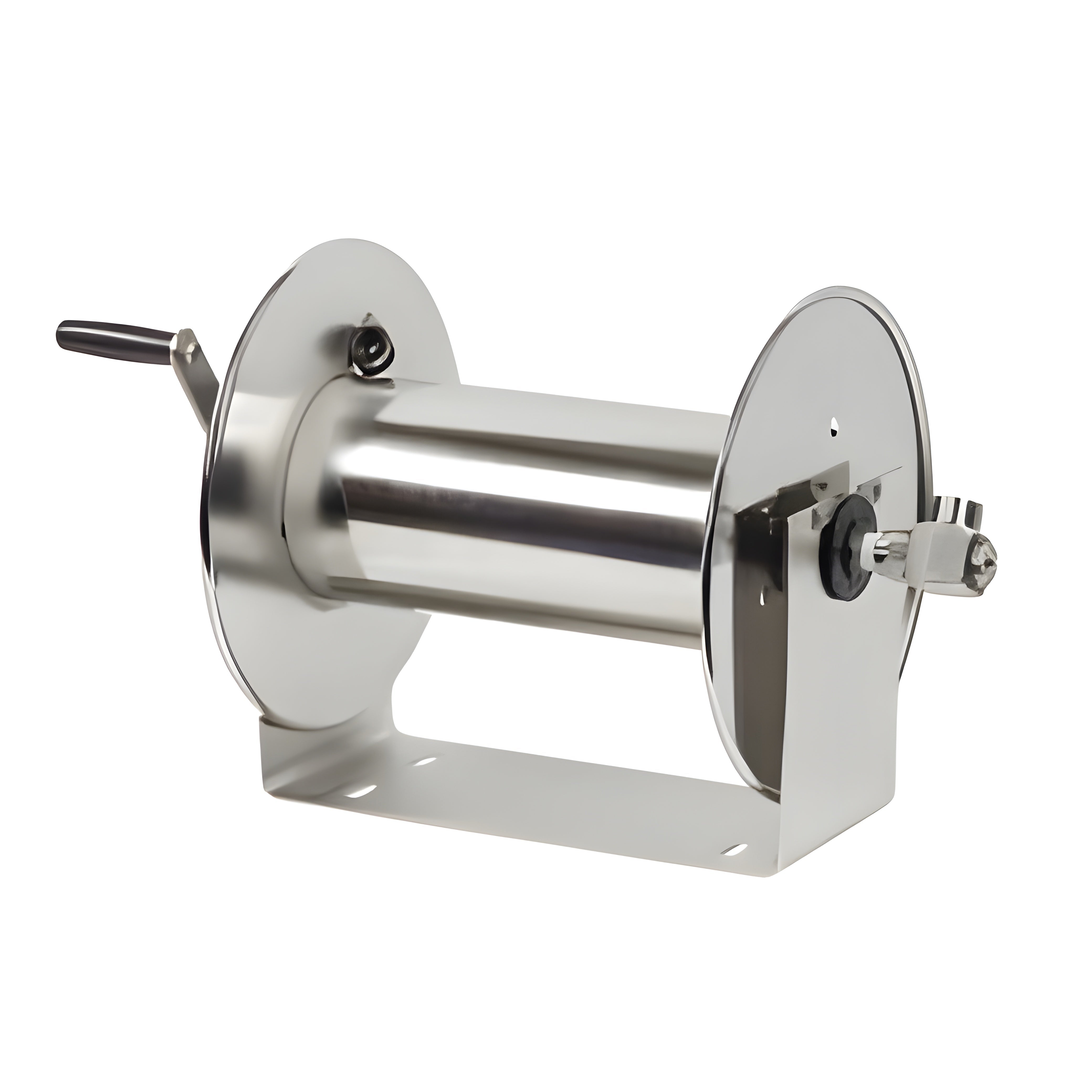

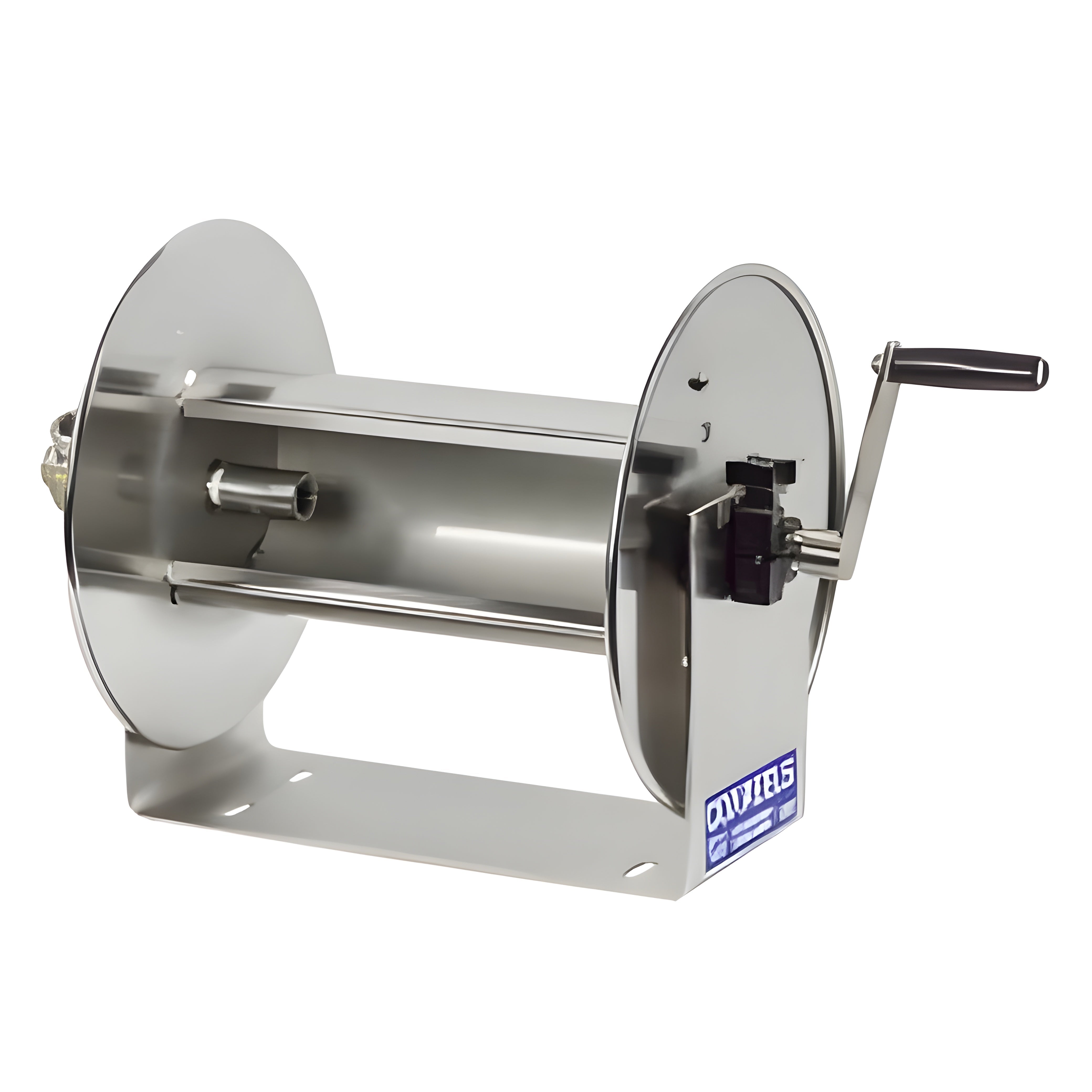

Coxreels SS Series High Pressure “Stainless Steel” Hand Crank Hose Reels – 112-4-75-SS
SS Series High Pressure “Stainless Steel” Hand Crank Hose Reels
COXREELS SS Series “Stainless Steel” hand crank hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
Features
- SWIVEL – Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet.
- U SHAPED FRAME DESIGN – Solid one piece electro-polished finish stainless steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC SPUN DISCS – Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- ADJUSTABLE TENSION BRAKE – Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- STEEL CONSTRUCTION – High quality stainless steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
- OTHER FEATURES INCLUDE – Electro-polished stainless steel finish, long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.
Specifications
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| 112-4-75-SS | 1/2″ | 7/8″ | 75′ | No | 4000 | 21 | 22.75″(W) 13″(H) 12″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
| 117-4-225-SS | 1/2″ | 7/8″ | 225′ | No | 4,000 | 31 | 22.75″(W) 18″(H) 17″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
| 117-5-100-SS | 3/4″ | 1 1/4″ | 100′ | No | 4000 | 36 | 23.25″(W) 18″(H) 17″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
What Our Experts Think
- Stainless Steel Construction: Built for superior durability and corrosion resistance, making it ideal for harsh environments and corrosive materials.
- High-Pressure Capability: Handles up to 3,000 PSI, perfect for demanding applications such as industrial cleaning, pressure washing, and fluid transfer.
- Hand Crank Operation: Provides smooth, manual retraction for precise control and easy hose management.
- Heavy-Duty Design: Built to withstand frequent use in tough conditions, ensuring long-lasting performance.
- Compact & Space-Saving: Keeps hoses organized and accessible, optimizing workspace efficiency and reducing clutter.
- Versatile Applications: Ideal for use in industries like manufacturing, construction, and automotive, where high-pressure hose management is essential.
Q&A
Q: What is the Coxreels SS Series High Pressure “Stainless Steel” Hand Crank Hose Reel – 112-4-75-SS?
A: The 112-4-75-SS is a high-pressure, hand crank hose reel made from durable stainless steel. It is designed for handling high-pressure hoses in demanding environments, offering both strength and corrosion resistance.
Q: What is the hose capacity of this reel?
A: The reel holds up to 75 feet of high-pressure hose, providing efficient storage and easy access for industrial or commercial applications.
Q: Why is stainless steel important for this reel?
A: Stainless steel construction ensures durability, corrosion resistance, and longevity, making it ideal for harsh or outdoor environments.
Q: How is the hose retracted?
A: The reel features a hand crank system for manual hose retraction, allowing precise control over the hose’s storage.
Q: Is this reel suitable for heavy-duty use?
A: Yes, the reel is built to withstand high-pressure applications and tough conditions, making it perfect for industrial, automotive, and maintenance tasks.
Q: How is this reel mounted?
A: The reel can be mounted on walls, workbenches, or service vehicles, offering flexibility for various installations.
Q: What are typical applications for this reel?
A: Ideal for high-pressure fluid or air transfer in industrial settings, car washes, and maintenance operations.
Maintenance Tips
- Model: 112-4-75-SS
- Hose Capacity: Holds up to 75 feet of 1/2” high-pressure hose
- Pressure Rating: Rated for high-pressure applications up to 5000 PSI
- Construction: Stainless steel frame for superior resistance to corrosion and rust, ideal for harsh environments
- Drive Mechanism: Hand crank operation for smooth and manual hose retraction, offering full control
- Swivel Inlet: Full-flow brass swivel to ensure smooth and unrestricted fluid or air transfer
- Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth hose payout and retraction
- Mounting Type: Wall, floor, or ceiling mount for versatile installation options
- Applications: Perfect for high-pressure fluid or air transfer in marine, industrial, and outdoor environments
- Temperature Range: Operates effectively in a wide range of environmental conditions
- Weight: Varies based on hose configuration and reel setup
