Coxreels SD Series "Static Discharge" Cable Reels - SD-100

Description

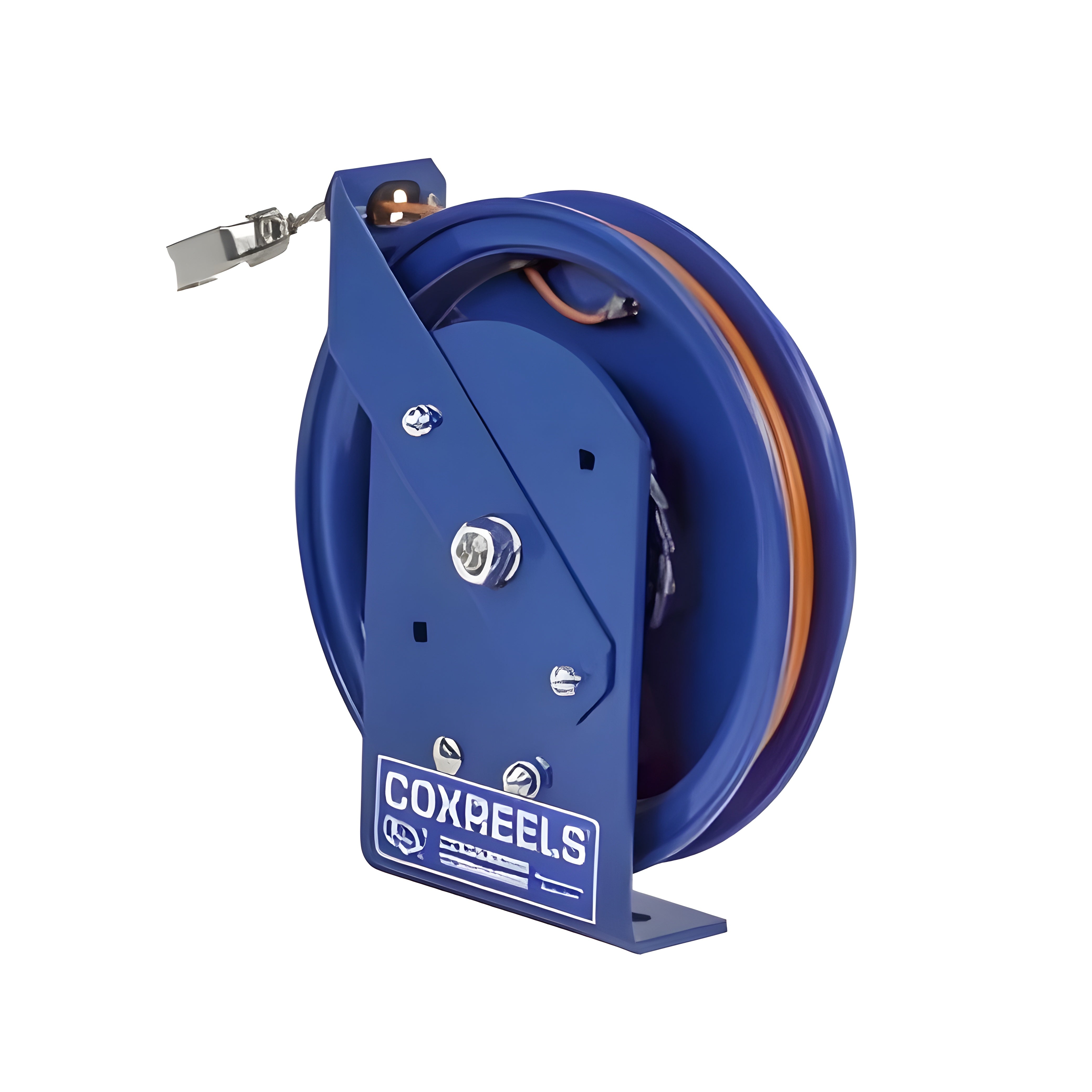

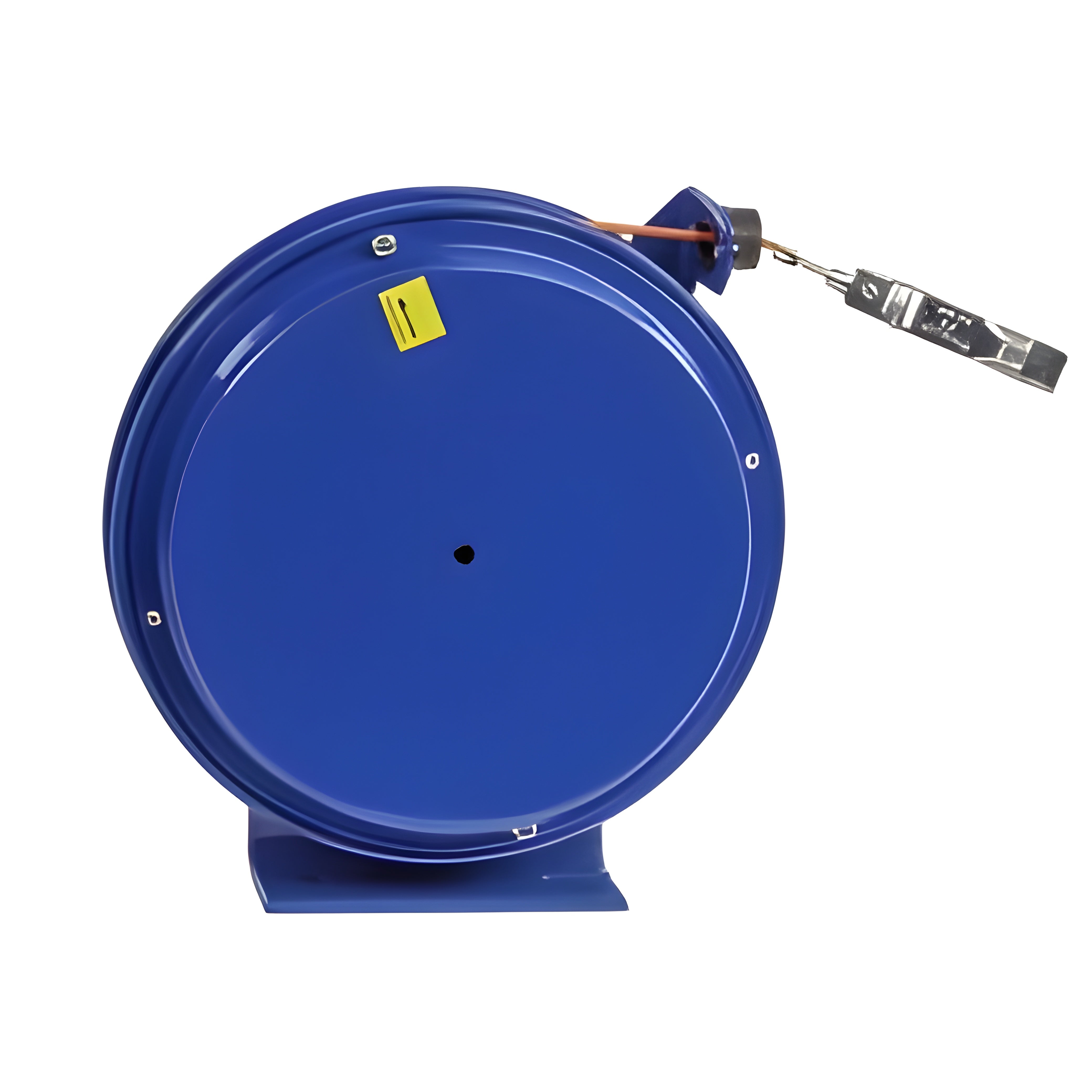

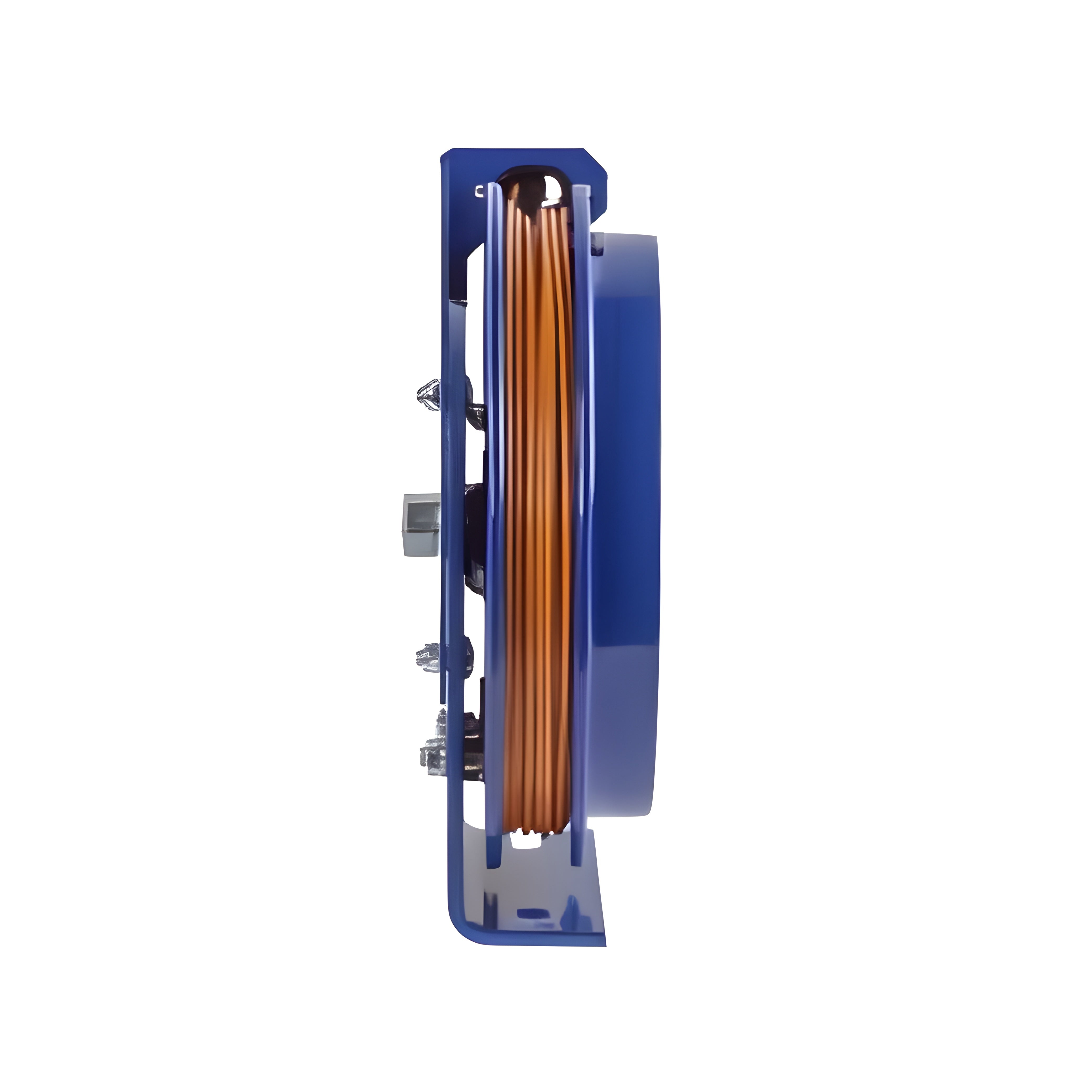

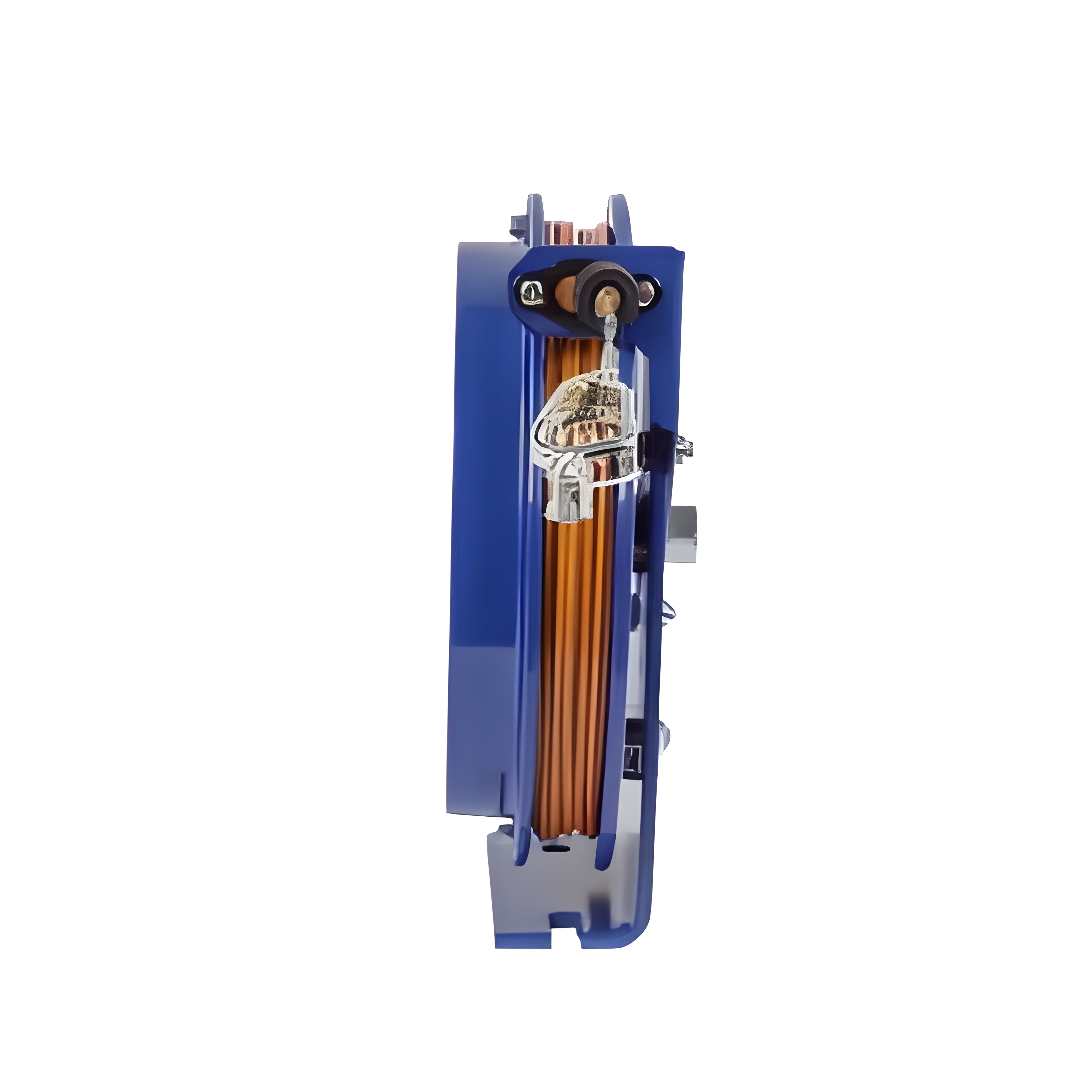

Coxreels SD Series “Static Discharge” Cable Reels – SD-100

SD Series “Static Discharge” Cable Reels

COXREELS SD Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static build-up could ignite a spark and subsequent explosion.

Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer’s limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

Features

CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
MULTI-POSITION GUIDE ARM – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
STEEL CABLE – 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.

Specifications

MODEL	HOSE	LENGTH	SHIP WEIGHT (LBS)	OVERALL DIMENSIONS (W) (H) (L)	MOUNTING PATTERN (M) (N)	BASE (X) (Y)
SD-100	Yes	100′	32	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-100-1	Yes	100′	32	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-35	Yes	35′	18	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-35-1	Yes	35′	18	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-50	Yes	50′	20	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-50-1	Yes	50′	20	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-75	Yes	75′	31	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SD-75-1	Yes	75′	31	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SDL-100	No	100′	28	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
SDL-50	No	50′	18	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)

What Our Experts Think

Static Discharge Capability: Specifically designed to safely dissipate static electricity, preventing dangerous sparks or damage to sensitive equipment.
Heavy-Duty Construction: Built from durable, industrial-grade materials, these reels are ready to perform in tough, high-demand environments.
Smooth Cable Management: Equipped with a spring-loaded rewind mechanism for quick and easy cable retraction, keeping your workspace organized and safe.
Versatile Applications: Ideal for use in industries like aerospace, electronics, and chemical handling where static discharge protection is essential.
Safety Focused: Ensures compliance with safety regulations related to static electricity, reducing the risk of equipment failure, fires, or explosions.

Q&A

Q: What is it?
A: A static discharge cable reel designed to safely manage and store grounding cables, helping prevent static buildup and reduce the risk of sparks in sensitive environments.

Q: Who is it for?
A: Ideal for industrial, electronics, and manufacturing sectors that require effective static control to protect equipment and ensure safe operations.

Q: Why choose this cable reel?
A: Provides reliable static discharge management, enhancing workplace safety and protecting valuable electronic equipment from the dangers of static electricity.

Maintenance Tips

Inspect Cable: Check for damage, fraying, or wear. Replace if necessary.
Clean Regularly: Wipe down the cable and reel to prevent buildup of dust and debris.
Ensure Grounding: Periodically test the discharge cable for proper grounding functionality.
Smooth Retraction: Ensure the cable retracts smoothly without tangles or resistance.
Lubricate Moving Parts: Apply light lubrication to the reel’s moving components.
Store Properly: Keep in a dry, cool area to prevent environmental damage and corrosion.
