Description

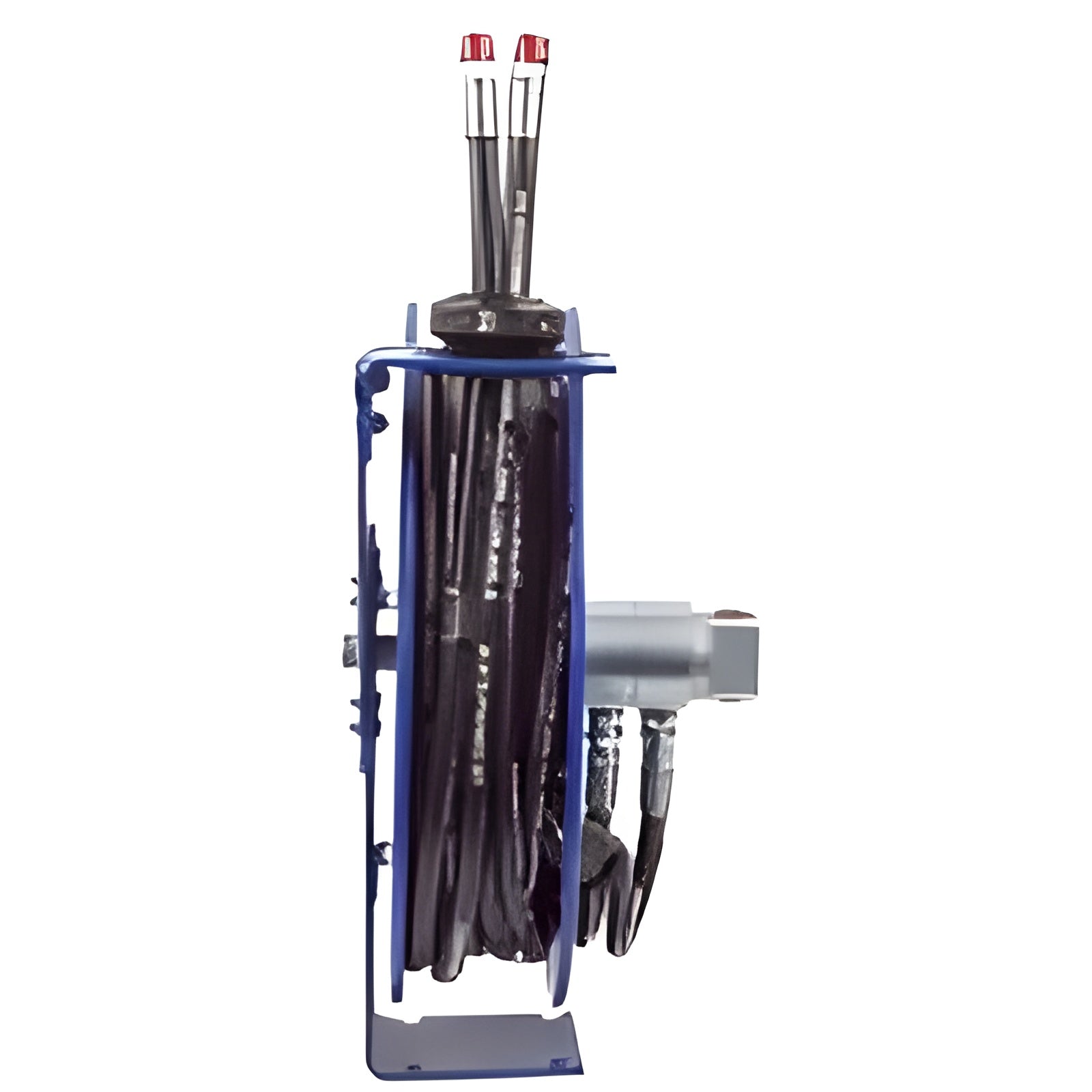

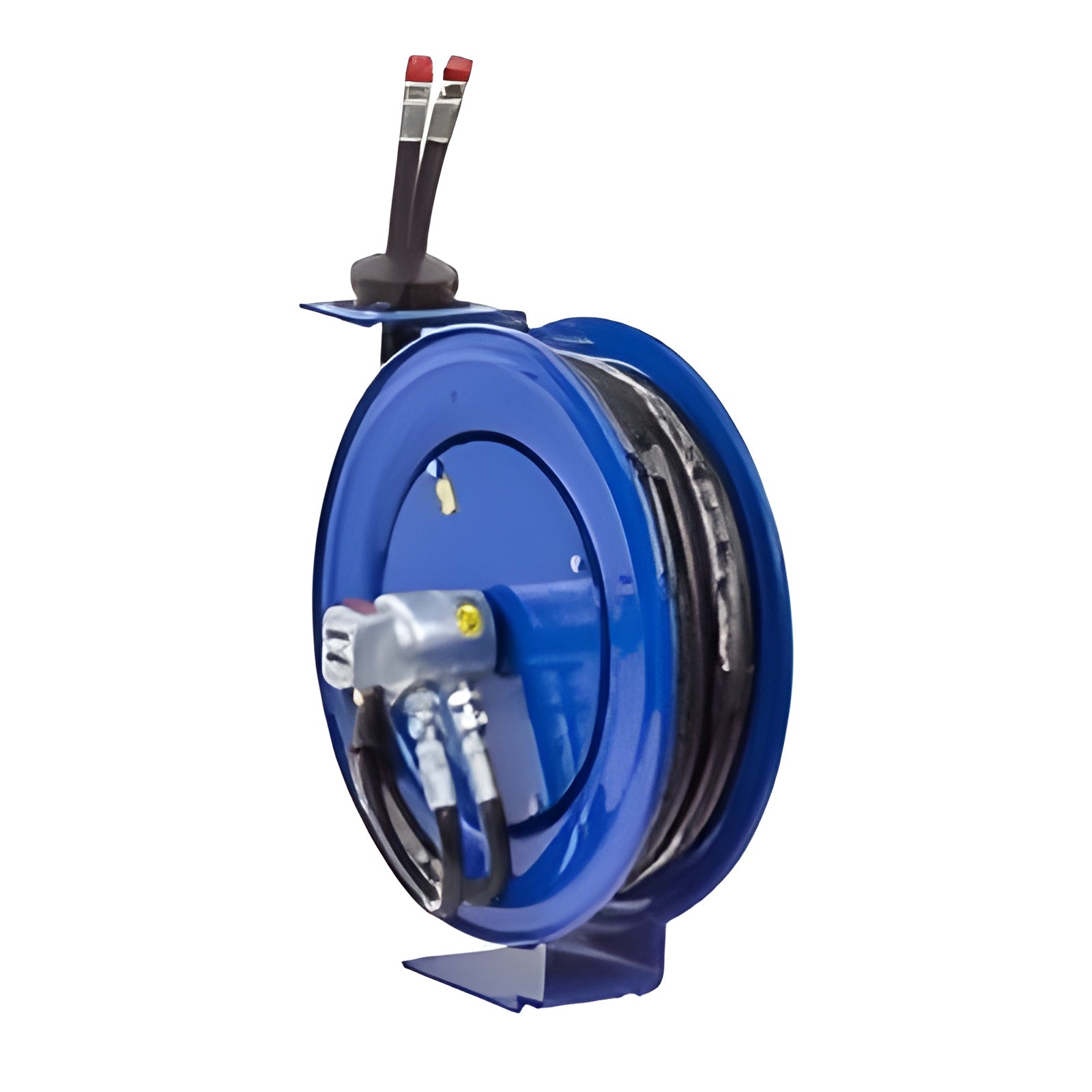

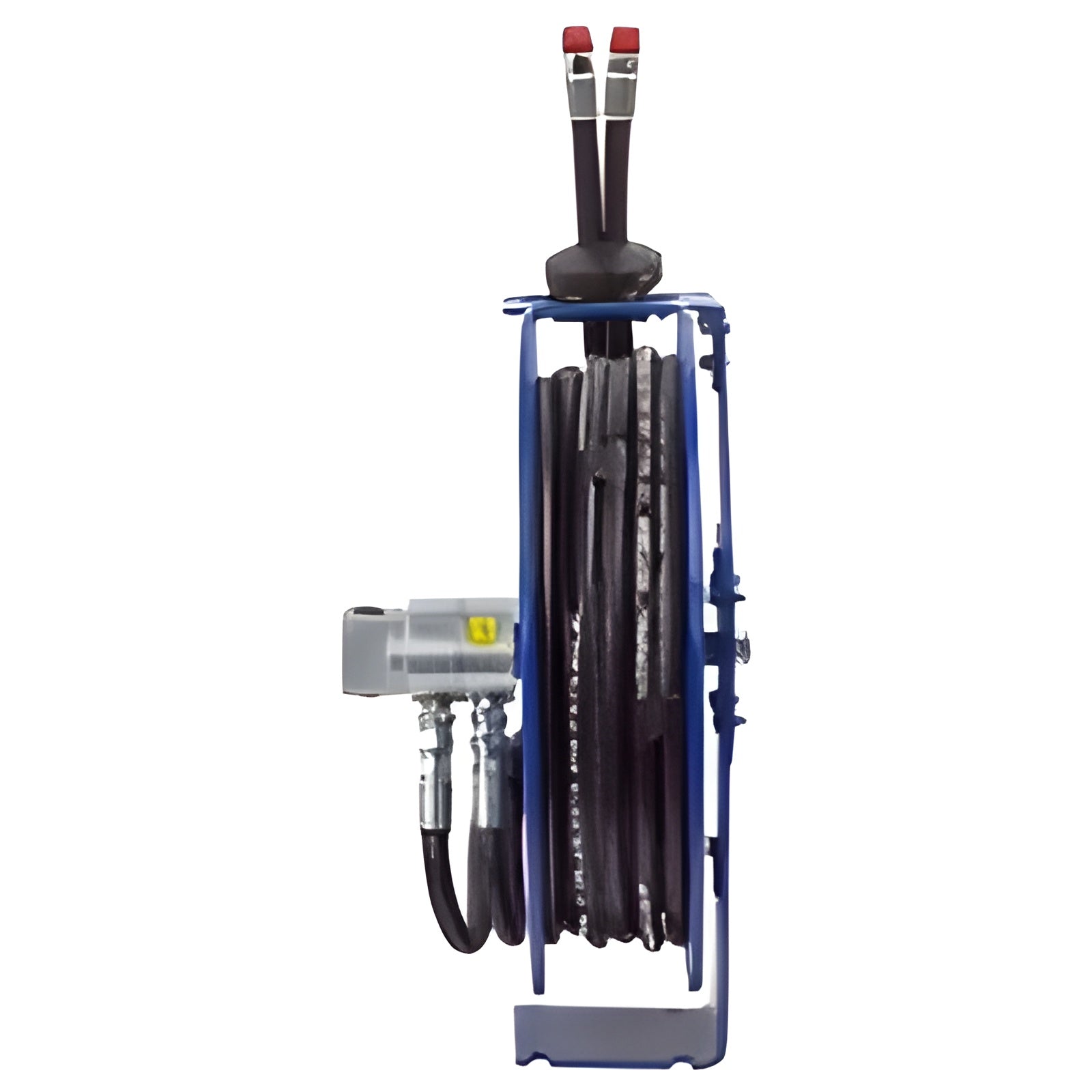

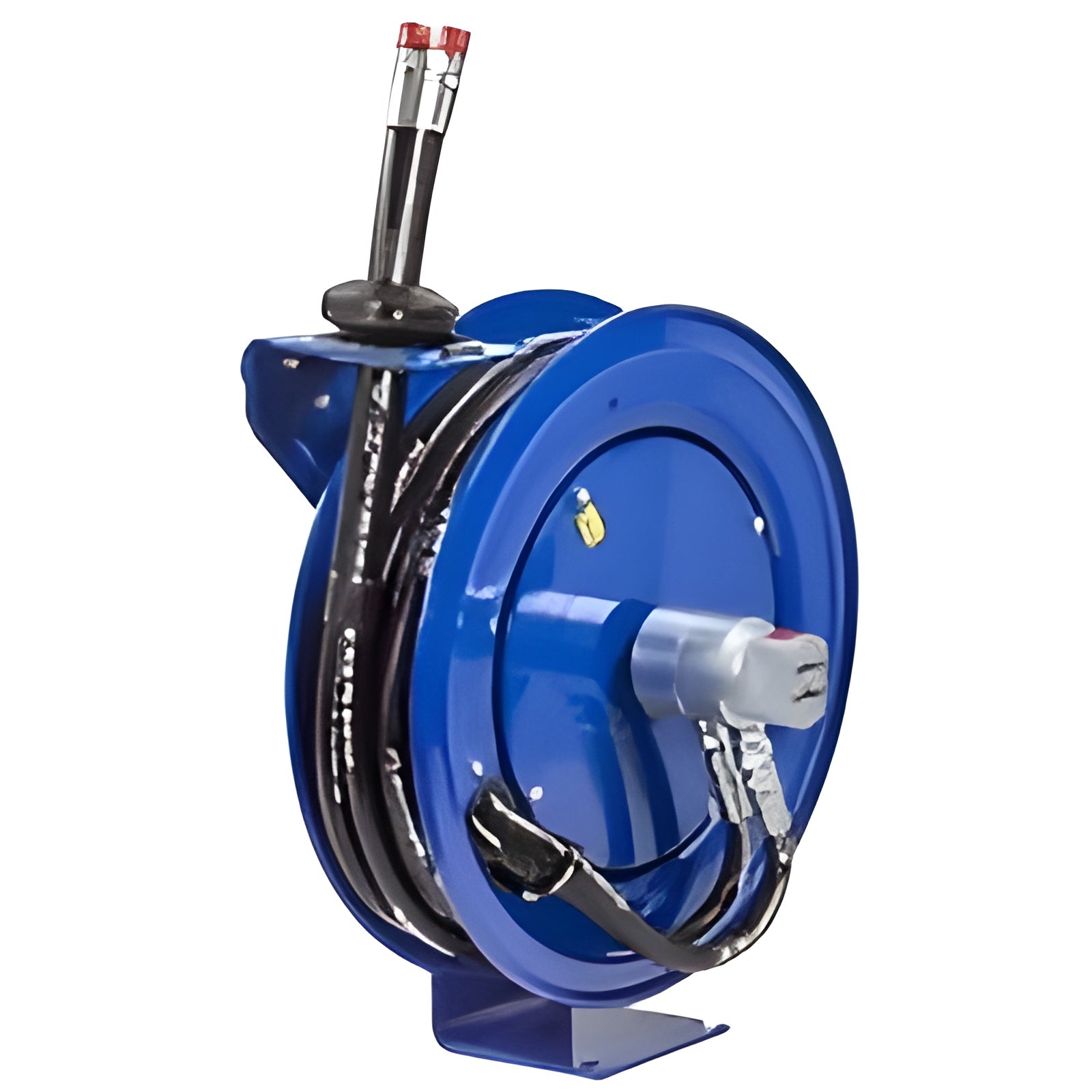

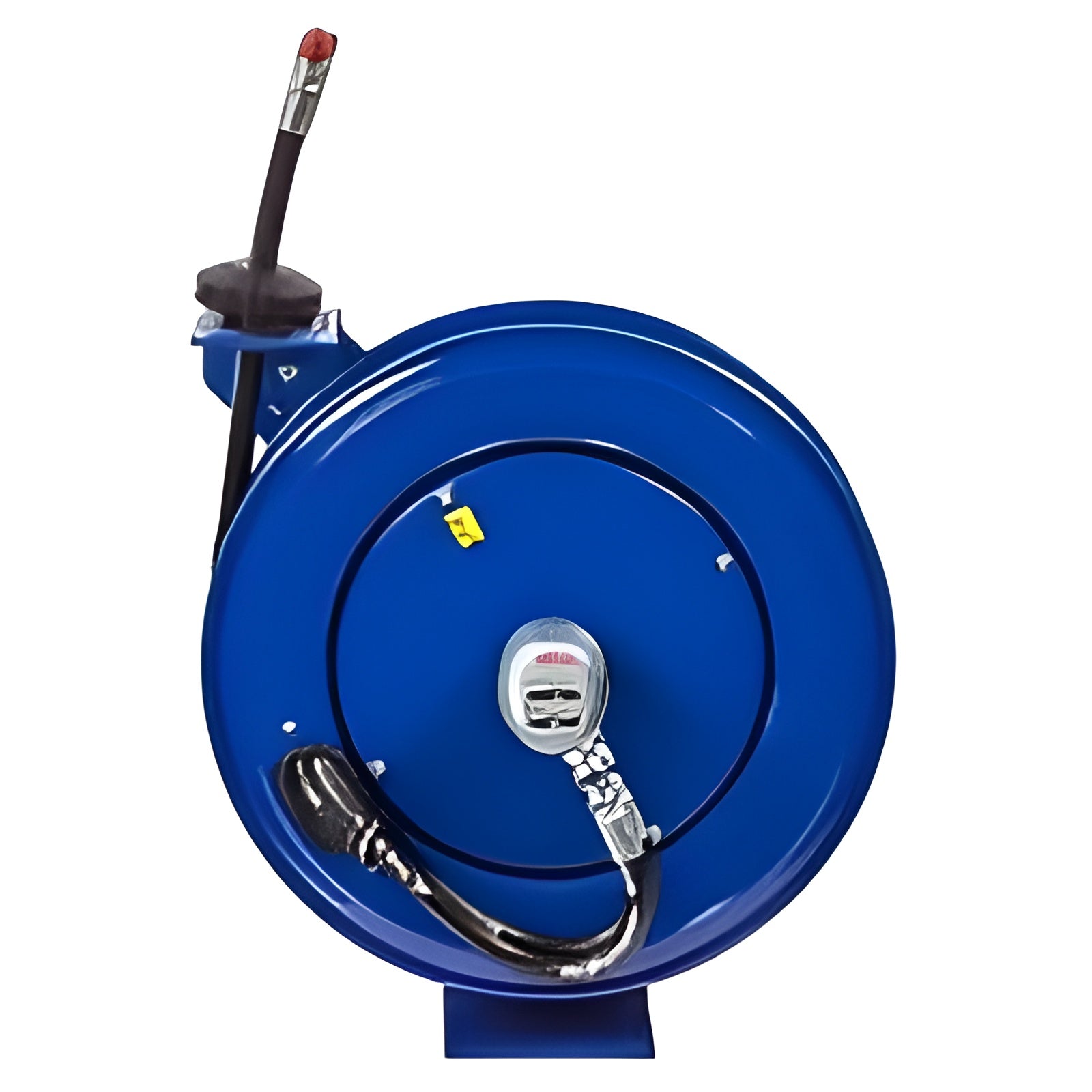

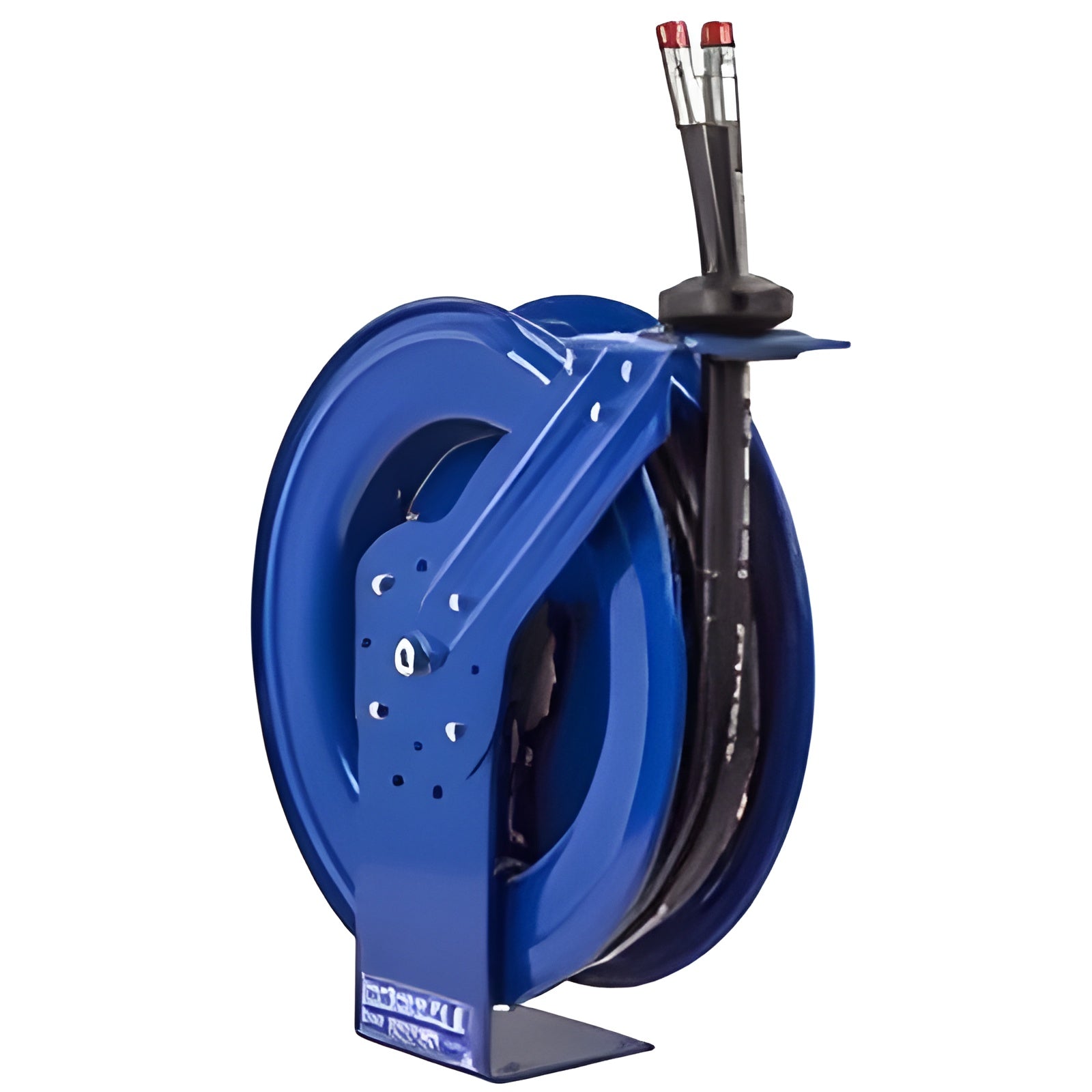

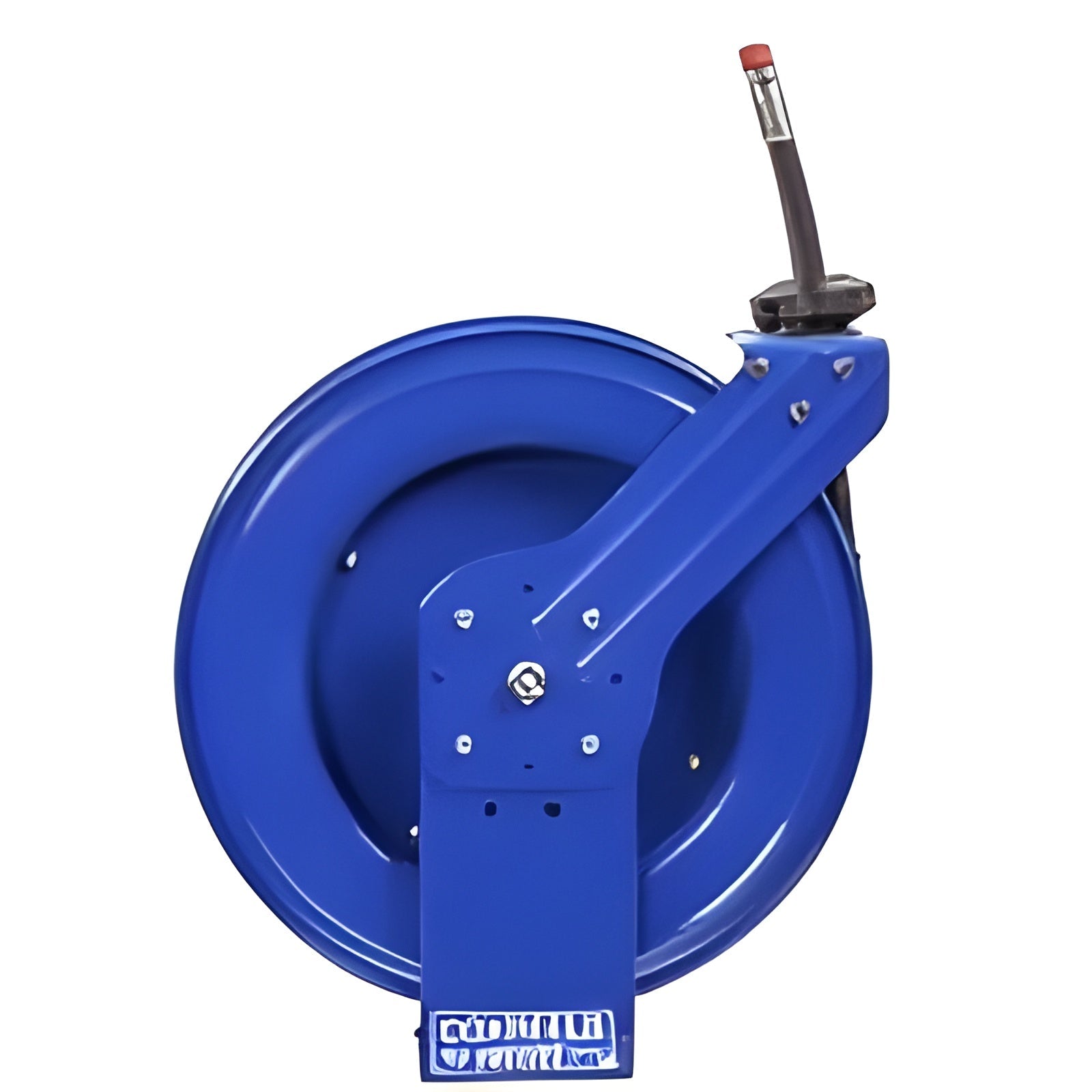

Coxreels MPD Series “Dual Hydraulic” Medium Pressure Hose Reels – MPD-N-430
MPD Series “Dual Hydraulic” Medium Pressure Hose ReelsĀ
COXREELS MPD Series “Dual Hydraulic” hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. spring driven retraction reel at 3,000 PSI.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
Features
- SWIVELĀ – External fluid path with dual port melanised 90ā¦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTORĀ – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCSĀ – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASEĀ – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strength without the weight. Exclusive Super Hubā¢dual axle support system.
- MULTI-POSITION GUIDE ARMĀ – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDEĀ – long lasting, chip resistant and rust inhibiting CPC powder coat finish, one-side supply/return hook-up, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| MPD-N-430 | 1/2″ | 13/16″ | 30′ | Yes | 2500 | 79 | 11.5″(W) 21.13″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| MPDL-N-430 | 1/2″ | 13/16″ | 30′ | No | 2500 | 62 | 11.5″(W) 21.13″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
What Our Experts Think
- Convenient One-Touch Operation: Effortless opening and closing with a single press, perfect for busy households.
- Durable Design: Built with high-quality materials to withstand everyday use.
- Adjustable Width: Fits a variety of doorways and stairs with easy-to-use extensions.
- Safe for Pets & Kids: Sturdy, secure, and designed to keep pets and children safe.
- Sleek & Modern: Stylish design that complements any home decor.
- Easy Installation: Quick setup with no tools required.
- Highly Rated: A favorite for families looking for reliable, long-lasting safety gates
Q&A
Q: What is the Coxreels MPD Series “Dual Hydraulic” Medium Pressure Hose Reel – MPD-N-430?
A: The Coxreels MPD-N-430 is a dual hydraulic, medium-pressure hose reel designed to efficiently manage two hydraulic hoses simultaneously, ensuring smooth operation in demanding industrial and mobile applications.
Q: What is the hose capacity of this reel?
A: The MPD-N-430 can hold two hoses, each up to 30 feet in length, making it ideal for hydraulic applications requiring dual-line hose management.
Q: How does the dual hydraulic system work?
A: This reel allows for the simultaneous storage and deployment of two hoses, ensuring smooth and reliable fluid transfer in hydraulic systems.
Q: Is the reel durable?
A: Yes, the MPD Series is built from heavy-duty steel with a corrosion-resistant finish, ensuring durability and longevity in harsh working environments.
Q: Is this reel easy to install?
A: Yes, it offers multiple mounting options, including wall, floor, and truck or trailer installation, providing flexibility for various applications.
Q: What are typical applications for this reel?
A: This reel is ideal for hydraulic equipment in construction, agriculture, mobile service trucks, and industrial machinery where dual hose management is essential.
Maintenance Tips
- Model: MPD-N-430
- Hose Capacity: 30 feet of dual 1/4ā hydraulic hose
- Construction: Heavy-duty steel with a corrosion-resistant powder-coated finish for durability in harsh environments.
- Mounting Type: Versatile wall, floor, ceiling, or truck-mounted options for flexible installation.
- Crank Type: Manual hand-crank retraction for controlled hose management.
- Pressure Rating: Handles medium-pressure hydraulic applications, rated up to 3000 PSI.
- Dual Hose Design: Supports two hoses simultaneously for hydraulic applications.
- Swivel Inlets: External fluid path with full-flow swivel inlets for uninterrupted hydraulic flow.
- Hose Guide: Precision-machined rollers to minimize wear and ensure smooth operation.
- Applications: Ideal for industrial hydraulic tools, maintenance shops, and mobile equipment applications.
