Coxreels EZ-SD Series "Static Discharge" Cable Reels - EZ-SD-100

Description

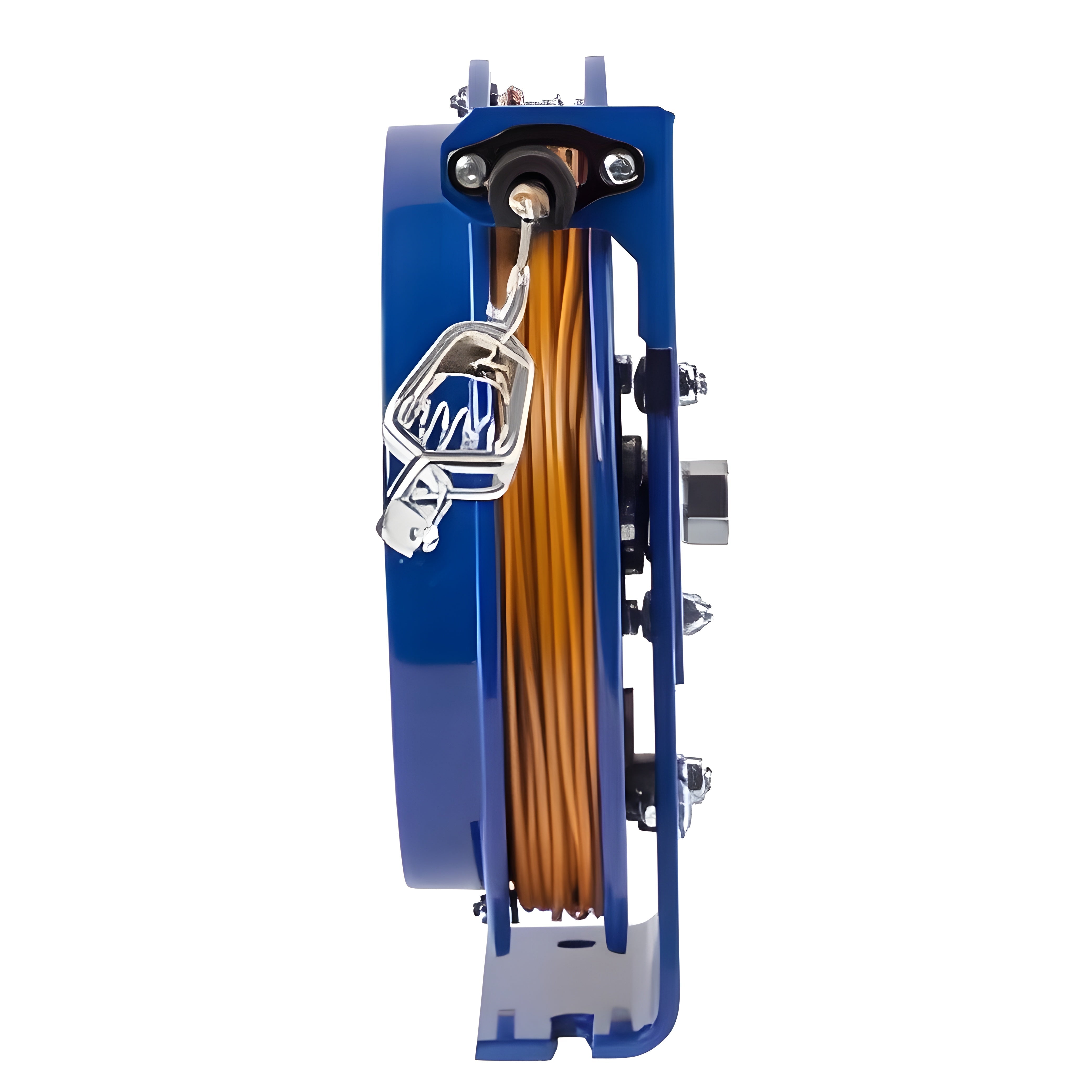

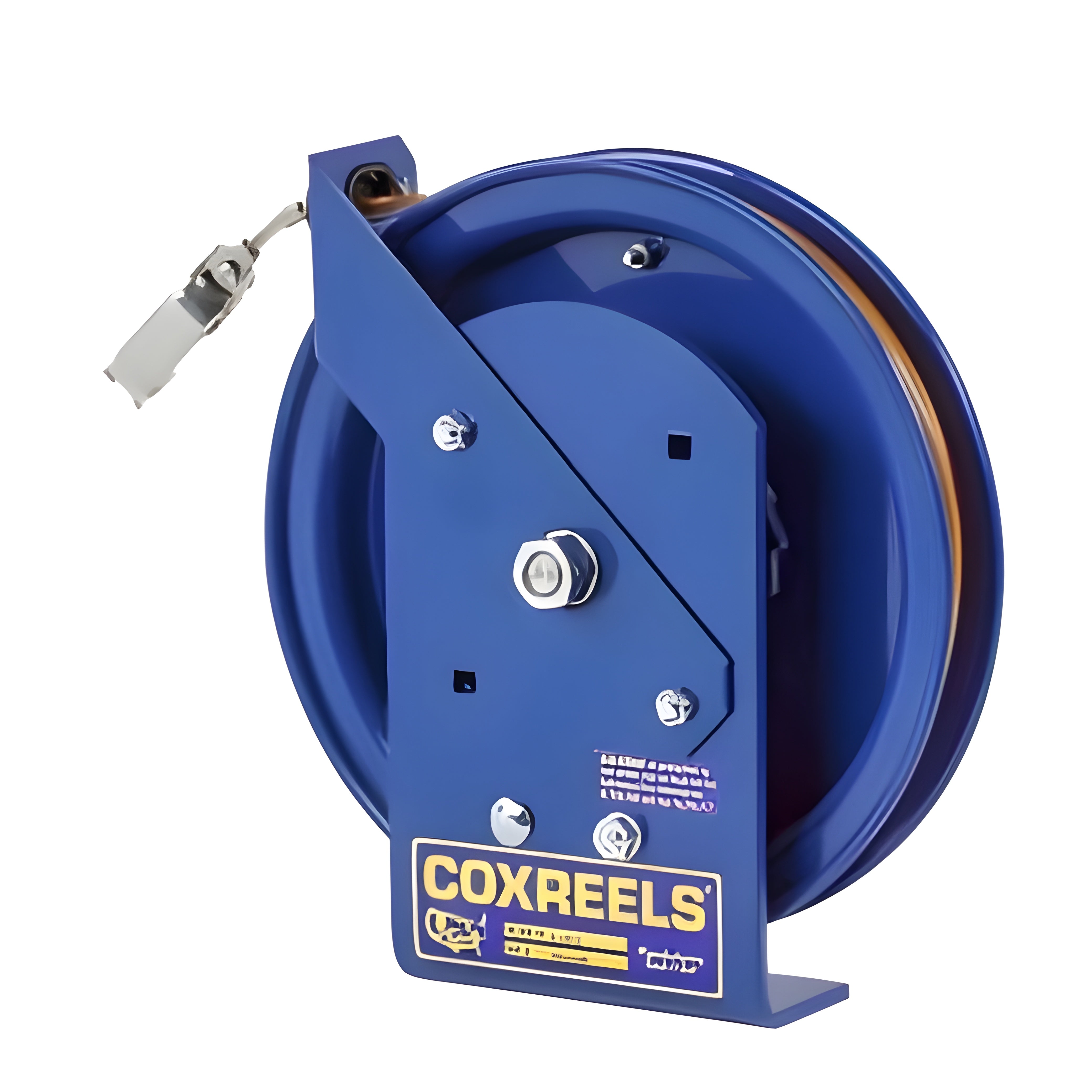

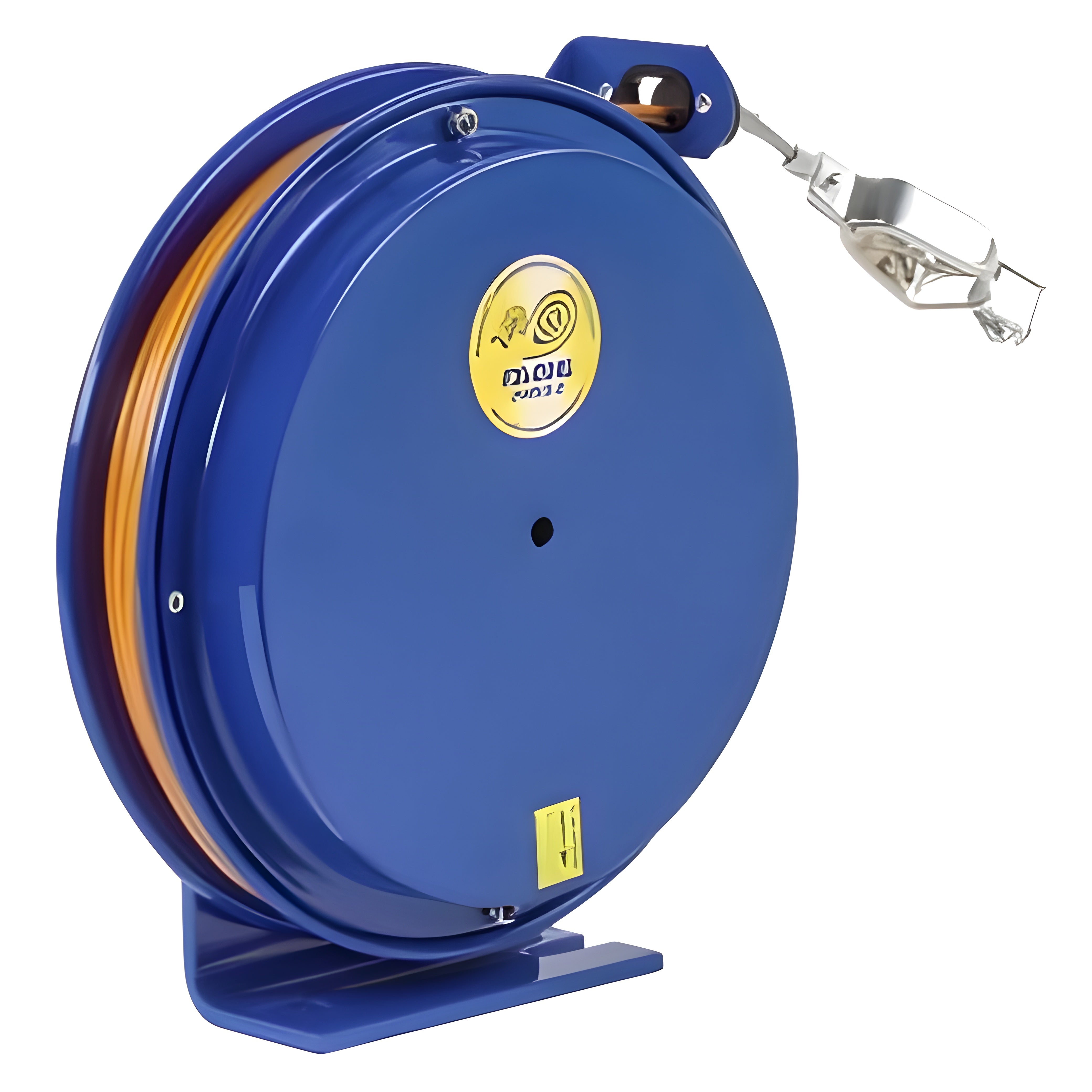

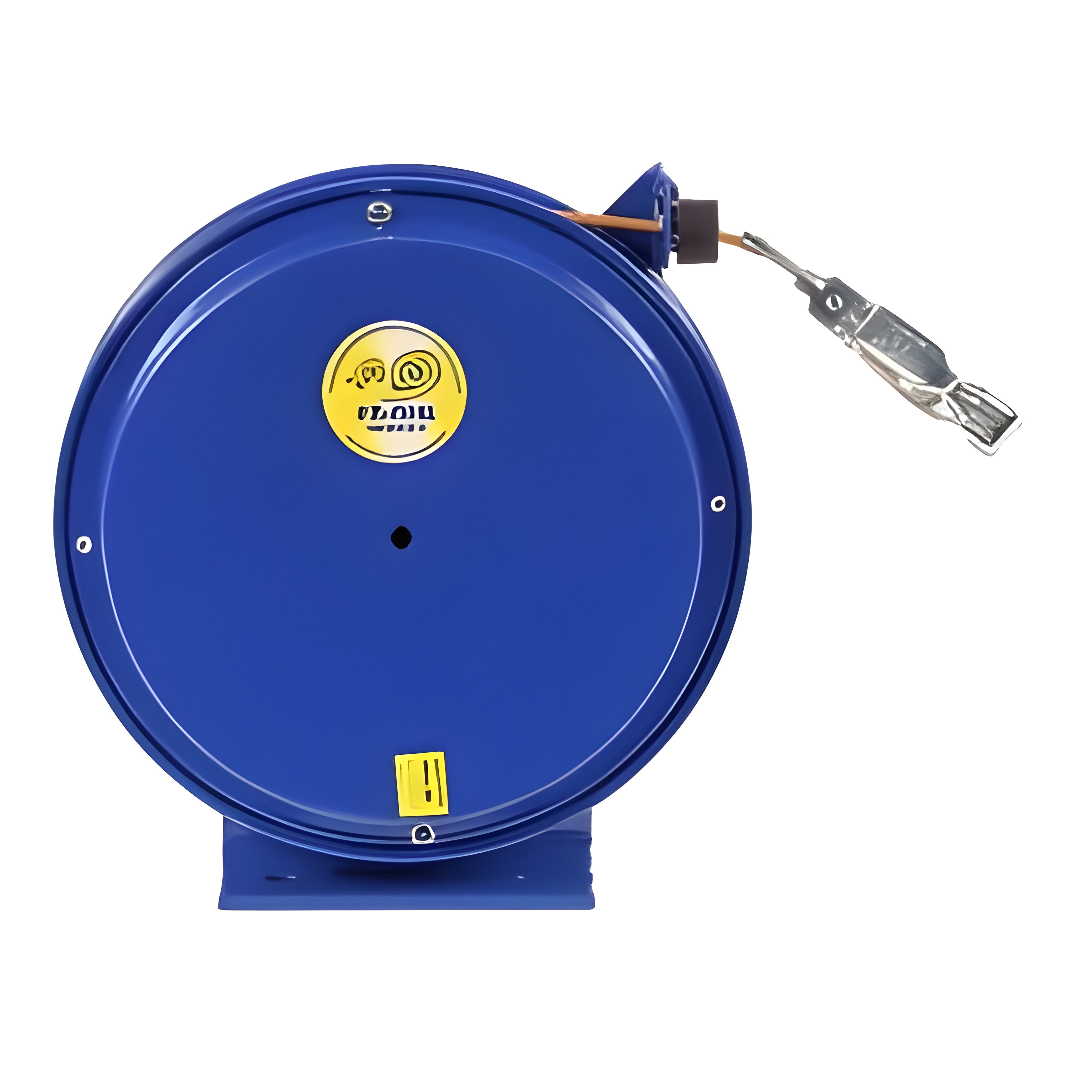

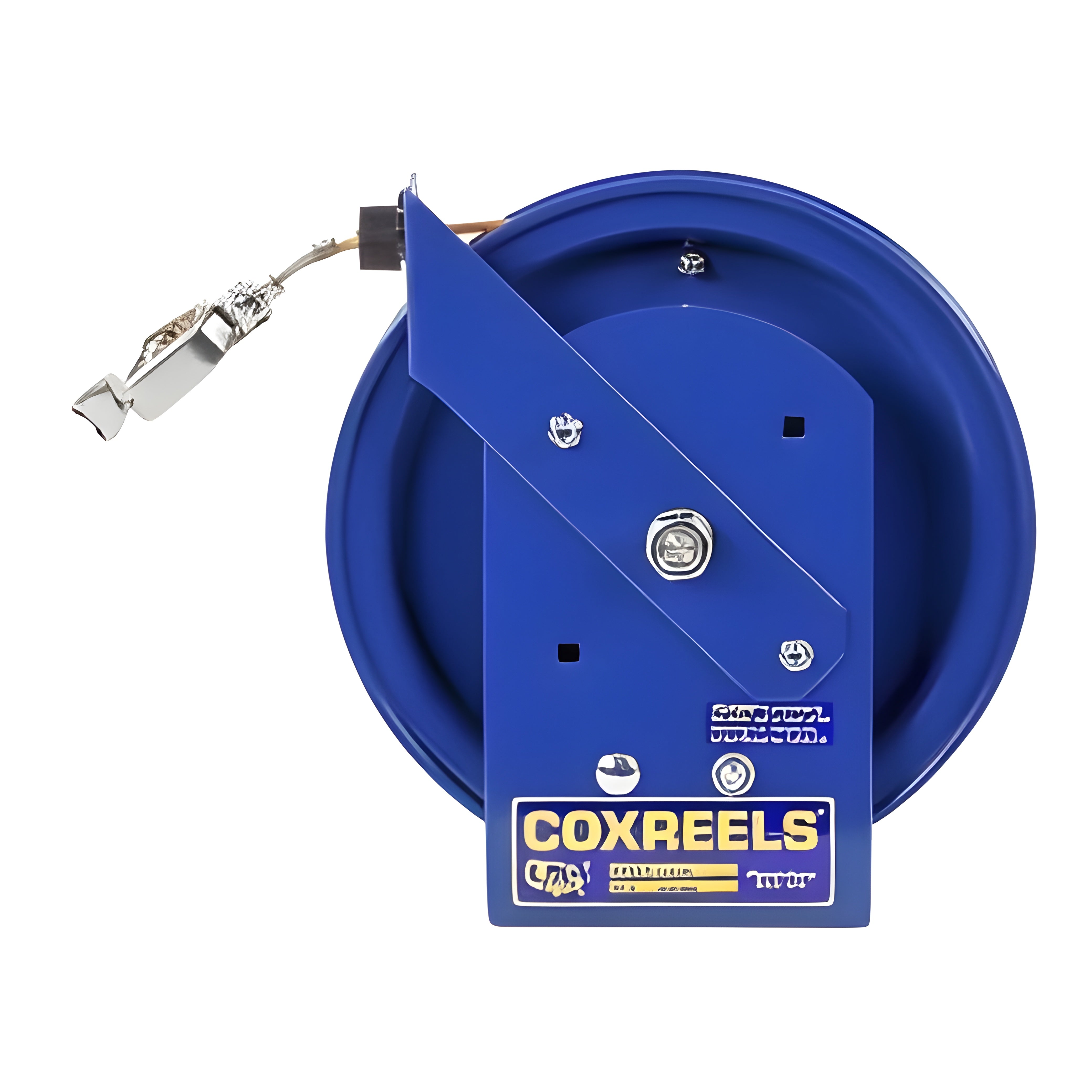

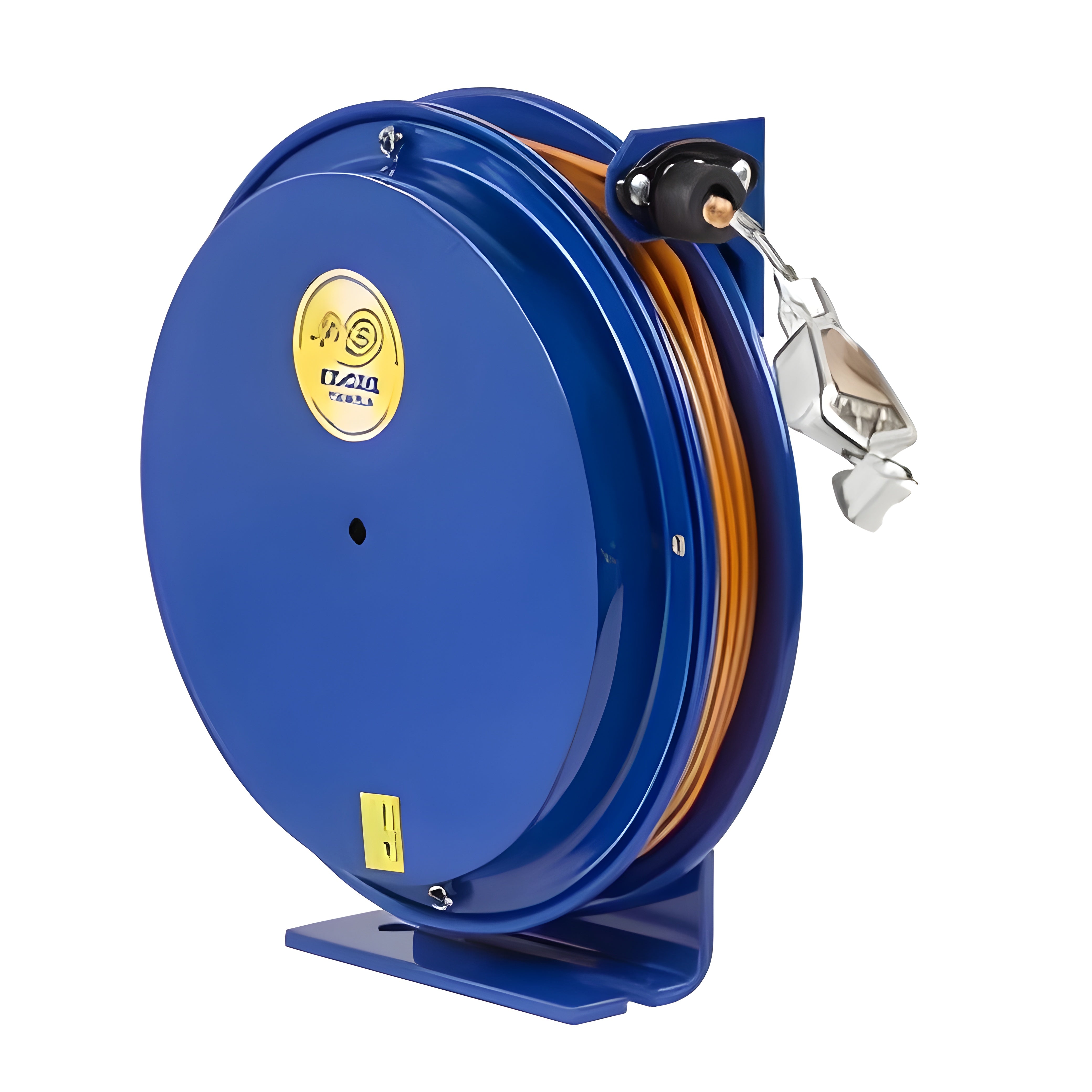

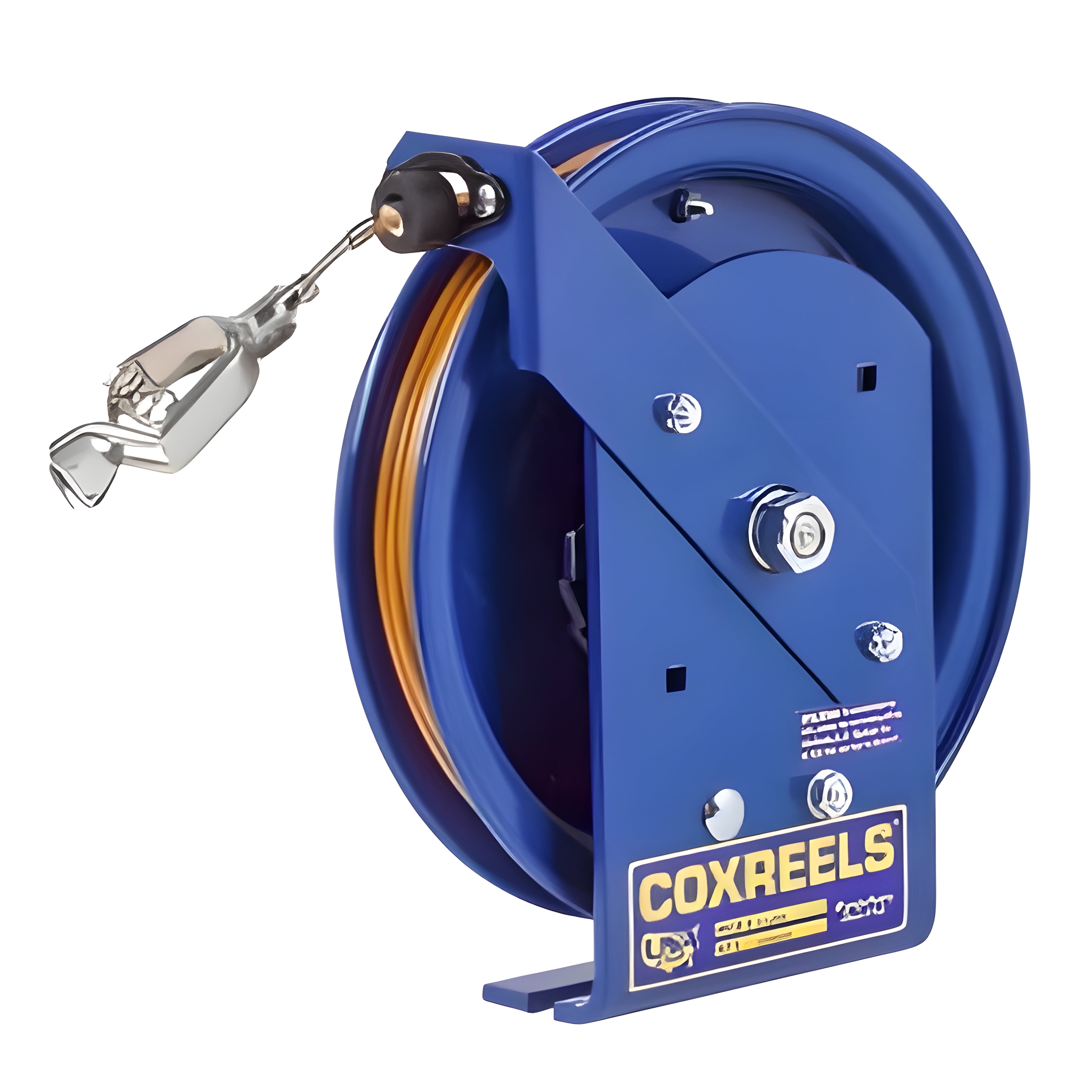

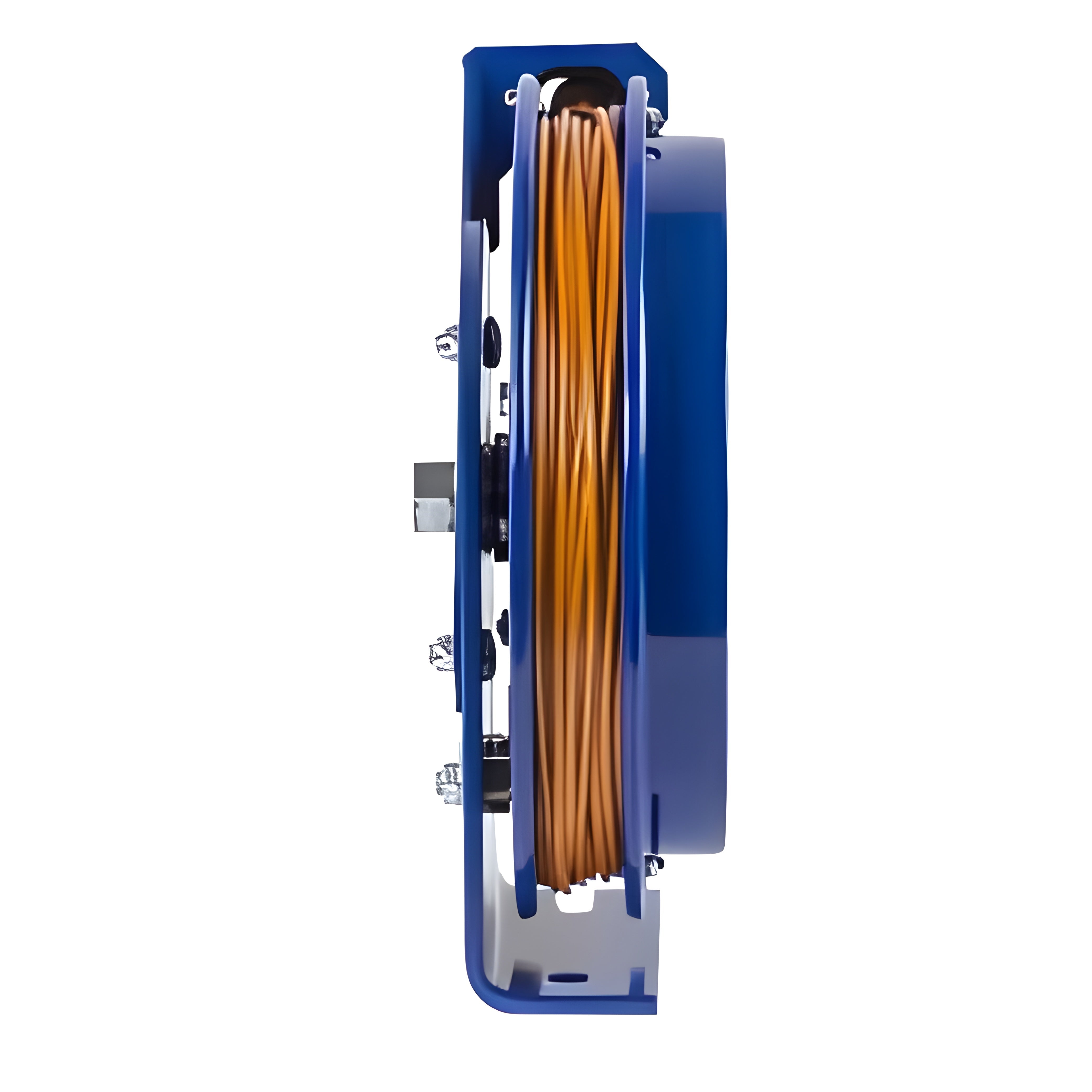

Coxreels EZ-SD Series “Static Discharge” Cable Reels – EZ-SD-100

EZ-SD Series “Static Discharge” Cable Reels

COXREELS EZ-SD Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static build-up could ignite a spark and subsequent explosion.

Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer’s limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

Features

EZ-COIL EQUIPPED – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
MULTI-POSITION GUIDE ARM – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
STEEL CABLE – 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cable stop, 50 amp grounding clamp, and sturdy permanently lubricated precision bearings.

Specifications

MODEL	HOSE	LENGTH	SHIP WEIGHT (LBS)	GAUGE	OVERALL DIMENSIONS (W) (H) (L)	MOUNTING PATTERN (M) (N)	BASE (X) (Y)
EZ-SD-100	Yes	100′	32	5/32″	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-100-1	Yes	100′	32	5/32″	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-35	Yes	35′	18	5/32″	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-35-1	Yes	35′	18	5/32″	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-50	Yes	50′	20	5/32″	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-50-1	Yes	50′	20	5/32″	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-75	Yes	75′	31	5/32″	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SD-75-1	Yes	75′	31	5/32″	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SDL-100	No	100′	28	5/32″	4″(W) 15″(H) 14.5″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)
EZ-SDL-50	No	50′	18	5/32″	3.88″(W) 11.5″(H) 11″(L)	4″(M) -“(N)	2.5″(X) 6″(Y)

What Our Experts Think

Heavy-Duty Performance: Designed for high-temperature exhaust and ventilation applications.
Spring-Driven Retraction: Ensures smooth, controlled retraction for hassle-free operation.
Durable Steel Construction: Built to withstand demanding industrial environments.
Compact & Efficient Design: Saves space while providing maximum functionality.
Corrosion-Resistant Finish: Protects against wear and harsh conditions for long-lasting use.
Easy Installation & Maintenance: User-friendly setup with minimal upkeep required.
Versatile Applications: Ideal for automotive, welding, and industrial exhaust extraction.

Q&A

Q: What is the Coxreels EZ-SD Series “Static Discharge” Cable Reel – EZ-SD-100?
A: The Coxreels EZ-SD-100 is a high-quality, spring-driven cable reel designed for grounding applications to safely dissipate static electricity in hazardous environments.

Q: What industries is this reel used in?
A: It is ideal for fueling, aviation, chemical, and industrial applications where static discharge poses a safety risk.

Q: How does the spring-driven mechanism work?
A: The reel features a spring-retraction system for automatic cable rewind, ensuring easy operation and secure cable storage.

Q: What type of cable does it support?
A: The EZ-SD-100 is designed to accommodate static discharge grounding cables, which help prevent dangerous static buildup.

Q: Is the reel durable?
A: Yes, it is built with heavy-duty steel and a corrosion-resistant finish for long-lasting performance in demanding environments.

Q: Is it easy to install?
A: Yes, the reel is designed for versatile mounting options, including wall, ceiling, or floor installation for optimal convenience

Maintenance Tips

Regular Cleaning: Wipe the reel and cable with a clean, damp cloth to remove dust and debris. Avoid using harsh chemicals.
Inspect Cable: Check for wear, fraying, or damage to the cable. Replace if any damage is found.
Lubricate Moving Parts: Apply a silicone-based lubricant to the reel’s moving components to ensure smooth operation.
Check Tension: Adjust the spring tension if the reel does not retract smoothly or with proper force.
Secure Mounting: Periodically check mounting bolts to ensure the reel is securely fastened to avoid instability.
Proper Storage: When not in use, store the reel in a dry, protected area to prevent damage from environmental factors
