Coxreels DM Series "Dolly Mount" High Pressure Hand Crank Hose Reels - 117-3-200-DM

Description

Coxreels DM Series “Dolly Mount” High Pressure Hand Crank Hose Reels – 117-3-200-DM

DM Series “Dolly Mount” High Pressure Hand Crank Hose Reels

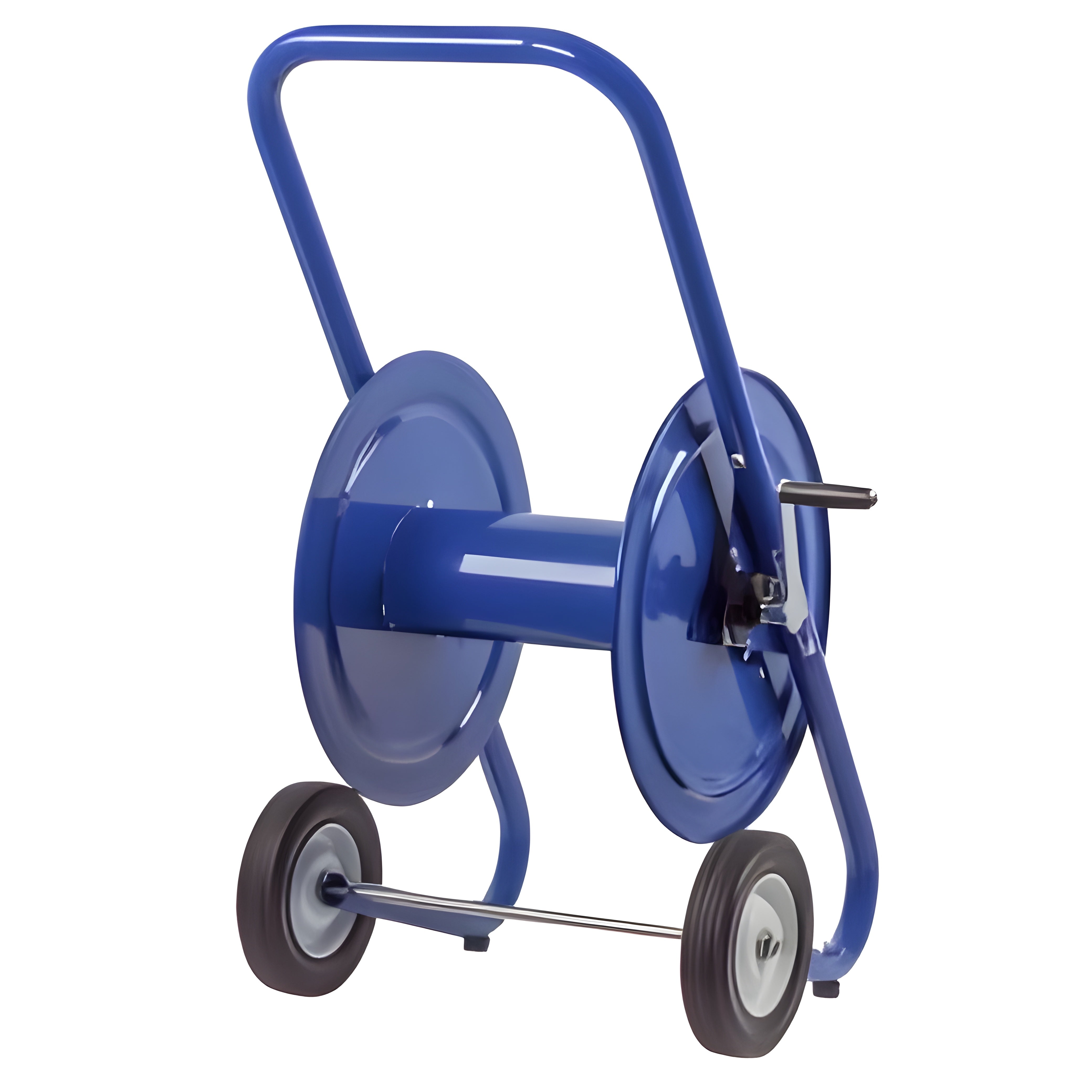

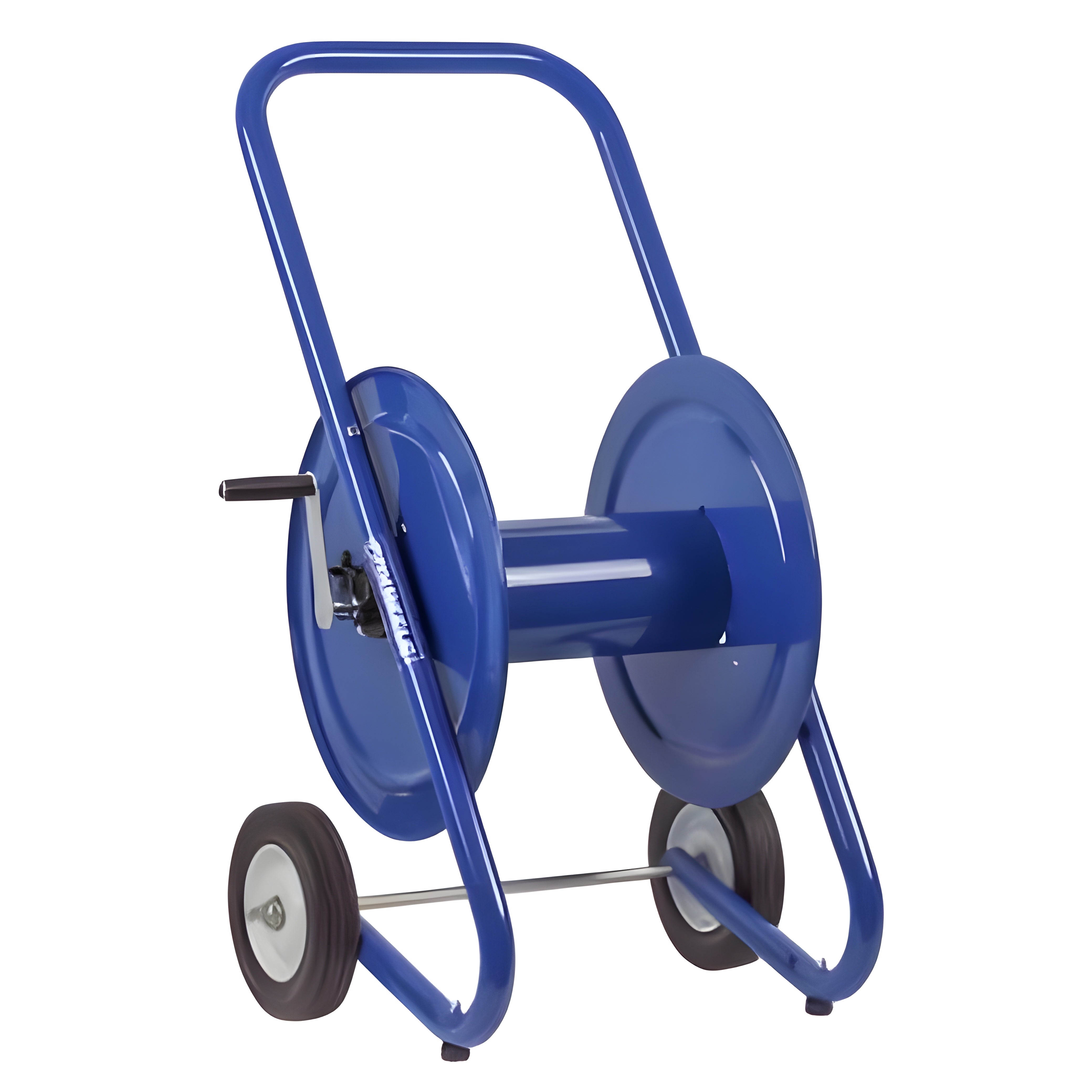

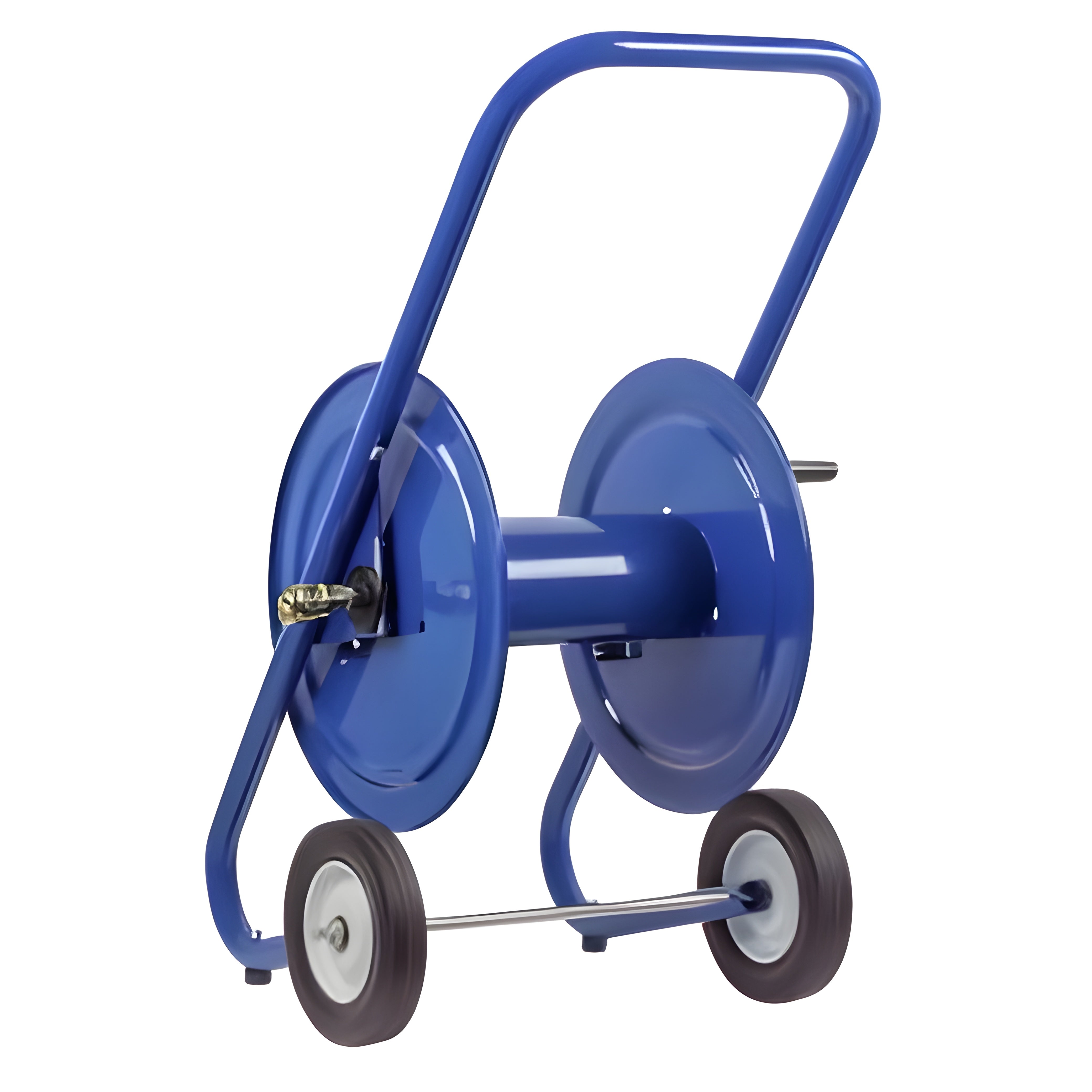

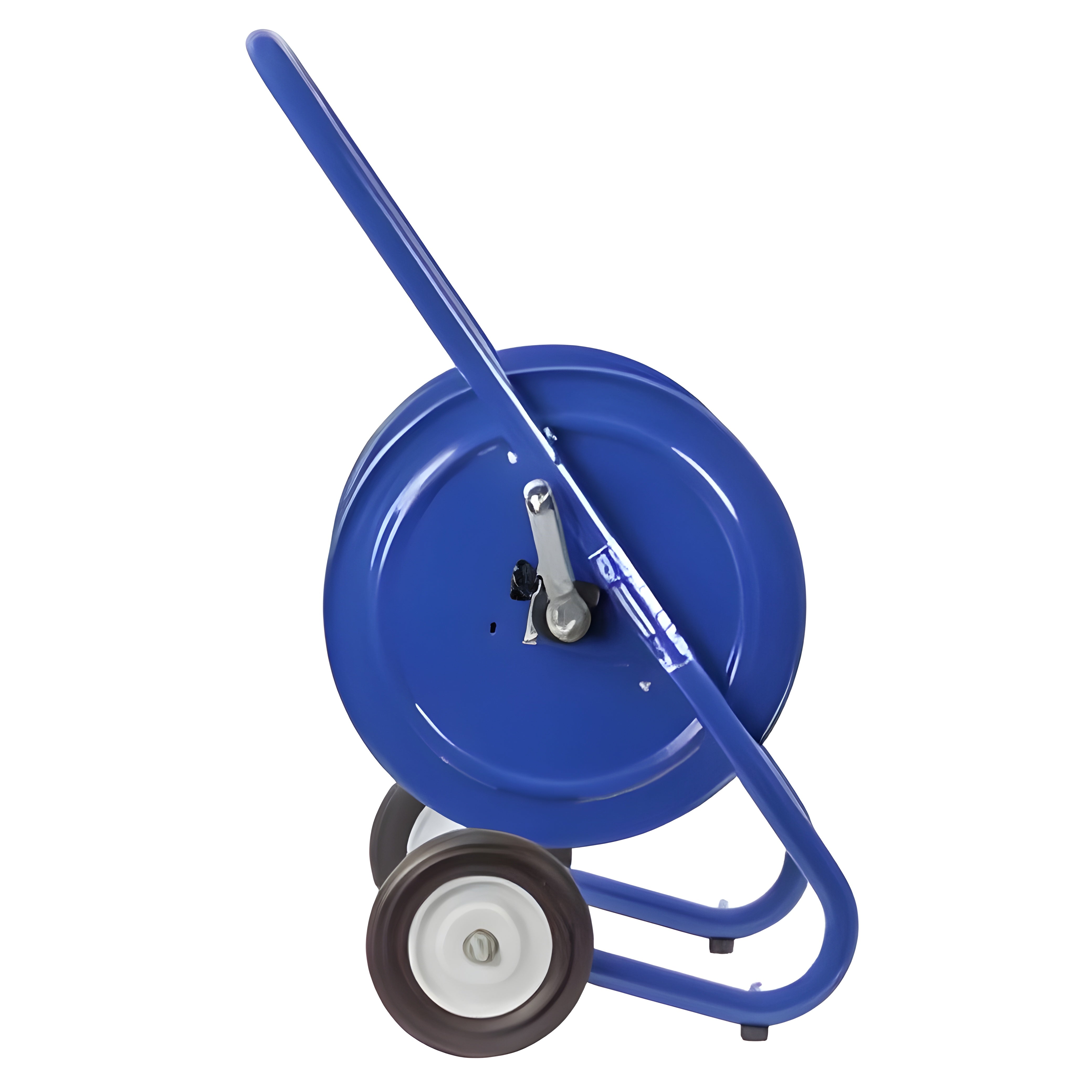

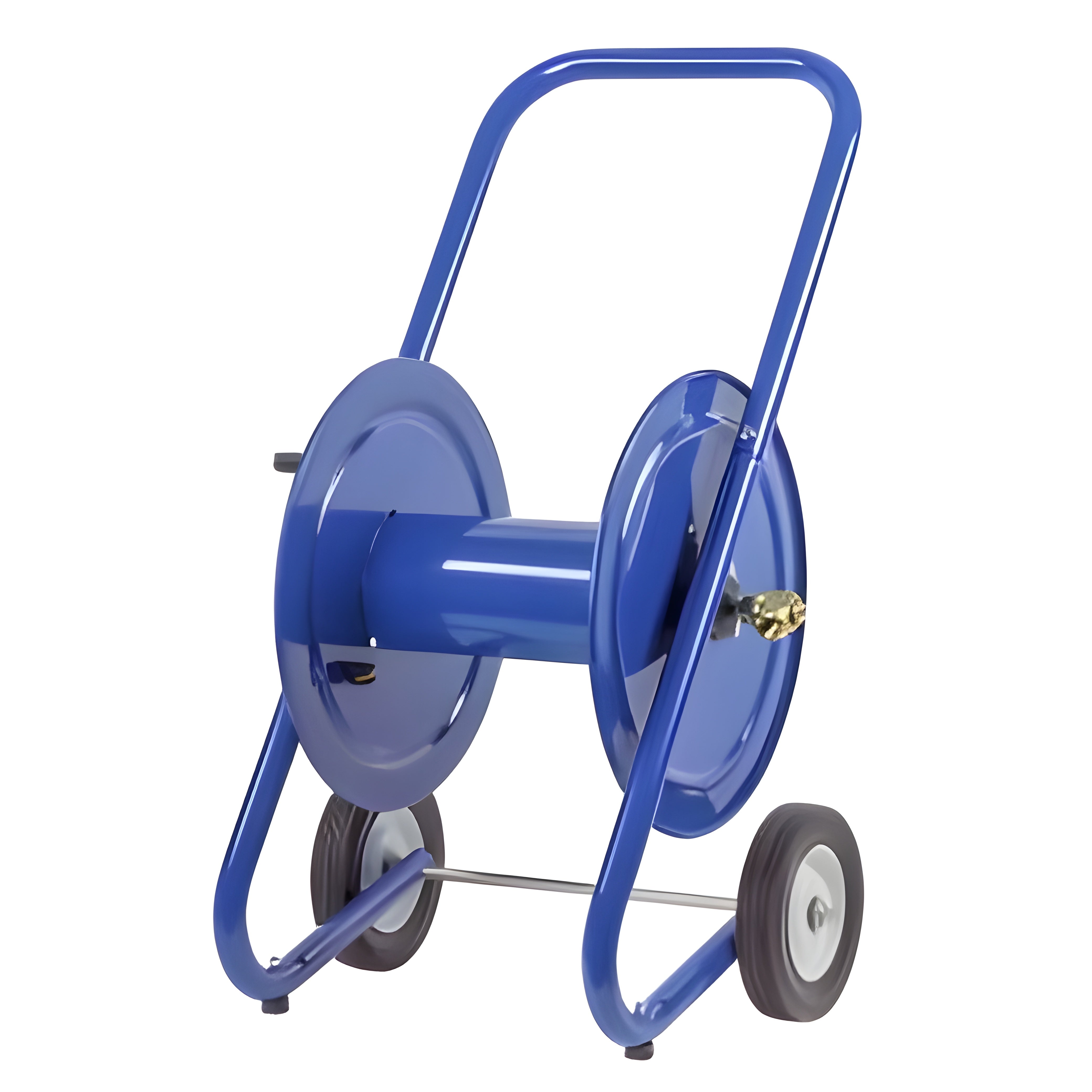

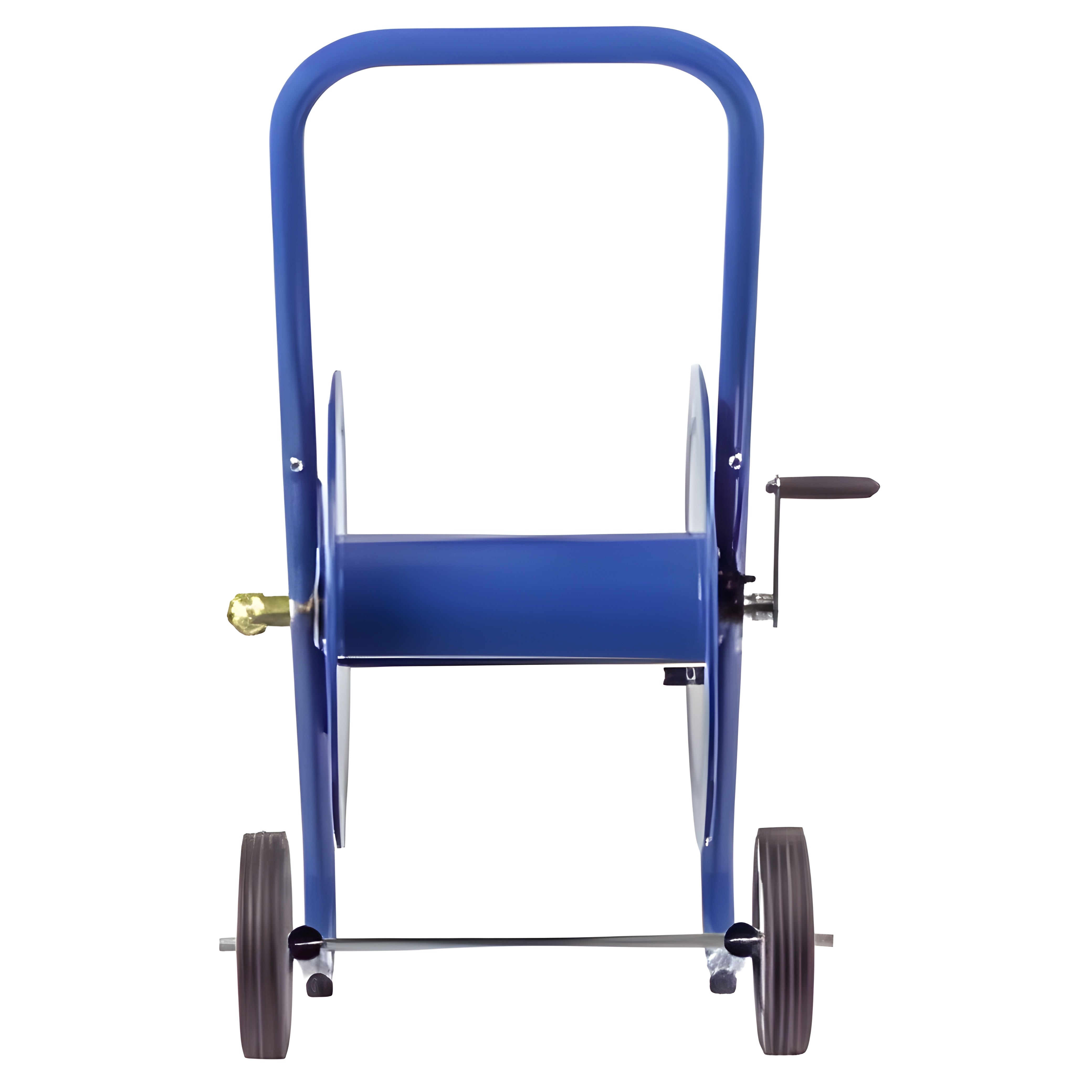

COXREELS DM Series “Dolly Mount” hand crank hose reels offer lightweight, compact portability for long lengths of hose. Eliminate the task of manually coiling and uncoiling hose and easily transport it to the job site on wheels. High pressure applications are no problem with a 4,000 PSI rating. Also, a 4’ inlet hose with 3/4″ female fitting and male garden adapter is available with this series for use with garden hose. See options below.

Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer’s limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

Features

SWIVEL – Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.

FRAME DESIGN – High quality three piece 1-1/4″ steel tube frame structure.Removable handle allow for compact storage.

CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

ADJUSTABLE TENSION BRAKE – Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.

STEEL CONSTRUCTION – High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.

OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, solid 8″ rubber tires, rubber front feet, and direct hand crank for easy mechanical retraction.

Specifications

MODEL	I.D	O.D	LENGTH	HOSE	MAX PSI	SHIP WEIGHT (LBS)	OVERALL DIMENSIONS (W) (H) (L)	MOUNTING PATTERN (M) (N)	BASE (X) (Y)
117-3-200-DM	3/8″	5/8″	200′	No	4000	37	19″(W) 36.25″(H) 21″(L)	-“(M) -“(N)	12″(X) 17.5″(Y)
117-4-225-DM	1/2″	7/8″	225′	No	4000	39	23.5″(W) 36.25″(H) 21″(L)	-“(M) -“(N)	16.5″(X) 17.5″(Y)

What Our Experts Think

Dolly Mount Design: Portable and easy to maneuver, ideal for mobile applications requiring flexible hose access.
High-Pressure Capability: Handles up to 3,000 PSI, perfect for industrial cleaning, pressure washing, and heavy-duty fluid transfer.
Hand Crank Operation: Smooth, manual retraction for precise hose control and efficient handling.
Heavy-Duty Construction: Built for durability and reliability in demanding environments.
Corrosion-Resistant Coating: Protects against rust and wear, ensuring long-lasting performance indoors and outdoors.
Compact & Space-Saving: Keeps hoses organized and accessible while optimizing workspace efficiency.

Q&A

Q: What is the Coxreels DM Series “Dolly Mount” High Pressure Hand Crank Hose Reel – 117-3-200-DM?
A: A portable, high-pressure hose reel mounted on a durable dolly for easy transport and convenient hose management.

Q: What is the hose capacity of this reel?
A: It holds up to 200 feet of high-pressure hose, ideal for demanding industrial and commercial applications.

Q: How does the dolly mount improve mobility?
A: The heavy-duty dolly frame with sturdy wheels allows for effortless transport across job sites.

Q: Is the reel manually operated?
A: Yes, it features a hand crank mechanism for smooth and controlled hose winding.

Q: What materials is the reel made from?
A: Built with high-quality steel and corrosion-resistant components for long-lasting durability.

Q: Where is this reel typically used?
A: Perfect for construction, pressure washing, agriculture, and other high-pressure hose applications requiring mobility.

Maintenance Tips

Model: 117-3-200-DM
Hose Capacity: Holds up to 200 feet of 3/8” high-pressure hose
Pressure Rating: Handles high-pressure applications up to 5000 PSI
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for durability
Drive Mechanism: Hand crank operation for controlled hose retraction
Swivel Inlet: Full-flow brass swivel for unrestricted fluid transfer
Dolly Design: Portable dolly-style frame with large, sturdy wheels for easy transport
Mounting Type: Freestanding, mobile design for on-the-go applications
Applications: Ideal for high-pressure fluid and air transfer in industrial, construction, and service environments
Temperature Range: Operates effectively in varying environmental conditions
Weight: Varies based on hose configuration
