Description

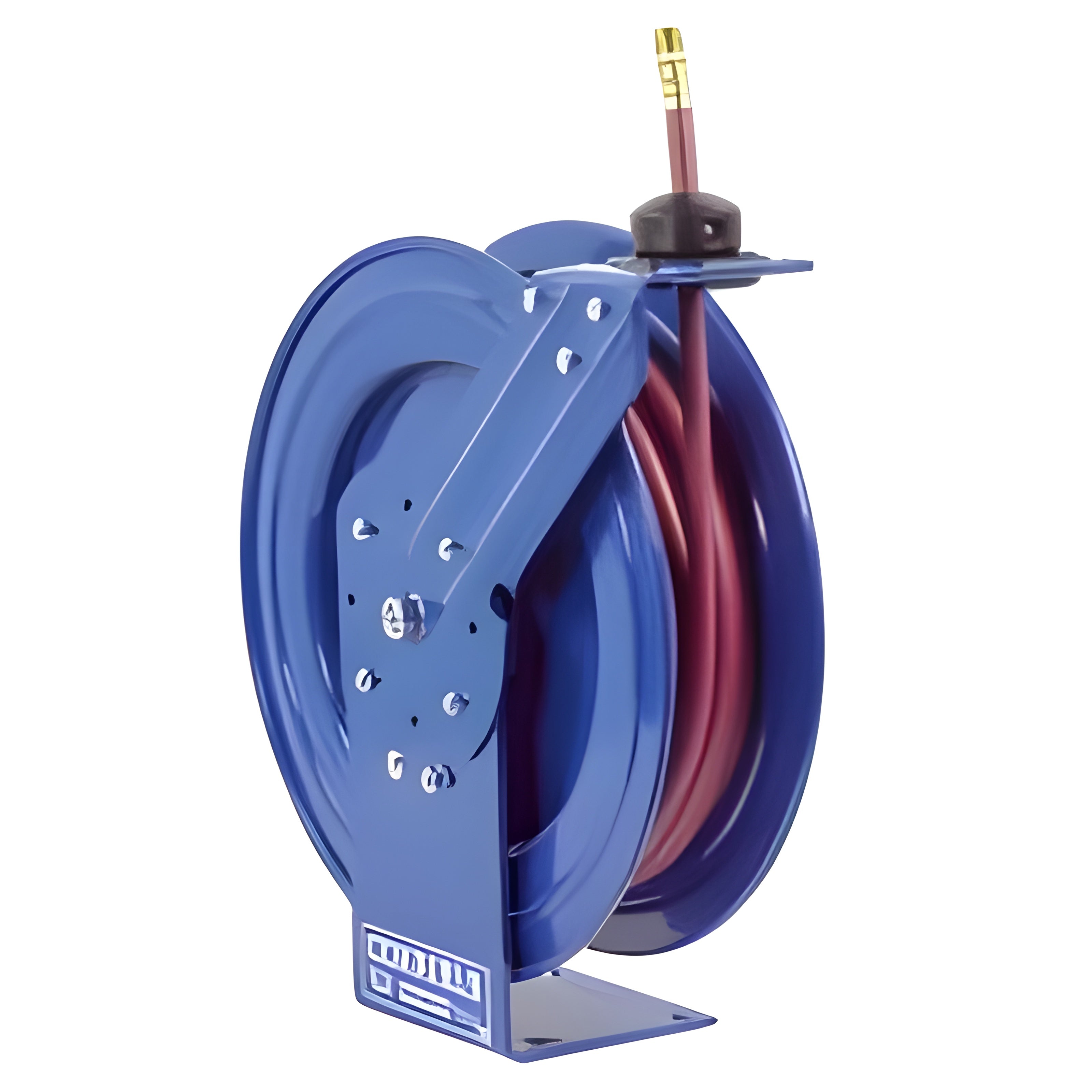

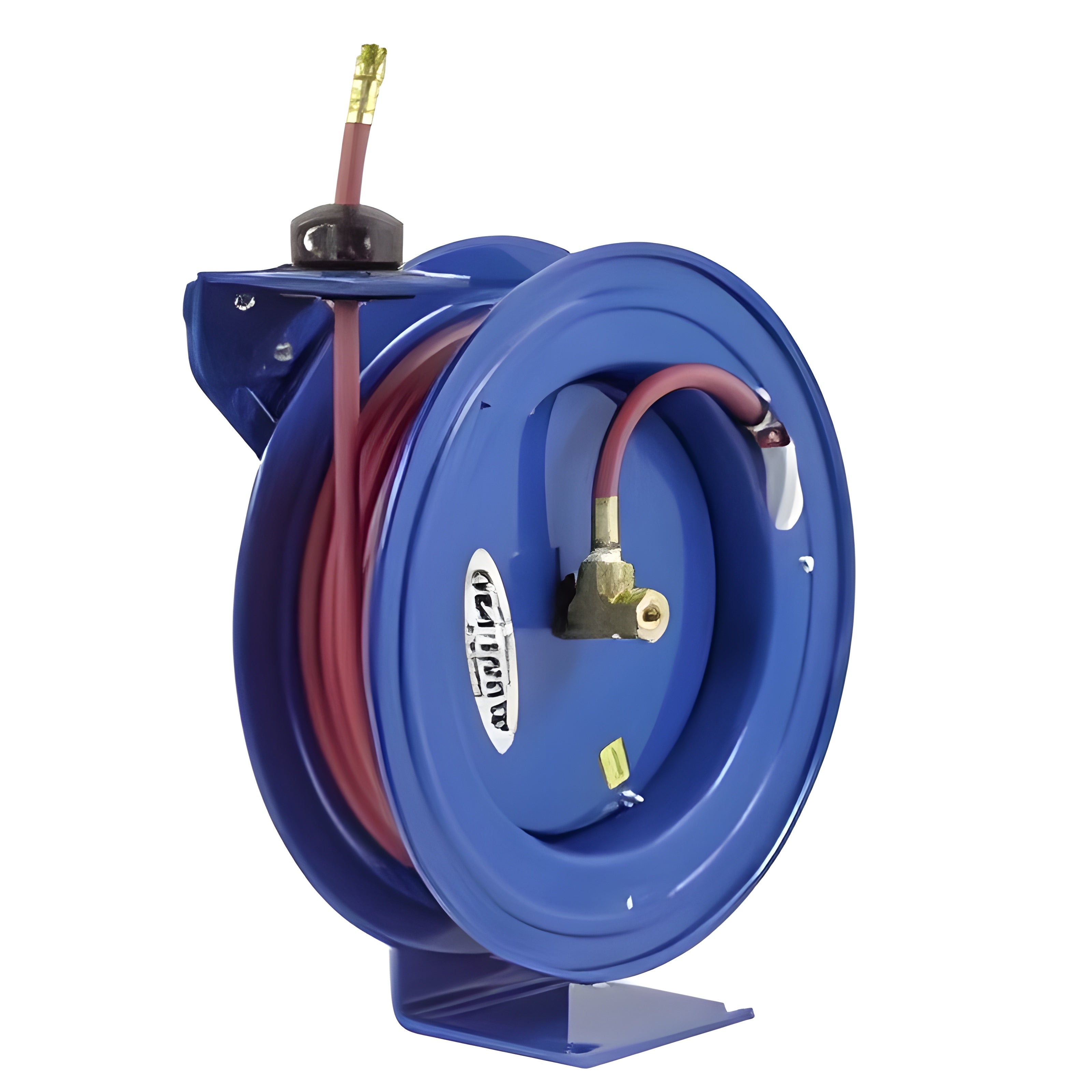

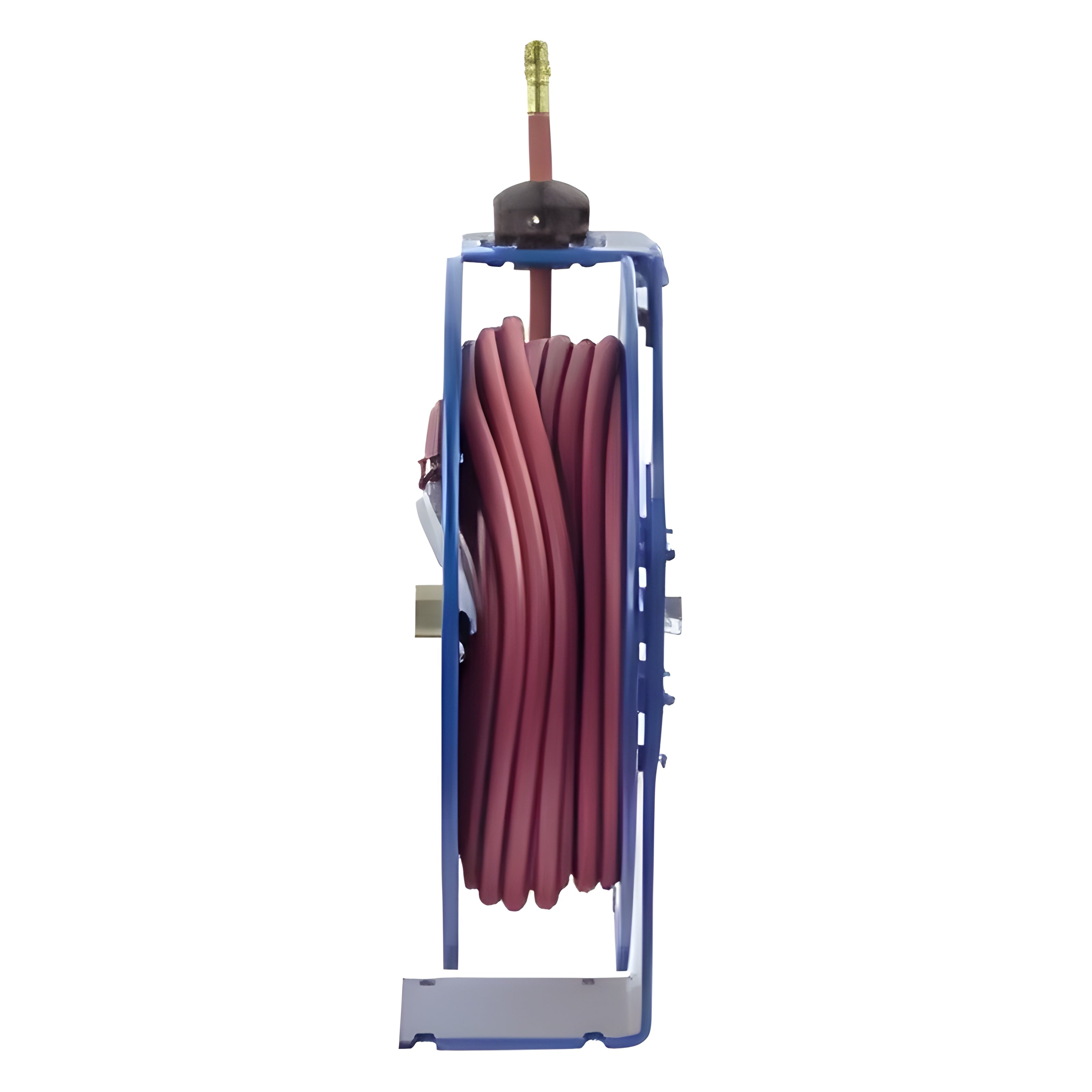

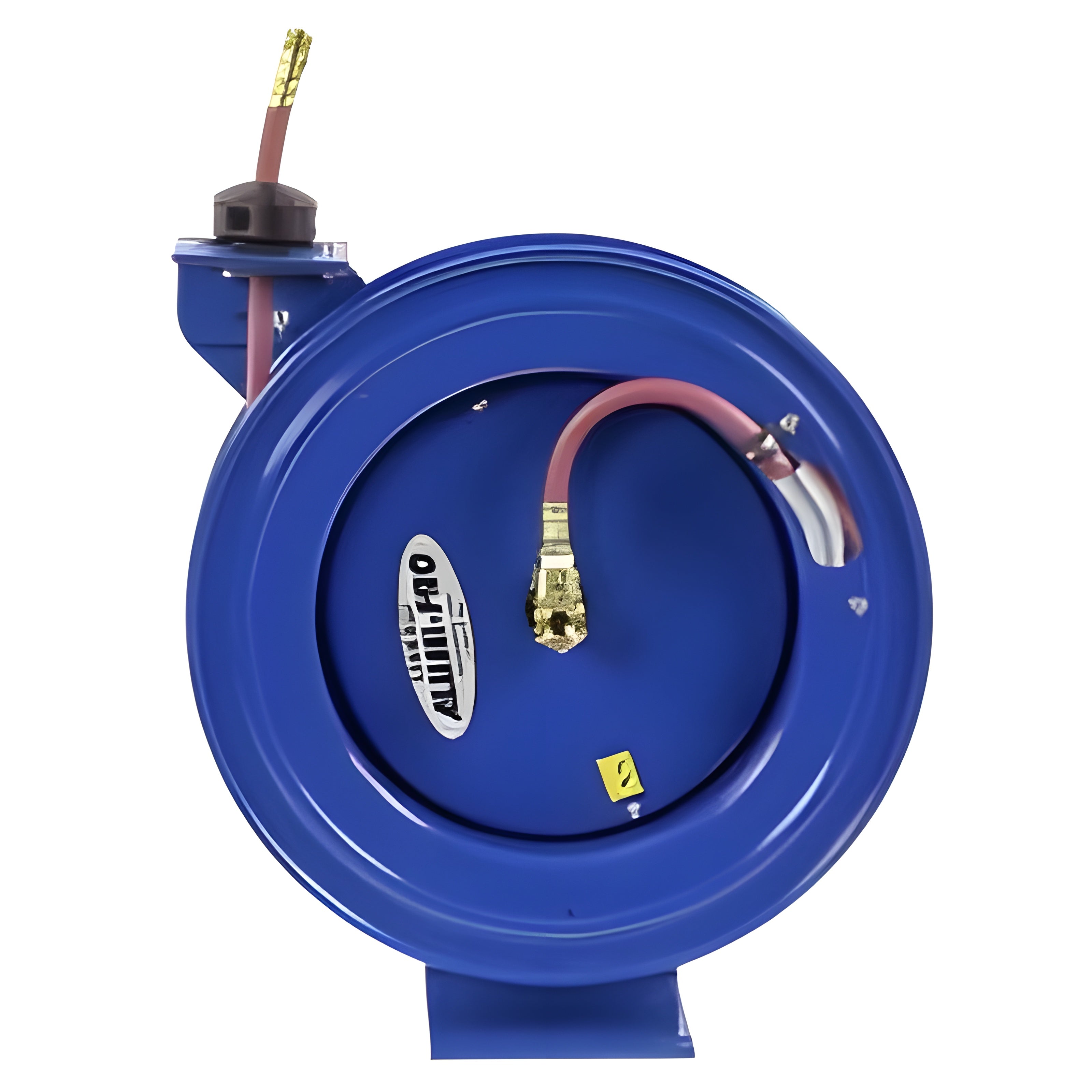

Coxreels Alumi-Pro “Aluminium Professional-Grade” Low Pressure Spring Driven Hose Reels – P-LP-125-AL

Alumi-Pro “Aluminium Professional-Grade” Low Pressure Spring Driven Hose Reels

COXREELS Alumi-Pro “Aluminium Professional-Grade” spring driven hose reels have the strength of steel without the weight! The Alumi-Pro series is modelled after Coxreels’ popular P Series line of hose reels, but are uniquely constructed out of high quality aluminium. They’re compact, lightweight, and non-corrosive making them the perfect choice when polypropylene or plastic hose reels are not the preferred choice due to their limited strength
and durability.

• Professional grade heavy duty steel construction
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer’s limited warranty
• Made in the U.S.A. – Sold & Supported Worldwide

Features

• SWIVEL – Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
• CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4″ ALUMINUM BASE – Sturdy single pedestal design with solid one piece aluminum base and support post, no weld, for maximum stability and professional grade strength without the weight.
• MULTI-POSITION GUIDE ARM – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
• OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Specifications

What Our Experts Think

• Aluminum Construction: Lightweight yet durable, offering excellent corrosion resistance, making it perfect for outdoor and marine environments.
• Low-Pressure Capability: Ideal for air, water, and light fluid transfer, suitable for various industries like agriculture, automotive, and manufacturing.
• Spring-Driven Retraction: Smooth, automatic hose rewind for efficient storage and easy operation.
• Professional-Grade Durability: Designed for heavy-duty use, ensuring long-term reliability even in demanding conditions.
• Rust and Corrosion-Resistant Finish: Provides extra protection against the elements, ensuring the reel maintains its integrity over time.
• Compact & Space-Efficient: Saves valuable space by keeping hoses neatly stored, improving workspace safety and organization.

Q&A

Q: What is the Coxreels Alumi-Pro® “Aluminium Professional-Grade” Low Pressure Spring Driven Hose Reel – P-LP-125-AL?
A: A professional-grade, low-pressure hose reel made from lightweight and durable aluminum, designed for high performance and ease of use.

Q: What is the hose capacity?
A: This reel holds up to 125 feet of low-pressure hose, making it ideal for various fluid transfer applications.

Q: What benefits does the aluminum construction offer?
A: The aluminum frame provides strength while being lightweight, ensuring portability and resistance to corrosion for long-lasting use.

Q: How does the spring-driven mechanism work?
A: It features a spring-driven rewind system that automatically retracts the hose, ensuring efficient and effortless storage.

Q: Where is this reel commonly used?
A: Perfect for mobile services, agriculture, and other industries where low-pressure hose management is required, offering superior durability and flexibility.

Q: Is the reel easy to install?
A: Yes, the reel is designed for quick mounting on walls, vehicles, or equipment for convenient access and usage.

Maintenance Tips

• Model: P-LP-125-AL
• Hose Capacity: Holds up to 125 feet of 1/2” low-pressure hose
• Pressure Rating: Designed for low-pressure applications up to 300 PSI
• Construction: Aluminium frame for a lightweight, corrosion-resistant, and durable design
• Drive Mechanism: Spring-driven automatic rewind for smooth hose retraction with minimal effort
• Swivel Inlet: Full-flow brass swivel for reliable, unrestricted fluid transfer
• Roller Design: Multi-position guide arm with reinforced rollers for efficient hose payout and retraction
• Mounting Type: Wall, floor, or ceiling mount for flexible installation in various spaces
• Applications: Perfect for low-pressure fluid and air transfer in industrial, automotive, and service environments
• Temperature Range: Functions effectively across a wide temperature range
• Weight: Lighter than standard steel models due to its aluminium construction
