Coxreels 100WCL Series Compact Hand Crank Cable Reels - 112WCL-6-01

Description

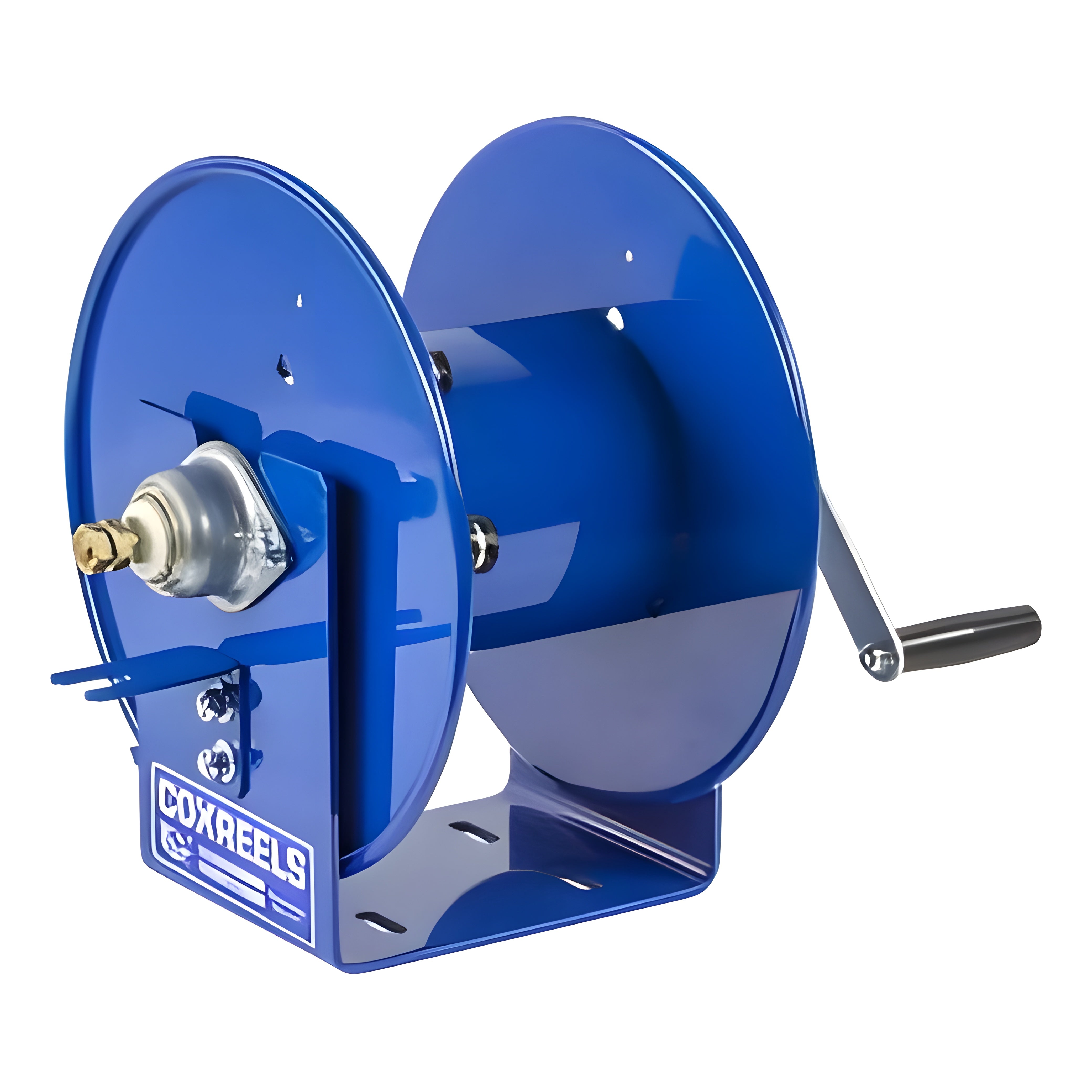

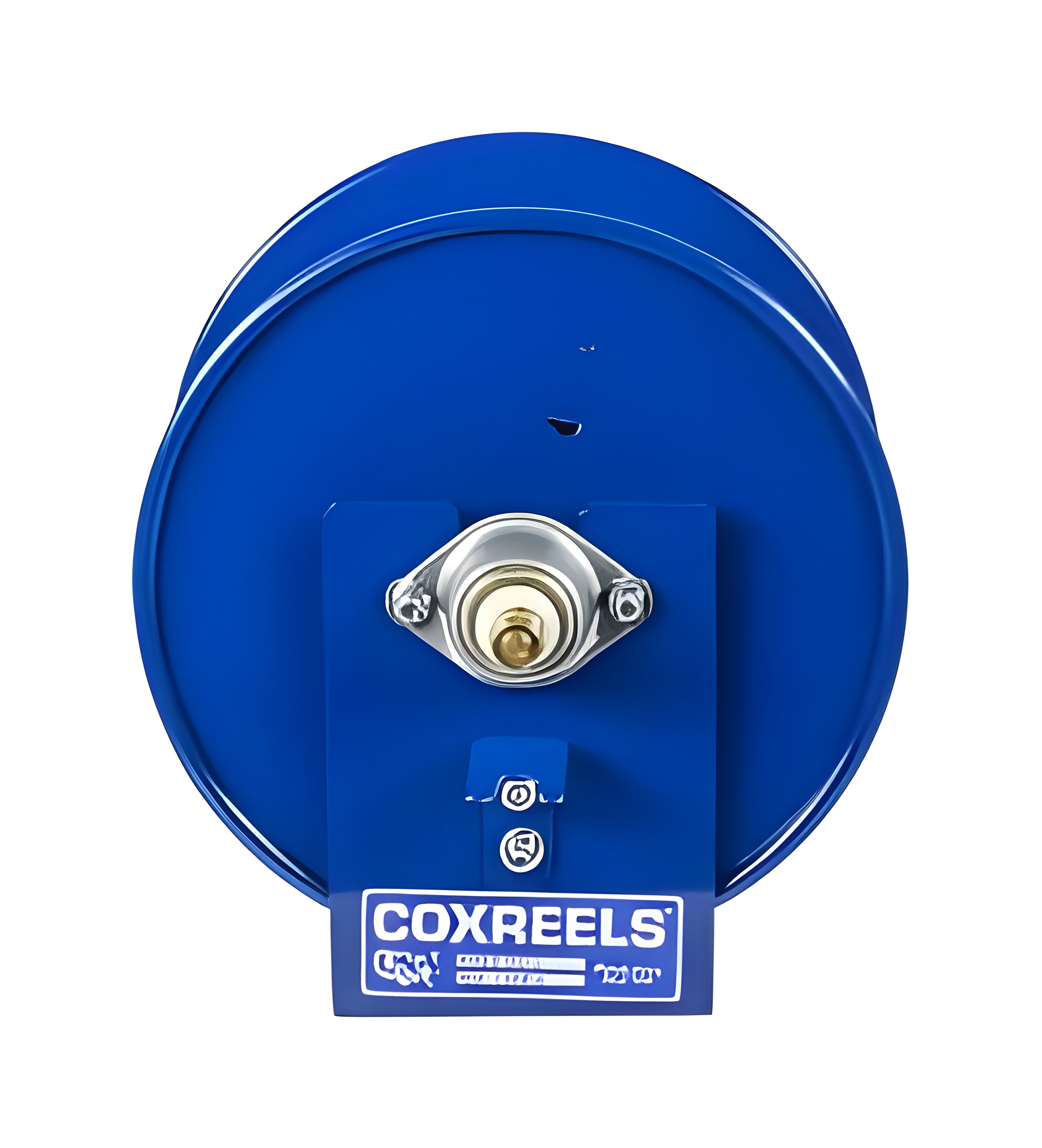

Coxreels 100WCL Series Compact Hand Crank Cable Reels – 112WCL-6-01

100WCL Series Compact Hand Crank Cable Reels

COXREELS 100WCL Series compact hand crank cable reels are versatile and ideal for electrode and grounding lead applications. Save time and effort while increasing the safety of your work environment. The sturdy “U” shaped frame and all steel construction make this one tough little reel. All listed models are supplied less cable.

Professional grade heavy duty steel construction.
Rolled edges & ribbed discs provide strength & safety.
Leading 2-year manufacturer’s limited warranty.
Made in the U.S.A. – Sold & Supported Worldwide.

Features

SLIP RING ASSEMBLY – drum-located slip ring assembly with easy to access removable panel for simple routine maintenance. No need to remove the reel from its mount.

U SHAPED FRAME DESIGN – Solid one piece heavy gauge all steel U shaped frame. Professional grade, compact, lightweight and simple design.

CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

BRONZE SPHERICAL BEARINGS – Self-lubricated bronze spherical bearings at each end of the reels are designed for trouble-free rotation and heavy-duty applications.

STEEL CONSTRUCTION – High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.

OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.

Specifications

MODEL	HOSE	LENGTH	SHIP WEIGHT (LBS)	GAUGE	AMPS	OVERALL DIMENSIONS (W) (H) (L)	MOUNTING PATTERN (M) (N)	BASE (X) (Y)
112WCL-6-01	No	150′	19	#1	450 AMP	18″(W) 13″(H) 12″(L)	4″(M) 3″(N)	8″(X) 6″(Y)
112WCL-6-02	No	165′	19	#2	450 AMP	18″(W) 13″(H) 12″(L)	4″(M) 3″(N)	8″(X) 6″(Y)
112WCL-6-10	No	100′	19	#1/0	450 AMP	18″(W) 13″(H) 12″(L)	4″(M) 3″(N)	8″(X) 6″(Y)
112WCL-6-20	No	100′	19	#2/0	450 AMP	18″(W) 13″(H) 12″(L)	4″(M) 3″(N)	8″(X) 6″(Y)

What Our Experts Think

Compact Design: Space-saving reel that’s perfect for tight workspaces without sacrificing performance.
Hand Crank Operation: Provides smooth, manual control for easy cable retraction and management.
Heavy-Duty Construction: Built with durable materials to withstand everyday industrial use.
Corrosion-Resistant Finish: Ensures long-lasting protection against rust and wear in various environments.
Versatile Use: Ideal for managing electrical cables, extension cords, or other flexible cables in workshops, garages, or factories.
Efficient Storage: Keeps cables neatly stored and tangle-free for quick access and easy handling.
Easy Installation: Quick and straightforward setup with minimal maintenance required.

Q&A

Q: What is the Coxreels 100WCL Series Compact Hand Crank Cable Reel – 112WCL-6-01?
A: The Coxreels 112WCL-6-01 is a compact hand crank cable reel designed for efficient storage and management of electrical cables in commercial and industrial applications.

Q: What is the cable capacity of this reel?
A: The 112WCL-6-01 can accommodate up to 50 feet of cable, offering convenient storage for shorter cable lengths in tight spaces.

Q: How does the hand crank mechanism work?
A: The reel features a smooth hand crank for manual cable winding, giving you precise control over cable retraction and preventing tangles.

Q: Is the reel durable?
A: Yes, it is constructed from high-quality, heavy-duty steel with a corrosion-resistant finish, ensuring long-lasting performance and reliability.

Q: Is this reel easy to install?
A: Yes, the 112WCL-6-01 offers flexible mounting options, including wall, floor, or ceiling installation, making it versatile for various setups.

Q: What are typical applications for this reel?
A: This reel is ideal for managing power cables, extension cords, and other electrical cables in environments such as workshops, factories, and job sites.

Maintenance Tips

Regular Cleaning: Wipe down the reel and cable with a damp cloth to remove dirt, dust, and debris. Avoid abrasive cleaners that could damage the surface.
Lubricate Crank Mechanism: Apply a light silicone-based lubricant to the hand crank and reel components to ensure smooth operation.
Inspect Cable: Check the cable for signs of wear, fraying, or damage. Replace if necessary to prevent electrical hazards or damage to the reel.
Tighten Fasteners: Periodically check and tighten any bolts or screws to ensure the reel remains securely mounted.
Check Cable Fittings: Ensure all cable fittings are intact and securely attached to prevent accidental disconnects or wear.
Proper Storage: When not in use, store the reel in a dry, cool place to avoid exposure to moisture, which could cause rust or corrosion.
