Description

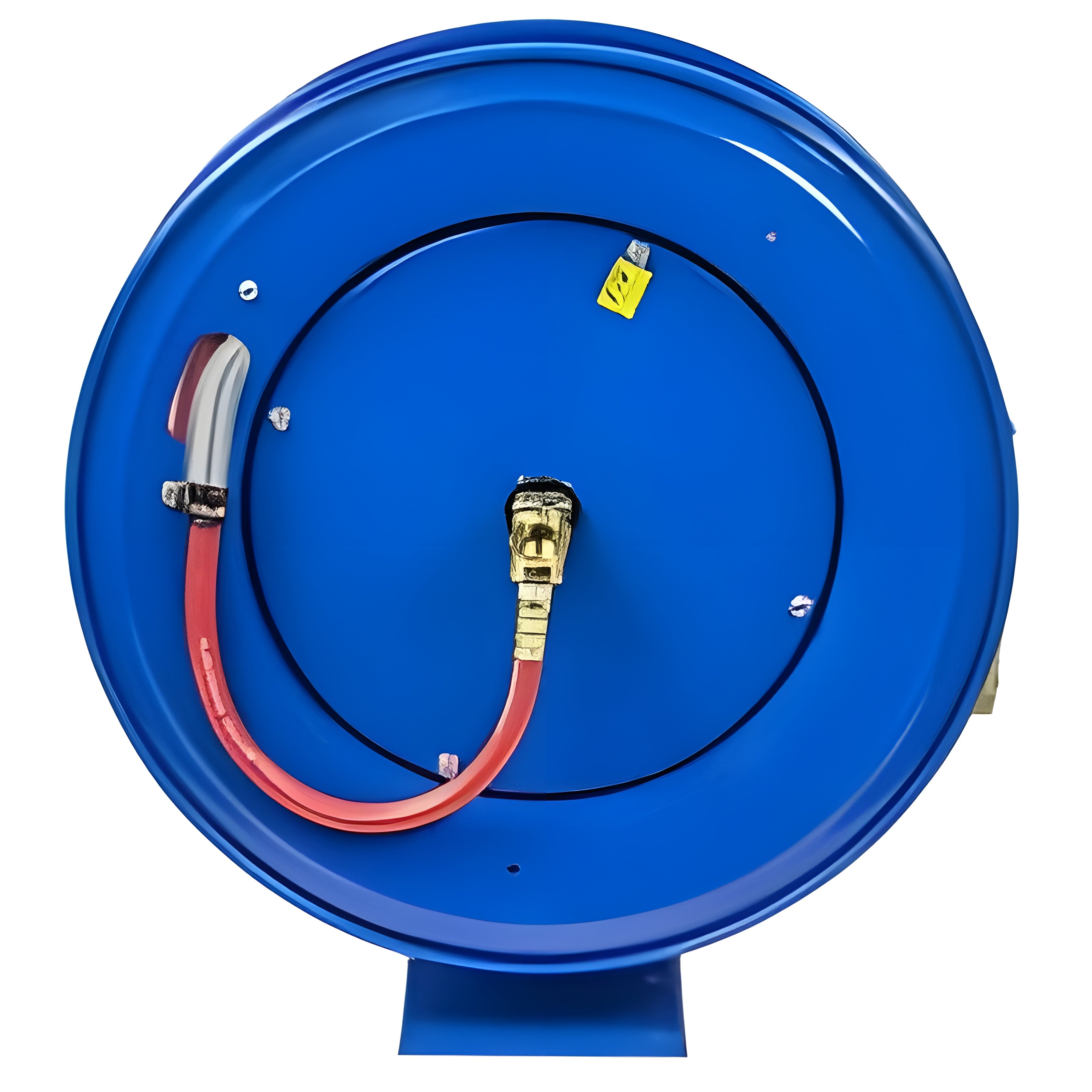

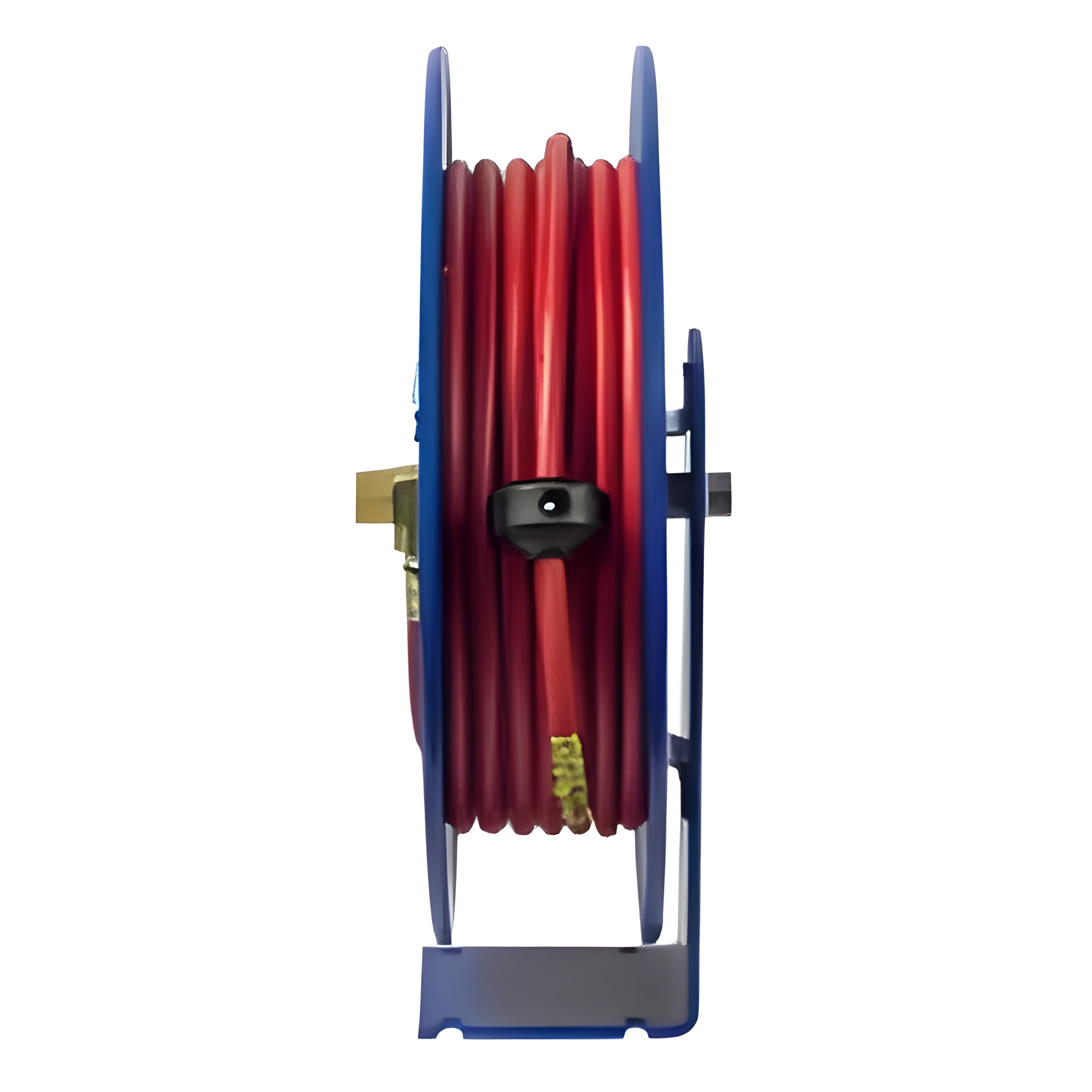

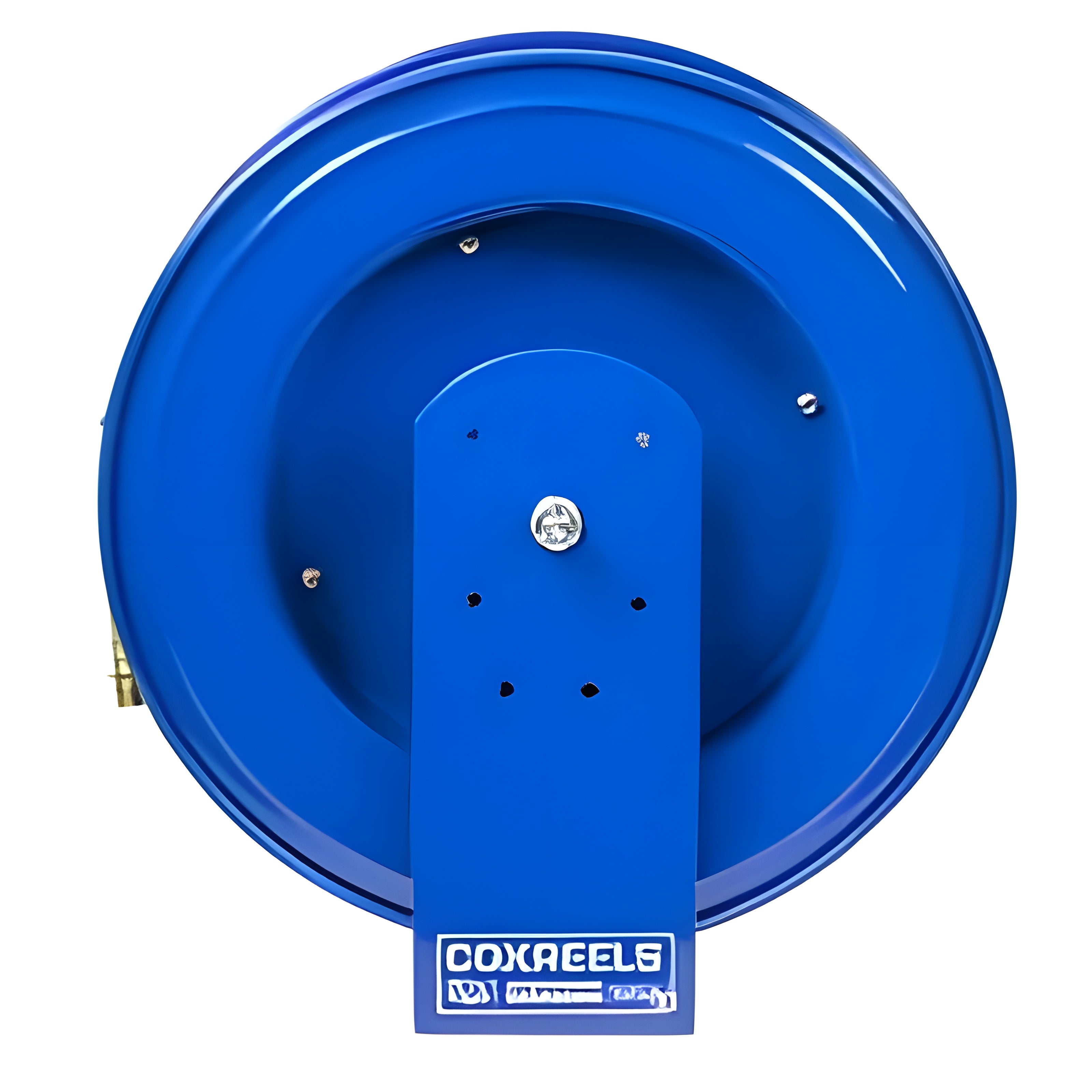

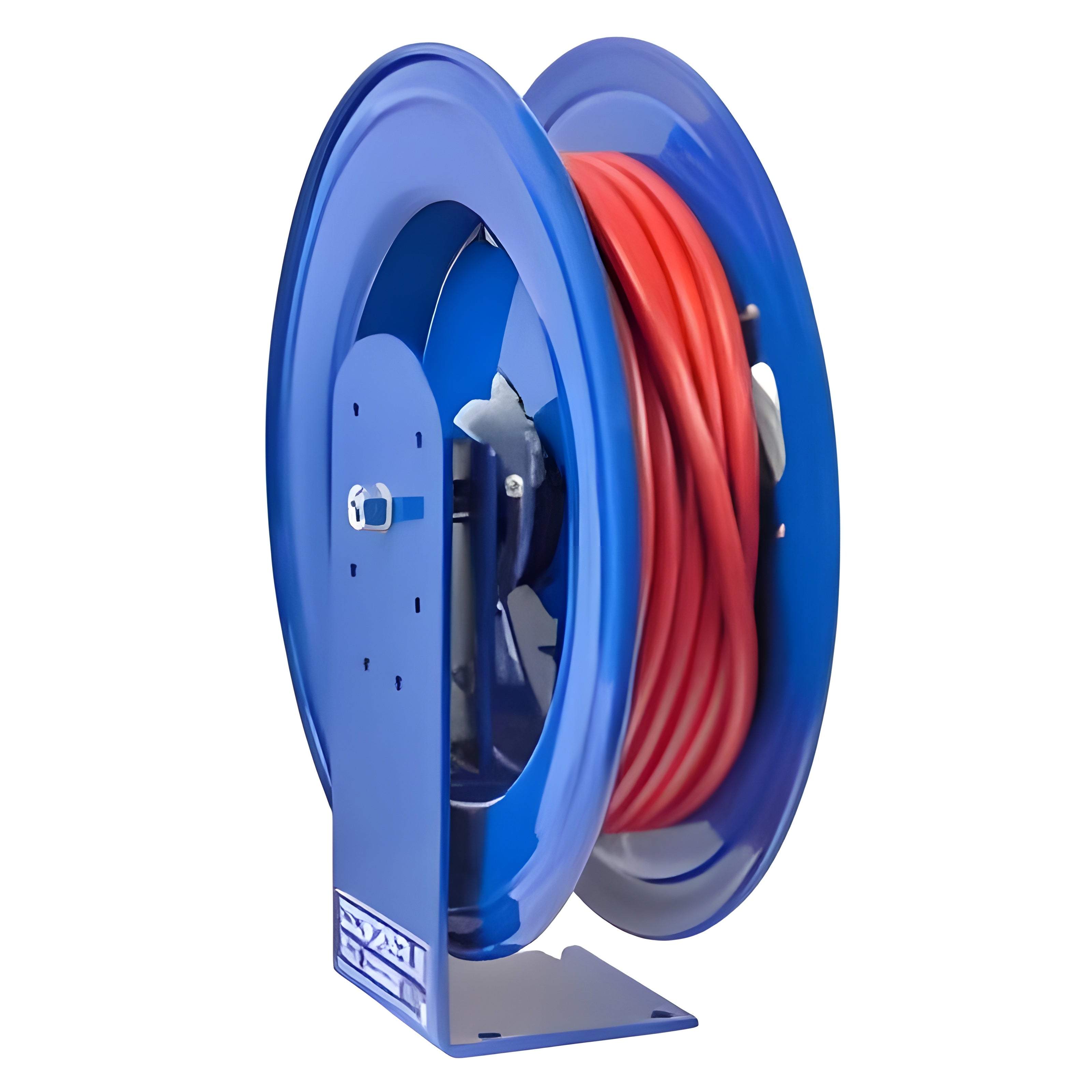

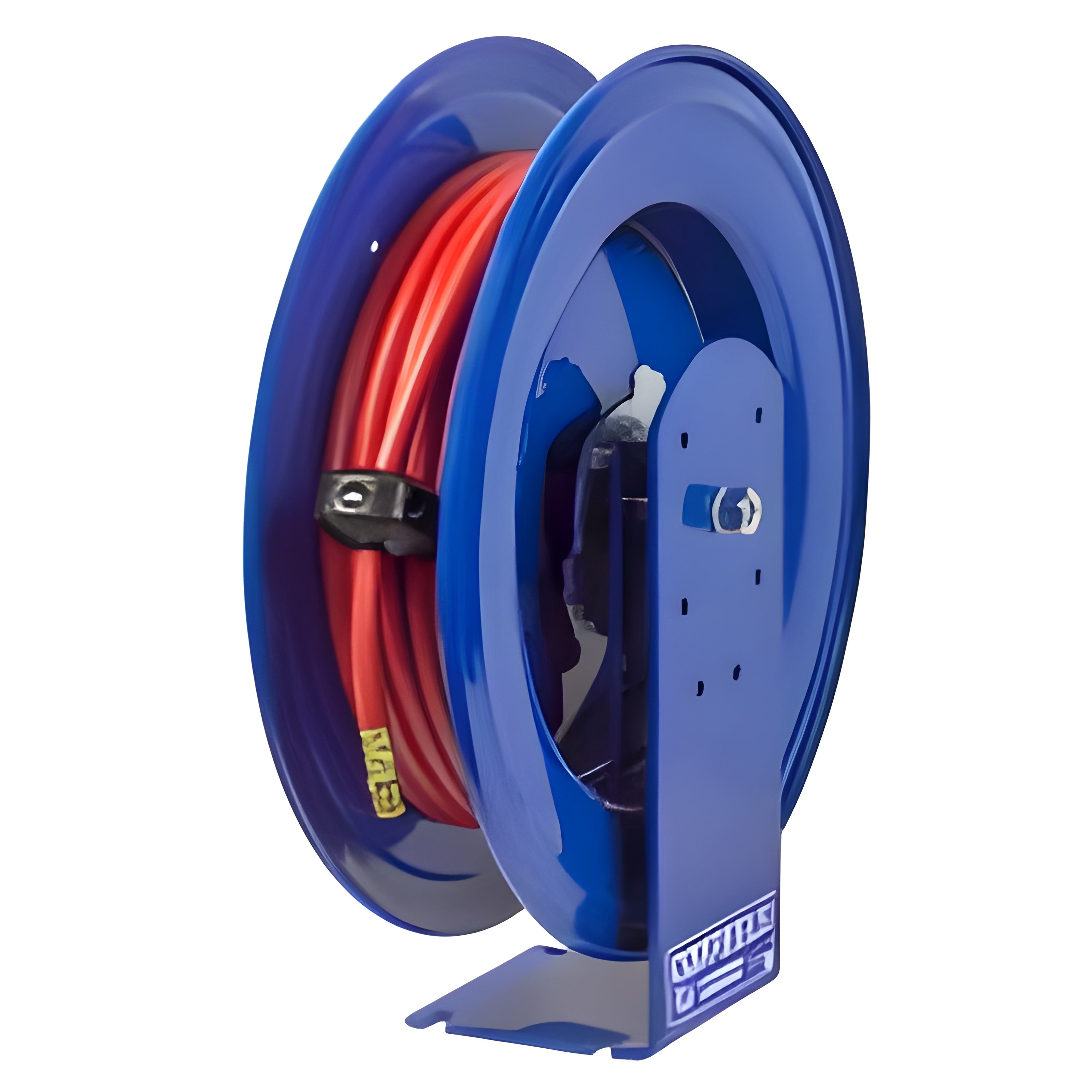

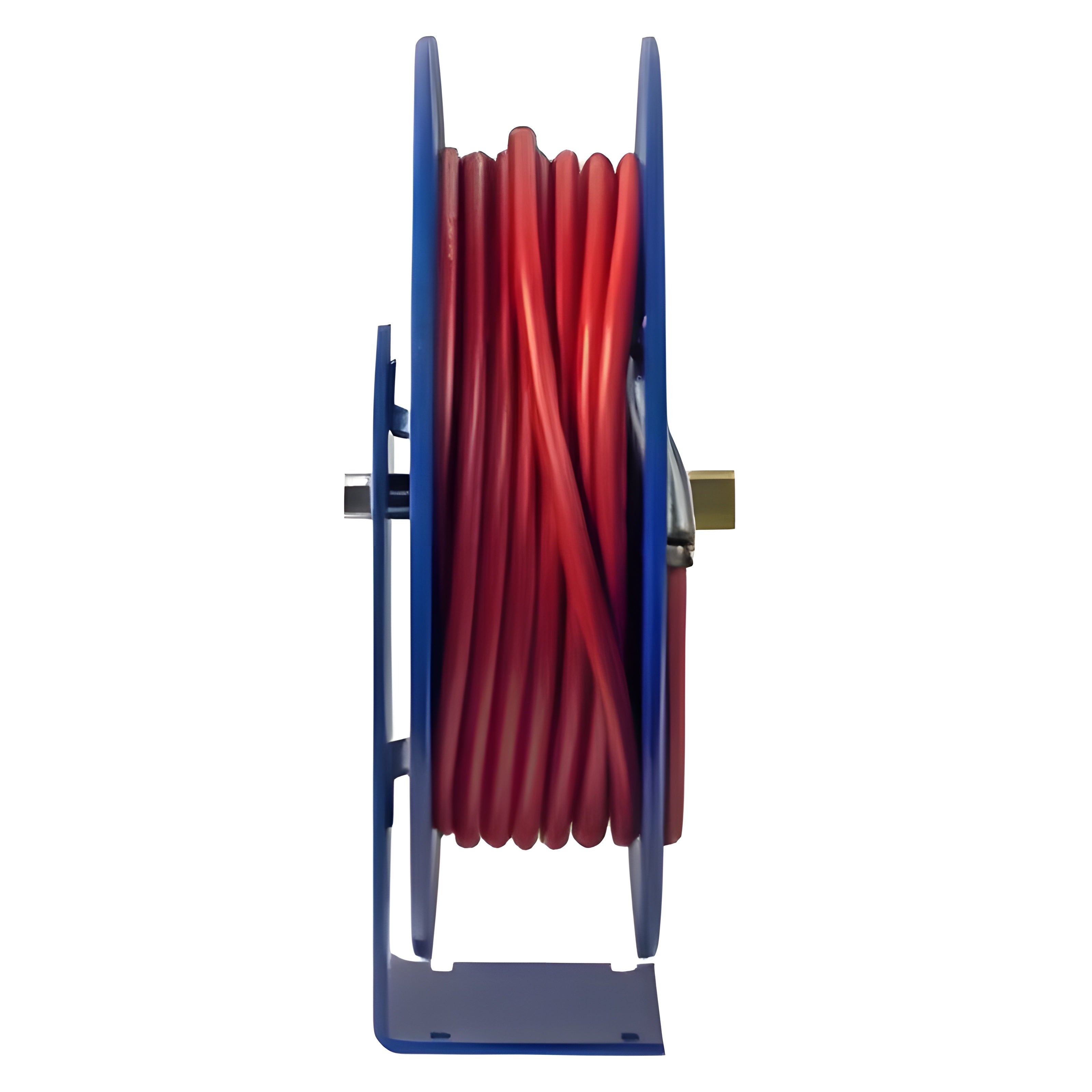

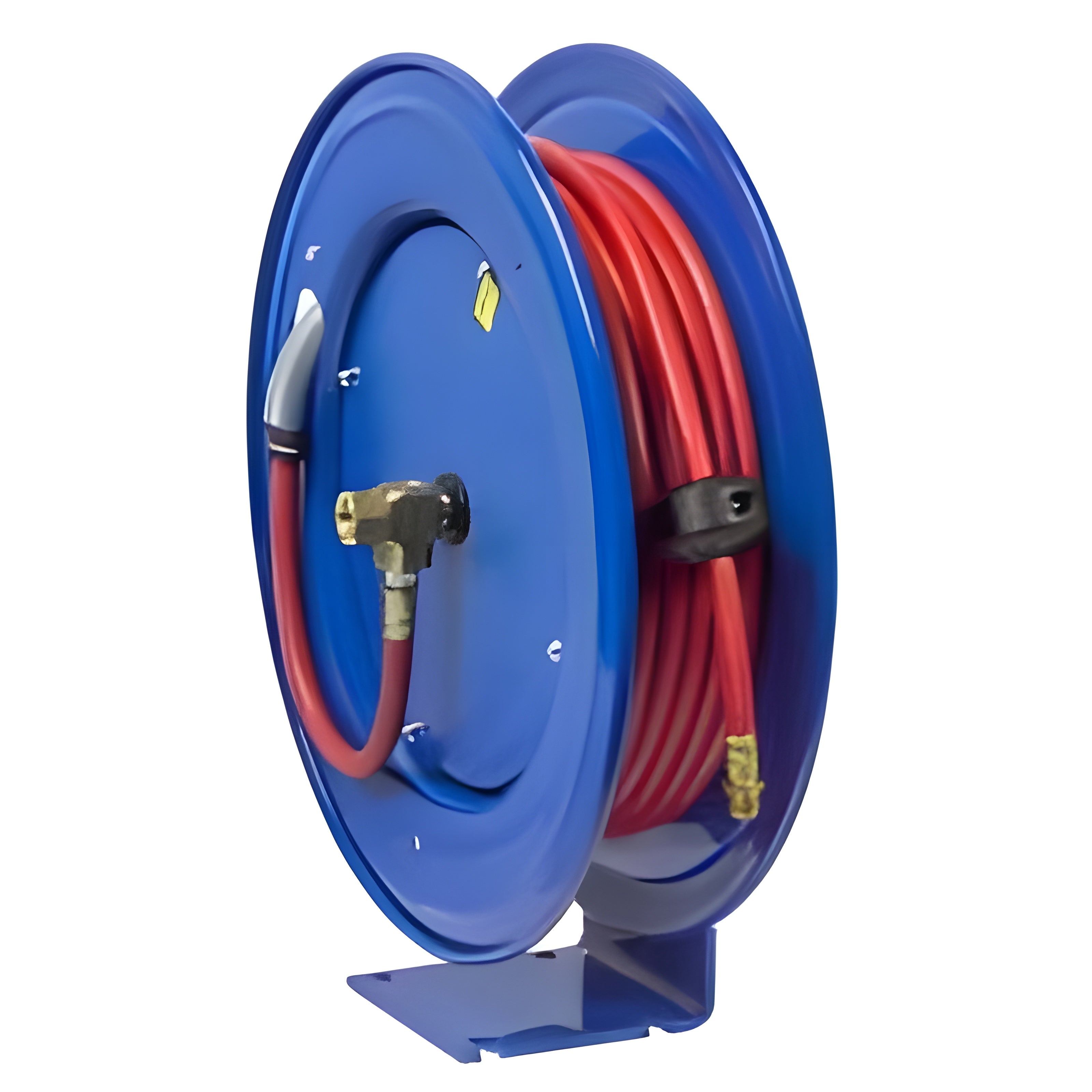

Coxreels E Series “Expandable” High Pressure Multiple Bank System – E-HP-130

 E Series “Expandable” High Pressure Multiple Bank System

COXREELS® E Series “Expandable” multiple bank system is the pinnacle in professional appearance and organization. The cabinets are interlocking and expandable to any number of spring driven reel assemblies required. Designed for easy installation, maintenance and servicing the E Series system is truly the professional’s choice for multimedia delivery in one custom package.

• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer’s limited warranty.
• Made in the U.S.A. – Sold & Supported Worldwide.

Features

• SWIVEL – Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
• CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
• 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
• BANK SYSTEMS – Designed for expandable metal cabinets & multiple reel bank systems for professional appearance and organization.
• OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings.

Specifications

What Our Experts Think

• Expandable Configuration: Modular design allows for easy expansion as your high-pressure hose management needs grow.
• High-Pressure Performance: Handles up to 3,000 PSI, ideal for industrial and commercial applications requiring reliable, high-pressure hoses.
• Multiple Bank System: Manages several hoses simultaneously, enhancing efficiency and reducing downtime.
• Heavy-Duty Construction: Built with durable materials to withstand tough environments and frequent use.
• Corrosion-Resistant Coating: Protects the system from rust and wear, ensuring long-term reliability.
• Space-Saving Design: Compact yet robust, designed to maximize space without compromising functionality.
• Versatile Use: Perfect for automotive, manufacturing, construction, and any high-pressure hose applications.

Q&A

Q: What is the Coxreels E Series “Expandable” High Pressure Multiple Bank System – E-HP-130?
A: The Coxreels E-HP-130 is an expandable hose reel system designed for high-pressure applications. It allows for the management of multiple hoses in a single setup, making it ideal for complex, high-pressure fluid transfer systems.

Q: How does the expandable system work?
A: The E Series system allows you to add multiple reels to create a customized, multi-bank system. This provides flexible hose management for applications that require several hoses to be stored and accessed efficiently.

Q: What is the hose capacity of this reel?
A: The E-HP-130 supports high-pressure hoses up to 130 feet in length, making it suitable for various high-pressure fluid transfer needs.

Q: Is the reel durable?
A: Yes, the E Series is built with heavy-duty materials, including high-quality steel and a corrosion-resistant finish, ensuring long-lasting performance in demanding environments.

Q: Is the reel easy to install and expand?
A: Yes, the E-HP-130 is designed for simple installation with flexible mounting options, and the expandable nature allows you to easily add more reels as your needs grow.

Q: What are typical applications for this reel?
A: This reel is ideal for high-pressure fluid transfer in industries such as manufacturing, construction, automotive, and industrial cleaning.

Maintenance Tips

• Regular Cleaning: Wipe the reel and hoses with a damp cloth to remove dirt, dust, and debris. For tough grime, use mild soap and water. Avoid abrasive cleaners.
• Inspect Hoses and Fittings: Check for any wear, cracks, or leaks in the hoses. Replace damaged hoses and ensure all fittings are tightly connected to prevent leaks.
• Lubricate Moving Parts: Apply a silicone-based lubricant to the reel’s moving components to ensure smooth operation.
• Adjust Spring Tension: If the retraction becomes sluggish, adjust the spring tension to ensure smooth hose retraction and consistent performance.
• Check Multiple Bank Connections: Ensure the connections between expandable banks are secure and functioning properly.
• Tighten Fasteners: Periodically check all bolts, screws, and other fasteners to ensure the system is secure and stable.
• Proper Storage: When not in use, store the system in a dry, protected area to avoid exposure to harsh weather conditions that could cause damage.
