Description

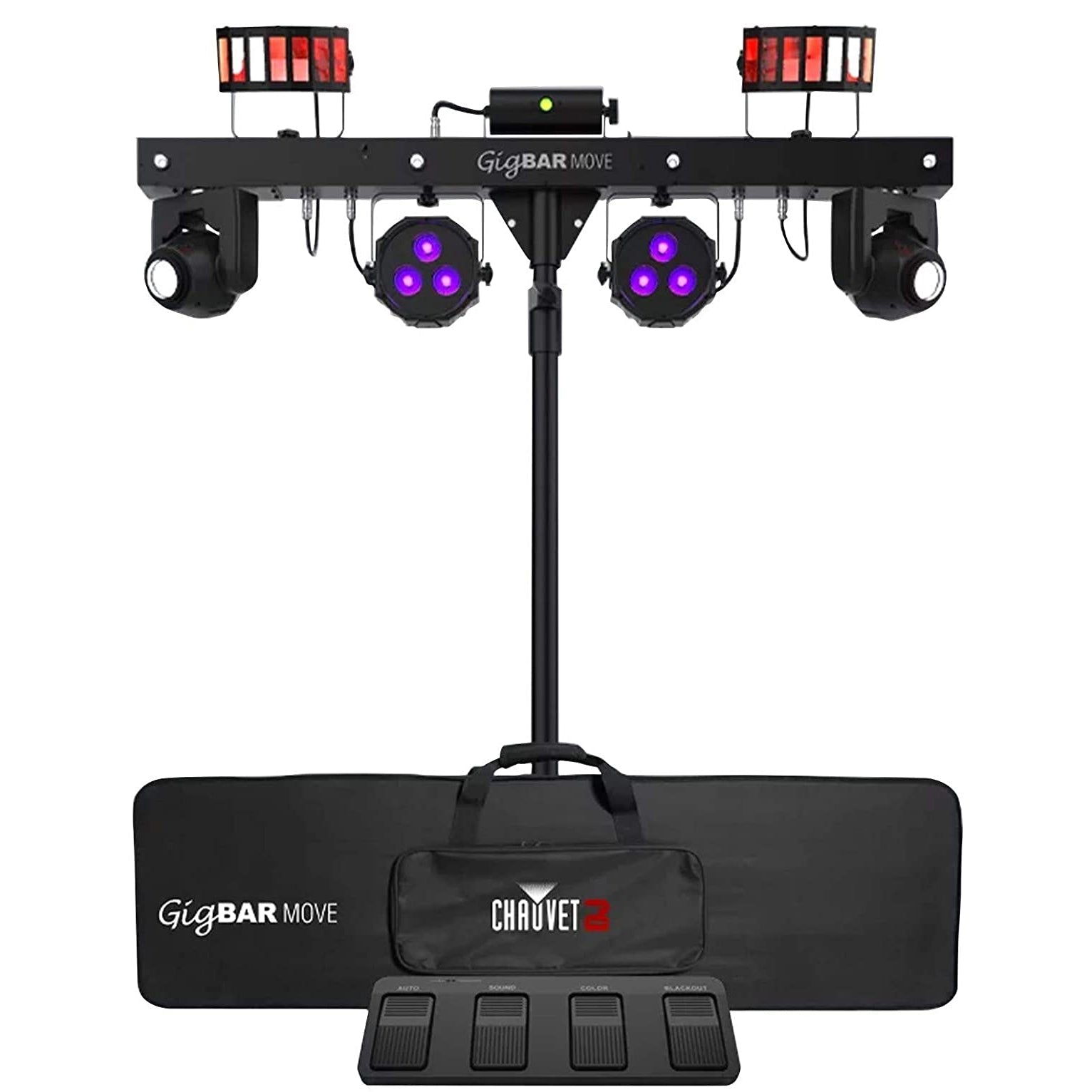

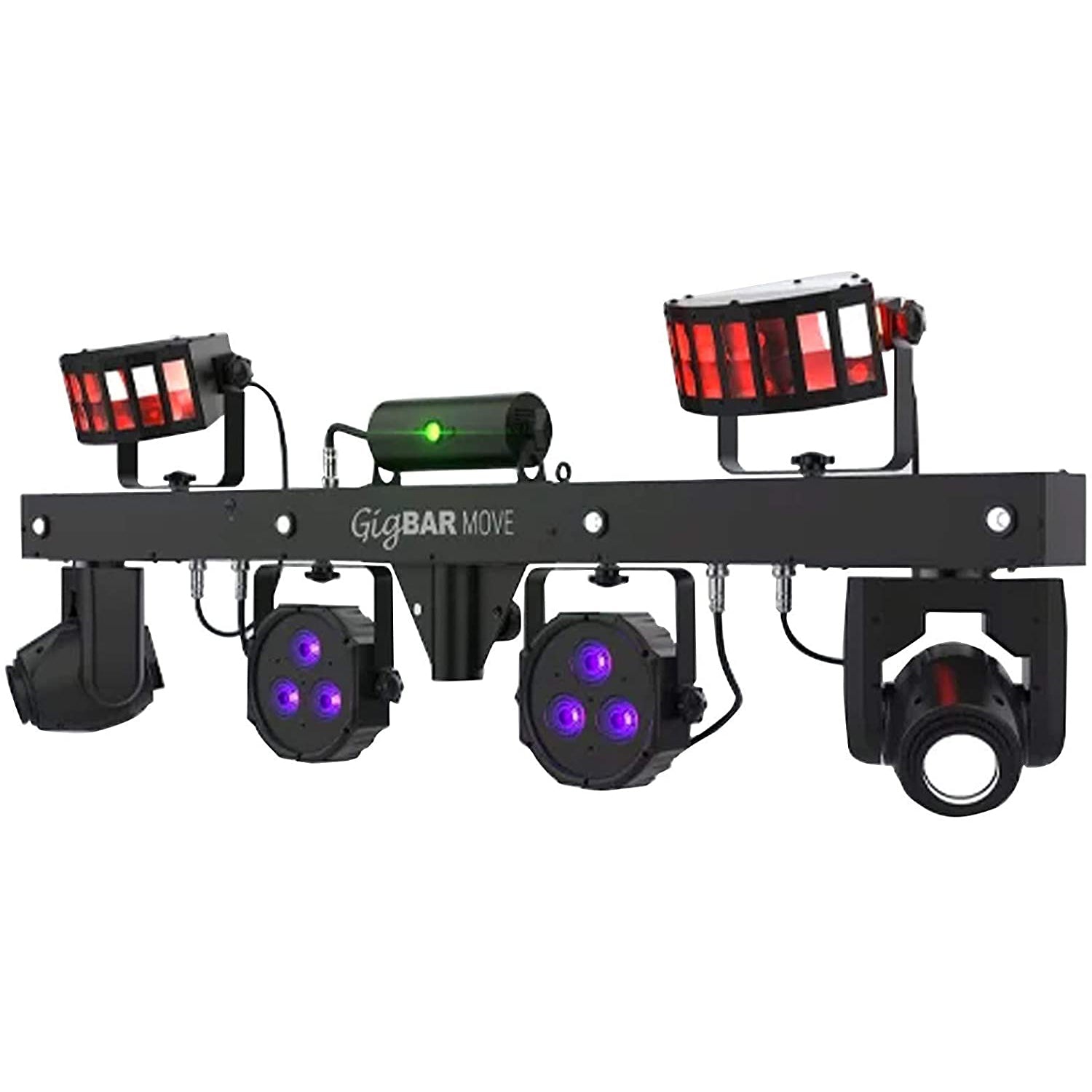

CHAUVET DJ Gig Bar Move 5-in-1 LED Lighting System with 2 Moving Heads, Black – 182527

Hit the stage as a professional with the CHAUVET DJ Gig Bar Move 5-in-1 LED Lighting System with 2 Moving Heads.This gig lighting system is versatile and powerful enough to take your show or gig to new heights. This 5-in-1 system includes moving heads, derbies, washes, a laser, and a strobe effect pre-mounted on a single bar. That means you’ll have access to a complete light show in one single piece of equipment.The Totem Mode keeps the moving heads focused while in use, while the built-in UV LEDs illuminate objects and make them really pop. Plus, you’ll get a tripod, wireless footswitch, and carry bags to ensure quick setup.Take your show to new heights with the CHAUVET DJ Gig Bar Move 5-in-1 LED Lighting System with 2 Moving Heads.

Features

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser, and strobe effect pre-mounted on a single bar
• Separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all functions, directly from the full-color LCD display
• System includes a tripod, wireless footswitch, and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate fluorescent objects and make them pop
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless IRC-6 remote or wireless footswitch
• Compatible with the GigBAR 2 in master/slave for huge coverage and dynamic light shows
• Specifications:
• DMX Channels: 3, 17 or 35
• DMX Connectors: 3-pin XLRPan and Tilt: 540/180 degrees Colors: (moving head): 7 + white (moving head): 7 + open light Source: (pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy (strobe): 4 LEDs (dual-color white + UV) 5 W (1.5 A), 50,000 hours life expectancy
• (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy (moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy (laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
• Strobe Rate: (all effects): 0 to 20 Hz
• Beam Angle: (moving head): 11 degrees
• (pars): 19 degrees
• (strobe): 8 degrees
• Field Angle: (pars): 30 degrees
• (strobe): 18 degrees
• Coverage Angle: (derby): 131 degrees
• (laser): 93 degrees
• Fits Tripod Size: 1.5 in (37.4 mm)Illuminance: (pars): 1,205 lux  2 m (per par) (moving head): 1056 lux   2 m (per head) (strobe): 86 lux  2 m (per zone)
• Power Linking: 7 units 120 V; 12 units  230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 81 W, 1.1 A  120 V, 60 Hz
• 79 W, 0.6 A  230 V, 50 Hz
• Approvals: CE, FDA, FCC
• Color: Black
• Dimensions (L x W x H): 43 x 5.7 x 17.7 inches
• Weight: 23.4 pounds

What Our Experts Think

• All-in-One Lighting System – Combines moving heads, derbies, washes, strobes, and a laser for a complete show.
• Dual Moving Heads – Adds dynamic motion and precise light beams for a professional stage effect.
• Wireless & Easy Control – Operate via DMX, remote, footswitch, or automatic sound mode for effortless customization.
• Fast Setup & Portability – Includes a tripod stand and carry bag, making it ideal for mobile DJs and event setups.
• Multi-Effect Synchronization – Built-in auto and sound-activated programs create stunning synchronized displays.

Q&A

Q: What is the CHAUVET DJ Gig Bar Move?
A: It’s a 5-in-1 LED lighting system featuring two moving heads, derbies, washes, a laser, and strobe effects, all mounted on a single bar for easy setup.

Q: What lighting effects are included?
A: The system includes moving heads, LED derby lights, LED washes, a laser, and a high-powered strobe for a full lighting experience.

Q: How is it controlled?
A: It offers DMX control, wireless footswitch operation, auto programs, and sound activation for flexible performance options.

Q: Is it easy to set up?
A: Yes! It’s an all-in-one system with a tripod stand, wireless footswitch, and carry bags, making it perfect for mobile DJs and event setups.

Q: What are the key benefits?
A: Compact all-in-one design, multiple lighting effects, easy transport, wireless control, and auto-syncing light shows.

Maintenance Tips

• Keep Lenses Clean – Wipe LED and moving head lenses with a microfiber cloth to maintain brightness.
• Check Mounting & Cables – Secure all mounting hardware and inspect power/DMX cables for wear.
• Avoid Overheating – Ensure proper ventilation and avoid prolonged continuous use without breaks.
• Update Firmware – Check for software updates to optimize performance and fix potential issues.
• Store Safely – Use the included carrying bag for dust-free storage and safe transport.
• Test Before Events – Run a full function test to verify moving heads, strobes, and laser effects are working.
