Description
Champion 3500W/4500W Inverter Generator Gas RV and Parallel Ready CO Shield Remote Start New – 201184

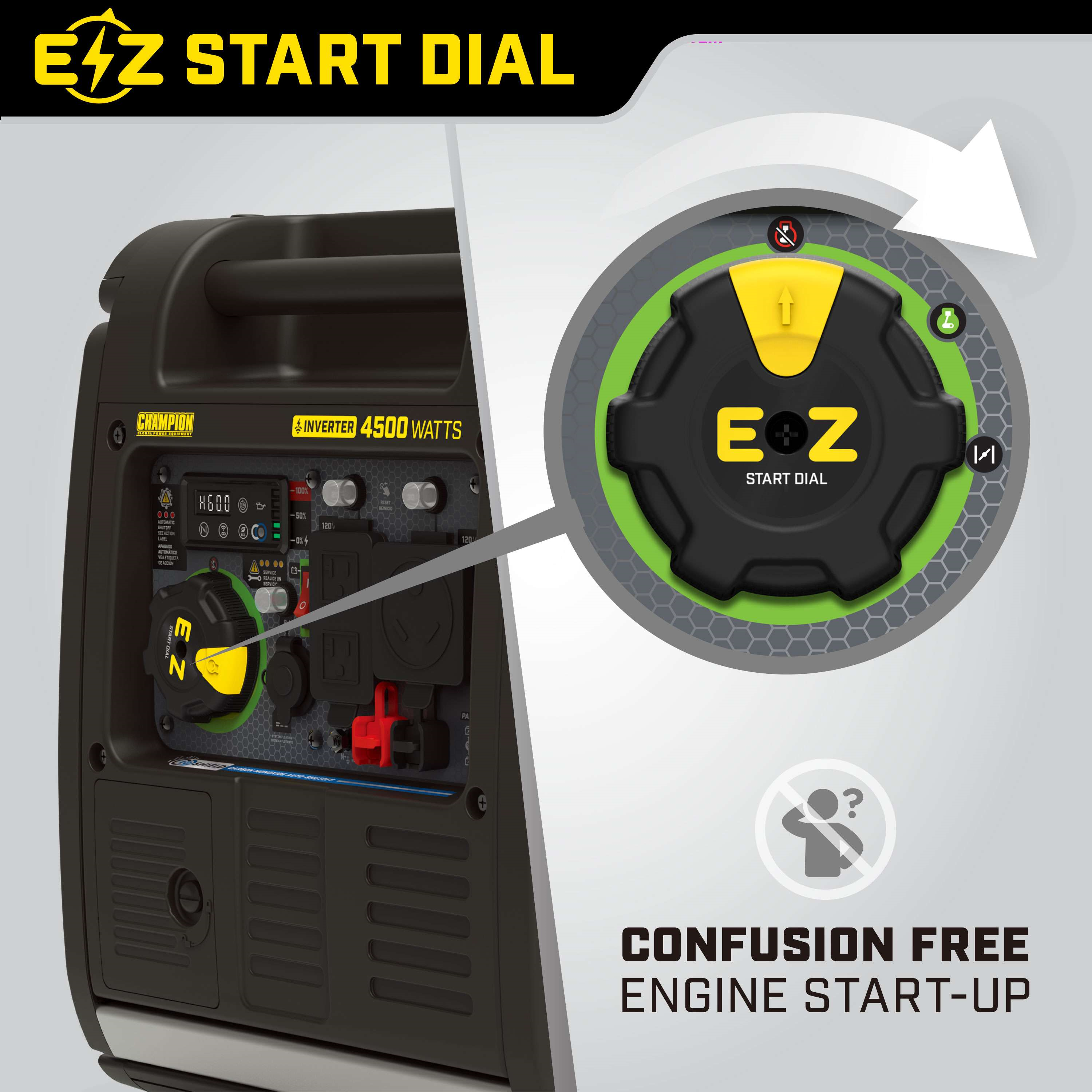

Our 4500-watt inverter generator features CO Shield® carbon monoxide auto shutoff system. The remote key fob allows you to start and stop your generator from up to 80 feet away. Our feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power, RV Ready plus you can easily increase your power with the optional Parallel Kit.Starting and stopping your generator from up to 80 feet away with the wireless remote key fob is a snap. Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology, Extended Run Time, and an easy-to-read fuel gauge, the reliable 212cc Champion engine produces 4500 starting watts and 3500 running watts, and runs for 14 hours at 25% load when the 2.3-gallon fuel tank is full.

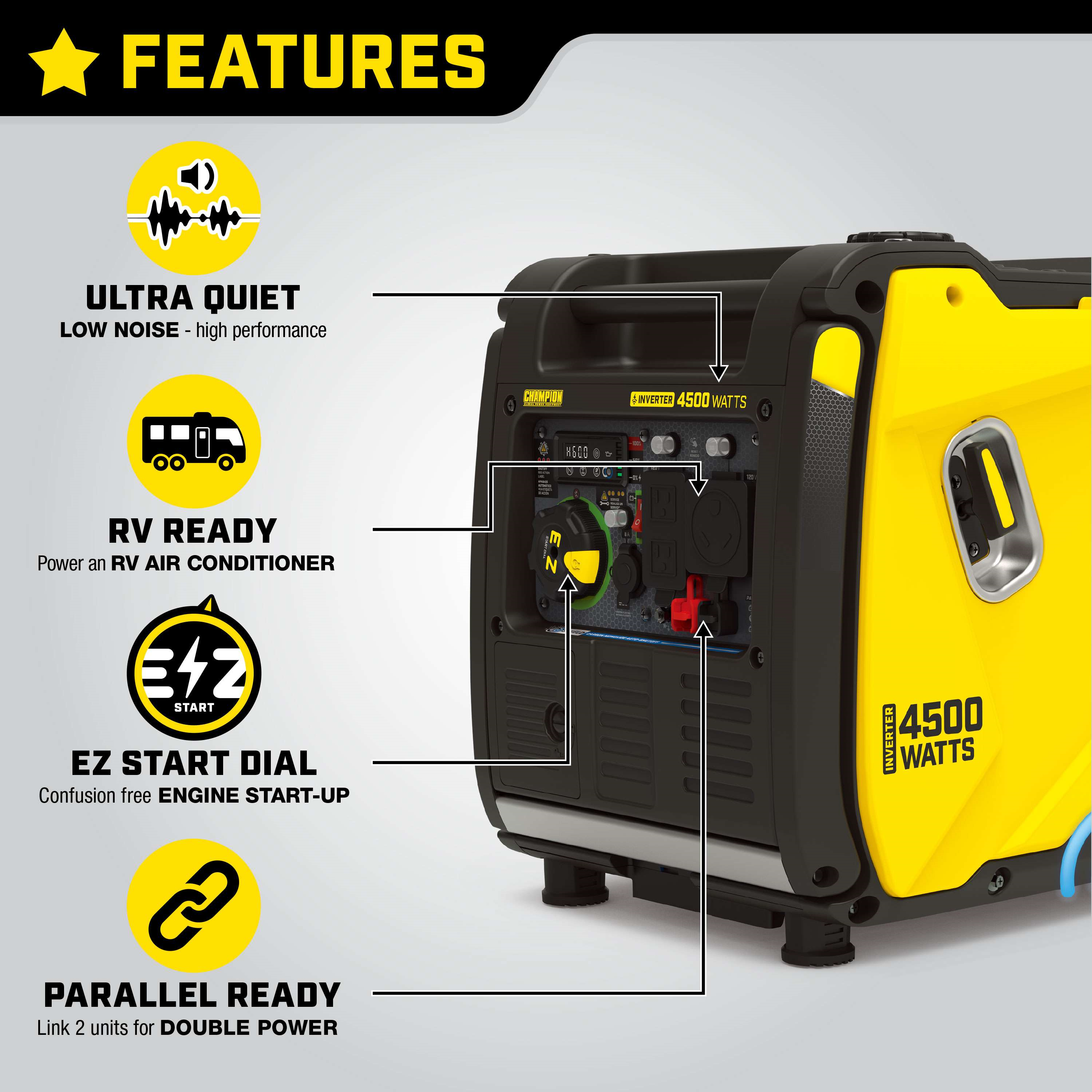

Features

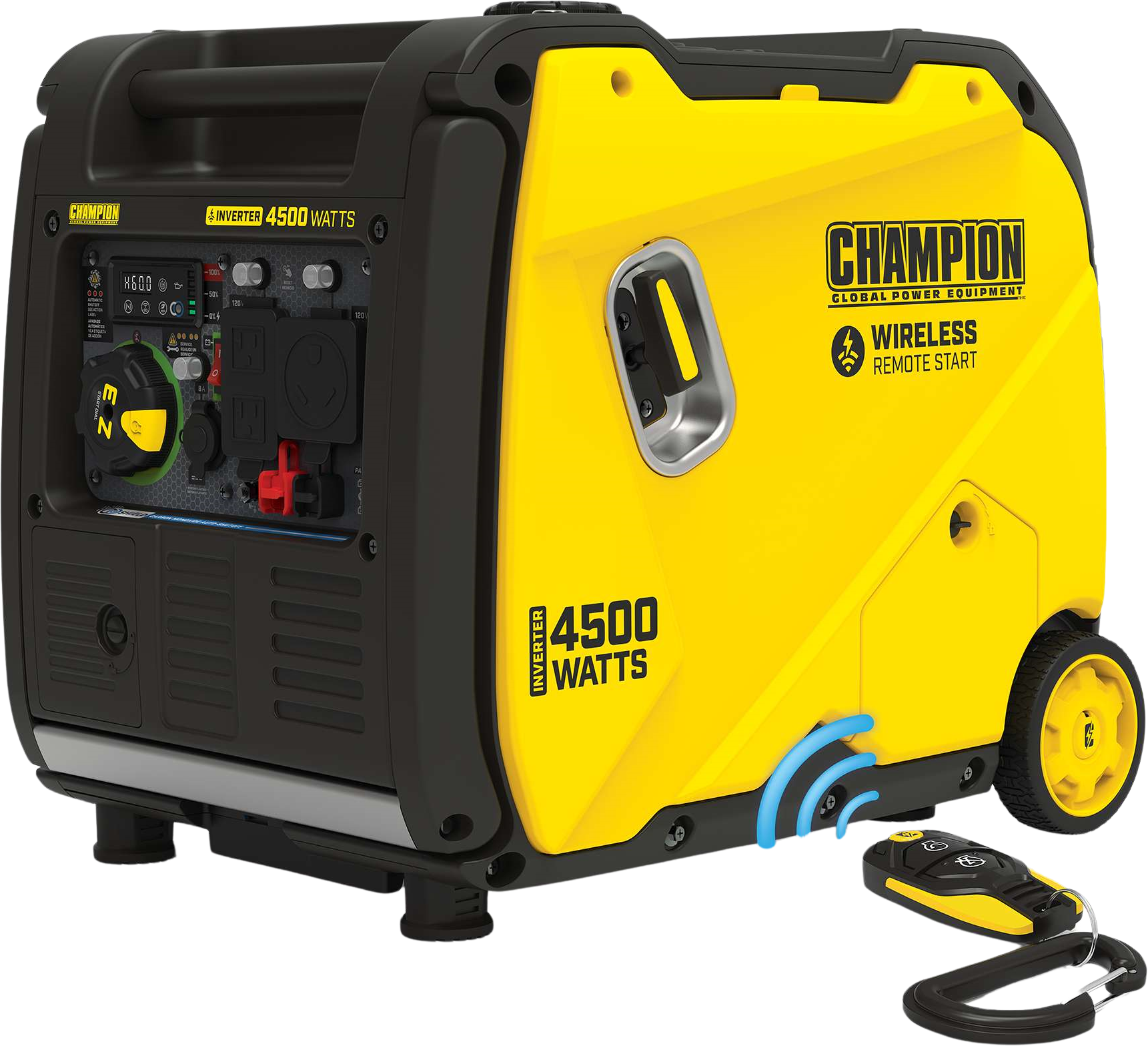

- Wireless Remote Start: Start and stop with ease from up to 80 feet away with the included wireless remote key fob – push-button power and convenience like never before, plus features CO Shield® carbon monoxide auto shutoff system
- Quiet Technology and Extended Run Time: 61 dBA is great for RVs, tailgating, or camping with 4500 starting watts and 3500 running watts, and up to 14 hours of run time on only 2.3 gallons of gasoline
- Parallel Ready: The optional parallel kit (sold separately) enables this inverter to connect with another 2800-watt or higher Champion inverter to double your output power

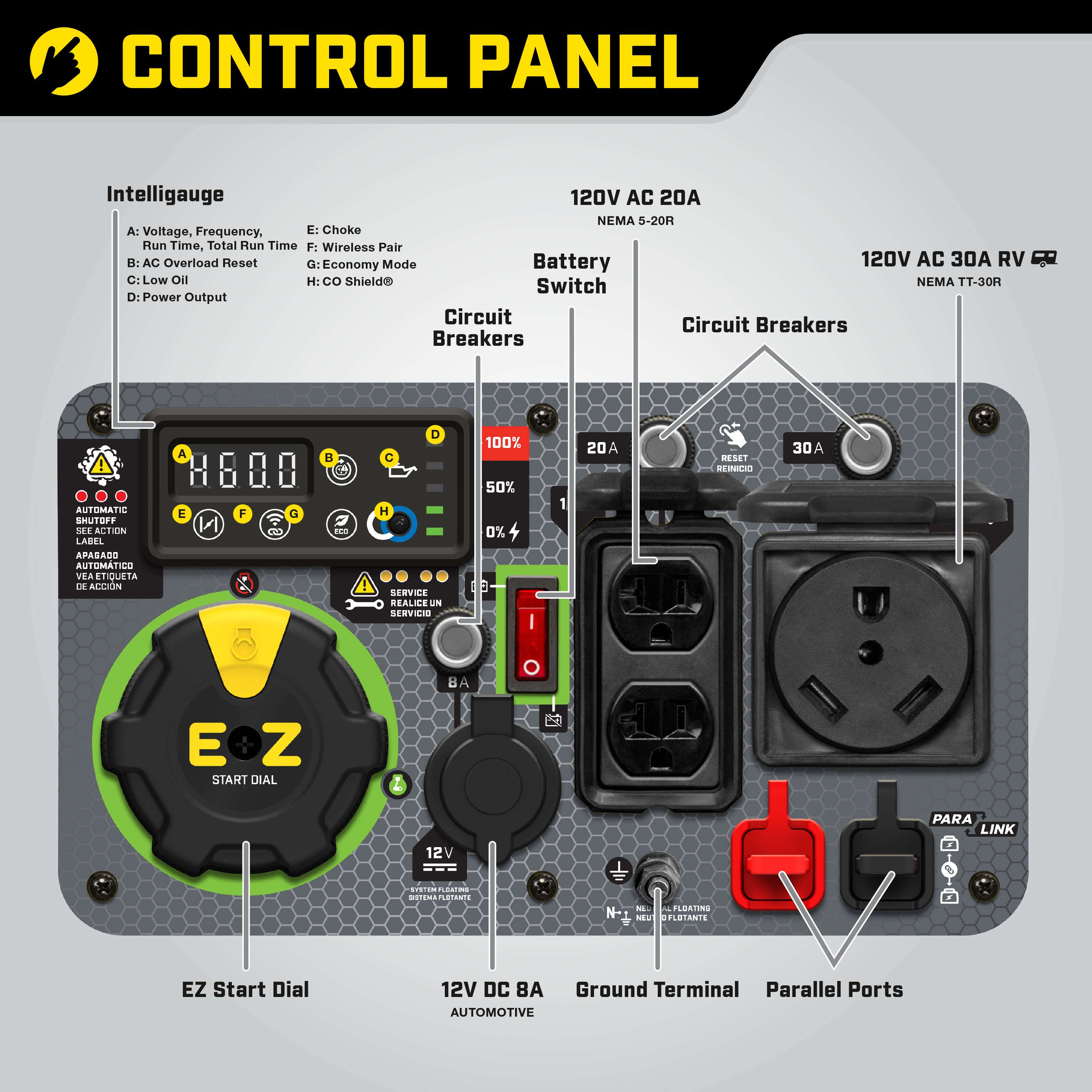

- Intelligauge with Power Meter: Monitor voltage, frequency, and operating hours with ease, plus the EZ Start Dial simplifies startup while Economy Mode monitors power consumption in real-time
- Champion Support: Includes a 3-year limited warranty with FREE lifetime technical support from dedicated experts
- CARB Compliant and EPA Certified
Specifications
Engine Oil Type | 10W-30 |
---|---|
Engine Oil Capacity (qt.) | 0.50 |
Engine Oil Included | Yes |
Low Oil Shut-off | Yes |
Wheel Type | Solid |
Wheel Diameter (in.) | 5.00 |
PGMA G300-2018 Compliant | true |
EPA Certified | Yes |
CARB Compliant | Yes |
Prop 65 Warning Required | Yes |
Item Length (in.) | 23.20 |
Item Width (in.) | 17.70 |
Item Height (in.) | 20.10 |
Item Weight (lb.) | 101.00 |
Package Length (in.) | 27.80 |
Package Width (in.) | 20.90 |
Package Height (in.) | 23.40 |
Package Weight (lb.) | 114.00 |
Gasoline Starting Watts (W) | 4500 |
Gasoline Running Watts (W) | 3500 |
Gasoline Starting Amps at 120V (A) | 37.50 |
Gasoline Running Amps at 120V (A) | 29.20 |
Volts (V) | 120 |
Frequency (Hz) | 60 |
Outlets | 120V (TT-30R),120V Duplex (5-20R),12V DC Automotive, Parallel |
Covered Outlets | Yes |
Covered Circuit Breakers | Yes |
Package Contents
Champion 201184
USB Adapter
Remote Key Fob
Engine Oil
Oil Funnel
User’s Manual
What Our Experts Think
-
Reliable Power Output: 3500W running and 4500W peak power—perfect for RVs, home backup, and outdoor use.
-
Remote Start: Start the generator effortlessly from up to 80 feet away with the included key fob.
-

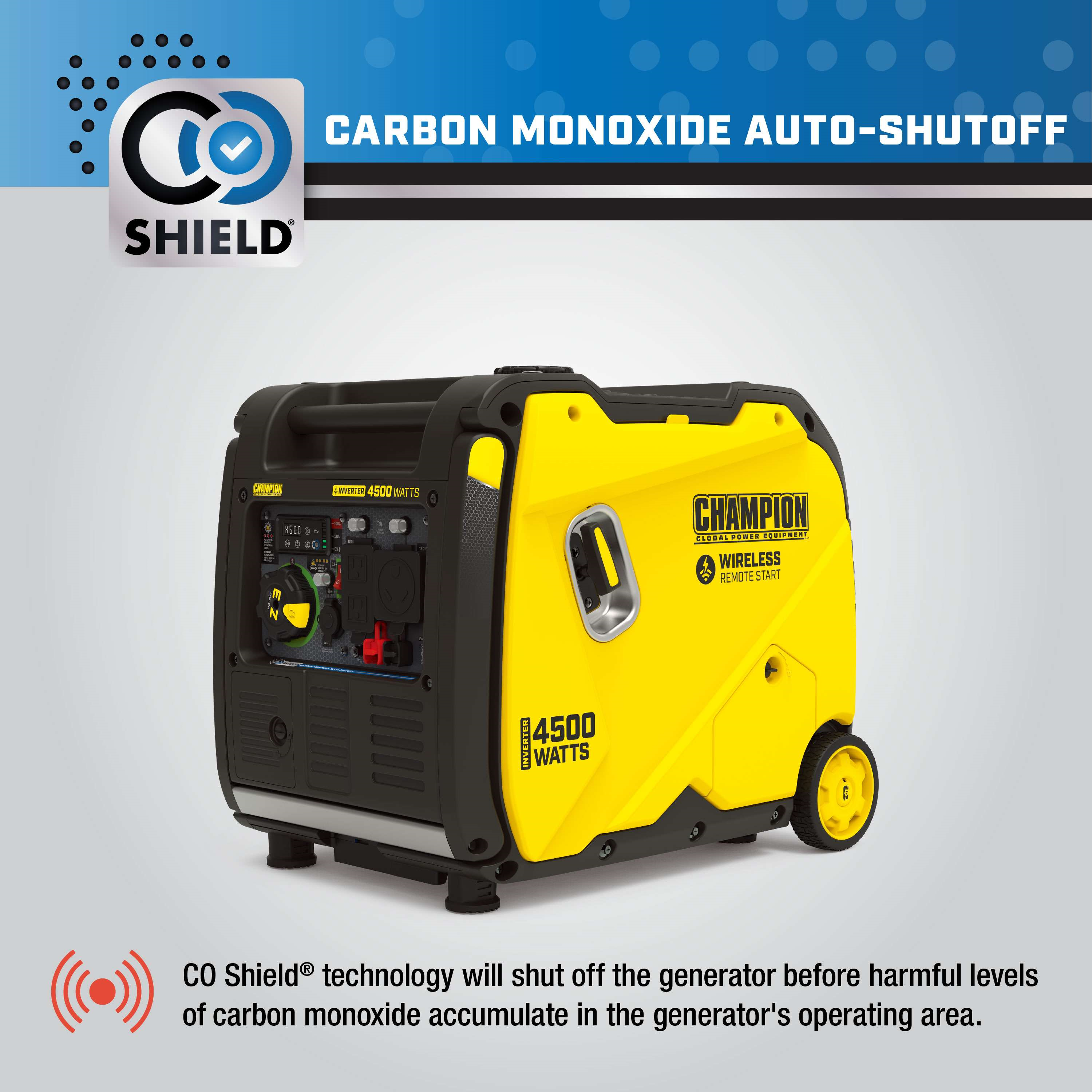

CO Shield Technology: Automatically shuts down if unsafe carbon monoxide levels are detected, enhancing safety.
-
Parallel Ready: Connect with another Champion inverter generator for increased power output.
-
RV-Ready: Features a 120V 30A RV outlet, making it an excellent choice for campers and travelers.
-
Ultra-Quiet Operation: As low as 61 dBA, making it suitable for campgrounds, tailgating, and residential areas.
-
Fuel Efficient: Extended runtime with Economy Mode, optimizing fuel use and reducing engine wear.
Q&A
Q: What makes this generator ideal for RVs?
A: This RV-ready inverter features a 30A RV outlet, runs quietly (~61 dBA), and provides clean power for sensitive electronics like laptops and mobile devices.
Q: How does the CO Shield technology improve safety?
A: CO Shield technology detects dangerous carbon monoxide (CO) levels and automatically shuts down the generator to prevent poisoning.
Q: Can I connect another generator for more power?
A: Yes, it is parallel-ready, meaning you can connect it with another Champion inverter generator using a parallel kit for double the power.
Q: How is it started and operated?
A: The remote start allows you to start and stop the generator from a distance. It also has a push-button electric start and a recoil backup.
Q: What are its run time and fuel efficiency?
A: On a 2.3-gallon gas tank, it runs up to 14 hours at 25% load, making it fuel-efficient for extended use.
Maintenance Tips
-
Fuel System: Use fresh gasoline and add a fuel stabilizer if storing for extended periods. Drain old fuel to prevent clogging.
-
Oil Maintenance: Check oil levels before each use and change as recommended. Use the specified oil type for optimal performance.
-
Air Filter Care: Clean or replace the air filter regularly to ensure proper airflow and engine efficiency.
-
Spark Plug Inspection: Inspect and clean the spark plug periodically for reliable ignition. Replace if worn.
-
Battery Check: Ensure the remote start battery is charged and in good condition for reliable operation.
-
CO Shield Monitoring: Verify the CO Shield system is functional to prevent carbon monoxide hazards.
-
General Inspection: Before operation, check for loose bolts, fuel leaks, and worn-out parts.
