Baumalight MX1160R Heavy Duty Fixed Tooth Brush Mulcher For Excavators – 18 to 33 Tons – BML-MX1160R-C1140-EWC12-15-B
The Baumalight MX1160R Brush Mulcher is built for 18 to 33-ton excavators and features a 60” rotor. With performance boosting mulcher rings, it enhances mulching speed and efficiency while safeguarding tooth holders. This mulcher is equipped with 31 sharpenable planer teeth and aggressive root rake ripper teeth, all housed in a robust, AR400 steel frame.

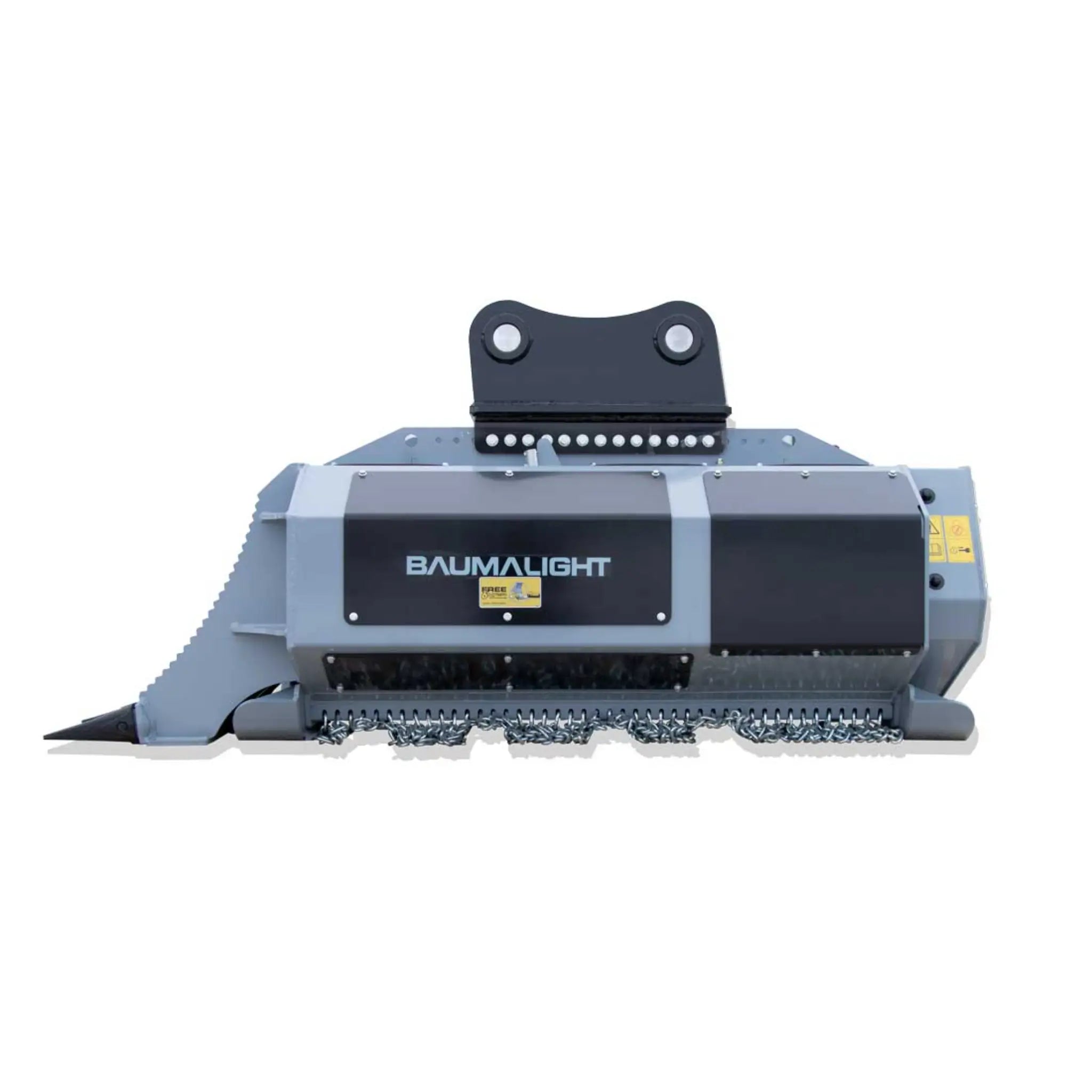

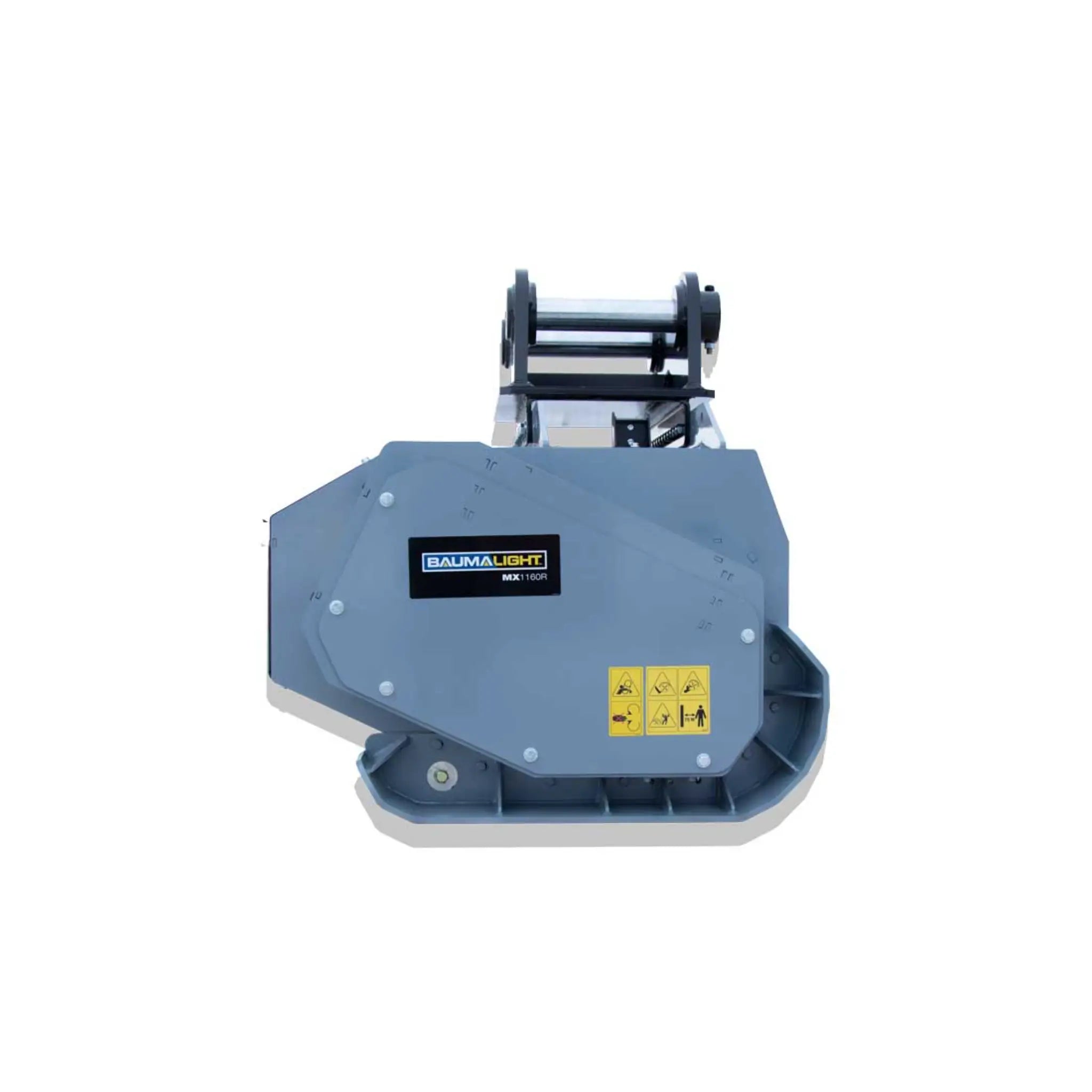

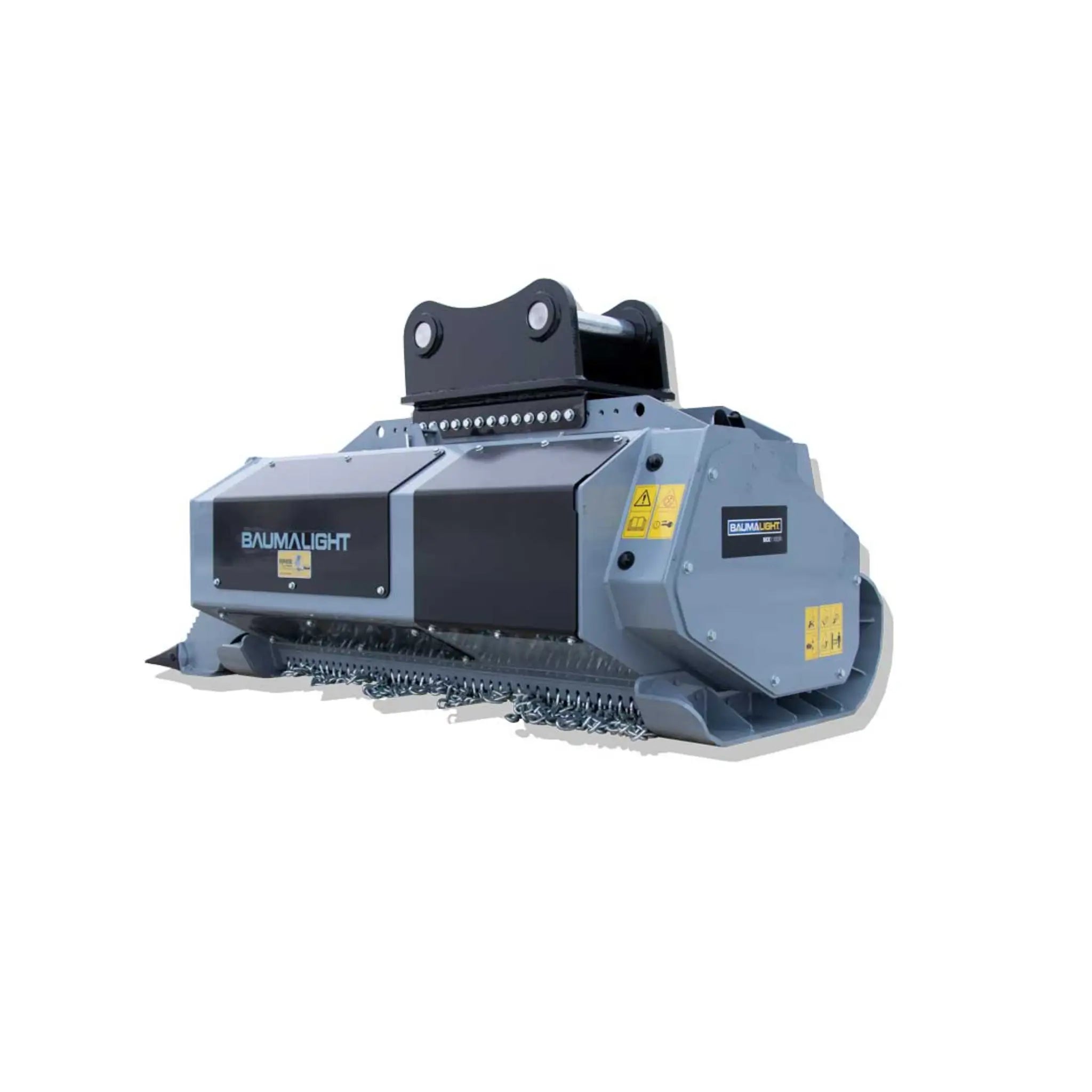

Baumalight MX1160R Mulcher

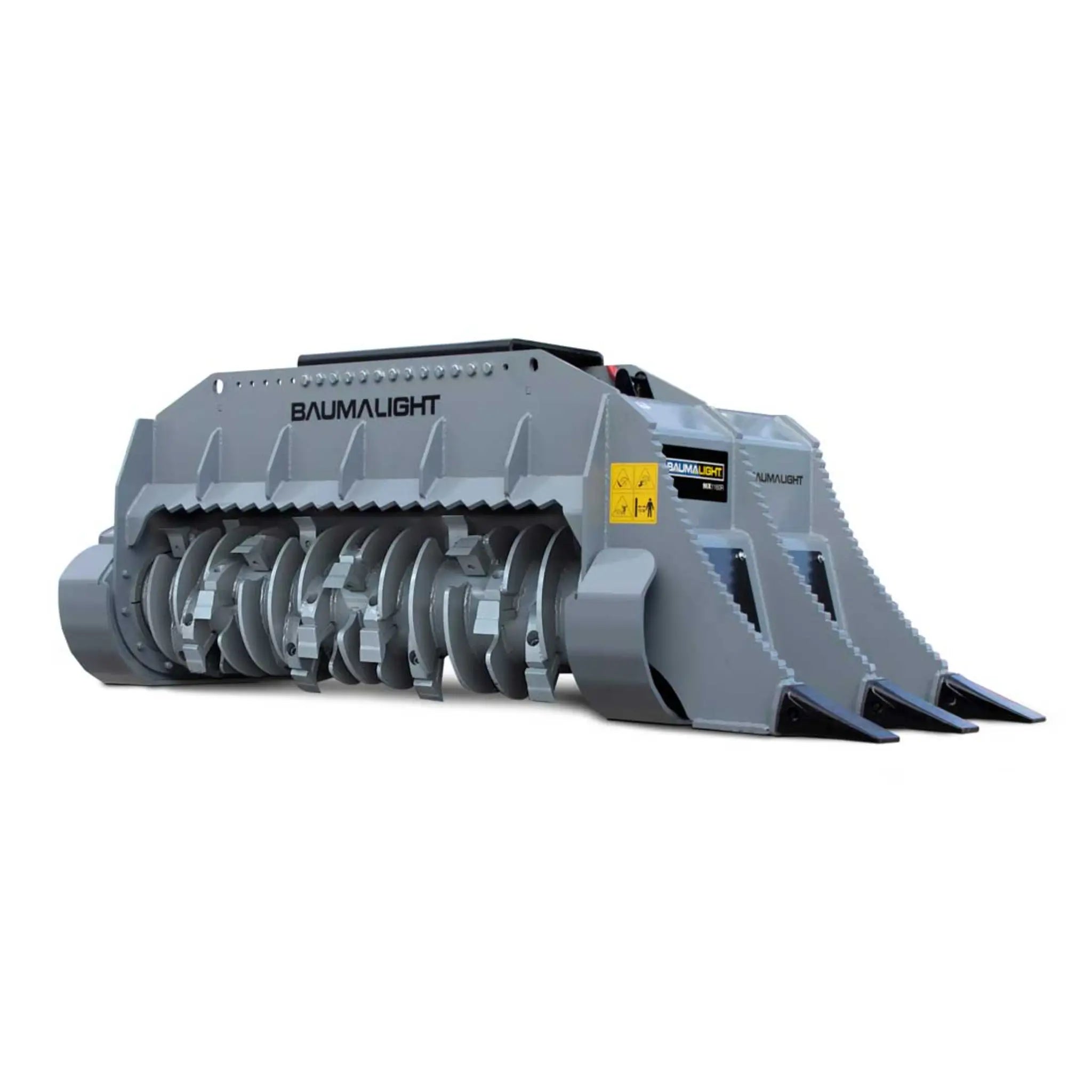

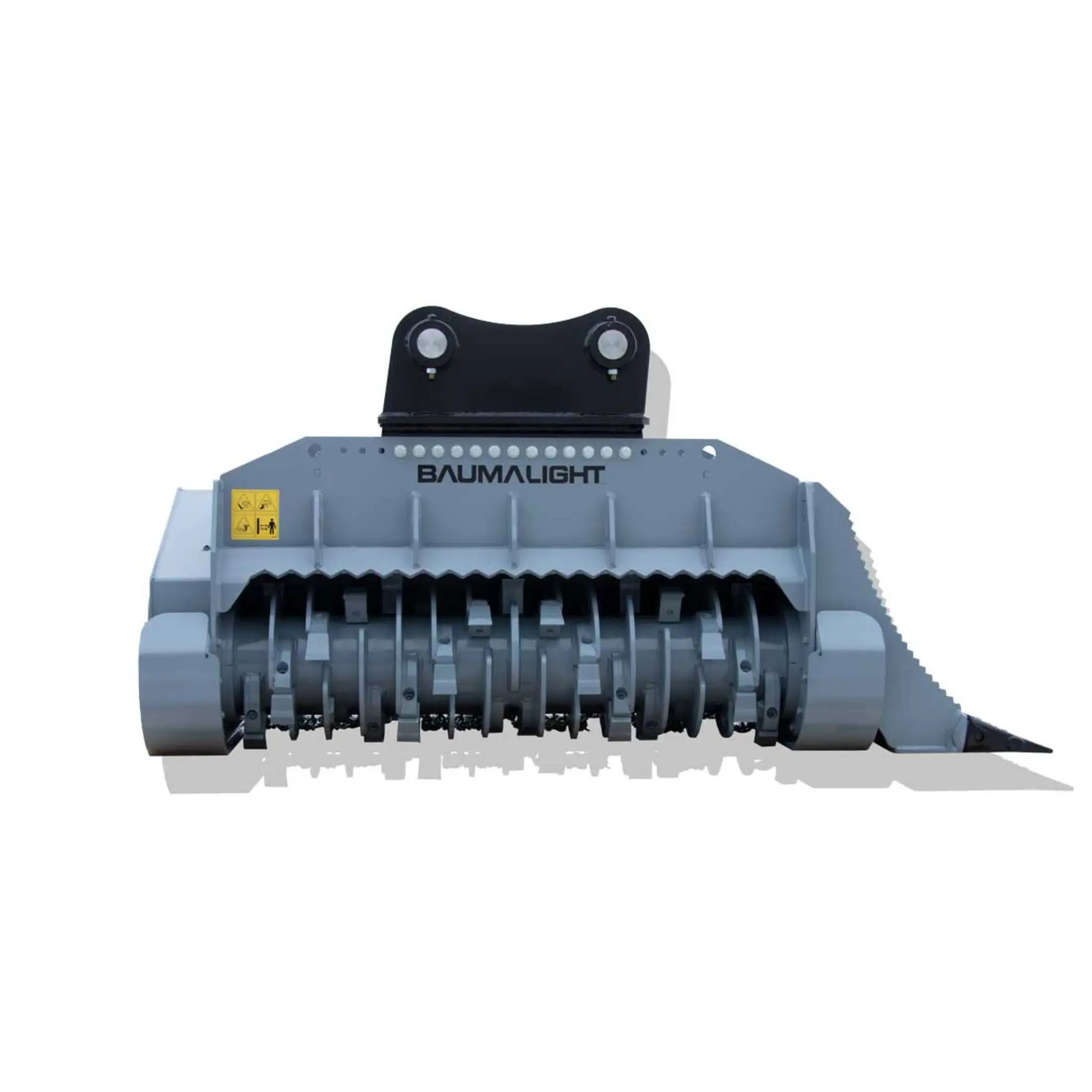

The Baumalight MX1160R Heavy Duty Fixed Tooth Mulcher for Excavators represents the pinnacle of innovation and rugged efficiency for the demanding tasks in the forestry and land-clearing sectors. Engineered for excavators weighing 18 to 33 tons, this mulcher features a robust 60” rotor equipped with 31 sharpenable planer teeth (P11000), ensuring deep penetration and effective mulching of large materials. Its cutting-edge design incorporates unique mulcher rings licensed by Denis Cimaf, enhancing the mulching speed while simultaneously reducing the risk of tooth holder breakage by controlling bite sizes.

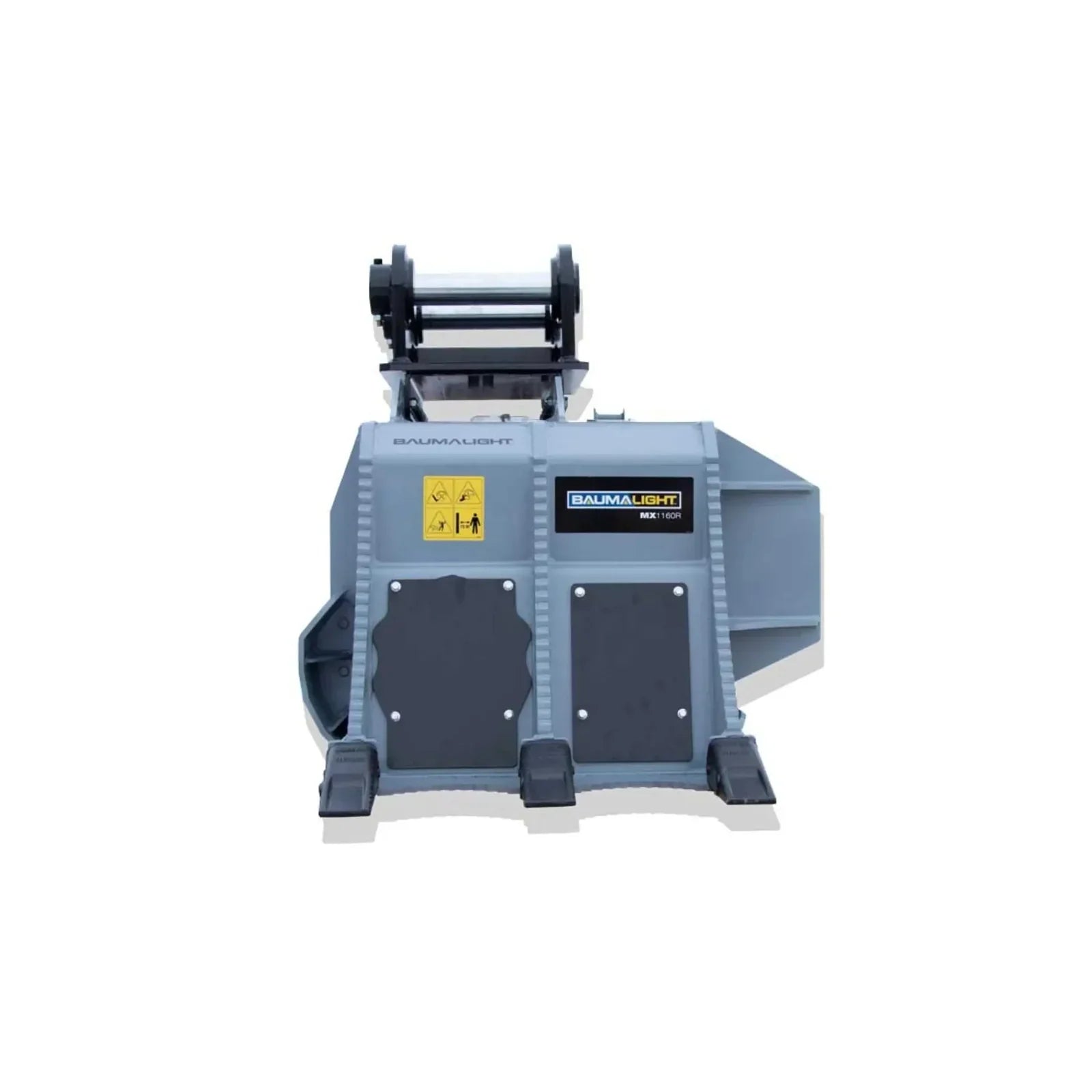

Built to endure the toughest environments, the MX1160R’s body is crafted from high-strength, low-weight AR400 steel, equipped with built-in aggressive root rake ripper teeth. These teeth are adept at extracting rocks and repositioning logs, amplifying the mulcher’s utility on varied terrains. Additionally, the replaceable bolt-in liner made from the same AR400 steel ensures easy maintenance and prolonged durability, enhancing the machine’s uptime and operational efficiency.
Specifications
| Model No. | MX230 | MX330 | MX530 | MX530R | MX548R | MX948R | MX960R | MX1160R |
|---|---|---|---|---|---|---|---|---|
| A02 | A02 | A02 | A02 | A03 | A03 | A03 | A03 | |
| Path Width | 38″ | 38″ | 40″ | 40″ | 62″ | 70″ | 90″ | 90″ |
| Rotor Width | 30″ | 30″ | 30″ | 30″ | 48″ | 48″ | 60″ | 60″ |
| Minimum Tracked Excavator Ton | 2 | 3 | 4 | 4 | 7 | 12 | 18 | 18 |
| Minimum Wheeled Excavator Ton | 4 | 5 | 6 | 6 | 9 | 15 | 21 | 21 |
| Max Tracked Excavator Ton | 6 | 8 | 12 | 12 | 20 | 30 | 33 | 33 |
| Max wheeled Excavator Ton | 8 | 10 | 14 | 14 | 22 | 33 | 36 | 36 |
| Cutting Depth | Level | Level | 1.5″ Above to 1″ Below Grade | 1.5″ Above to 1″ Below Grade | 1.5″ Above to 1″ Below Grade | Level | Level | Level |
| Holder Style | Swing | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Cutting Style | Flail | High Speed Teeth | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Carbide Tipped Bolt In | Double Tipped Carbide | Double Tipped Carbide | Sharpenable Planer teeth |
| Tooth Part number | F2000 | H3000 | P5000 | P5000 | P5000 | R9000 | R9000 | P11000 |
| Number of cutters | 22 | 36 | 44 | 44 | 72 | 27 | 38 | 31 |
| Rotor Shaft Size | 1.5″ | 2″ | 2″ | 2″ | 2″ | 2″ | 2″ | 2″ |
| Rotor Diameter (tool tips) | 17.25″ | 15″ | 15″ | 15″ | 15″ | 18.5″ | 18.5″ | 18.5″ |
| Rotor Weight (with tools) | 125 lbs | 175 lbs | 300 lbs | 300 lbs | 408 lbs | 617 lbs | 860 lbs | 872 lbs |
| No. of Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Case Drain | Not important | Not important | See motor options | See motor options | Critical | Critical | Critical | Critical |
| Unit Weight | 500 lbs | 750 lbs | 1036 lbs | 1166 lbs | 2167 lbs | 2838 lbs | 2910 lbs | 2925 lbs |
Motor options – brush size chart
maximum brush cutting sizes
(brush diameter in inches)
1100 series
| MOTOR | PSI | CASE DRAIN |
20 GPM |
25 GPM |
30 GPM |
35 GPM |
40 GPM |
45 GPM |
50 GPM |
55 GPM |
60 GPM |
65 GPM |
70 GPM |
75 GPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPM | 1450 | 1800 | 2100 | |||||||||||
| C1130 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | 4.5″ 5″ 5.5″ 6.5″ |
5.5″ 6″ 6.5″ 7″ |
6.5″ 7″ 7.5″ 8″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
| RPM | 1500 | 1800 | 2100 | |||||||||||
| C1140 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | — — — — |
6.25″ 6.75″ 7.25″ 7.75″ |
8.25″ 8.5″ 8.75″ 9″ |
8.5″ 9″ 9.5″ 10″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
| RPM | 1600 | 1875 | 2140 | |||||||||||
| C1150 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | — — — — |
— — — — |
8.5″ 9″ 9.5″ 9.75″ |
10″ 10.5″ 11″ 11.5″ |
10.5″ 11″ 11.5″ 12″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
| RPM | 1400 | 1630 | 1830 | 2030 | ||||||||||
| C1170 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | — — — — |
— — — — |
— — — — |
9.5″ 10″ 11.5″ 12″ |
10″ 10.5″ 11″ 11.5″ |
11.5″ 12″ 12.5″ 13″ |
12″ 12.5″ 13″ 13.5″ |
— — — — |
— — — — |
— — — — |
— — — — |
— — — — |
| RPM | 1400 | 1570 | 1750 | 1900 | ||||||||||
| C1190 Bent Axis Piston |
2500 3000 3500 4000 |
Critical | — — — — |
— — — — |
— — — — |
— — — — |
— — — — |
10″ 10.5″ 11″ 11.5″ |
12.5″ 13″ 13.5″ 14.5″ |
14″ 14.5″ 15″ 15.5″ |
14.5″ 15″ 15.5″ 16.5″ |
— — — — |
— — — — |
— — — — |
| RPM | Adjustable | |||||||||||||
| D117X2 Two speed |
2500 3000 3500 4000 |
Critical | 5.5″ 6.25″ 6.75″ 8″ |
7.75″ 8.25″ 9″ 9.5″ |
10.5″ 11.25″ 11.5″ 12″ |
12.5″ 13″ 13.5″ 14.25″ |
13″ 13.75″ 14.25″ 15″ |
14.25″ 15″ 15.5″ 16.25″ |
15.5″ 16.25″ 16.75″ 18″ |
17.5″ 18″ 18.75″ 19.25″ |
18″ 18.75″ 19.25″ 20.5″ |
19″ 19.75″ 20.25″ 21.5″ |
20″ 20.75″ 21.25″ 22.5″ |
21″ 21.75″ 22.25″ 23.5″ |
