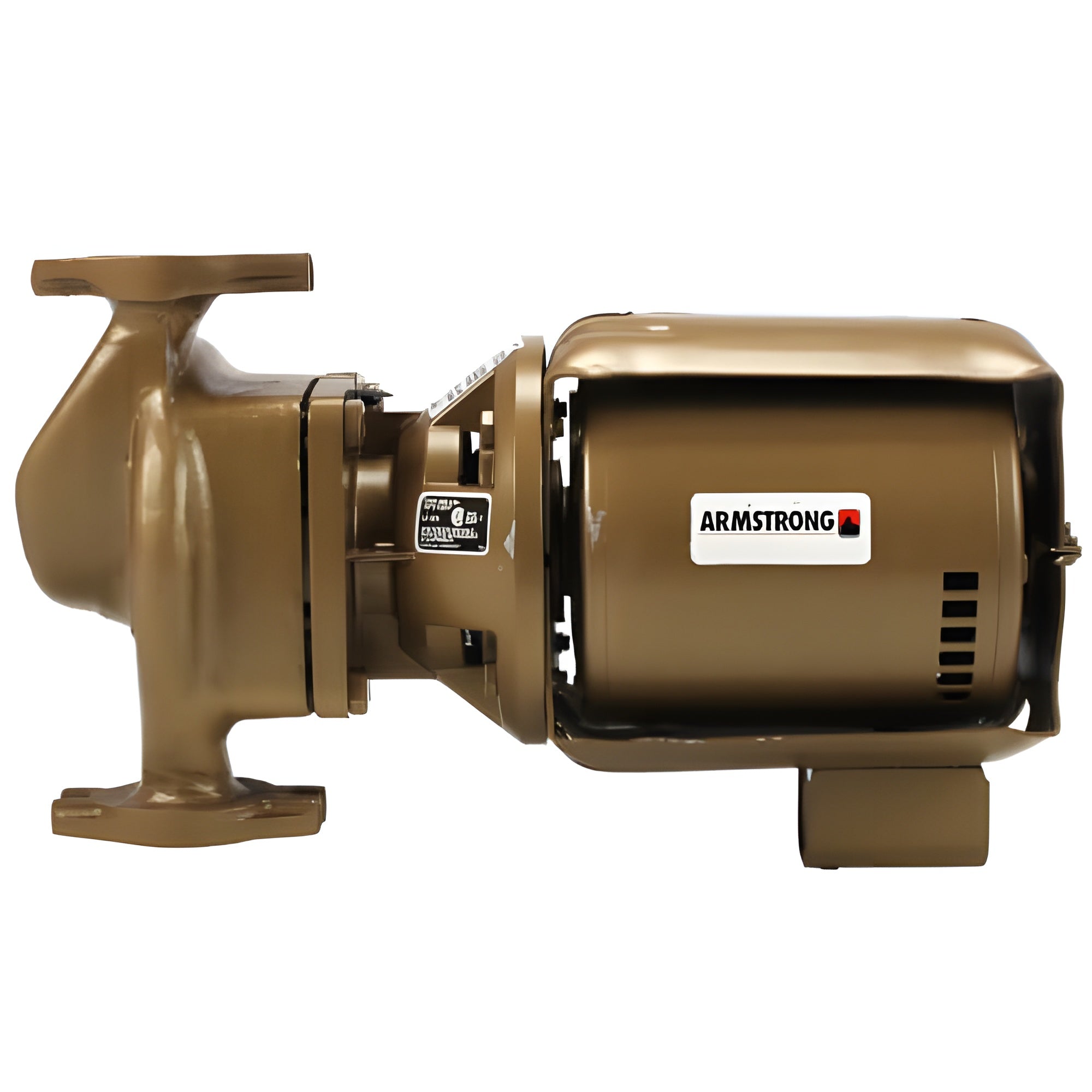

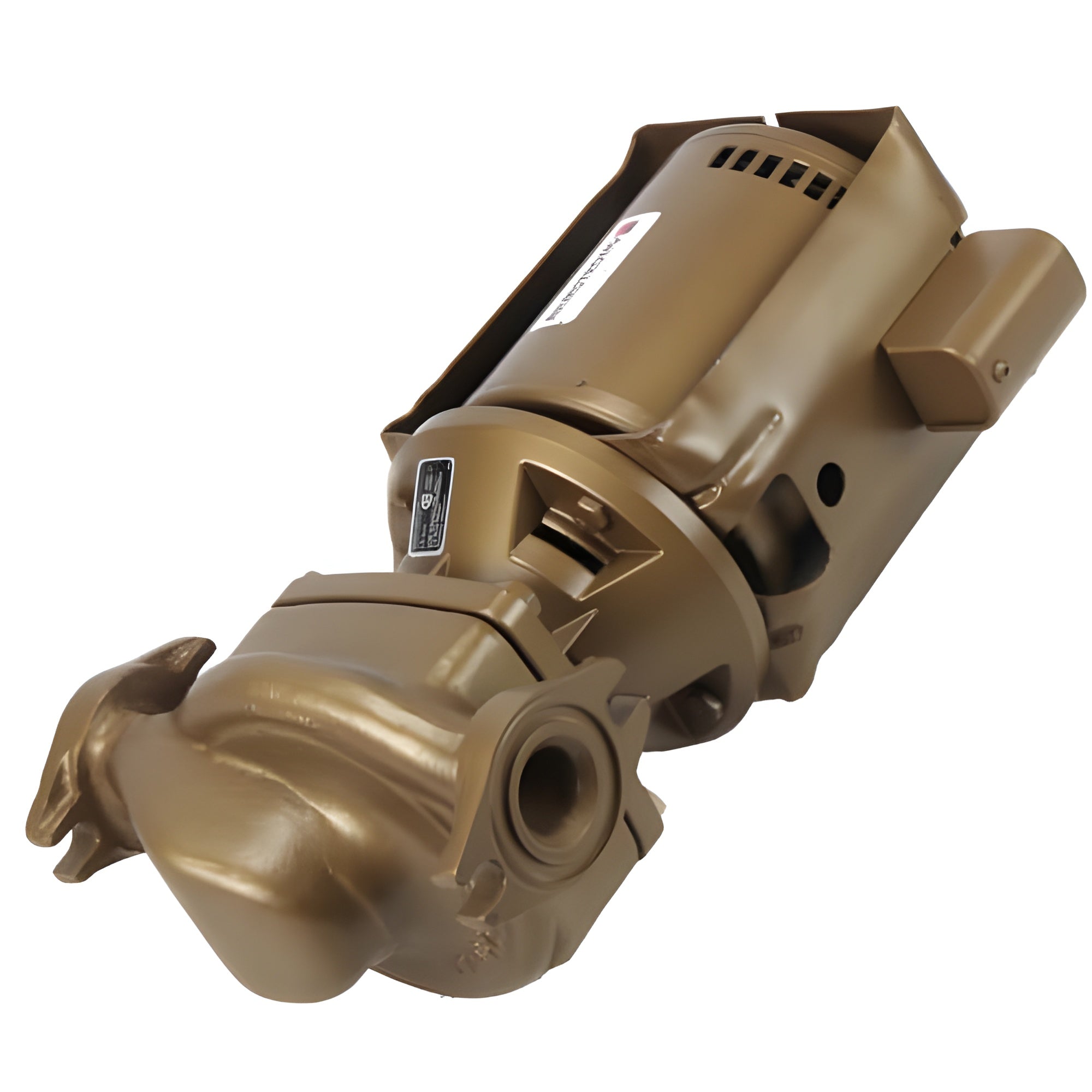

Armstrong H-41 Bronze In-Line Circulator Pump 115 VAC 1/6 HP

Description

Armstrong H-41 Bronze In-Line Circulator Pump 115 VAC 1/6 HP – 174035MF-143

The Armstrong 174035MF-143 H-41 Bronze In-Line Circulator Pump, known for its reliability, is essential for HVAC professionals. Capable of circulating water in heating and cooling systems, this pump suits various domestic and commercial applications.

Features

Lead-free design ensures safety
Modular construction for easy maintenance
High durability with bronze material

Specifications

Brand	Armstrong
Model	H-41
Series	H
Connection Size	1 inch NPT
Dimension	15-1/4″ W x 13-1/4″ H
Flow Rate	22 GPM
Frequency Rating	60 Hz
HP Rating	1/6 HP
Material	Bronze
Maximum Feet of Head	17-1/2 ft
Mounting	Resilient
Phase	1 PH
Pressure Rating	175 PSIG
RPM	1800 RPM
Temperature Rating	225°F
Type	In-Line
Voltage Rating	115 VAC
Standards/Certifications	NSF 372 Certified

What Our Experts Think

1/6 HP Motor – Provides consistent and powerful water flow.
115V AC Power – Standard voltage for easy system integration.
Bronze Construction – Corrosion-resistant, ideal for potable water and hydronic heating.
In-Line Design – Compact and easy to install in existing piping systems.
Energy-Efficient Operation – Ensures optimal performance while reducing power consumption.

Q&A

Q: What applications is this pump best suited for?
A: Ideal for potable water systems, hydronic heating, and recirculating hot water in residential and commercial settings.

Q: Why is bronze construction beneficial?
A: Bronze resists corrosion, making it suitable for potable water and long-term use in high-moisture environments.

Q: Is this pump energy-efficient?
A: Yes, it provides optimal water circulation with minimal energy consumption, reducing operational costs.

Q: What is the installation type?
A: It is an in-line circulator pump designed for easy integration into existing piping systems.

Maintenance Tips

Inspect for Leaks – Check seals and connections for any signs of water leakage.
Monitor Noise & Vibration – Unusual sounds may indicate air pockets or mechanical wear.
Bleed Air from System – Ensure efficient circulation by purging trapped air.
Check Electrical Connections – Verify 115V power supply for consistent operation.
Clean Pump Housing – Remove dust and debris to prevent overheating.
Verify Flow Rate – Ensure optimal performance based on system requirements.
Schedule Regular Maintenance – Periodic inspections help extend pump lifespan.

Additional information

Weight	34.0 kg
Badge	<div style='display:none' class='jdgm-prev-badge' data-average-rating='0.00' data-number-of-reviews='0' data-number-of-questions='0'> <span class='jdgm-prev-badge__stars' data-score='0.00' tabindex='0' aria-label='0.00 stars' role='button'> <span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span> </span> <span class='jdgm-prev-badge__text'> No reviews </span> </div>
Widget	<div class='jdgm-rev-widg' data-updated-at='2025-05-18T16:38:06Z' data-average-rating='0.00' data-number-of-reviews='0' data-number-of-questions='0'> <style class='jdgm-temp-hiding-style'>.jdgm-rev-widg{ display: none }</style> <div class='jdgm-rev-widg__header'> <h2 class='jdgm-rev-widg__title'>Customer Reviews</h2> <div class='jdgm-rev-widg__summary'> <div class='jdgm-rev-widg__summary-stars' aria-label='Average rating is 0.00 stars' role='img'> <span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span> </div> <div class='jdgm-rev-widg__summary-text'>Be the first to write a review</div> </div> <a style='display: none' href='#' class='jdgm-write-rev-link' role='button'>Write a review</a> <div class='jdgm-histogram jdgm-temp-hidden'> <div class='jdgm-histogram__row' data-rating='5' data-frequency='0' data-percentage='0'> <div class='jdgm-histogram__star' role='button' aria-label="0% (0) reviews with 5 star rating" tabindex='0' ><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span></div> <div class='jdgm-histogram__bar'> <div class='jdgm-histogram__bar-content' style='width: 0%;'> </div> </div> <div class='jdgm-histogram__percentage'>0%</div> <div class='jdgm-histogram__frequency'>(0)</div> </div> <div class='jdgm-histogram__row' data-rating='4' data-frequency='0' data-percentage='0'> <div class='jdgm-histogram__star' role='button' aria-label="0% (0) reviews with 4 star rating" tabindex='0' ><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–off'></span></div> <div class='jdgm-histogram__bar'> <div class='jdgm-histogram__bar-content' style='width: 0%;'> </div> </div> <div class='jdgm-histogram__percentage'>0%</div> <div class='jdgm-histogram__frequency'>(0)</div> </div> <div class='jdgm-histogram__row' data-rating='3' data-frequency='0' data-percentage='0'> <div class='jdgm-histogram__star' role='button' aria-label="0% (0) reviews with 3 star rating" tabindex='0' ><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span></div> <div class='jdgm-histogram__bar'> <div class='jdgm-histogram__bar-content' style='width: 0%;'> </div> </div> <div class='jdgm-histogram__percentage'>0%</div> <div class='jdgm-histogram__frequency'>(0)</div> </div> <div class='jdgm-histogram__row' data-rating='2' data-frequency='0' data-percentage='0'> <div class='jdgm-histogram__star' role='button' aria-label="0% (0) reviews with 2 star rating" tabindex='0' ><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span></div> <div class='jdgm-histogram__bar'> <div class='jdgm-histogram__bar-content' style='width: 0%;'> </div> </div> <div class='jdgm-histogram__percentage'>0%</div> <div class='jdgm-histogram__frequency'>(0)</div> </div> <div class='jdgm-histogram__row' data-rating='1' data-frequency='0' data-percentage='0'> <div class='jdgm-histogram__star' role='button' aria-label="0% (0) reviews with 1 star rating" tabindex='0' ><span class='jdgm-star jdgm–on'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span><span class='jdgm-star jdgm–off'></span></div> <div class='jdgm-histogram__bar'> <div class='jdgm-histogram__bar-content' style='width: 0%;'> </div> </div> <div class='jdgm-histogram__percentage'>0%</div> <div class='jdgm-histogram__frequency'>(0)</div> </div> <div class='jdgm-histogram__row jdgm-histogram__clear-filter' data-rating=null tabindex='0'></div> </div> <div class='jdgm-rev-widg__sort-wrapper'></div> </div> <div class='jdgm-rev-widg__body'> <div class='jdgm-rev-widg__reviews'></div> <div class='jdgm-paginate' data-per-page='5' data-url='https://api.judge.me/reviews/reviews_for_widget' style="display: none;"></div> </div> <div class='jdgm-rev-widg__paginate-spinner-wrapper'> <div class='jdgm-spinner'></div> </div> </div>

Reviews

There are no reviews yet

Be the first to review “Armstrong H-41 Bronze In-Line Circulator Pump 115 VAC 1/6 HP – 174035MF-143”
