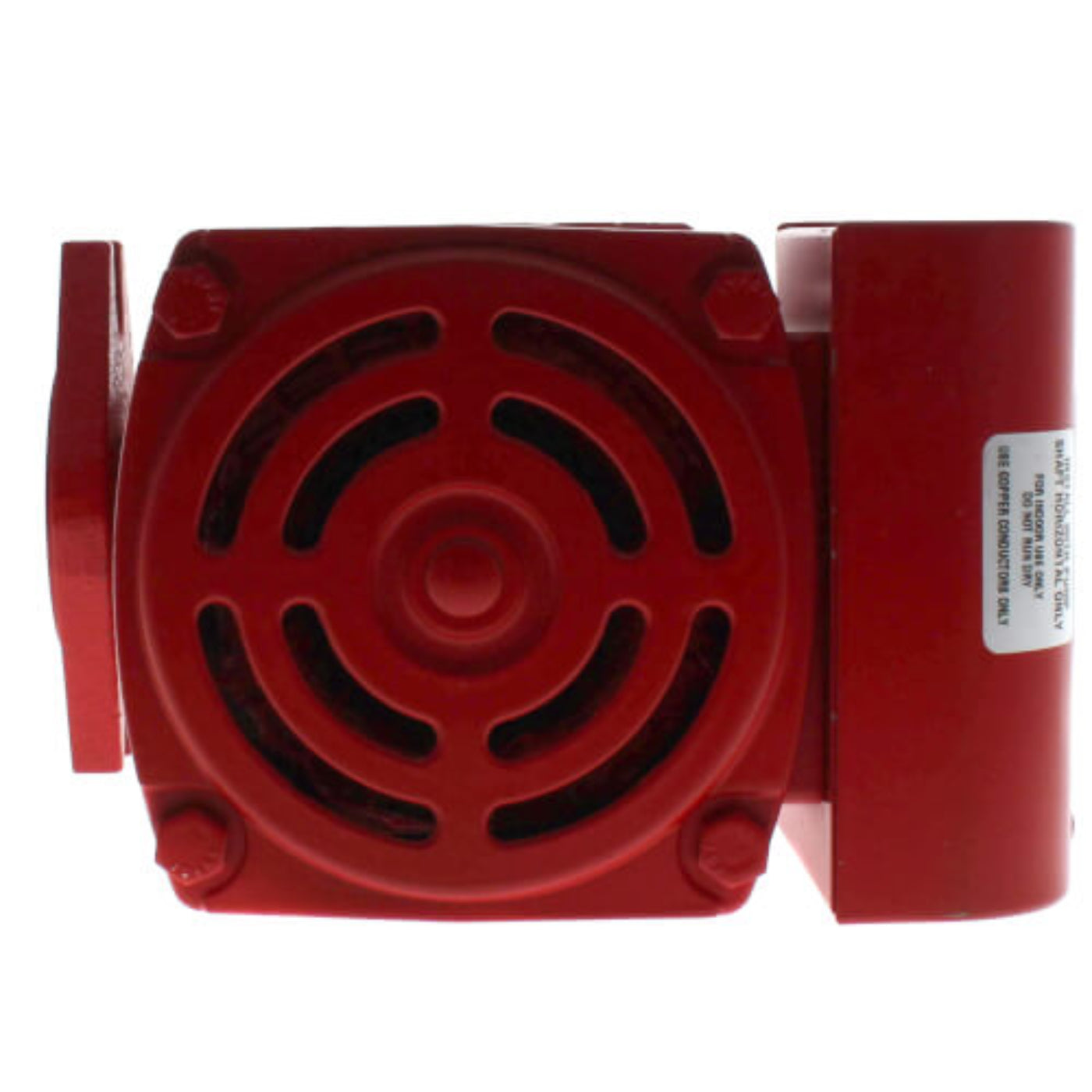

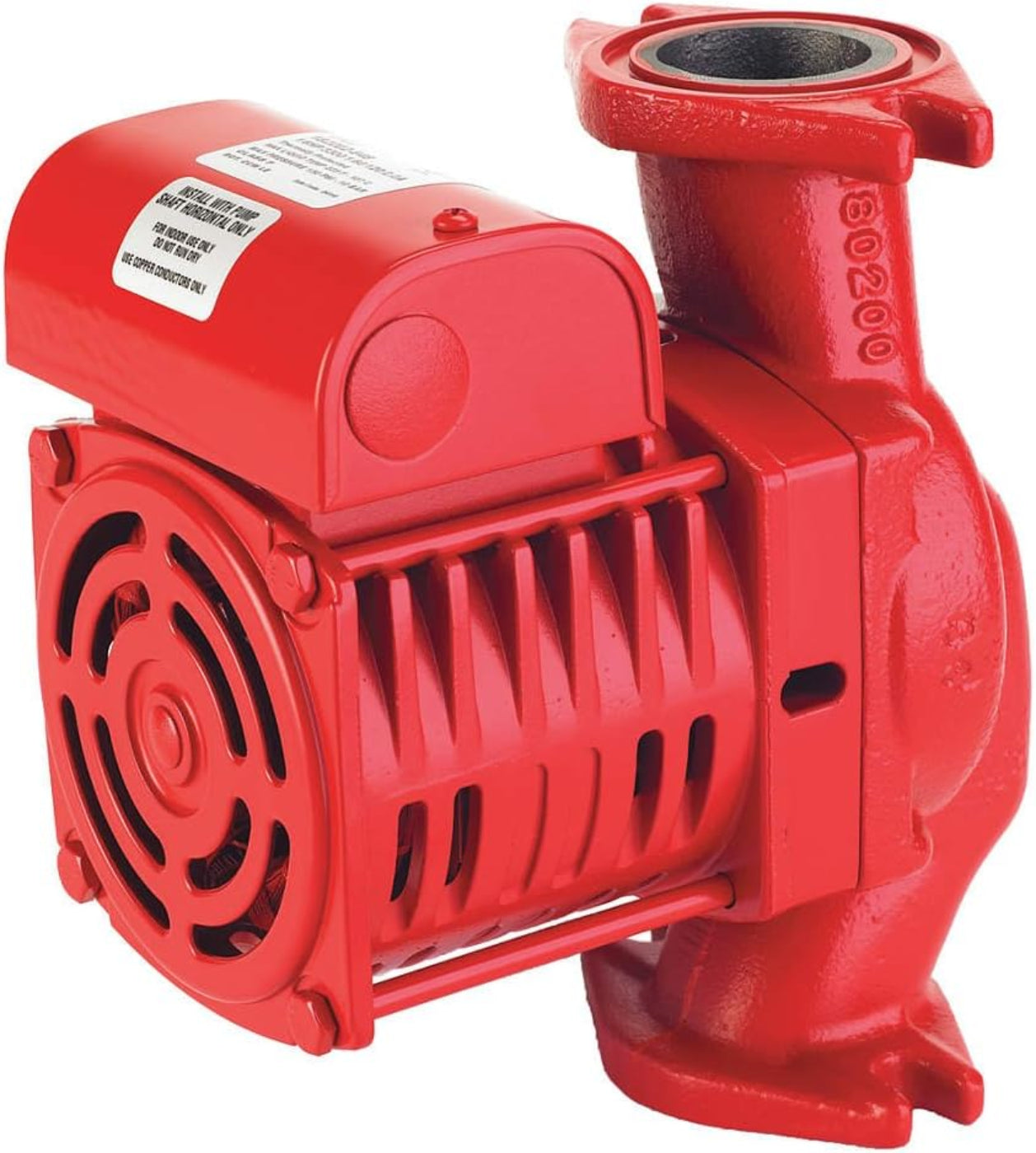

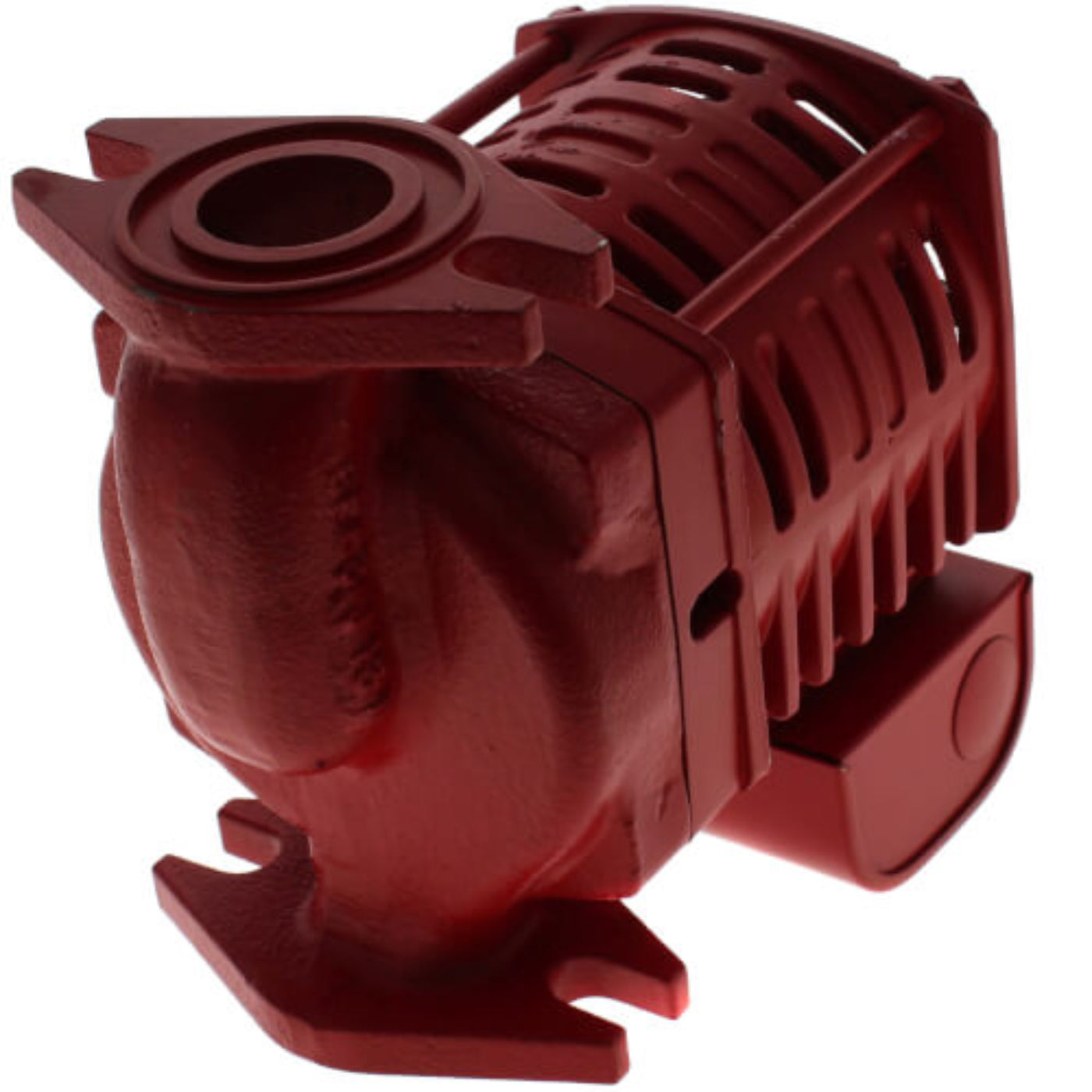

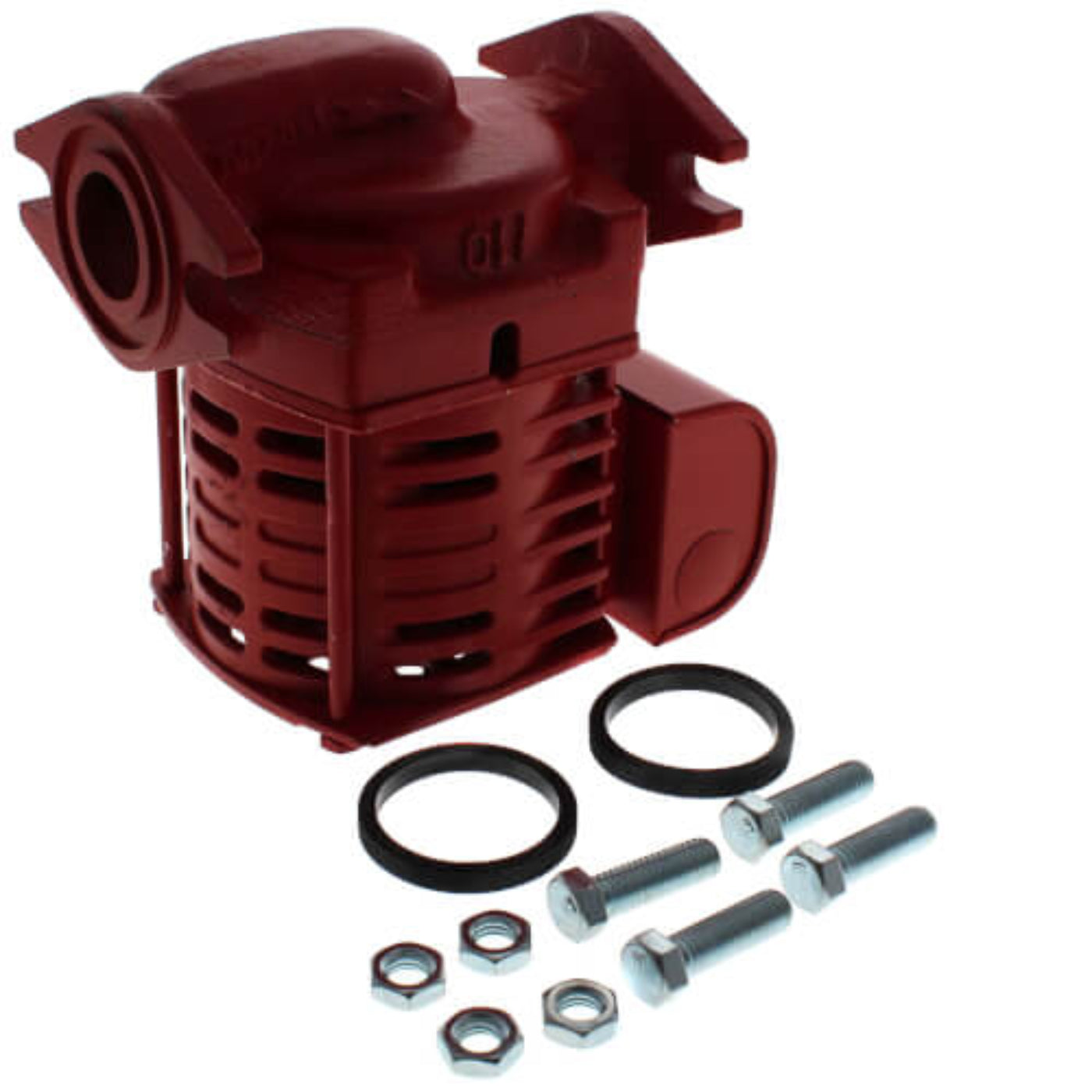

Armstrong Flanged Circulation Pump E9 Series 1/6 hp 120 VAC - 182202-659

Description

Armstrong Flanged Circulation Pump E9 Series 1/6 hp 120 VAC – 182202-659

The Armstrong Flanged Circulation Pump E9 Series, model 182202-659, is suitable for various hydronic applications such as heating and cooling systems. Its design emphasizes energy efficiency, making it an optimal choice for residential and light commercial installations.

Features

High efficiency circulator, 120V
Compact motor design, 30% smaller than traditional models
Durable with field-repairable mechanical seal

Specifications

HP Rating	1/6 hp
Voltage Rating	120 VAC
Amperage Rating	2 A
Flow Rate	38 gpm
Maximum Head	42.4 ft
Frequency Rating	60 Hz
Weight	14.09 lbs
Dimensions	7.1 in W x 6.4 in H x 4.2 in D
Material	Cast Iron
Impeller Material	30% Glass-Filled Noryl
Temperature Rating	32 – 230 deg F
Pressure Rating	150 psi
RPM	3250
Brand	Armstrong

What Our Experts Think

1/6 HP Motor – Provides sufficient power for a variety of circulating applications while ensuring energy efficiency.
120 VAC Power – Compatible with standard voltage, making it easy to integrate into existing systems.
Flanged Connection – Offers a secure and leak-free connection, ensuring optimal flow and performance.
Durable Construction – Built to withstand harsh conditions, offering long-lasting reliability and reduced maintenance needs.
Versatile Application – Ideal for heating, cooling, and HVAC systems, this pump is designed to meet the demands of both commercial and industrial environments.

Q&A

Q: What is the Armstrong 182202-659 circulation pump used for?
A: The Armstrong 182202-659 is a flanged circulation pump designed to efficiently circulate fluids in heating, cooling, and other fluid transfer systems. It’s ideal for residential and light commercial applications.

Q: What makes the Armstrong 182202-659 pump ideal for my system?
A: The 182202-659 pump provides efficient, consistent circulation while maintaining a compact design. It’s perfect for systems that require reliable fluid movement with low power consumption.

Q: How does the Armstrong 182202-659 improve system performance?
A: By offering steady fluid circulation, this pump ensures optimal performance of heating and cooling systems, reducing the risk of overheating and ensuring consistent system temperatures.

Q: Is the Armstrong 182202-659 circulation pump durable?
A: Yes, built with high-quality materials, this pump is designed for long-lasting performance and reliability in both residential and commercial applications.

Maintenance Tips

Inspect for Leaks – Regularly check all connections, seals, and flanges for leaks and tighten any loose fittings.
Monitor Motor Performance – Listen for unusual noises or vibrations indicating a motor issue and ensure the motor is running smoothly.
Check for Overheating – Monitor pump temperature to avoid overheating, which could cause motor failure or reduced efficiency.
Clean the Pump and Impeller – Periodically clean the pump and impeller to prevent debris buildup and ensure efficient fluid circulation.
Lubricate Bearings – Lubricate the bearings as needed to reduce friction and prolong the lifespan of the pump.
Test the Pump Regularly – Perform routine performance checks to confirm the pump is circulating fluid as expected without interruptions.
Inspect Electrical Components – Periodically check the power supply and wiring for signs of wear or damage.
Replace Filters – If your system uses filters, replace them regularly to ensure uninterrupted performance.
