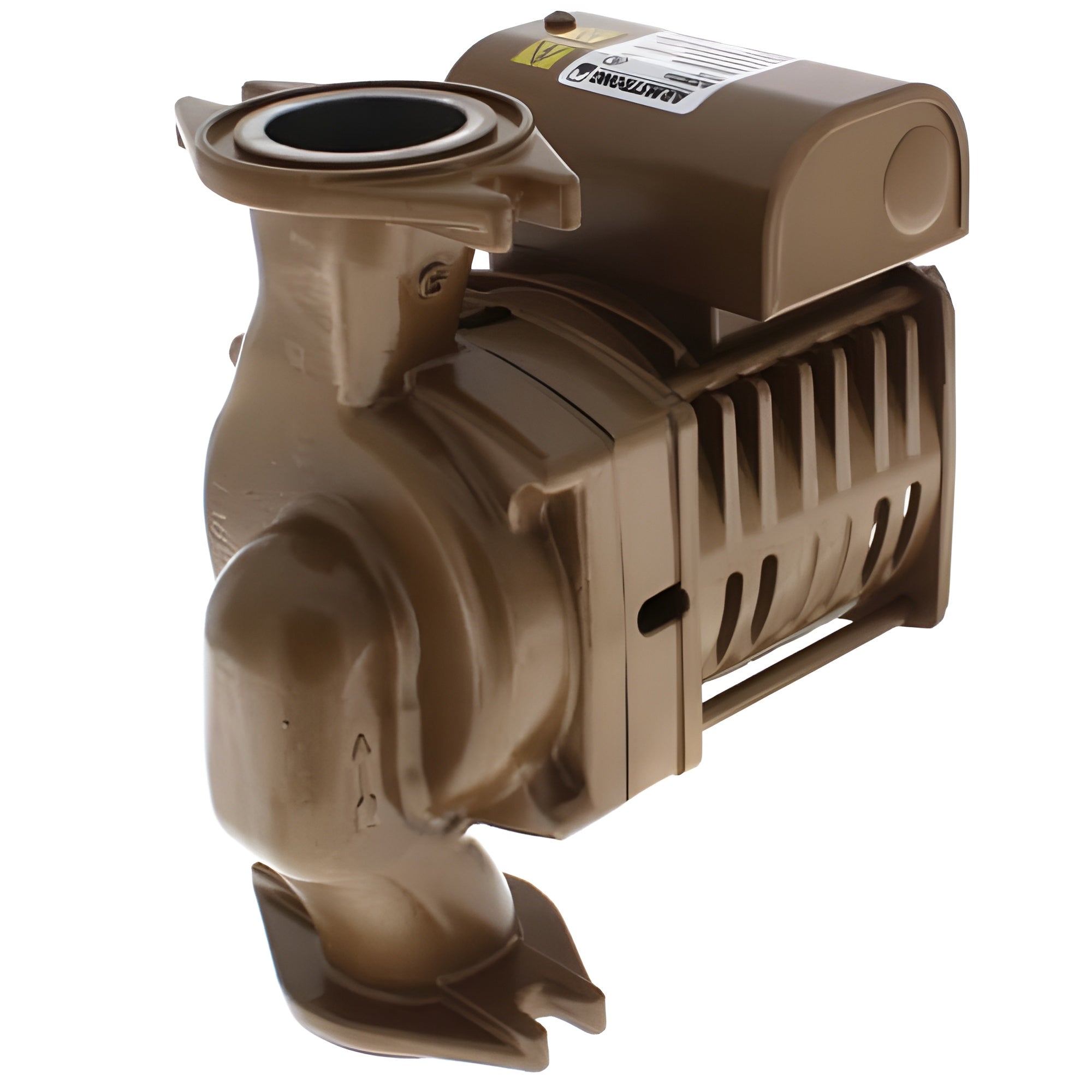

Armstrong 11.2b Bronze High-Efficiency Circulator Pump 120 VAC 1/6 hp - 182202-652

Description

Armstrong 11.2b Bronze High-Efficiency Circulator Pump 120 VAC 1/6 hp – 182202-652

The Armstrong 182202-652 e11.2b Bronze High-Efficiency Circulator Pump is ideal for various hydronic applications. This model operates at 120 VAC and delivers 1/6 hp, making it effective and reliable.

Features

High-efficiency circulator pump
Bronze construction for durability
Suits hot and chilled water recirculation

Specifications

Amperage Rating	2 A
Connection Size	1-1/2 inches Flanged
Dimension	7-1/2 inches W x 8-1/2 inches H x 4.2 inches D
Flow Rate	45 gpm
Frequency Rating	60 Hz
HP Rating	1/6 hp
Impeller Material	30% Glass-Filled Noryl
Item Name	Circulator Pump
Material	Bronze
Maximum Feet of Head	31.9 ft
Model	e11.2b
Phase	1 ph
Pressure Rating	150 psi
RPM	3300 rpm
Series	E.2
Temperature Rating	32 – 230 degrees F
Type	High-Efficiency
Voltage Rating	120 VAC
Wattage	125 W
Brand	Armstrong Pumps
Manufacturer	Armstrong Pumps
MPN	182202-652

What Our Experts Think

1/6 HP Motor – Offers efficient power for consistent, reliable operation across a range of applications.
120 VAC Power – Compatible with standard voltage for easy integration into your system.
Bronze Construction – Provides superior corrosion resistance, making it ideal for long-term use in both residential and commercial systems.
High Efficiency – Engineered to reduce energy consumption while maintaining optimal circulation flow, contributing to lower operating costs.
Versatile Application – Perfect for HVAC, water heating, and general circulation needs, providing reliable performance in multiple environments.

Q&A

Q: What is the Armstrong 182202-652 circulator pump used for?
A: The Armstrong 182202-652 is a high-efficiency circulator pump used to circulate fluids in heating and cooling systems, ensuring consistent temperature control and energy efficiency in residential and light commercial applications.

Q: What makes the Armstrong 182202-652 circulator pump energy-efficient?
A: The 182202-652 circulator pump utilizes a high-efficiency motor and optimized design, reducing power consumption and providing reliable fluid circulation, making it ideal for energy-conscious users.

Q: How does the Armstrong 182202-652 improve system performance?
A: This pump ensures steady fluid circulation, helping heating and cooling systems maintain optimal temperature control, reduce energy waste, and improve overall system efficiency.

Q: Is the Armstrong 182202-652 circulator pump easy to install?
A: Yes, the Armstrong 182202-652 is designed for straightforward installation, with a compact size and standard 120 VAC connection, making it an easy addition to most heating and cooling systems.

Maintenance Tips

Inspect for Leaks – Regularly check all connections and seals for leaks. Tighten fittings or replace seals if necessary.
Monitor Pump Noise – Listen for any unusual noises that may indicate internal wear or debris in the pump. Address any issues immediately.
Clean the Pump – Remove any debris or scale buildup from the pump and impeller to ensure smooth operation and efficient fluid circulation.
Lubricate Bearings – Ensure proper lubrication of the bearings to reduce friction and prevent premature wear.
Check Motor Operation – Periodically inspect the motor for overheating, vibration, or abnormal performance. Ensure it is operating smoothly.
Test Pump Performance – Regularly check the flow rate and pressure to ensure the pump is performing within the specified range.
Inspect Electrical Connections – Check the power supply and electrical connections for any signs of damage or wear, ensuring safe operation.
Replace Parts as Needed – If components like the impeller or seals show signs of wear, replace them to maintain pump efficiency.

Additional information

Weight	14.46 kg
