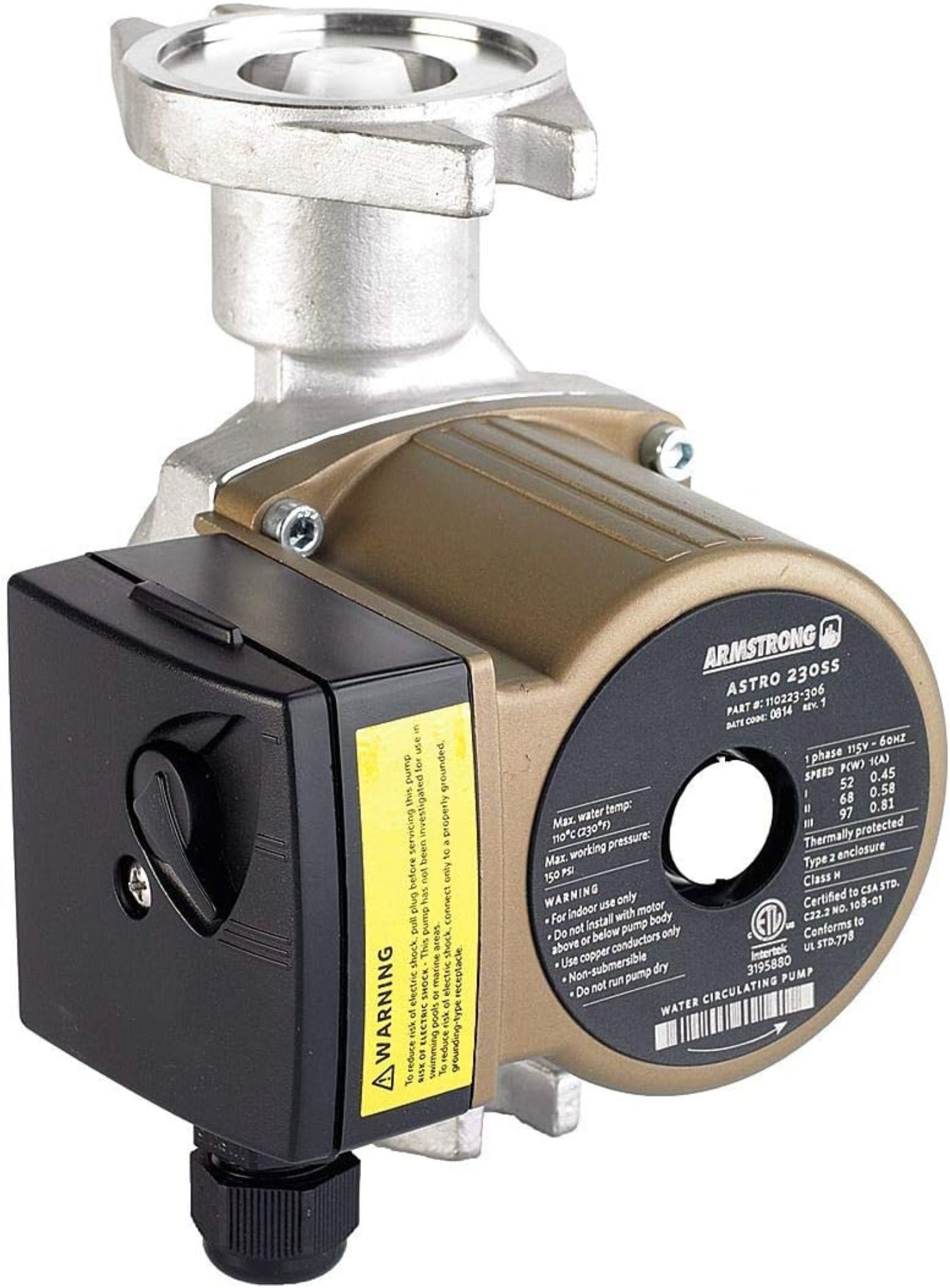

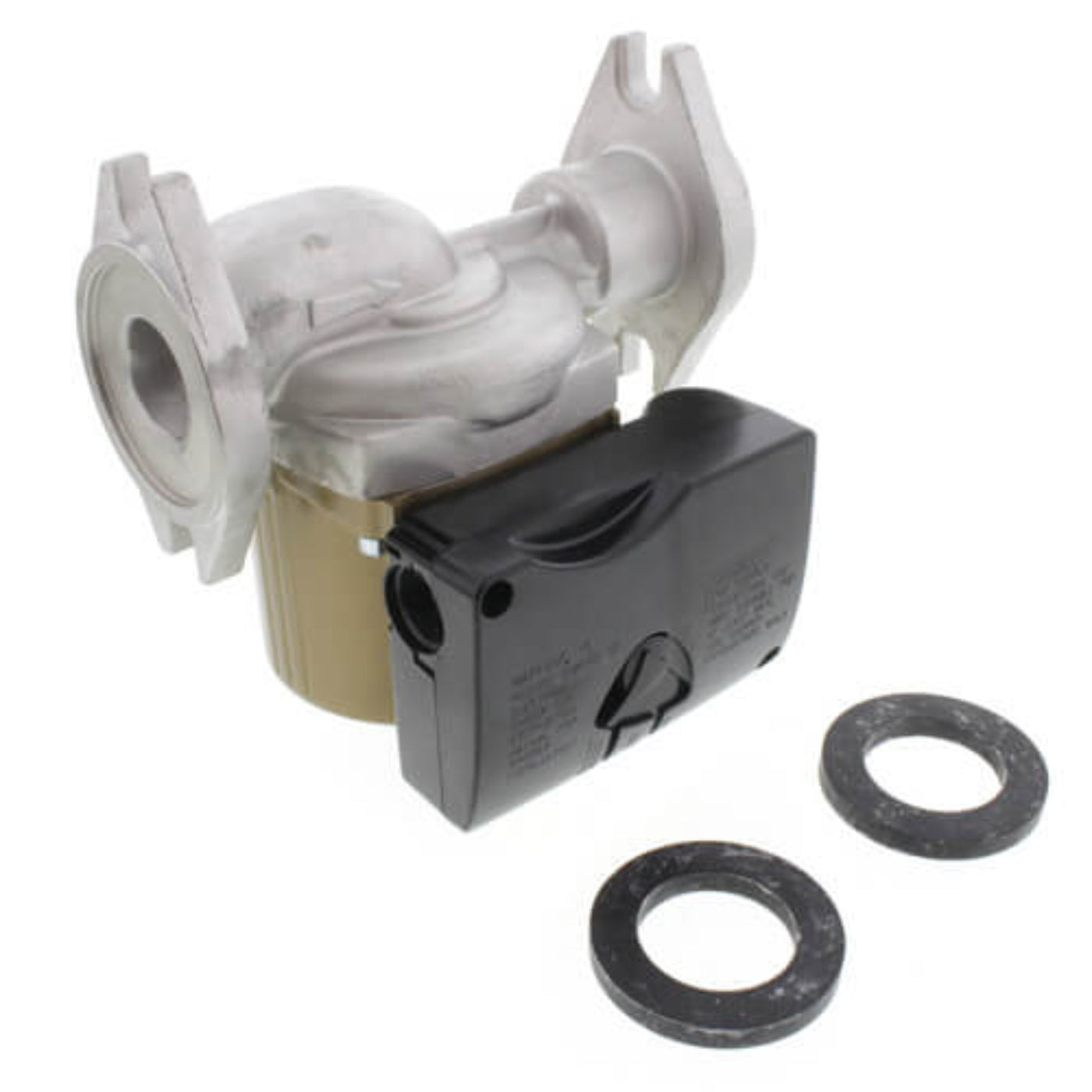

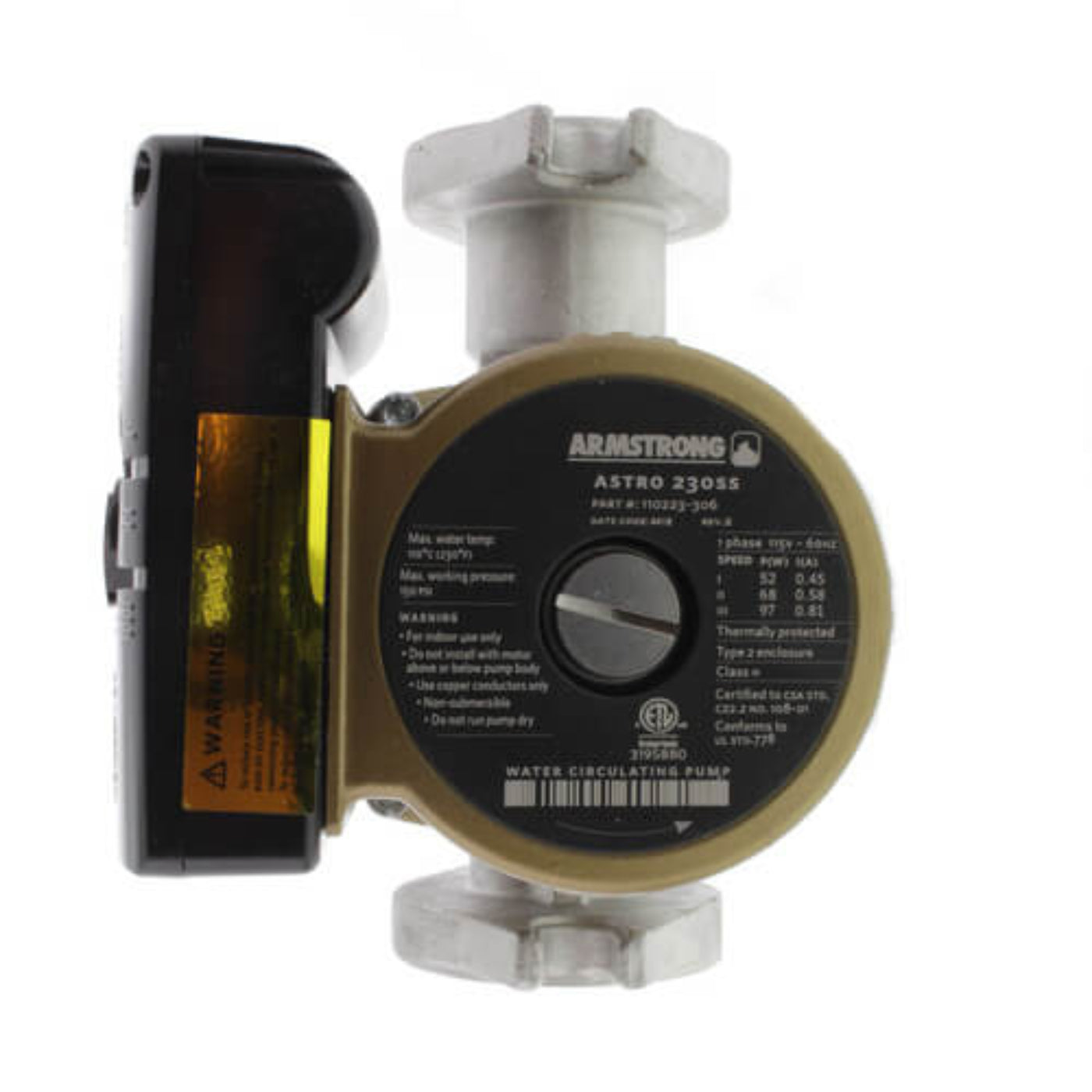

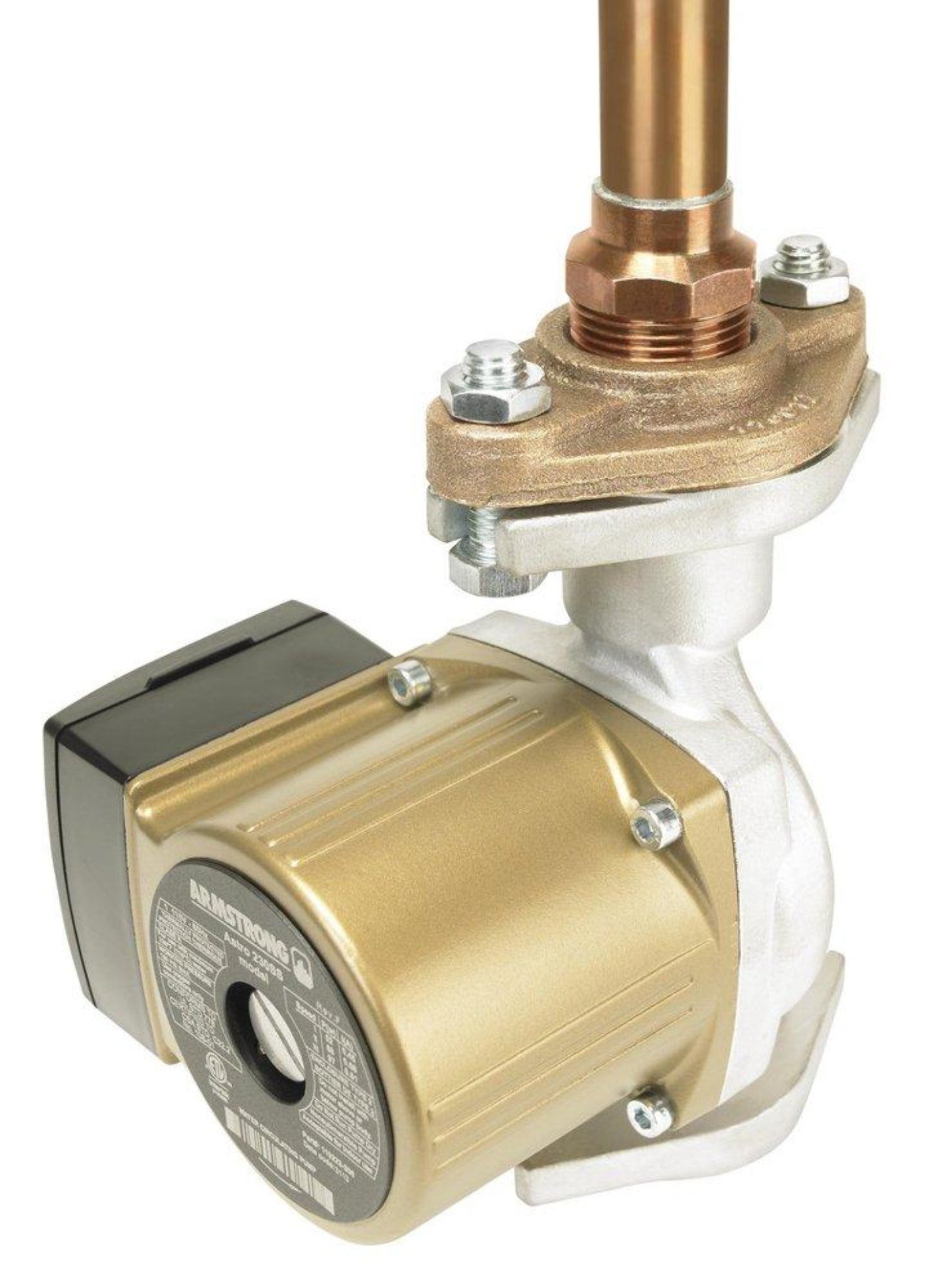

Armstrong 1/25 Horsepower Astro 230SS Wet Rotor Circulator Stainless Steel

Description

Armstrong 1/25 Horsepower Astro 230SS Wet Rotor Circulator Stainless Steel – 110223-306

The Armstrong Astro 230SS 1/25 Horsepower Circulator, model number 110223-306, is designed for efficient and maintenance-free circulation of water or ethylene-glycol solutions in closed hydronic or solar heating systems. Ideal for residential, small industrial, and commercial applications.

Features

Three-speed switch for customized flow
Stainless steel construction for durability
Quiet operation and zero maintenance

Specifications

Horsepower	1/25 hp
Voltage	115 VAC
Amperage Capacity	0.81 Amps
Wattage	80.5 watts
Flow Rate	0-18 GPM
Maximum Feet of Head	18.2 ft
RPM	2800 rpm
Frequency	60 Hz
Pressure Rating	150 psi
Temperature Range	0-230 Degrees Fahrenheit
Impeller Material	Noryl
Certifications	cETLus Intertek listed, NSF 372 certified
Brand	Armstrong
Model	110223-306
Type	Wet Rotor Circulator
Material	Stainless Steel
Applications	For residential heating or cooling, potable water, water conservation

What Our Experts Think

1/25 HP Motor – Perfect for smaller systems requiring moderate flow without consuming excess energy.
Stainless Steel Construction – Provides excellent durability and corrosion resistance, ideal for a variety of fluids and demanding environments.
Wet Rotor Design – Ensures quiet, efficient operation with minimal vibration and extended lifespan.
Compact Size – Ideal for tight spaces or systems where a smaller circulator is needed without sacrificing performance.
Versatile Application – Great for residential heating, cooling, and water circulation in systems like radiant heating and solar applications.

Q&A

Q: What is the Armstrong 110223-306 Astro 230SS circulator used for?
A: The Armstrong 110223-306 Astro 230SS circulator is designed for circulating water and other fluids in hydronic heating systems, domestic hot water systems, and light commercial applications, providing efficient fluid movement.

Q: What are the advantages of the wet rotor design in the Armstrong 110223-306?
A: The wet rotor design eliminates the need for mechanical seals, reducing wear and tear while ensuring quiet, vibration-free operation. It provides reliable and efficient performance for a variety of fluid circulation applications.

Q: How does the Armstrong 110223-306 circulator improve system efficiency?
A: The Astro 230SS circulator reduces energy consumption while providing consistent fluid flow, improving the overall energy efficiency of heating and cooling systems and extending the lifespan of the system.

Q: Is the Armstrong 110223-306 circulator pump easy to maintain?
A: Yes, the Armstrong 110223-306 is designed for low-maintenance operation due to its wet rotor design and durable stainless steel construction, requiring minimal upkeep and providing long-term reliability.

Maintenance Tips

Inspect for Leaks – Regularly check the circulator pump for leaks around the rotor and connections. Tighten any loose fittings and replace damaged seals.
Monitor for Unusual Sounds – Listen for abnormal noise, which could indicate wear or debris buildup. If heard, inspect and clean the pump immediately.
Clean the Pump – Periodically remove debris and sediment from the rotor and internal components to ensure optimal performance and prevent blockages.
Check Electrical Connections – Inspect the power supply and wiring for signs of wear, corrosion, or damage to prevent electrical failures.
Verify Motor Function – Ensure the motor is running at the correct speed, and check for any signs of overheating or malfunction.
Lubricate Bearings – Proper lubrication of the bearings will ensure smooth rotation of the wet rotor and reduce wear.
Test Performance – Regularly monitor the flow rate and temperature to ensure the pump operates efficiently within the specified parameters.
Replace Worn Parts – If any components such as the rotor or seals are showing signs of wear, replace them to maintain optimal functionality.

Additional information

Weight	3.0 kg
