Armstrong Air 1.911521 EAC4X-50 Cased Evaporator Coil 2 ton 400 to 1200 cfm - 1.911521

Description

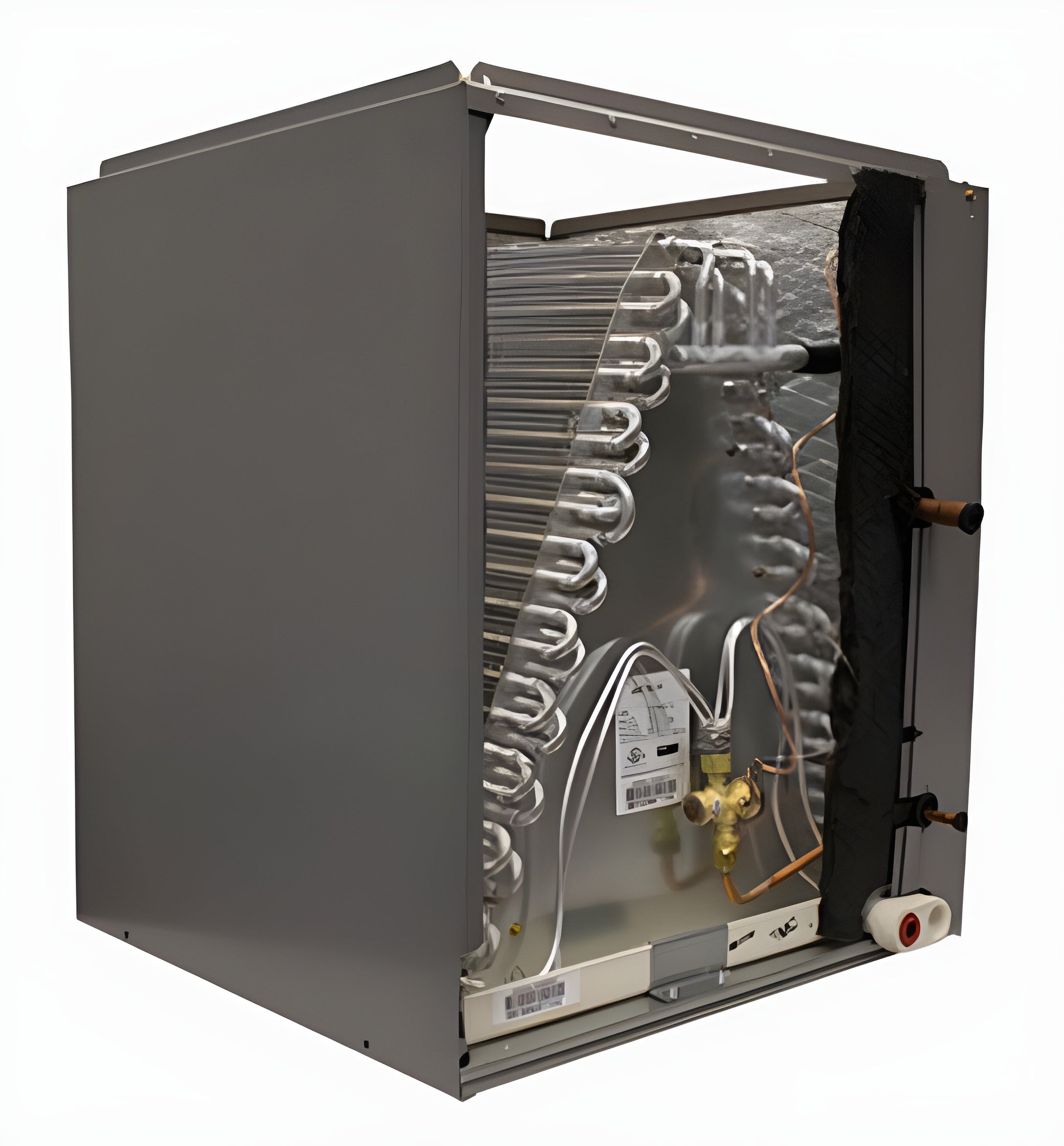

Armstrong Air 1.911521 EAC4X-50 Cased Evaporator Coil 2 ton 400 to 1200 cfm – 1.911521

The Armstrong Air 1.911521 EAC4X-50 Cased Evaporator Coil is a vital component for HVAC systems designed for high efficiency and durability. This evaporator coil is suitable for use in residential and light commercial applications, offering a nominal capacity of two tons. It supports airflow rates from four hundred to twelve hundred cubic feet per minute (cfm).

Featuring a high-quality aluminum tubing design, the Armstrong Air evaporator coil is engineered for efficiency and ease of installation. Its advanced features such as a low water retention drain pan reduce the risk of odors and allergens. This makes it an optimal choice for improving indoor air quality.

Features

Omniguard corrosion protection for reliability in various conditions
Factory-installed TXV enhances performance efficiency
Foil-face insulation simplifies maintenance while maintaining energy efficiency

Specifications

Air Flow Type	Upflow
Dimensions	23.75″ L x 18.75″ W x 21.62″ H
Flow Rate	400 to 1200 CFM
Line Size (Liquid)	3/8 inches
Line Size (Suction)	3/4 inches
Metering Device	TXV
Mfg Standards/Approvals	AHRI Certified, cULus Listed
Nominal Capacity	2 ton
Refrigerant Type	R-410A
Series	EAC4X-50
Tubing Material	Aluminum
Type	Cased
Brand	Armstrong Air
Part Number	L8502

What our Expect Think

Optimized Airflow: Designed to handle 400 to 1200 CFM, ensuring efficient airflow for various system demands.
2-Ton Capacity: Ideal for delivering reliable cooling and maintaining consistent temperatures in your space.
Cased Enclosure: Protective casing ensures durability, helping extend the life of the evaporator coil.
Versatile Installation: Suitable for a range of HVAC systems, providing flexible installation options.
Energy Efficient: Designed to optimize refrigerant flow, improving system efficiency and reducing energy costs.

Q&A

Q: What is the Armstrong Air 1.911521 Cased Evaporator Coil?
A: The 1.911521 is a 2-ton cased evaporator coil designed for Armstrong Air HVAC systems, providing airflows from 400 to 1200 CFM for optimal cooling performance.

Q: Is this evaporator coil suitable for all Armstrong Air systems?
A: The 1.911521 is compatible with select Armstrong Air HVAC systems. Check your system’s specifications to ensure compatibility before purchasing.

Q: How does this evaporator coil improve system efficiency?
A: The coil’s design maximizes cooling efficiency by delivering consistent airflow and effective heat exchange, helping to maintain optimal comfort levels while reducing energy use.

Q: Does it require professional installation?
A: Yes, professional installation is recommended for optimal performance and to ensure proper system operation.

Maintenance Tips

Clean the Evaporator Coil – Regularly clean the evaporator coil to remove dust, dirt, and debris, which can reduce efficiency and airflow.
Check for Leaks – Inspect refrigerant lines and connections for any signs of leaks to ensure optimal performance.
Replace Air Filters – Regularly replace or clean the air filters to maintain proper airflow and prevent strain on the system.
Inspect Condensate Drain – Ensure the condensate drain is clear to prevent water buildup and possible water damage.
Monitor CFM Settings – Verify that the unit is operating within the recommended airflow range (400 to 1200 CFM) for optimal performance.
Ensure Proper Airflow – Make sure the surrounding vents and ducts are unobstructed to allow for smooth airflow.
Annual Professional Inspection – Have a professional technician inspect the coil and system annually to catch any potential issues early and ensure reliable operation.

Additional information

Weight	40.0 kg
