Description

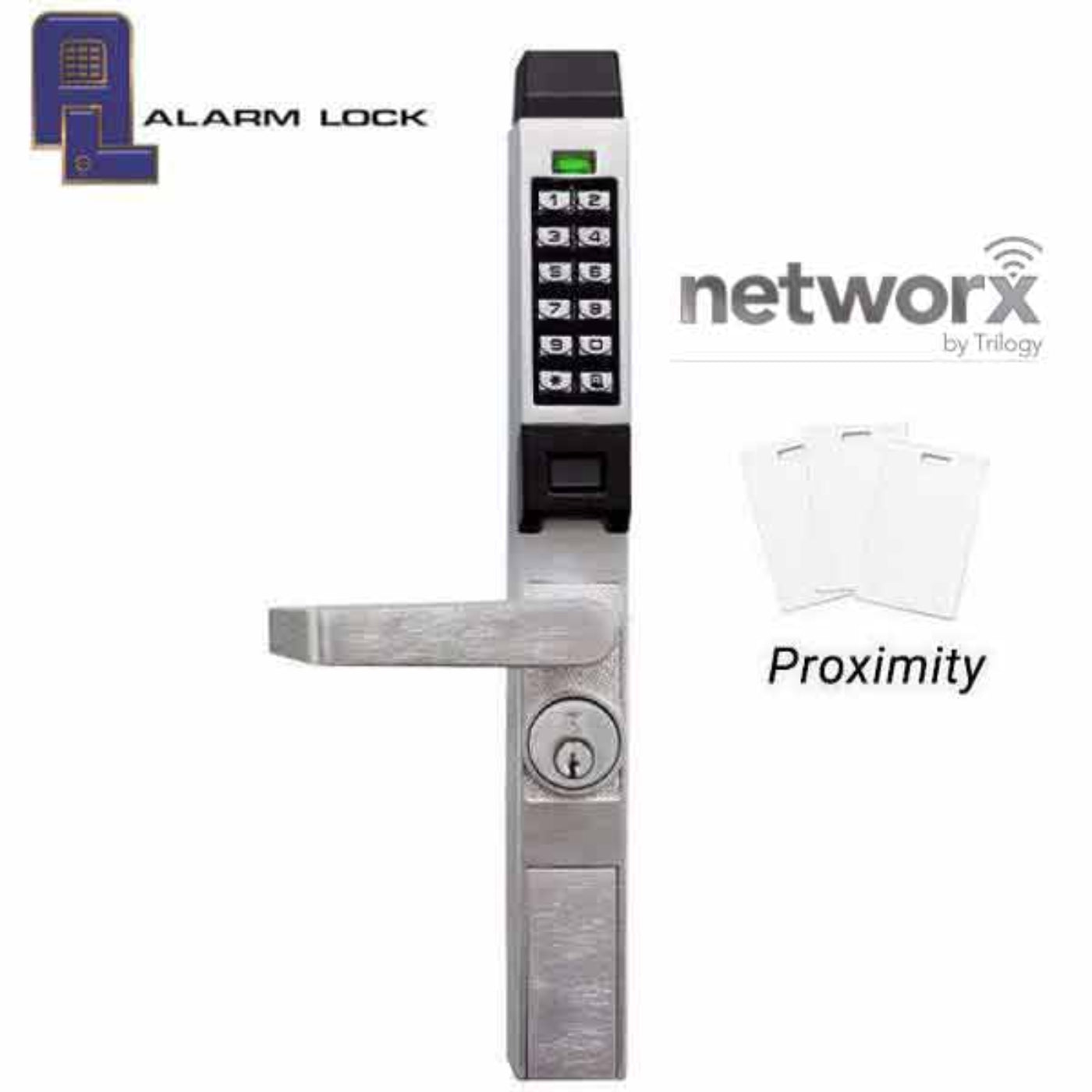

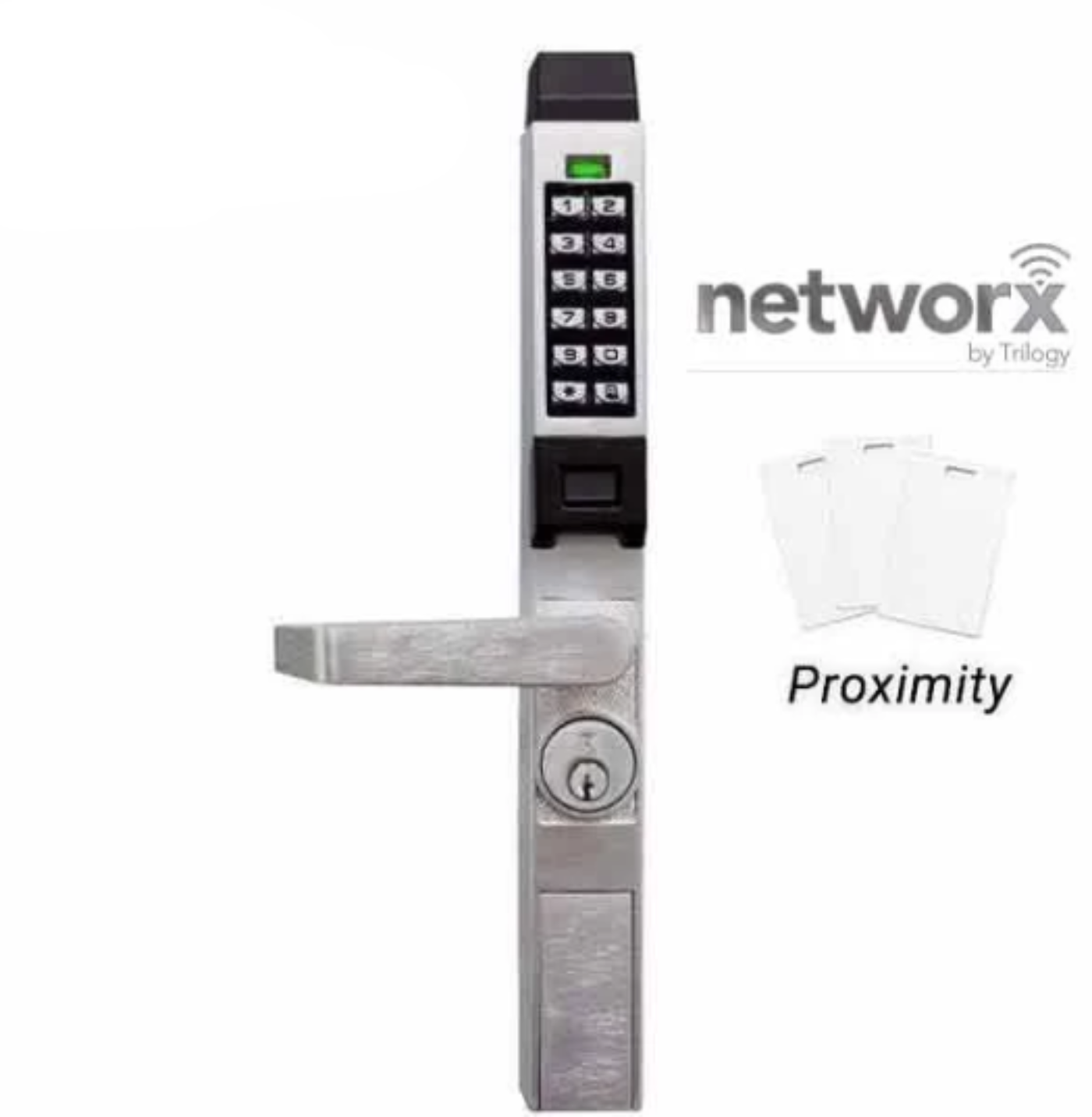

Alarm Lock Trilogy Narrow-Stile Digital PROX Keypad Lever Lock – Networx – 26D – Satin Chrome – ALL-PDL1300-NW

Trilogy Narrow Stile Keypad Lever Lock w/ Audit Trail supports Adams Rite latch. products. Get field-proven Trilogy keyless access lock convenience anywhere there’s a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1300 series is a rugged entry lock of advanced design with several programmable features.

Features

Built-in Proximity Reader: Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
Features Alarm Locks Networx connectivity so you can communicate with up to 63 different locks via a gateway connection
Include a mortise cylinder that has 2 keys included
More Information Below

Specifications

LOCK FUNCTION	Entrance Narrow-Stile PROX Keypad Lever Lock w/ Audit Trail
DOOR THICKNESS	Only Stile thickness 1 ¾”
BACKSET	3 1/32”,1 1/8’ and 1 1/2”
HANDING	Non-handed; fully field-reversible
LEVER TRIM	Leverset compatible with Adams Rite 4500, 4700 & 4900 series deadlatch
POWER	Long-life, battery-operated for 80,000 to 100,000 Cycles respectively, typical on two 3-Volt 123A Lithium batteries, supplied; low battery alert
CYLINDER	6-pin standard mortise cylinder in SC1 Keyway supplied (Supports 1-1/2″ 1-3/8”)
KEYS	2 Keys Included
CAMS	Cams supplied works with generic Alarm Lock cylinder
PROGRAMMABLE	Yes
USER CODES	support 2000 users by PIN, HID Prox ID cards, or fobs. PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time)
PROXIMITY FREQUENCY	125 kHz
GATEWAYS & COMPATIBILITY	Choice of networking options for any application, control 63 locks per Gateway and 2016 Locks per system. Compatible with AL-IME2, AL-IME2-80211, AL-IME2-POE
SOFTWARE	Free Windows-based software for programming, entering users, and receiving time-/date-stamped (by user) 35K event audit trail from the lock.
WEATHERPROOF	-31˚ to +151˚F (-35˚ to +66˚C)
CONSTRUCTION	Zinc Alloy, Vandal Resistant
FINISH	26D Satin Chrome

What Our Experts Think

Networx Wireless Technology: This lock integrates seamlessly with the Networx wireless system, allowing remote management, access control, and programming from a central system.
Prox Keypad & Digital Lock: Equipped with both a keypad and proximity reader, offering dual authentication methods for enhanced security.
Audit Trail: High-capacity audit trail feature tracks up to 40,000 events, making it ideal for managing multiple users and monitoring access logs.
Narrow-Stile Design: Specifically designed for narrow-stile door frames, offering a slim profile for modern door setups.

Q&A

Q: What is the Alarm Lock Trilogy Narrow-Stile Digital PROX Keypad Lever Lock – Networx (ALL-PDL1300-NW)?
A: The Alarm Lock Trilogy Narrow-Stile Digital PROX Keypad Lever Lock – Networx (ALL-PDL1300-NW) is a high-security keyless entry lock that combines a proximity card reader and digital keypad. It is designed for narrow stile doors and offers networked wireless functionality for remote control and monitoring.

Q: What finish does this model have?
A: The lock comes in a Satin Chrome (26D) finish, offering a sleek and durable appearance for a wide range of environments.

Q: What kind of access control does this lock provide?
A: The lock offers both proximity card access and PIN code entry, providing flexible options for secure access control.

Q: What is the Networx feature?
A: The Networx feature allows the lock to be part of a wireless network, enabling remote management, programming, and monitoring from a central location or a computer system.

Q: Is it suitable for commercial use?
A: Yes, this lock is designed for commercial or institutional applications, providing advanced security for businesses, schools, hospitals, and more.

Q: Does this lock support an audit trail?
A: Yes, it includes an audit trail feature that stores and tracks up to 40,000 access events, helping administrators to monitor and review entry history.

Maintenance Tips

Battery Replacement: Replace batteries annually or when the low battery alert appears.
Clean Keypad & Prox Reader: Regularly clean with a soft, damp cloth to prevent dirt and grime buildup.
Audit Trail Monitoring: Frequently download and review audit trail data for enhanced security tracking.
Firmware Updates: Keep firmware updated to ensure smooth networked operation.
Network Connectivity: Check wireless connection regularly for uninterrupted remote management.
Lubrication: Apply silicone-based lubricant to moving parts every 6 months for smooth lever operation.
Test Access Control: Periodically test prox card and keypad functionality to ensure seamless access control.

Additional information

Weight	7.1496 kg
