Alarm Lock Trilogy - DL2700LD - Access Control Lever Set - Remote Release FOB & Classroom Lockdown - IC Prep for Best/Falcon/Arrow - Satin Chrome

Description

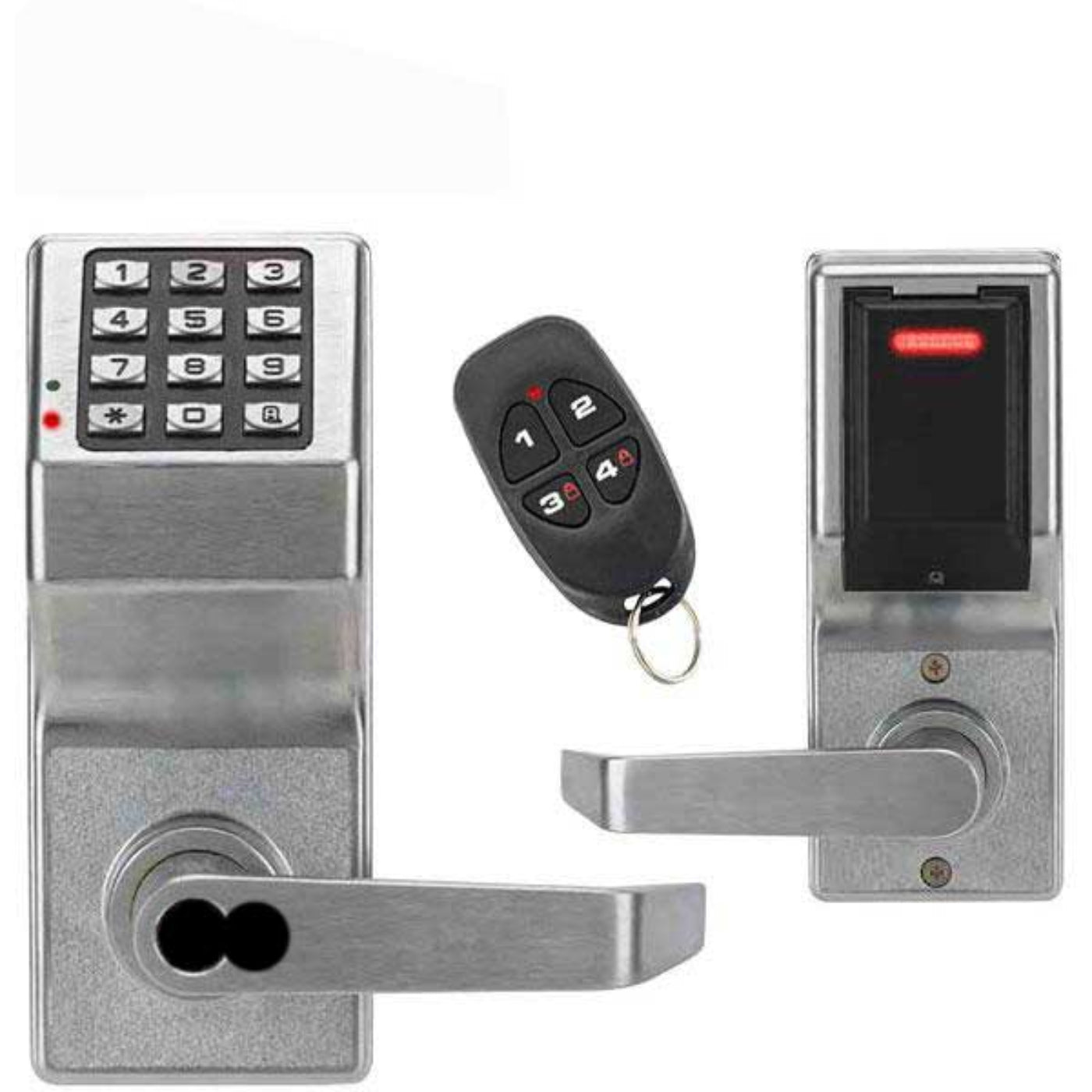

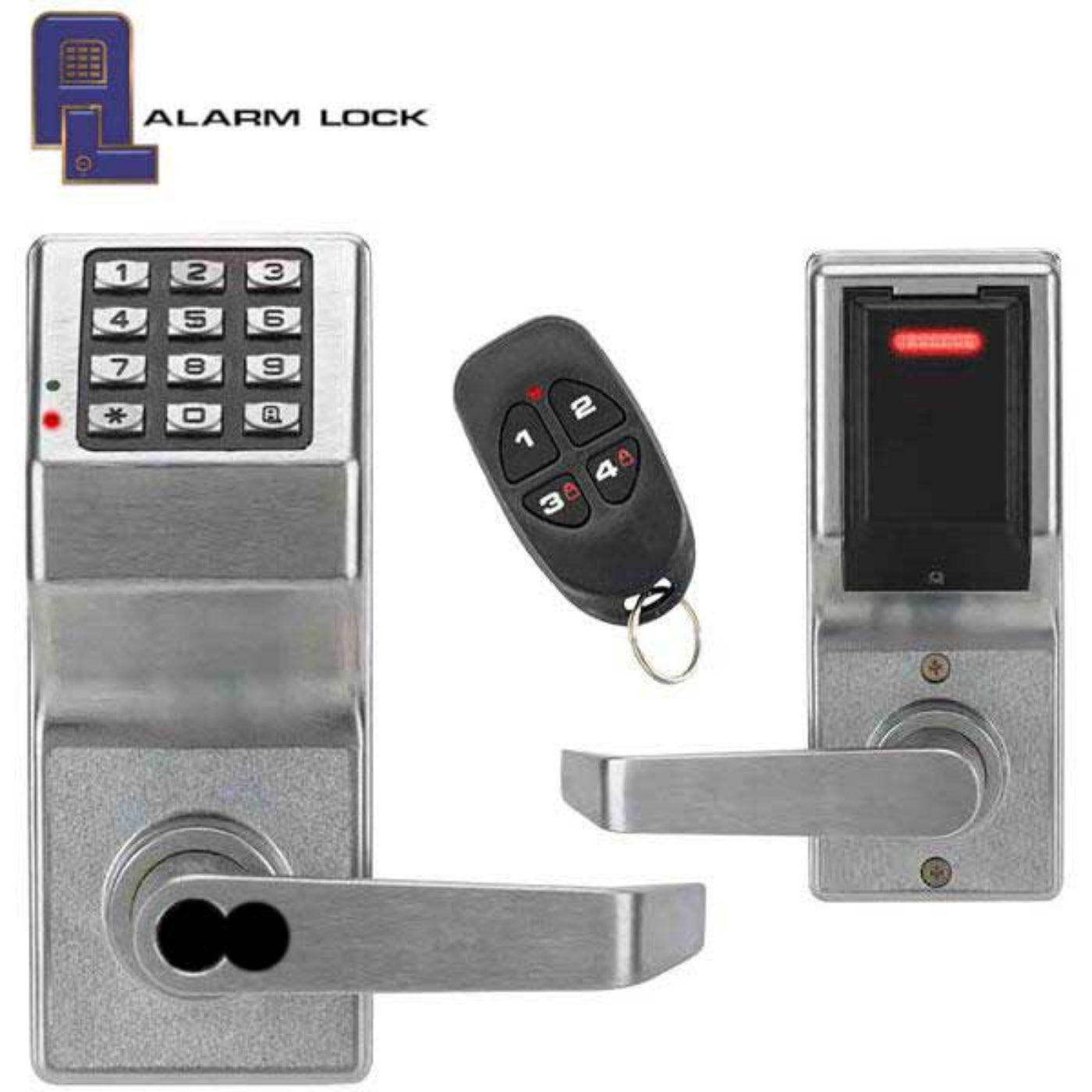

Alarm Lock Trilogy – DL2700LD – Access Control Lever Set – Remote Release FOB & Classroom Lockdown – IC Prep for Best/Falcon/Arrow – Satin Chrome – ALL-DL2700LD-IC-26D

The Trilogy DL2700 Access Control Lever Lock is one of Alarm Lock’s most popular standalone pushbutton cylindrical lock with Grade 1 durability. a leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability. This specific model is capable of being unlocked via remote and or FOB with support for up to 50 keyfobs. This is an IC core prepped for Best, Falcon, Arrow, KSP. IC CORE NOT INCLUDED

Features

Remote Release Function allows you to use it as a “buzzer system” without the need for an electric strike
For multi-classroom users, up to 50 keyfobs can be supported on each lock
Each keyfob can control up to four locks for remote lockdown activation, up to 100’ away
Bright visual lockdown indicator bar on inner door confirms security activation to occupants; Outside small indicator light flashes and/or optionally beeps when in lockdown
Lockdown Override Code will reactivate the pushbutton keypad and enable authorized teachers/staff and first responders, outside the classroom or area, to readily deactivate the lockout function at any time

Specifications

LOCK FUNCTION	Entrance Access Control Lever Lock
OPERATION	The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress
Standard Interchangeable Core	Prepped for Best, Falcon, Arrow, KSP CORE NOT INCLUDED
DOOR THICKNESS	1 5/8″ to 1 7/8.”
BACKSET	2 3/4″ Standard.
KEYPAD	All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
STANDARD KEY OVERRIDE CYLINDERS	Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders
LATCHBOLT	UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
STRIKE	1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
LATCH FRONT	1 1/8” x 2 1/4” wrought brass or stainless steel
PROGRAMMABLE	Up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
HANDING	Non-handed
FINISHES	US26D satin chrome
POWER	5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP	Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES	Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets

Downloads

Brochure
Specifications

What Our Experts Think

Superior Security: The Alarm Lock DL1200ET offers advanced access control with a keypad exit lever lock for high-security environments.
Durable Construction: Made with a Grade 1 rating and Durondic Bronze finish, ensuring long-lasting performance and resistance to wear.
Narrow Stile Design: Ideal for installations on narrow doors, providing a sleek and space-saving solution.
Easy Access Control: User-friendly keypad ensures quick, keyless entry while maintaining tight security.
Reliable Exit Functionality: Designed to comply with safety standards, allowing easy exit in emergency situations.
Trusted Brand: Alarm Lock is renowned for providing high-quality, secure access control systems, perfect for both residential and commercial use.

Q&A

Q: What is the Alarm Lock Trilogy DL1200ET Narrow Stile Keypad Exit Lever Lock (10B)?
A: The Alarm Lock Trilogy DL1200ET is a Grade 1 narrow stile keypad exit lever lock featuring a durable Durondic Bronze (10B) finish. It provides secure, keyless entry and exit for commercial or high-security environments.

Q: What are the key features of the DL1200ET keypad exit lever lock?
A: This model includes a narrow stile design, keyless entry via a keypad, and high-grade durability (Grade 1), making it ideal for areas requiring frequent access. It also features advanced security with programmable user codes.

Q: How does the DL1200ET work?
A: The DL1200ET allows entry and exit via the keypad, eliminating the need for keys. It can be programmed with multiple user codes, making it a versatile and secure solution for businesses or facilities.

Q: What is the Durondic Bronze finish?
A: The Durondic Bronze (10B) finish is a high-quality, durable coating that resists wear and corrosion, ensuring the lock maintains its appearance and functionality in high-traffic areas.

Q: Is the DL1200ET lock easy to install?
A: Yes, the DL1200ET is designed for easy installation on narrow stile doors, offering a streamlined solution for secure access control. It’s ideal for facilities where space is limited but security is a priority.

Maintenance Tips

Clean the Keypad & Lever – Regularly wipe the keypad and lever with a soft, damp cloth to remove dust, dirt, and fingerprints. Avoid using harsh cleaning agents.
Inspect the Lock Mechanism – Check the locking mechanism periodically to ensure smooth operation. Lubricate the moving parts if necessary to prevent sticking or jamming.
Check Battery Life – Monitor the battery level and replace the batteries when low to avoid any interruptions in performance.
Test Exit Functionality – Regularly test the exit lever to ensure it functions correctly and releases the lock when activated.
Inspect Wiring & Connections – If the lock is connected to a system, check the wiring and connections for any signs of wear or damage.
Clean the Proximity Reader – If the lock includes a proximity reader, clean it with a dry microfiber cloth to maintain accurate reads.
