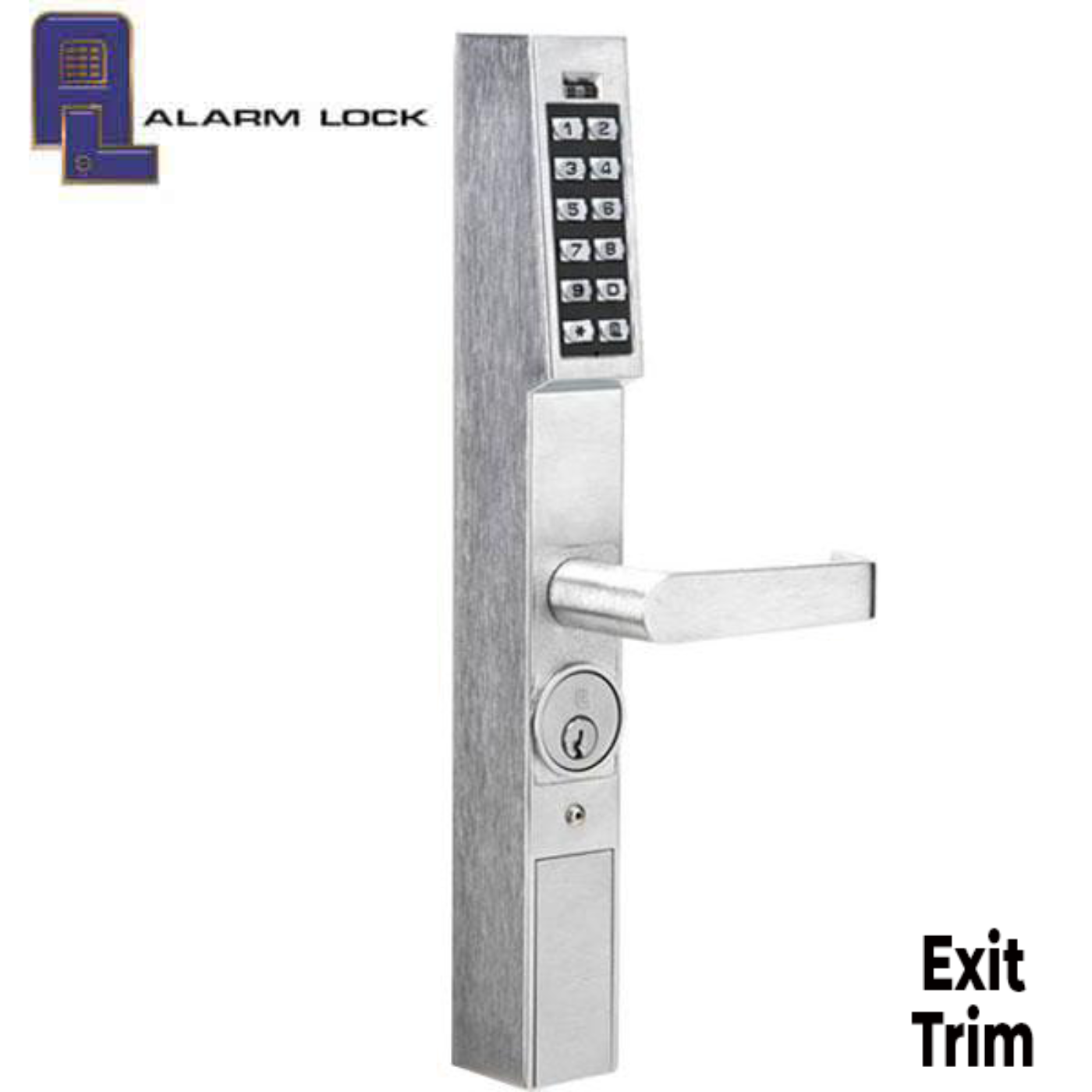

Alarm Lock Trilogy - DL1200ET - Narrow Stile Keypad Exit Lever Lock - 26D - Satin Chrome - Grade 1

Description

Alarm Lock Trilogy – DL1200ET – Narrow Stile Keypad Exit Lever Lock – 26D – Satin Chrome – Grade 1 – ALL-DL1200ET-26D

Trilogy Narrow Stile Keypad Exit Lever Lock models support Arrow, DCI, Von Duprin and Dorma panic exit bars. Get field-proven Trilogy® keyless access lock convenience anywhere there’s a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1200 series is a rugged entry lock of advanced design with several programmable features.

Specifications

LOCK FUNCTION	Narrow Stile Keypad Exit Lever Lock
DOOR THICKNESS	Only Stile thickness 1 ¾”
BACKSET	31/32”,1 1/8’ and 1-1/2”
HANDING	Non-handed; fully field-reversible
LEVER TRIM	Aluminum door retrofit Arrow, DCI, Von Duprin and Dorma panic exit bars
POWER	Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
CYLINDER	1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”)
PROGRAMMABLE	Yes
USER CODES	keypad supports 100 users, fingertip/keypad programmable
WEATHERPROOF	-31˚ to +151˚F (-35˚ to +66˚C)
FINISH	US26D Satin Chrome

Downloads

Brochure

What Our Experts Think

High-Security Access Control: The Alarm Lock DL1200ET offers a reliable keypad exit lever lock, providing keyless entry with enhanced security.
Durable & Stylish: Finished in satin chrome and built with Grade 1 materials, ensuring superior strength and a sleek, professional appearance.
Narrow Stile Design: Ideal for narrow doors, offering a space-efficient solution without compromising security or functionality.
Emergency Exit Compliant: Designed to meet safety codes, allowing safe and quick exit in emergency situations.
Easy-to-Use Keypad: User-friendly keypad for fast, secure entry with programmable codes.
Trusted Brand: Alarm Lock is a leading provider of high-quality access control systems, known for reliability and performance.

Q&A

Q: What is the Alarm Lock Trilogy DL1200ET Narrow Stile Keypad Exit Lever Lock (ALL-DL1200ET-26D)?
A: The Alarm Lock Trilogy DL1200ET (ALL-DL1200ET-26D) is a Grade 1 narrow stile keypad exit lever lock featuring a sleek satin chrome (26D) finish. It provides secure, keyless entry and exit control for commercial or high-traffic areas.

Q: What are the key features of the DL1200ET lock?
A: The DL1200ET includes a programmable keypad for keyless entry and exit, a Grade 1 security rating for superior durability, a space-efficient narrow stile design, and a durable satin chrome (26D) finish that resists wear and corrosion.

Q: How does the DL1200ET work?
A: The DL1200ET operates via a keypad, allowing users to input programmed codes for entry. It’s a secure, keyless solution for controlling access, ideal for commercial buildings or areas with high traffic and security requirements.

Q: What is the satin chrome (26D) finish?
A: The satin chrome (26D) finish is a highly durable and aesthetically appealing coating that provides a sleek, modern look. It resists scratches and corrosion, maintaining a professional appearance in busy environments.

Maintenance Tips

Clean the Keypad & Lever – Use a soft, damp cloth to wipe down the keypad and lever regularly, removing dust, fingerprints, and grime. Avoid using harsh cleaners or abrasive materials.
Inspect the Locking Mechanism – Test the locking mechanism to ensure smooth operation. Lubricate the moving parts periodically to prevent jamming or sticking.
Check Battery Levels – Regularly check battery status and replace them when low to prevent power failure.
Test the Exit Function – Ensure that the exit lever releases the lock properly each time it is used.
Inspect Wiring & Connections – If connected to an external system, check wiring for wear or damage and ensure secure connections.
Clean the Proximity Reader (if applicable) – Use a microfiber cloth to clean the proximity reader to ensure accurate scans and smooth operation.
