Description
Eco-Worthy 240W 390W 12V RV Complete Kit with DC-DC MPPT On-Board Battery Charger

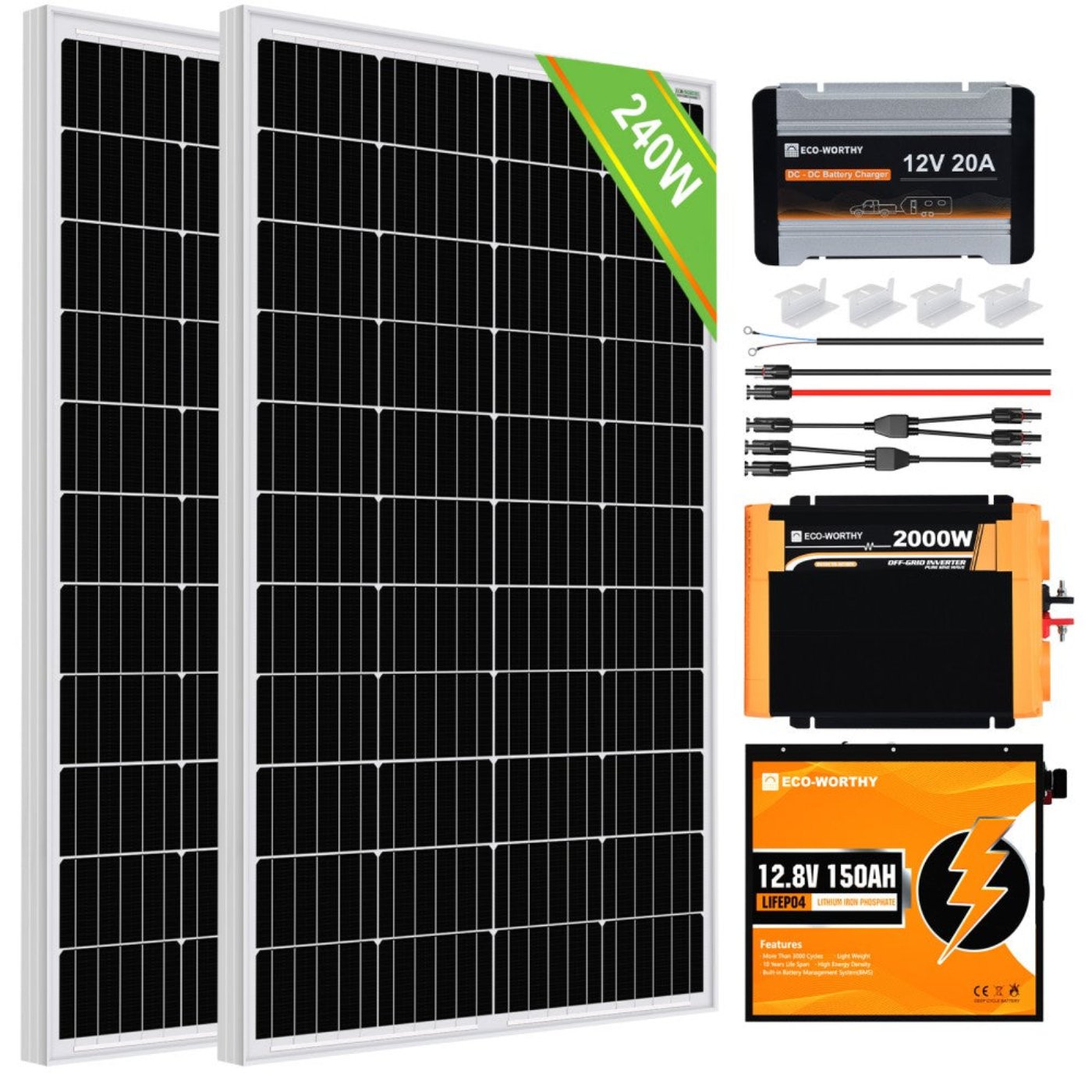

Package Includes
240W (2x120W) 12V Solar Kit
2x 120W Mono Solar Panel
1x 20A MPPT DC to DC Charger
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 2000W 12V-220V Pure Sine Wave Inverter
1x 150Ah 12V LiFePO4 Lithium Battery
390W (2x195W) 12V Solar Kit
2x 195W Mono Solar Panel
1x 40A MPPT DC to DC Charger
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector
1x 1.5M Tray Cable
1x 2000W 12V-220V Pure Sine Wave Inverter
2x 150Ah 12V LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable
Specifications
120W Monocrystalline Solar Panel
| Rated Power: 120W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 18V | Open Circuit Voltage(Voc): 21.6V |
| Short circuit current: 7.72A | Maximum current: 6.67A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector | Size: 37.8′ x 26.3′ x 1.4′ |
| Weight: 16.5 lbs(7.5 kg) |
195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 24.5 V |
| Short circuit current: 10.14A | Maximum current: 9.65A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range:－40℃～ +85℃ |
| Frame: Aluminum alloy frame | Length of extension cable: 90cm（2.95ft） |
| Size of extension cable: 4mm²（11AWG）/MC4 Connector | Weight: 21.47 lbs(9.74 kg) |
| Size: 58.26×26.3×1.38in (1480*668*35mm) |
20A DC to DC Charger
| Type: Multi Stage | Input: DC battery: 12.4-16.0V; Solar input: 16-25V |
| Output / Charging Voltage: 14.4-15.4V | Output Current: DC Output: 20A; Solar Output: 20A |
| Minimum Start Voltage: 2.0V-For Battery Being Charged | Soft Start: Yes |
| Soft Charge Current: 20A |
40A DC to DC Charger
| Type: Multi Stage | Input: DC battery: 12.4-16.0V; Solar input: 16-25V |
| Output / Charging Voltage: 14.4-15.4V | Output Current: DC Output: 40A; Solar Output: 40A |
| Minimum Start Voltage: 2.0V-For Battery Being Charged | Soft Start: Yes |
| Soft Charge Current: 40A |
2000W 12V Off Grid Inverter
| Output Continuous Watts(W): 2000W+18W USB | Surge Capacity (PeakPower): 4000W |
| Rated Input DC (V,A): 12V Battery, 200A | Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 60Hz±1 | Rated Output AC (V,A): 115Vac±10%, 18A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1.2A |
| Optimum Efficiency: 85% min | Fuse (A): 40A*6 |
| FuseType: Internal Blade | Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
| THD: <4.5% | Dimensions (L*W*H): 16.8*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |
150Ah LiFePO4 Lithium Battery
| Battery Capacity: 150ah | Battery Power: 1920Wh |
| Battery Voltage: 12.8V | Maximum Charge/ Discharge Current: 80A/100A |
| Charge Temperature Range: 0-55℃ | Disharge Temperature Range: ﹣20－55℃ |
| Maximum Charge Voltage: 14.5V | Discharge Cut-Off Voltage: 10V |
| Screw size: M8 | Battery Size: 330*175*215mm（13.0*6.9*8.5inch） |
| Weight: 42.9lbs |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
