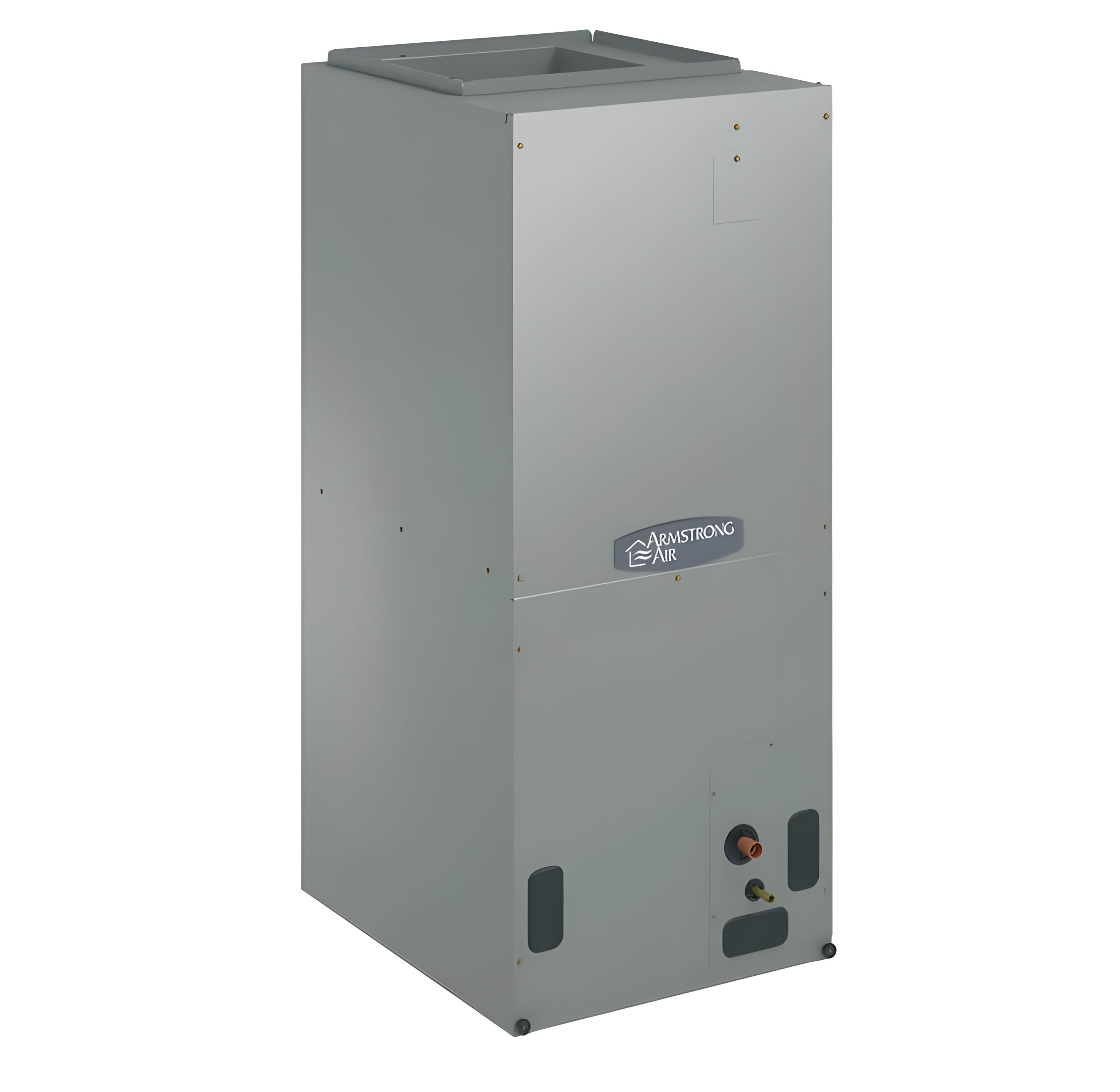

Armstrong Air BCE5C18MA1P-50 1.5 Ton Vertical/Horizontal PSC Air Handling Unit

Description

Armstrong Air BCE5C18MA1P-50 1.5 Ton Vertical/Horizontal PSC Air Handling Unit – BCE5C18MA1P-50

The Armstrong Air BCE5C18MA1P-50 is a 1.5 ton vertical and horizontal PSC air handling unit designed for residential applications. This unit measures eighteen and one-half inches in width, forty-three and one-half inches in height, and twenty-two inches in depth. Weighing one hundred nine pounds, it offers a robust solution for air handling needs This air handling unit delivers consistent airflow and is suitable for multiple types of air conditioning systems..

Features

Versatile installation as vertical or horizontal unit
Operates efficiently for various residential HVAC systems
Built for durability and reliability in performance

Specifications

Model Number (MPN)	BCE5C18MA1P-50
Tons	1.5
BTUH	18,000
Voltage	208-230/1/60
MBH	18
Weight	109 lbs
Dimensions	18.5″ W x 43.5″ H x 22″ D
UPC Number	662552000000 (scientific notation converted)
Major Category	HVAC Equipment
Sub Category	Residential
Product Type	Air Handling Units

What our Expect Think

Flexible Installation: Multi-position design supports both vertical and horizontal setups.
Reliable Performance: Provides consistent airflow for efficient heating and cooling.
Durable & Long-Lasting: Built with high-quality materials to ensure extended service life.
Quiet Operation: Reduces noise while maintaining powerful air circulation.
Seamless Compatibility: Designed to integrate smoothly with Armstrong Air systems.

Q&A

Q: What is the Armstrong Air BCE5C18MA1P-50 Air Handler?
A: The BCE5C18MA1P-50 is a 1.5-ton air handling unit with a PSC motor, designed for efficient heating and cooling in residential and light commercial HVAC systems.

Q: Can this air handler be installed in different orientations?
A: Yes, it supports both vertical and horizontal installations, making it adaptable to various HVAC configurations.

Q: Is this unit energy efficient?
A: While it uses a PSC motor, which is less efficient than an ECM motor, it still provides reliable performance for cost-effective heating and cooling.

Q: Is it compatible with air conditioners and heat pumps?
A: Yes, this air handler is designed to work seamlessly with Armstrong Air AC units and heat pumps for year-round comfort.

Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper setup, efficiency, and compliance with warranty requirements.

Maintenance Tips

Change Air Filters: Replace or clean filters every 1-3 months to ensure efficient airflow and system performance.
Clean Coils: Inspect and clean evaporator and condenser coils annually to maintain heat exchange efficiency.
Clear Drain Lines: Regularly check and clear condensate drain lines to prevent clogs and water damage.
Inspect the Blower: Check the blower motor and fan for debris and wear, and clean or replace as necessary.
Tighten Electrical Connections: Periodically inspect and tighten electrical connections for safety and optimal operation.
Check Ductwork: Inspect ducts for leaks or obstructions that could reduce airflow and energy efficiency.
Professional Inspection: Have a technician perform an annual inspection to ensure everything is working properly and efficiently.

Additional information

Weight	109.0 kg
