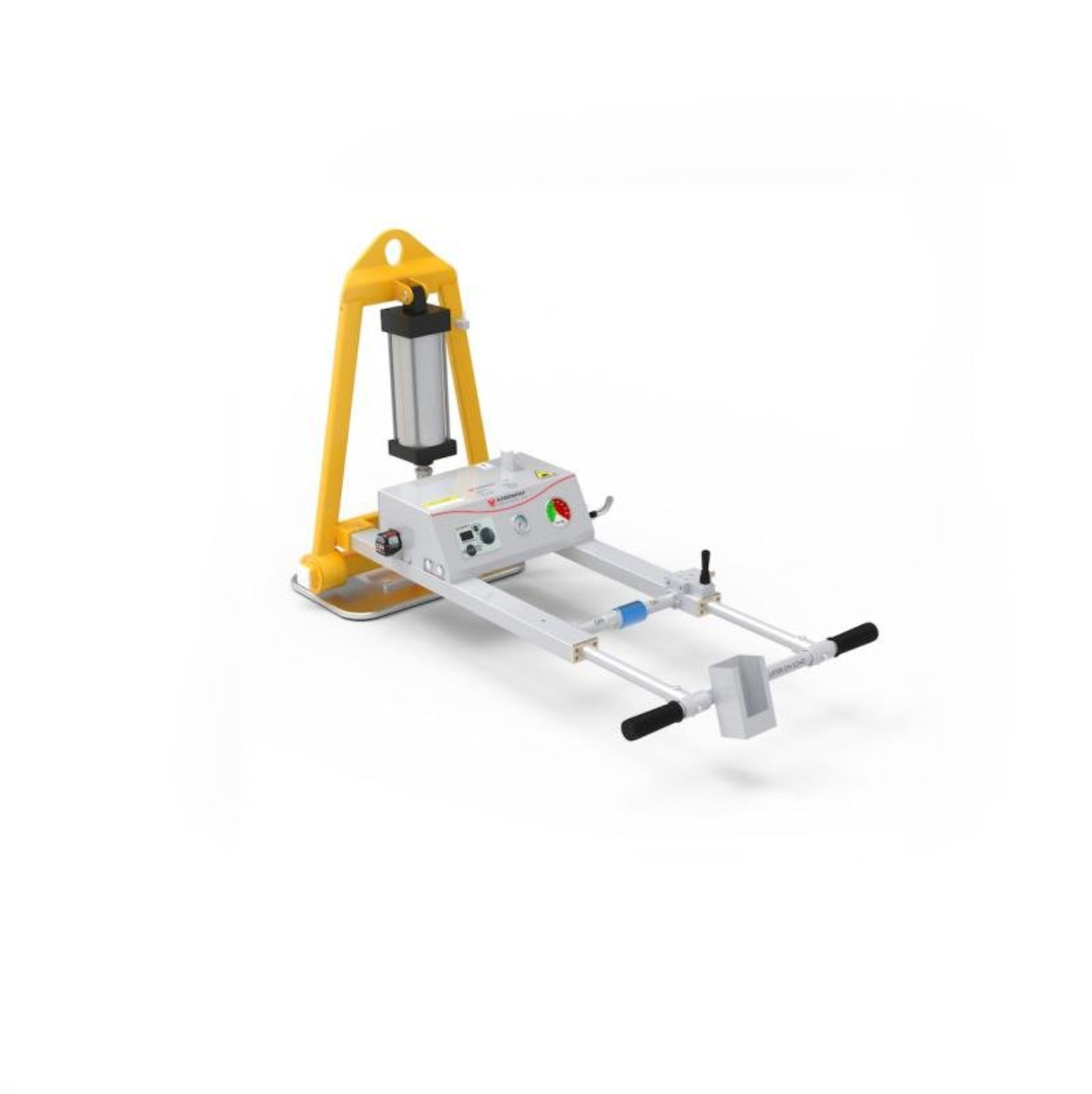

Aardwolf Vacuum Lifter AVLP1 Pro 250kg - AVLP1-250P
General

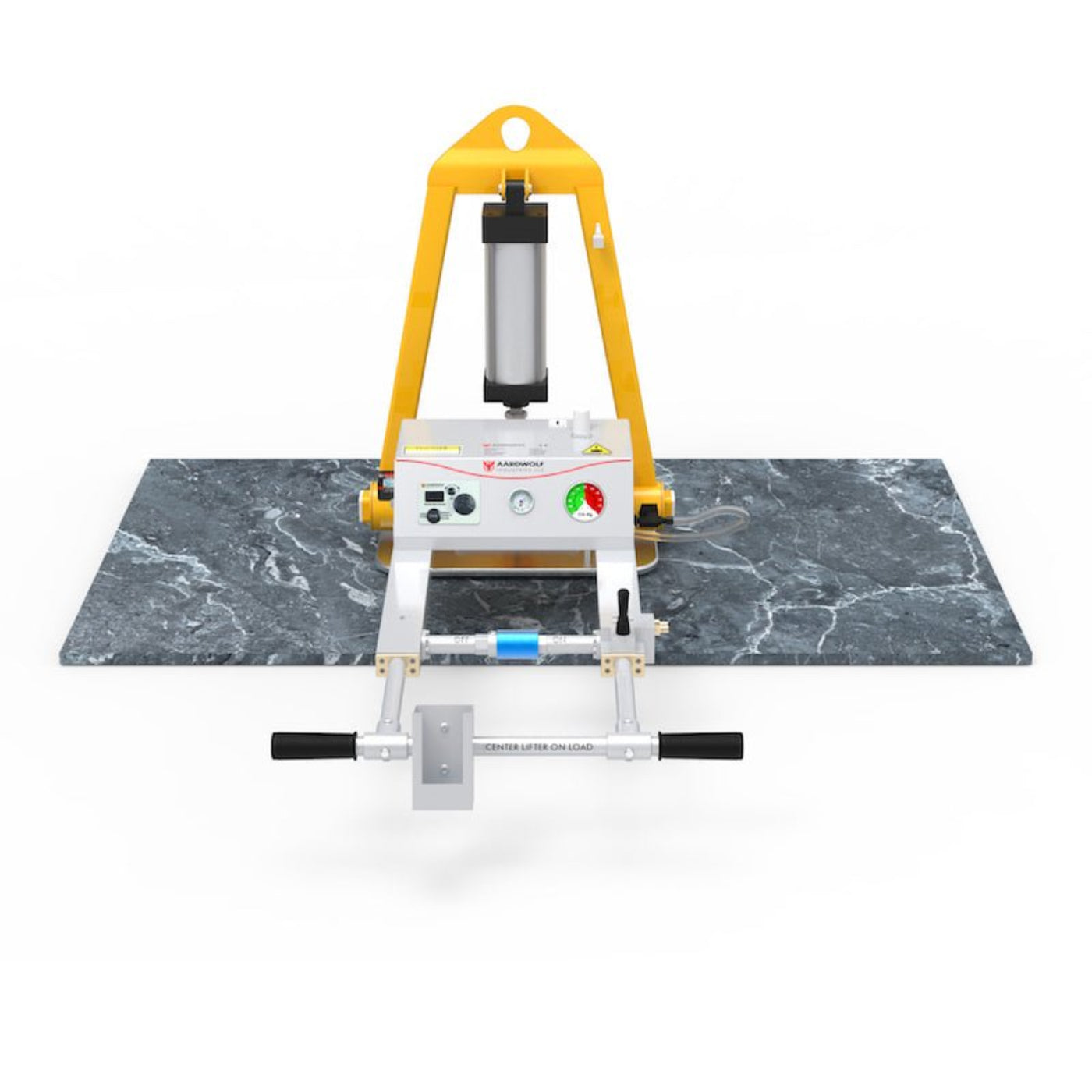

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. It features a rugged construction with the ability to lift and tilt the stone. It is powered by compressed air.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.
- Vacuum tank, ensuring safe pickup in case of a sudden power break to the vacuum pump.
- A rechargeable 12V Li-on battery powers the audio and visual alarm system.
- Slide valve with ON/OFF position for attaching and releasing material.
Specifications
|
Metric
|
Imperial
(inch-lb) |
| Number of pad |
1 |
- |
| Aluminum pad sizes |
500x300 mm |
19.7"x11.8" |
| Working load limit |
Vertical:125 kg
Horizontal:250 kg |
276 lb
551 lb |
| Net weight |
48 kg |
106 lb |
| Gross weight |
78 kg |
172 lb |
| Packaging dimensions |
L.1070xW.390xH.980 mm |
42.1"x15.4"x38.6" |
What our Experts Think
-
Pneumatic Tilting: Allows vertical-horizontal tilting from 0° to 90° via a pneumatic piston.
-
Vacuum Tank: Ensures safe pickup in case of a sudden power break to the vacuum pump.
-
Alarm System: Powered by a rechargeable 12V Li-ion battery, providing audio and visual alerts.
-
Slide Valve: Features an ON/OFF position for attaching and releasing material.
Q&A
Q: What is the Aardwolf Vacuum Lifter AVLP1 Pro 250kg - AVLP1-250P?
A: The AVLP1-250P is a high-performance vacuum lifter designed for safely lifting and handling materials like glass, stone, and metal with a 250 kg (551 lbs) capacity.
Q: What is the lifting capacity of the AVLP1-250P?
A: The AVLP1-250P can lift up to 250 kg, making it ideal for heavy-duty tasks in construction, stoneworking, and industrial applications.
Q: How does the vacuum lifting system work?
A: The lifter uses a powerful vacuum system to securely grip and lift non-porous materials, minimizing manual handling and reducing the risk of material damage.
Q: What materials can it lift?
A: Perfect for lifting glass panels, granite slabs, metal sheets, and other smooth, non-porous materials.
Q: What are the key features of the AVLP1-250P?
A: Easy-to-use vacuum controls, durable construction, non-slip suction pads, and ergonomic design for maximum safety and precision.
Q: Why choose the Aardwolf AVLP1-250P?
A: It enhances material handling efficiency, boosts productivity, and ensures safe, effortless lifting of heavy materials, all while minimizing worker fatigue and risk.
Maintenance Tips
Daily Maintenance:
-
Visual Inspection: Examine the vacuum pad (500 x 300 mm) for wear, cracks, or contaminants. Ensure the vacuum seal is clean and undamaged.
-
System Checks: Verify that the vacuum tank maintains suction and that the pneumatic tilting mechanism operates smoothly.
Weekly Maintenance:
-
Battery Maintenance: Check the 12V Li-ion battery powering the audio-visual alarm system. Ensure it is charged and functioning correctly
-
Air Supply Inspection: Inspect compressed air lines for leaks or damage. Confirm that the air pressure is maintained at 5 bar (72 psi) with an air consumption of 180 l/min.
