Aardwolf Transport Frame Mod TF3050H - TF3050H

Aardwolf Transport Frame Mod TF3050H - TF3050H

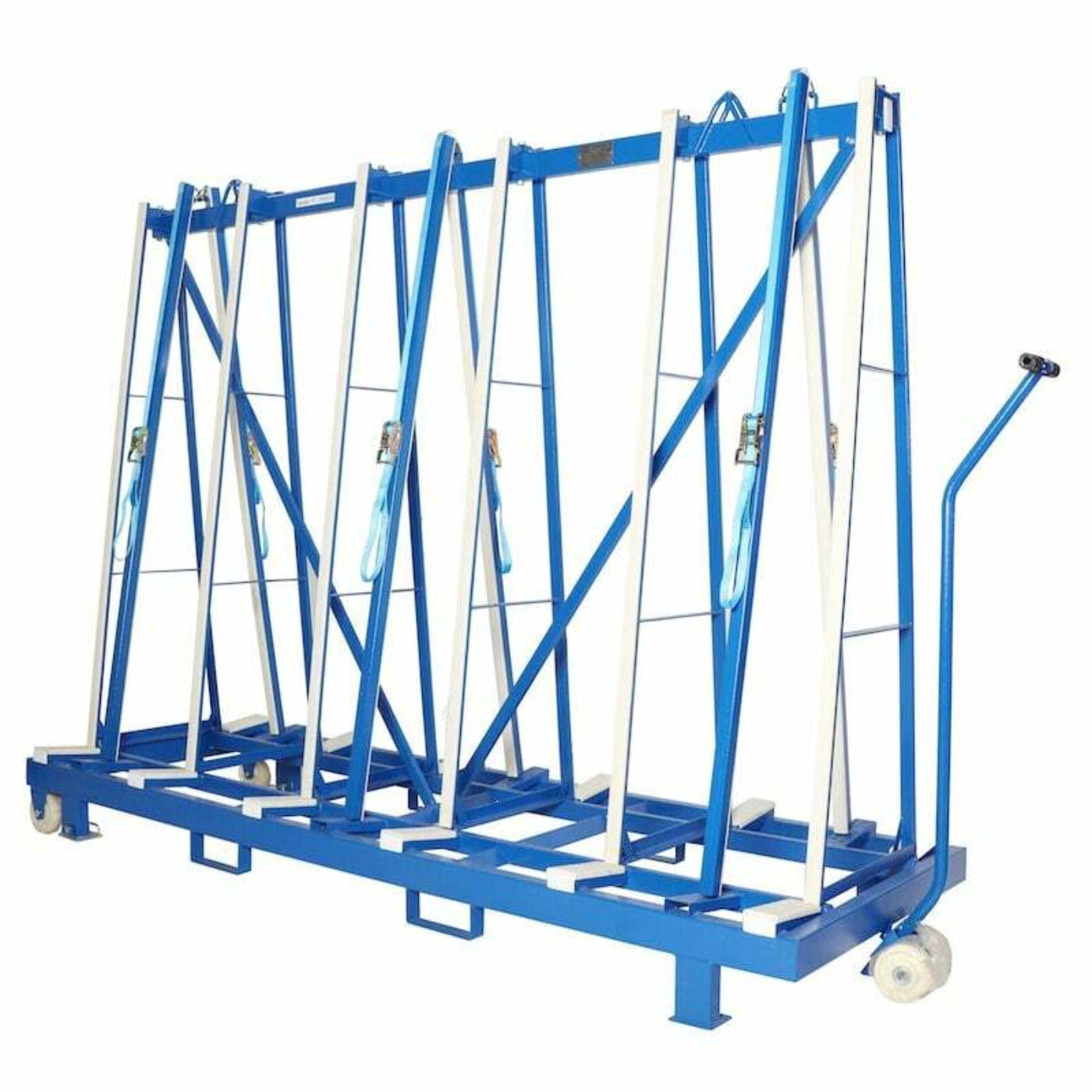

Transport Frame Mod TF3050H designed to transport large slabs such as granite, marble, engineered stone, glass, etc

General

Designed to transport large slabs such as granite, marble, engineered stone, glass, etc. The Transport Frames Mod TF3050H has been designed so that large slabs can be loaded onto or off the frames while the frame is on the ground. The frame together with its load can then be placed on a truck by forklift, illuminating the need for workers to place themselves in danger while handling slabs while standing on the truck. This also has the advantage of quickly loading or off-loading trucks, thereby increasing transport efficiency.

Features

• Sturdy structure, designed to eliminate any risk of the slab tipping over.

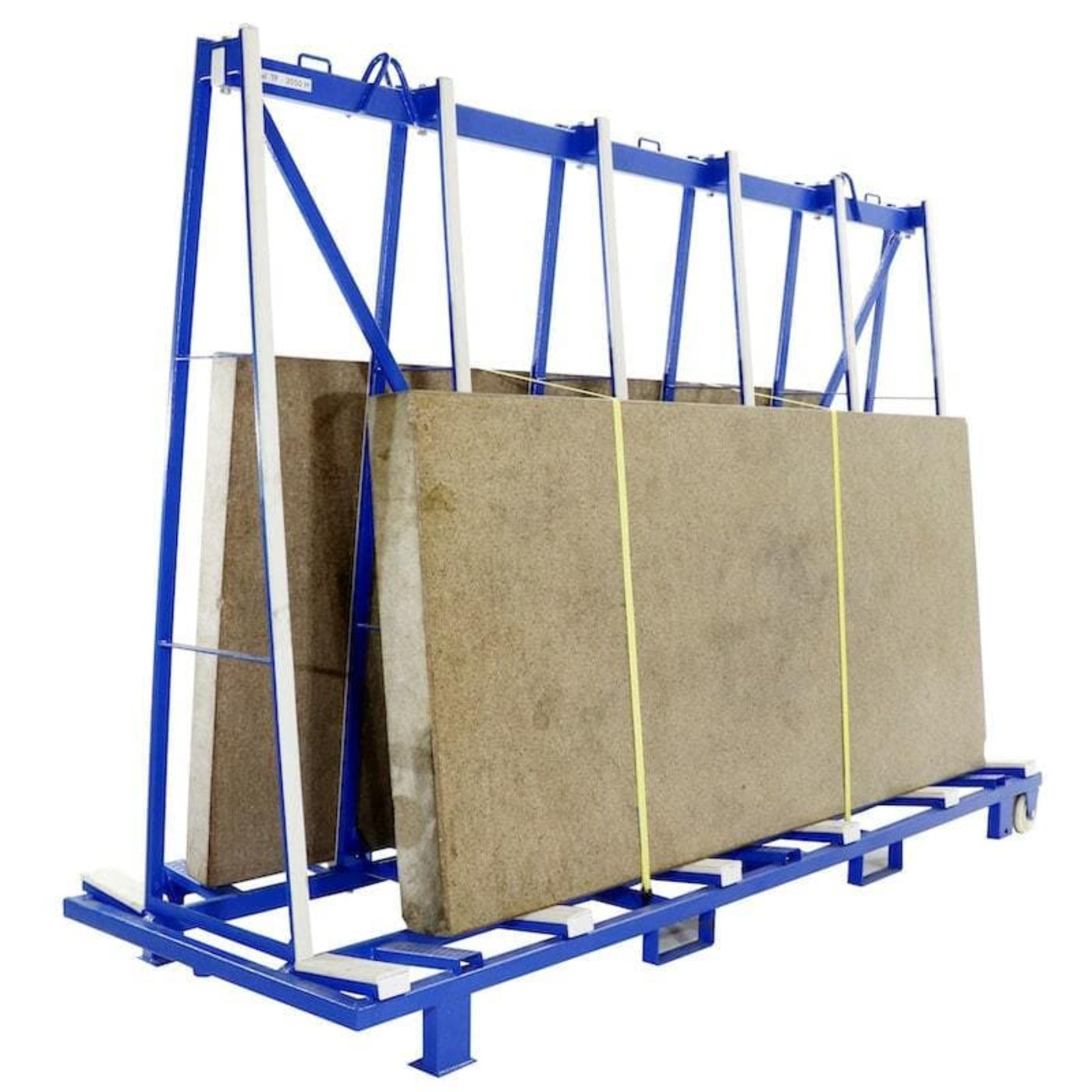

• Slabs are placed on special rubber profiles and secured with 6 locking bars together with ratchet straps to retain materials.
• The frame features 2 hooking points to be picked up by an overhead crane.
• Reinforced with two oblique bars for the firm and secure construction.
• Built-in forklift receivers on two long sides for lifting by forklift.
• The base and uprights come with replaceable white rubber to prevent marking and scratches.

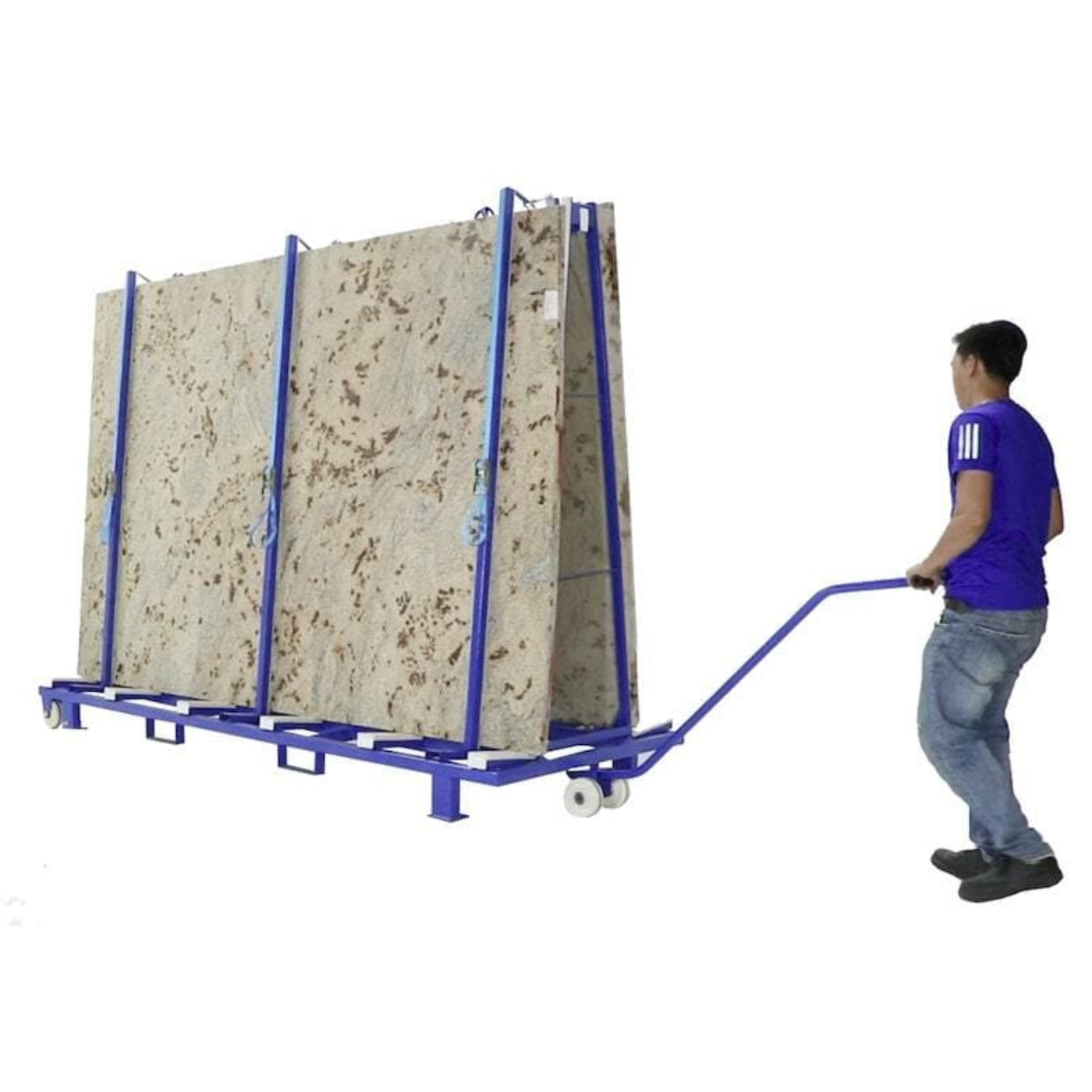

• Counter-lever handle with wheels, allow the frame to be moved manually even when loaded.
• Counter-lever handle is used to jack uploaded frame and lower support legs when wheels are not required.
• Powder-coated finish, which ensures an aesthetic feature as well as the durability of the product.

Specifications

What our Experts Think

• Heavy-Duty Load Capacity:
  Supports up to 2,500 kg (5,511 lbs), making it ideal for transporting large stone slabs, glass, and other heavy materials.

• Efficient Loading Design:
  The frame allows slabs to be loaded or unloaded while on the ground, improving safety and efficiency during material handling.

• Secure Material Retention:
  Features six locking bars and ratchet straps with specialized rubber profiles to hold materials securely in place during transport.

• Versatile Handling Options:
  Equipped with forklift receivers and overhead crane lifting points, providing flexibility for various handling methods.

• Protective Construction:
  The base and uprights are lined with replaceable white rubber, preventing scratches and marking on valuable materials.

• Manual Mobility:
  Includes a counter-lever handle with wheels, making it easy to move the frame even when loaded.

• Durable Finish:
  Powder-coated for enhanced durability, with optional hot-dip galvanization for additional protection.

• Compact Dimensions:

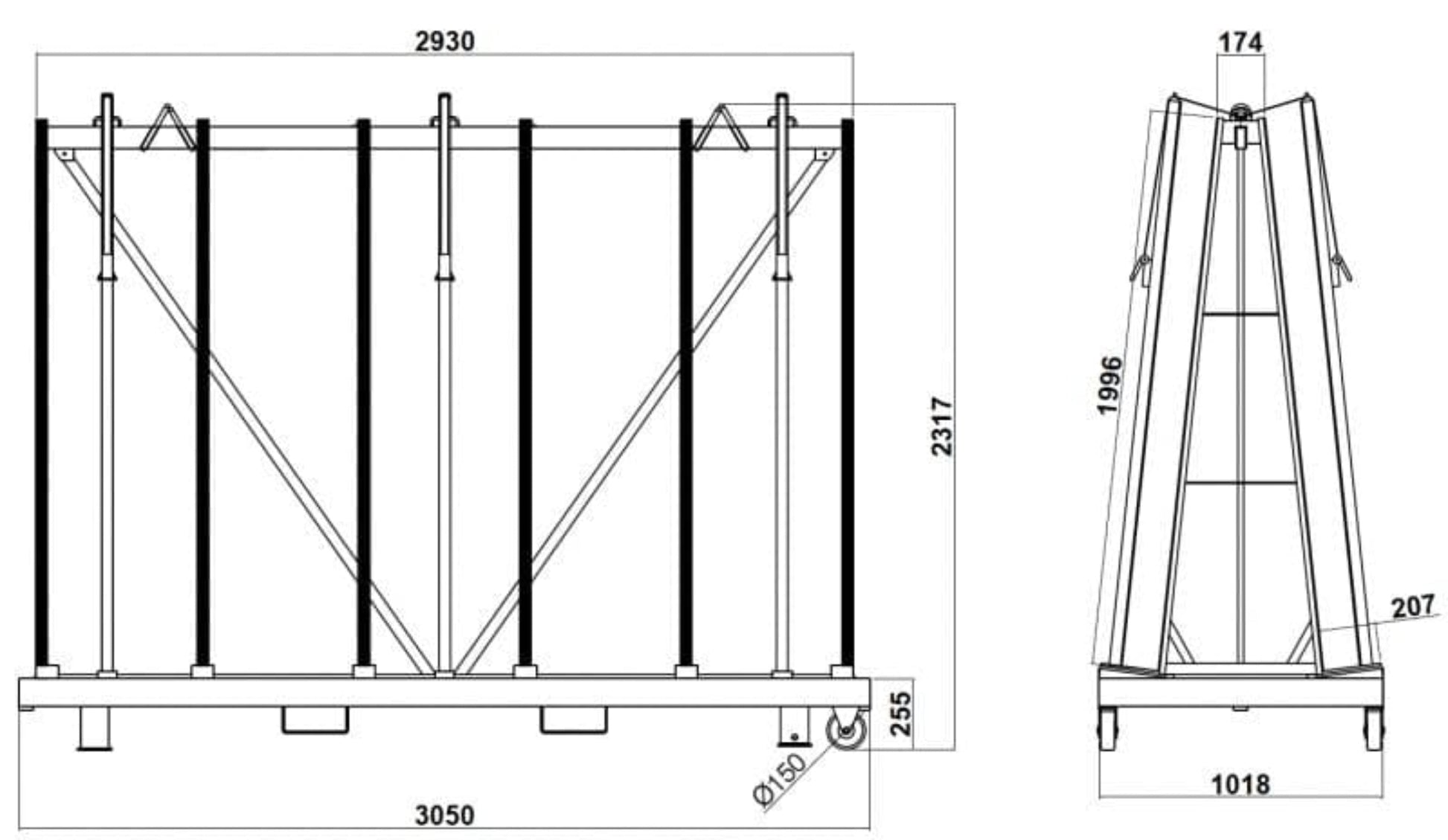

  Measures 3050 mm (120") in length and 2317 mm (91.2") in height, with a net weight of 260 kg (573 lbs).

Q&A

Q: What is the Aardwolf Transport Frame Mod TF3050H?
A: The Aardwolf Transport Frame Mod TF3050H is a durable, heavy-duty frame designed for safely transporting heavy materials and equipment. It is ideal for construction and warehouse settings.

Q: What are the key features of the TF3050H?
A: The TF3050H features a robust design, high weight capacity, and easy-to-use functionality, ensuring safe transport and handling of large or heavy loads.

Q: Who can benefit from using the TF3050H?
A: Construction workers, warehouse operators, and logistics professionals looking for an efficient, reliable solution for transporting heavy materials will benefit from the TF3050H.

Q: Why should I choose the Aardwolf Transport Frame Mod TF3050H?
A: Choose the TF3050H for its superior build quality, excellent weight-bearing capabilities, and enhanced safety, ensuring your operations run smoothly and efficiently.

Q: Is the TF3050H easy to assemble?
A: Yes, the TF3050H is designed for quick and straightforward assembly, allowing you to get to work faster.

Maintenance Tips

1. Regular Cleaning

• After each use, clean the frame to remove dust, debris, and any material residues.

• Use a soft brush or cloth to clean the surfaces.

• Wipe all parts dry to prevent moisture buildup.

2. Structural Inspections

• Periodically inspect the frame for signs of wear or damage.

• Check for rust, bent components, or any structural issues.

• Address any issues promptly to maintain safety and functionality.

3. Locking Bars and Ratchet Straps

• Regularly check the locking bars and ratchet straps for wear or damage.

• Replace any damaged components to ensure secure transportation of slabs.
