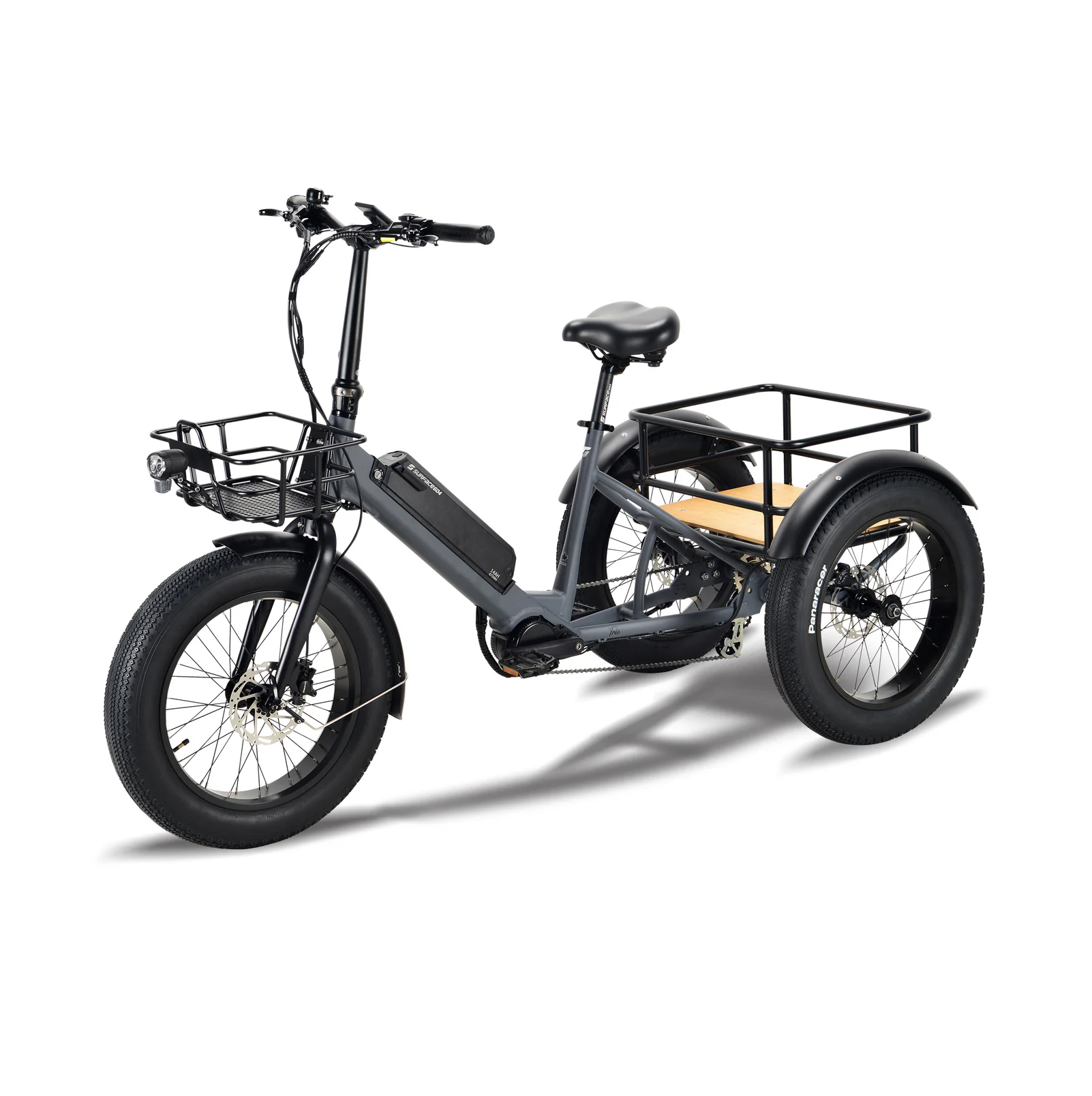

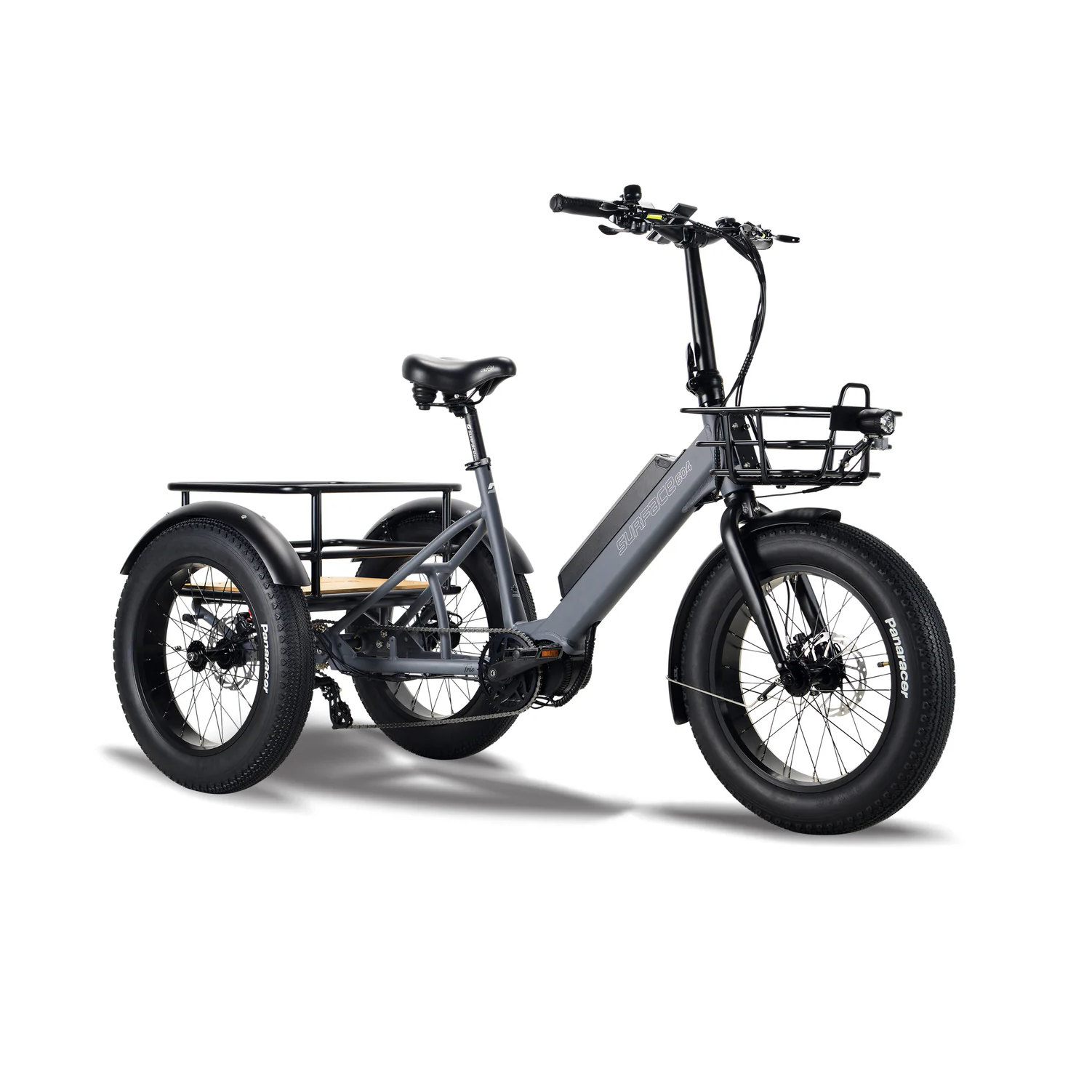

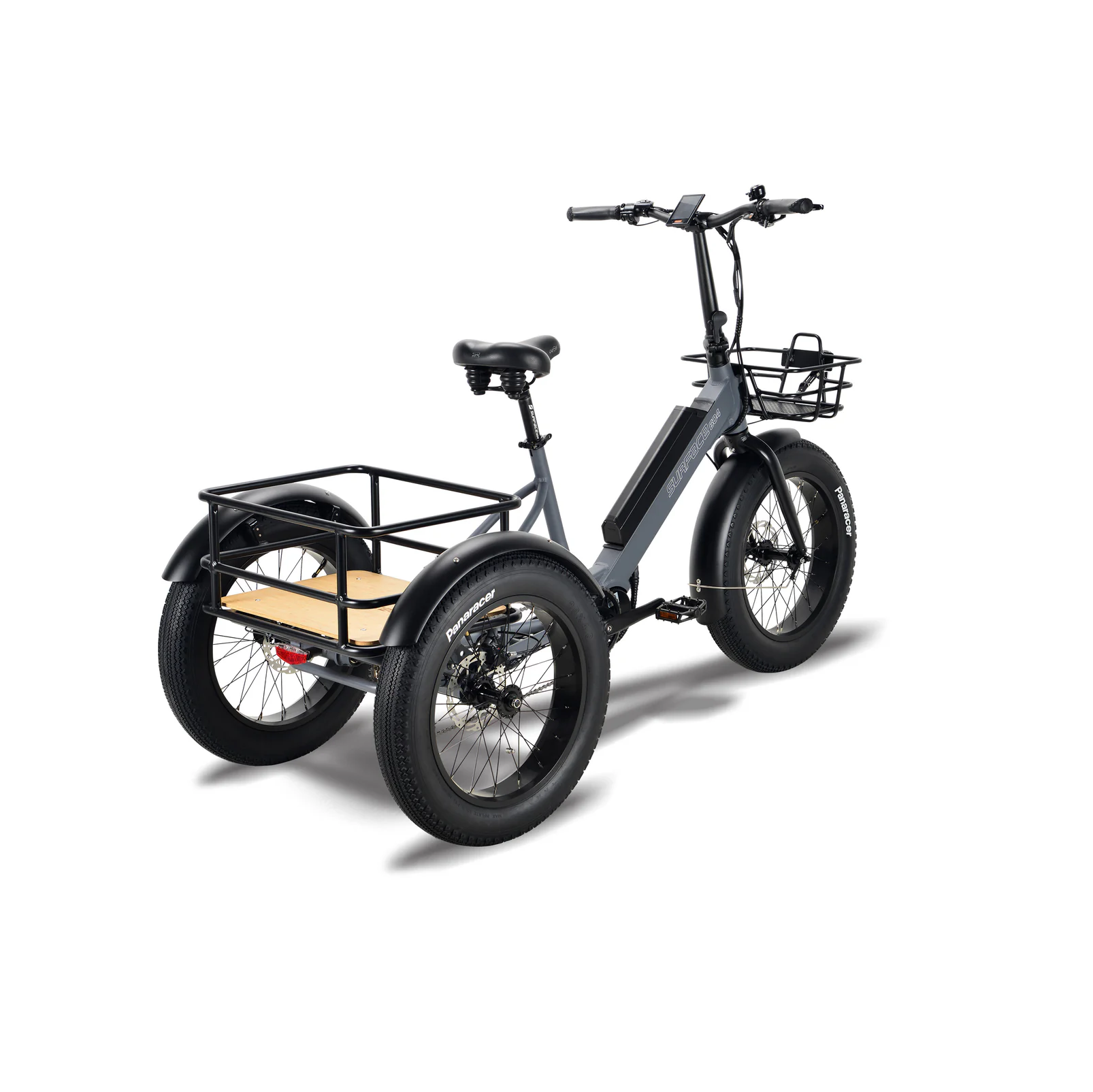

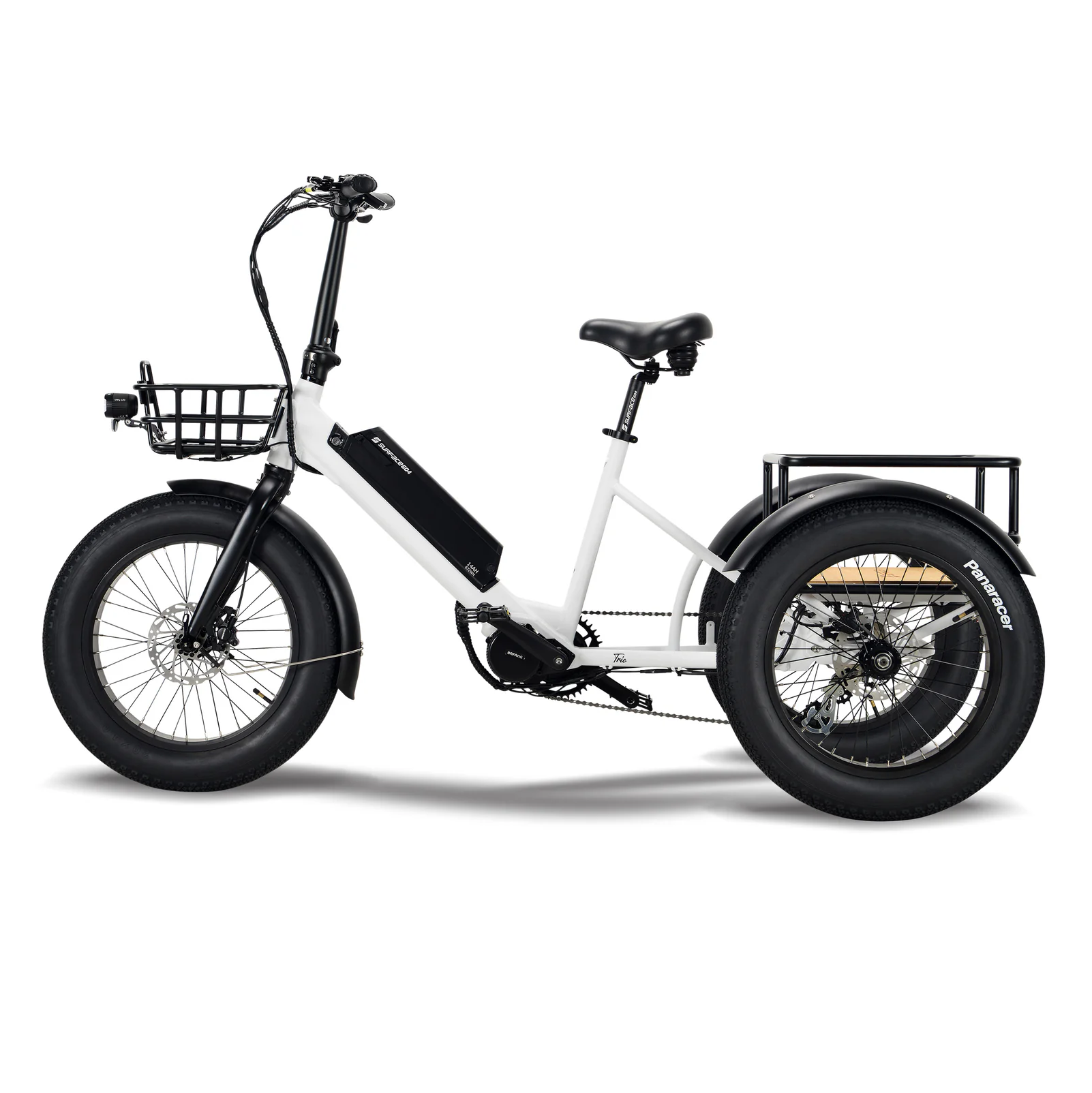

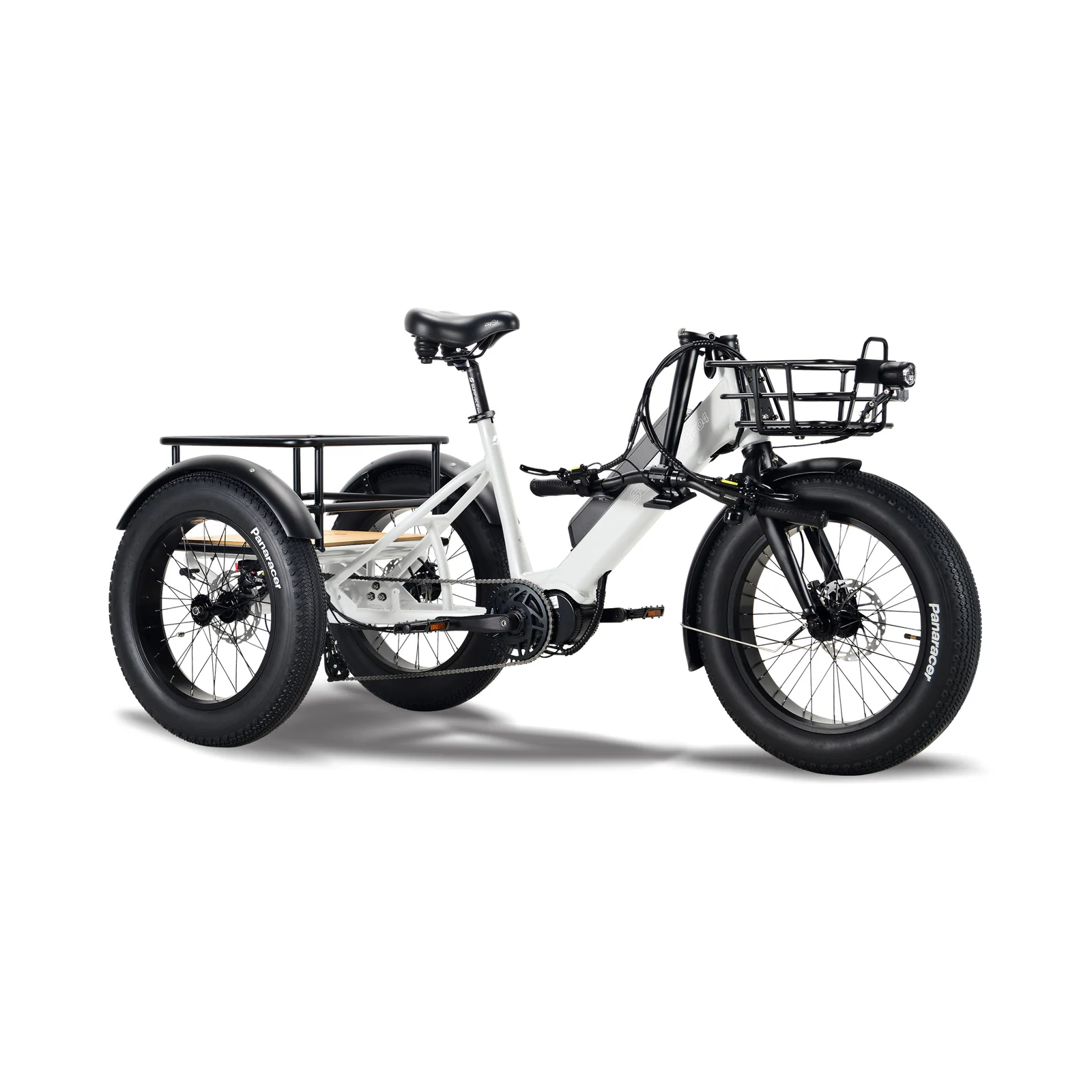

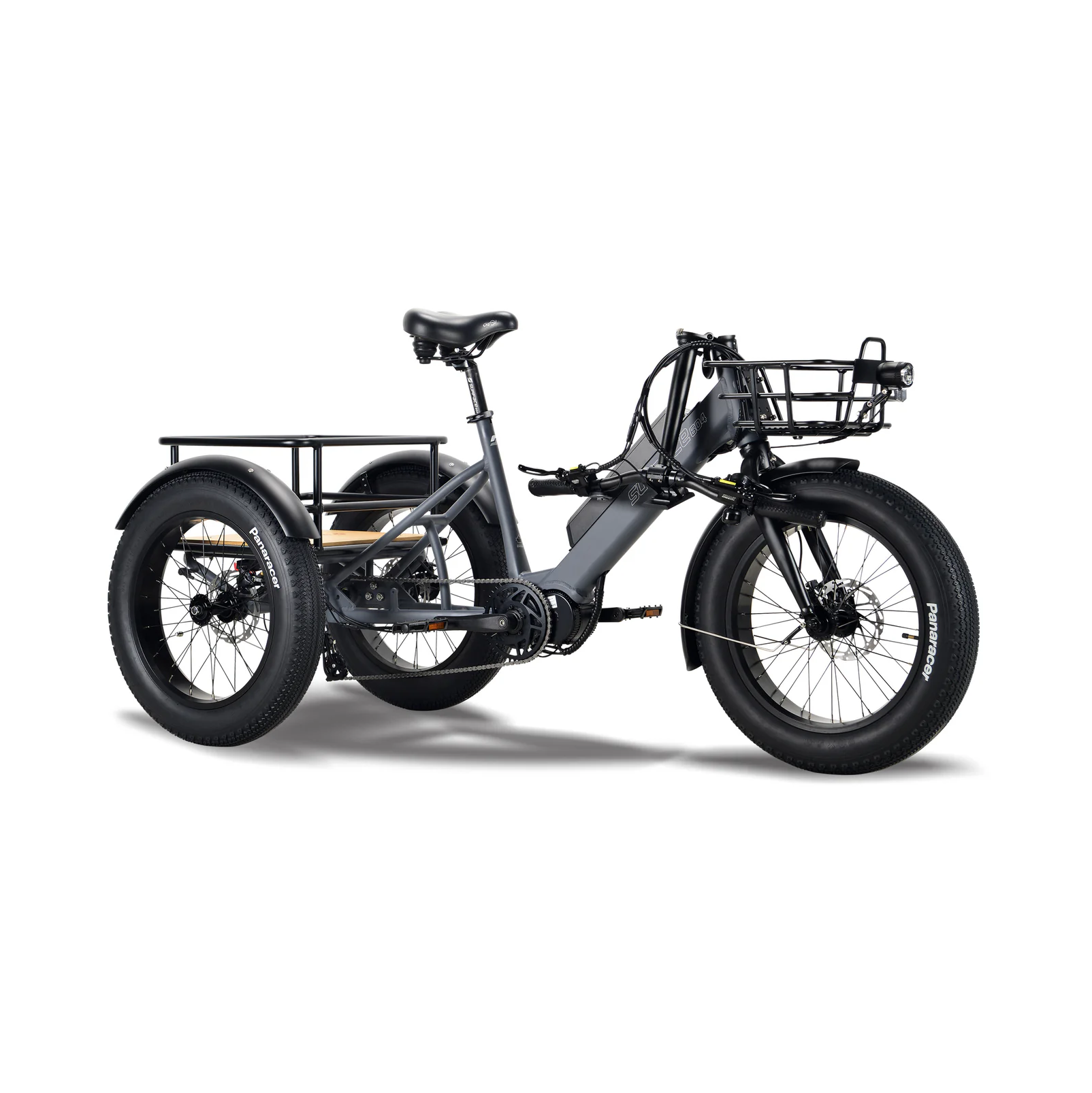

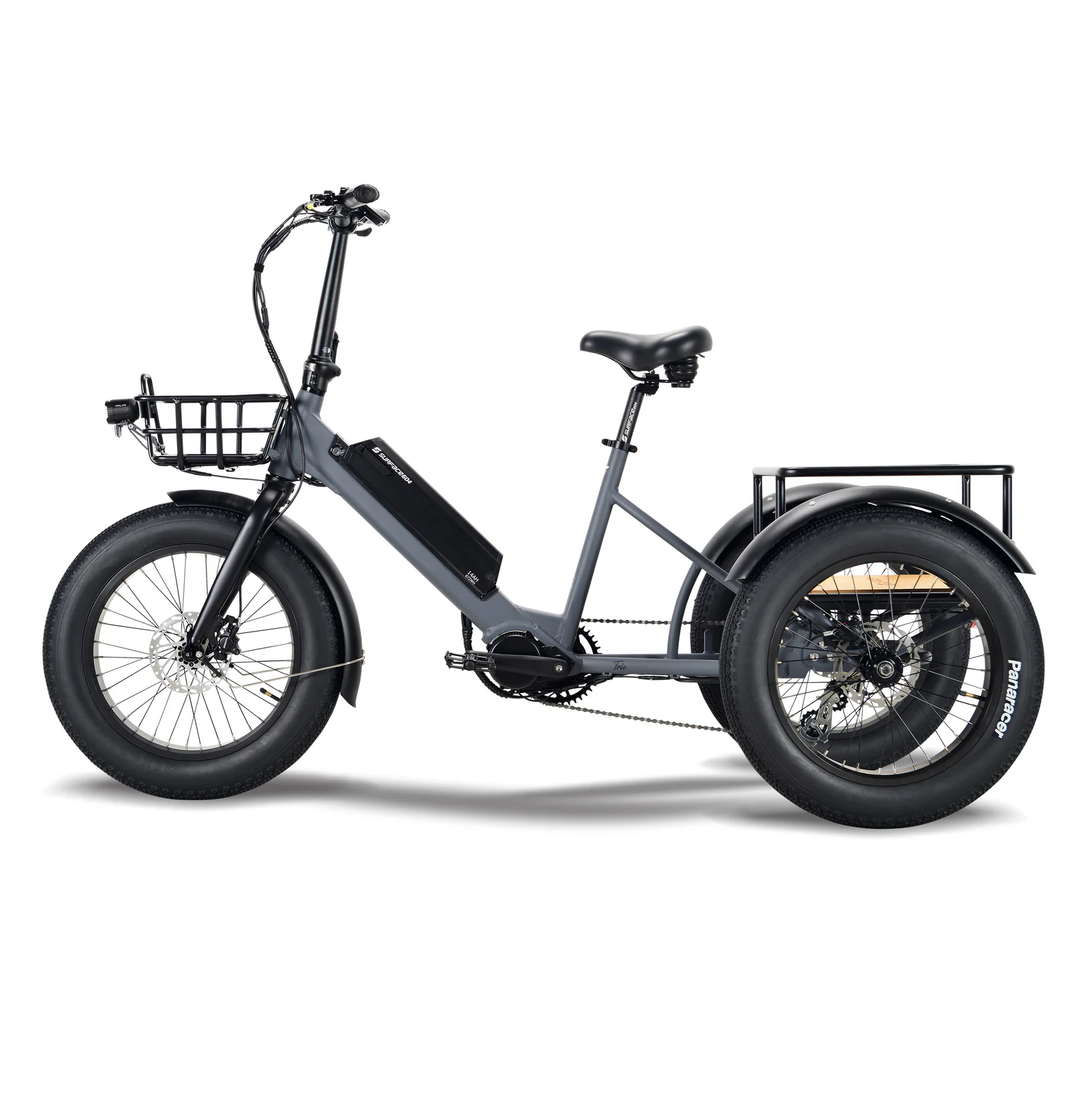

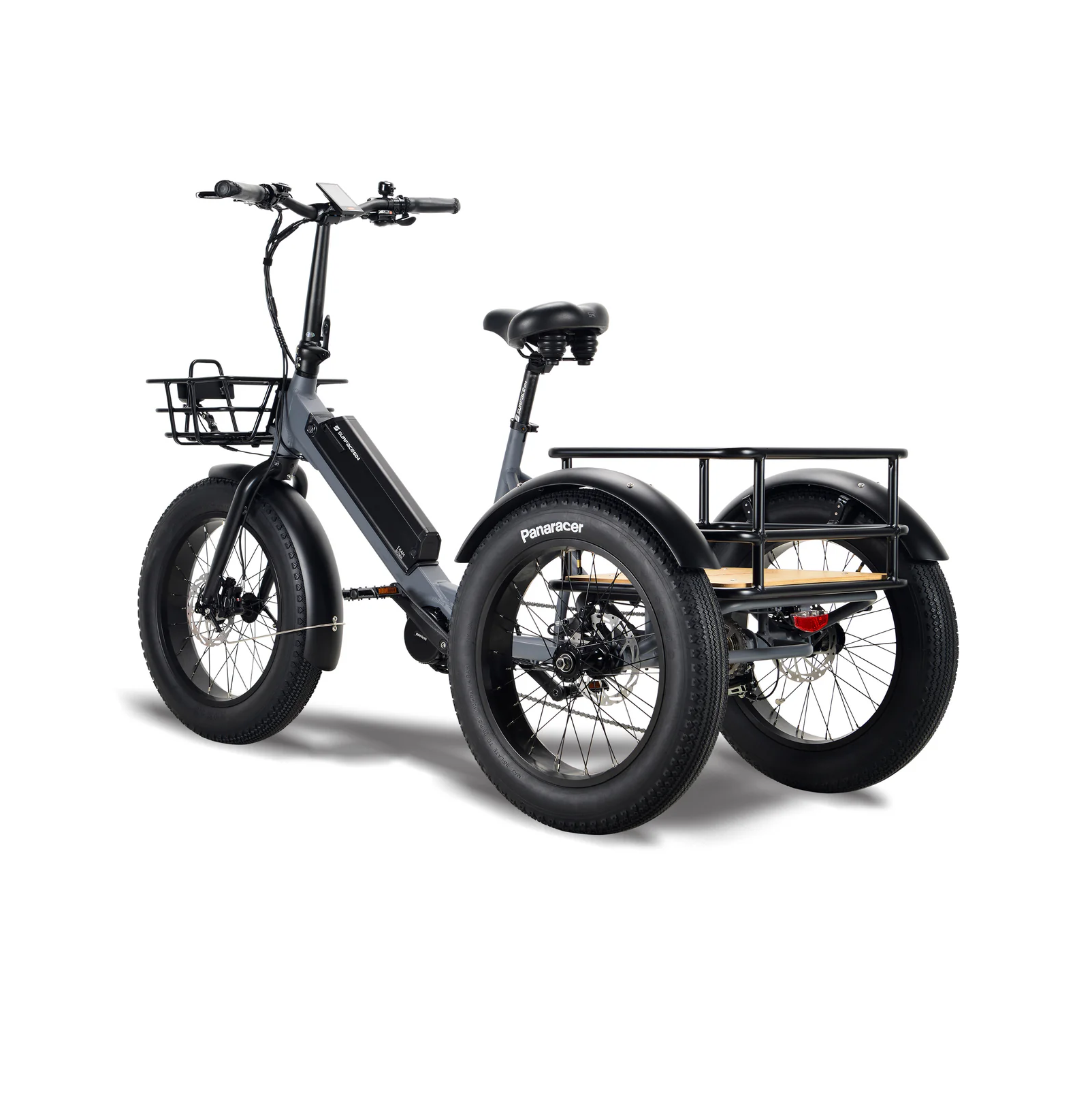

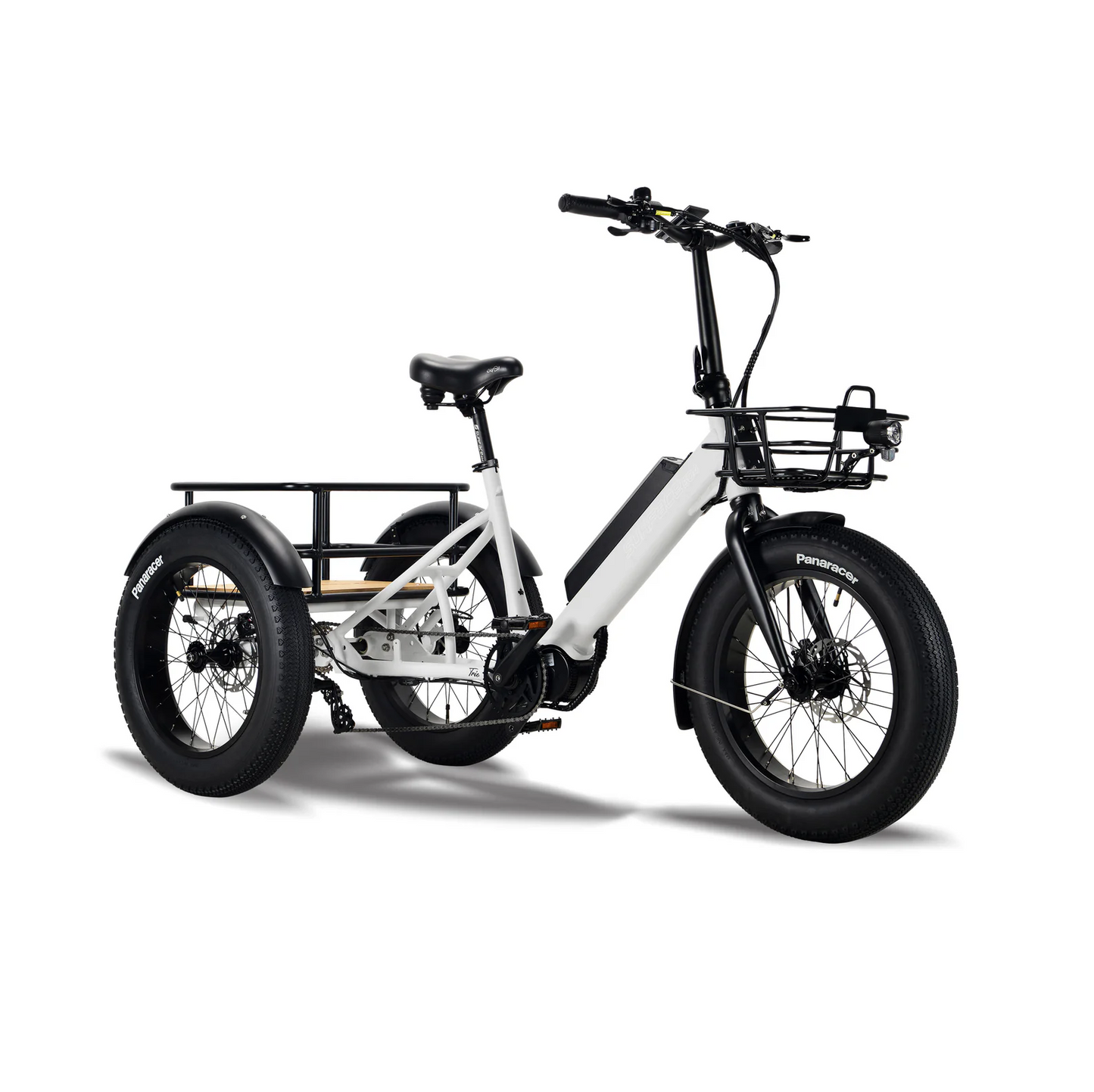

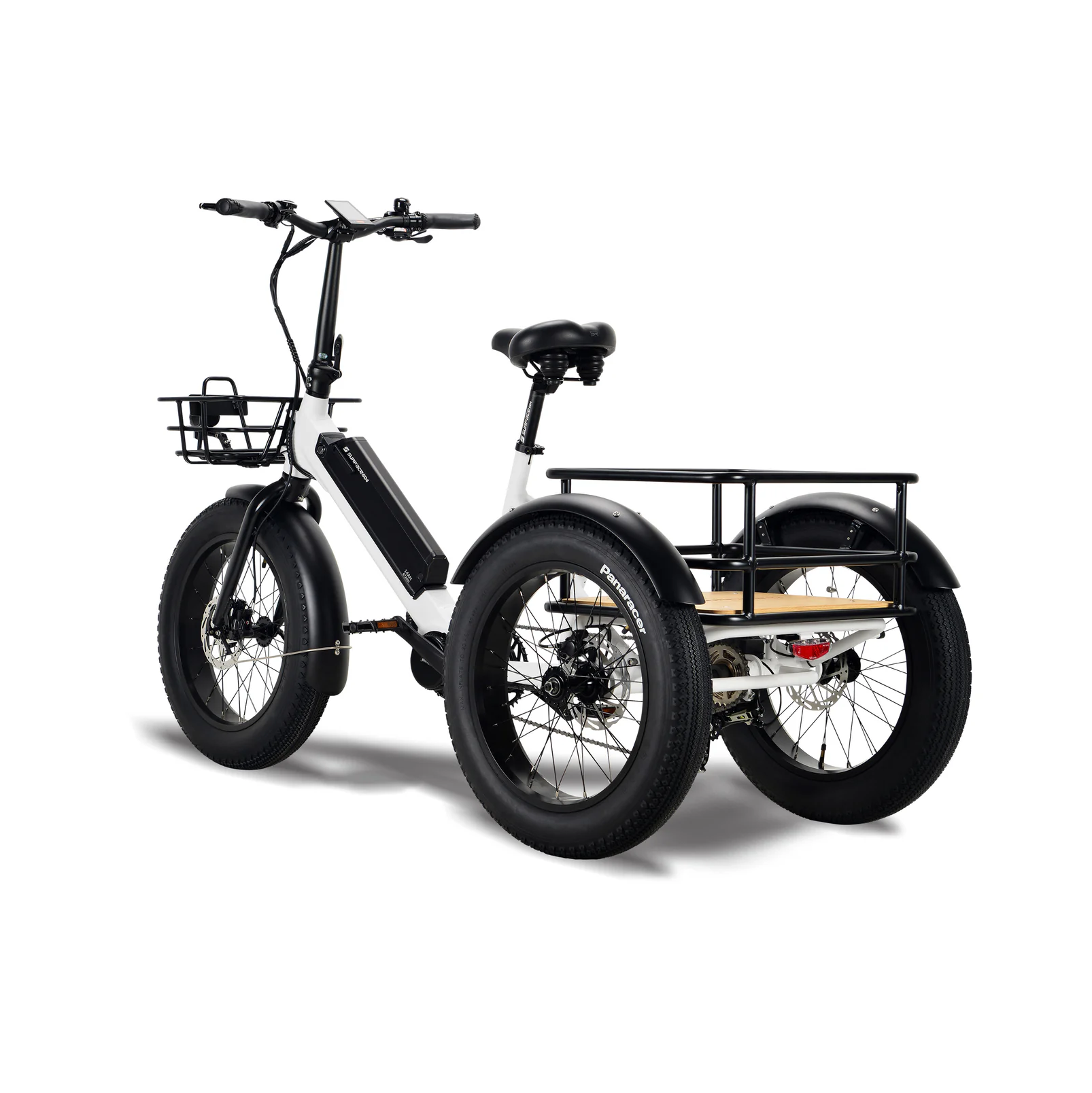

Surface 604 500W 48V Trio Mid Drive Folding Step-Thru Fat Tire Trike Electric Bike - EB-S6-TRIO-GRY

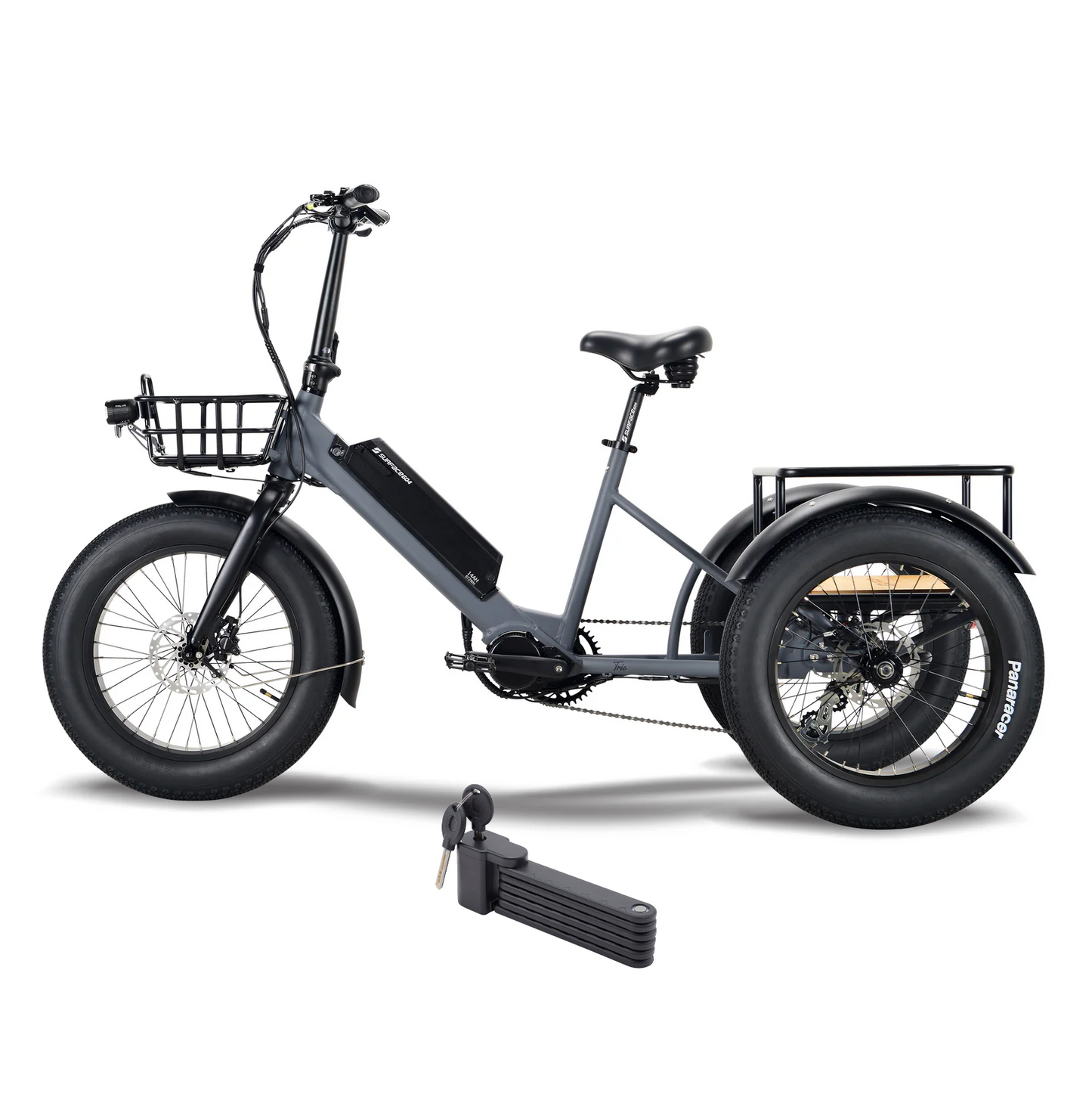

Exclusive Limited Time Offer: Bikeberry.com customers will receive a FREE Poplock bicycle lock with the purchase of the Surface 604 500W 48V Trio Mid Drive Folding Step-Thru Fat Tire Trike Electric Bike ($84.95 value!)
The Surface 604 Trio Trike Electric Bike is a cutting-edge electric tricycle designed to provide an unparalleled riding experience with its advanced features, sleek design, and powerful performance. Ideal for urban commutes and recreational rides, this e-trike offers a perfect blend of comfort, efficiency, and reliability. The Trio Trike is crafted to meet the diverse needs of modern riders, ensuring every journey is smooth and enjoyable.
Experience the ultimate in electric mobility with the Surface 604 Trio Trike Electric Bike. Whether you're navigating city streets or exploring scenic routes, this electric tricycle offers unmatched performance and comfort. Elevate your riding experience with the Trio Trike and enjoy the freedom and excitement of electric-powered travel.
Features
-
High-Performance Motor: The Surface 604 Trio Trike is equipped with a robust 500W motor, delivering excellent acceleration and the capability to handle various terrains with ease.
-
Long-Lasting Battery: Featuring a 48V 14Ah lithium-ion battery, this electric tricycle provides an impressive range of up to 40 miles on a single charge, making long rides hassle-free.
-
Comfort-Oriented Design: With an adjustable, cushioned seat and advanced suspension system, the Trio Trike ensures a comfortable and smooth ride even on bumpy roads.
-
Enhanced Safety Features: The e-trike includes hydraulic disc brakes for reliable stopping power, bright LED lights for increased visibility, and a sturdy frame for added durability and safety.
Specifications
| Motor |

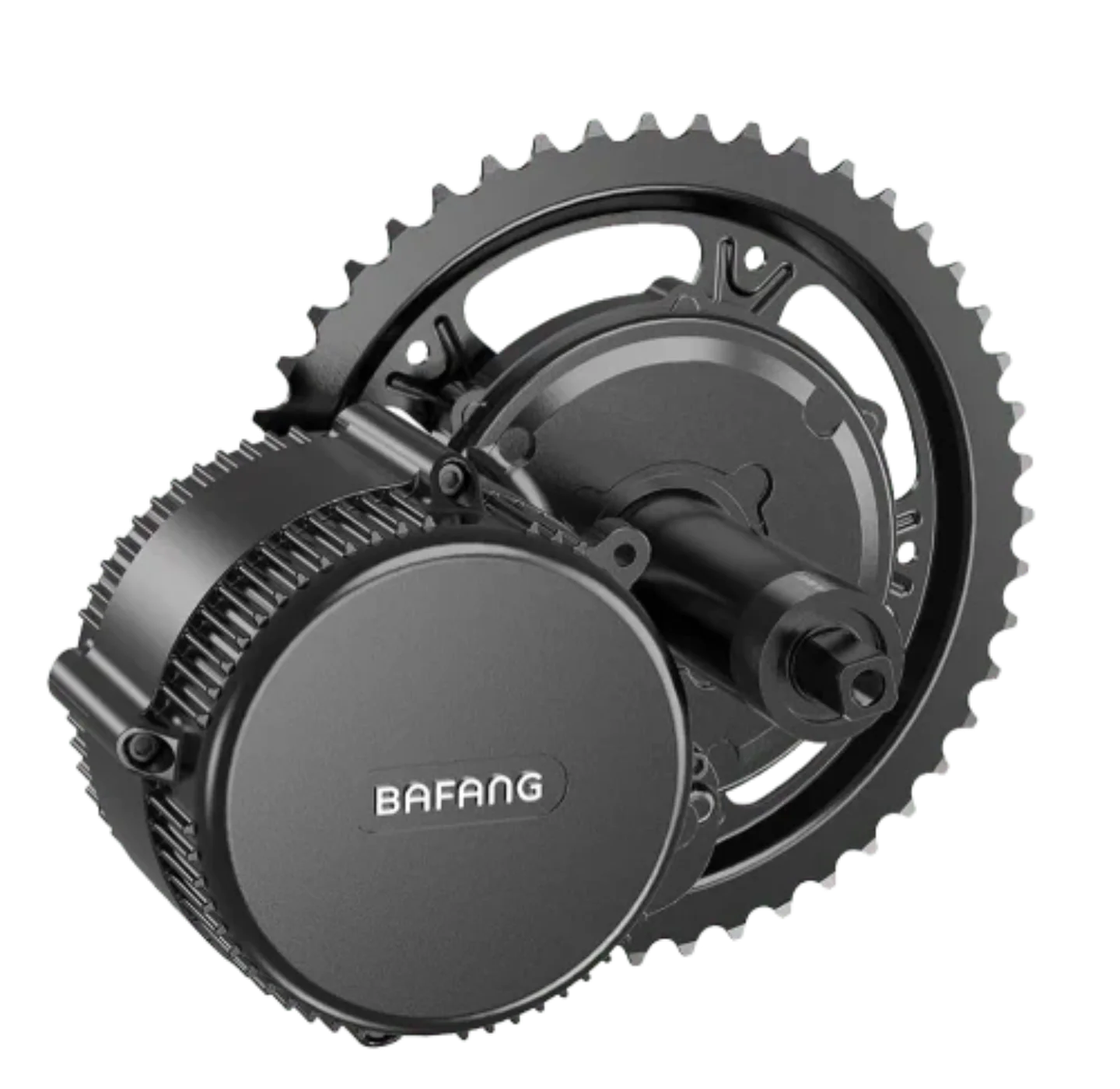

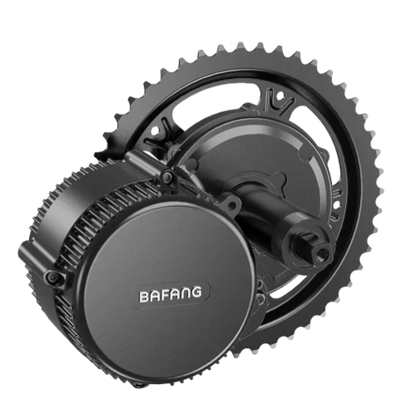

500W Fat Bike Specific Bafang Mid-Drive (Peaks at 750W) – High Torque, Adds Stability |
| Torque |
65Nm |
| Drive Mode |
Drop-Out Torque Sensing Pedal Assist + Thumb Push Throttle |
| Controller |
Surface604 Designed 12 MOS 48V 500W 25Ah Smart Controller |
| Battery |

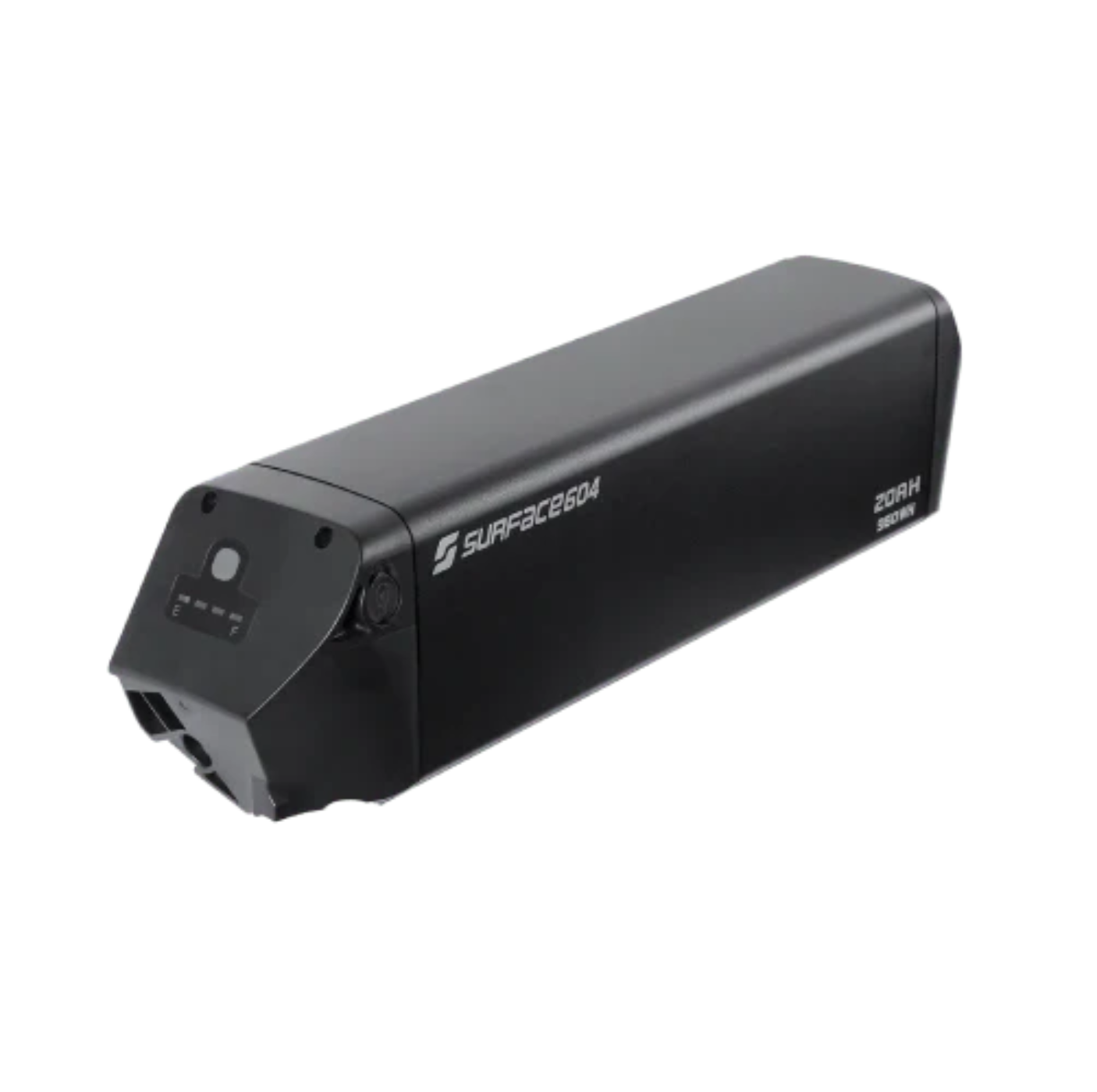

48V 20Ah / 960Wh Samsung Lithium-Ion (21700 cells) |
| Battery Range |
Up to 65 miles (105 km) |
| Charge Time |
3–4 Hours (Full Charge from Empty) |
| Display |

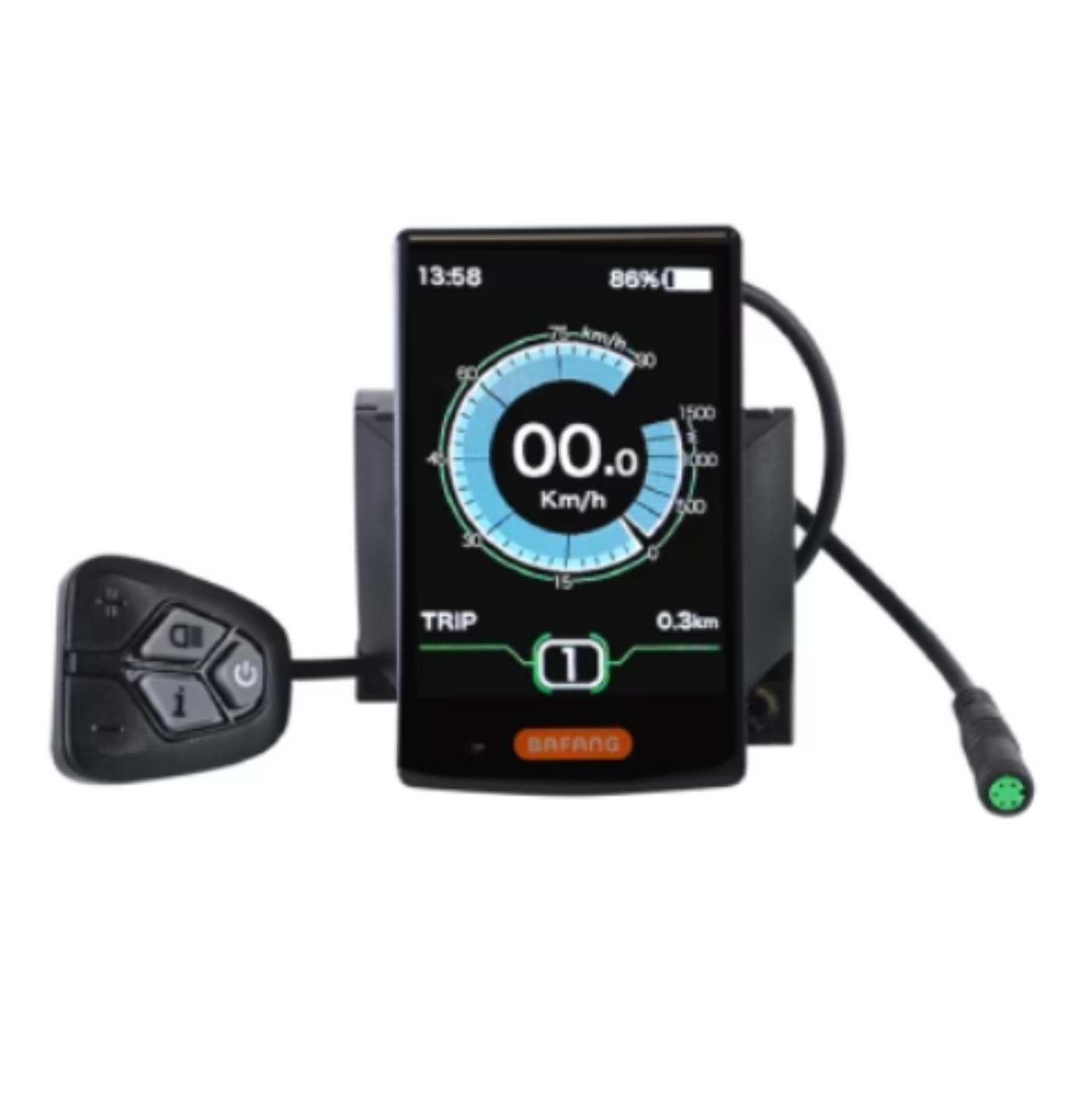

Surface604 3.5" Color LCD Display with USB Jack (2024 Model) |
| Lights |

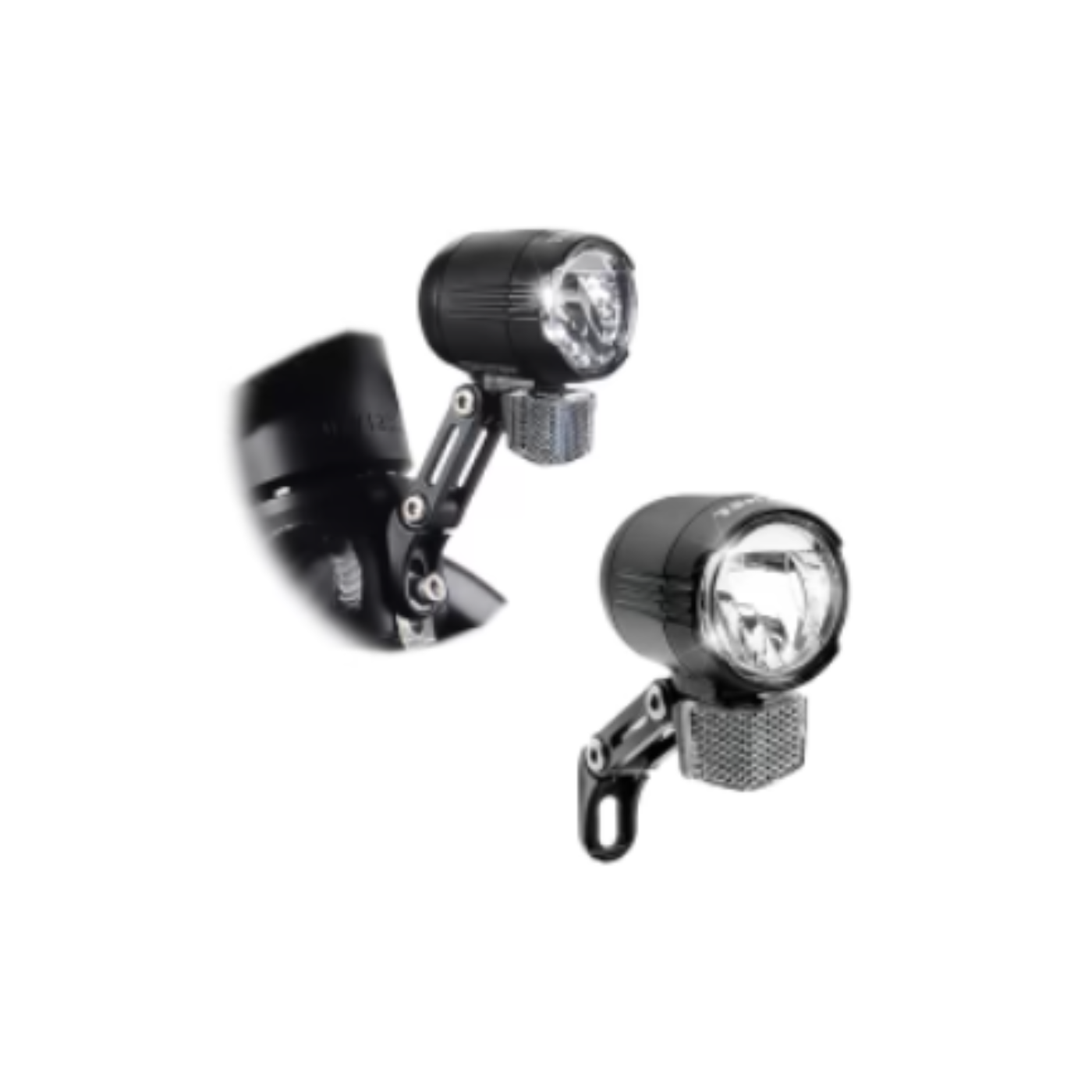

Büchel “Shiny 120” LED Headlight (120 Lumens), Front & Rear Stop Lights (Pre-Wired) |
| Fork |
Rigid Cruiser Folding Front Fork |
| Motor Wire Harness |
30Ah Rated, Supports up to 120C Current |
| Derailleur |
Shimano Altus 7-Speed |
| Cassette |
Shimano Altus 12–28T |
| Shifters |
Shimano Altus 7-Speed Trigger Shifter |
| Brakes |
Tektro Auriga Twin HD-T525 Hydraulic Disc Brakes with Parking Lock (E-Trike Specific) |
| Rotors |
180mm Front & Rear |
| Crankset |
BBS02 Mid Drive 48V |
| Bottom Bracket |
SAMOX Sealed |
| Frame Type |
Straight Steerer Headtube, Custom Battery Mounts, Internal Cable Routing, Post Mount Brakes |
| Frame Material |
6061 Aluminum Alloy |
| Stem |

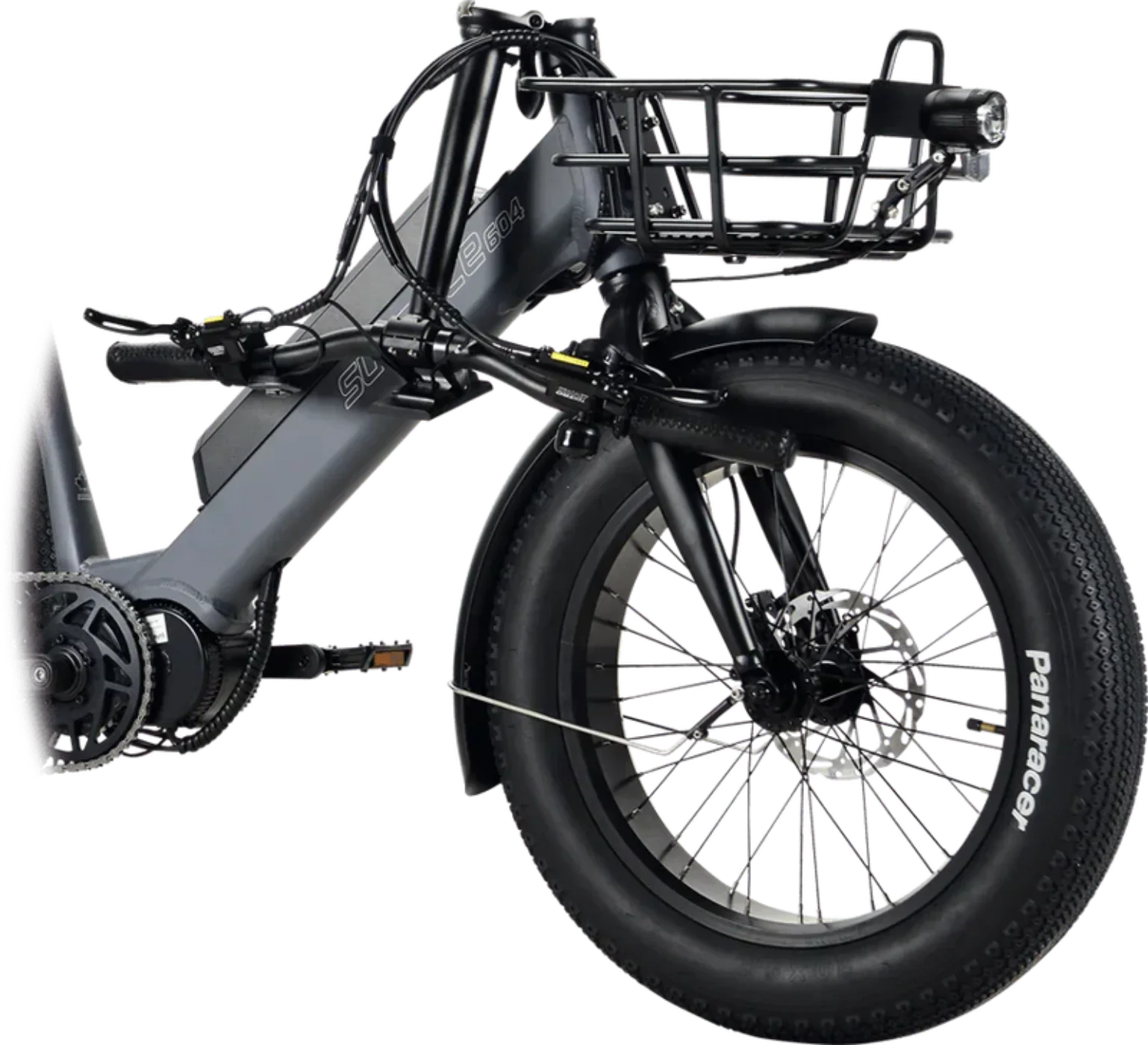

Surface604 Adjustable Folding Stem |
| Headset |
SAMOX Tapered with Sealed Bearings (1 1/8" - 1 1/2") |
| Handlebar |

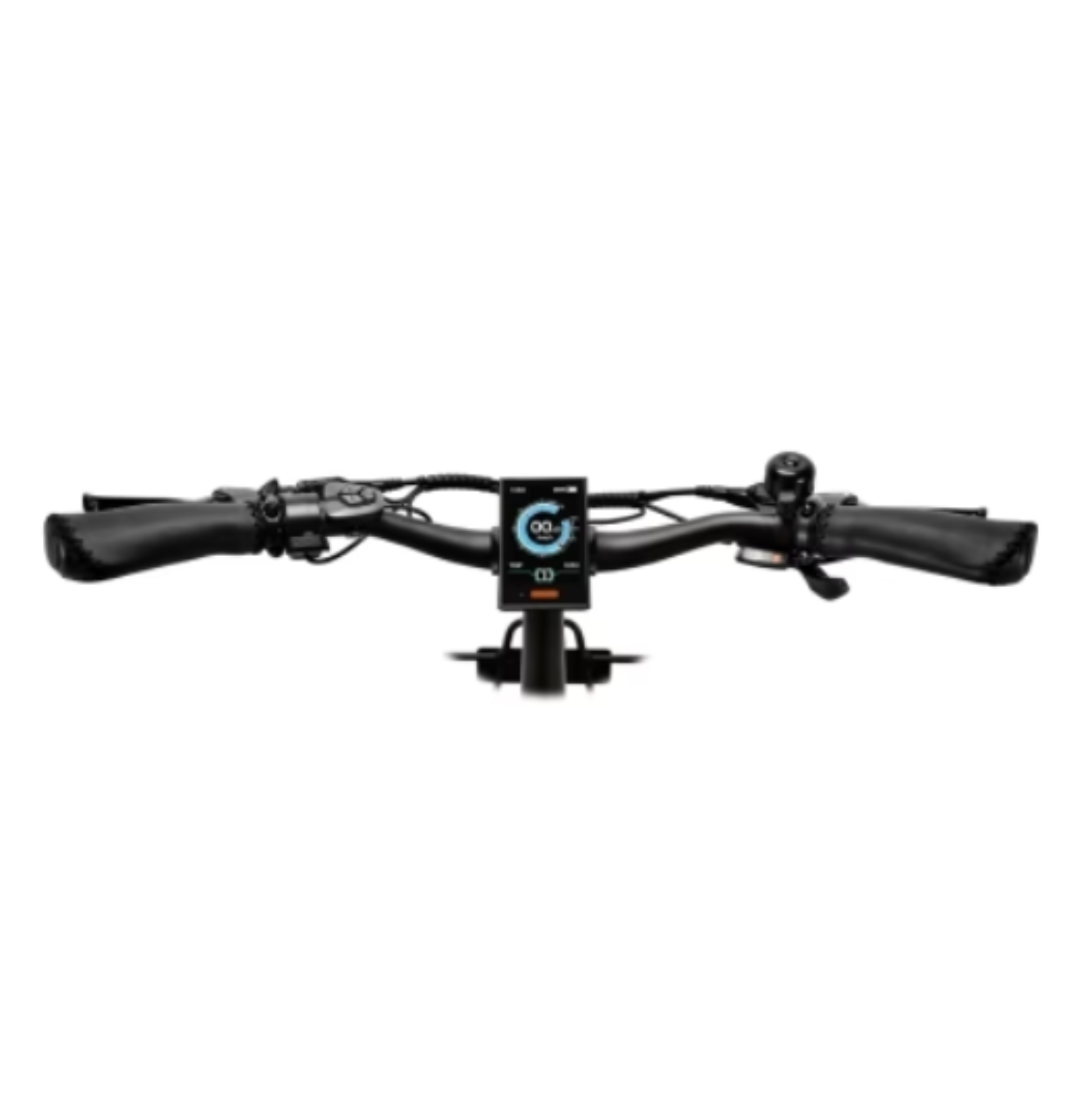

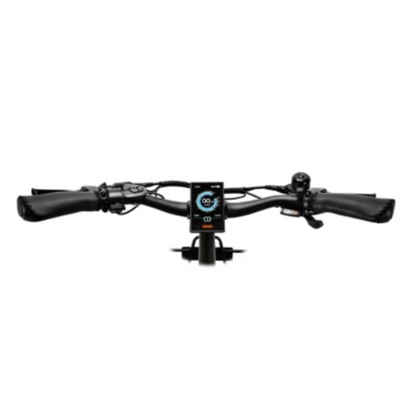

PROMAX Aluminum, 60mm Rise, 9° Backsweep, 720mm Wide, Folding Feature |

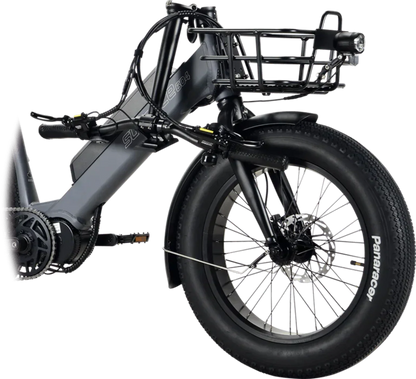

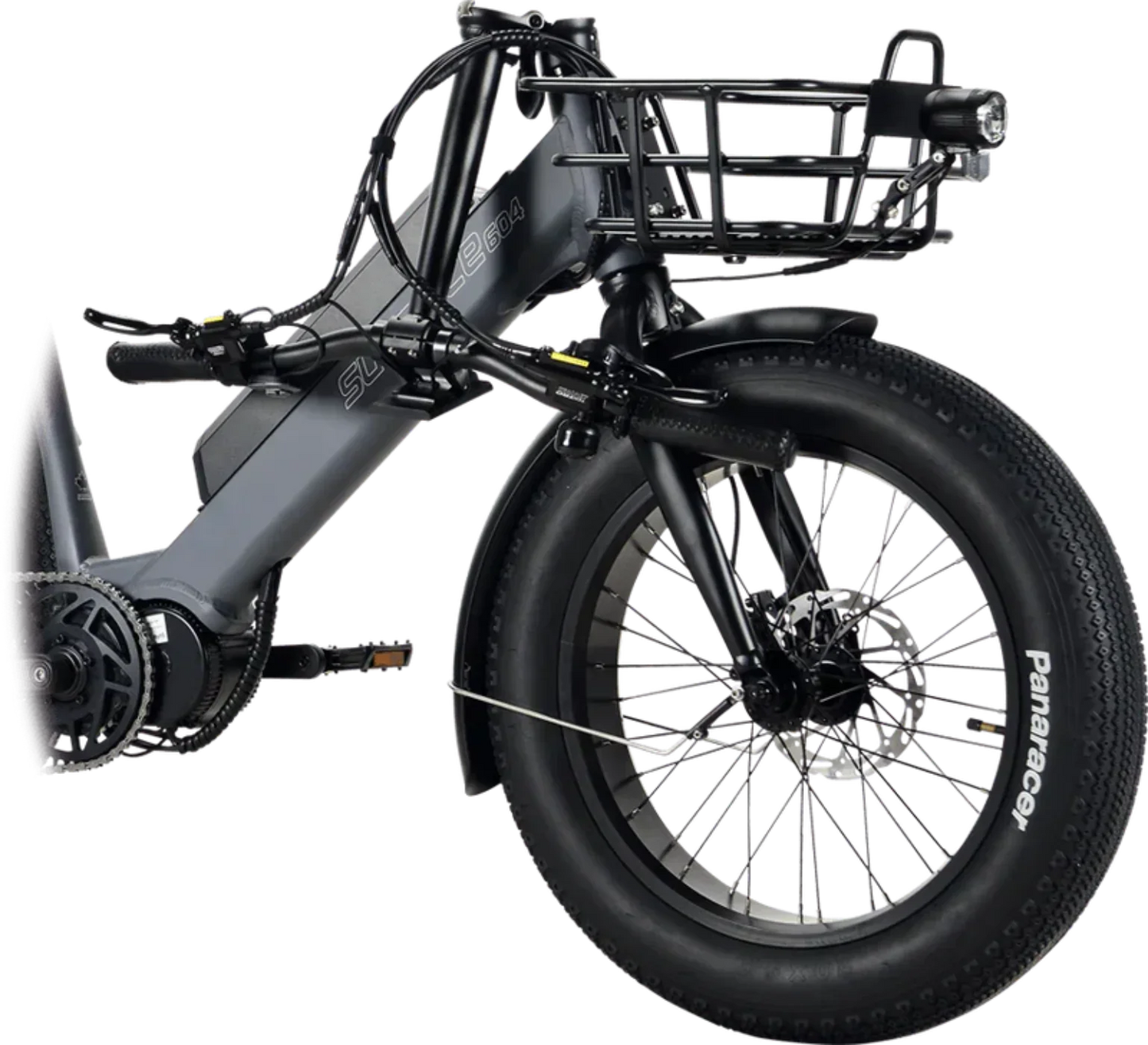

| Handlebar Fold Height |

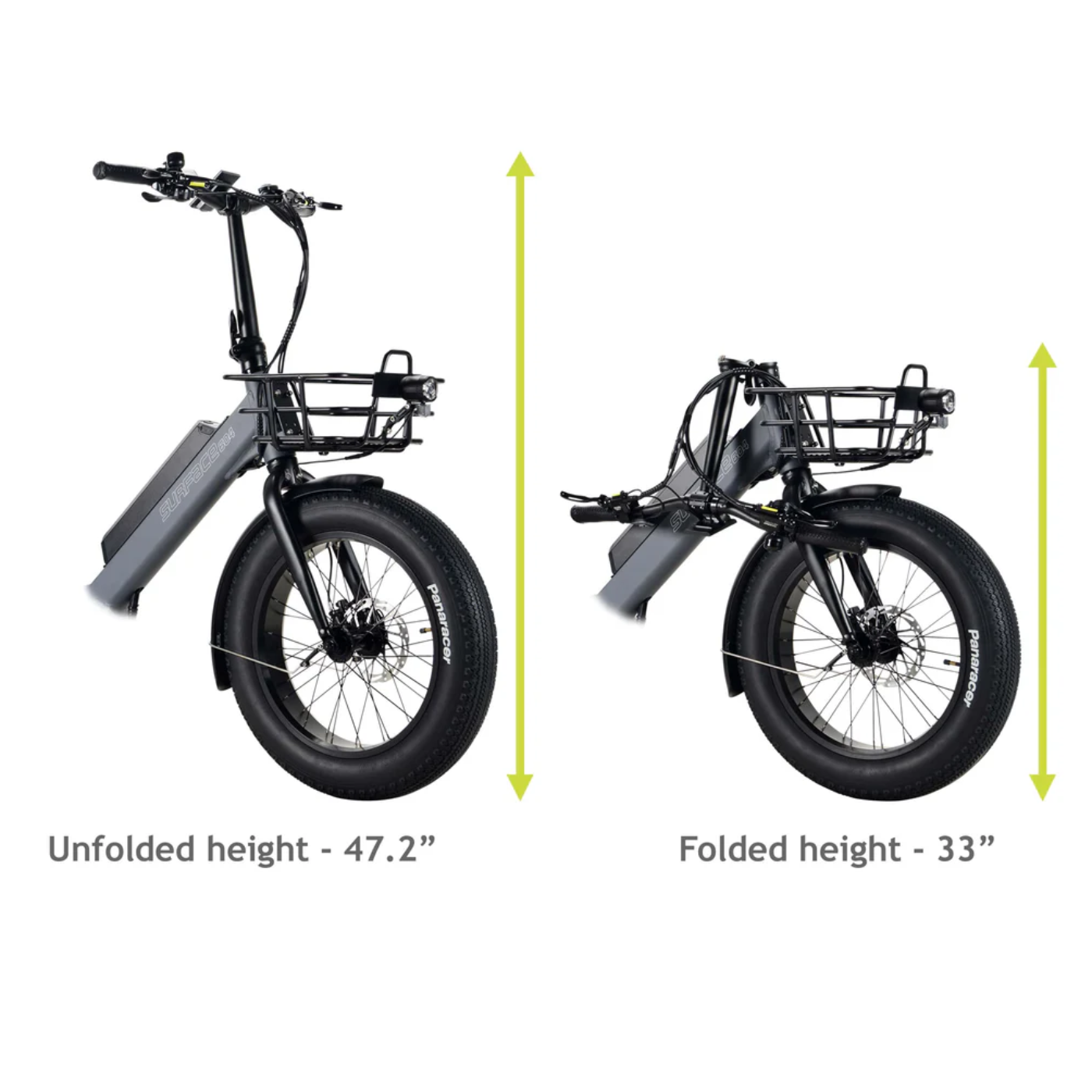

Folded: 33" (84cm), Unfolded: 47.2" (120cm) |
| Pedals |
WELLGO Platform |
| Chain |
KMC 9-Speed |
| Seat Post Diameter |
30.4mm |
| Saddle |

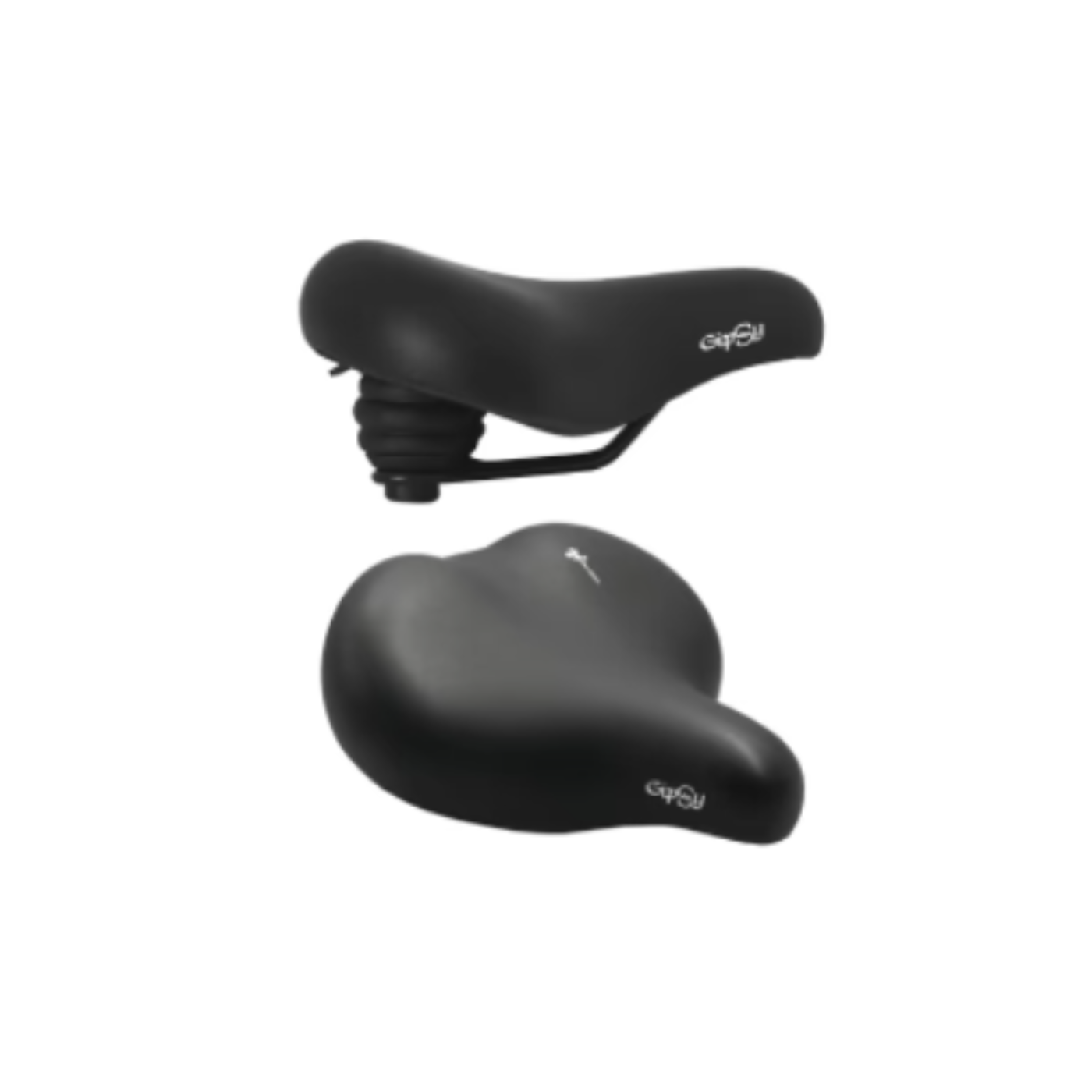

Selle Royal "Gipsy" Gel Saddle – Ergonomic, Relaxed, Pressure Relief |
| Tires |
Panaracer Fat 20” x 4.0” (Front & Rear) |
| Rims |
Aluminum Alloy Double Wall |
| Front Hubs |
1-Piece Forged CNC, 2 Sealed Bearings, Cro-Mo Axle, Alloy QR |
| Kickstand |
Stable 3-Wheel Geometry – No Kickstand Required |
| Standover Height |
17.5" (Bottom Bracket Center to Seat Tube Tip) |
| Recommended Rider Height |
Medium/Large: 5’7” – 6’6” |
| Net Weight (with Battery) |
65 lbs / 29.55 kg |
| Battery Weight |
10 lbs / 4.65 kg |
| Weight Capacity |
450 lbs / 204 kg |
| Standard Features |

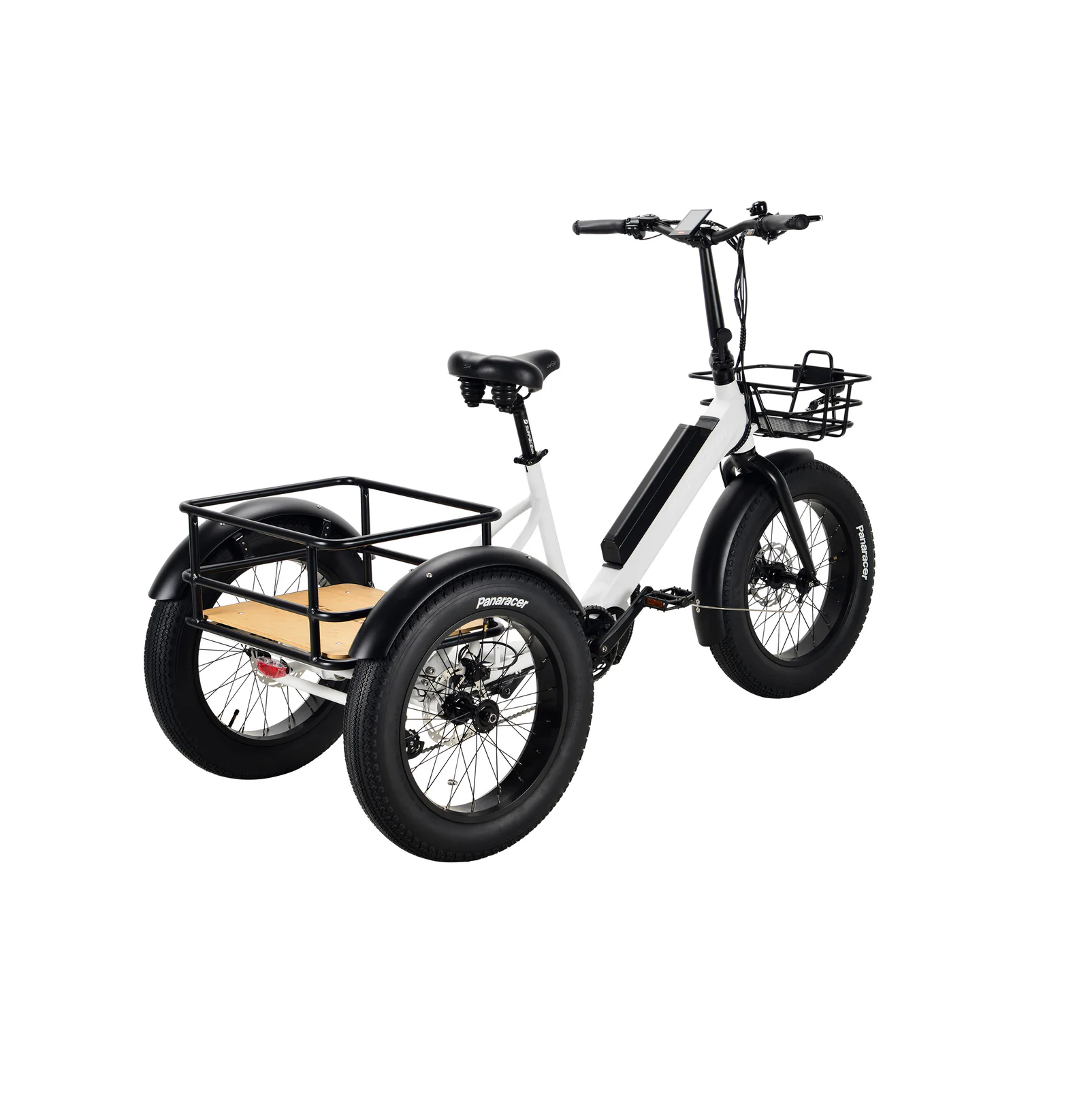

Folding Handlebar, LED Headlight, Water Bottle Bosses, Extra-Large Rear Basket (Wooden Base, Removable), Front Metal Mesh Basket |
| Optional Upgrades |
Chain Guide |
What Our Experts Think
-
Powerful Mid-Drive Motor: Equipped with a 500W Bafang BBS02 mid-drive motor (peaking at 750W), delivering 65Nm of torque for robust performance across various terrains.
-
Long-Range Battery: Features a 48V 20Ah (960Wh) Samsung lithium-ion battery, offering up to 65 miles (105 km) per charge.
-
Heavy-Duty Design: Built with a 6061 aluminum alloy frame and 20" x 4.0" Panaracer fat tires, providing stability and durability for heavy-duty hauling.
-
Enhanced Stability: The three-wheel design ensures superior stability, making it ideal for transporting heavy loads and providing a secure ride.
-

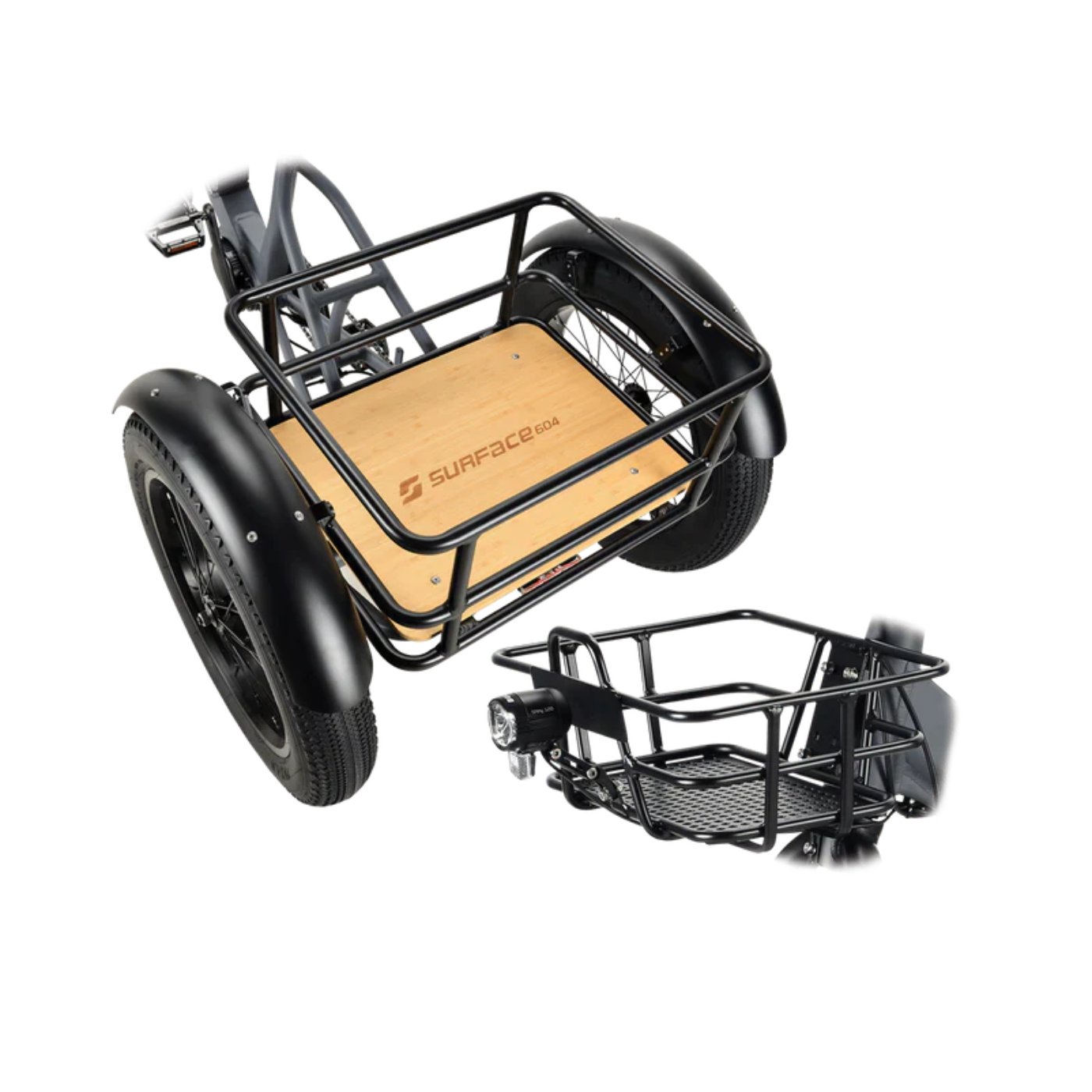

Convenient Storage: Comes standard with oversized front and rear racks, offering ample space for cargo.
Q&A
Q: What is the Surface 604 Trio Electric Trike?
A: The Surface 604 Trio is a robust electric tricycle designed for stability and heavy-duty hauling, featuring a powerful mid-drive motor and ample storage capacity.
Q: What are the motor and battery specifications?
A: It comes equipped with a high-torque 500W Bafang mid-drive motor (peaks at 750W) and a 48V 20Ah Samsung lithium-ion battery, providing a range of up to 65 miles (105 km) per charge.
Q: What is the top speed?
A: The Trio has a top speed of 20 mph (32 km/h) in Class 3 configuration.
Q: What storage options does it offer?
A: It includes large front and rear baskets with removable wooden and metal mesh bottoms, respectively, and a rear rack with a wooden platform, supporting a total weight capacity of 450 lbs (204 kg)

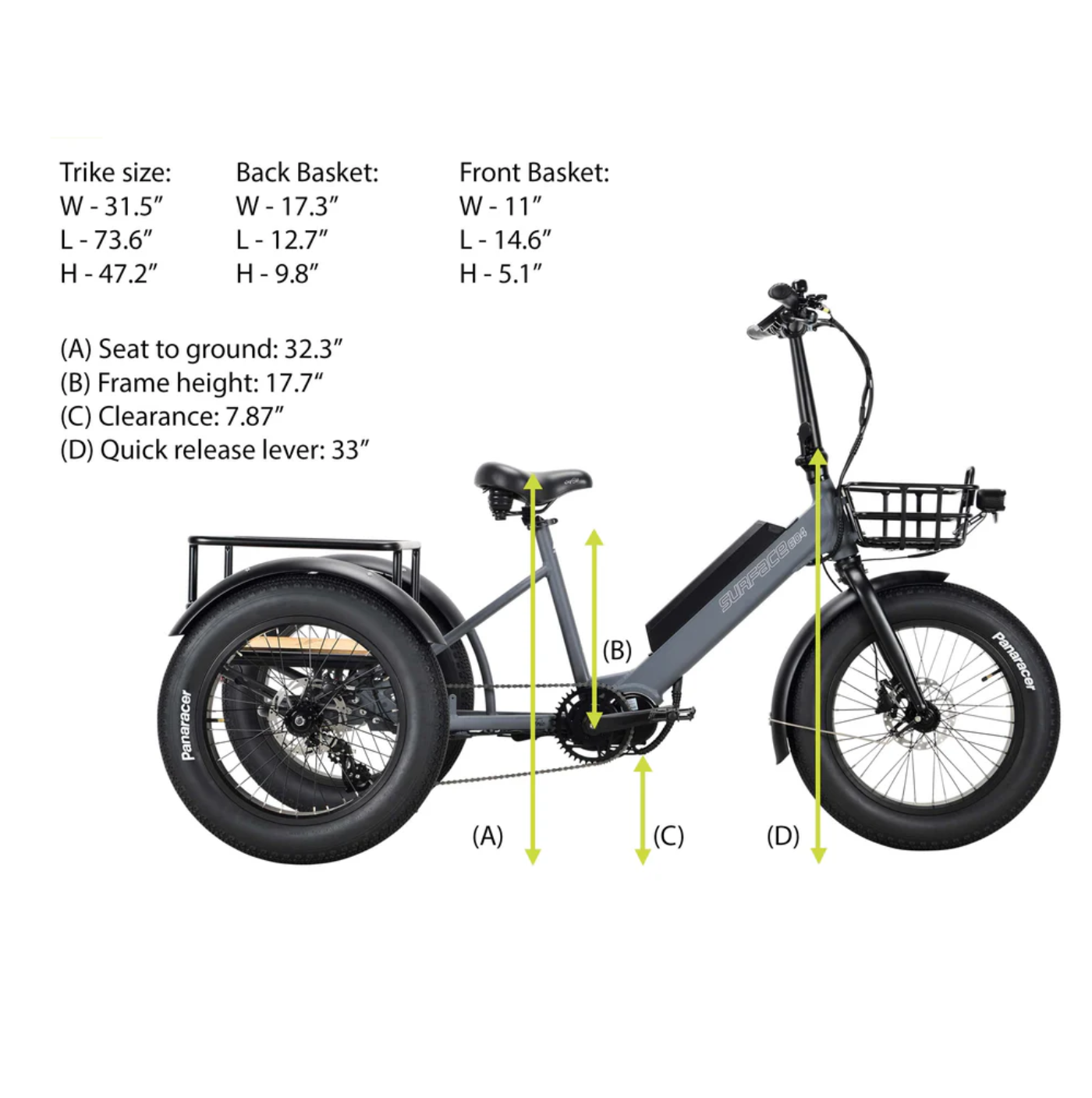

Q: What are the dimensions and weight?
A: The trike has a folded height of 33" (84 cm) and unfolded height of 47.2" (120 cm). It weighs approximately 65 lbs (29.5 kg) with the 20Ah battery.
Q: What is the price?
A: The Surface 604 Trio is priced at $3,500 USD, though prices may vary by retailer.
Maintenance Tips
-
Battery Care: Charge the 48V 20Ah Samsung lithium-ion battery regularly, avoiding overcharging. Store in a cool, dry place to maintain battery health.
-
Tire Maintenance: Check the 20" x 4.0" Panaracer fat tires for proper pressure and inspect for wear or damage regularly.
-
Brake System: Inspect the Tektro Auriga hydraulic disc brakes with 180mm rotors for wear and ensure they respond effectively.
-
Drivetrain Upkeep: Clean and lubricate the Shimano Altus 9-speed drivetrain periodically to ensure smooth shifting and extend component lifespan.
-
Motor and Electrical Components: Periodically inspect the Bafang 500W mid-drive motor and associated wiring for signs of wear or damage. Address any issues promptly to maintain reliable motor performance.
-
Storage Recommendations: When not in use, store the trike in a sheltered area to protect it from extreme weather conditions, which can affect both mechanical and electrical components.
