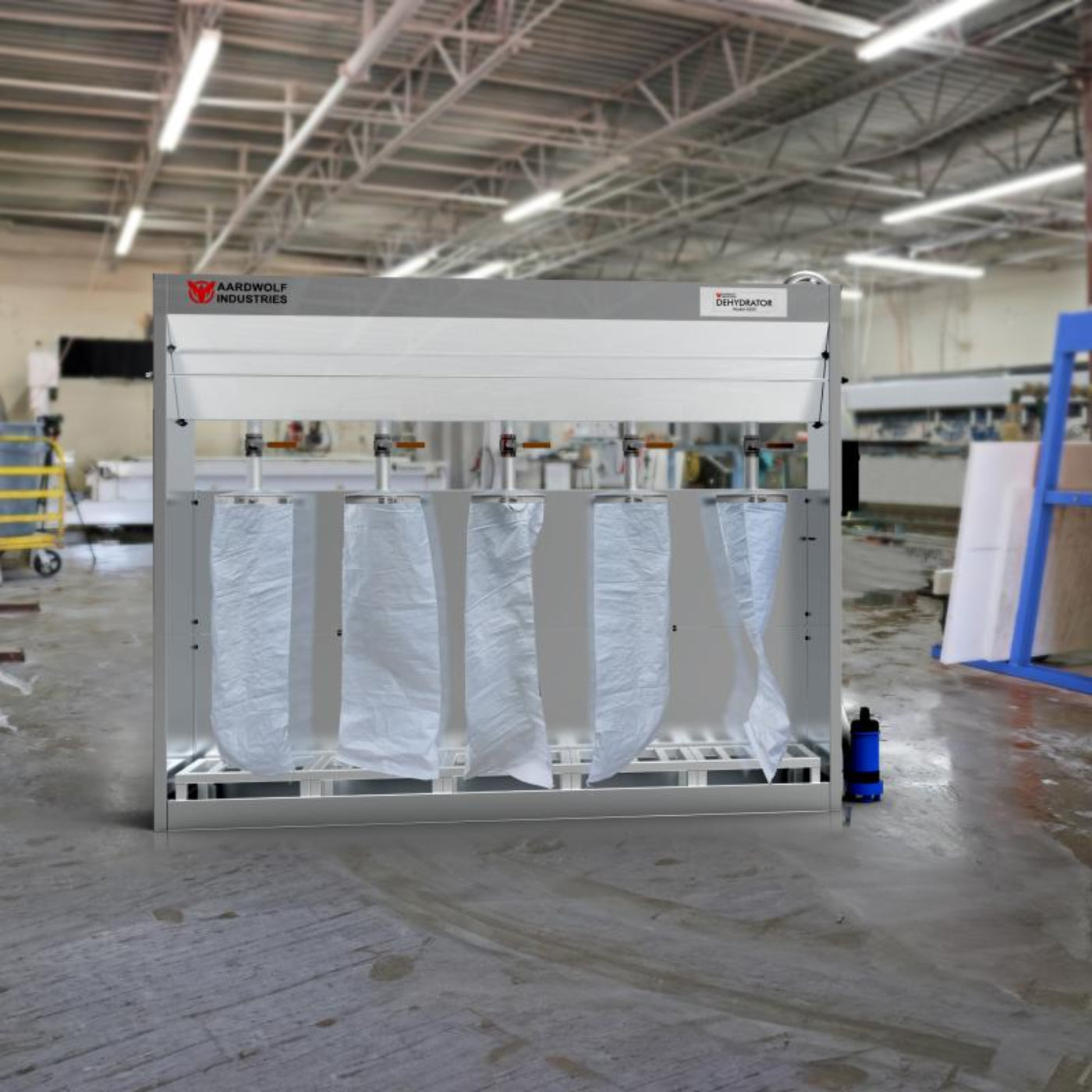

Aardwolf Sludge Dehydrator Filter - ASDF1
This system offers a streamlined and cost-effective approach to separating and dewatering sludges and slurries. Built from high-quality stainless steel, the Sludge Dehydrator Filter is designed to ensure durability and minimal maintenance, providing businesses with a reliable and low-maintenance option for handling waste from stone processing.
Features
Fast Dehydration: Efficiently collects and traps abrasive mud from stone processing.
Cost-Effective: One-step solution for separating and dewatering sludges.
Durable: Stainless steel construction ensures long-lasting performance.
Low Maintenance: No moving parts for minimal upkeep.
Easy Operation: Simple design with four key components for hassle-free use.
Specifications
|
Metric |
Imperial |
Dimensions |
(227cm x 222cm x 60cm) |
89.4” x 86.6” x 23.6” |
Weight |
280kg |
617 lbs |
Power requirements (USA) |
110v 50Hz (USA) |
220v 50Hz (Aus) |
Weekly Output Capacity of Dry Mud |
22 ft³ |
Mud Holding Tank Capacity |
550 liters |
145 Gallons |
Sump pump |
6E-CIA-SFS 189 lpm / or equal |
Float Switch |
Mechanical |
Valves |
2 inches BSP Brass Nickel Plated |
Package includes
• 4 plastic curtains
• 2 stainless steel curtain rods
• 1 industrial water hose
• 3 industrial hose clamps
• 15 polypropylene filtration bags
• 1 pit cleaning tool/ air stick
What our Experts Think
-
Efficient Sludge Management:
The ASDF1 effectively collects and dewaters abrasive mud generated during stone machining and finishing, streamlining waste handling processes.
-
Durable Construction:
Built with high-quality stainless steel, ensuring long-lasting performance and resistance to wear and corrosion.
-
Low Maintenance:
Designed with no moving parts, reducing the need for regular maintenance and enhancing reliability.
-
Compact Design:
With dimensions of 227 cm x 222 cm x 60 cm (89.4" x 86.6" x 23.6") and a weight of 280 kg (617 lbs), it fits into various workshop layouts without occupying excessive space.
-
Complete Package:
Includes 4 plastic curtains, 2 stainless steel curtain rods, an industrial water hose, 3 hose clamps, 15 polypropylene filtration bags, and a pit cleaning tool/air stick, providing all necessary components for immediate use.
Q&A
Q: What is the Aardwolf Sludge Dehydrator Filter ASDF1?
A: The ASDF1 is a stainless steel filtration system designed to efficiently dewater abrasive sludges generated during stone processing, such as marble and granite.
Q: What are its key features?
A: The ASDF1 offers fast dehydration, cost-effective operation, durability, low maintenance, and easy handling with minimal moving parts.
Q: What are its specifications?
A: Dimensions: 227 x 222 x 60 cm; Weight: 280 kg; Weekly dry mud output: 22 ft³; Mud holding tank capacity: 550 liters; Sump pump: 189 lpm; Mechanical float switch; 2-inch BSP nickel-plated brass valves.
Q: What does the package include?
A: The system comes with 4 plastic curtains, 2 stainless steel curtain rods, 1 industrial water hose, 3 hose clamps, 15 polypropylene filter bags, and a pit cleaning tool.
Q: Where can I purchase the ASDF1?
A: The Aardwolf Sludge Dehydrator Filter ASDF1 is available for purchase through various distributors and online retailers. Please check with local suppliers or online marketplaces for availability.
Maintenance Tips
Regular Cleaning:
-
Frequency: Clean the filter after each use or when sludge accumulation is noticeable.
-
Procedure: Use a soft brush or cloth to remove debris from the filter surface. For stubborn residues, rinse with clean water. Avoid using harsh chemicals that could damage the stainless steel components.
Inspection:
-
Frequency: Conduct a thorough inspection monthly.
-
Procedure: Check for signs of wear or damage, particularly on the filter cloth and frame. Ensure there are no blockages in the drainage system.
Storage:
-
Procedure: When not in use, store the filter in a dry, clean environment to prevent rust and corrosion. If storing for extended periods, consider applying a protective coating to metal parts.
Operational Checks:
