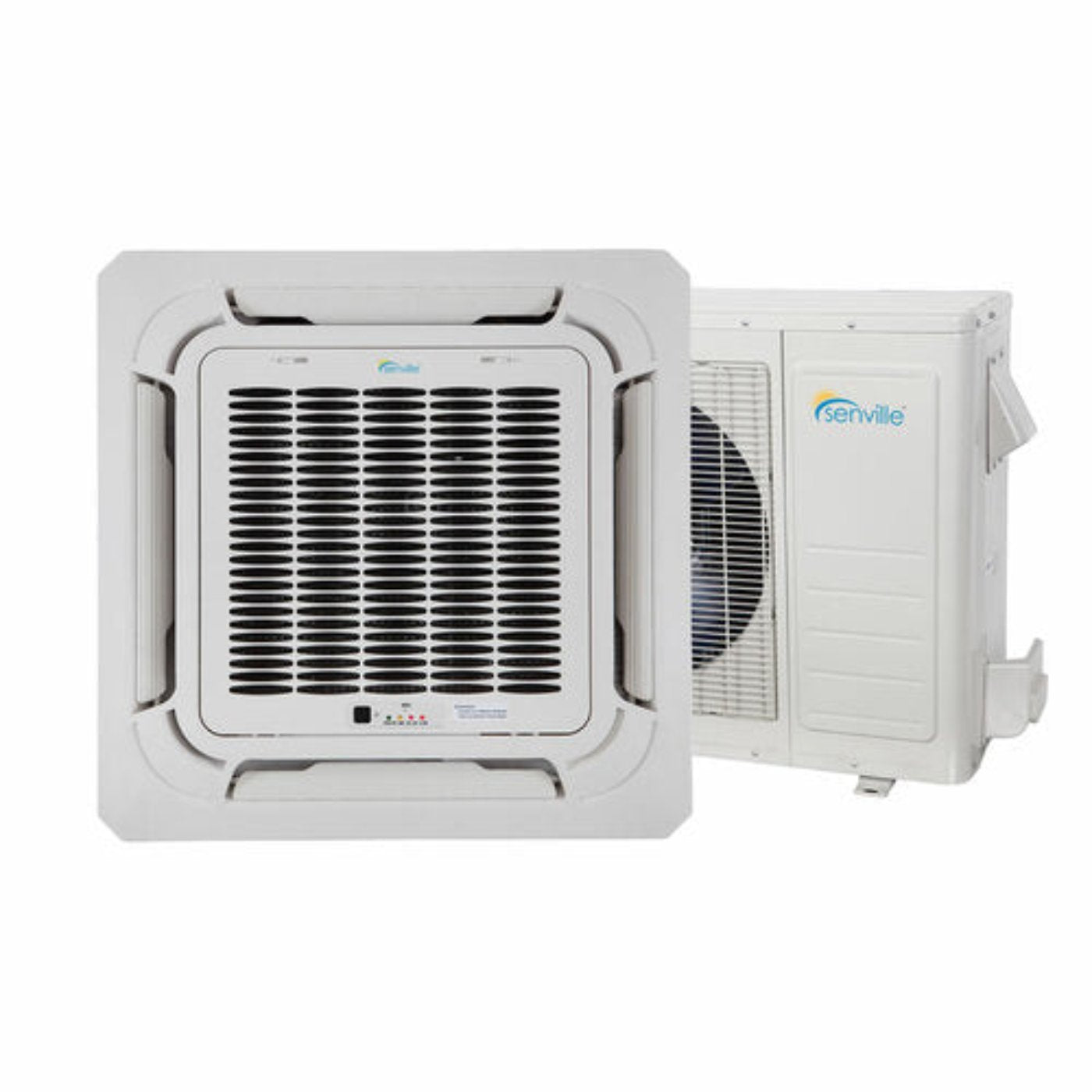

Senville 12000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/12HF/IC

Looking for a ductless air conditioning/heat pump without the traditional air handler?  Are you looking for that ceiling duct look with out the installation trouble of a traditional duct system? Check out the Senville AURA Series Ceiling Cassette air conditioner and heat pump kits.

Enjoy the luxury of a cool climate controlled living space as well as efficient heating, that can be added to virtually any type of tiny home you desire to cool or heat. Whether it is a mobile tiny home, RV, schoolie, shipping container home, or a small stationary tiny home, the Senville mini split air conditioner and heat pump units will get the job done!

The Energy Star Certified Senville AURA Series is Senville’s most efficient mini split air conditioner and heat pump. With an astonishing 21.5 SEER efficiency rating, the Senville AURA Series, surpasses many of the top name brands when it comes to efficiency. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up for a simple DIY experience.  Additionally, the Senville AURA Series offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, which will ensure the most comfortable overall experience in your tiny home.

Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.  Opt for a mini split system with Ultra-Inverter Technology to ensure that you are minimizing your energy costs and usage.

The Senville AURA also includes a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at its highest efficiency.  Live comfortably with the Senville AURA Series in your tiny home today!

Features

• 21.5 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Low Ambient Cooling (Up to -30C / -22F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• ENERGY STAR Certified
• ETL Certified
• AHRI Certified (View Certificate)

Included with your Purchase

• Senville AURA Series 12,000 BTU Mini Split AC/Heat Pump
• Senville Indoor Ceiling Cassette

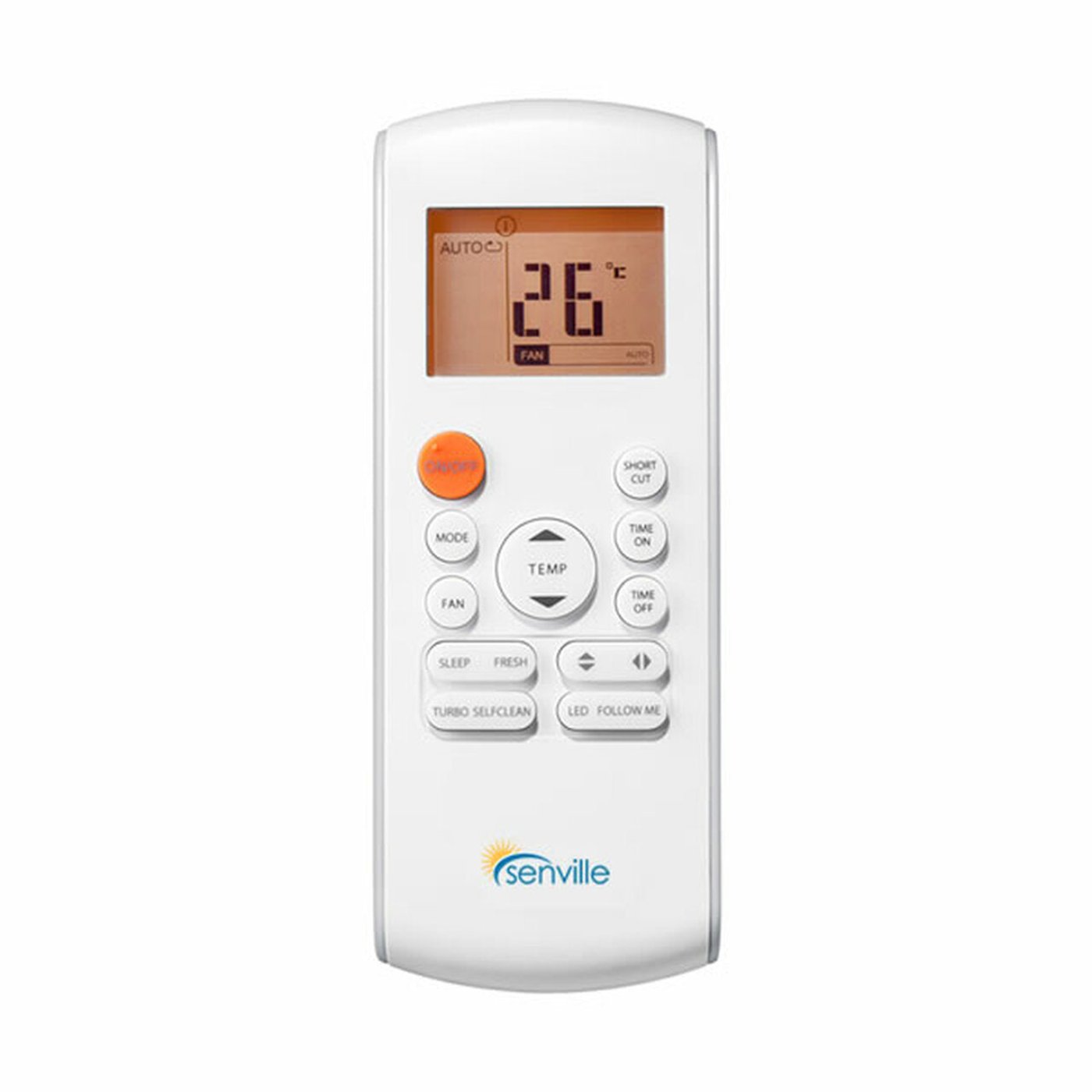

• Remote Control
• Installation Kit - 16ft, 25ft, or 50ft
• Owner's Manual
• Installation Manual
• Remote Control Manual

Warranty

All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

Specifications

• Model Number: SENA-12HF-ICQ
• Style: Cassette Ductless Mini Split AC With Heat Pump
• Power Supply (V-Ph-Hz): 208/230V, 1Ph, 60Hz
• Voltage Range: 187-253
• SEER: 21.5
• EER: 12.7
• Cooling (Range): 3000~13700
• Input (W): 945
• Rated current   A: 4.32
• Heating (Range): 2000~15300
• Input (W): 1091
• Rated Current (A): 4.99
• HSPF4:      10.6
• HSPF5: 8.8
• COP W/W: 3.22
• Minimum Circuit Ampacity (A): 15
• Max. Fuse (A): 15
• Indoor Dimensions (WxDxH) (in.): 22.44x22.44x10.24
• Indoor Air Flow (H/M/L) CFM: 379/309/261
• Indoor Noise Level (H/M/L) dB: 40.5/35.5/31.5
• Outdoor Dimensions (WxDxH) (in.): 31.69x12.99x21.81
• Outdoor Noise Level dB: 56
• Outdoor Air flow  (Max) CFM: 1323.5
• Refrigerant Type: R410A / 41.62 Oz
• Refrigerant Pre-charge: 25 Ft.
• Connection Wiring: 14*4 AWG
• Thermostat Type: Remote Control
• Warranty: 10 Years Compressor / 5 Years Parts
• Application Area (8 Ft Ceilings): 700 sq. ft.
• Warning: California Proposition 65

Cassette Sizing and Clearance:

Downloads

Senville 12000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/12HF/IC Installation Manual

Senville 12000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/12HF/IC Cassette Installation Manual

Senville 12000 BTU Ceiling Cassette Air Conditioner - Heat Pump - SENA/12HF/IC Energy Guide

What Our Experts Think

• Ceiling-Mounted Comfort: The Senville 12,000 BTU Ceiling Cassette Air Conditioner with Heat Pump is perfect for smaller to medium-sized spaces, providing cooling and heating for areas up to 600 sq. ft.
• Year-Round Climate Control: With both air conditioning and heating capabilities, it ensures reliable comfort throughout the year, adapting to all seasonal changes.
• Energy Efficient: Powered by advanced inverter technology, it adjusts its performance based on the room’s needs, ensuring maximum energy efficiency and lower utility costs.
• Quiet & Discreet: The ceiling cassette design operates with minimal noise, making it ideal for bedrooms, living rooms, or offices where peace and quiet are important.
• Space-Saving Design: Its compact, ceiling-mounted installation allows for a clean and modern look, keeping valuable floor space free while blending seamlessly with any decor.

Q&A

Q: What is the Senville 12000 BTU Ceiling Cassette Air Conditioner - Heat Pump (SENA/12HF/IC)?
A: A 12000 BTU ceiling cassette mini split system that provides both cooling and heating capabilities, offering efficient and discreet climate control for smaller to medium-sized spaces.

Q: Who is this system suitable for?
A: Ideal for homeowners, small businesses, or offices looking for a compact, space-saving, and quiet solution to control the temperature without visible units.

Q: What are its key features?
A: 12000 BTU cooling and heating capacity, ceiling cassette design for hidden installation, energy-efficient inverter technology, quiet operation, and multi-zone functionality for personalized comfort.

Q: Why choose the Senville Ceiling Cassette Mini Split?
A: Provides efficient, year-round comfort with a sleek and unobtrusive design, perfect for spaces that require effective heating and cooling with minimal disruption to the aesthetic.

Maintenance Tips

• Clean the Air Filters: Clean or replace the air filters every 2-4 weeks to ensure proper airflow and efficiency. Wash or vacuum the filters to remove dust and debris.
• Inspect and Clean Coils: Clean the evaporator and condenser coils at least once a year to maintain efficient heat exchange and prevent dirt buildup.
• Clear the Condensate Drain: Check the condensate drain regularly to prevent blockages that could lead to water backup, mold, or mildew growth.
• Inspect Refrigerant Lines: Check the refrigerant lines for any signs of damage or leaks. If there are any issues, call a professional to repair or replace the lines.
• Maintain Ceiling Unit: Check the ceiling cassette unit for dust, debris, or obstructions that can block airflow. Keep vents clean for optimal performance.
• Test Remote Control and Thermostat: Ensure the remote control and thermostat are functioning properly. Replace the batteries when needed to avoid any disruption in system control.
• Schedule Professional Service: Have a professional technician service the system annually to check refrigerant levels, clean coils, and ensure the system is functioning efficiently.
• Off-Season Protection: If the system will not be in use for an extended period, such as during winter, cover the ceiling unit to protect it from dust and environmental damage.
