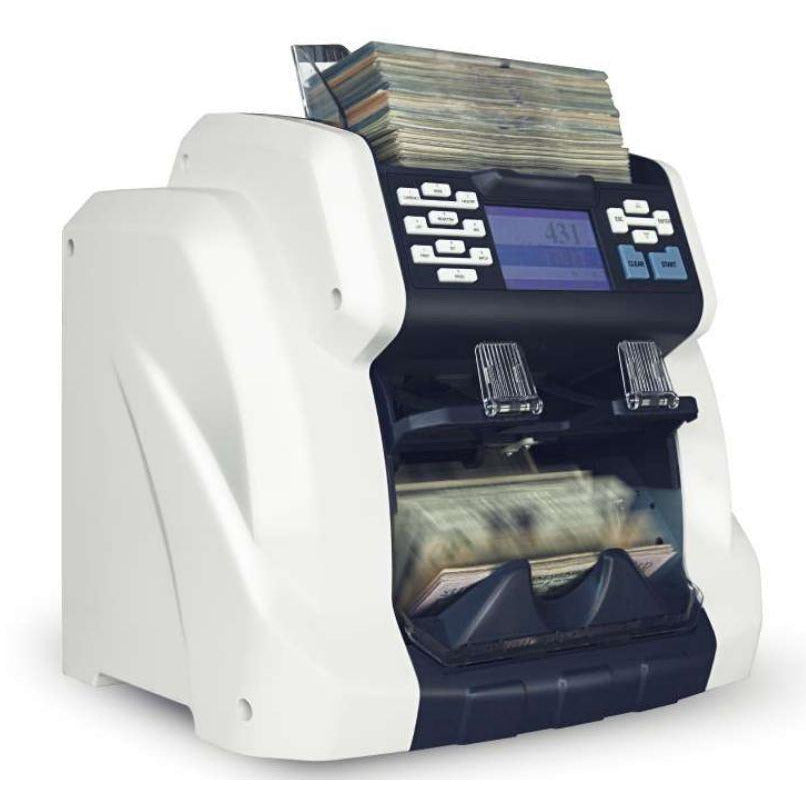

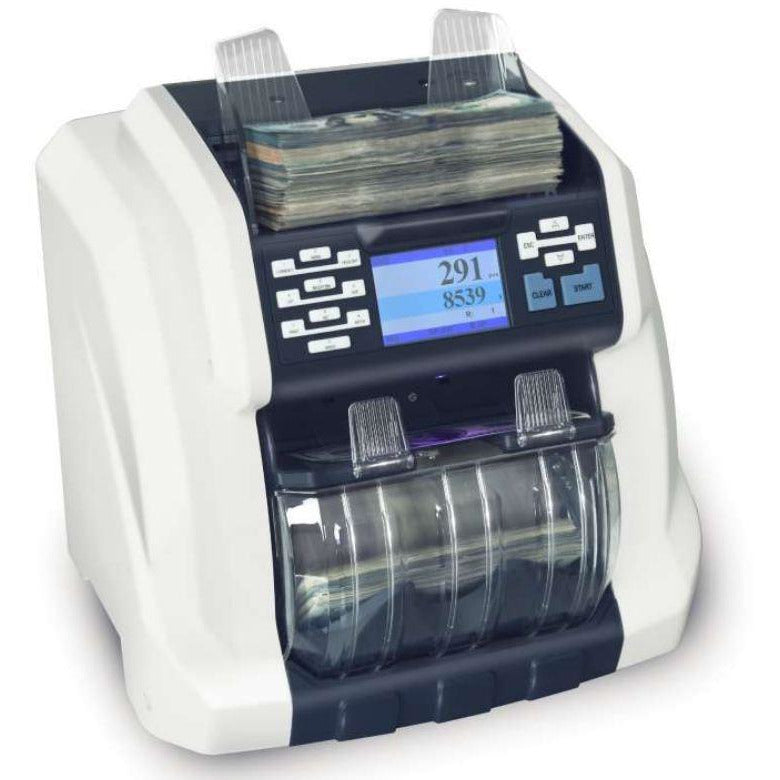

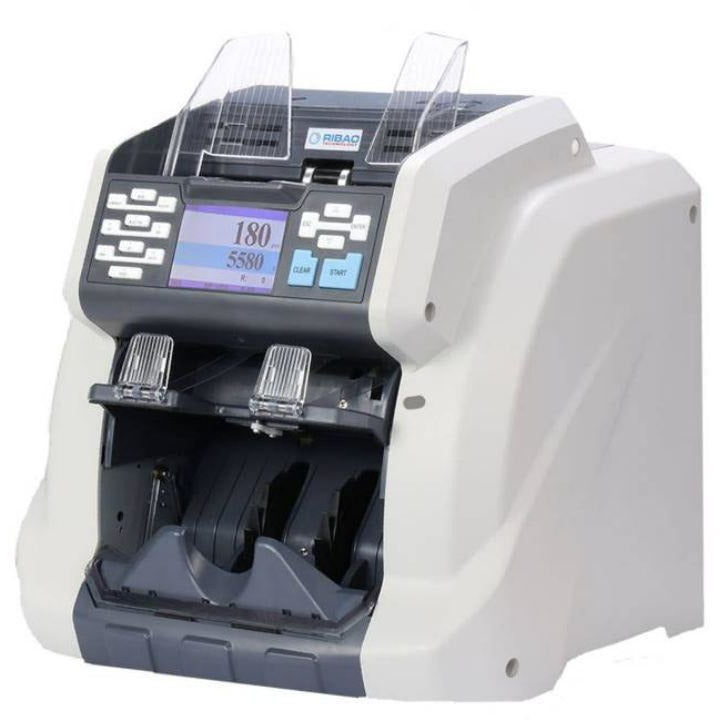

Ribao Bank Grade Two-Pocket Mixed Value Counter Bill Counter & Sorter - BCS-160
The BCS-160 model is an non-stop 1+1 pocket banknote discriminator and sorter that is cost effective, reliable, and heavy duty. It is equipped with double CIS, the latest counterfeit detection technology. It is very easy to update the software by USB with the new issues and counterfeit banknotes.
Features
-
Compact Design: Occupying minimal space, ideal for small tables or countertops.
-
TFT Screen: Features a 3.
- 5-inch TFT screen for easy viewing and operation.
-
Multicurrency Capability: Supports up to 20 different currencies for versatile use.
-
Reliable Counterfeit Detection: Utilizes UV, MG, MT, IR, and CIS sensors for comprehensive counterfeit detection.
-
Serial Number Read and Print: Capable of reading and printing serial numbers from both sides of banknotes.
-
Software Updates: Easily upgrade software via USB port for currency compatibility and enhanced functionality.
-
Banknote Info Collection: Collects banknote, UV, MG, and IR information through USB or LAN ports for software development.
Specifications
| Hopper Capacity |
500pcs |
| Stacker Capacity |
300pcs |
| Rejected pocket capacity |
MAX 100pcs |
| Display |
3.5 inch TFT screen |
| Suitable Note Size |
Length: 100mm~175mm |
| Width: 50mm~90mm |
| Suitable Note Thickness |
0.05mm~0.12mm |
| Speed (pcs / min) |
800/1000pcs/min(MIX & SDC Mode) |
| 1200pcs/min(CNT Mode) |
| Batch Number |
5~199pcs |
| Connectivity |
External printer/PC port: RS232 |
| LAN port:RJ45 |
| External display port: RJ12 |
| Software upgrade/Information collection port: USB/LAN |
| Save counted information port: Micro-SD card |
| Available currency software |
more than 40 currencies |
| Operation modes |
Single denomination sorting/Mix counting/Pieces counting/Face/Orientation Sorting |
| Counterfeit detection |
Ultraviolet detection(UV) |
| Magnetism detection(MG) |
| Metal thread detection(MT) |
| Infrared image detection(IR) |
| Power supply |
AC 220V 50Hz ±10% |
| AC 110V 60Hz ±10% |
| Power consumption |
Sleeping mode ≦15W |
| Operation mode≦70W |
