Rhodan 36V HD Trolling Motor - BB-12048LX

Rhodan 36V HD Trolling Motor - BB-12048LX

The New Rhodan Marine Hd Gps 36v Anchor Trolling Motor Is a Virtual Anchor, an Autopilot, and Wireless Trolling Motor All in One Remarkable Package! You Can Experience High Definition Boat Positioning When Fishing with the New Rhodan's Hd Gps Anchor Trolling Motor.

From the thousands of hours of engineering design to determine the best component for the job, to the use of all stainless hardware and fully encapsulated electronics. Rhodan Marine has developed a tool to improve your fishing experience for the years to come!

Rhodan Marine Systems has incorporated a remarkable micro-computer module that utilizes a high-definition GPS receiver to monitor and control the trolling motor. Their quiet and powerful thruster delivers 120 pounds of thrust by industry standards. Each system includes a wireless fob, a quick-release mount, a RAM mount (5″), and an efficient 3-bladed propeller!

GPS guided and wirelessly controlled. This patented system has evolved to its present configuration over years of use by its inventor. When you find a spot where the fish are biting, touch the anchor button on the fob and the GPS Guided Trolling Motor will automatically keep the bow of the boat within a few feet of the spot while you concentrate on the fish.

Virtual anchor, an autopilot, and wireless trolling motor all in one remarkable package!

Features

Dynamic Positioning System

• Precision positioning within a 3-foot circle

• Route Memory records 8 routes; 4 anchor locations

• One Touch Anchor Jog fine-tunes position while in anchor mode

Precision

Rhodan’s HD GPS Anchor+® utilizes a proprietary WAAS enabled high definition (HD) GPS receiver that is optimized for slow speeds and stationary positioning. The advanced receiver provides Rhodan’s HD GPS Anchor+® system with sub-meter accuracy which enables the system to respond instantly to nail the location.

Dual Tilt Compensated Compasses

Enables boat heading-related functions such as the Anchor Jog or Track features and also assists in tighter position control and prevention of cord wrap up. This also allows the system to soften its response should the thruster be pointed sideways to the boat in anchor mode which virtually eliminates unexpected rapid side shifts which can unbalance the boat’s occupants.

1. State-of-the-art Digital pulse width modulation (PWM) circuitry maximizes efficiency, minimizes heat dissipation, optimizes power, and extends battery life. Stay fishing for hours longer on a single charge.

2. Wireless remote control fob lets you control the Trolling Motor while fishing from anywhere on the boat. The fob is waterproof and floats.

3. The HD GPS Anchor ® Trolling Motor can steer the boat while the main engine is at low power settings. This allows the system to troll at higher speeds or to anchor in a fast-moving current.

4. Instant “Off” button in case you need it while working a fish.

5. Audible battery meter allows the battery state of charge to be checked from anywhere on the boat using the wireless fob.

6. Stowed position sensor automatically prevents the trolling motor and propeller from operating in the stowed position.

7. Lockable quick-release mount permits unit to be moved for safe-keeping or use on another boat.

8. Durable corrosion-free composite shaft flexes upon impact.

9. Rhodan Trolling Motors have been subjected to thousands of hours of durability testing and actual fishing use.

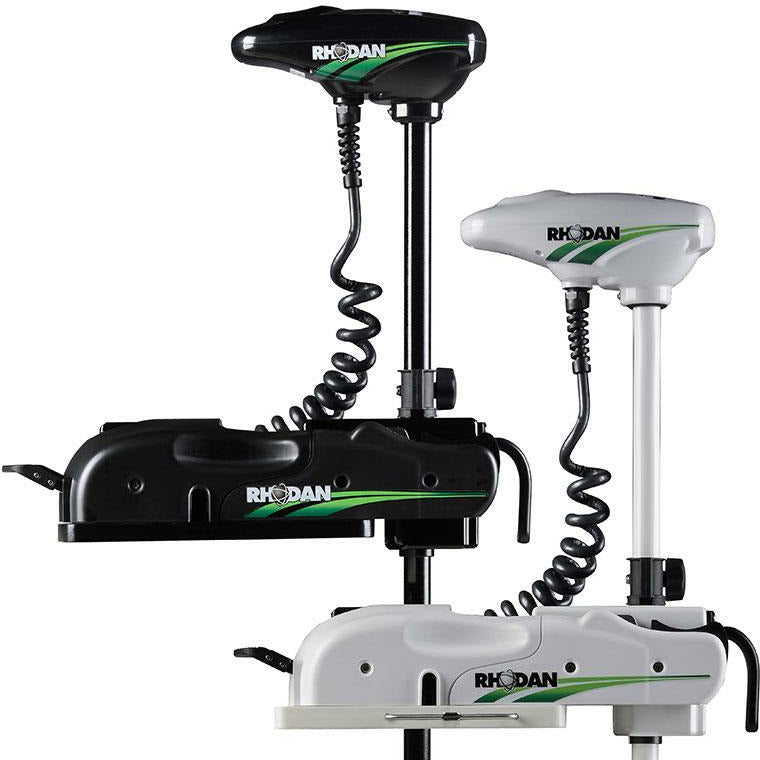

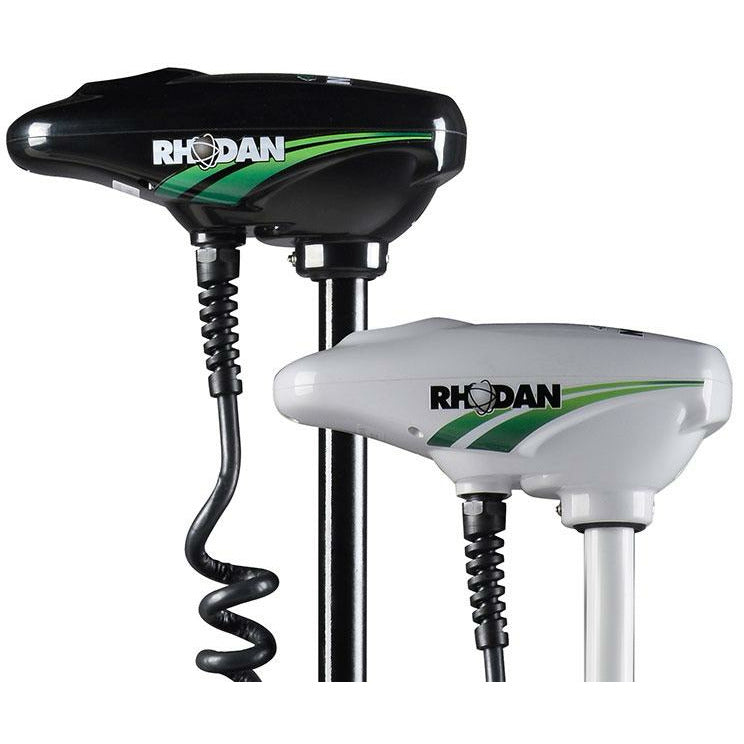

10. Both Black and White models are designed for saltwater use and are equipped with sacrificial zinc anodes and the trolling motor lower unit and shafts all include Line-X® finish.

HOW TO GET THE RIGHT SHAFT LENGTH

MEASURE FROM THE TIP OF THE BOW TO THE WATERLINE

MODES OF OPERATION

Specification

Package Include

1. 36V HD GPS Trolling Motor

2. Wireless Fob

3. Quick Release Bracket With Pin

4. Ram Mount Stabilizer

5. Quick Release Puck

HD GPS ANCHOR ® TROLLING MOTOR – 36V COMPONENTS

OPTIONAL EXTRAS

The GEN series is an On-Board Battery Charger for charging and maintaining a 12-volt Marine, Starter or Deep-Cycle battery group.

Marine grade 50 Amp circuit breaker for trolling motors 12V-36V.

The gateway will allow Rhodan trolling motors with serial numbers R587363 or higher to integrate with select Simrad and Lowrance units. This module will allow you to manually control the Rhodan from the MFD!

You may choose a saved waypoint on the MFD, and the Rhodan will move to the position and anchor the boat, as well as save numerous routes for your Rhodan to follow. Additionally, the Gateway will assist with communication between the Rhodan and the remote control by adding an additional antenna.

This quick disconnect plug with stainless connections is designed for the harshest environments. It is the only trolling motor plug backed by Rhodan.

Built Dakota tough with exceptional energy density, this single 36V (volt) 60Ah (amp hour) battery will power your passions from morning to night.

Includes: 36V 8A LIFEPO4 Charger

Built

 Dakota tough with exceptional energy density, this single 36V (volt) 60Ah (amp hour) battery will power your passions from morning to night.

Includes: 36V 8A LIFEPO4 Charger

Product Manual

Product Manual - BB-12072LX

Video

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
