Aardwolf Pneumatic Anchor Machine - APAM
Product Code: APAM
General

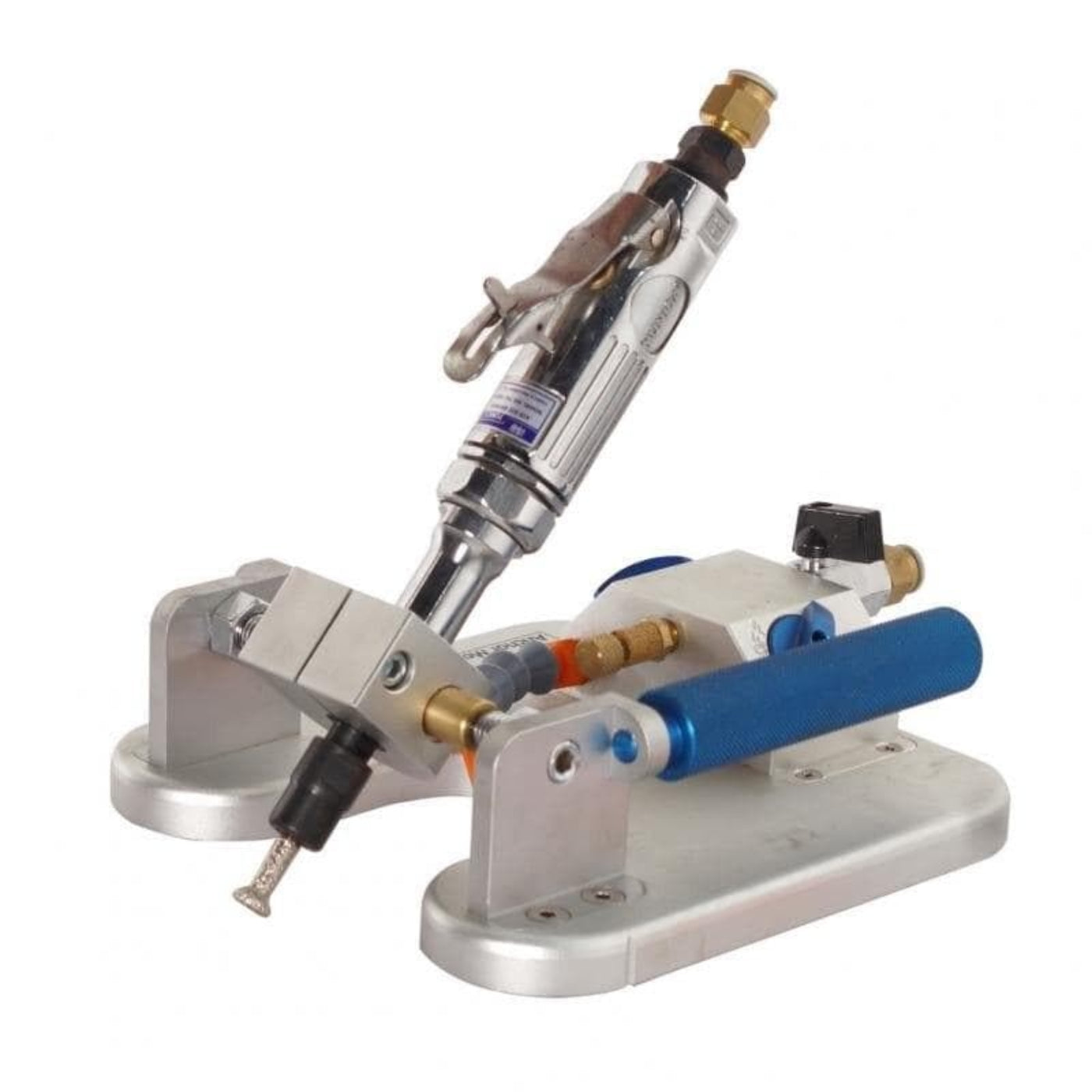

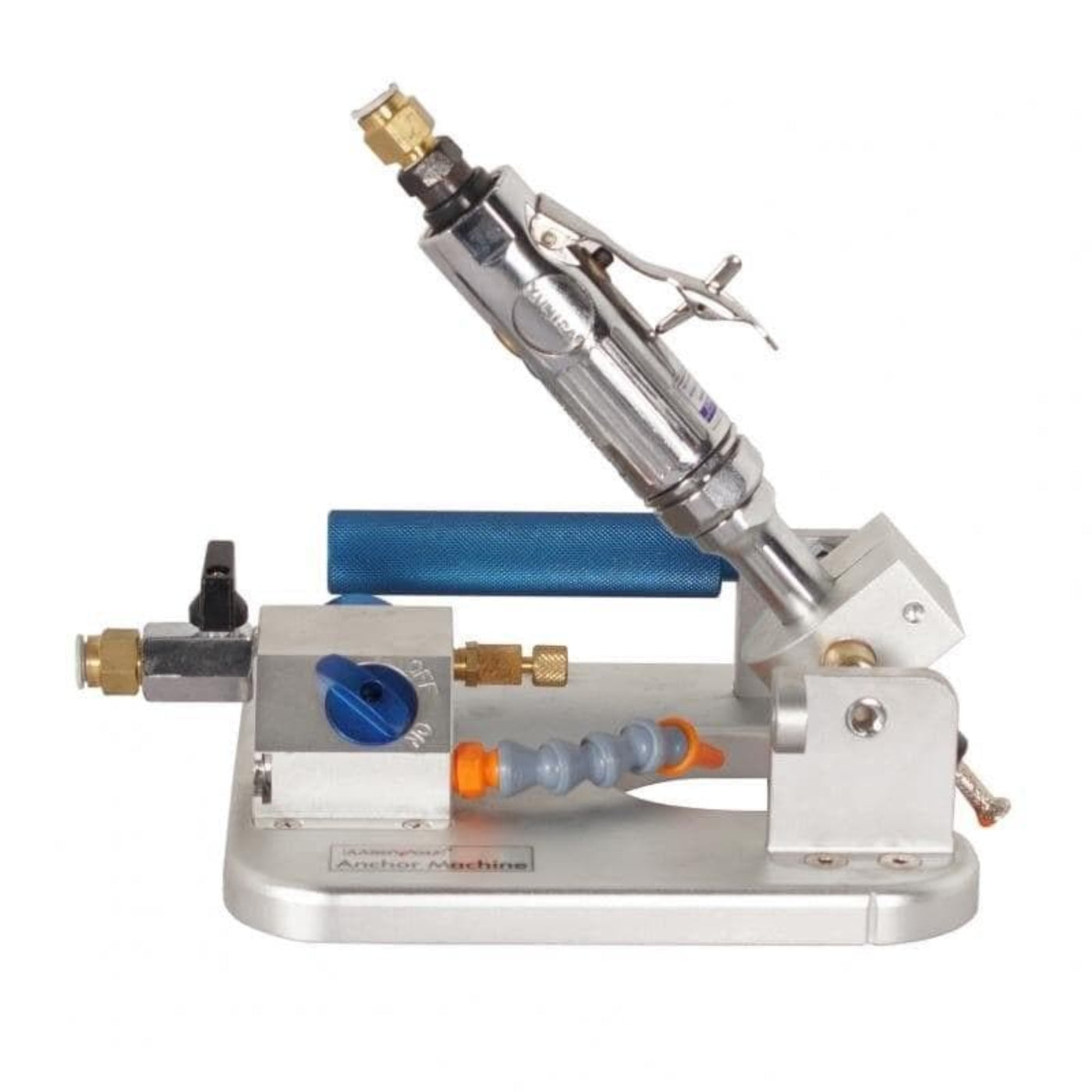

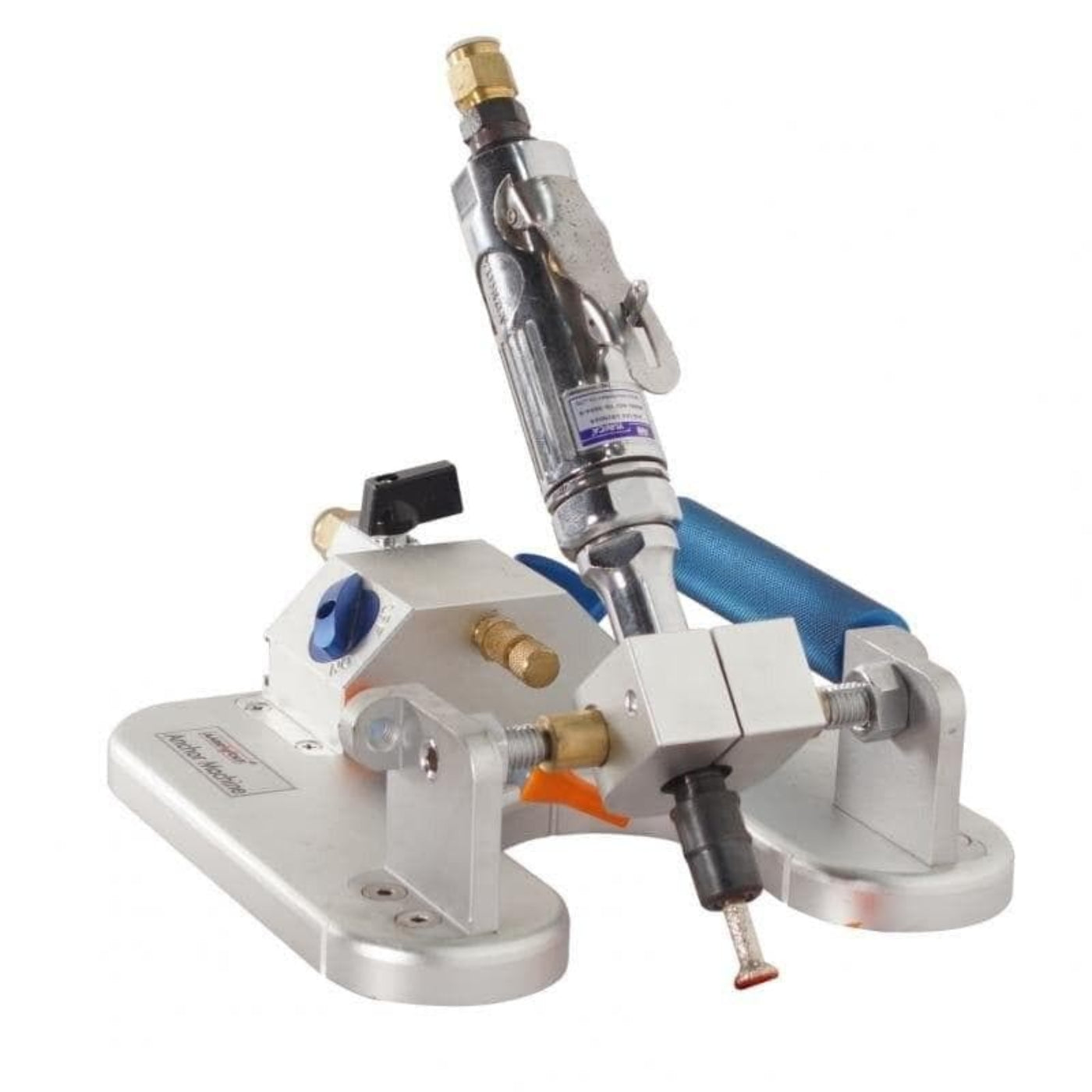

The Pneumatic Anchor Machine manufactured by Aardwolf Industries LLC features pneumatic grinders and a vacuum-powered base. It is used to cut T-slots in the back of vanity tops for the attachment of anchor bolts used in under-counter sink or architectural facing systems. Two separate vacuum zones on the base can be turned on or off, enabling the machine to be used near edges.
Features
- Industrial quick-couplers for both air and water
- Combination port that allows vacuum to be applied with compressed air via the built-in venturi vacuum generator
- The grinders accept any T diamond bit with a 6mm shank
- Water hose with ball valve and quick-coupler can be quickly detached and used to spray work area
- Machine cuts in both push and pull directions
- Alignment indicators on machine base
- Machined, anodized aluminium components
- Moulded rubber vacuum base seal
Specifications
|
Metric
(mm-kg) |
Imperial
(inch-lb) |
| Net weight |
3 |
6.6 |
| Collet diameter |
6 |
0.2'' |
| No load speed 25,000 RPM |
|
|
| Water connection hose thread- 1/4" PT |
|
|
| Air connection 1/4" industrial series coupler plug |
|
|
| Vacuum base -80 kPa vacuum |
|
|
What our Experts Think
-
Precision T-Slot Cutting:
Specifically designed for cutting T-slots in granite, enabling fast and accurate installation of T-31 anchor bolts used for under-mount sinks and wall cladding.
-
Dual Vacuum Zones:
Equipped with two independent vacuum zones, allowing for secure operation even when working near the edge of the stone.
-
Bidirectional Cutting:
Cuts in both push and pull directions, increasing flexibility and workflow efficiency.
-
High-Speed Motor:
Delivers a no-load speed of 25,000 RPM for fast and smooth cutting performance.
-
Durable Construction:
Built with machined, anodized aluminum components for long-lasting use in demanding shop environments.
-
User-Friendly Features:
Includes alignment indicators for precise positioning and a molded rubber vacuum seal for strong adhesion to the stone surface.
Q&A
Q: What is the Aardwolf Pneumatic Anchor Machine (APAM)?
A: The APAM is a pneumatic-powered tool designed to cut T-slots in granite and stone surfaces, facilitating the installation of anchor bolts for under-counter sinks and architectural facings.
Q: How does the APAM operate?
A: It utilizes a pneumatic grinder mounted on a vacuum-powered base, allowing for precise cuts in both push and pull directions. The vacuum base features two separate zones that can be activated or deactivated, enabling use near edges.
Q: What are the key features of the APAM?
A: Notable features include industrial quick-couplers for air and water, a built-in Venturi vacuum generator, compatibility with 6mm shank T-diamond bits, a detachable water hose with a ball valve, alignment indicators, and anodized aluminum components.
Q: What are the technical specifications of the APAM?
A: The machine has a no-load speed of 25,000 RPM, a 6mm (1/4") collet diameter, and operates with a vacuum base pressure of -80 kPa. It weighs approximately 7 lbs (3.2 kg) and connects via 1/4" industrial air and water couplers.
Q: Where can I purchase the APAM?
A: The Aardwolf Pneumatic Anchor Machine is available for purchase through various distributors, including Master Wholesale, Diamond Tool Store, and USA Granite Tools. Pricing and availability may vary.
Maintenance Tips
1. Regular Cleaning:
-
After each use, clean the machine to remove dust, debris, and any material residues.
-
Use a soft brush or cloth to clean the surfaces.
-
Wipe all parts dry to prevent moisture buildup.
2. Structural Inspections:
-
Periodically inspect the machine for signs of wear or damage.
-
Check for rust, bent components, or any structural issues.
-
Address any issues promptly to maintain safety and functionality.
3. Lubrication:
-
Lubricate moving parts, such as the grinder and vacuum components, to ensure smooth operation.
-
Use a suitable lubricant that does not attract excessive dust or debris.
4. Air and Water Connections:
