Aardwolf Paving Stone Lifter - ASPL

Aardwolf Paving Stone Lifter - ASPL

General

When installing paving flags, the Paving Stone Lifter saves time and reduces stress on the back and knees. It can also be used with concrete, sandstone, slate, etc. The safe lifting height recommended when using the Paving Stone Lifter is no more than 75mm (3”) to 125mm (5”) above the work area.

Feature

• The Head is constructed with heavy-duty aluminum.
• A complete line of interchangeable heads is available in different sizes for lifting various types and sizes of materials.
• Visual low vacuum alert.

Specifications

What our Experts Think

• Efficient Lifting:
  Designed to safely lift paving stones, concrete slabs, sandstone, and slate, the APSL reduces physical strain during installation.

• Heavy-Duty Construction:
  Features a robust aluminum head and interchangeable suction pads, accommodating various material sizes.

• High Load Capacity:

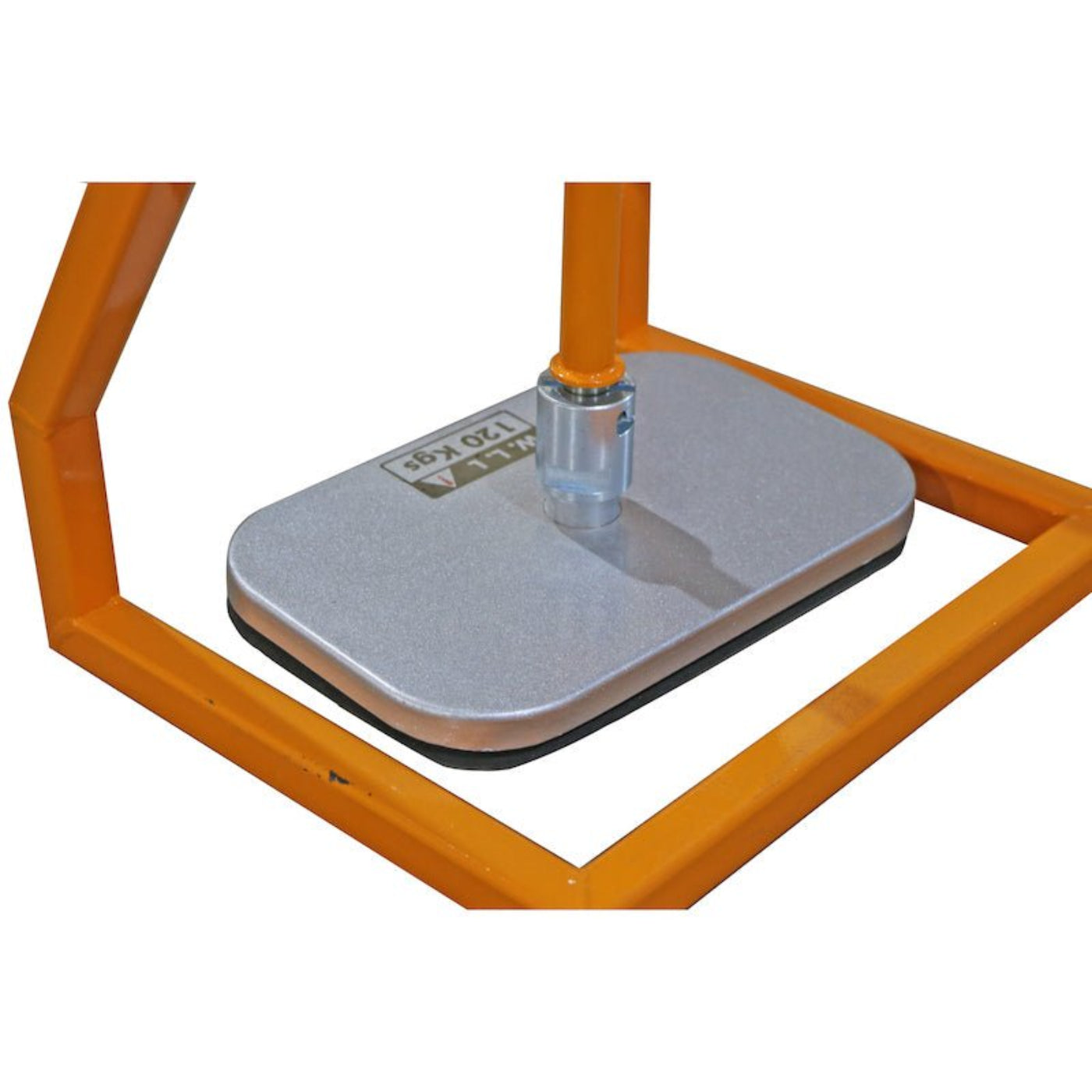

  Equipped with 8"x8" (200x200 mm) pads lifting up to 132 lbs (60 kg) and 10"x10" (260x260 mm) pads lifting up to 264 lbs (120 kg).

• User-Friendly Operation:
  Offers dual control options: handle-mounted buttons for precision or body-mounted for broader accessibility.

• Automatic Safety Features:
  Includes a visual low vacuum alert and an automatic vacuum pressure system for real-time feedback.

• Versatile Usage:
  Supports manual handling, forklift assistance, or crane attachment, enhancing operational flexibility.

• Portable Design:
  Lightweight at 42 lbs (19 kg) with a compact footprint, facilitating easy transport and storage.

• Long Battery Life:
  Powered by a 12V-7A battery with a charging time of 3.5 hours, providing over 3 hours of continuous use.

Q&A

Q: What is the Aardwolf Paving Stone Lifter (APSL)?
A: The APSL is a vacuum-powered lifting device designed to safely and efficiently handle paving stones, slabs, and tiles, reducing manual strain during installation.

Q: What is the lifting capacity of the APSL?
A: The APSL can lift materials weighing up to 120 kg (264 lbs), depending on the size of the suction pads used.

Q: How is the APSL powered?
A: The APSL operates on a 12V-7Ah battery, requiring approximately 3.5 hours to charge, with a continuous operation time exceeding 3 hours.

Q: What materials can the APSL handle?
A: The APSL is suitable for lifting various materials, including concrete, sandstone, slate, and other paving stones.

Q: What features enhance the APSL's safety and usability?
A: The APSL includes a visual low vacuum alert, handle-mounted dual controls for precise operation, and a heavy-duty aluminum head construction. It also offers interchangeable heads for different material sizes and types.

Q: Is the APSL easy to transport and store?
A: Yes, the APSL is designed with a disassemblable stand for easy transport and storage, making it ideal for both on-site and off-site use.

Q: What is the recommended lifting height for the APSL?
A: The APSL is designed for lifting materials no more than 75 mm (3 inches) to 125 mm (5 inches) above the work area to ensure safe operation.

Maintenance Tips

Regular Cleaning:

• After each use, clean the lifter to remove dust, debris, and any material residues.

• Use a soft brush or cloth to clean the suction pads and other components.

• Ensure that the vacuum system is free from blockages.

Inspection:

• Periodically check the lifter for signs of wear or damage.

• Inspect the vacuum hoses and connections for leaks.

• Ensure that the suction pads are in good condition and replace them if necessary.

Battery Maintenance:

• Charge the battery after each use to ensure it's ready for the next operation.

• Store the lifter in a cool, dry place to prolong battery life.

• If the lifter will not be used for an extended period, remove the battery and store it separately.

Safe Operating Practices:

• Always ensure that the lifting height does not exceed 75mm (3”) to 125mm (5”) above the work area.

• Avoid overloading the lifter; adhere to the manufacturer's weight capacity guidelines.

• Use the lifter on stable and level surfaces to prevent tipping.
