Hoshizaki F-1002MRJZ-C Ice Maker Bundle with Remote Condenser, Ice Bin & Tubing Kit - F-1002MRJZ-CBUNDLE

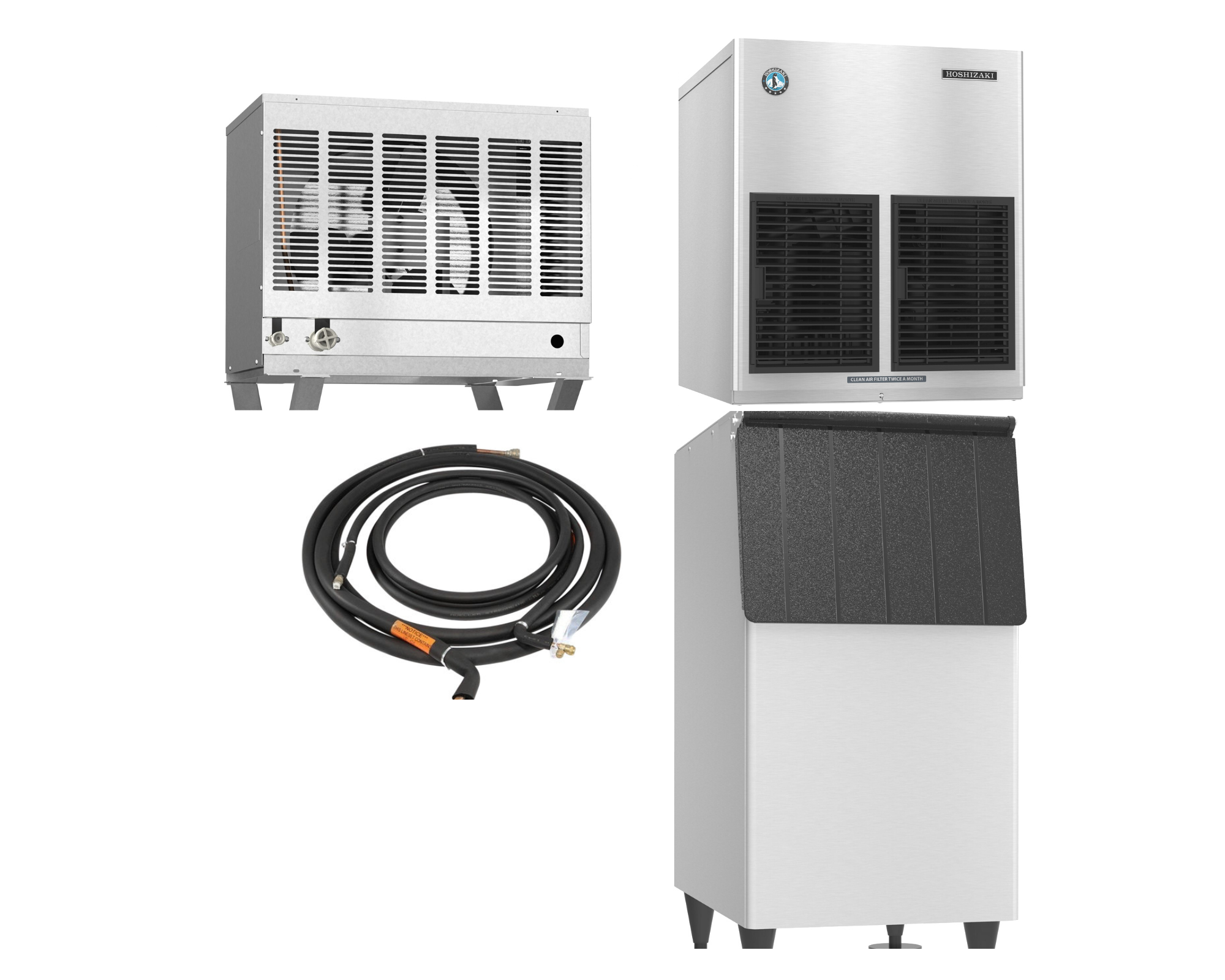

Hoshizaki Bundle - F-1002MRJZ-C Remote Cooled Small Cubelet Ice Maker | URC-5FZ Remote Condenser | B-300SF Ice Bin | HS-5588 Tubing Kit - F-1002MRJZ-CBUNDLE

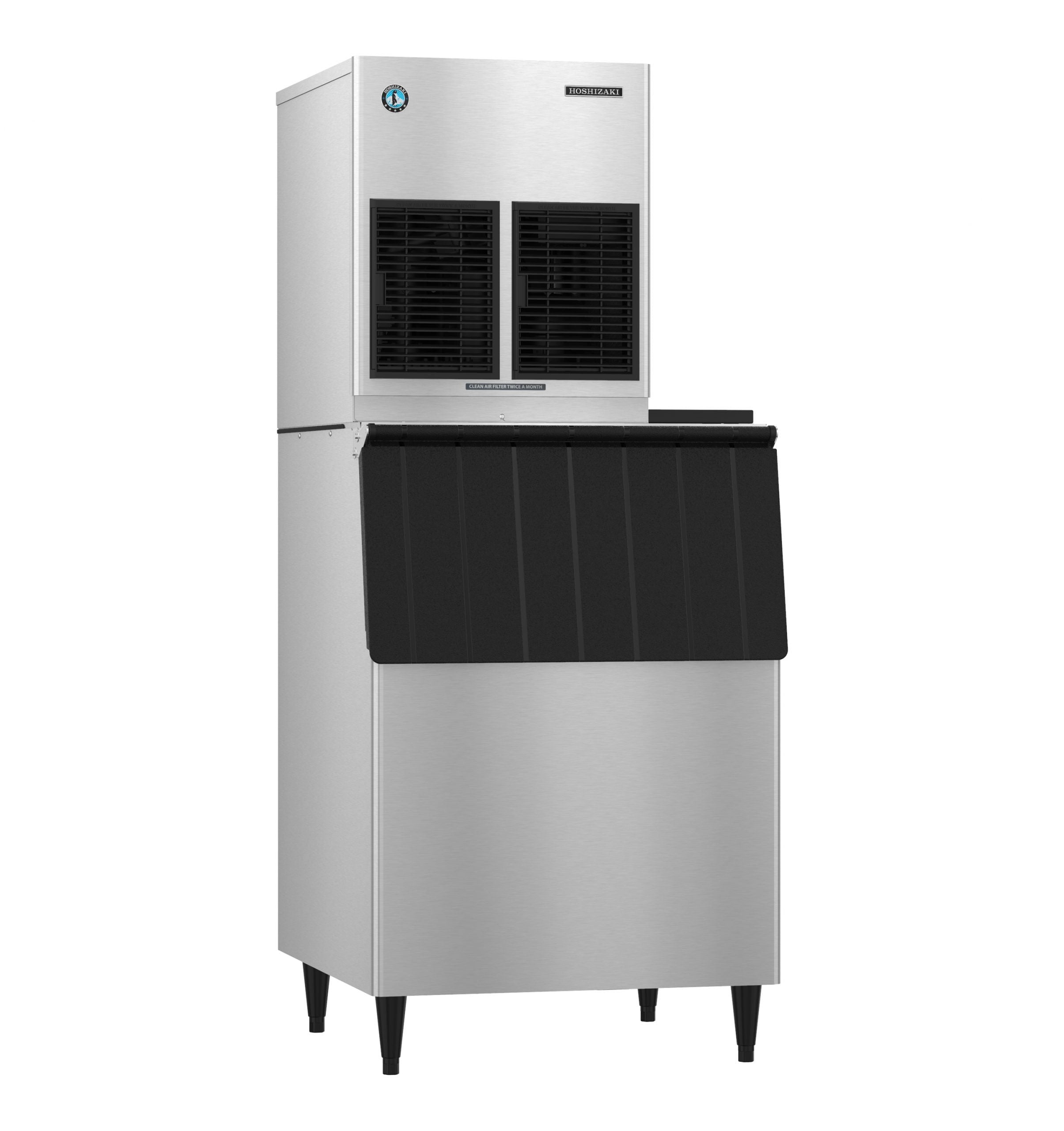

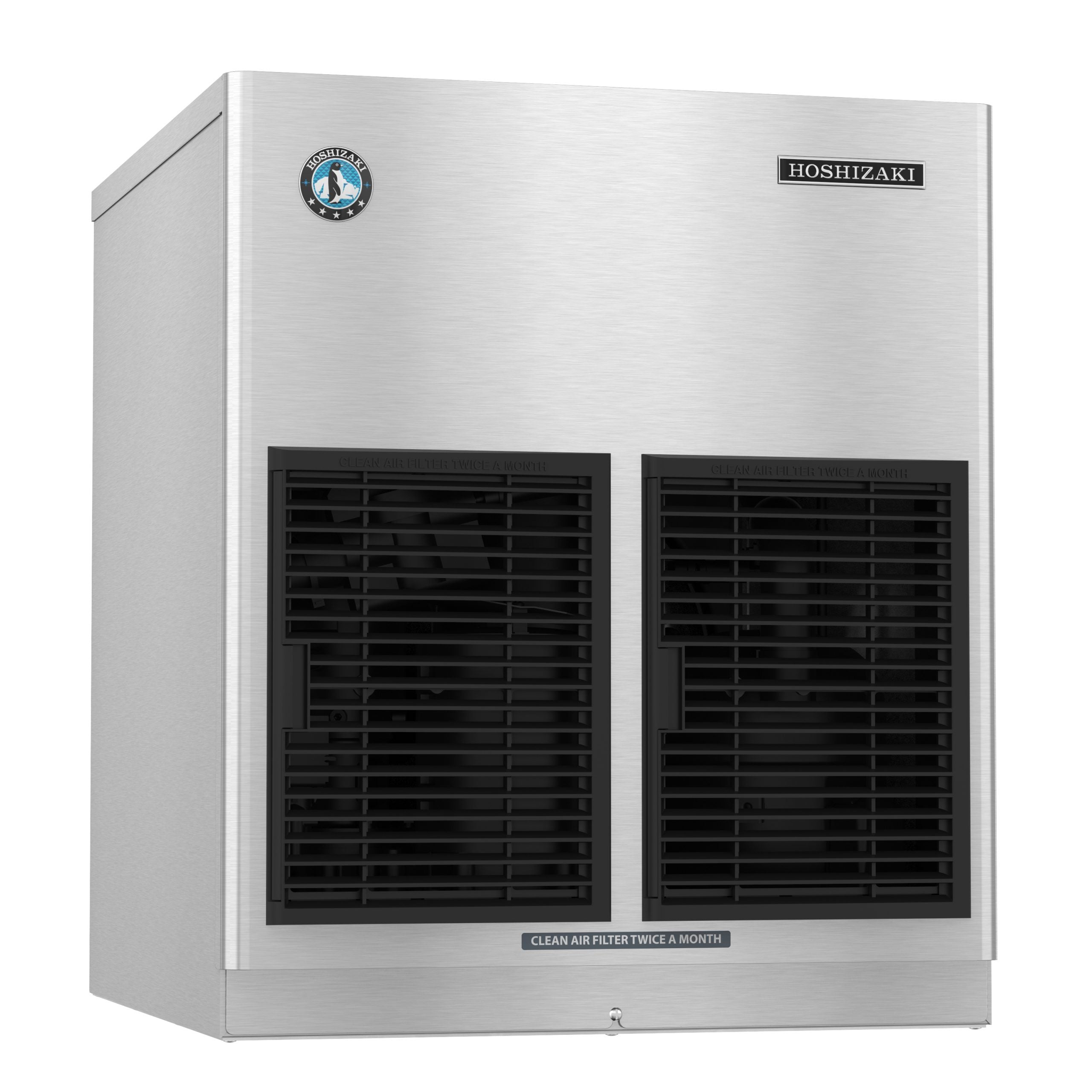

F-1002MRJZ-C Remote-Cooled Flaker Ice MakerThe F-1002MRJZ-C is capable of producing approximately 821 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-5FZ icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MRJZ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.

Features

• Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
• Up to 821 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces small cubelet nugget-style ice
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS
• Heat Rejection:8500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 15.23 amps (20 Amp Max fuse)
• 4.94 kwh/100 lbs. 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• Three Years: Parts & Labor warranty on entire machine.
• Five Years: Parts warranty on Compressor, air-cooled condenser coil.

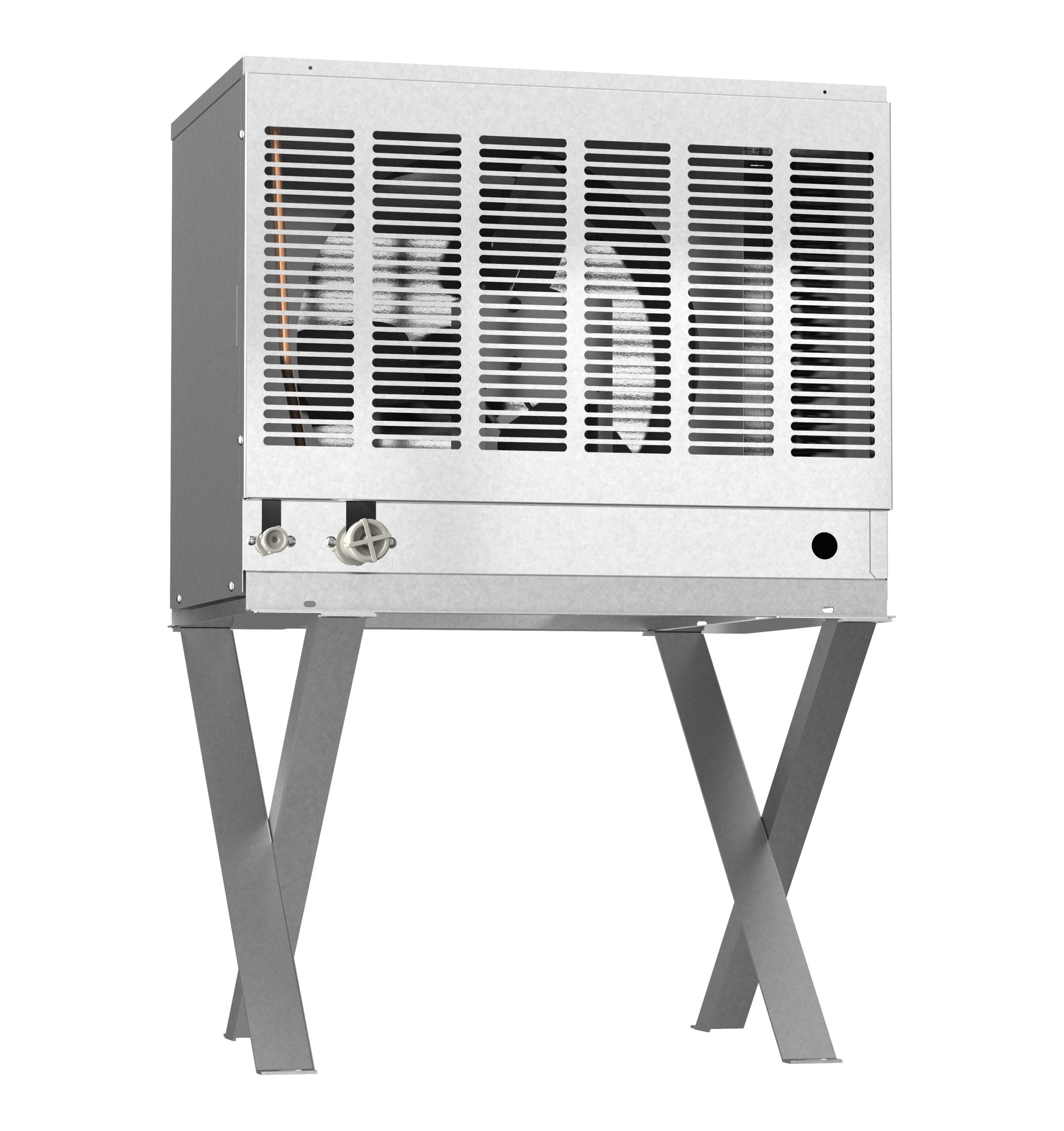

URC-5FZ Remote Condenser

The URC-5FZ, URC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The URC-5FZ Remote Condenser operates on Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground), and R-404a refrigerant (1 lb. 14 oz. / 850 g). Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C. The unit is UL Listed, Georgia Made Certified and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.

 Features

• Dimensions: 21-13/16″ W x 14-1/16″ D x 32-13/16″ H
• Remote condenser for KM-520MRJZ, KMD-530MRJZ, KM-660MRJZ, FD-650MRJZ-C, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
• Must be hardwired at the site (3 wire, including ground)
• Allow 24″ clearance for best performance
• Single Phase, 115v/60/1, Must be hardwired at the site (3 wire, including ground)
• R-404a refrigerant (1 lb. 14 oz. / 850 g)
• Compatible icemakers, sold separately: KM-520MRJZ, KM-660MRJZ, FD-1002MRJZ-C, F-1002MRJZ, F-1002MRJZ-C
• Three Years: Parts & Labor warranty on entire unit.
• Five Years: Parts warranty on air-cooled condenser coil.

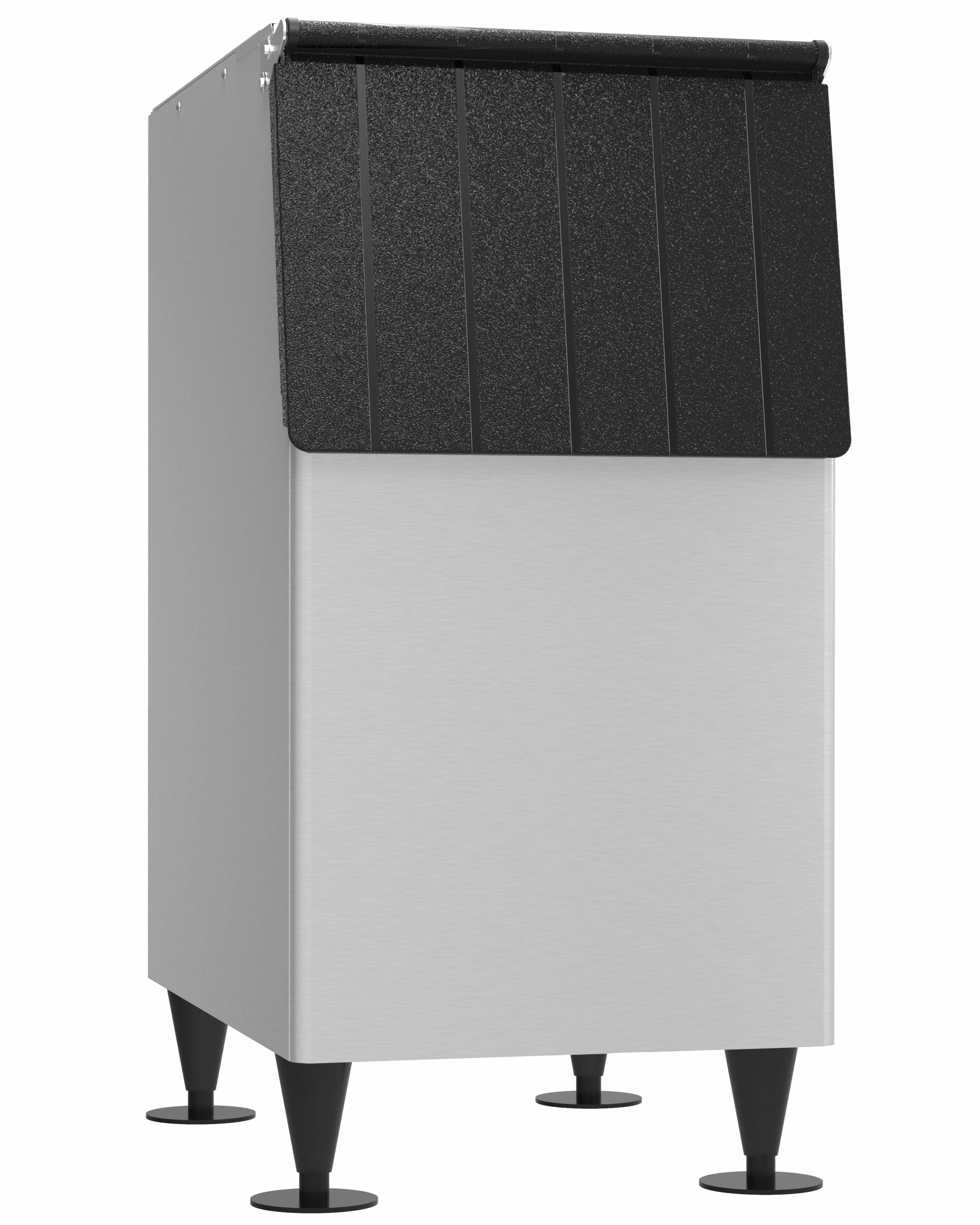

B-300SF Ice Storage Bin

Safely store up to 300 lbs of ice* with this B-300SF 22″ high-capacity ice storage bin! It boasts foamed-in-place polyurethane insulation in all of the bin walls and the bottom of the unit to provide you with maximum ice preservation. The B-300SF features a durable Stainless Steel exterior cabinet with a seamless, easy to clean, polyethylene bin liner. This model comes Standard with 6″ Painted Flange Legs and a Top-hinged front-opening bin door. 3/4″ FPT drain. The unit is ETL Verified, NSF and includes a Two Years: Parts & Labor warranty (Before January 2012 production). *Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice

Features

• Dimensions: 22″ W x 32- 1/2 ” D x 46″ H
• Stores up to 300 lbs of ice
• Capacity based on 11.51 ft3 x 30lbs/ft3 average density of ice
• Polyethylene bin liner for sanitary ice storage
• Foamed-in-place polyurethane insulation
• For top-mounted ice maker
• Top-hinged front-opening bin door
• Standard with 6″ Painted Flange Legs
• 3/4″ FPT drain
• 135 lbs

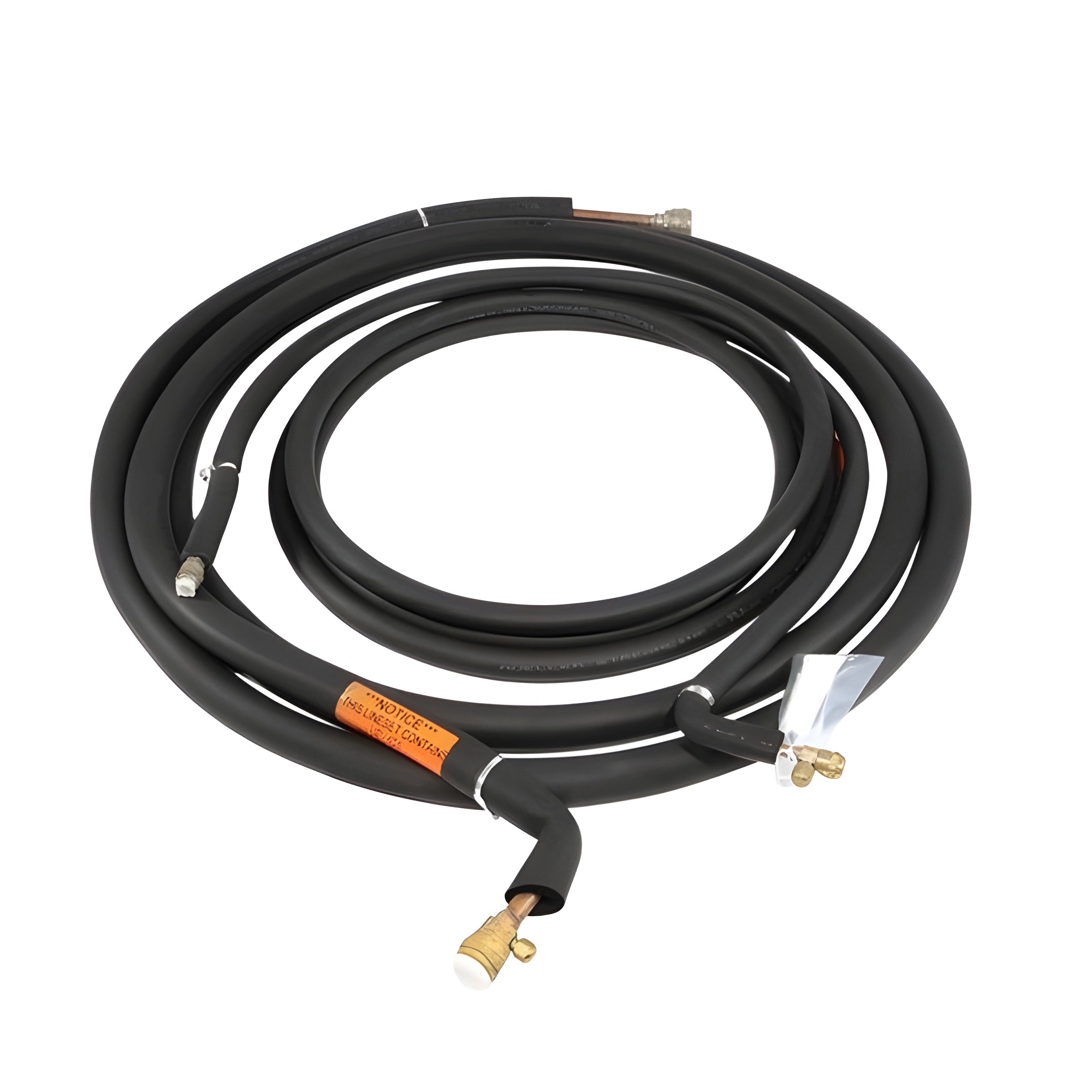

HS-5588 35 ft Ice Bin Tubing Kit Brazing

Use this Hoshizaki HS-5588 35' remote ice machine condenser line kit to connect your remote cooled ice machine to a URC-5FZ remote condenser. These lines are vital components, as they will reliably exchange refrigerant between the two units and ensure smooth operation.

This line set allows you to install your condenser unit on the roof or in another location away from the rest of your operation. This helps to reduce clutter in your kitchen, streamline your workspace, and eliminate additional heat build-up or strain on your HVAC system. This line set will require refrigerant to be added and will need brazing at the time of installation.

What Our Experts Think

The Hoshizaki F-1002MRJZ-C Bundle is a complete remote-cooled ice-making system, ideal for businesses needing reliable, high-volume cubelet ice production.

• F-1002MRJZ-C Ice Maker – Produces chewable cubelet ice, perfect for beverages and healthcare applications.
• URC-5FZ Remote Condenser – Enhances efficiency by reducing heat and noise in the ice-making area.
• B-300SF Ice Bin – 300 lb storage capacity ensures a steady ice supply.
• HS-5588 Tubing Kit – Provides secure connections for optimal performance.
• Energy-Efficient & Durable – Designed for long-term, high-output use.

Q&A

Q: What is included in this bundle?
A: This bundle includes the Hoshizaki F-1002MRJZ-C remote-cooled small cubelet ice maker, URC-5FZ remote condenser, B-300SF ice storage bin, and HS-5588 tubing kit.

Q: What is the daily ice production capacity?
A: The F-1002MRJZ-C can produce up to 890 lbs of cubelet ice per day under optimal conditions.

Q: What type of ice does this machine produce?
A: It produces small cubelet ice, which is soft, chewable, and ideal for beverages and healthcare applications.

Q: What is the purpose of the remote condenser?
A: The URC-5FZ remote condenser helps reduce heat and noise in the kitchen or service area by relocating the cooling unit outdoors.

Q: How much ice does the storage bin hold?
A: The B-300SF ice bin has a 300-lb storage capacity, ensuring a steady supply of ice.

Q: Is the tubing kit included?
A: Yes, the HS-5588 tubing kit is included for connecting the ice maker to the remote condenser.

Q: Is professional installation required?
A: Yes, installation by a certified technician is recommended for proper setup, refrigerant charging, and system performance.

Maintenance Tips

• Clean Ice Maker Regularly: Perform routine cleaning with manufacturer-approved solutions to prevent mineral buildup and maintain ice quality.
• Inspect & Clean Condenser Coils: Keep the URC-5FZ remote condenser free from dust and debris for optimal cooling efficiency.
• Check Tubing & Connections: Inspect the HS-5588 tubing kit for leaks, wear, or blockages to ensure proper refrigerant flow.
• Sanitize Ice Bin: Regularly clean and sanitize the B-300SF ice bin to prevent mold, bacteria, and ice contamination.
• Monitor Performance: Ensure consistent ice production and check for unusual noises or reduced efficiency, which may indicate maintenance needs.
