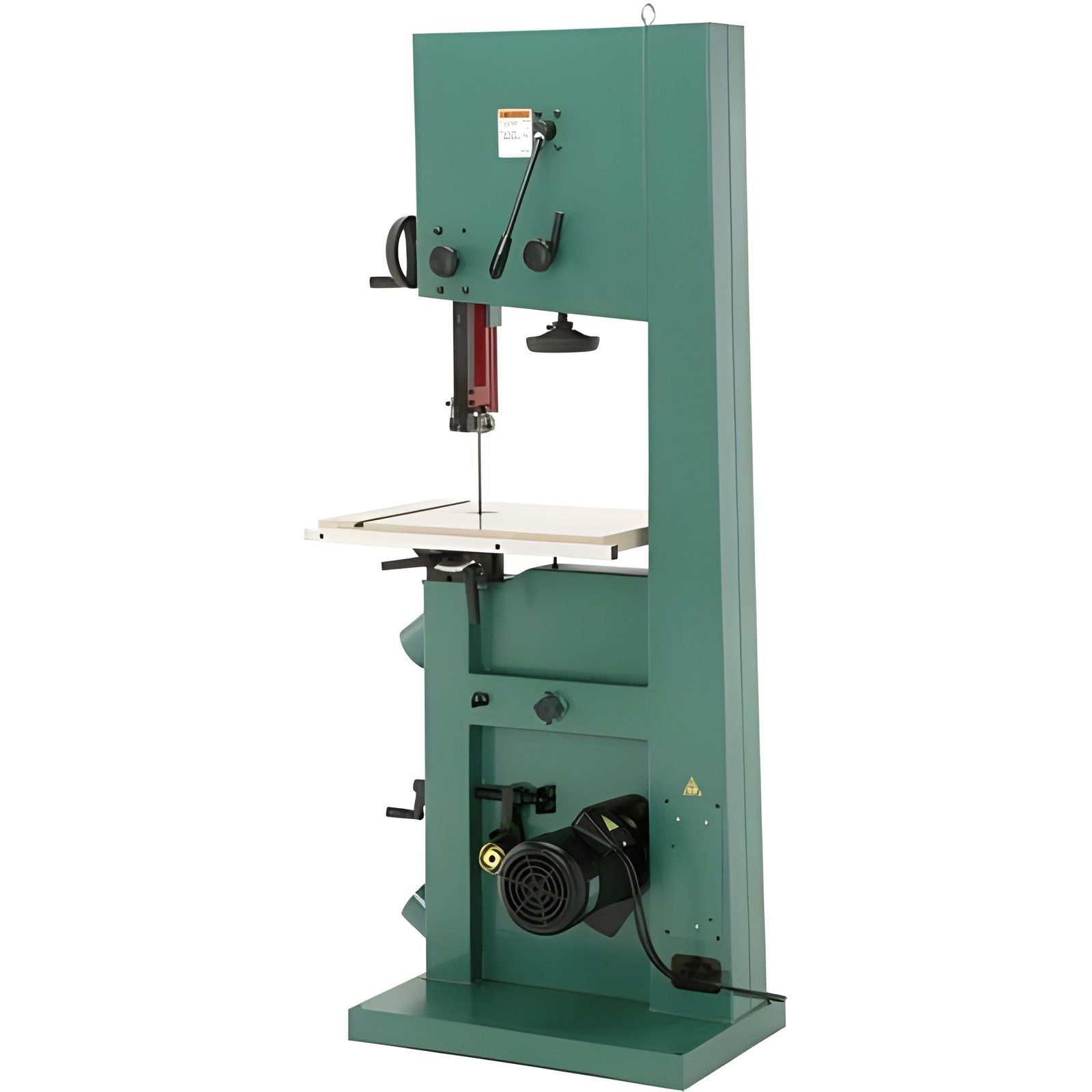

Grizzly Industrial 17" 2 HP Metal/Wood Bandsaw w/Inverter Motor

Cut wood or metal with this 2 HP 17' variable-speed combination bandsaw.

We’ve taken all the best features from our vertical wood-cutting bandsaws and added a variable blade speed control with two speed ranges. This allows the G0640X bandsaw to operate between 100–3600 FPM and double as a metal-cutting bandsaw with the power and cutting capacity to tackle just about anything!

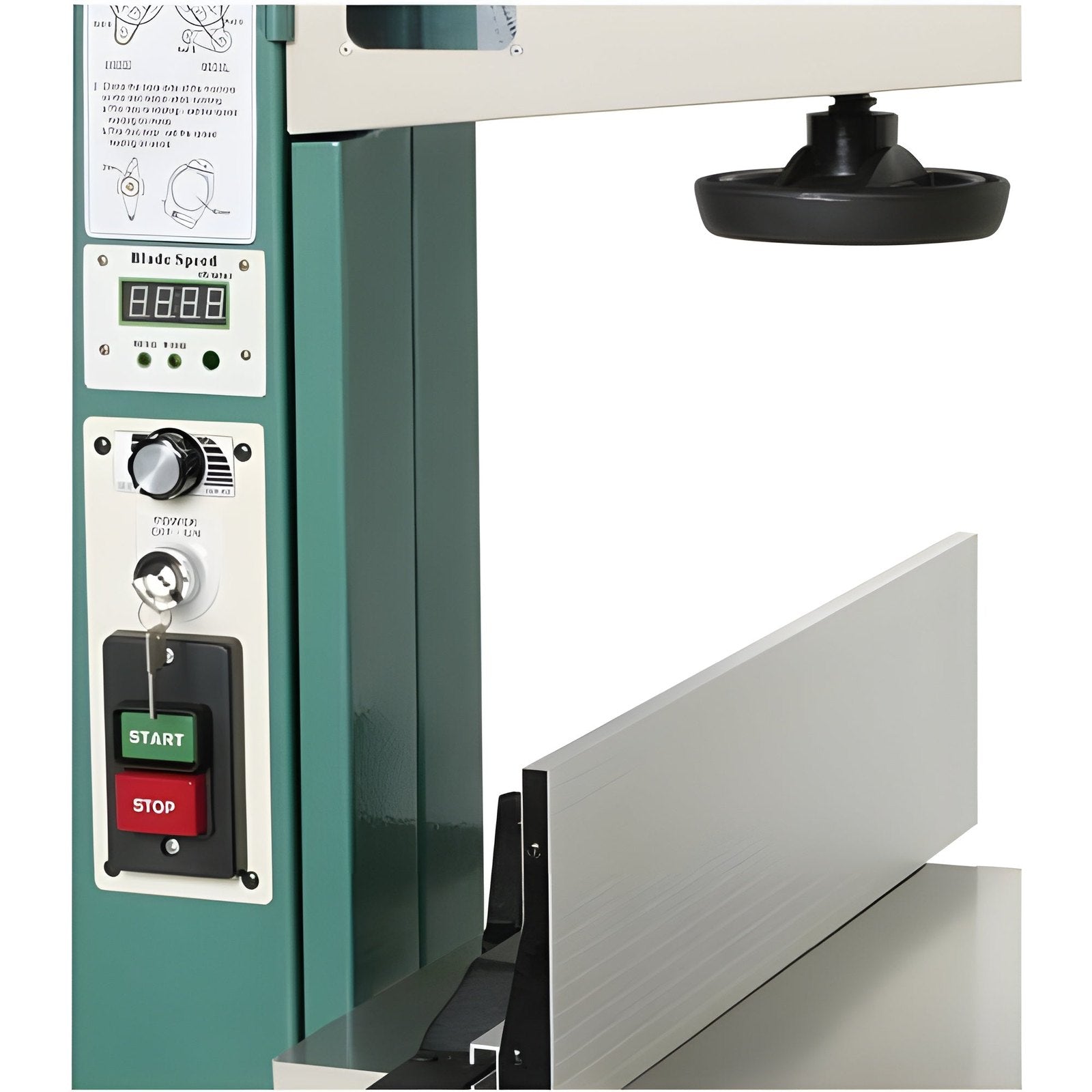

The G0640X features a Delta VFD-M inverter which gives you 3-phase, variable-speed power while operating on standard single-phase power source. The VFD saves you money by increasing the efficiency of the motor and decreasing electricity use. It reduces wear and tear on the motor which extends the life of the bandsaw.

The blade tracking and tensioning systems are easy to use. Blade tracking is primarily controlled by adjusting the upper wheel tilt. Engage the tension lever and turn the tension handwheel to adjust blade tensioning. Release the tension lever to relieve the tension on the tires when not in use. A wood-cutting blade comes installed and a metal-cutting blade is included.

The G0640X has a large 23-5/8' x 17-1/4' table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table.

You will find many other features that have made Grizzly bandsaws so popular with our customers such as the rack-and-pinion upper guide adjustment, cast-iron trunnion and cast-iron wheels.

The Grizzly G0640X Metal/Wood Bandsaw is covered by a one-year warranty that covers replacement parts and guards against factory defects. The G0640X is supported by a US-based product support team and replacement parts are available online and ship from our massive Parts Department in Springfield Missouri.

Made in an ISO 9001 factory

Specifications

• Motor: 2 HP, 220V, 3-phase, 8A (runs on single-phase, 220V)
• Maximum cutting width left of blade: 16-1/4'
• Maximum cutting height (resaw capacity): 12'
• Table size: 23-5/8' x 17-1/4'
• Table tilt: 5° left, 45° right
• Floor-to-table height: 37-1/2'
• Blade size: 131-1/2' (1/8'–1' wide)
• Blade speed: Variable, 100–3600 FPM
• Footprint: 17-3/4' x 27'
• Overall dimensions: 32' W x 32' D x 73' H
• Approximate shipping weight: 416 lbs.

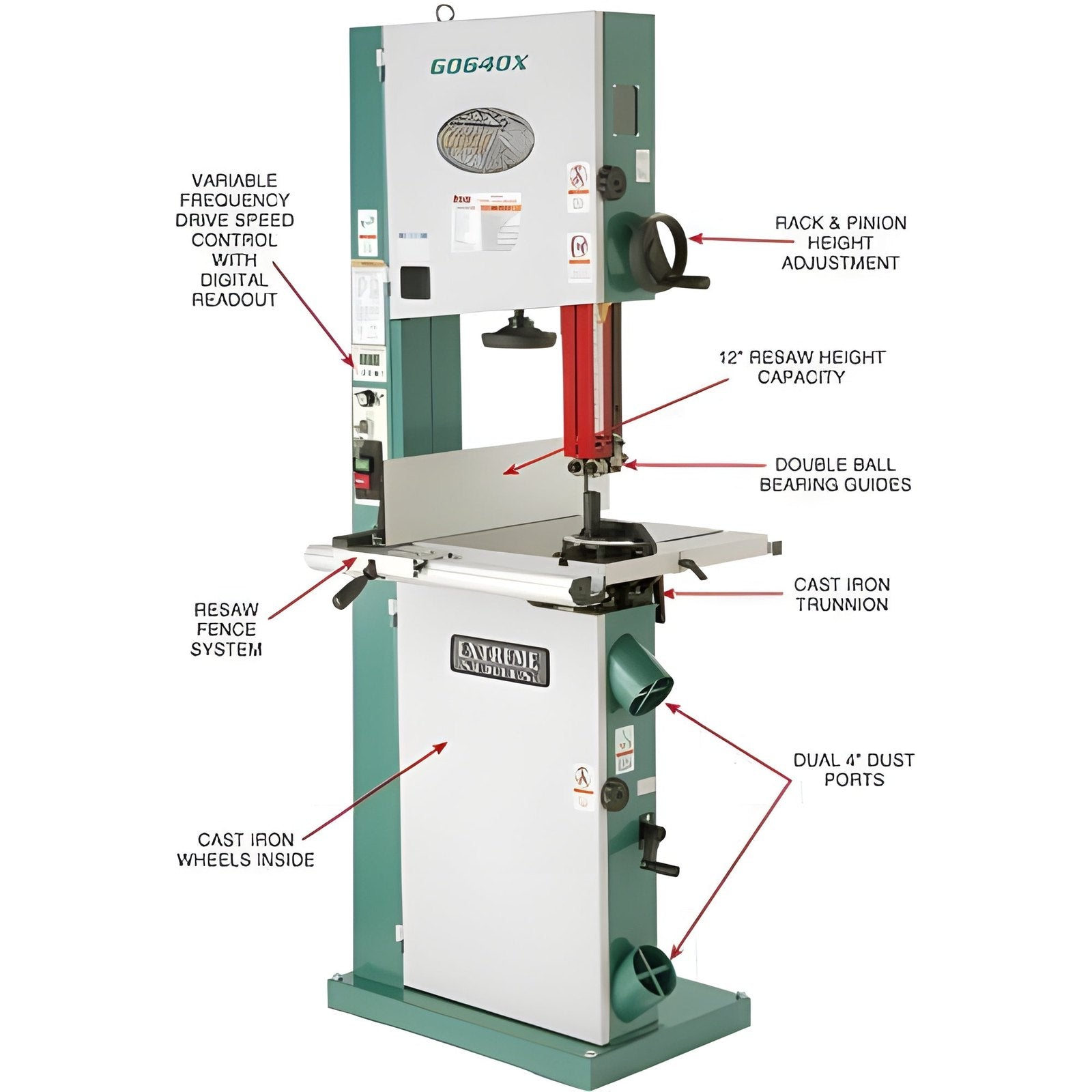

Features

• Requires single-phase power
• Variable-speed control
• Two speed ranges: fast for wood and slow for metal
• Two 4' dust ports
• Precision-ground cast-iron table
• Rack-and-pinion left-and-right table tilt control
• Rack-and-pinion adjustment on upper blade guide support
• Quick-release blade tension
• Includes 1/2' x 6 TPI wood blade, 1/2' x 10 TPI metal blade
• Includes rip fence, resaw fence, and miter gauge

What Our Experts Think

The Grizzly Industrial 17" 2 HP Metal/Wood Bandsaw with Inverter Motor is designed for versatility, capable of handling both metal and wood cutting tasks. Here’s why it’s a standout:

• 2 HP Inverter Motor: Delivers consistent power and smooth operation for cutting through both metal and wood materials.
• Dual Material Capability: Easily switches between metal and wood cutting, offering excellent flexibility for diverse projects.
• Large Cutting Capacity: 17" throat depth and 12" resaw capacity enable handling of larger materials with ease.
• Advanced Inverter Technology: Provides variable speed control for optimizing cutting performance across different materials.
• Durable Build: Heavy-duty construction ensures long-lasting performance, even under continuous use.

Q&A

Q: What is the Grizzly Industrial 17" 2 HP Metal/Wood Bandsaw with Inverter Motor designed for?
A: This versatile bandsaw is designed for both metal and wood cutting, offering exceptional performance for a wide range of materials.

Q: How powerful is the motor?
A: It features a 2 HP inverter motor, providing consistent, reliable power for both wood and metal cutting tasks.

Q: What is the cutting capacity?
A: The bandsaw offers a 17" throat depth and a 12" maximum cutting height, suitable for larger workpieces.

Q: What makes the inverter motor special?
A: The inverter motor ensures variable speed control, allowing you to adjust cutting speed for optimal results on different materials.

Q: Is it easy to switch between wood and metal cutting?
A: Yes, the adjustable speed and robust construction make it easy to transition between cutting wood and metal with precision.

Q: What additional features does this bandsaw offer?
A: It includes adjustable blade guides, quick tension release, and a heavy-duty cast-iron frame for enhanced durability and stability.

Q: Why choose the Grizzly 17" 2 HP Metal/Wood Bandsaw?
A: Its versatility, powerful inverter motor, and robust build make it an excellent choice for professionals who need a bandsaw for both metal and wood cutting.

Maintenance Tips

• Blade Tension and Tracking: Regularly check and adjust blade tension and tracking for accurate, smooth cuts.
• Clean the Blade and Wheels: Remove metal shavings, wood debris, and dust from the blade, wheels, and guides after each use.
• Lubricate Moving Parts: Apply lubrication to the bearings, guides, and other moving parts to reduce friction and wear.
• Inspect the Inverter Motor: Check for dust buildup around the inverter motor and ensure proper ventilation to avoid overheating.
• Dust Collection System: Keep the dust collection system clean and unclogged for optimal performance.
• Belt and Pulley Check: Inspect belts and pulleys for signs of wear and replace them when needed.
